◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11684 - FSR LHD EUROPE EURO6 SPACECAB EVSC ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#161709) — 105 parça

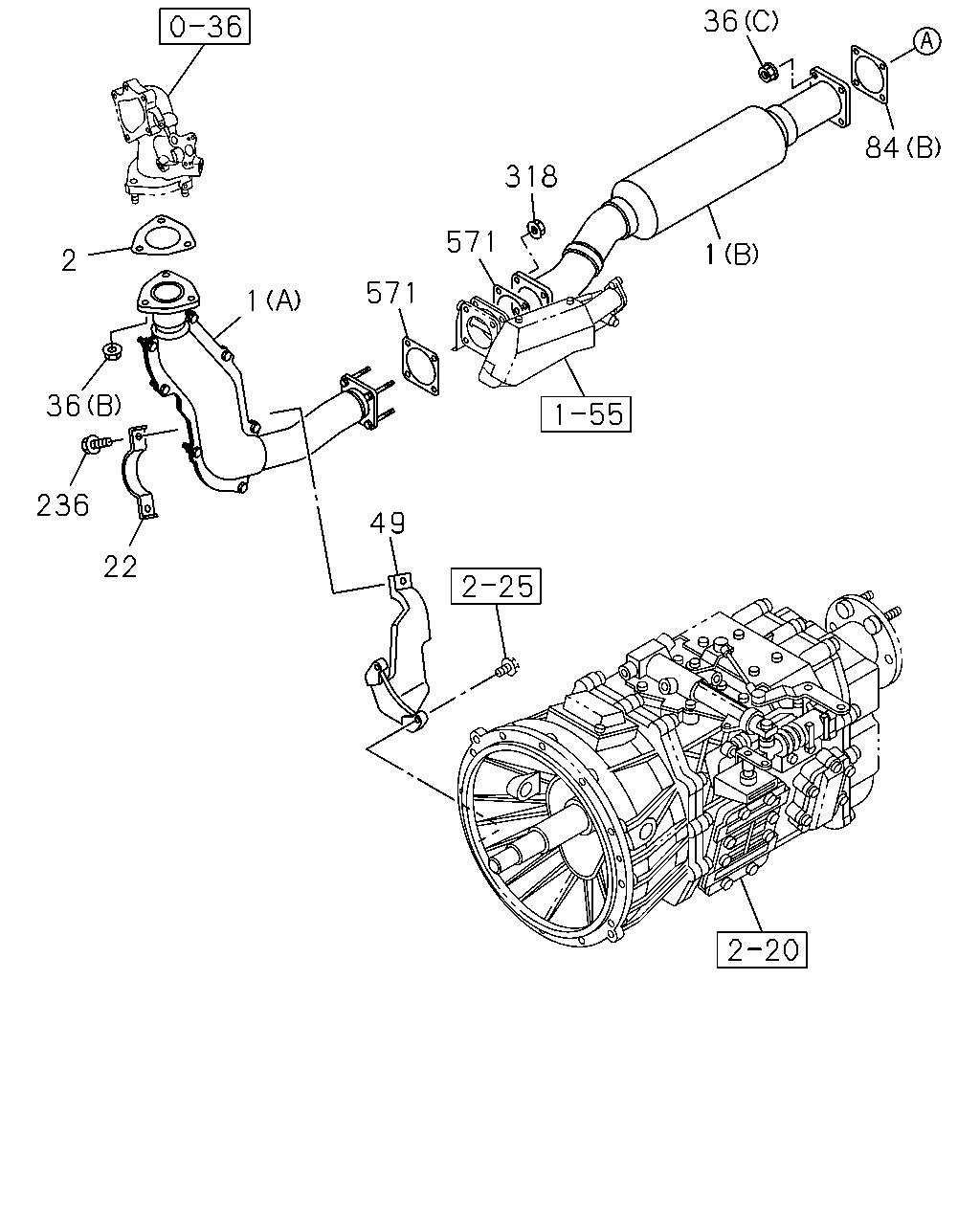

çizim 475396
2 1 571 571 318 1 36 84 49 22 236 36
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(B) 		8-98229-236-0 01 1 1505-
1 PIPE; EXH
(A) 		8-98252-498-0 01 1 1505-
1 PIPE; EXH
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) (C) 		8-98229-233-0 01 1 1505-
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=77.5 		8-98159-745-0 01 1 1505-
22 CLAMP; EXH PIPE 8-98147-597-1 01 1 1505-
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 03 1 1505-
36 NUT; EXH PIPE
(C) M8 W/LK WASHER 		8-97581-234-0 04 1 1505-
36 NUT; EXH PIPE
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) (A) M8 FLANGE 		0-91180-108-0 04 1 1505-
49 BRACKET; EXH PIPE TO TRANS
SMOOTHER-FX(TYPE2)(8NS) 		8-98147-599-0 01 1 1505-
49 BRACKET; EXH PIPE TO TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98147-598-0 01 1 1505-
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 1505-
84 GASKET; EXH PIPE
(B) ID=64 		8-97373-108-0 02 1 1505-
84 GASKET; EXH PIPE
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) (B) ID=64 		8-97373-108-0 01 1 1505-
236 BOLT; PIPE CLAMP TO BRKT
M10X30 FLANGE 		0-28051-030-0 02 1 1505-
318 NUT; EXH PIPE,FRT
M8 W/LK WASHER 		8-97581-234-0 04 1 1505-
571 GASKET
ID=64 		8-97373-108-0 02 1 1505-
çizim 476052
5 262 81 81 60 107 226 81 56 70 121 226 62 60 104 70 17 84 126 17 272 107 542 81 226 62 81 60 226 121 44 81 70 44 121 226 62 56 60 81 56 52 62 226 60 70 52 52 44 56 226 121 81 84 44 226 506 52 555 562 84 1 36
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(B) 		8-98229-236-0 01 1 1505-
1 PIPE; EXH
(A) 		8-98252-498-0 01 1 1505-
1 PIPE; EXH
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) (C) 		8-98229-233-0 01 1 1505-
5 PROTECTOR; HEAT 8-98236-295-0 01 1 1505-
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 1505-
17 BOLT; EXH PIPE
(B) M8X65 FLANGE 		1-09044-072-1 04 1 1505-
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 03 1 1505-
36 NUT; EXH PIPE
(C) M8 W/LK WASHER 		8-97581-234-0 04 1 1505-
36 NUT; EXH PIPE
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) (A) M8 FLANGE 		0-91180-108-0 04 1 1505-
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 09 1 1505-
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 07 1 1505-
52 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 04 1 1505-
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98203-966-0 01 1 1505-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98228-981-0 01 1 1505-
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98229-042-0 01 1 1505-
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98229-237-0 01 1 1505-
60 BRACKET; FRAME TO BRKT
(A) 		8-98159-854-0 01 1 1505-
60 BRACKET; FRAME TO BRKT
(D) 		8-98159-985-0 01 1 1505-
60 BRACKET; FRAME TO BRKT
(B) 		8-98223-954-0 01 1 1505-
60 BRACKET; FRAME TO BRKT
(E) 		8-98228-982-0 01 1 1505-
60 BRACKET; FRAME TO BRKT
(C) 		8-98229-041-0 01 1 1505-
62 TUBE; DIST,BRKT 8-98131-254-0 04 1 1505-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 03 1 1505-
70 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1505-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 1505-
81 NUT; BRKT
WHEEL BASE 3700MM(37W) M10 FLANGE 		0-91180-210-0 06 1 1507-
81 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) M10 FLANGE 		0-91180-210-0 04 1 1505-
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 1505-
84 GASKET; EXH PIPE
(B) ID=64 		8-97373-108-0 02 1 1505-
84 GASKET; EXH PIPE
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) (B) ID=64 		8-97373-108-0 01 1 1505-
104 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1505-
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 06 1 1505-
121 WASHER; PL,BRKT
ID=10.5 OD=70 		8-97625-671-0 04 1 1505-
126 PIPE; EXH,RR 8-98224-713-0 01 1 1505-
226 RUBBER; CUSHION 8-97625-670-0 08 1 1505-
262 BOLT; HANGER TO BODY
M8X25 W/LK&PL WASHER 		1-09980-548-0 04 1 1505-
272 NUT; FLANGE
(B) M8 FLANGE 		0-91180-108-0 18 1 1505-
272 NUT; FLANGE
(A) M12 FLANGE 		0-91180-212-0 03 1 1505-
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 1505-
542 BRACKET
(B) 		8-98232-788-0 01 1 1505-
542 BRACKET
(A) 		8-98236-728-0 01 1 1505-
555 PIPE; EXH,DPD 8-98224-353-0 01 1 1505-
562 PLATE; STUD,BOLT
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) 		8-97373-966-0 02 1 1505-

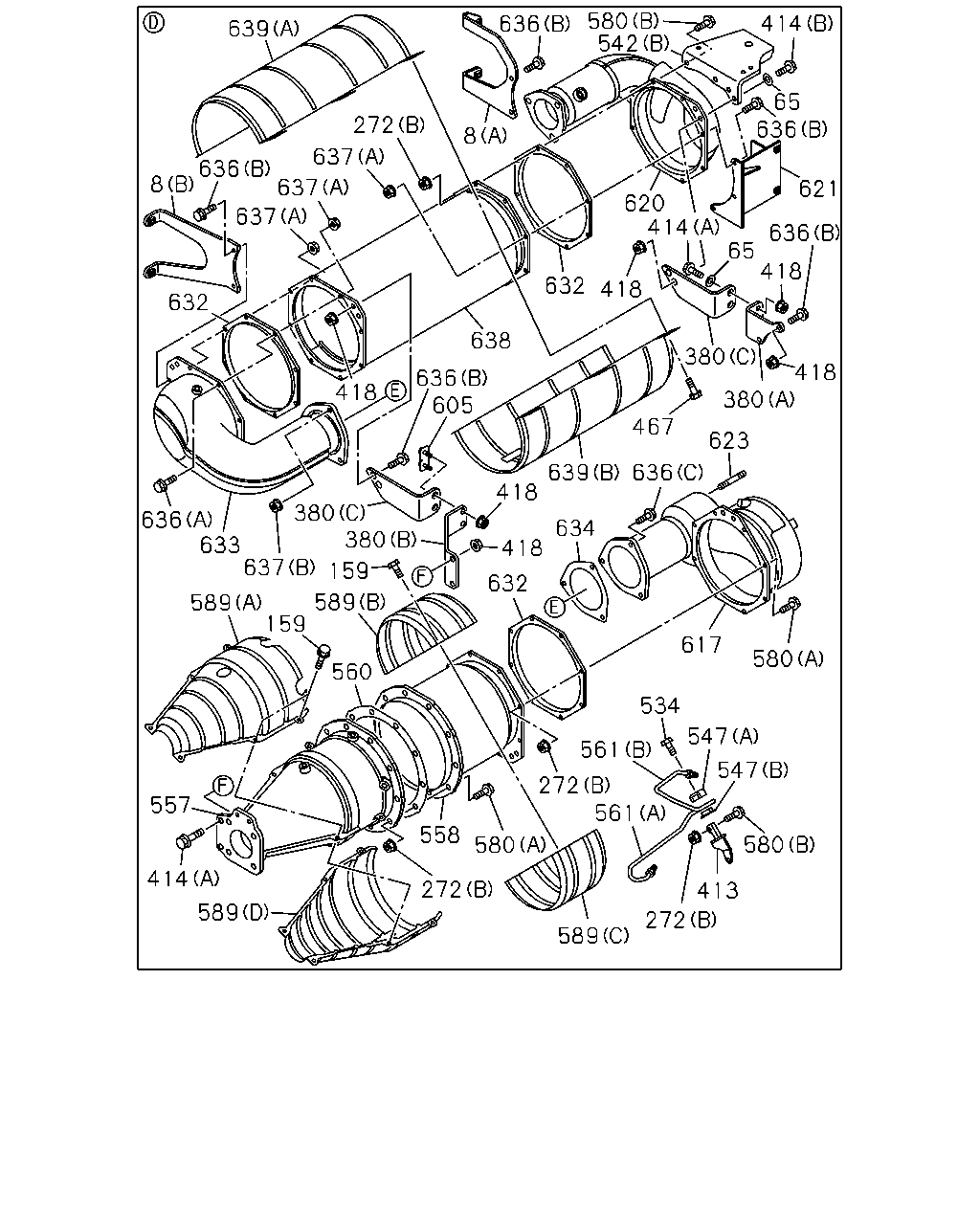

çizim 477123
639 272 637 637 636 8 637 632 418 636 605 380 637 633 636 589 159 560 557 414 589 272 558 580 272 561 561 589 272 413 580 547 547 534 617 580 632 418 418 634 589 159 380 639 636 467 623 380 380 418 418 65 636 638 632 418 414 620 621 636 65 414 580 542 636 8
BalonParca AdiParca NoAdetTipApplied Date
8 BRACKET; EXH PIPE
(A) 		8-98144-459-0 01 1 1505-
8 BRACKET; EXH PIPE
(B) 		8-98203-726-0 01 1 1505-
65 WASHER; PL
ID=10.5 OD=22 		0-91614-610-0 06 1 1505-
159 BOLT; HEAT PROTECTOR
M6X16 		8-98019-179-0 10 1 1505-
272 NUT; FLANGE
(B) M8 FLANGE 		0-91180-108-0 18 1 1505-
272 NUT; FLANGE
(A) M12 FLANGE 		0-91180-212-0 03 1 1505-
380 BRACKET; STAY
(A) 		8-98118-879-0 01 1 1505-
380 BRACKET; STAY
(C) 		8-98138-457-1 02 1 1505-
380 BRACKET; STAY
(B) 		8-98205-012-0 01 1 1505-
413 BRACKET; EXH PIPE,CONN 8-98138-485-0 01 1 1505-
414 BOLT; BRKT
(A) M10X35 FLANGE 		0-28051-035-0 06 1 1505-
414 BOLT; BRKT
(B) M10X45 FLANGE 		0-28051-045-0 02 1 1505-
418 NUT; BRKT
M10 FLANGE 		0-91180-110-0 10 1 1505-
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 06 1 1505-
534 BOLT; CLIP
M6X30 FLANGE 		0-28050-630-0 01 1 1505-
542 BRACKET
(B) 		8-98232-788-0 01 1 1505-
542 BRACKET
(A) 		8-98236-728-0 01 1 1505-
547 CLIP; PIPE
(A) 		8-97381-635-0 01 1 1505-
547 CLIP; PIPE
(B) 		8-97381-636-0 01 1 1505-
557 CATALYST ASM 8-98204-940-1 01 1 1505-
558 FILTER ASM 8-98204-942-0 01 1 1505-
560 GASKET; DPD 8-97611-080-0 01 1 1505-
561 PIPE; DPD
(A) 		8-98138-575-0 01 1 1505-
561 PIPE; DPD
(B) 		8-98138-576-0 01 1 1505-
580 BOLT; FLANGE
(A) M8X30 FLANGE 		0-28050-830-0 14 1 1505-
580 BOLT; FLANGE
(B) M8X40 FLANGE 		0-28050-840-0 04 1 1505-
589 PROTECTOR; HEAT,DPD
(A) 		8-97611-086-0 01 1 1505-
589 PROTECTOR; HEAT,DPD
(B) 		8-97628-261-0 01 1 1505-
589 PROTECTOR; HEAT,DPD
(C) 		8-97628-262-0 01 1 1505-
589 PROTECTOR; HEAT,DPD
(D) 		8-98140-713-0 01 1 1505-
605 PLATE; NUT 8-98148-511-0 01 1 1505-
617 CHAMBER SUB ASM; MIXER 8-98204-944-1 01 1 1505-
620 CHAMBER ASM; RR 8-98205-011-0 01 1 1505-
621 BRACKET; PROTECTOR 8-98159-190-1 01 1 1505-
623 STUD; FLANGE
M6 		8-98141-351-0 03 1 1505-
632 GASKET; FILTER,DEF 8-97628-257-0 03 1 1505-
633 CHAMBER SUB ASM; DEF,FRONT 8-98138-451-0 01 1 1505-
634 GASKET; MIXER 8-98118-422-1 01 1 1505-
636 BOLT; FLANGE,DEF FRONT
(A) M8X30 FLANGE 		0-28050-830-0 07 1 1505-
636 BOLT; FLANGE,DEF FRONT
(B) M8X40 FLANGE 		0-28050-840-0 09 1 1505-
636 BOLT; FLANGE,DEF FRONT
(C) M10X40 FLANGE 		0-28051-040-0 03 1 1505-
637 NUT; FLANGE,DEF FRONT
(A) M8 FLANGE 		0-91180-108-0 15 1 1505-
637 NUT; FLANGE,DEF FRONT
(B) M10 FLANGE 		0-91180-110-0 03 1 1505-
638 CATALYST ASM; DEF 8-98205-010-0 01 1 1505-
639 PROTECTOR; HEAT,CATALYST ASM DEF
(A) 		8-98136-188-0 01 1 1505-
639 PROTECTOR; HEAT,CATALYST ASM DEF
(B) 		8-98136-189-1 01 1 1505-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
