Sayfa 1-46 - Isuzu EPC

1-46 — DEF TANK AND PIPING (#161708) — 213 parça

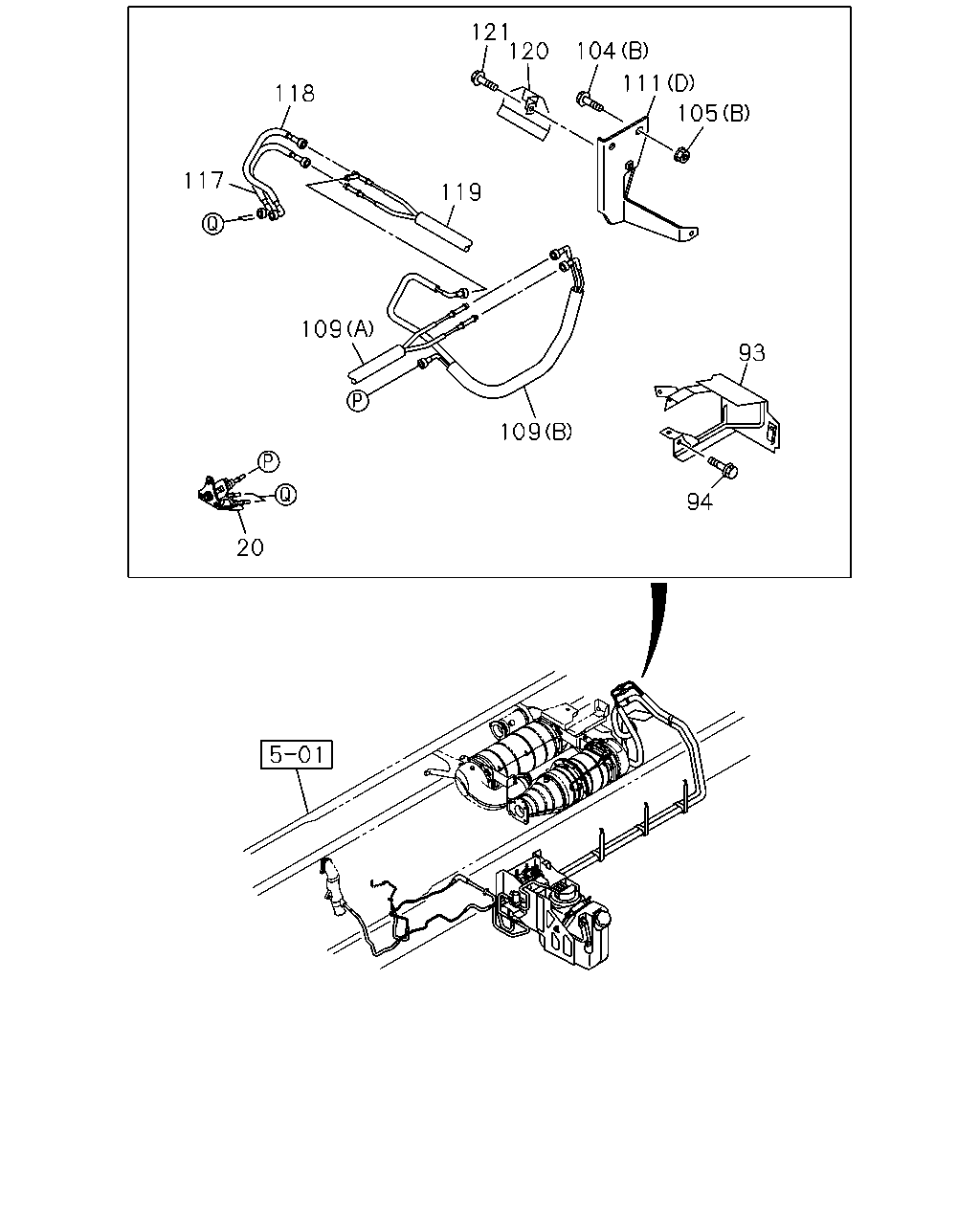

20 109 109 94 93 119 118 117 121 120 104 111 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	INJECTOR ASM; DEF DCM	8-98231-898-2	01	1	1505-
93	PROTECTOR; DEF DCM	8-98166-811-0	01	1	1505-
94	BOLT; PROTECTOR,DEF DCM M8X25 FLANGE	0-28650-825-0	02	1	1505-
104	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1505-
104	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1505-
104	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1505-
104	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	1505-
104	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	1505-
104	BOLT; BRKT WHEEL BASE 3700MM(37W) (B) M10X30 FLANGE	0-28651-030-0	05	1	1507-1507
104	BOLT; BRKT WHEEL BASE 3700MM(37W) (B) M10X30 FLANGE	0-28651-030-0	06	1	1507-
104	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) (B) M10X30 FLANGE	0-28651-030-0	09	1	1505-
105	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1505-
105	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1505-1506
105	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	08	1	1507-
105	NUT; BRKT WHEEL BASE 3700MM(37W) (B) M10 FLANGE	0-91180-210-0	05	1	1507-1507
105	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) (B) M10 FLANGE	0-91180-210-0	06	1	1505-1506
109	TUBE ASM; DEF & WATER (C)	8-98233-439-0	01	1	1505-
109	TUBE ASM; DEF & WATER WHEEL BASE 3700MM(37W) (B)	8-98206-719-0	01	1	1507-1508
109	TUBE ASM; DEF & WATER WHEEL BASE 3700MM(37W) (B)	8-98329-859-0	01	1	1509-
109	TUBE ASM; DEF & WATER WHEEL BASE 3700MM(37W) (A)	8-98290-892-0	01	1	1507-1509
109	TUBE ASM; DEF & WATER WHEEL BASE 3700MM(37W) (A)	8-98329-856-0	01	1	1510-
109	TUBE ASM; DEF & WATER WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) (B)	8-98206-720-0	01	1	1505-1508
109	TUBE ASM; DEF & WATER (B)	8-98329-849-0	01	1	1509-
109	TUBE ASM; DEF & WATER WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) (A)	8-98285-008-0	01	1	1505-1509
109	TUBE ASM; DEF & WATER (A)	8-98329-855-0	01	1	1510-
111	BRACKET; CLIP,TUBE ASM (A)	8-98309-774-0	07	1	1505-
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 3700MM(37W) (A)	8-98309-774-0	05	1	1507-1507
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 3700MM(37W) (A)	8-98309-774-0	06	1	1507-
111	BRACKET; CLIP,TUBE ASM (D)	8-98206-700-0	01	1	1505-
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 3700MM(37W) (E)	8-98233-438-0	01	1	1507-
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) (C)	8-98206-696-0	01	1	1505-
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) (B)	8-98285-012-0	02	1	1505-
117	TUBE ASM; DEF DCM COOL DLVY	8-98169-122-0	01	1	1505-
118	TUBE ASM; DEF DCM COOL RTN	8-98169-121-0	01	1	1505-
119	TUBE ASM; DEF COOL & HTR WAT WHEEL BASE 3700MM(37W)	8-98290-893-0	01	1	1507-1509
119	TUBE ASM; DEF COOL & HTR WAT WHEEL BASE 3700MM(37W)	8-98329-857-0	01	1	1510-
119	TUBE ASM; DEF COOL & HTR WAT WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W)	8-98290-646-0	01	1	1505-1509
119	TUBE ASM; DEF COOL & HTR WAT	8-98329-864-0	01	1	1510-
120	PROTECTOR; DEF COOL & HTR WAT TUBE	8-98169-727-0	01	1	1505-
121	BOLT; PROTECTOR M8X20 FLANGE	0-28650-820-0	01	1	1505-

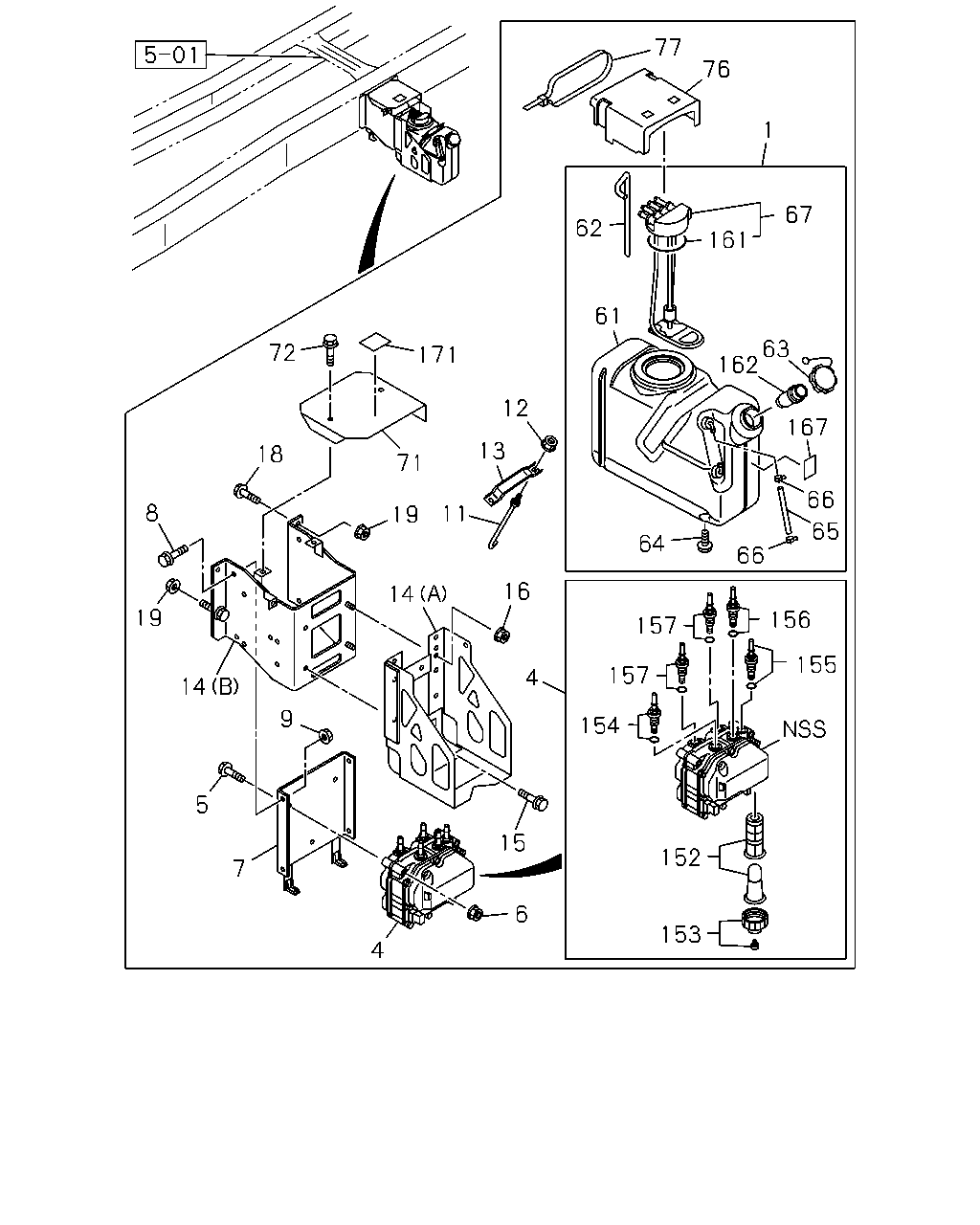

77 76 1 67 161 62 61 162 63 167 66 65 66 64 157 157 154 156 155 152 153 15 6 4 7 5 14 19 8 18 72 171 71 19 14 11 13 12 16 4 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; DEF	8-98239-382-3	01	1	1505-
4	PUMP ASM; DEF,DCM SPLY	8-98268-812-0	01	1	1505-
5	BOLT; PUMP ASM,DEF DCM SPLY M8X90 FLANGE	0-28050-890-0	03	1	1505-
6	NUT; DEF DCM SPLY M8 FLANGE	0-91180-108-0	03	1	1505-
7	BRACKET; DEF DCM SPLY	8-98239-367-0	01	1	1505-
8	BOLT; BRKT,DEF DCM SPLY M8X20 FLANGE	0-28050-820-0	04	1	1505-
9	NUT; BRKT,DEF DCM SPLY M8 FLANGE	0-91180-208-0	04	1	1505-
11	BOLT; DEF TANK	8-98157-936-0	02	1	1505-
12	NUT; DEF TANK M10 FLANGE	0-91180-110-0	02	1	1505-
13	RETAINER; DEF TANK	8-98156-747-0	01	1	1505-
14	BRACKET ASM; DEF TANK (A)	8-98214-590-0	01	1	1505-
14	BRACKET ASM; DEF TANK (B)	8-98239-989-1	01	1	1505-
15	BOLT; BRKT,DEF TANK M10X40 FLANGE	0-28651-040-0	02	1	1505-
16	NUT; BRKT,DEF TANK M10 FLANGE	0-91180-210-0	04	1	1505-
18	BOLT; BRKT,DEF TANK M10X40 FLANGE	0-28651-040-0	02	1	1505-
19	NUT; BRKT,DEF TANK M10 FLANGE	0-91180-210-0	04	1	1505-
61	BODY ASM; DEF TANK	8-98220-878-1	01	1	1505-
62	HOSE; VENT,DEF TANK	8-98239-981-1	01	1	1505-
63	CAP ASM; FILLER,DEF TANK	8-98147-581-1	01	1	1505-
64	PLUG; DRAIN,DEF TANK	8-98120-263-0	01	1	1505-
65	HOSE; WATER LEVEL	8-98120-264-1	01	1	1505-
66	CLAMP; WATER LEVEL HOSE	8-98120-265-1	02	1	1505-
67	SENSOR ASM; DEF TANK	8-98213-926-1	01	1	1505-
71	COVER; DEF DCM SPLY	8-98233-434-0	01	1	1505-
72	BOLT; COVER,DEF DCM SPLY M8X20 FLANGE	0-28650-820-0	02	1	1505-
76	COVER; DEF TANK CAP	8-98156-298-1	01	1	1505-
77	CLIP; DEF TANK CAP CVR L=350	1-09707-183-0	01	1	1505-
152	FILTER KIT; PUMP ASM,DEF DCM SPLY	8-98169-403-0	01	1	1505-
153	COVER KIT; PUMP ASM,DEF DCM SPLY	8-98169-408-0	01	1	1505-
154	CONNECTOR KIT; INLET PUMP,DEF	8-98169-409-0	01	1	1505-
155	CONNECTOR KIT; OUTLET PUMP,DEF	8-98169-411-0	01	1	1505-
156	CONNECTOR KIT; RETURN PUMP,DEF	8-98268-813-0	01	1	1505-
157	CONNECTOR KIT; COOLANT PUMP,DEF	8-98169-414-1	02	1	1505-
161	GASKET; SENSOR ASM,DEF TANK	8-98170-383-0	01	1	1505-
162	ADAPTER; DEF TANK	8-98131-158-0	01	1	1505-
167	PLATE; CAUTION,DEF	8-98231-935-0	01	1	1505-
171	LABEL; NO STEP	8-98158-131-0	01	1	1505-

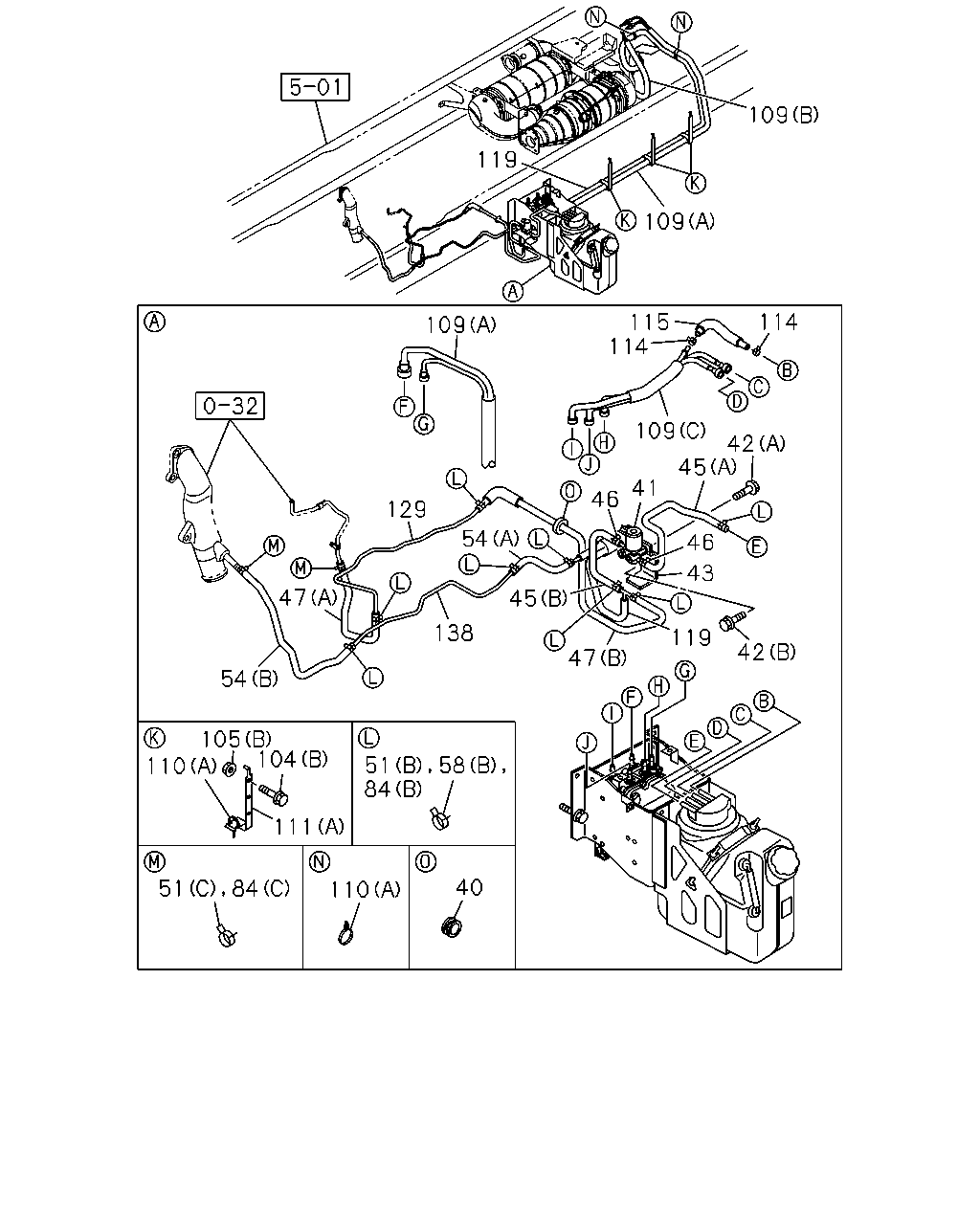

119 109 109 109 114 115 114 42 109 46 45 41 46 43 47 119 42 45 54 138 105 110 104 51 84 110 40 111 84 51 58 47 54 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	GROMMET ID=28 OD=35 T=17	9-09956-256-2	01	1	1505-
41	VALVE ASM; DEF TANK HTR DLVY	8-97628-956-1	01	1	1505-
42	BOLT; DEF RSVR HTR DLVY VLV (A) M8X16 FLANGE	0-28050-816-0	02	1	1505-
42	BOLT; DEF RSVR HTR DLVY VLV (B) M8X25 FLANGE	0-28650-825-0	02	1	1505-
43	BRACKET; DEF RSVR HTR DLVY VLV	8-98206-706-0	01	1	1505-
45	HOSE ASM; DEF TANK HTR DLVY (B)	8-98206-772-0	01	1	1505-
45	HOSE ASM; DEF TANK HTR DLVY (A)	8-98206-773-1	01	1	1505-
46	CLAMP; DEF TANK HTR DLVY ID=16	8-97329-628-0	02	1	1505-
47	HOSE; DEF DCM COOL DLVY (A)	8-98206-774-0	01	1	1505-
47	HOSE; DEF DCM COOL DLVY (B)	8-98245-739-1	01	1	1505-
51	CLIP; DEF DCM MDL COOL DLVY HOSE (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1505-
51	CLIP; DEF DCM MDL COOL DLVY HOSE (B) ID=16	8-97329-628-0	03	1	1505-
51	CLIP; DEF DCM MDL COOL DLVY HOSE (C) ID=16	8-98008-098-0	01	1	1505-
54	HOSE; DEF DCM COOL RTN (A)	8-98233-333-0	01	1	1505-
54	HOSE; DEF DCM COOL RTN (B)	8-98239-523-0	01	1	1505-
58	CLIP; DEF RSVR HTR DLVY HOSE (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1505-
58	CLIP; DEF RSVR HTR DLVY HOSE (B) ID=16	8-97329-628-0	02	1	1505-
84	CLIP; DEF DCM MDL COOL RTN HOSE (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1505-
84	CLIP; DEF DCM MDL COOL RTN HOSE (B) ID=16	8-97329-628-0	03	1	1505-
84	CLIP; DEF DCM MDL COOL RTN HOSE (C) ID=16	8-98008-098-0	01	1	1505-
104	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1505-
104	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1505-
104	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1505-
104	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	1505-
104	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	1505-
104	BOLT; BRKT WHEEL BASE 3700MM(37W) (B) M10X30 FLANGE	0-28651-030-0	05	1	1507-1507
104	BOLT; BRKT WHEEL BASE 3700MM(37W) (B) M10X30 FLANGE	0-28651-030-0	06	1	1507-
104	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) (B) M10X30 FLANGE	0-28651-030-0	09	1	1505-
105	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1505-
105	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1505-1506
105	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	08	1	1507-
105	NUT; BRKT WHEEL BASE 3700MM(37W) (B) M10 FLANGE	0-91180-210-0	05	1	1507-1507
105	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) (B) M10 FLANGE	0-91180-210-0	06	1	1505-1506
109	TUBE ASM; DEF & WATER (C)	8-98233-439-0	01	1	1505-
109	TUBE ASM; DEF & WATER WHEEL BASE 3700MM(37W) (B)	8-98206-719-0	01	1	1507-1508
109	TUBE ASM; DEF & WATER WHEEL BASE 3700MM(37W) (B)	8-98329-859-0	01	1	1509-
109	TUBE ASM; DEF & WATER WHEEL BASE 3700MM(37W) (A)	8-98290-892-0	01	1	1507-1509
109	TUBE ASM; DEF & WATER WHEEL BASE 3700MM(37W) (A)	8-98329-856-0	01	1	1510-
109	TUBE ASM; DEF & WATER WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) (B)	8-98206-720-0	01	1	1505-1508
109	TUBE ASM; DEF & WATER (B)	8-98329-849-0	01	1	1509-
109	TUBE ASM; DEF & WATER WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) (A)	8-98285-008-0	01	1	1505-1509
109	TUBE ASM; DEF & WATER (A)	8-98329-855-0	01	1	1510-
110	CLIP; TUBE ASM (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1505-
110	CLIP; TUBE ASM (B) ID=11 & 13 L=17 & 18	1-09700-748-0	01	1	1505-
110	CLIP; TUBE ASM (C) ID=13 H=18 L=20	1-09700-813-0	01	1	1505-
110	CLIP; TUBE ASM (D) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1505-1508
110	CLIP; TUBE ASM (D) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1509-
110	CLIP; TUBE ASM (A) L=350	1-09707-183-0	03	1	1505-
110	CLIP; TUBE ASM WHEEL BASE 3700MM(37W) (A) L=350	1-09707-183-0	06	1	1507-1507
110	CLIP; TUBE ASM WHEEL BASE 3700MM(37W) (A) L=350	1-09707-183-0	07	1	1507-
110	CLIP; TUBE ASM WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) (A) L=350	1-09707-183-0	08	1	1505-
111	BRACKET; CLIP,TUBE ASM (A)	8-98309-774-0	07	1	1505-
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 3700MM(37W) (A)	8-98309-774-0	05	1	1507-1507
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 3700MM(37W) (A)	8-98309-774-0	06	1	1507-
111	BRACKET; CLIP,TUBE ASM (D)	8-98206-700-0	01	1	1505-
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 3700MM(37W) (E)	8-98233-438-0	01	1	1507-
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) (C)	8-98206-696-0	01	1	1505-
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) (B)	8-98285-012-0	02	1	1505-
114	CLIP; HOSE ID=16	8-97329-628-0	02	1	1505-
115	HOSE; DEF TANK HTR RTN	8-98237-190-0	01	1	1505-
119	TUBE ASM; DEF COOL & HTR WAT WHEEL BASE 3700MM(37W)	8-98290-893-0	01	1	1507-1509
119	TUBE ASM; DEF COOL & HTR WAT WHEEL BASE 3700MM(37W)	8-98329-857-0	01	1	1510-
119	TUBE ASM; DEF COOL & HTR WAT WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W)	8-98290-646-0	01	1	1505-1509
119	TUBE ASM; DEF COOL & HTR WAT	8-98329-864-0	01	1	1510-
129	PIPE ASM; DEF DCM COOL DLVY	8-98245-736-0	01	1	1505-
138	PIPE ASM; DEF DCM COOL RTN	8-98233-324-0	01	1	1505-

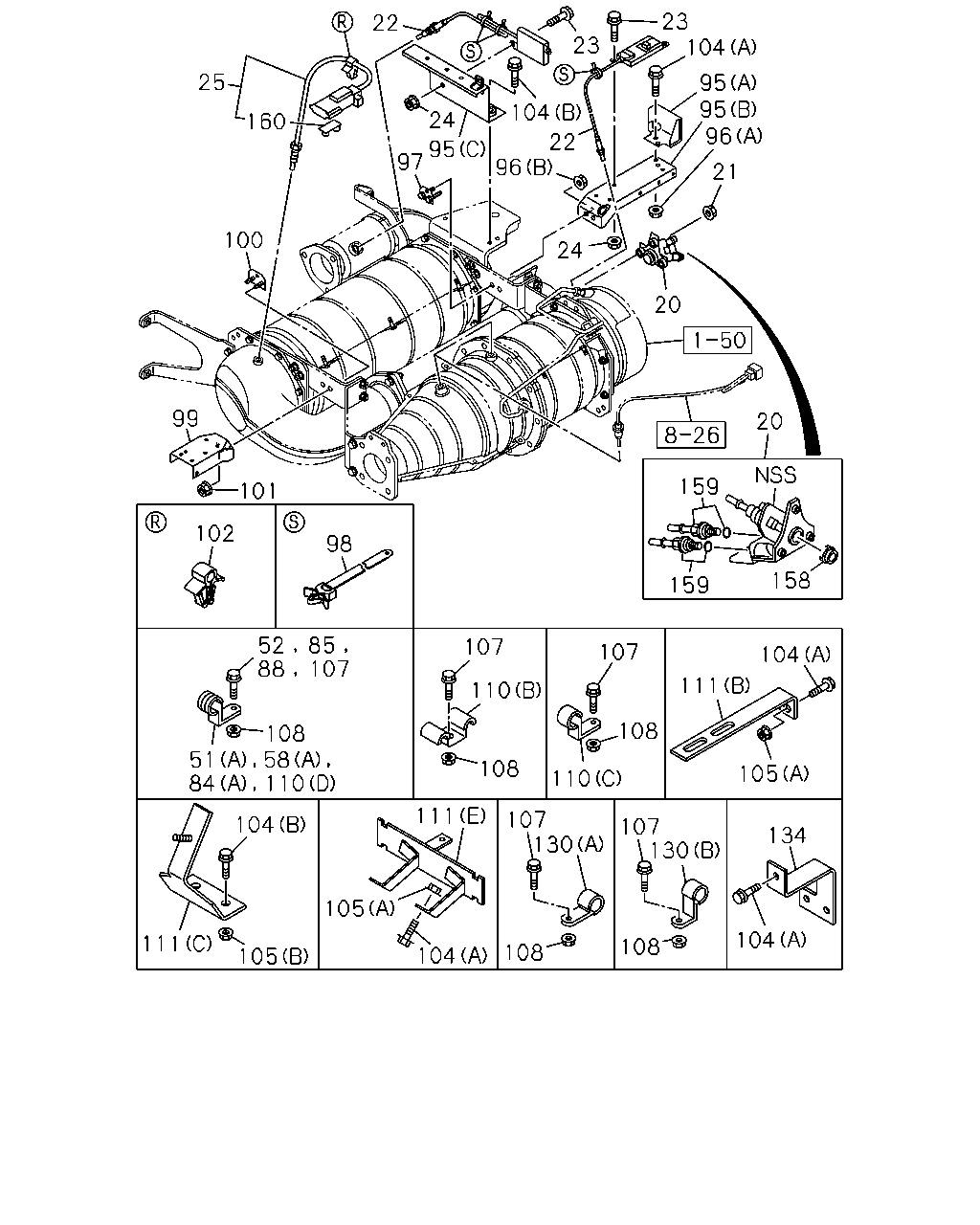

23 95 104 95 21 96 23 104 96 95 24 97 22 160 25 100 99 101 102 98 85 52 88 108 58 107 107 110 107 108 110 111 105 104 158 159 159 20 134 104 108 130 107 130 107 111 108 108 104 105 105 111 104 110 84 51 24 20 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	INJECTOR ASM; DEF DCM	8-98231-898-2	01	1	1505-
21	NUT; INJECTOR ASM,DEF DCM M6 FLANGE	0-91180-106-0	03	1	1505-
22	SENSOR; DEF DCM EXH NOX	8-98302-394-0	02	1	1505-
23	BOLT; SENSOR,DEF DCM EXH NOX	8-98155-181-0	04	1	1505-
24	NUT; SENSOR,DEF DCM EXH NOX M6 FLANGE	0-91180-106-0	04	1	1505-
25	SENSOR; DEF DCM EXH TEMP	8-98086-329-0	01	1	1505-
51	CLIP; DEF DCM MDL COOL DLVY HOSE (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1505-
51	CLIP; DEF DCM MDL COOL DLVY HOSE (B) ID=16	8-97329-628-0	03	1	1505-
51	CLIP; DEF DCM MDL COOL DLVY HOSE (C) ID=16	8-98008-098-0	01	1	1505-
52	BOLT; DEF DCM MDL COOL DLVY HOSE CLIP M8X12 FLANGE	0-28050-812-0	01	1	1505-
58	CLIP; DEF RSVR HTR DLVY HOSE (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1505-
58	CLIP; DEF RSVR HTR DLVY HOSE (B) ID=16	8-97329-628-0	02	1	1505-
84	CLIP; DEF DCM MDL COOL RTN HOSE (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1505-
84	CLIP; DEF DCM MDL COOL RTN HOSE (B) ID=16	8-97329-628-0	03	1	1505-
84	CLIP; DEF DCM MDL COOL RTN HOSE (C) ID=16	8-98008-098-0	01	1	1505-
85	BOLT/SCREW;DEF DCM MDL COOL RTN HOSE C M8X20 FLANGE	0-28650-820-0	01	1	1505-
88	BOLT; CLIP,DEF RSVR HTR DLVY HOSE M8X25 FLANGE	0-28650-825-0	01	1	1505-
95	BRACKET; HARN,DEF DCM EXH NOX SEN (B)	8-98142-266-3	01	1	1505-
95	BRACKET; HARN,DEF DCM EXH NOX SEN (A)	8-98170-211-0	01	1	1505-
95	BRACKET; HARN,DEF DCM EXH NOX SEN (C)	8-98241-870-0	01	1	1505-
96	NUT; BRACKET,DEF DCM EXH NOX SEN HARN (A) M8 FLANGE	0-91180-108-0	02	1	1505-
96	NUT; BRACKET,DEF DCM EXH NOX SEN HARN (B) M10 FLANGE	0-91180-210-0	02	1	1505-
97	STUD; BRACKET,DEF DCM EXH NOX SEN HARN	8-98005-985-0	01	1	1505-
98	CLIP; DEF DCM EXH NOX SEN HARN L=112	8-94232-618-0	08	1	1505-
99	BRACKET; DEF DCM EXH TEMP SEN HARN	8-98248-149-0	01	1	1505-
100	BOLT; BRKT,DEF DCM EXH TEMP SEN HARN	8-98005-985-0	01	1	1505-
101	NUT; CLIP,DEF DCM EXH TEMP SEN HARN M10 FLANGE	0-91180-210-0	02	1	1505-
102	CLIP; DEF DCM EXH TEMP SEN HARN ID=4.8	1-09701-218-0	03	1	1505-
104	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1505-
104	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1505-
104	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1505-
104	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	1505-
104	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	1505-
104	BOLT; BRKT WHEEL BASE 3700MM(37W) (B) M10X30 FLANGE	0-28651-030-0	05	1	1507-1507
104	BOLT; BRKT WHEEL BASE 3700MM(37W) (B) M10X30 FLANGE	0-28651-030-0	06	1	1507-
104	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) (B) M10X30 FLANGE	0-28651-030-0	09	1	1505-
105	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1505-
105	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1505-1506
105	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	08	1	1507-
105	NUT; BRKT WHEEL BASE 3700MM(37W) (B) M10 FLANGE	0-91180-210-0	05	1	1507-1507
105	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) (B) M10 FLANGE	0-91180-210-0	06	1	1505-1506
107	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	1505-
107	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1505-
107	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	02	1	1505-
107	BOLT; CLIP WHEEL BASE 3700MM(37W) M8X20 FLANGE	0-28650-820-0	01	1	1507-
108	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	1505-
108	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	1505-
110	CLIP; TUBE ASM (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1505-
110	CLIP; TUBE ASM (B) ID=11 & 13 L=17 & 18	1-09700-748-0	01	1	1505-
110	CLIP; TUBE ASM (C) ID=13 H=18 L=20	1-09700-813-0	01	1	1505-
110	CLIP; TUBE ASM (D) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1505-1508
110	CLIP; TUBE ASM (D) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1509-
110	CLIP; TUBE ASM (A) L=350	1-09707-183-0	03	1	1505-
110	CLIP; TUBE ASM WHEEL BASE 3700MM(37W) (A) L=350	1-09707-183-0	06	1	1507-1507
110	CLIP; TUBE ASM WHEEL BASE 3700MM(37W) (A) L=350	1-09707-183-0	07	1	1507-
110	CLIP; TUBE ASM WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) (A) L=350	1-09707-183-0	08	1	1505-
111	BRACKET; CLIP,TUBE ASM (A)	8-98309-774-0	07	1	1505-
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 3700MM(37W) (A)	8-98309-774-0	05	1	1507-1507
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 3700MM(37W) (A)	8-98309-774-0	06	1	1507-
111	BRACKET; CLIP,TUBE ASM (D)	8-98206-700-0	01	1	1505-
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 3700MM(37W) (E)	8-98233-438-0	01	1	1507-
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) (C)	8-98206-696-0	01	1	1505-
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) (B)	8-98285-012-0	02	1	1505-
130	CLIP; PIPE ASM (A) ID=13 L=20	0-95235-235-0	01	1	1505-
130	CLIP; PIPE ASM (A) ID=13 L=40	0-95235-276-0	01	1	1505-
130	CLIP; PIPE ASM (B) ID=13 H=18 L=20	1-09700-813-0	03	1	1505-
134	BRACKET; PIPE ASM	8-98206-701-0	01	1	1505-
158	GASKET; INJECTOR ASM,DEF DCM	8-98086-333-0	01	1	1505-
159	CONNECTOR KIT; COOLANT,INJECTOR ASM DE	8-98169-416-1	02	1	1505-
160	CLIP; HARNESS,SENSOR DEF DCM EXH TEMP	8-98170-331-0	01	1	1505-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
