Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#161706) — 235 parça

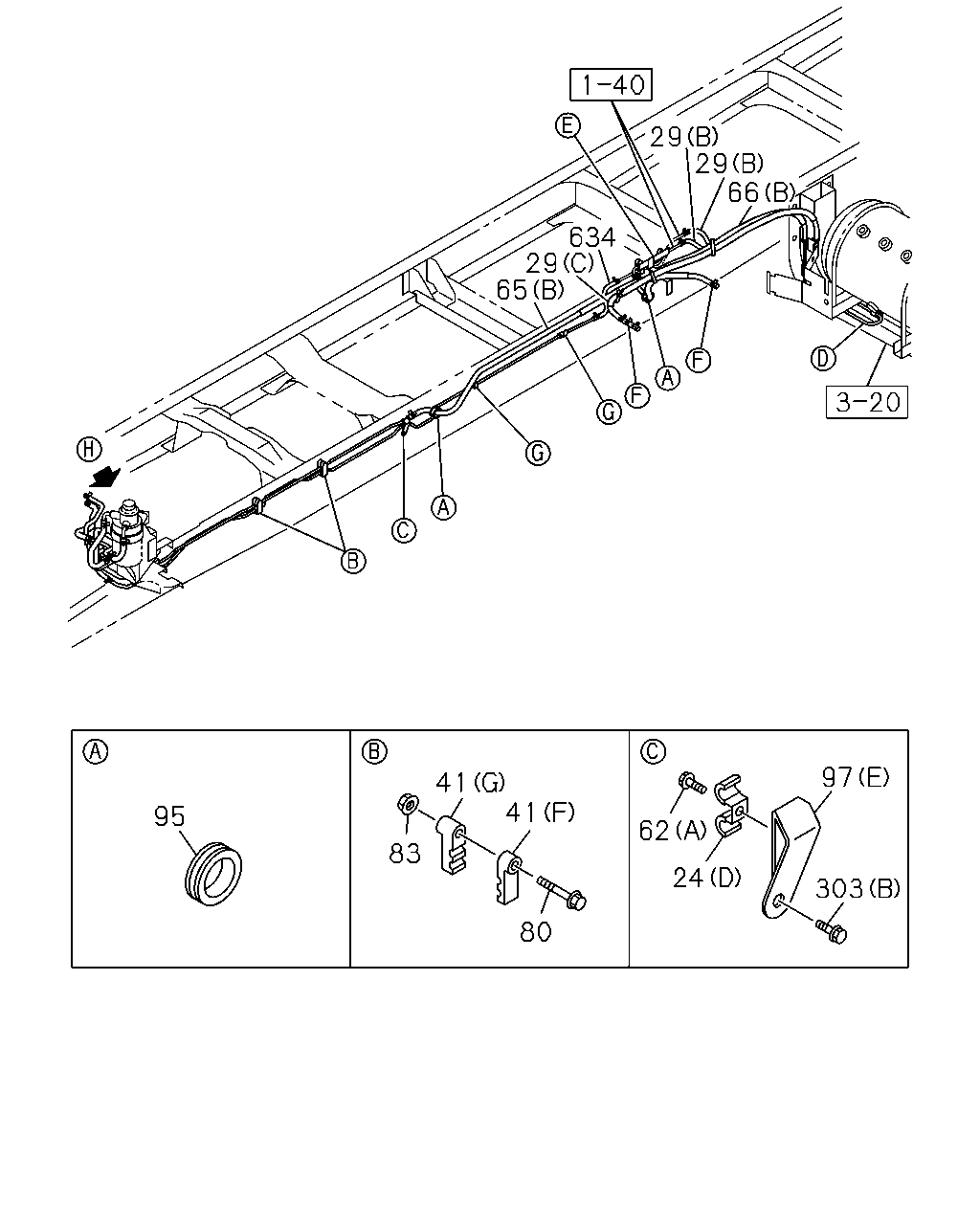

29 29 66 634 29 65 95 41 83 41 80 62 24 97 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE (B)	8-98203-791-0	01	1	1505-
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W) (C) ID=24 & 24 L=49	1-09701-018-0	02	1	1505-
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 5300MM(53W), WHEELBASE 5500MM(55W) (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1505-
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) (A) ID=18-24 L=14.5	1-09709-298-0	01	1	1505-
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) (E) ID=11 H=20 L=20	8-98033-780-0	02	1	1505-
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W), WHEELBASE 5500MM(55W) (C) ID=24 & 24 L=49	1-09701-018-0	01	1	1505-1506
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) (C) ID=24 & 24 L=49	1-09701-018-0	01	1	1507-
29	HOSE; FUEL (A) L=80 SERVICED BY L=3000	0-01558-300-0	01	1	1505-
29	HOSE; FUEL (D)	8-98165-972-0	01	1	1505-
29	HOSE; FUEL (E)	8-98291-065-0	01	1	1505-
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (C)	8-98284-923-0	01	1	1507-
29	HOSE; FUEL WHEEL BASE 4300MM(43W) (C)	8-98284-924-0	01	1	1505-
29	HOSE; FUEL WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (B) L=170 SERVICED BY L=3000	0-01558-300-0	02	1	1505-
29	HOSE; FUEL WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W), WHEELBASE 5500MM(55W) (C)	8-98284-925-0	01	1	1505-
29	HOSE; FUEL WHEEL BASE 5300MM(53W),WHEEL BASE 5500MM(55W) (B) L=210 SERVICED BY L=3000	0-01558-300-0	02	1	1505-1506
29	HOSE; FUEL WHEEL BASE 3700MM(37W),WHEEL BASE 5300MM(53W), WHEELBASE 5500MM(55W) (B) L=210 SERVICED BY L=3000	0-01558-300-0	02	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1505-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1505-
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=10 & 10	1-09709-241-0	02	1	1505-
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=10 & 10	1-09709-243-0	02	1	1505-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1505-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1505-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1505-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	04	1	1505-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	06	1	1505-
62	BOLT; CLIP FIX (B) M8X50 FLANGE	0-28050-850-0	02	1	1505-
62	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	01	1	1505-
62	BOLT; CLIP FIX WHEEL BASE 4300MM(43W),WHEEL BASE 5300MM(53W), WHEELBASE 5500MM(55W) (A) M8X20 FLANGE	0-28650-820-0	01	1	1505-
62	BOLT; CLIP FIX WHEEL BASE 4300MM(43W) (A) M8X30 FLANGE	0-28650-830-0	02	1	1505-
62	BOLT; CLIP FIX WHEEL BASE 4900MM(49W) (A) M8X25 FLANGE	0-28650-825-0	02	1	1505-
62	BOLT; CLIP FIX WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W), WHEELBASE 5500MM(55W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1505-1506
62	BOLT; CLIP FIX WHEEL BASE 3700MM(37W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1507-
65	HOSE; FUEL,DELIVERY PIPE (A) L=280 SERVICED BY L=3000	0-01859-300-0	01	1	1505-
65	HOSE; FUEL,DELIVERY PIPE (B) L=600	8-98234-314-0	01	1	1505-
66	HOSE; FUEL,RETURN PIPE (A) L=230 SERVICED BY L=3000	0-01558-300-0	01	1	1505-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3700MM(37W) (B) L=980	8-98304-399-0	01	1	1507-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4300MM(43W) (B)	8-98284-921-0	01	1	1505-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4900MM(49W) (B) L=630	8-98304-400-0	01	1	1505-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 5300MM(53W),WHEEL BASE 5500MM(55W) (B)	8-98304-401-0	01	1	1505-
80	BOLT; CLIP,FUEL TANK M8X50 FLANGE	0-28050-850-0	02	1	1505-
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	1505-
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	05	1	1505-
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	02	1	1505-
97	BRACKET; CLIP (C)	8-98245-737-0	01	1	1505-
97	BRACKET; CLIP (A)	8-98302-551-0	01	1	1505-
97	BRACKET; CLIP (D)	8-98302-796-0	01	1	1505-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (F)	8-98284-913-0	01	1	1507-
97	BRACKET; CLIP WHEEL BASE 4300MM(43W) (G)	8-98253-212-0	01	1	1505-
97	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 5300MM(53W), WHEELBASE 5500MM(55W) (E)	8-98117-691-0	01	1	1505-
97	BRACKET; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W), WHEELBASE 5500MM(55W) (B)	8-98239-701-0	01	1	1505-
303	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	01	1	1505-
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1505-
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	1505-
303	BOLT; BRKT WHEEL BASE 4900MM(49W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1505-
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 5300MM(53W), WHEELBASE 5500MM(55W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1505-1506
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1507-
634	HOSE; RUBBER RETURN L=140 SERVICED BY L=3000	0-01859-300-0	01	1	1505-

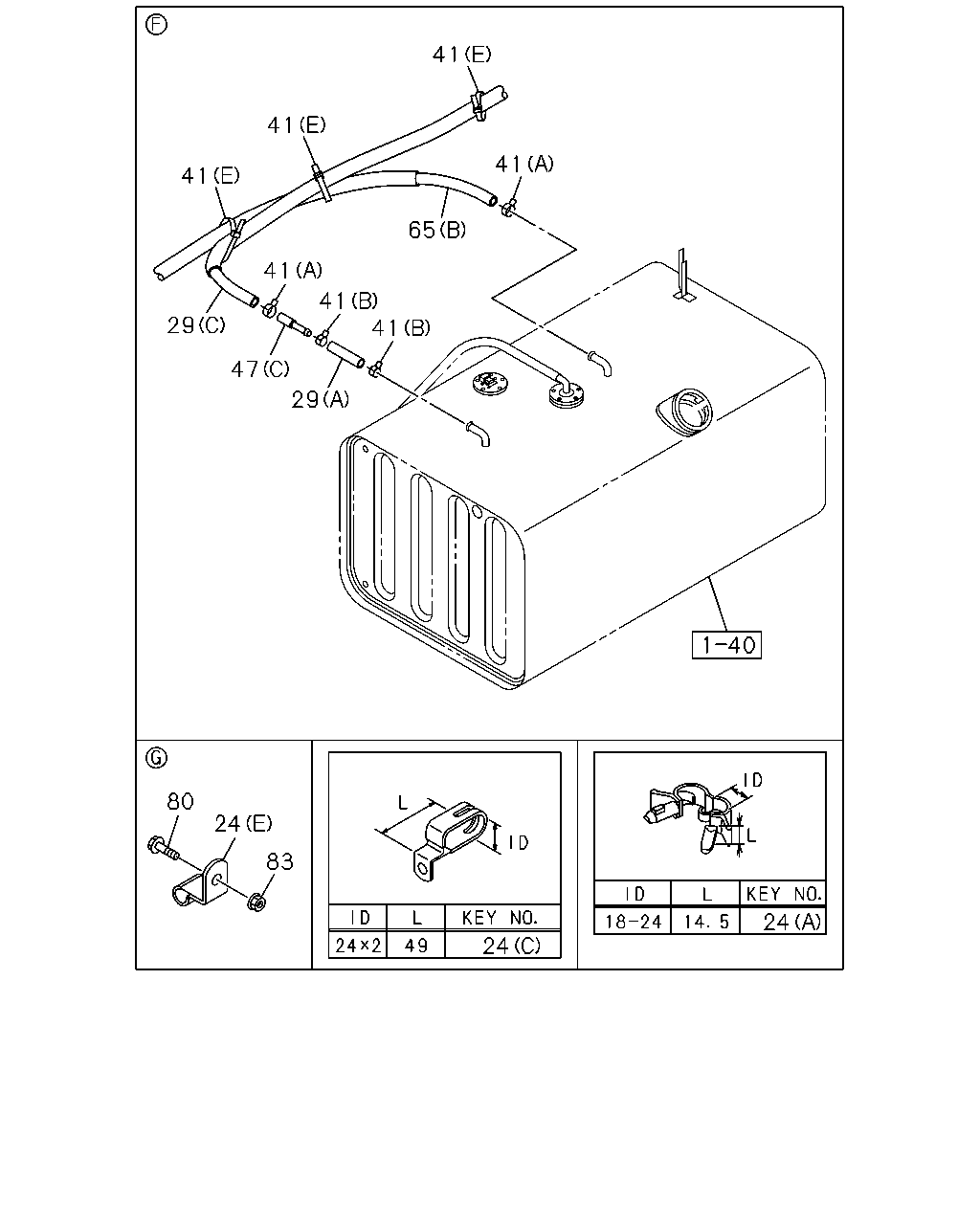

41 41 65 41 41 41 41 41 29 47 29 80 24 83 24 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE (B)	8-98203-791-0	01	1	1505-
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W) (C) ID=24 & 24 L=49	1-09701-018-0	02	1	1505-
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 5300MM(53W), WHEELBASE 5500MM(55W) (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1505-
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) (A) ID=18-24 L=14.5	1-09709-298-0	01	1	1505-
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) (E) ID=11 H=20 L=20	8-98033-780-0	02	1	1505-
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W), WHEELBASE 5500MM(55W) (C) ID=24 & 24 L=49	1-09701-018-0	01	1	1505-1506
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) (C) ID=24 & 24 L=49	1-09701-018-0	01	1	1507-
29	HOSE; FUEL (A) L=80 SERVICED BY L=3000	0-01558-300-0	01	1	1505-
29	HOSE; FUEL (D)	8-98165-972-0	01	1	1505-
29	HOSE; FUEL (E)	8-98291-065-0	01	1	1505-
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (C)	8-98284-923-0	01	1	1507-
29	HOSE; FUEL WHEEL BASE 4300MM(43W) (C)	8-98284-924-0	01	1	1505-
29	HOSE; FUEL WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (B) L=170 SERVICED BY L=3000	0-01558-300-0	02	1	1505-
29	HOSE; FUEL WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W), WHEELBASE 5500MM(55W) (C)	8-98284-925-0	01	1	1505-
29	HOSE; FUEL WHEEL BASE 5300MM(53W),WHEEL BASE 5500MM(55W) (B) L=210 SERVICED BY L=3000	0-01558-300-0	02	1	1505-1506
29	HOSE; FUEL WHEEL BASE 3700MM(37W),WHEEL BASE 5300MM(53W), WHEELBASE 5500MM(55W) (B) L=210 SERVICED BY L=3000	0-01558-300-0	02	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1505-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1505-
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=10 & 10	1-09709-241-0	02	1	1505-
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=10 & 10	1-09709-243-0	02	1	1505-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1505-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1505-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1505-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	04	1	1505-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	06	1	1505-
47	PIPE; FUEL,RETURN WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) (D)	8-98317-339-0	01	1	1505-
47	PIPE; FUEL,RETURN (C)	8-98009-438-1	01	1	1505-
47	PIPE; FUEL,RETURN (B) L=284	8-98209-084-0	01	1	1505-
47	PIPE; FUEL,RETURN (A) L=1539	8-98284-903-0	01	1	1505-
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) (D)	8-98303-948-0	01	1	1507-
65	HOSE; FUEL,DELIVERY PIPE (A) L=280 SERVICED BY L=3000	0-01859-300-0	01	1	1505-
65	HOSE; FUEL,DELIVERY PIPE (B) L=600	8-98234-314-0	01	1	1505-
80	BOLT; CLIP,FUEL TANK M8X50 FLANGE	0-28050-850-0	02	1	1505-
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	1505-
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	05	1	1505-

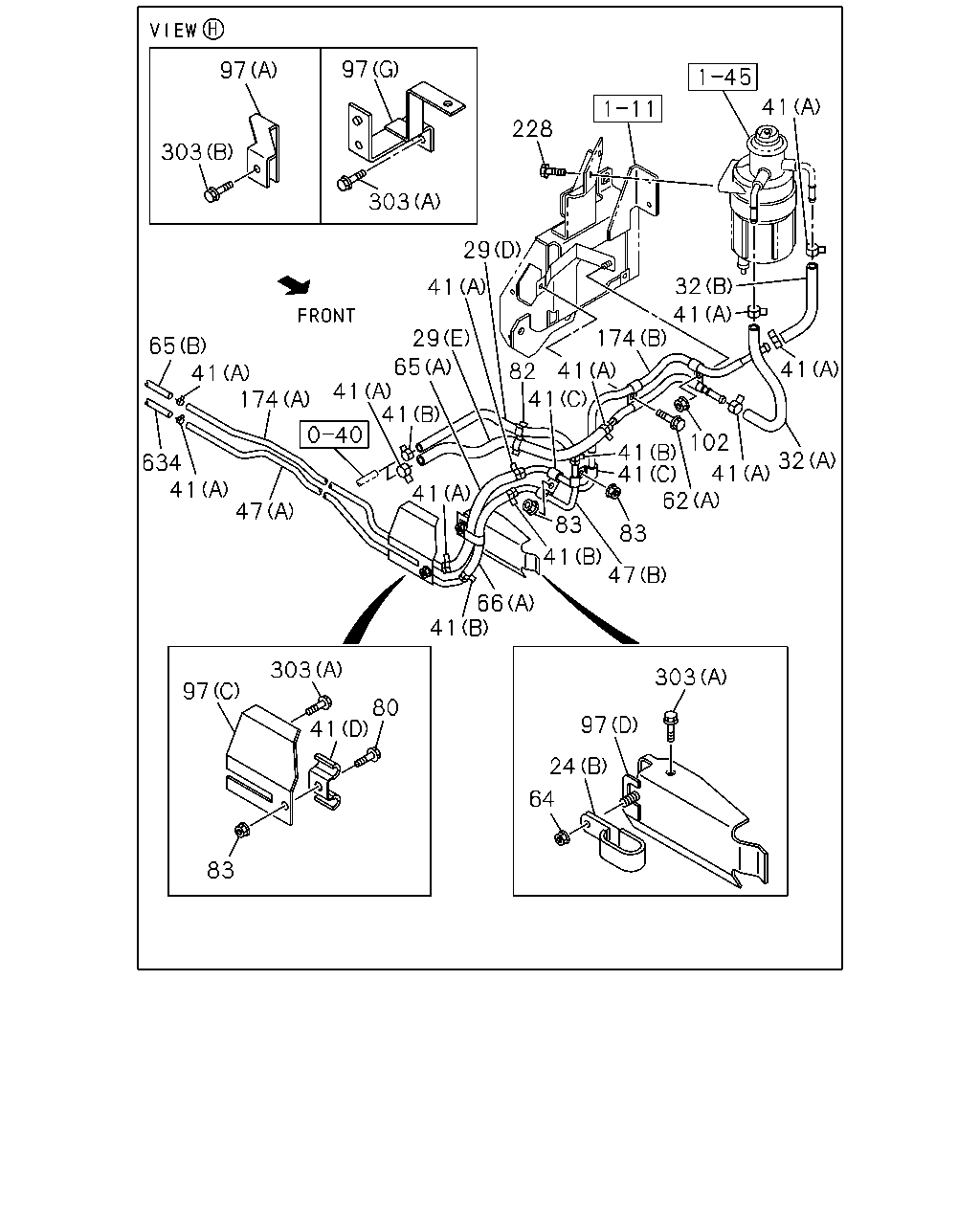

97 97 303 303 228 29 41 29 65 41 41 174 41 65 634 47 41 41 41 66 41 83 83 47 62 41 41 102 41 32 41 32 41 174 41 41 82 41 303 97 24 64 303 41 80 97 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE (B)	8-98203-791-0	01	1	1505-
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W) (C) ID=24 & 24 L=49	1-09701-018-0	02	1	1505-
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 5300MM(53W), WHEELBASE 5500MM(55W) (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1505-
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) (A) ID=18-24 L=14.5	1-09709-298-0	01	1	1505-
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) (E) ID=11 H=20 L=20	8-98033-780-0	02	1	1505-
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W), WHEELBASE 5500MM(55W) (C) ID=24 & 24 L=49	1-09701-018-0	01	1	1505-1506
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) (C) ID=24 & 24 L=49	1-09701-018-0	01	1	1507-
29	HOSE; FUEL (A) L=80 SERVICED BY L=3000	0-01558-300-0	01	1	1505-
29	HOSE; FUEL (D)	8-98165-972-0	01	1	1505-
29	HOSE; FUEL (E)	8-98291-065-0	01	1	1505-
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (C)	8-98284-923-0	01	1	1507-
29	HOSE; FUEL WHEEL BASE 4300MM(43W) (C)	8-98284-924-0	01	1	1505-
29	HOSE; FUEL WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (B) L=170 SERVICED BY L=3000	0-01558-300-0	02	1	1505-
29	HOSE; FUEL WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W), WHEELBASE 5500MM(55W) (C)	8-98284-925-0	01	1	1505-
29	HOSE; FUEL WHEEL BASE 5300MM(53W),WHEEL BASE 5500MM(55W) (B) L=210 SERVICED BY L=3000	0-01558-300-0	02	1	1505-1506
29	HOSE; FUEL WHEEL BASE 3700MM(37W),WHEEL BASE 5300MM(53W), WHEELBASE 5500MM(55W) (B) L=210 SERVICED BY L=3000	0-01558-300-0	02	1	1507-
32	PIPE; DELIVERY,FUEL TANK (B) L=140 SERVICED BY L=3000	0-01859-300-0	01	1	1505-
32	PIPE; DELIVERY,FUEL TANK (A)	8-98204-102-0	01	1	1505-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1505-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1505-
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=10 & 10	1-09709-241-0	02	1	1505-
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=10 & 10	1-09709-243-0	02	1	1505-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1505-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1505-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1505-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	04	1	1505-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	06	1	1505-
47	PIPE; FUEL,RETURN WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) (D)	8-98317-339-0	01	1	1505-
47	PIPE; FUEL,RETURN (C)	8-98009-438-1	01	1	1505-
47	PIPE; FUEL,RETURN (B) L=284	8-98209-084-0	01	1	1505-
47	PIPE; FUEL,RETURN (A) L=1539	8-98284-903-0	01	1	1505-
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) (D)	8-98303-948-0	01	1	1507-
62	BOLT; CLIP FIX (B) M8X50 FLANGE	0-28050-850-0	02	1	1505-
62	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	01	1	1505-
62	BOLT; CLIP FIX WHEEL BASE 4300MM(43W),WHEEL BASE 5300MM(53W), WHEELBASE 5500MM(55W) (A) M8X20 FLANGE	0-28650-820-0	01	1	1505-
62	BOLT; CLIP FIX WHEEL BASE 4300MM(43W) (A) M8X30 FLANGE	0-28650-830-0	02	1	1505-
62	BOLT; CLIP FIX WHEEL BASE 4900MM(49W) (A) M8X25 FLANGE	0-28650-825-0	02	1	1505-
62	BOLT; CLIP FIX WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W), WHEELBASE 5500MM(55W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1505-1506
62	BOLT; CLIP FIX WHEEL BASE 3700MM(37W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1507-
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1505-
64	NUT; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 5300MM(53W), WHEELBASE 5500MM(55W) M8 FLANGE	0-91180-108-0	02	1	1505-1506
64	NUT; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	02	1	1507-
64	NUT; CLIP WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	04	1	1505-
65	HOSE; FUEL,DELIVERY PIPE (A) L=280 SERVICED BY L=3000	0-01859-300-0	01	1	1505-
65	HOSE; FUEL,DELIVERY PIPE (B) L=600	8-98234-314-0	01	1	1505-
66	HOSE; FUEL,RETURN PIPE (A) L=230 SERVICED BY L=3000	0-01558-300-0	01	1	1505-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3700MM(37W) (B) L=980	8-98304-399-0	01	1	1507-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4300MM(43W) (B)	8-98284-921-0	01	1	1505-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4900MM(49W) (B) L=630	8-98304-400-0	01	1	1505-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 5300MM(53W),WHEEL BASE 5500MM(55W) (B)	8-98304-401-0	01	1	1505-
80	BOLT; CLIP,FUEL TANK M8X50 FLANGE	0-28050-850-0	02	1	1505-
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	1505-
82	CLIP; FUEL HOSE ID=13 & 16.5	8-94169-028-0	01	1	1505-
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	05	1	1505-
97	BRACKET; CLIP (C)	8-98245-737-0	01	1	1505-
97	BRACKET; CLIP (A)	8-98302-551-0	01	1	1505-
97	BRACKET; CLIP (D)	8-98302-796-0	01	1	1505-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (F)	8-98284-913-0	01	1	1507-
97	BRACKET; CLIP WHEEL BASE 4300MM(43W) (G)	8-98253-212-0	01	1	1505-
97	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 5300MM(53W), WHEELBASE 5500MM(55W) (E)	8-98117-691-0	01	1	1505-
97	BRACKET; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W), WHEELBASE 5500MM(55W) (B)	8-98239-701-0	01	1	1505-
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	02	1	1505-1506
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	02	1	1507-
102	NUT; CLIP,FUEL PIPE WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	02	1	1507-
102	NUT; CLIP,FUEL PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	01	1	1505-
174	PIPE; FUEL,FEED,FRT (A)	8-98284-902-0	01	1	1505-
174	PIPE; FUEL,FEED,FRT (B)	8-98291-066-0	01	1	1505-
228	BOLT; BRKT,SEDIMENTER M10X20 FLANGE	0-28651-020-0	02	1	1505-
303	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	01	1	1505-
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1505-
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	1505-
303	BOLT; BRKT WHEEL BASE 4900MM(49W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1505-
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 5300MM(53W), WHEELBASE 5500MM(55W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1505-1506
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1507-
634	HOSE; RUBBER RETURN L=140 SERVICED BY L=3000	0-01859-300-0	01	1	1505-

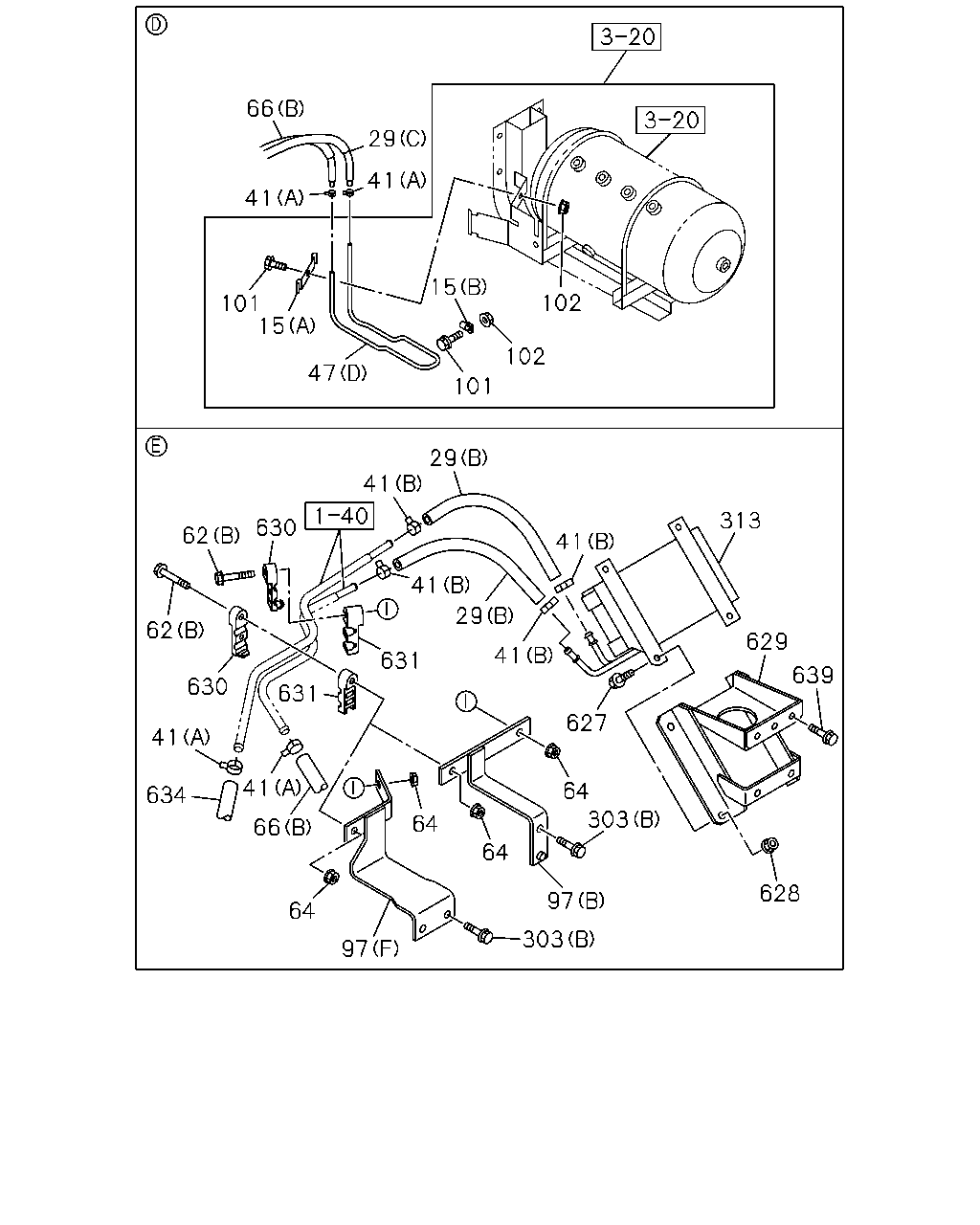

41 41 29 101 47 15 101 102 102 15 41 41 29 41 41 627 313 629 639 628 303 64 97 303 64 64 97 64 66 41 631 631 630 62 62 630 41 634 29 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	CLIP; FUEL PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	1505-
15	CLIP; FUEL PIPE WHEEL BASE 3700MM(37W) (B) ID=11 H=20 L=20	8-98033-780-0	01	1	1507-
29	HOSE; FUEL (A) L=80 SERVICED BY L=3000	0-01558-300-0	01	1	1505-
29	HOSE; FUEL (D)	8-98165-972-0	01	1	1505-
29	HOSE; FUEL (E)	8-98291-065-0	01	1	1505-
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (C)	8-98284-923-0	01	1	1507-
29	HOSE; FUEL WHEEL BASE 4300MM(43W) (C)	8-98284-924-0	01	1	1505-
29	HOSE; FUEL WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) (B) L=170 SERVICED BY L=3000	0-01558-300-0	02	1	1505-
29	HOSE; FUEL WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W), WHEELBASE 5500MM(55W) (C)	8-98284-925-0	01	1	1505-
29	HOSE; FUEL WHEEL BASE 5300MM(53W),WHEEL BASE 5500MM(55W) (B) L=210 SERVICED BY L=3000	0-01558-300-0	02	1	1505-1506
29	HOSE; FUEL WHEEL BASE 3700MM(37W),WHEEL BASE 5300MM(53W), WHEELBASE 5500MM(55W) (B) L=210 SERVICED BY L=3000	0-01558-300-0	02	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1505-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1505-
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=10 & 10	1-09709-241-0	02	1	1505-
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=10 & 10	1-09709-243-0	02	1	1505-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1505-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1505-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1505-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	04	1	1505-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	06	1	1505-
47	PIPE; FUEL,RETURN WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) (D)	8-98317-339-0	01	1	1505-
47	PIPE; FUEL,RETURN (C)	8-98009-438-1	01	1	1505-
47	PIPE; FUEL,RETURN (B) L=284	8-98209-084-0	01	1	1505-
47	PIPE; FUEL,RETURN (A) L=1539	8-98284-903-0	01	1	1505-
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) (D)	8-98303-948-0	01	1	1507-
62	BOLT; CLIP FIX (B) M8X50 FLANGE	0-28050-850-0	02	1	1505-
62	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	01	1	1505-
62	BOLT; CLIP FIX WHEEL BASE 4300MM(43W),WHEEL BASE 5300MM(53W), WHEELBASE 5500MM(55W) (A) M8X20 FLANGE	0-28650-820-0	01	1	1505-
62	BOLT; CLIP FIX WHEEL BASE 4300MM(43W) (A) M8X30 FLANGE	0-28650-830-0	02	1	1505-
62	BOLT; CLIP FIX WHEEL BASE 4900MM(49W) (A) M8X25 FLANGE	0-28650-825-0	02	1	1505-
62	BOLT; CLIP FIX WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W), WHEELBASE 5500MM(55W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1505-1506
62	BOLT; CLIP FIX WHEEL BASE 3700MM(37W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1507-
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1505-
64	NUT; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 5300MM(53W), WHEELBASE 5500MM(55W) M8 FLANGE	0-91180-108-0	02	1	1505-1506
64	NUT; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	02	1	1507-
64	NUT; CLIP WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	04	1	1505-
66	HOSE; FUEL,RETURN PIPE (A) L=230 SERVICED BY L=3000	0-01558-300-0	01	1	1505-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3700MM(37W) (B) L=980	8-98304-399-0	01	1	1507-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4300MM(43W) (B)	8-98284-921-0	01	1	1505-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4900MM(49W) (B) L=630	8-98304-400-0	01	1	1505-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 5300MM(53W),WHEEL BASE 5500MM(55W) (B)	8-98304-401-0	01	1	1505-
97	BRACKET; CLIP (C)	8-98245-737-0	01	1	1505-
97	BRACKET; CLIP (A)	8-98302-551-0	01	1	1505-
97	BRACKET; CLIP (D)	8-98302-796-0	01	1	1505-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (F)	8-98284-913-0	01	1	1507-
97	BRACKET; CLIP WHEEL BASE 4300MM(43W) (G)	8-98253-212-0	01	1	1505-
97	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 5300MM(53W), WHEELBASE 5500MM(55W) (E)	8-98117-691-0	01	1	1505-
97	BRACKET; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W), WHEELBASE 5500MM(55W) (B)	8-98239-701-0	01	1	1505-
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 3700MM(37W) M8X20 FLANGE	0-28650-820-0	02	1	1507-
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) M8X20 FLANGE	0-28650-820-0	01	1	1505-
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	02	1	1505-1506
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	02	1	1507-
102	NUT; CLIP,FUEL PIPE WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	02	1	1507-
102	NUT; CLIP,FUEL PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	01	1	1505-
303	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	01	1	1505-
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1505-
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	1505-
303	BOLT; BRKT WHEEL BASE 4900MM(49W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1505-
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 5300MM(53W), WHEELBASE 5500MM(55W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1505-1506
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1507-
313	COOLER ASM; FUEL	8-98227-679-1	01	1	1505-
627	BOLT; FUEL CLR M6X25 FLANGE	0-28650-625-0	04	1	1505-
628	NUT; FUEL CLR M6 FLANGE	0-91180-106-0	04	1	1505-
629	BRACKET; FUEL CLR	8-98224-320-1	01	1	1505-
630	CLIP; UPR ID=10 & 10	1-09709-241-0	02	1	1505-
631	CLIP; LWR ID=10 & 10	1-09709-243-0	02	1	1505-
634	HOSE; RUBBER RETURN L=140 SERVICED BY L=3000	0-01859-300-0	01	1	1505-
639	BOLT; BRKT,FUEL CLR M10X30 FLANGE	0-28651-030-0	04	1	1505-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
