1-31 — AIR DUCT (#161703) — 62 parça

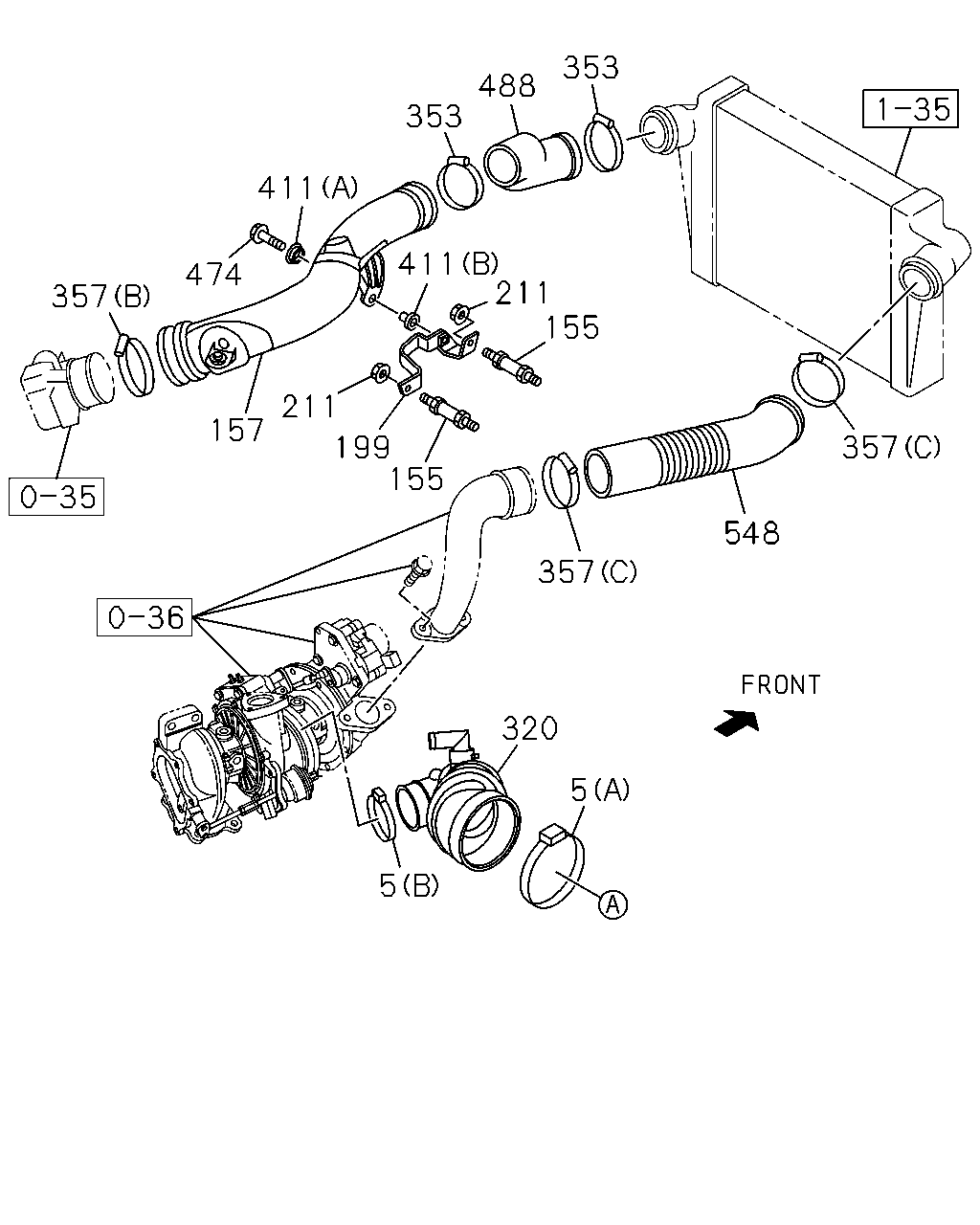

çizim 475346
411 474 357 157 199 211 155 155 211 411 353 488 353 357 548 357 320 5 5
BalonParca AdiParca NoAdetTipApplied Date
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1505-1506
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1507-
5 CLIP; AIR DUCT
(B) ID=75 		8-98206-613-0 01 1 1505-1506
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (B) ID=75 		8-98206-613-0 01 1 1507-
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (B) ID=55-75 		8-98133-349-0 01 1 1507-
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=110-130 		8-98133-359-0 01 1 1507-
155 BOLT; BRKT 8-98165-255-0 02 1 1505-
157 PIPE; AIR 8-98107-744-2 01 1 1505-
199 BRACKET; PIPE 8-98166-709-0 01 1 1505-
211 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1505-
320 HOSE; CONN,ACL 8-98152-296-1 01 1 1505-
353 CLIP; RUBBER HOSE
ID=68-85 		8-98096-592-0 02 1 1505-1506
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=68-85 		8-98096-592-0 02 1 1507-
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=65-85 		8-98133-350-0 02 1 1507-
357 CLIP; RUBBER HOSE
(B) ID=77-99 		1-09707-141-0 01 1 1505-1506
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99 		1-09707-141-0 01 1 1507-
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1505-
357 CLIP; RUBBER HOSE
(C) ID=68-85 		8-98096-592-0 02 1 1505-1506
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (C) ID=68-85 		8-98096-592-0 02 1 1507-
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (C) ID=65-85 		8-98133-350-0 02 1 1507-
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (B) ID=75-95 		8-98133-357-0 01 1 1507-
411 RUBBER; CUSHION
(A) OD=32 		8-94395-766-0 02 1 1505-
411 RUBBER; CUSHION
(B) OD=23 		8-97105-689-6 02 1 1505-
474 BOLT; PIPE
M8X40 FLANGE 		0-28650-840-0 02 1 1505-
488 HOSE; RUBBER,PIPE 8-98230-516-0 01 1 1505-
548 HOSE; RUBBER,TURBO TO INL PIPE 8-98230-515-0 01 1 1505-

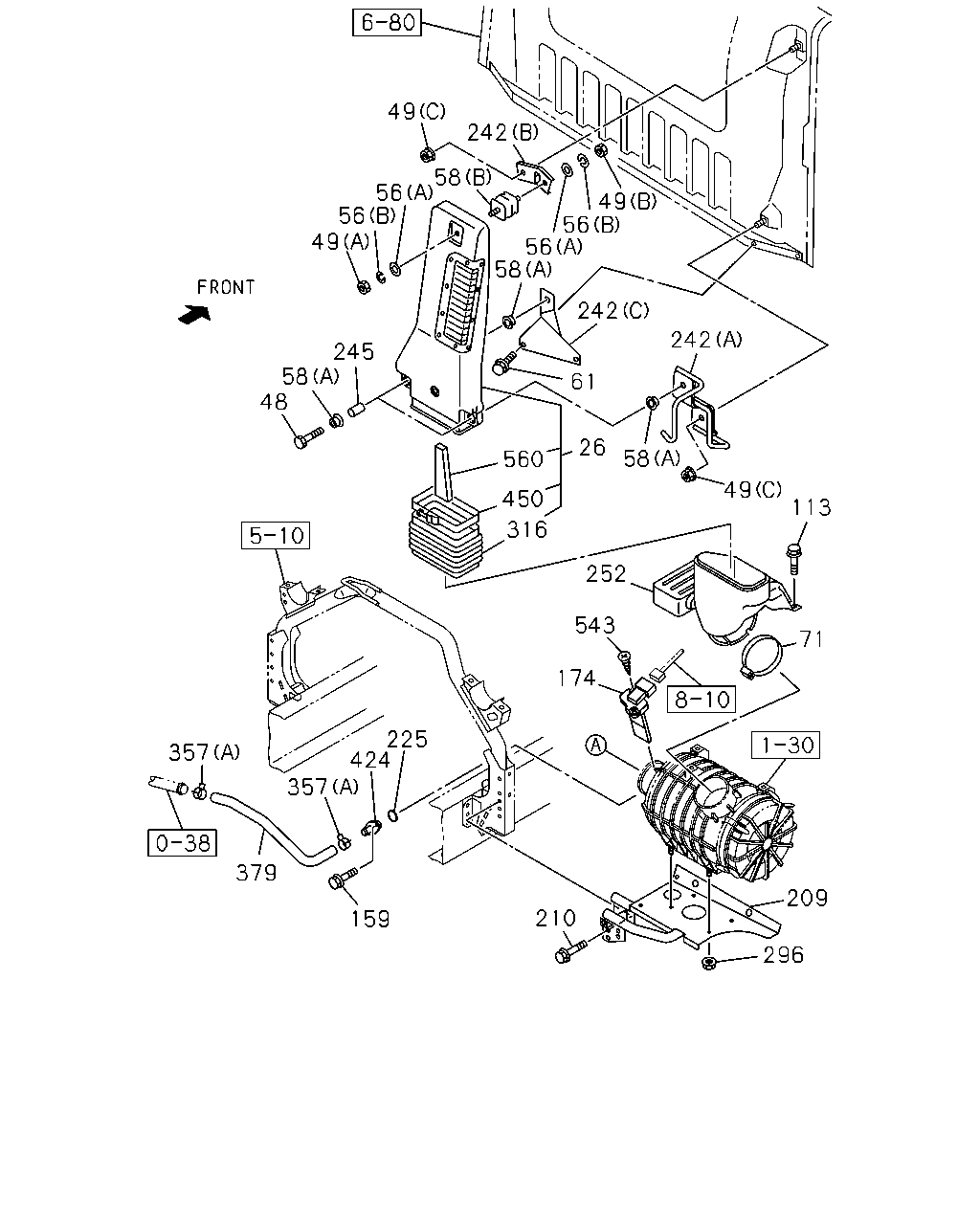

çizim 476569
49 58 56 56 49 245 58 48 357 357 225 424 379 159 242 56 58 242 56 49 242 61 26 560 450 316 58 49 113 252 543 174 71 209 296 210
BalonParca AdiParca NoAdetTipApplied Date
26 DUCT; AIR INT 8-98010-361-2 01 1 1505-
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 1505-
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1505-
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1505-
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 1505-
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1505-
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1505-
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1505-
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1505-
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1505-
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1505-
113 BOLT; RESONATOR
M6X16 W/PL WASHER 		8-98094-071-0 03 1 1505-
159 BOLT; AIR PIPE
M6X16 FLANGE 		0-28050-616-0 02 1 1505-
174 SENSOR; AIR FLOW CONT 8-98113-202-1 01 1 1505-
209 BRACKET; ACL 8-98152-298-0 01 1 1505-
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1505-
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1505-
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1505-
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1505-
242 BRACKET; AIR DUCT
(A) 		8-98238-917-0 01 1 1505-
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1505-
252 DUCT; AIR INT 8-98207-266-0 01 1 1505-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1505-
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1505-
357 CLIP; RUBBER HOSE
(B) ID=77-99 		1-09707-141-0 01 1 1505-1506
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99 		1-09707-141-0 01 1 1507-
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1505-
357 CLIP; RUBBER HOSE
(C) ID=68-85 		8-98096-592-0 02 1 1505-1506
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (C) ID=68-85 		8-98096-592-0 02 1 1507-
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (C) ID=65-85 		8-98133-350-0 02 1 1507-
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (B) ID=75-95 		8-98133-357-0 01 1 1507-
379 HOSE; RUBBER 8-98126-531-0 01 1 1505-
424 PIPE; AIR,INL 8-98081-835-0 01 1 1505-
450 CLAMP; HOSE 9-09915-504-1 01 1 1505-
543 SCREW; SENSOR
M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1505-
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1505-
