Isuzu WW
▶
TRUCKS
▶
FSR
▶
11684 - FSR LHD EUROPE EURO6 SPACECAB EVSC
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#161700) — 82 parça
◀

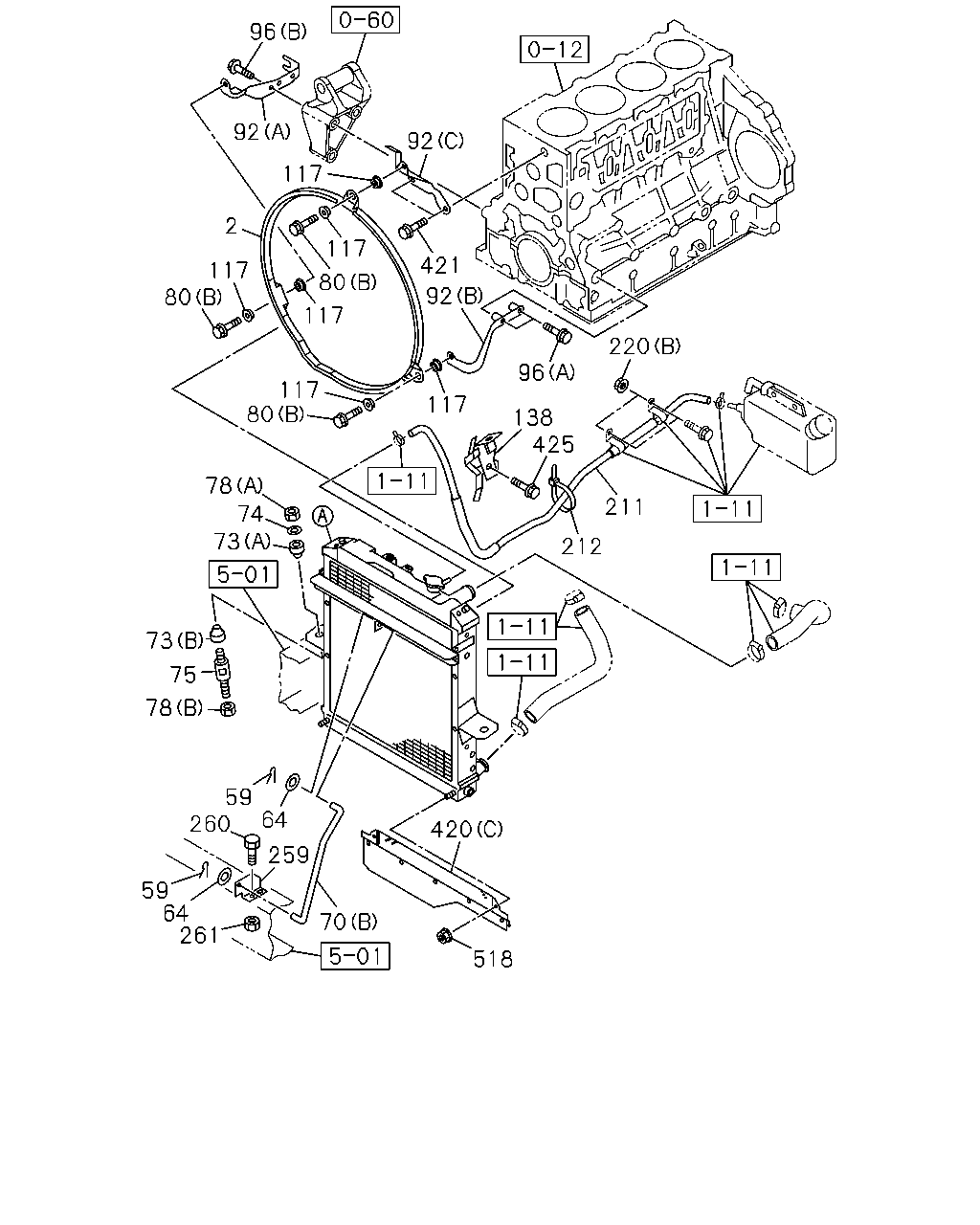

[110A] NO.1 (35 parça)

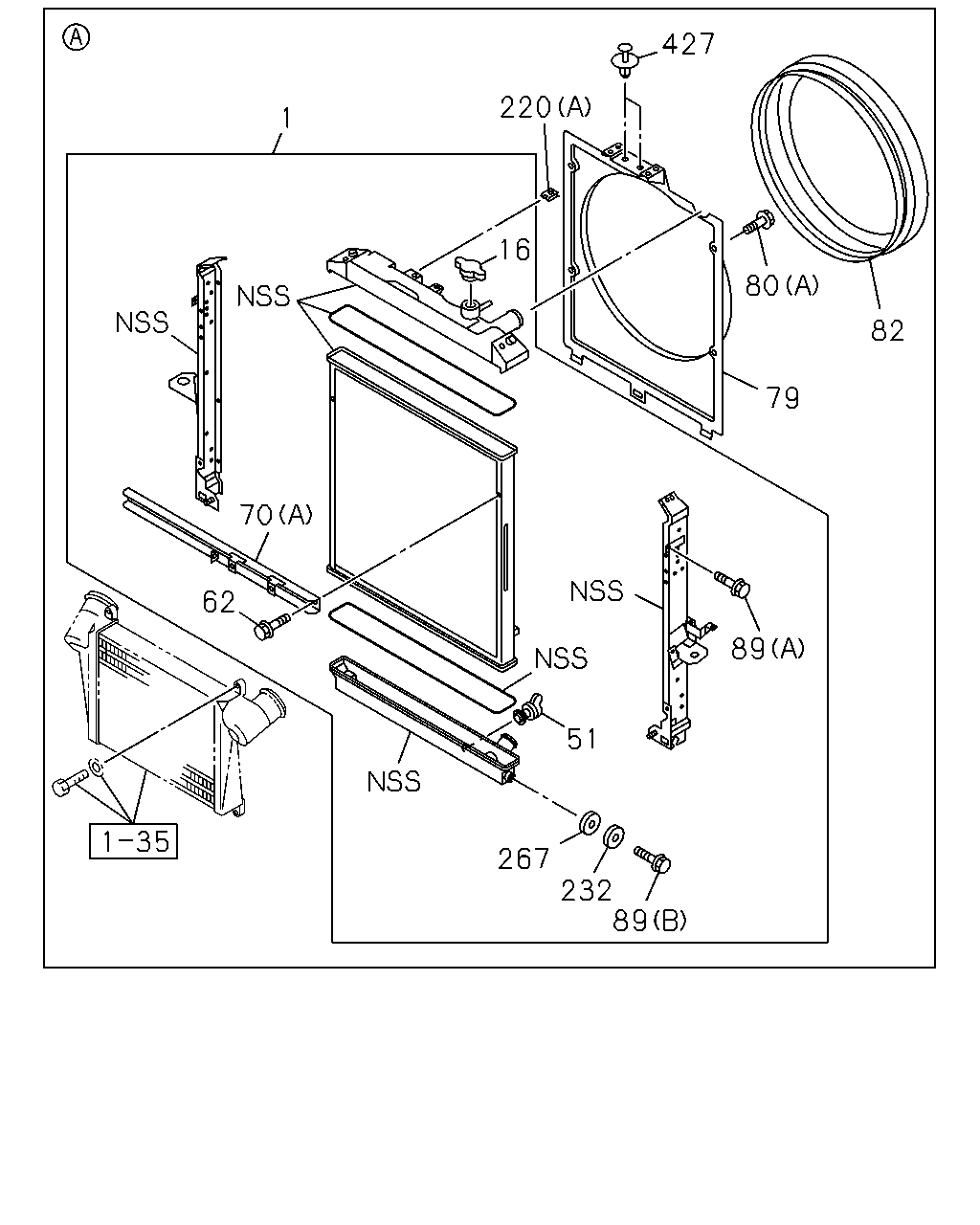

[110A] NO.2 (19 parça)

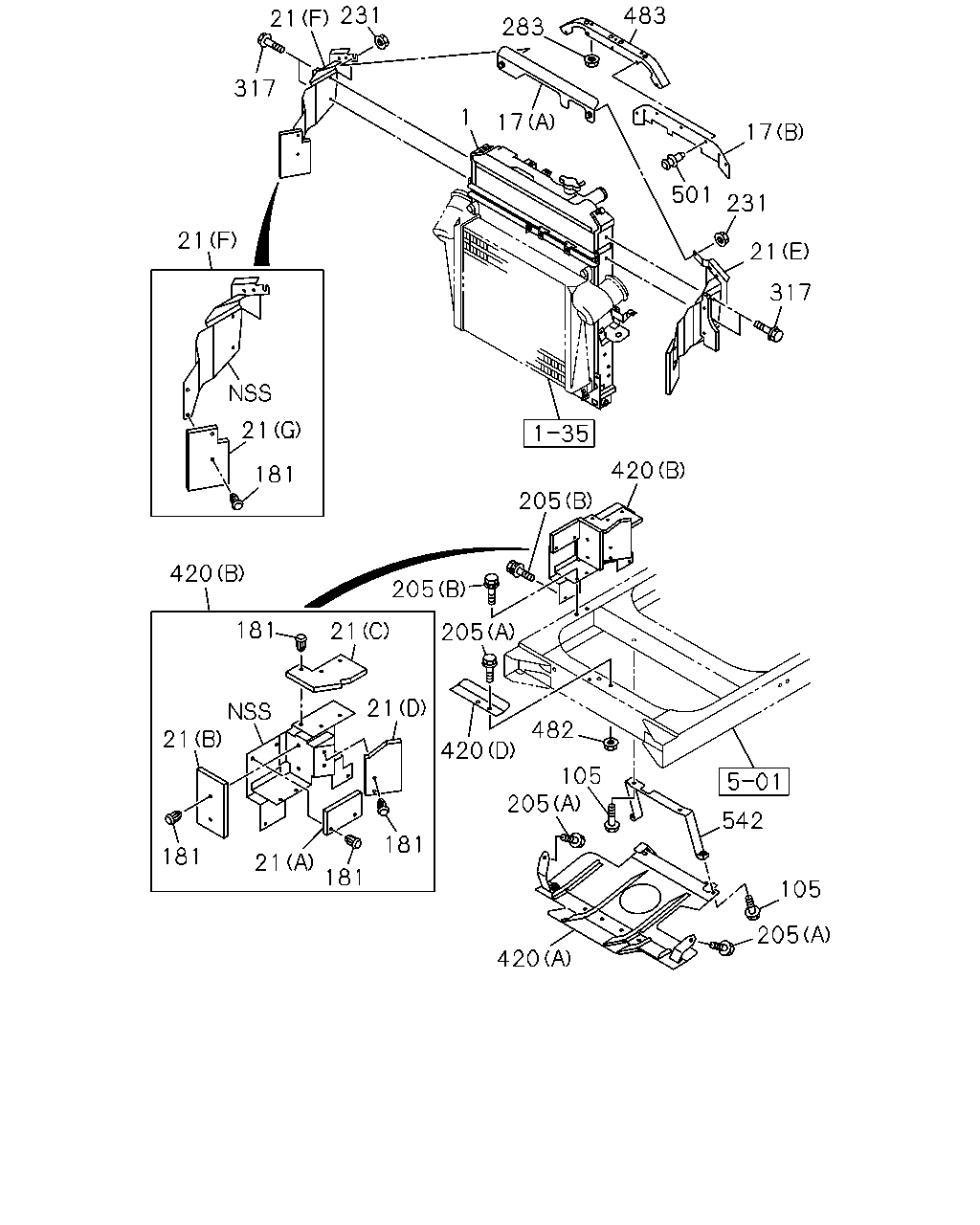

[110A] NO.3 (28 parça)
▶
96
92
117
2
117
80
117
80
78
74
73
73
75
78
59
260
59
64
261
70
259
64
518
420
212
211
425
138
117
117
80
117
92
421
92
96
220
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GUIDE; FAN
8-97350-995-0
01
1
1505-
59
PIN; SNAP,STAY
L=32.6
8-97359-052-0
02
1
1505-
64
WASHER; STAY TO RAD
ID=10.5
0-91610-510-0
02
1
1505-
70
STAY; RAD
(B)
8-98010-657-0
01
1
1505-
70
STAY; RAD
(A)
8-98107-799-0
01
1
1505-
73
RUBBER; CUSHION,RAD MTG
(A) T=14
1-21467-004-0
02
1
1505-
73
RUBBER; CUSHION,RAD MTG
(B) T=24
1-21467-011-1
02
1
1505-
74
WASHER; PL,CUSHION RUBBER
ID=11 OD=54
1-09503-154-2
02
1
1505-
75
BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5
1-21466-007-3
02
1
1505-
78
NUT; CUSHION RUBBER
(A) M10 FLANGE
0-91180-210-0
02
1
1505-
78
NUT; CUSHION RUBBER
(B) M12 FLANGE
0-91180-212-0
02
1
1505-
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1505-
80
BOLT; FAN GUIDE
(A) M6X16
1-21559-481-0
04
1
1505-
92
BRACKET; FAN GUIDE
(B)
8-98084-484-2
01
1
1505-
92
BRACKET; FAN GUIDE
(C)
8-98097-128-2
01
1
1505-
92
BRACKET; FAN GUIDE
(A)
8-98124-167-0
01
1
1505-
96
BOLT; STAY FIX
(A) M8X50 FLANGE
0-28050-850-0
02
1
1505-
96
BOLT; STAY FIX
(B) M10X20 FLANGE
0-28151-020-0
01
1
1505-
96
BOLT; STAY FIX
(B) M10X75 FLANGE
8-94399-669-1
02
1
1505-
117
RUBBER; MTG,FAN GUIDE
1-09337-027-0
06
1
1505-
138
BRACKET; CLIP
8-98167-841-1
01
1
1505-
211
HOSE; RAD TO PIPE
8-98131-344-6
01
1
1505-
212
CLIP; HOSE
L=250
5-09707-030-1
01
1
1505-
220
NUT; CLIP
(B) M8 FLANGE
0-91180-108-0
02
1
1505-
220
NUT; CLIP
(A) M8
8-98040-792-0
02
1
1505-
259
BRACKET; RAD STAY
8-98230-521-0
01
1
1505-
260
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
02
1
1505-
261
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1505-
420
GUIDE; AIR,RAD
(D)
8-98317-432-0
01
1
1505-
420
GUIDE; AIR,RAD
(B)
8-98204-133-1
01
1
1505-
420
GUIDE; AIR,RAD
(A)
8-98240-675-2
01
1
1505-
420
GUIDE; AIR,RAD
(C)
8-98286-112-0
01
1
1505-
421
BOLT; BRKT FAN GUIDE
M10X16 FLANGE
0-28151-016-0
02
1
1505-
425
BOLT; BRKT
M8X20 FLANGE
0-28050-820-0
01
1
1505-
518
NUT
M8 FLANGE
0-91180-108-0
02
1
1505-
1
70
62
267
232
89
89
79
82
80
427
220
16
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
SMOOTHER-FX(TYPE2)(8NS)
8-98234-933-1
01
1
1505-
1
RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98234-932-1
01
1
1505-
16
CAP; RAD
8-98096-226-0
01
1
1505-
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1505-
62
BOLT; STAY
M8X12 FLANGE
0-28050-812-0
02
1
1505-
70
STAY; RAD
(B)
8-98010-657-0
01
1
1505-
70
STAY; RAD
(A)
8-98107-799-0
01
1
1505-
79
GUIDE; FAN,RAD
SMOOTHER-FX(TYPE2)(8NS)
8-98107-801-0
01
1
1505-
79
GUIDE; FAN,RAD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98234-939-0
01
1
1505-
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1505-
80
BOLT; FAN GUIDE
(A) M6X16
1-21559-481-0
04
1
1505-
82
COVER; FAN,RAD
8-98006-478-0
01
1
1505-
89
BOLT
(A) M8X12 FLANGE
0-28050-812-0
02
1
1505-
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
02
1
1505-
220
NUT; CLIP
(B) M8 FLANGE
0-91180-108-0
02
1
1505-
220
NUT; CLIP
(A) M8
8-98040-792-0
02
1
1505-
232
COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
02
1
1505-
267
RUBBER; CUSHION
1-21467-023-0
02
1
1505-
427
CLIP; FAN GUIDE
1-09470-009-0
02
1
1505-
21
317
21
21
181
231
283
17
1
483
17
501
21
317
231
420
205
205
205
420
205
482
105
542
105
205
420
181
21
181
21
181
420
21
21
181
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
SMOOTHER-FX(TYPE2)(8NS)
8-98234-933-1
01
1
1505-
1
RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98234-932-1
01
1
1505-
17
SEAL; RAD,UPR
(A)
8-98204-125-2
01
1
1505-
17
SEAL; RAD,UPR
(B)
8-98236-558-0
01
1
1505-
21
SEAL; RAD
(A)
8-98233-137-0
01
1
1505-
21
SEAL; RAD
(B)
8-98233-138-0
01
1
1505-
21
SEAL; RAD
(D)
8-98233-139-0
01
1
1505-
21
SEAL; RAD
(C)
8-98233-140-0
01
1
1505-
21
SEAL; RAD
(G)
8-98233-158-1
01
1
1505-
21
SEAL; RAD
(F)
8-98286-107-0
01
1
1505-
21
SEAL; RAD
(E)
8-98286-108-0
01
1
1505-
105
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
04
1
1505-
181
CLIP; SEAL PLATE
8-97228-568-0
09
1
1505-
181
CLIP; SEAL PLATE
8-97228-568-0
02
1
1505-
205
BOLT; AIR GUIDE
(A) M8X25 FLANGE
0-28650-825-0
02
1
1505-
205
BOLT; AIR GUIDE
(A) M8X25 FLANGE
0-28650-825-0
02
1
1505-
205
BOLT; AIR GUIDE
(B) M8X25 W/LK&PL WASHER
1-09030-093-0
04
1
1505-
231
NUT; SEAL RUBBER
M8 FLANGE
0-91180-108-0
02
1
1505-
283
NUT; BRKT
M6 FLANGE
0-91180-106-0
03
1
1505-
317
BOLT; SEAL
M8X16 W/LK&PL WASHER
1-09980-498-0
04
1
1505-
420
GUIDE; AIR,RAD
(D)
8-98317-432-0
01
1
1505-
420
GUIDE; AIR,RAD
(B)
8-98204-133-1
01
1
1505-
420
GUIDE; AIR,RAD
(A)
8-98240-675-2
01
1
1505-
420
GUIDE; AIR,RAD
(C)
8-98286-112-0
01
1
1505-
482
NUT; AIR GUIDE
M8 FLANGE
0-91180-108-0
02
1
1505-
483
BRACKET; SEAL
8-98207-480-1
01
1
1505-
501
SCREW
D6X16 PUSH RIVET
1-09983-105-0
05
1
1505-
542
BRACKET; AIR GUIDE
8-98223-098-2
01
1
1505-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
