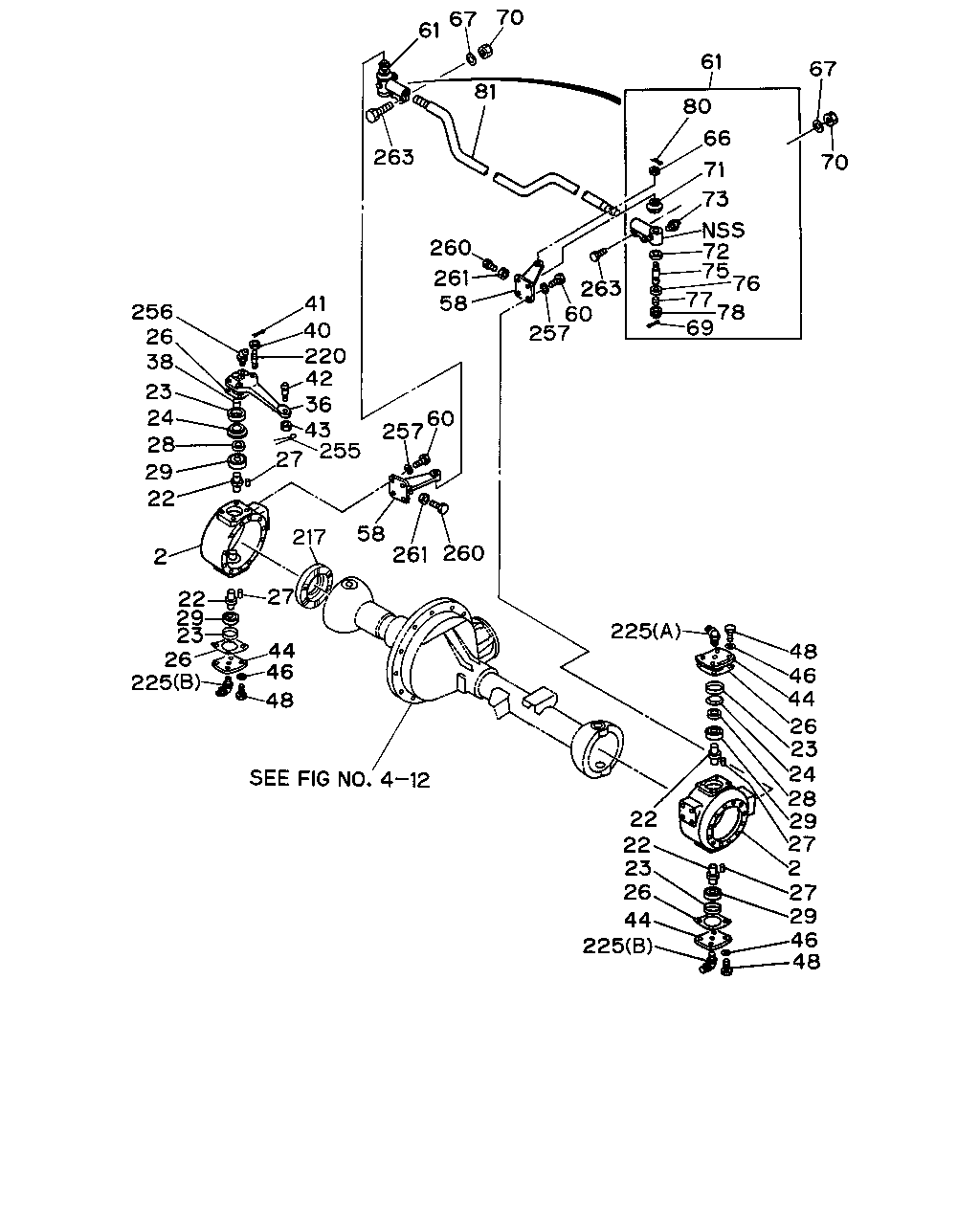

4-10 — FRONT AXLE (#1617) — 65 parça

48 46 29 27 2 27 29 28 24 23 26 44 46 48 225 22 22 23 26 44 225 48 46 44 225 26 23 29 22 2 27 217 58 261 260 60 257 255 27 43 36 42 220 40 41 22 29 28 24 23 38 26 256 58 261 260 257 60 263 69 78 77 76 75 72 73 71 66 80 70 67 61 81 263 61 67 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	KNUCKLE; FRT AXLE	1-43242-006-2	01	1	9207-	●	●	●	●	●
2	KNUCKLE; FRT AXLE	9-43241-037-0	01	1	9207-	●	●	●	●	●
22	PIN; KING,FRT AXLE H=50	1-43264-003-0	04	1	9207-	●	●	●	●	●
23	COLLAR; DIST BRG	9-43267-004-0	04	1	9207-	●	●	●	●	●
24	RECEIVER; KING PIN	9-43269-008-0	02	1	9207-	●	●	●	●	●
26	SHIM; KING PIN,BRG T=0.1	9-43266-013-0	AR	1	9207-	●	●	●	●	●
26	SHIM; KING PIN,BRG T=0.2	9-43266-014-0	AR	1	9207-	●	●	●	●	●
26	SHIM; KING PIN,BRG T=0.5	9-43266-015-0	AR	1	9207-	●	●	●	●	●
27	PIN; STRAIGHT,KING PIN OD=5 L=10	9-08160-510-0	04	1	9207-	●	●	●	●	●
28	WASHER; KING PIN	9-43269-007-0	02	1	9207-	●	●	●	●	●
29	BEARING; KING PIN	9-00093-181-0	04	1	9207-	●	●	●	●	●
36	ARM; KNUCKLE	1-43261-011-0	01	1	9207-	●	●
36	ARM; KNUCKLE	1-43261-001-0	01	1	9207-			●	●	●
38	KNOCK; KNUCKLE ARM	9-43269-009-1	02	1	9207-	●	●	●	●	●
40	NUT; KNUCKLE ARM M14	9-99116-414-0	04	1	9207-	●	●	●	●	●
41	PIN; KNOCK,KNUCKLE ARM OD=2.8 L=25	9-08113-025-0	04	1	9207-	●	●	●	●	●
42	JOINT; BALL,KNUCKLE ARM	1-44361-048-4	01	1	9207-	●	●
42	JOINT; BALL,KNUCKLE ARM	1-44361-013-1	01	1	9207-			●	●	●
43	NUT; JOINT BALL,KNUCKLE ARM	1-09449-014-0	01	1	9207-	●	●
43	NUT; JOINT BALL,KNUCKLE ARM	9-09841-069-0	01	1	9207-			●	●	●
44	COVER; KING PIN	9-43265-007-1	03	1	9207-	●	●	●	●	●
46	WASHER; LK,COVER ID=14.2	9-09150-514-0	12	1	9207-9401	●	●	●	●	●
46	WASHER; LK,COVER ID=14.2	9-09150-814-0	12	1	9402-	●	●	●	●	●
48	BOLT; COVER M14X35	9-92061-435-0	12	1	9207-	●	●	●	●	●
58	ARM; TIE ROD	9-43263-011-1	01	1	9207-	●	●	●	●	●
58	ARM; TIE ROD	9-43262-017-1	01	1	9207-	●	●	●	●	●
60	BOLT; TIE ROD ARM M16X40	9-92061-640-0	08	1	9207-	●	●	●	●	●
61	ROD END; TIE ROD	1-43150-192-0	01	1	9207-	●	●	●	●	●
61	ROD END; TIE ROD	1-43150-191-0	01	1	9207-	●	●	●	●	●
66	NUT; TIE ROD END M16	9-09841-068-0	02	1	9207-	●	●	●	●	●
67	WASHER; LK,TIE ROD END ID=12.2	9-09150-512-0	04	1	9207-9210	●	●	●	●	●
67	WASHER; LK,TIE ROD END ID=12.2	9-09150-812-0	04	1	9211-9410	●	●	●	●	●
67	WASHER; LK,TIE ROD END ID=12.5	9-09164-512-0	04	1	9411-	●	●	●	●	●
69	PIN; SPLIT,TIE ROD END	9-08114-065-0	02	1	9207-	●	●	●	●	●
70	NUT; TIE ROD END M12	9-99110-512-0	04	1	9207-	●	●	●	●	●
71	BOOT; TIE ROD END	1-43159-009-0	02	1	9207-	●	●	●	●	●
72	SEAT; BALL,TIE ROD JOINT	9-44371-133-0	02	1	9207-	●	●	●	●	●
73	NIPPLE; GREASE,TIE ROD END PT1/8 ELBOW	9-09031-210-0	02	1	9207-	●	●	●	●	●
75	JOINT; BALL,DRAG LINK	1-44361-042-2	02	1	9207-	●	●	●	●	●
76	SEAT; SPR,DRAG LINK	9-44373-006-0	02	1	9207-	●	●	●	●	●
77	SPRING; TIE ROD END	9-09940-057-0	02	1	9207-	●	●	●	●	●
78	PLUG; ADJ,ROD END	1-44375-017-0	02	1	9207-	●	●	●	●	●
80	PIN; SPLIT,ROD END OD=3.7 L=30	9-08114-030-0	02	1	9207-	●	●	●	●	●
81	ROD; TIE	1-43151-048-0	01	1	9207-	●	●
81	ROD; TIE	1-43151-070-0	01	1	9207-			●		●
81	ROD; TIE EXC. REARWARD INNER SINGLE TIRE<YK3>	1-43151-070-0	01	1	9207-				●
81	ROD; TIE REARWARD INNER SINGLE TIRE<YK3>	1-43151-076-0	01	1	9207-				●
217	WASHER; THRUST,SHAFT LOCKING HUB FRT WHEEL DRIVE(W12) OD=100 ID=67	1-43321-007-0	02	1	9207-	●	●
217	WASHER; THRUST,SHAFT LOCKING HUB FRT WHEEL DRIVE(W12) OD=100 ID=71	9-43321-005-0	02	1	9207-			●	●	●
220	STUD; KNUCKLE ARM M14X54.5 L=72	9-09830-131-0	01	1	9207-	●	●	●	●	●
220	STUD; KNUCKLE ARM M14X41.5 L=60.5	9-09830-132-0	01	1	9207-	●	●	●	●	●
220	STUD; KNUCKLE ARM M14X46.5 L=72	9-09830-133-0	01	1	9207-	●	●	●	●	●
220	STUD; KNUCKLE ARM M14X33.5 L=60.5	9-09830-134-0	01	1	9207-	●	●	●	●	●
225	NIPPLE; GREASE,COVER (A) PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	9207-	●	●	●	●	●
225	NIPPLE; GREASE,COVER (B) PT1/8 ELBOW	9-09031-210-0	02	1	9207-	●	●	●	●	●
255	PIN; SPLIT,JOINT BALL OD=4.6 L=40	9-08115-040-0	01	1	9207-			●	●	●
256	NIPPLE; GREASE,KNUCKLE ARM PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	9207-	●	●	●	●	●
257	WASHER; LK,TIE ROD ARM ID=16.2	9-09150-516-0	08	1	9207-	●	●	●	●	●
260	BOLT; STOPPER,TIE ROD ARM M14X40	0-20801-440-0	02	1	9207-9506	●	●
260	BOLT; STOPPER,TIE ROD ARM M14X35	0-20801-435-0	02	1	9207-9506			●	●	●
260	BOLT; STOPPER,TIE ROD ARM M14X35	0-20801-435-0	02	1	9507-	●	●	●	●	●
261	NUT; STOPPER BOLT M14	9-99110-414-0	02	1	9207-9506	●	●
261	NUT; STOPPER BOLT M14	9-99111-414-0	02	1	9207-9506			●	●	●
261	NUT; STOPPER BOLT M14	9-99111-414-0	02	1	9507-	●	●	●	●	●
263	BOLT; ROD END M12X45	9-92061-245-0	04	1	9207-	●	●	●	●	●
