0-42 — FUEL PUMP AND PIPE
(#161687) — 47 parça
◀

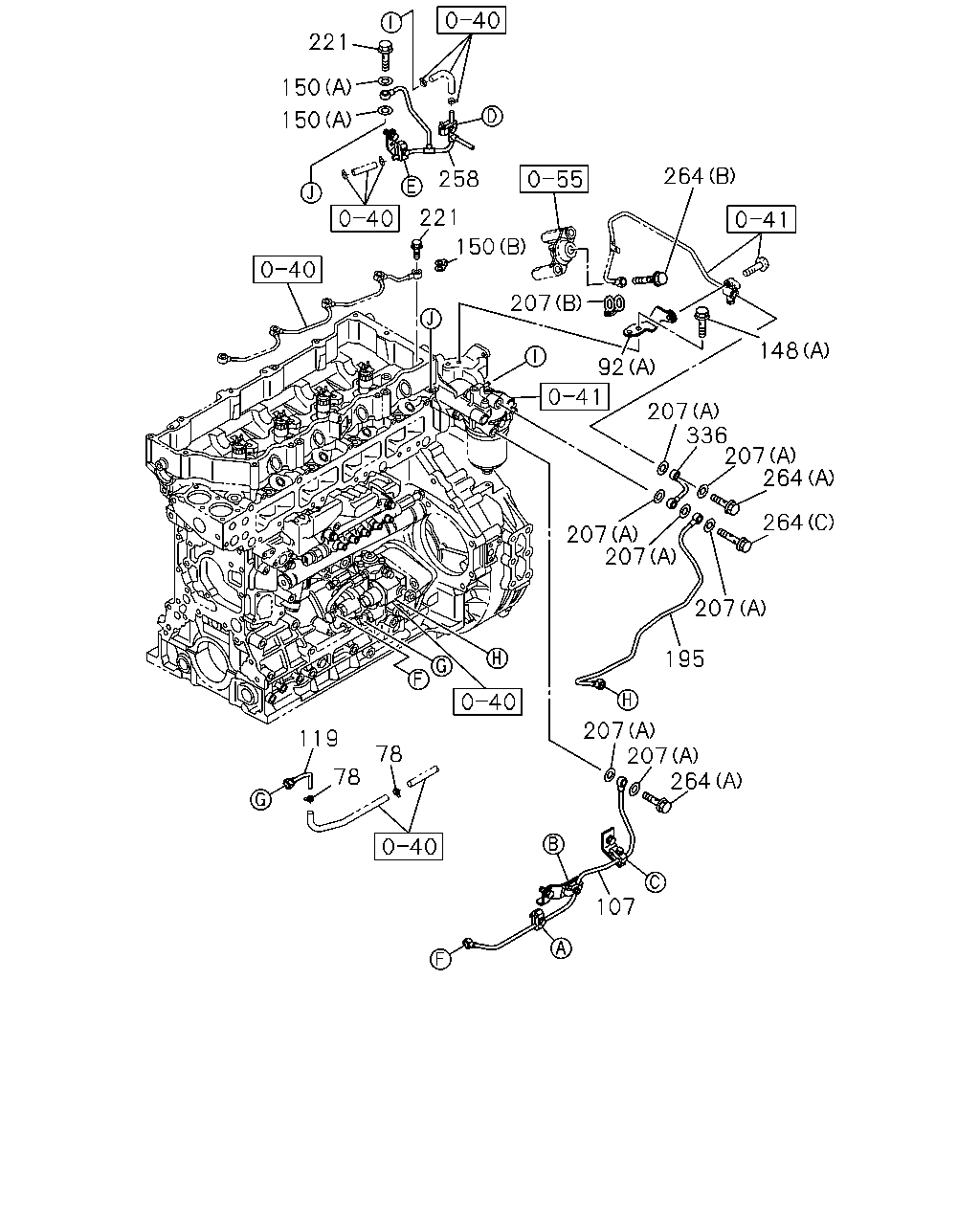

[042A] FUEL PIPING (22 parça)
[042A] PIPE CLIP AND BRACKET (17 parça)

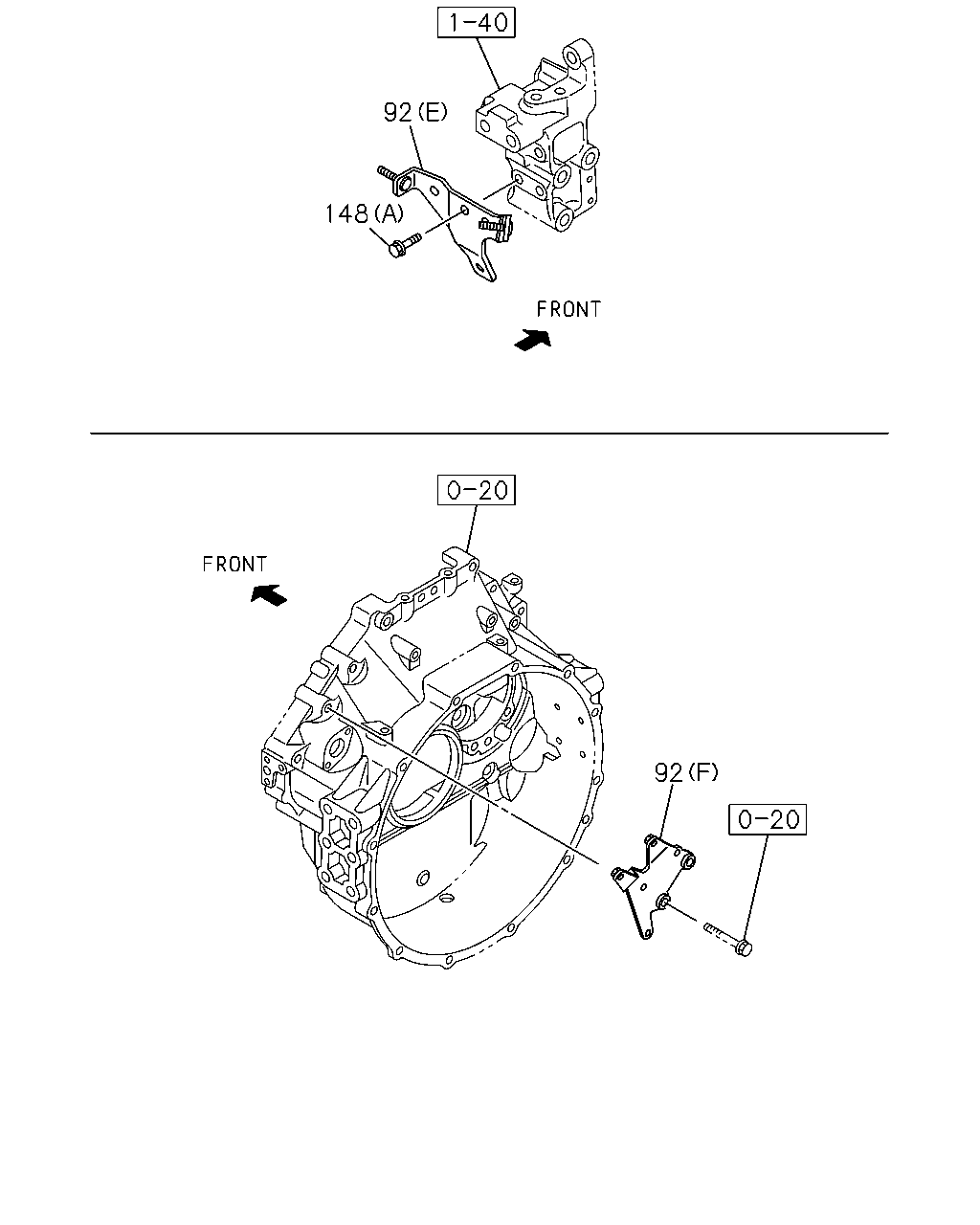

[042A] BRACKET (8 parça)
▶
221
150
258
150
221
207
150
264
148
92
207
207
336
264
264
207
207
207
195
207
207
264
107
78
78
119
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
78
CLIP; RUBBER HOSE
ID=16
8-97329-628-0
02
1
1505-
92
BRACKET; FUEL PIPE
(B)
8-98106-159-0
01
1
1505-
92
BRACKET; FUEL PIPE
(E)
8-98107-388-1
01
1
1505-
92
BRACKET; FUEL PIPE
(D)
8-98107-390-1
01
1
1505-
92
BRACKET; FUEL PIPE
(A)
8-98155-050-1
01
1
1505-
92
BRACKET; FUEL PIPE
(F)
8-98182-397-0
01
1
1505-
92
BRACKET; FUEL PIPE
(C)
8-98270-887-1
01
1
1505-
107
PIPE; FUEL,FEED PUMP TO FUEL FILTER
8-98270-884-2
01
1
1505-
119
PIPE; FUEL,FUEL FILTER TO INJ PUMP
8-98242-476-0
01
1
1505-
148
BOLT; BRKT
(B) M8X16 FLANGE
0-28050-816-0
04
1
1505-
148
BOLT; BRKT
(A) M8X20 FLANGE
0-28050-820-0
02
1
1505-
150
GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2
1-09630-083-0
02
1
1505-
150
GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=17
8-98079-755-0
01
1
1505-
195
PIPE ASM; FUEL
8-98270-883-2
01
1
1505-
207
GASKET; EYE BOLT
(B) ID=10.2
8-98136-142-0
01
1
1505-
207
GASKET; EYE BOLT
(A) ID=14.2 OD=19.2
8-98251-345-0
07
1
1505-
221
BOLT; FUEL PIPE
M10X21 FLANGE
8-94396-711-0
02
1
1505-
258
PIPE ASM; FUEL,LEAK OFF
8-98107-386-2
01
1
1505-
264
BOLT; EYE
(A) M14X33 FLANGE
1-09675-088-0
02
1
1505-
264
BOLT; EYE
(C) M14X43 EYE-BOLT
8-98037-829-0
01
1
1505-
264
BOLT; EYE
(B) M10X28 EYE-BOLT
8-98202-482-0
01
1
1505-
336
PIPE; FUEL,FUEL FILTER TO SENSOR
8-98155-051-0
01
1
1505-
19
19
121
93
144
19
19
92
19
19
144
121
19
148
92
93
144
92
19
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
CLIP; FUEL PIPE
(A) ID=9 & 9 L=25
1-09701-180-0
03
1
1505-
19
CLIP; FUEL PIPE
(B) ID=9 & 9 L=25
8-94393-280-3
03
1
1505-
19
CLIP; FUEL PIPE
(C) ID=5.5 L=10.5
8-98029-953-1
02
1
1505-
19
CLIP; FUEL PIPE
(D) ID=7 L=11
8-98153-873-0
01
1
1505-
92
BRACKET; FUEL PIPE
(B)
8-98106-159-0
01
1
1505-
92
BRACKET; FUEL PIPE
(E)
8-98107-388-1
01
1
1505-
92
BRACKET; FUEL PIPE
(D)
8-98107-390-1
01
1
1505-
92
BRACKET; FUEL PIPE
(A)
8-98155-050-1
01
1
1505-
92
BRACKET; FUEL PIPE
(F)
8-98182-397-0
01
1
1505-
92
BRACKET; FUEL PIPE
(C)
8-98270-887-1
01
1
1505-
93
BOLT; PIPE BRKT
(A) M6X16 FLANGE
0-28050-616-0
01
1
1505-
93
BOLT; PIPE BRKT
(B) M8X20 FLANGE
0-28050-820-0
01
1
1505-
121
BOLT; CLIP
(A) M6X30 FLANGE
0-28050-630-0
01
1
1505-
121
BOLT; CLIP
(B) M6X35 FLANGE
0-28050-635-0
01
1
1505-
144
NUT; CLIP
M6 FLANGE
0-91180-106-0
03
1
1505-
148
BOLT; BRKT
(B) M8X16 FLANGE
0-28050-816-0
04
1
1505-
148
BOLT; BRKT
(A) M8X20 FLANGE
0-28050-820-0
02
1
1505-
92
148
92
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
92
BRACKET; FUEL PIPE
(B)
8-98106-159-0
01
1
1505-
92
BRACKET; FUEL PIPE
(E)
8-98107-388-1
01
1
1505-
92
BRACKET; FUEL PIPE
(D)
8-98107-390-1
01
1
1505-
92
BRACKET; FUEL PIPE
(A)
8-98155-050-1
01
1
1505-
92
BRACKET; FUEL PIPE
(F)
8-98182-397-0
01
1
1505-
92
BRACKET; FUEL PIPE
(C)
8-98270-887-1
01
1
1505-
148
BOLT; BRKT
(B) M8X16 FLANGE
0-28050-816-0
04
1
1505-
148
BOLT; BRKT
(A) M8X20 FLANGE
0-28050-820-0
02
1
1505-
