11684 - FSR LHD EUROPE EURO6 SPACECAB EVSC
▶
0 - Engine, Emission, Engine Electrical
▶
0-39 - AIR COMPRESSOR; BRAKE
▶

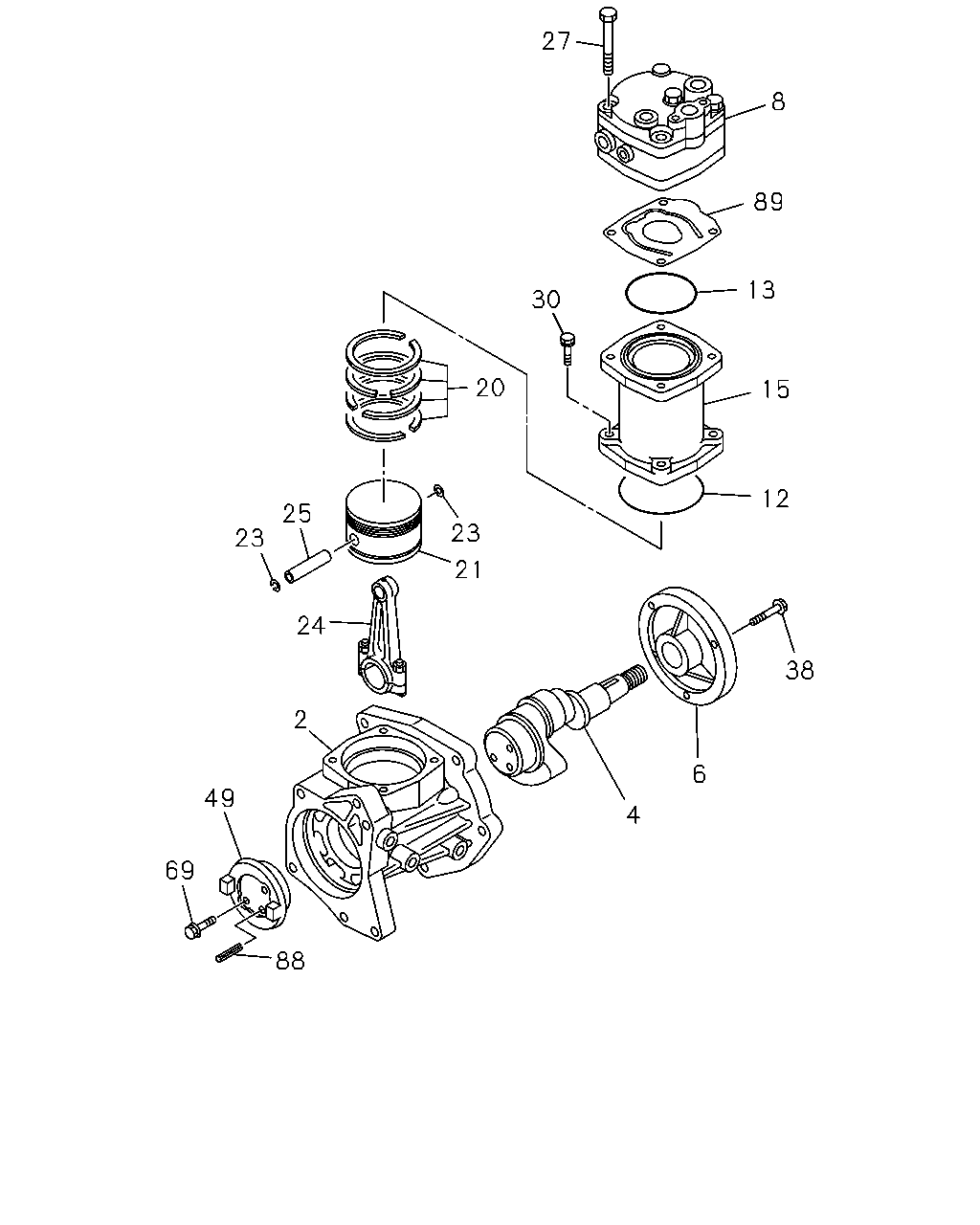

0-39 — AIR COMPRESSOR; BRAKE
(#161684) — 19 parça
27
30
20
23
21
25
23
24
2
49
69
88
4
38
6
12
15
13
89
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
CRANKCASE; AIR CMPR
8-98185-686-0
01
1
1505-
4
CRANKSHAFT; AIR CMPR
8-98185-685-0
01
1
1505-
6
COVER ASM; BRG,AIR CMPR
1-19156-086-1
01
1
1505-
8
HEAD ASM; CYL,AIR CMPR
8-97614-055-0
01
1
1505-
12
GASKET; AIR CMPR
8-98185-684-0
01
1
1505-
13
GASKET; AIR CMPR
8-98048-640-0
01
1
1505-
15
CYLINDER; AIR CMPR
8-98185-683-0
01
1
1505-
20
RING KIT; PISTON,AIR CMPR
1-19163-058-0
01
1
1505-
21
PISTON; AIR CMPR
1-19161-027-0
01
1
1505-
23
RING; SNAP,PISTON,AIR CMPR
1-19169-004-0
02
1
1505-
24
ROD ASM; CONN,AIR CMPR
1-19173-023-0
01
1
1505-
25
PIN; PISTON,AIR CMPR
9-19167-003-0
01
1
1505-
27
BOLT; HD
M10X80
8-98038-666-0
04
1
1505-
30
BOLT; CYL TO CRANKCASE
M10X25
8-98038-763-0
04
1
1505-
38
BOLT; COVER FIX
1-19159-023-0
03
1
1505-
49
COUPLING ASM
1-19179-032-0
01
1
1505-
69
BOLT ASM; AIR COMP
1-19179-033-0
02
1
1505-
88
PIN; SPRING
1-19179-034-0
01
1
1505-
89
VALVE; SUCTION
1-19119-045-0
01
1
1505-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
