Isuzu WW
▶
TRUCKS
▶
FSR
▶
11227 - FSR(CNG)AUSTRALIA
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

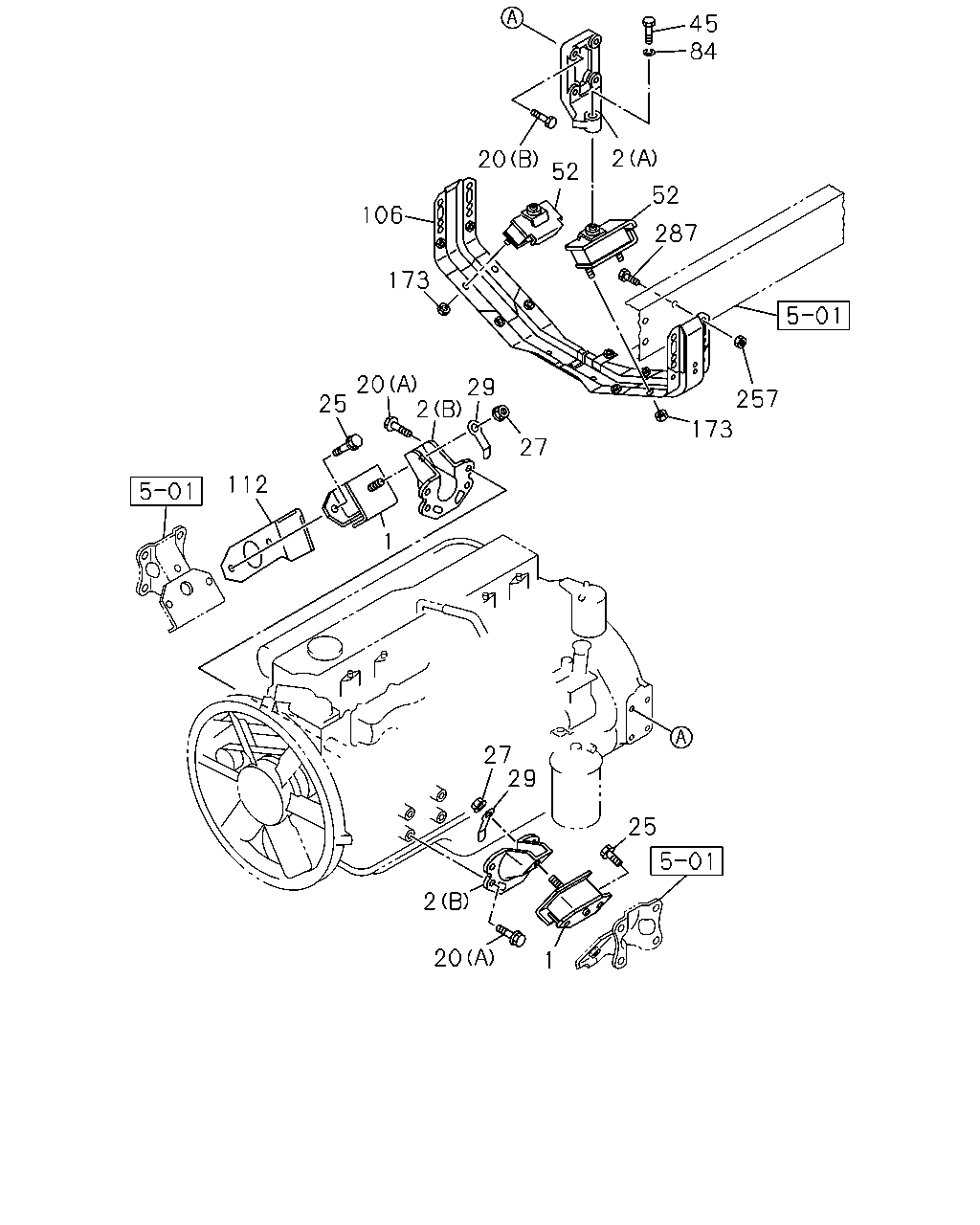

0-22 — ENGINE MOUNTING
(#16168) — 18 parça
20
106
173
29
2
20
25
1
112
27
173
257
287
52
2
52
25
29
27
1
20
2
84
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
1-53215-172-0
02
1
0907-
2
FOOT; ENG
(B)
8-94392-141-3
02
1
0907-
2
FOOT; ENG
(A)
8-97609-899-0
01
1
0907-
2
FOOT; ENG
(A)
8-97609-900-0
01
1
0907-
20
BOLT; ENG FOOT
(B) M12X55
8-94399-884-1
08
1
0907-
20
BOLT; ENG FOOT
(A) M10X30
8-97011-732-0
08
1
0907-
25
BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE
0-28651-235-0
04
1
0907-
27
NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE
0-91180-212-0
02
1
0907-
29
PLATE; LK,CUSHION RUBBER,FRT
8-98010-312-0
02
1
0907-
45
BOLT; CUSHION RUBBER TO FRAME
M16X60
0-10956-660-0
02
1
0907-
52
RUBBER; CUSHION,ENG MTG,RR
8-98010-331-0
01
1
0907-
52
RUBBER; CUSHION,ENG MTG,RR
8-98010-330-1
01
1
0907-
84
WASHER; PL,ENG MTG RR TO FRAME
ID=17
9-09164-516-0
02
1
0907-
106
MEMBER; MTG,RR
8-97608-414-1
01
1
0907-
112
PROTECTOR; HEAT
1-53219-629-4
01
1
0907-
173
NUT; ENG MTG RR TO FRAME
M12 FLANGE
0-91180-212-0
04
1
0907-
257
NUT; MEMBER
M12 FLANGE
0-91180-212-0
08
1
0907-
287
BOLT; MEMBER
M12X40 FLANGE
0-28651-240-0
08
1
0907-
