◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11684 - FSR LHD EUROPE EURO6 SPACECAB EVSC ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#161677) — 10 parça

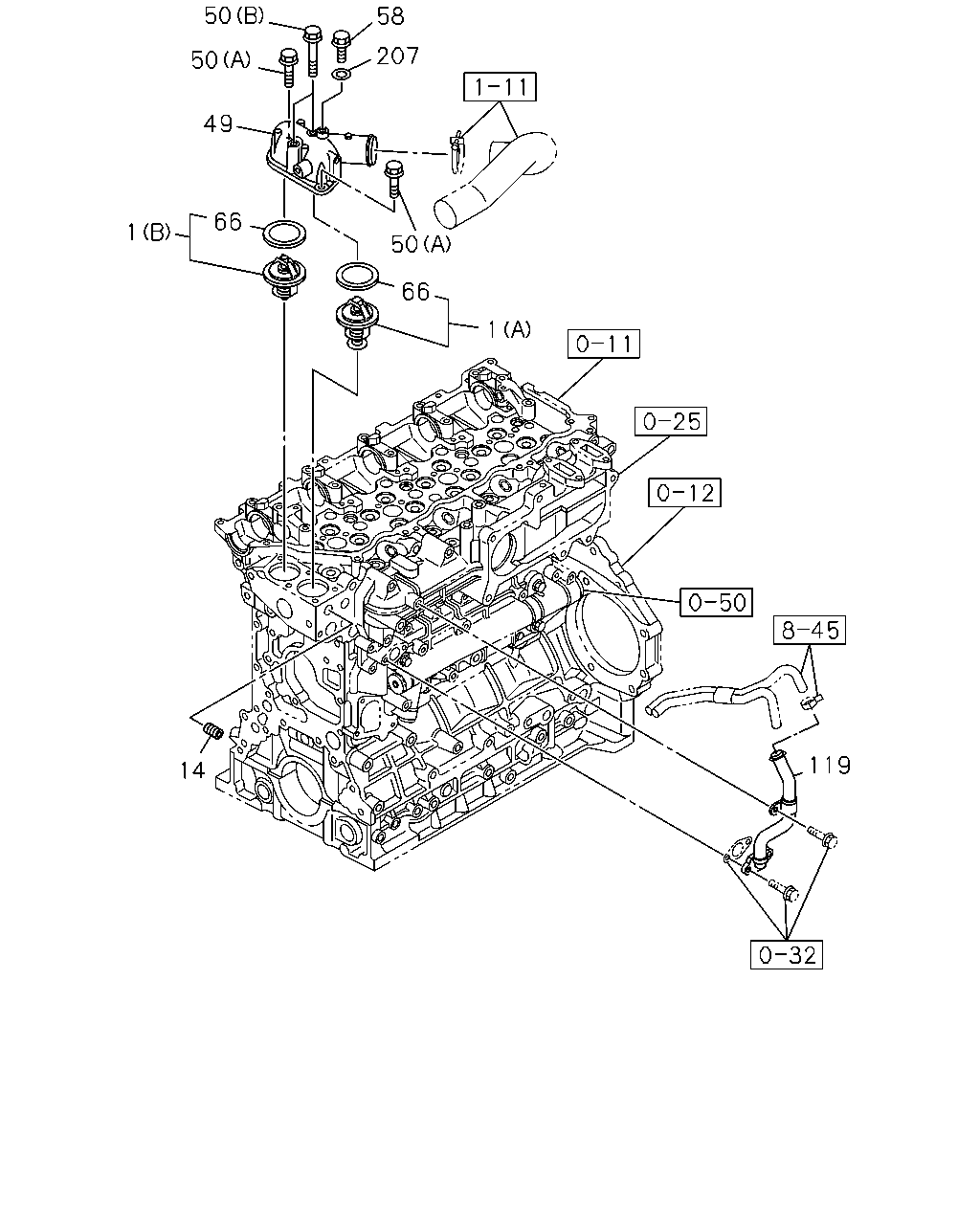

çizim 475105
50 58 50 49 207 66 50 1 1 66 14 119
BalonParca AdiParca NoAdetTipApplied Date
1 THERMOSTAT
(B) 85 CELSIUS 		8-97300-787-3 01 1 1505-
1 THERMOSTAT
(A) 82 CELSIUS 		8-97300-790-3 01 1 1505-
14 PLUG; SW
PT3/8 		5-09605-005-0 01 1 1505-
49 PIPE; WATER OUTLET 8-97329-914-0 01 1 1505-
50 BOLT; OUTLET PIPE
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1505-
50 BOLT; OUTLET PIPE
(B) M8X65 FLANGE 		1-09044-072-1 02 1 1505-
58 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 1505-
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1505-
119 PIPE; HTR 8-98097-229-0 01 1 1505-
207 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=13.2 		1-09630-082-0 01 1 1505-
