Sayfa 2-30A - Isuzu EPC

2-30A — GEAR SHIFTER AND QUADRANT BOX (#161652) — 293 parça

99 66 192 6 192 6 192 320 685 551 102 6 192 89 551 683 234 682 453 551 551 82 65 551 51 78 32 551 684

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1407-1409
6	LEVER; RELAY 6HK1-TCN ENG(82L) (B)	8-98022-855-0	01	1	1410-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1410-
6	LEVER; RELAY (B)	8-98014-157-1	01	1	1407-1409
6	LEVER; RELAY 4HK1-TCS ENG(RJS) (B)	8-98014-157-1	01	1	1410-
32	ARM; SHIFT,1ST & 2ND	8-98236-424-1	01	1	1407-
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	1407-
65	BLOCK ASM; SHIFT,5TH & 6TH	8-97388-980-1	01	1	1407-
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	1407-
78	ARM; SHIFT,REV	8-97388-975-1	01	1	1407-
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	1407-
89	ROD; SHIFT,REV	8-98062-172-0	01	1	1407-
99	ARM; SHIFT,4TH & 3RD	8-98062-170-0	01	1	1407-1506
99	ARM; SHIFT,4TH & 3RD	8-98309-861-0	01	1	1507-
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	1407-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1407-
192	WASHER; PL (B)	8-97305-661-0	02	1	1407-
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	1407-
320	SHAFT; LEVER	8-97377-928-0	01	1	1407-
453	BLOCK; RELAY LEVER	8-97377-927-1	01	1	1407-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1407-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1407-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1407-
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	1407-
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	1407-
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	1407-
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	1407-

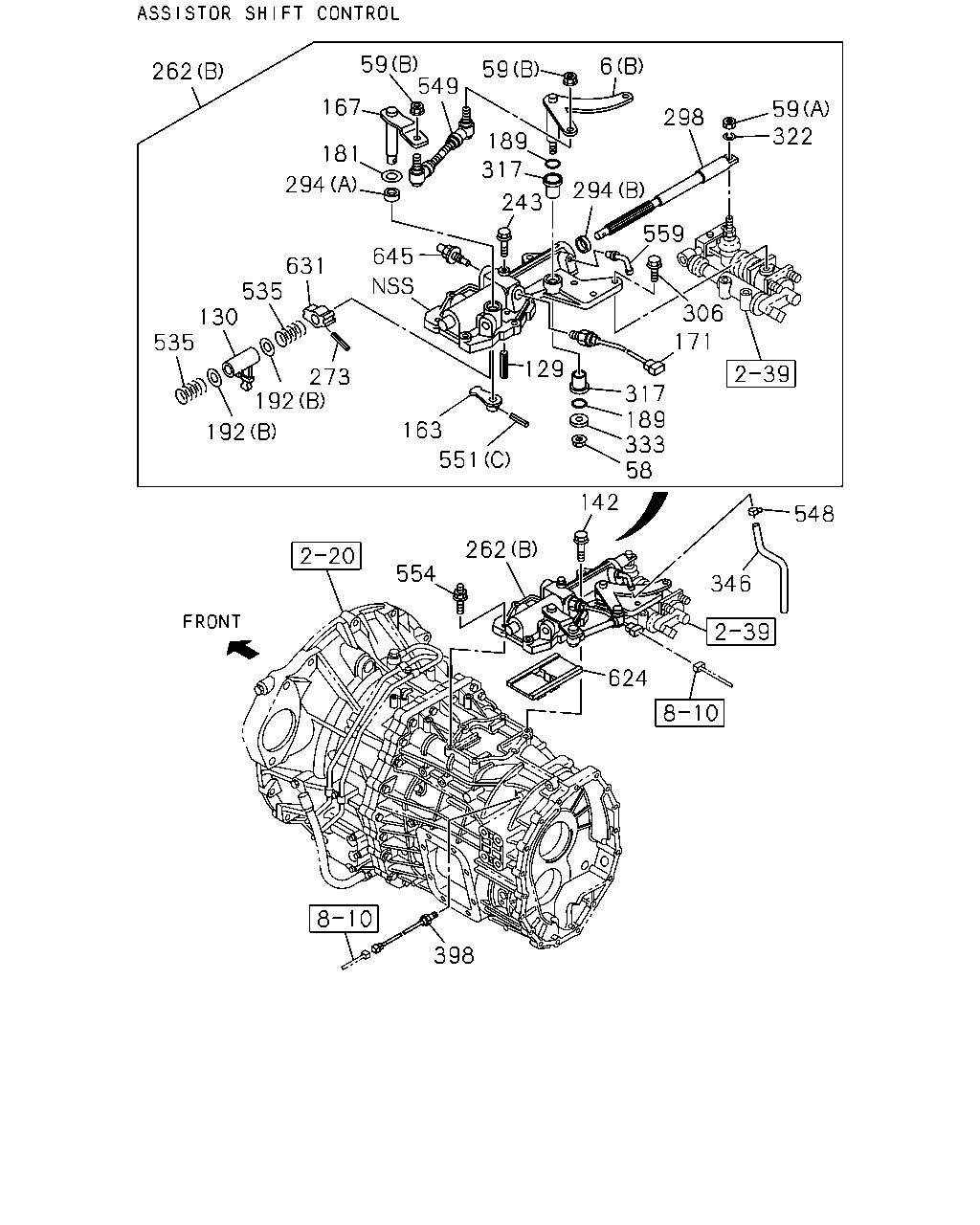

322 59 298 6 59 189 294 559 306 171 317 333 189 58 243 317 549 59 167 181 294 645 129 551 163 273 631 535 130 535 192 192 262 554 142 548 346 624 398 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1407-1409
6	LEVER; RELAY 6HK1-TCN ENG(82L) (B)	8-98022-855-0	01	1	1410-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1410-
6	LEVER; RELAY (B)	8-98014-157-1	01	1	1407-1409
6	LEVER; RELAY 4HK1-TCS ENG(RJS) (B)	8-98014-157-1	01	1	1410-
58	NUT M10 FLANGE MAL	0-91180-110-0	01	1	1407-
59	NUT (B) M8 FLANGE MAL	0-91180-108-0	02	1	1407-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12 MAL	0-91110-512-0	01	1	1407-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1407-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1407-
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1407-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1407-
167	LEVER; SELECT,EXTERNAL 6HK1-TCN ENG(82L)	8-98022-857-0	01	1	1410-
167	LEVER; SELECT,EXTERNAL	8-98021-489-0	01	1	1407-1409
167	LEVER; SELECT,EXTERNAL 4HK1-TCS ENG(RJS)	8-98021-489-0	01	1	1410-
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1407-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1407-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1407-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1407-
192	WASHER; PL (B)	8-97305-661-0	02	1	1407-
243	BOLT; COVER M6X12 FLANGE	1-33739-842-0	01	1	1407-1409
243	BOLT; COVER 4HK1-TCS ENG(RJS) M6X12 FLANGE	1-33739-842-0	01	1	1410-
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1410-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1508-
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-161-1	01	1	1410-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-336-1	01	1	1508-
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-158-1	01	1	1407-1409
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-158-1	01	1	1410-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-333-1	01	1	1508-
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-157-1	01	1	1407-1409
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-157-1	01	1	1410-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-332-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1407-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1407-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1407-
298	SHAFT; SHIFT LEVER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	1410-1507
298	SHAFT; SHIFT LEVER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1508-
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98097-117-0	01	1	1407-1409
298	SHAFT; SHIFT LEVER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98097-117-0	01	1	1410-1507
298	SHAFT; SHIFT LEVER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98305-343-0	01	1	1508-
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE MAL	0-28051-050-0	03	1	1407-
317	BUSHING; LEVER	1-09330-119-0	02	1	1407-1504
317	BUSHING; LEVER	1-09330-119-0	02	1	1505-
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	1407-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1407-
346	HOSE; AIR	8-97309-855-0	01	1	1407-
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1407-
535	SPRING; LEVER	8-97385-713-0	02	1	1407-
548	CLIP; HOSE	8-97031-674-0	01	1	1407-
549	ROD; LINK 6HK1-TCN ENG(82L)	8-98022-841-0	01	1	1410-
549	ROD; LINK	8-98023-095-0	01	1	1407-1409
549	ROD; LINK 4HK1-TCS ENG(RJS)	8-98023-095-0	01	1	1410-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1407-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1407-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1407-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1407-
559	PIPE; BREATHER	8-97358-318-0	01	1	1407-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1407-
631	STOPPER; SPRING 6HK1-TCN ENG(82L)	8-97305-666-0	01	1	1410-
631	STOPPER; SPRING	8-98014-158-0	01	1	1407-1409
631	STOPPER; SPRING 4HK1-TCS ENG(RJS)	8-98014-158-0	01	1	1410-
645	DETENT ASM	8-98019-536-0	01	1	1407-

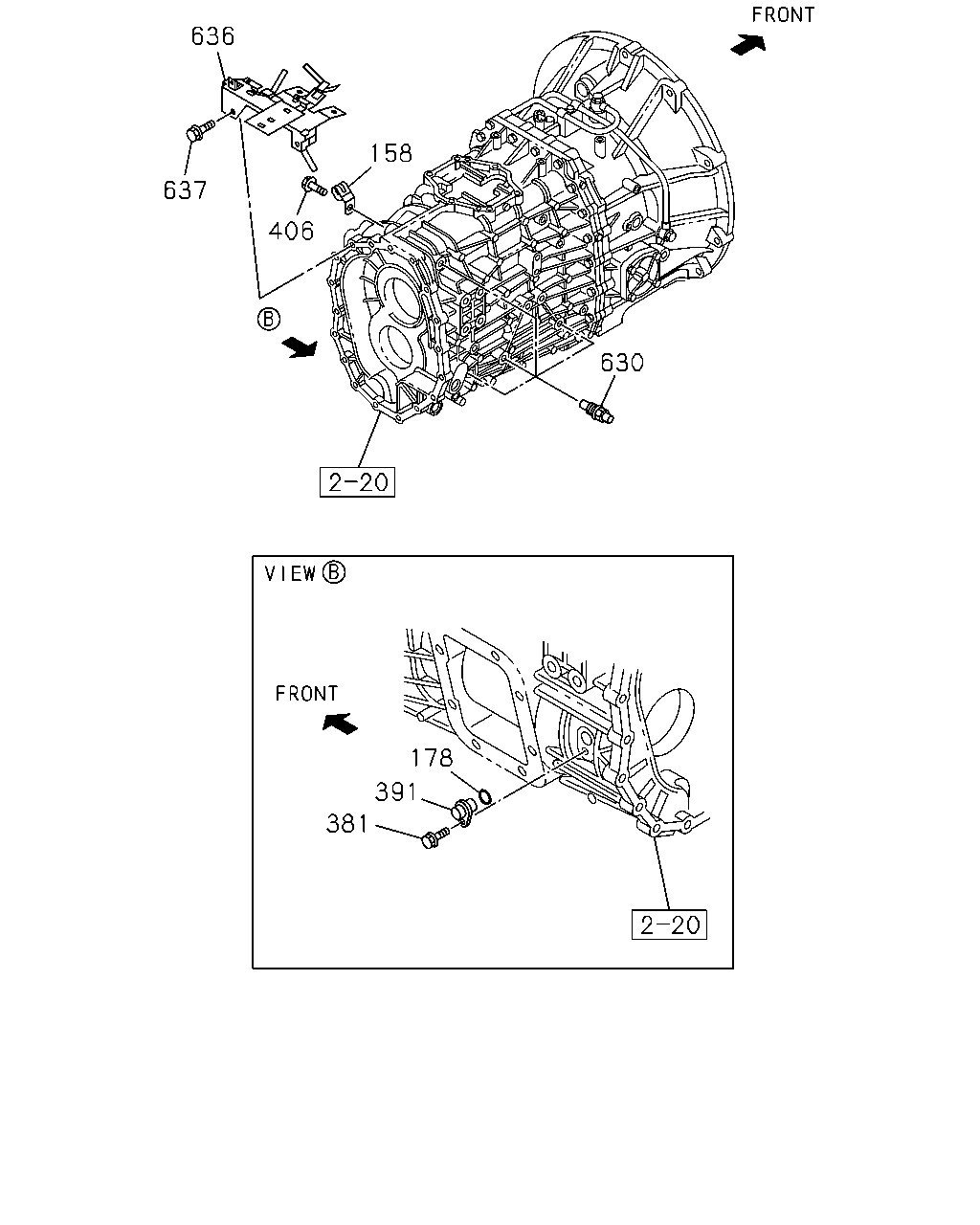

637 636 158 406 630 178 391 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1407-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	1407-
381	BOLT M6X16 FLANGE MAL	0-28650-616-0	01	1	1407-
391	PLUG; SW HOLE	8-97300-273-1	01	1	1407-
406	BOLT; HARNESS CLIP M8X16 FLANGE MAL	0-28050-816-0	02	1	1407-
630	DETENT ASM	8-98019-536-0	04	1	1407-
636	BRACKET; CLIP 6HK1-TCN ENG(82L)	8-97610-096-2	01	1	1410-
636	BRACKET; CLIP	8-97610-092-1	01	1	1407-1409
636	BRACKET; CLIP 4HK1-TCS ENG(RJS)	8-97610-092-1	01	1	1410-1502
637	BOLT; BRACKET M8X16 FLANGE MAL	0-28050-816-0	02	1	1407-1502
637	BOLT; BRACKET 6HK1-TCN ENG(82L) M8X16 FLANGE MAL	0-28050-816-0	02	1	1503-

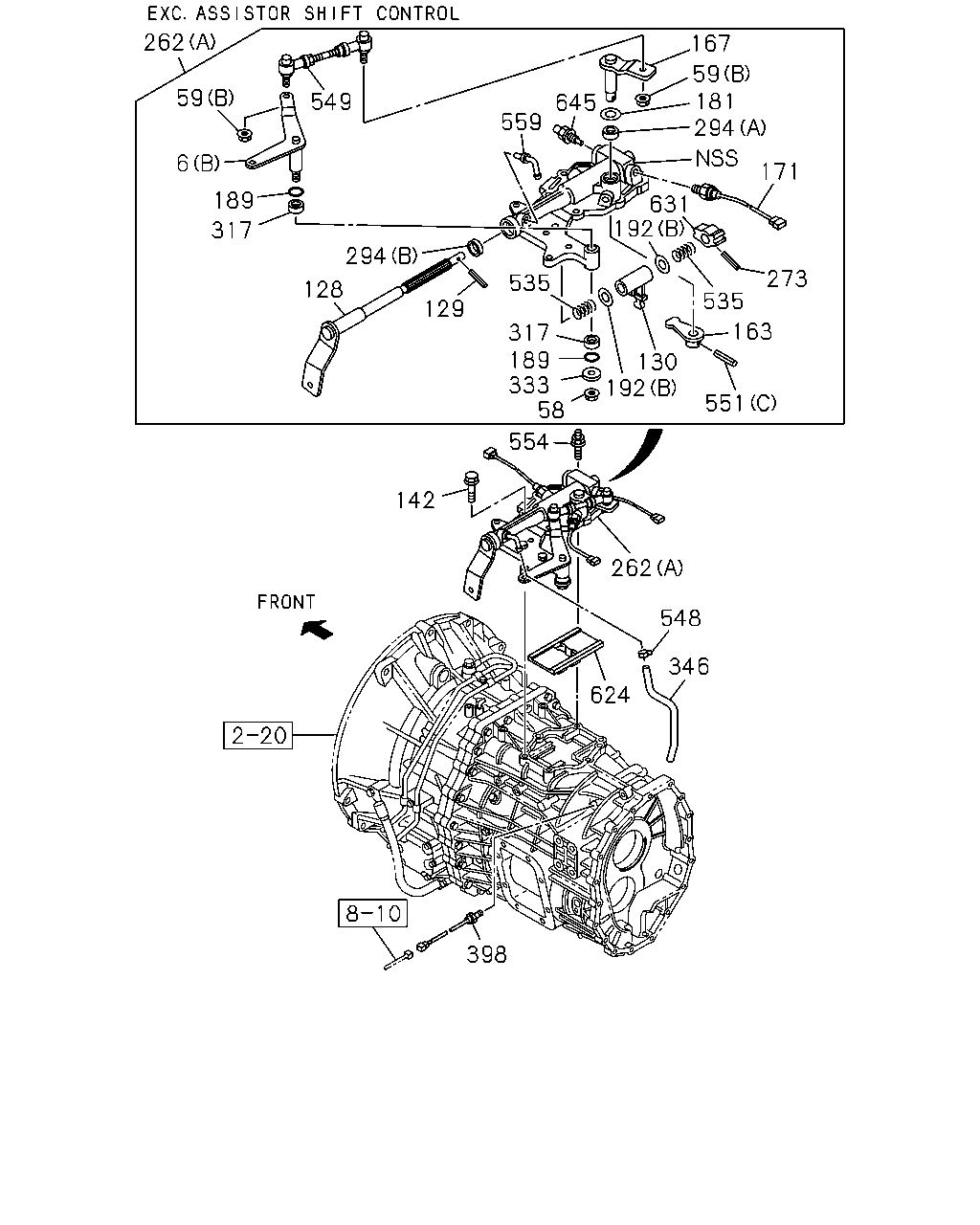

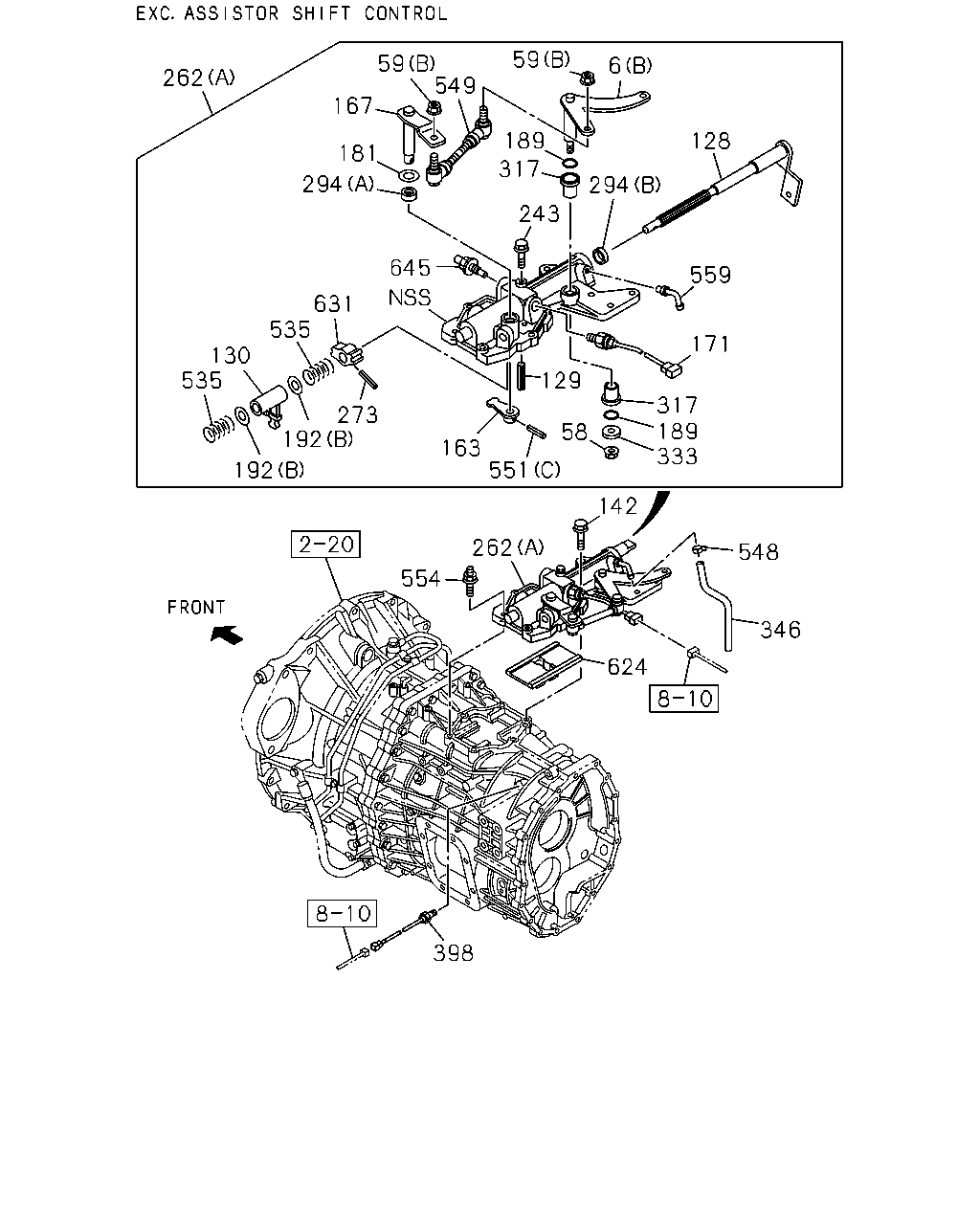

59 549 6 128 559 171 317 333 551 58 129 294 189 243 317 189 163 645 294 181 167 59 631 535 130 273 192 192 535 554 142 548 346 624 262 398 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1407-1409
6	LEVER; RELAY 6HK1-TCN ENG(82L) (B)	8-98022-855-0	01	1	1410-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1410-
6	LEVER; RELAY (B)	8-98014-157-1	01	1	1407-1409
6	LEVER; RELAY 4HK1-TCS ENG(RJS) (B)	8-98014-157-1	01	1	1410-
58	NUT M10 FLANGE MAL	0-91180-110-0	01	1	1407-
59	NUT (B) M8 FLANGE MAL	0-91180-108-0	02	1	1407-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12 MAL	0-91110-512-0	01	1	1407-
128	LEVER; SHIFT,EXTERNAL 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-97306-927-0	01	1	1410-1507
128	LEVER; SHIFT,EXTERNAL 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-346-0	01	1	1508-
128	LEVER; SHIFT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-106-0	01	1	1407-1409
128	LEVER; SHIFT,EXTERNAL 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-106-0	01	1	1410-1507
128	LEVER; SHIFT,EXTERNAL 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-345-0	01	1	1508-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1407-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1407-
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1407-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1407-
167	LEVER; SELECT,EXTERNAL 6HK1-TCN ENG(82L)	8-98022-857-0	01	1	1410-
167	LEVER; SELECT,EXTERNAL	8-98021-489-0	01	1	1407-1409
167	LEVER; SELECT,EXTERNAL 4HK1-TCS ENG(RJS)	8-98021-489-0	01	1	1410-
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1407-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1407-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1407-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1407-
192	WASHER; PL (B)	8-97305-661-0	02	1	1407-
243	BOLT; COVER M6X12 FLANGE	1-33739-842-0	01	1	1407-1409
243	BOLT; COVER 4HK1-TCS ENG(RJS) M6X12 FLANGE	1-33739-842-0	01	1	1410-
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1410-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1508-
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-161-1	01	1	1410-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-336-1	01	1	1508-
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-158-1	01	1	1407-1409
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-158-1	01	1	1410-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-333-1	01	1	1508-
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-157-1	01	1	1407-1409
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-157-1	01	1	1410-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-332-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1407-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1407-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1407-
317	BUSHING; LEVER	1-09330-119-0	02	1	1407-1504
317	BUSHING; LEVER	1-09330-119-0	02	1	1505-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1407-
346	HOSE; AIR	8-97309-855-0	01	1	1407-
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1407-
535	SPRING; LEVER	8-97385-713-0	02	1	1407-
548	CLIP; HOSE	8-97031-674-0	01	1	1407-
549	ROD; LINK 6HK1-TCN ENG(82L)	8-98022-841-0	01	1	1410-
549	ROD; LINK	8-98023-095-0	01	1	1407-1409
549	ROD; LINK 4HK1-TCS ENG(RJS)	8-98023-095-0	01	1	1410-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1407-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1407-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1407-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1407-
559	PIPE; BREATHER	8-97358-318-0	01	1	1407-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1407-
631	STOPPER; SPRING 6HK1-TCN ENG(82L)	8-97305-666-0	01	1	1410-
631	STOPPER; SPRING	8-98014-158-0	01	1	1407-1409
631	STOPPER; SPRING 4HK1-TCS ENG(RJS)	8-98014-158-0	01	1	1410-
645	DETENT ASM	8-98019-536-0	01	1	1407-

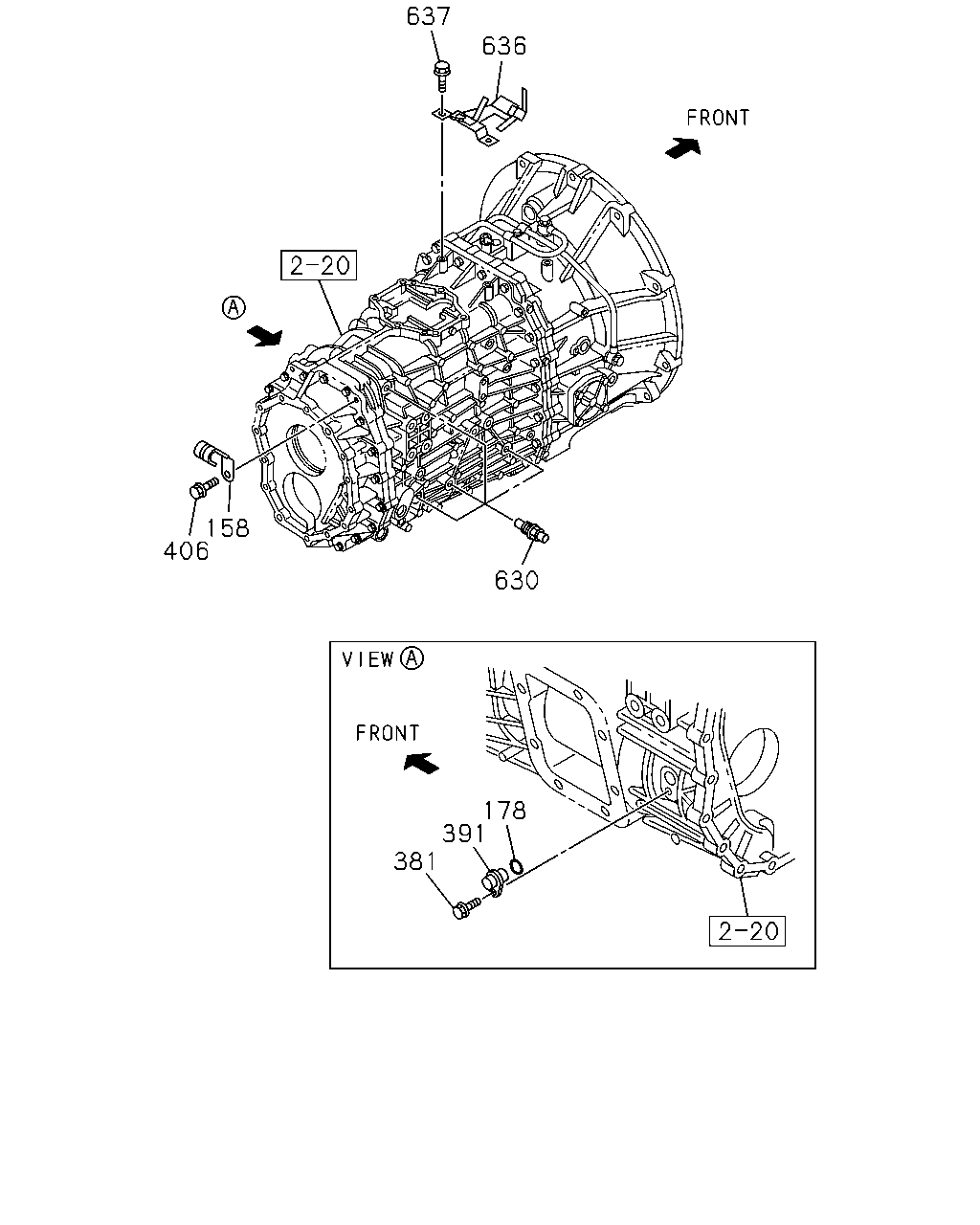

636 637 158 406 630 178 391 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1407-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	1407-
381	BOLT M6X16 FLANGE MAL	0-28650-616-0	01	1	1407-
391	PLUG; SW HOLE	8-97300-273-1	01	1	1407-
406	BOLT; HARNESS CLIP M8X16 FLANGE MAL	0-28050-816-0	02	1	1407-
630	DETENT ASM	8-98019-536-0	04	1	1407-
636	BRACKET; CLIP 6HK1-TCN ENG(82L)	8-97610-096-2	01	1	1410-
636	BRACKET; CLIP	8-97610-092-1	01	1	1407-1409
636	BRACKET; CLIP 4HK1-TCS ENG(RJS)	8-97610-092-1	01	1	1410-1502
637	BOLT; BRACKET M8X16 FLANGE MAL	0-28050-816-0	02	1	1407-1502
637	BOLT; BRACKET 6HK1-TCN ENG(82L) M8X16 FLANGE MAL	0-28050-816-0	02	1	1503-

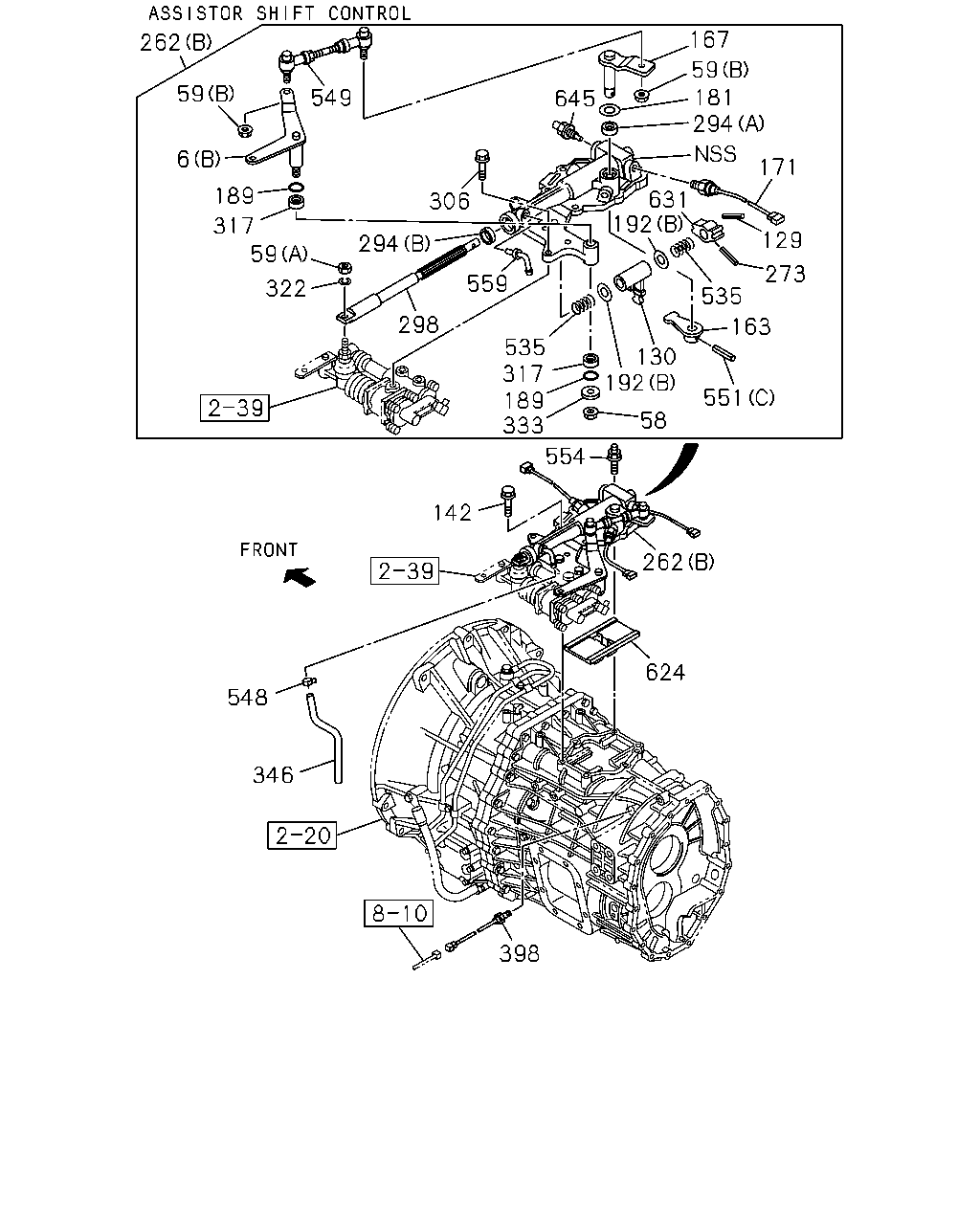

167 181 59 294 129 171 631 192 273 535 130 163 535 189 192 551 58 333 298 559 294 306 645 322 59 317 189 6 59 549 262 554 142 262 548 346 624 398 317

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1407-1409
6	LEVER; RELAY 6HK1-TCN ENG(82L) (B)	8-98022-855-0	01	1	1410-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1410-
6	LEVER; RELAY (B)	8-98014-157-1	01	1	1407-1409
6	LEVER; RELAY 4HK1-TCS ENG(RJS) (B)	8-98014-157-1	01	1	1410-
58	NUT M10 FLANGE MAL	0-91180-110-0	01	1	1407-
59	NUT (B) M8 FLANGE MAL	0-91180-108-0	02	1	1407-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12 MAL	0-91110-512-0	01	1	1407-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1407-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1407-
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1407-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1407-
167	LEVER; SELECT,EXTERNAL 6HK1-TCN ENG(82L)	8-98022-857-0	01	1	1410-
167	LEVER; SELECT,EXTERNAL	8-98021-489-0	01	1	1407-1409
167	LEVER; SELECT,EXTERNAL 4HK1-TCS ENG(RJS)	8-98021-489-0	01	1	1410-
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1407-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1407-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1407-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1407-
192	WASHER; PL (B)	8-97305-661-0	02	1	1407-
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1410-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1508-
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-161-1	01	1	1410-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-336-1	01	1	1508-
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-158-1	01	1	1407-1409
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-158-1	01	1	1410-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-333-1	01	1	1508-
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-157-1	01	1	1407-1409
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-157-1	01	1	1410-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-332-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1407-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1407-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1407-
298	SHAFT; SHIFT LEVER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	1410-1507
298	SHAFT; SHIFT LEVER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1508-
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98097-117-0	01	1	1407-1409
298	SHAFT; SHIFT LEVER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98097-117-0	01	1	1410-1507
298	SHAFT; SHIFT LEVER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98305-343-0	01	1	1508-
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE MAL	0-28051-050-0	03	1	1407-
317	BUSHING; LEVER	1-09330-119-0	02	1	1407-1504
317	BUSHING; LEVER	1-09330-119-0	02	1	1505-
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	1407-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1407-
346	HOSE; AIR	8-97309-855-0	01	1	1407-
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1407-
535	SPRING; LEVER	8-97385-713-0	02	1	1407-
548	CLIP; HOSE	8-97031-674-0	01	1	1407-
549	ROD; LINK 6HK1-TCN ENG(82L)	8-98022-841-0	01	1	1410-
549	ROD; LINK	8-98023-095-0	01	1	1407-1409
549	ROD; LINK 4HK1-TCS ENG(RJS)	8-98023-095-0	01	1	1410-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1407-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1407-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1407-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1407-
559	PIPE; BREATHER	8-97358-318-0	01	1	1407-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1407-
631	STOPPER; SPRING 6HK1-TCN ENG(82L)	8-97305-666-0	01	1	1410-
631	STOPPER; SPRING	8-98014-158-0	01	1	1407-1409
631	STOPPER; SPRING 4HK1-TCS ENG(RJS)	8-98014-158-0	01	1	1410-
645	DETENT ASM	8-98019-536-0	01	1	1407-

171 294 181 59 167 645 559 631 192 273 535 130 163 551 192 58 333 189 317 535 129 294 128 317 189 6 262 59 549 142 554 262 548 346 624 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1407-1409
6	LEVER; RELAY 6HK1-TCN ENG(82L) (B)	8-98022-855-0	01	1	1410-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1410-
6	LEVER; RELAY (B)	8-98014-157-1	01	1	1407-1409
6	LEVER; RELAY 4HK1-TCS ENG(RJS) (B)	8-98014-157-1	01	1	1410-
58	NUT M10 FLANGE MAL	0-91180-110-0	01	1	1407-
59	NUT (B) M8 FLANGE MAL	0-91180-108-0	02	1	1407-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12 MAL	0-91110-512-0	01	1	1407-
128	LEVER; SHIFT,EXTERNAL 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-97306-927-0	01	1	1410-1507
128	LEVER; SHIFT,EXTERNAL 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-346-0	01	1	1508-
128	LEVER; SHIFT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-106-0	01	1	1407-1409
128	LEVER; SHIFT,EXTERNAL 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-106-0	01	1	1410-1507
128	LEVER; SHIFT,EXTERNAL 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-345-0	01	1	1508-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1407-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1407-
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1407-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1407-
167	LEVER; SELECT,EXTERNAL 6HK1-TCN ENG(82L)	8-98022-857-0	01	1	1410-
167	LEVER; SELECT,EXTERNAL	8-98021-489-0	01	1	1407-1409
167	LEVER; SELECT,EXTERNAL 4HK1-TCS ENG(RJS)	8-98021-489-0	01	1	1410-
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1407-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1407-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1407-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1407-
192	WASHER; PL (B)	8-97305-661-0	02	1	1407-
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1410-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1508-
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-161-1	01	1	1410-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-336-1	01	1	1508-
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-158-1	01	1	1407-1409
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-158-1	01	1	1410-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-333-1	01	1	1508-
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-157-1	01	1	1407-1409
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-157-1	01	1	1410-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-332-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1407-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1407-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1407-
317	BUSHING; LEVER	1-09330-119-0	02	1	1407-1504
317	BUSHING; LEVER	1-09330-119-0	02	1	1505-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1407-
346	HOSE; AIR	8-97309-855-0	01	1	1407-
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1407-
535	SPRING; LEVER	8-97385-713-0	02	1	1407-
548	CLIP; HOSE	8-97031-674-0	01	1	1407-
549	ROD; LINK 6HK1-TCN ENG(82L)	8-98022-841-0	01	1	1410-
549	ROD; LINK	8-98023-095-0	01	1	1407-1409
549	ROD; LINK 4HK1-TCS ENG(RJS)	8-98023-095-0	01	1	1410-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1407-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1407-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1407-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1407-
559	PIPE; BREATHER	8-97358-318-0	01	1	1407-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1407-
631	STOPPER; SPRING 6HK1-TCN ENG(82L)	8-97305-666-0	01	1	1410-
631	STOPPER; SPRING	8-98014-158-0	01	1	1407-1409
631	STOPPER; SPRING 4HK1-TCS ENG(RJS)	8-98014-158-0	01	1	1410-
645	DETENT ASM	8-98019-536-0	01	1	1407-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
