2-20A — MANUAL TRANSMISSION ASM AND CASE (#161646) — 91 parça

27 24 685 688 33 607 435 316 434 11 692 692 256 45 417 430 686 692 50 421 86 90 86 692 315 119 121 117 72 71 609

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

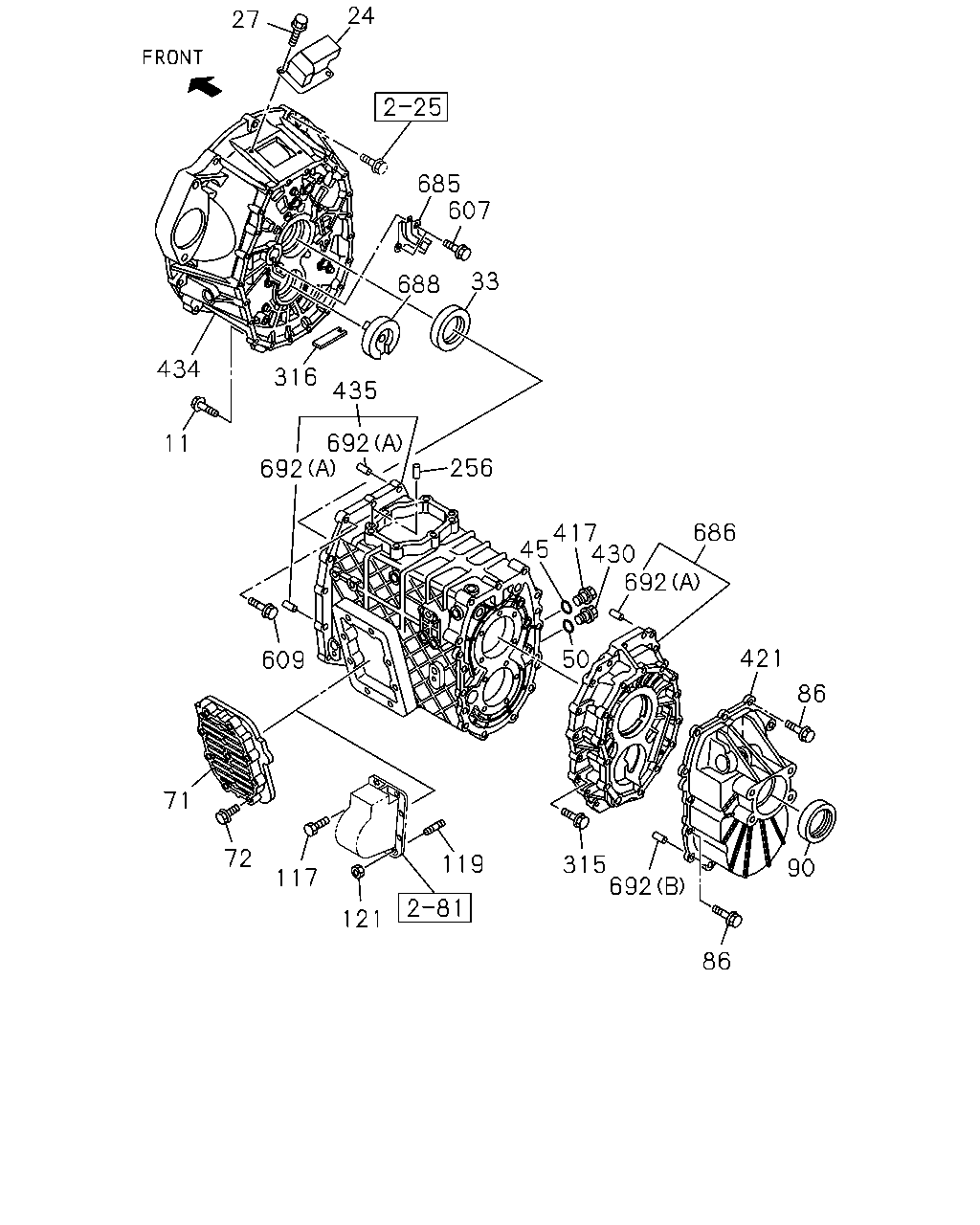

11	BOLT; BRKT M12X25 FLANGE	0-28151-225-0	01	1	1407-
24	COVER; CHECK HOLE,DUST 6HK1-TCN ENG(82L)	8-98283-062-0	01	1	1411-
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	1407-1410
24	COVER; CHECK HOLE,DUST 4HK1-TCS ENG(RJS)	8-98284-107-0	01	1	1411-
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	1407-1410
27	BOLT; COVER TO CLU HSG M8X16 FLANGE MAL	0-28050-816-0	02	1	1411-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	1407-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1407-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1407-
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L)	8-98122-318-0	01	1	1407-1408
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L)	8-98270-265-0	01	1	1409-1409
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98270-265-1	01	1	1410-
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L) M10X50 FLANGE	1-09044-081-0	08	1	1407-1410
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	1-09044-081-0	08	1	1410-
86	BOLT; RR COVER M10X40 FLANGE	8-98045-397-0	14	1	1407-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1407-
117	BOLT; PTO FIX TRANSMISSION SIDE PTO GEAR=36/16(C5L) M10X40 FLANGE	0-28151-040-0	02	1	1407-1409
117	BOLT; PTO FIX TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	1410-
119	STUD; PTO FIX TRANSMISSION SIDE PTO GEAR=36/16(C5L) M10X35 L=50	0-44011-035-0	06	1	1407-1409
119	STUD; PTO FIX TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	1410-
121	NUT; PTO FIX TRANSMISSION SIDE PTO GEAR=36/16(C5L) M10 FLANGE MAL	0-91180-210-0	06	1	1407-1409
121	NUT; PTO FIX TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE MAL	0-91180-210-0	06	1	1410-
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	1407-
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	1407-
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1407-
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1407-
421	COVER; RR,TRANS	8-98004-790-1	01	1	1407-
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1407-
434	HOUSING; CLU 6HK1-TCN ENG(82L)	8-98004-506-2	01	1	1410-
434	HOUSING; CLU	8-98004-507-2	01	1	1407-1409
434	HOUSING; CLU 4HK1-TCS ENG(RJS)	8-98004-507-2	01	1	1410-
435	CASE; TRANS	8-98236-421-1	01	1	1407-
607	BOLT; COVER M8X16 FLANGE MAL	0-28050-816-0	02	1	1407-
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	1407-
685	COVER; OIL PORT	8-98018-864-1	01	1	1407-
686	CASE; RR,TRANS	8-97388-873-1	01	1	1407-
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1407-1508
688	NOZZLE; OIL,COUNTER	8-98309-860-0	01	1	1509-
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	1407-
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	1407-

27 318 24 685 607 33 688 316 434 435 692 256 692 609 71 72 117 121 119 315 692 86 90 86 421 686 692 50 430 45 417

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

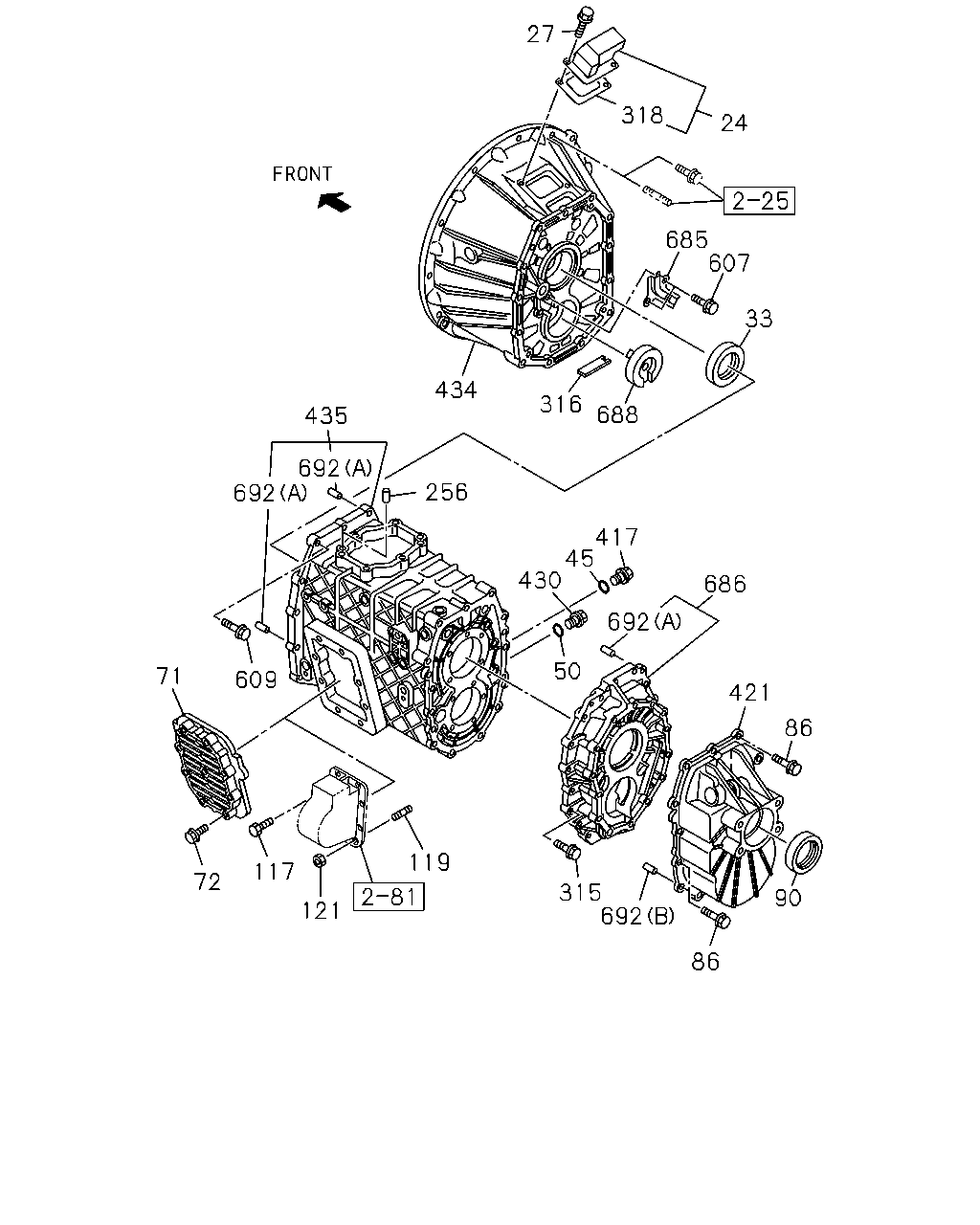

24	COVER; CHECK HOLE,DUST 6HK1-TCN ENG(82L)	8-98283-062-0	01	1	1411-
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	1407-1410
24	COVER; CHECK HOLE,DUST 4HK1-TCS ENG(RJS)	8-98284-107-0	01	1	1411-
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	1407-1410
27	BOLT; COVER TO CLU HSG M8X16 FLANGE MAL	0-28050-816-0	02	1	1411-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	1407-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1407-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1407-
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L)	8-98122-318-0	01	1	1407-1408
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L)	8-98270-265-0	01	1	1409-1409
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98270-265-1	01	1	1410-
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L) M10X50 FLANGE	1-09044-081-0	08	1	1407-1410
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	1-09044-081-0	08	1	1410-
86	BOLT; RR COVER M10X40 FLANGE	8-98045-397-0	14	1	1407-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1407-
117	BOLT; PTO FIX TRANSMISSION SIDE PTO GEAR=36/16(C5L) M10X40 FLANGE	0-28151-040-0	02	1	1407-1409
117	BOLT; PTO FIX TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	1410-
119	STUD; PTO FIX TRANSMISSION SIDE PTO GEAR=36/16(C5L) M10X35 L=50	0-44011-035-0	06	1	1407-1409
119	STUD; PTO FIX TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	1410-
121	NUT; PTO FIX TRANSMISSION SIDE PTO GEAR=36/16(C5L) M10 FLANGE MAL	0-91180-210-0	06	1	1407-1409
121	NUT; PTO FIX TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE MAL	0-91180-210-0	06	1	1410-
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	1407-
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	1407-
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1407-
318	GASKET; COVER 6HK1-TCN ENG(82L)	1-31139-023-0	01	1	1411-
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1407-
421	COVER; RR,TRANS	8-98004-790-1	01	1	1407-
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1407-
434	HOUSING; CLU 6HK1-TCN ENG(82L)	8-98004-506-2	01	1	1410-
434	HOUSING; CLU	8-98004-507-2	01	1	1407-1409
434	HOUSING; CLU 4HK1-TCS ENG(RJS)	8-98004-507-2	01	1	1410-
435	CASE; TRANS	8-98236-421-1	01	1	1407-
607	BOLT; COVER M8X16 FLANGE MAL	0-28050-816-0	02	1	1407-
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	1407-
685	COVER; OIL PORT	8-98018-864-1	01	1	1407-
686	CASE; RR,TRANS	8-97388-873-1	01	1	1407-
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1407-1508
688	NOZZLE; OIL,COUNTER	8-98309-860-0	01	1	1509-
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	1407-
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	1407-

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

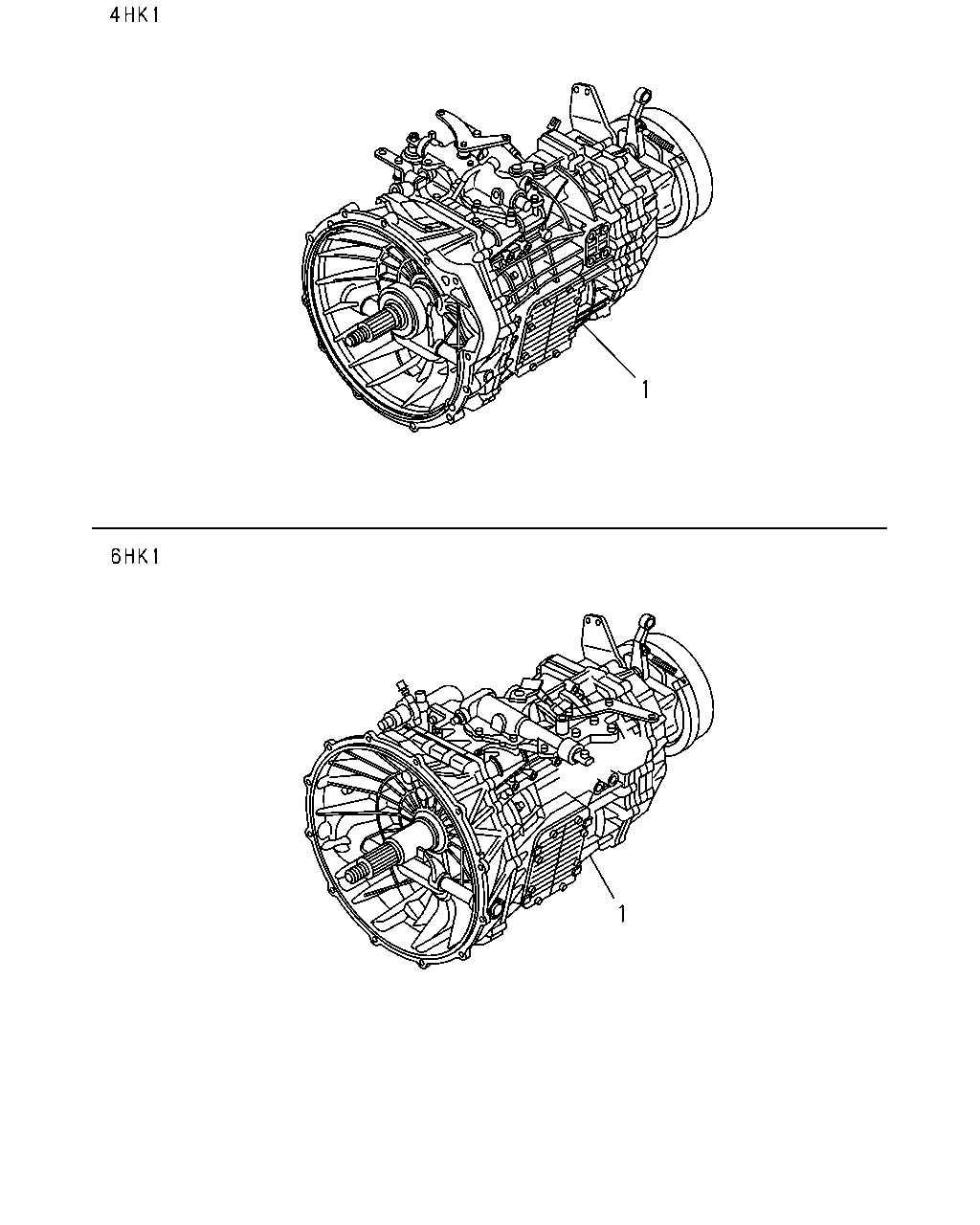

1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98134-518-0	01	1	1410-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-530-0	01	1	1410-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-518-0	01	1	1410-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98134-530-0	01	1	1410-
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L)	8-98212-131-0	01	1	1407-
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L), ASSISTORSHIFT CONTROL<WX8>	8-98212-129-0	01	1	1407-
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) TRANSMISSION SIDE PTO GEAR=36/16(C5L) ASSISTOR SHIFT CONTROL<WX8>	8-98212-131-0	01	1	1407-
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) TRANSMISSION SIDE PTO GEAR=36/16(C5L) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-129-0	01	1	1407-

406 651

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

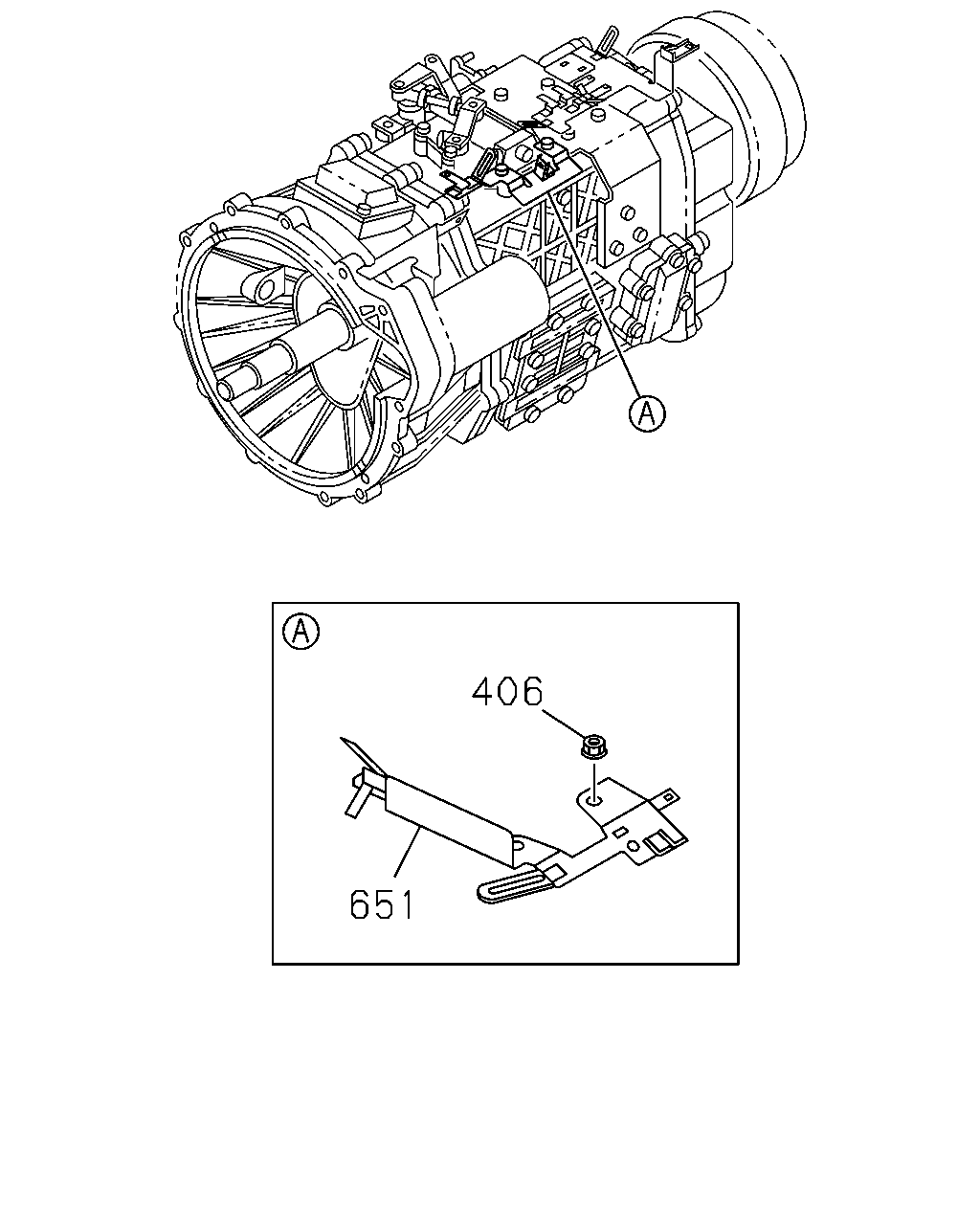

406	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE MAL	0-91180-108-0	02	1	1407-1504
406	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE MAL	0-91180-108-0	02	1	1505-
651	BRACKET; T/M HARNESS 4HK1-TCS ENG(RJS)	8-97609-800-3	01	1	1407-
