2-01A — CLUTCH (#161641) — 127 parça

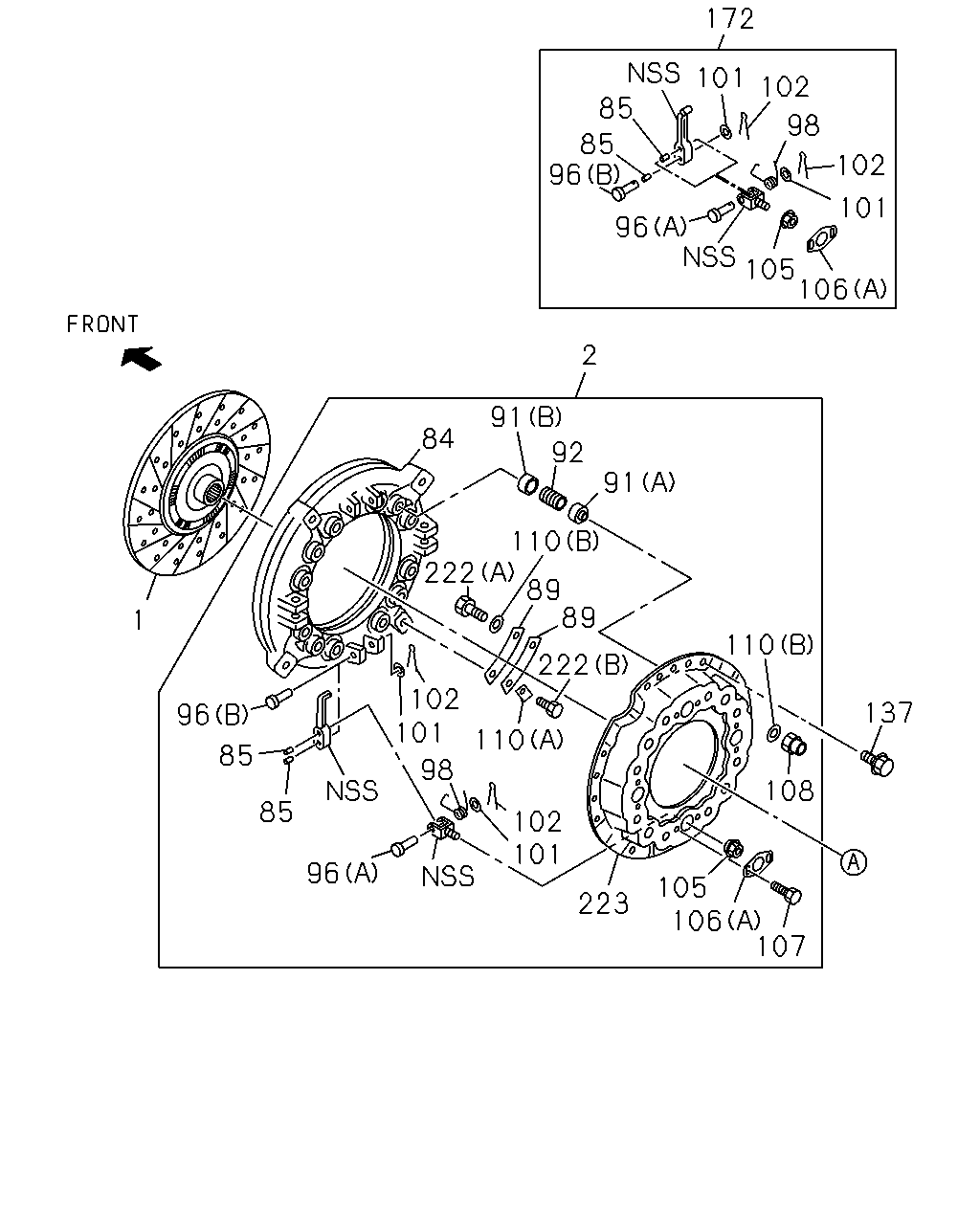

172 102 101 85 85 96 105 101 102 106 96 2 84 91 91 92 222 110 110 137 108 89 222 110 102 101 98 96 85 85 96 101 223 102 105 106 107 89 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DISC; CLUTCH 6HK1-TCN ENG(82L) BEST VALUE PARTS	1-87610-119-0	01	1	1411-
1	DISC; CLUTCH 6HK1-TCN ENG(82L) 15"	1-31240-851-2	01	1	1410-
1	DISC; CLUTCH 4HK1-TCS ENG(RJS) 14"	1-31260-040-1	01	1	1407-
1	DISC; CLUTCH 4HK1-TCS ENG(RJS) BEST VALUE PARTS	1-87610-140-0	01	1	1411-
2	PLATE ASM; PRESSURE,CLU 6HK1-TCN ENG(82L)	1-31220-377-2	01	1	1410-
2	PLATE ASM; PRESSURE,CLU 4HK1-TCS ENG(RJS)	1-31220-451-0	01	1	1407-
2	PLATE ASM; PRESSURE,CLU 6HK1-TCN ENG(82L) BEST VALUE PARTS	1-87610-146-0	01	1	1410-
84	PLATE; PRESSURE 6HK1-TCN ENG(82L) 15"	1-31221-100-0	01	1	1410-1504
84	PLATE; PRESSURE 6HK1-TCN ENG(82L) 15"	1-31221-100-0	01	1	1505-
84	PLATE; PRESSURE 4HK1-TCS ENG(RJS) 14"	1-31221-136-0	01	1	1407-
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	1407-1504
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	1505-
89	PLATE; STRAP 6HK1-TCN ENG(82L)	1-31229-050-0	16	1	1410-1504
89	PLATE; STRAP 6HK1-TCN ENG(82L)	1-31229-050-0	16	1	1505-
89	PLATE; STRAP 4HK1-TCS ENG(RJS)	1-31229-001-0	08	1	1407-
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	1407-1504
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	1505-
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	1407-1504
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	1505-
92	SPRING; CLU 6HK1-TCN ENG(82L)	1-31214-066-0	12	1	1410-
92	SPRING; CLU 4HK1-TCS ENG(RJS)	1-31214-092-0	12	1	1407-
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	1407-1504
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	1505-
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	1407-1504
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	1505-
98	SPRING; RETURN	1-31233-003-0	04	1	1407-1504
98	SPRING; RETURN	1-31233-003-0	04	1	1505-
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	1407-1504
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	1505-
102	PIN; SPLIT,RELEASE LEVER 6HK1-TCN ENG(82L) OD=2.7 L=22	9-08103-022-0	08	1	1410-1504
102	PIN; SPLIT,RELEASE LEVER 6HK1-TCN ENG(82L) OD=2.7 L=22	9-08103-022-0	08	1	1505-
102	PIN; SPLIT,RELEASE LEVER 4HK1-TCS ENG(RJS) OD=2.7 L=22	9-08113-022-0	08	1	1407-
105	NUT; SUPPORT	1-31235-014-0	04	1	1407-1504
105	NUT; SUPPORT	1-31235-014-0	04	1	1505-
106	PLATE; LK,LEVER SUPPORT 4HK1-TCS ENG(RJS) (B)	1-31235-008-0	04	1	1407-
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	1407-1504
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	1505-
107	BOLT; LK PLATE	1-31239-061-0	08	1	1407-1504
107	BOLT; LK PLATE	1-31239-061-0	08	1	1505-
108	NUT; STRAP 6HK1-TCN ENG(82L)	1-09449-036-0	04	1	1410-1504
108	NUT; STRAP 6HK1-TCN ENG(82L)	1-09449-036-0	04	1	1505-
110	WASHER; SPECIAL,STRAP 6HK1-TCN ENG(82L) (A) T=1.2	1-31229-009-0	04	1	1410-1504
110	WASHER; SPECIAL,STRAP 6HK1-TCN ENG(82L) (A) T=1.2	1-31229-009-0	04	1	1505-
110	WASHER; SPECIAL,STRAP 6HK1-TCN ENG(82L) (B) T=3.2	8-97374-512-0	08	1	1410-1504
110	WASHER; SPECIAL,STRAP 6HK1-TCN ENG(82L) (B) T=3.2	8-97374-512-0	08	1	1505-
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	1407-
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	1407-
222	BOLT; STRAP 6HK1-TCN ENG(82L) (B) M10X23.2	1-09040-042-0	04	1	1410-1504
222	BOLT; STRAP 6HK1-TCN ENG(82L) (B) M10X23.2	1-09040-042-0	04	1	1505-
222	BOLT; STRAP 6HK1-TCN ENG(82L) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	1410-1504
222	BOLT; STRAP 6HK1-TCN ENG(82L) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	1505-
222	BOLT; STRAP 4HK1-TCS ENG(RJS) (C)	1-31239-059-0	04	1	1407-
223	COVER; CLU 6HK1-TCN ENG(82L)	1-31211-019-1	01	1	1410-1504
223	COVER; CLU 6HK1-TCN ENG(82L)	1-31211-019-1	01	1	1505-

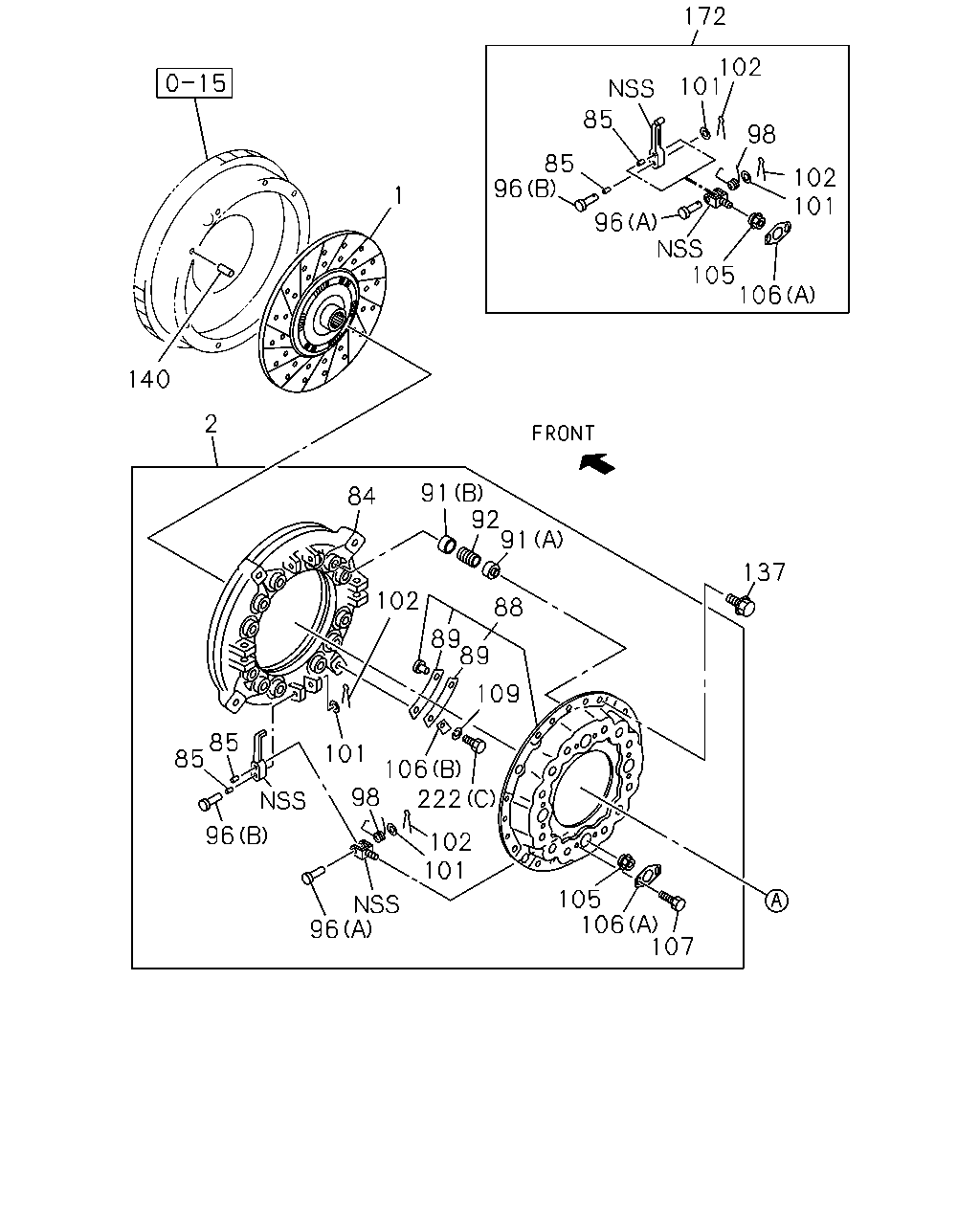

172 102 85 85 96 98 96 105 102 101 101 106 140 84 2 1 91 91 102 88 89 89 101 85 85 96 98 222 102 101 96 105 106 137 107 106 109 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DISC; CLUTCH 6HK1-TCN ENG(82L) BEST VALUE PARTS	1-87610-119-0	01	1	1411-
1	DISC; CLUTCH 6HK1-TCN ENG(82L) 15"	1-31240-851-2	01	1	1410-
1	DISC; CLUTCH 4HK1-TCS ENG(RJS) 14"	1-31260-040-1	01	1	1407-
1	DISC; CLUTCH 4HK1-TCS ENG(RJS) BEST VALUE PARTS	1-87610-140-0	01	1	1411-
2	PLATE ASM; PRESSURE,CLU 6HK1-TCN ENG(82L)	1-31220-377-2	01	1	1410-
2	PLATE ASM; PRESSURE,CLU 4HK1-TCS ENG(RJS)	1-31220-451-0	01	1	1407-
2	PLATE ASM; PRESSURE,CLU 6HK1-TCN ENG(82L) BEST VALUE PARTS	1-87610-146-0	01	1	1410-
84	PLATE; PRESSURE 6HK1-TCN ENG(82L) 15"	1-31221-100-0	01	1	1410-1504
84	PLATE; PRESSURE 6HK1-TCN ENG(82L) 15"	1-31221-100-0	01	1	1505-
84	PLATE; PRESSURE 4HK1-TCS ENG(RJS) 14"	1-31221-136-0	01	1	1407-
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	1407-1504
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	1505-
88	COVER SUB ASM; CLU 4HK1-TCS ENG(RJS)	1-31211-038-0	01	1	1407-
89	PLATE; STRAP 6HK1-TCN ENG(82L)	1-31229-050-0	16	1	1410-1504
89	PLATE; STRAP 6HK1-TCN ENG(82L)	1-31229-050-0	16	1	1505-
89	PLATE; STRAP 4HK1-TCS ENG(RJS)	1-31229-001-0	08	1	1407-
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	1407-1504
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	1505-
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	1407-1504
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	1505-
92	SPRING; CLU 6HK1-TCN ENG(82L)	1-31214-066-0	12	1	1410-
92	SPRING; CLU 4HK1-TCS ENG(RJS)	1-31214-092-0	12	1	1407-
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	1407-1504
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	1505-
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	1407-1504
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	1505-
98	SPRING; RETURN	1-31233-003-0	04	1	1407-1504
98	SPRING; RETURN	1-31233-003-0	04	1	1505-
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	1407-1504
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	1505-
102	PIN; SPLIT,RELEASE LEVER 6HK1-TCN ENG(82L) OD=2.7 L=22	9-08103-022-0	08	1	1410-1504
102	PIN; SPLIT,RELEASE LEVER 6HK1-TCN ENG(82L) OD=2.7 L=22	9-08103-022-0	08	1	1505-
102	PIN; SPLIT,RELEASE LEVER 4HK1-TCS ENG(RJS) OD=2.7 L=22	9-08113-022-0	08	1	1407-
105	NUT; SUPPORT	1-31235-014-0	04	1	1407-1504
105	NUT; SUPPORT	1-31235-014-0	04	1	1505-
106	PLATE; LK,LEVER SUPPORT 4HK1-TCS ENG(RJS) (B)	1-31235-008-0	04	1	1407-
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	1407-1504
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	1505-
107	BOLT; LK PLATE	1-31239-061-0	08	1	1407-1504
107	BOLT; LK PLATE	1-31239-061-0	08	1	1505-
109	WASHER; LK,STRAP 4HK1-TCS ENG(RJS) ID=10.2 MAL	0-91510-510-0	04	1	1407-
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	1407-
140	PIN; STRAIGHT 4HK1-TCS ENG(RJS) L=25	8-94410-361-0	02	1	1407-
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	1407-
222	BOLT; STRAP 6HK1-TCN ENG(82L) (B) M10X23.2	1-09040-042-0	04	1	1410-1504
222	BOLT; STRAP 6HK1-TCN ENG(82L) (B) M10X23.2	1-09040-042-0	04	1	1505-
222	BOLT; STRAP 6HK1-TCN ENG(82L) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	1410-1504
222	BOLT; STRAP 6HK1-TCN ENG(82L) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	1505-
222	BOLT; STRAP 4HK1-TCS ENG(RJS) (C)	1-31239-059-0	04	1	1407-

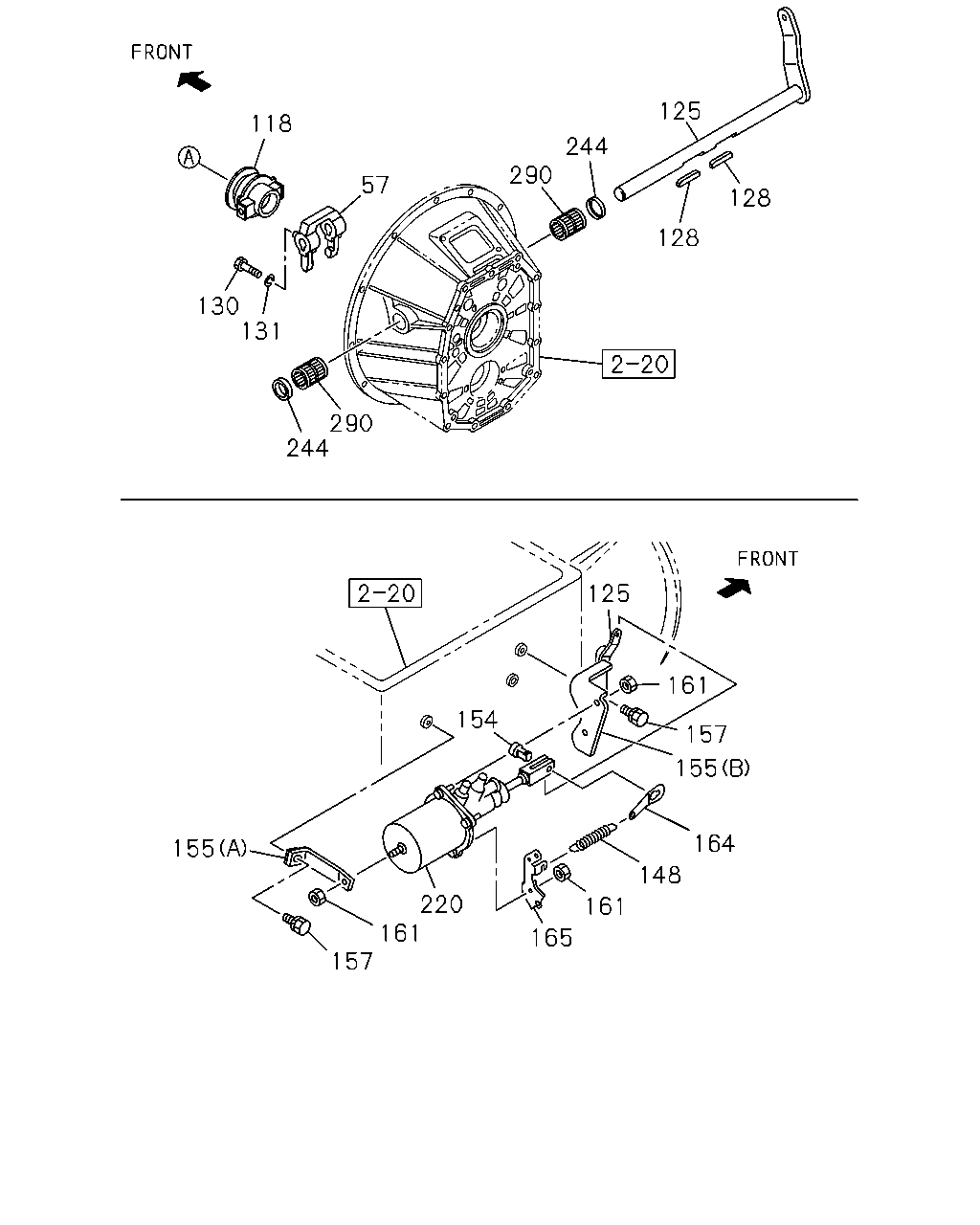

118 57 130 290 131 290 244 244 125 128 128 125 161 157 155 154 220 155 157 161 165 148 161 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
57	FORK; SHIFT,CLU	1-31341-048-2	01	1	1407-
118	BEARING; CLU RELEASE	1-31310-026-0	01	1	1407-
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-109-0	01	1	1407-
125	SHAFT; CLU	1-31342-335-0	01	1	1407-
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	1407-1504
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	1505-
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	1407-
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	1407-1504
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	1505-
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	1407-1504
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	1505-
154	PIN; JAW JOINT	1-31424-009-0	01	1	1407-1504
154	PIN; JAW JOINT	1-31424-009-0	01	1	1505-
155	BRACKET; MINIPACK (A)	1-31429-475-1	01	1	1407-
155	BRACKET; MINIPACK (B)	1-31429-478-0	01	1	1407-
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	1407-
161	NUT; BRKT M10 FLANGE MAL	0-91180-210-0	05	1	1407-
164	EYE; SPRING	1-31426-041-0	01	1	1407-
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	1407-
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-511-2	01	1	1407-
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-089-0	01	1	1407-1504
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-089-0	01	1	1505-
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	1407-
290	BEARING; NEEDLE NTN	1-09811-002-1	02	1	1407-
