◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11227 - FSR(CNG)AUSTRALIA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13 - OIL PAN AND LEVEL GAUGE ▶
0-13 — OIL PAN AND LEVEL GAUGE (#16164) — 26 parça

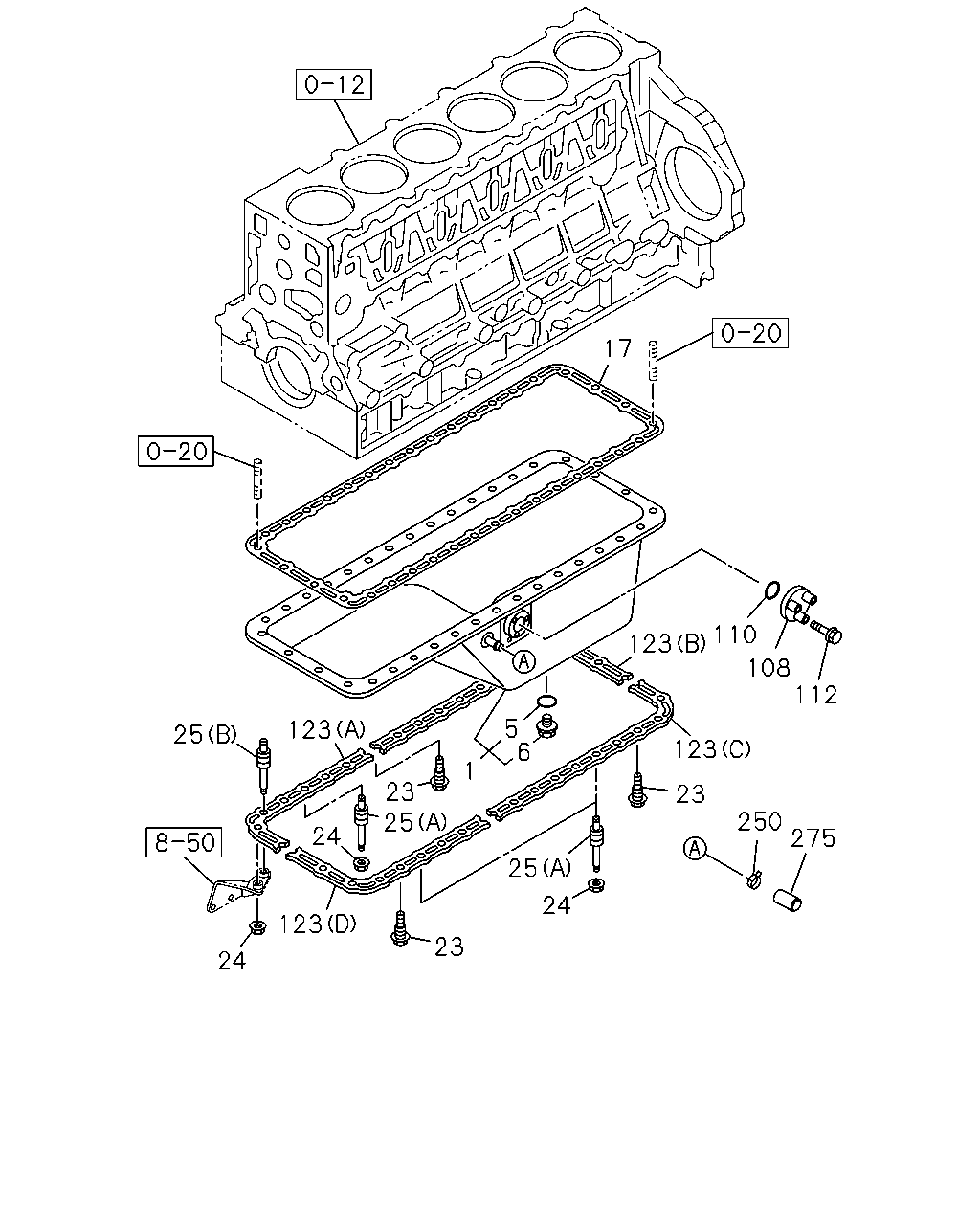

çizim 62071
17 110 123 108 112 5 6 123 25 123 1 23 25 23 250 275 24 25 24 123 23 24
BalonParca AdiParca NoAdetTipApplied Date
1 PAN ASM; OIL 8-98061-543-0 01 1 0907-1002
1 PAN ASM; OIL 8-98061-363-0 01 1 1003-
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 		8-94399-398-0 01 1 0907-1002
6 PLUG; OIL DRAIN
M20X16.5 		9-09662-012-0 01 1 0907-1002
17 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94390-617-1 01 1 0907-
23 BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97087-634-0 22 1 0907-
24 NUT; OIL PAN
M8 FLANGE 		0-91180-108-0 12 1 0907-
25 STUD; OIL PAN
(A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER 		8-97087-632-2 04 1 0907-
25 STUD; OIL PAN
(B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER 		8-97601-889-0 01 1 0907-
108 COVER; OIL PAN 8-97609-994-0 01 1 0907-1002
110 GASKET; SW,OIL LEVEL
ID=27 		1-09623-355-0 01 1 0907-1002
112 BOLT; SW,OIL LEVEL
M6X25 FLANGE 		0-28050-625-0 03 1 0907-1002
123 RUBBER; SEAL OIL
(A) 		8-94391-755-0 01 1 0907-
123 RUBBER; SEAL OIL
(B) 		8-94391-757-0 01 1 0907-
123 RUBBER; SEAL OIL
(C) 		8-94391-758-0 01 1 0907-
123 RUBBER; SEAL OIL
(D) 		8-94392-548-0 01 1 0907-
250 CLIP; RUBBER CAP
ID=14 		1-09704-102-0 01 1 0907-1002
275 CAP; RUBBER
ID=9.0 		8-94207-303-0 01 1 0907-1002

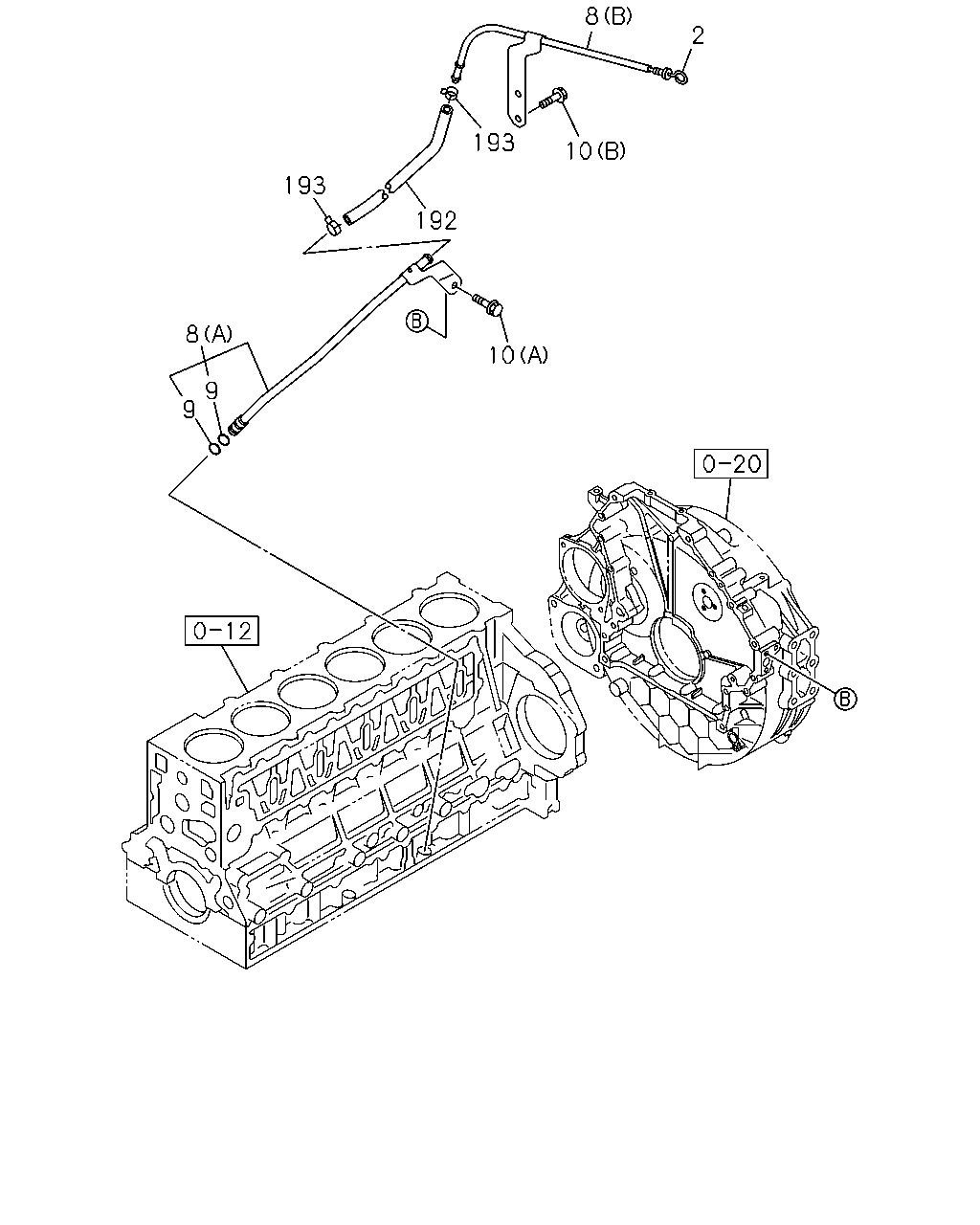

çizim 63427
8 2 193 10 193 192 8 10 9 9
BalonParca AdiParca NoAdetTipApplied Date
2 GAUGE; OIL LEVEL 8-98010-726-2 01 1 0907-
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-97608-495-0 01 1 0907-
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		8-97620-286-0 01 1 0907-
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 0907-
10 BOLT; GUIDE TUBE
(A) M8X25 FLANGE 		0-28050-825-0 01 1 0907-
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0907-
192 HOSE; GUIDE TUBE 8-97620-319-0 01 1 0907-
193 CLIP; HOSE,GUIDE TUBE
ID=17 		1-09707-158-0 02 1 0907-
