1 |

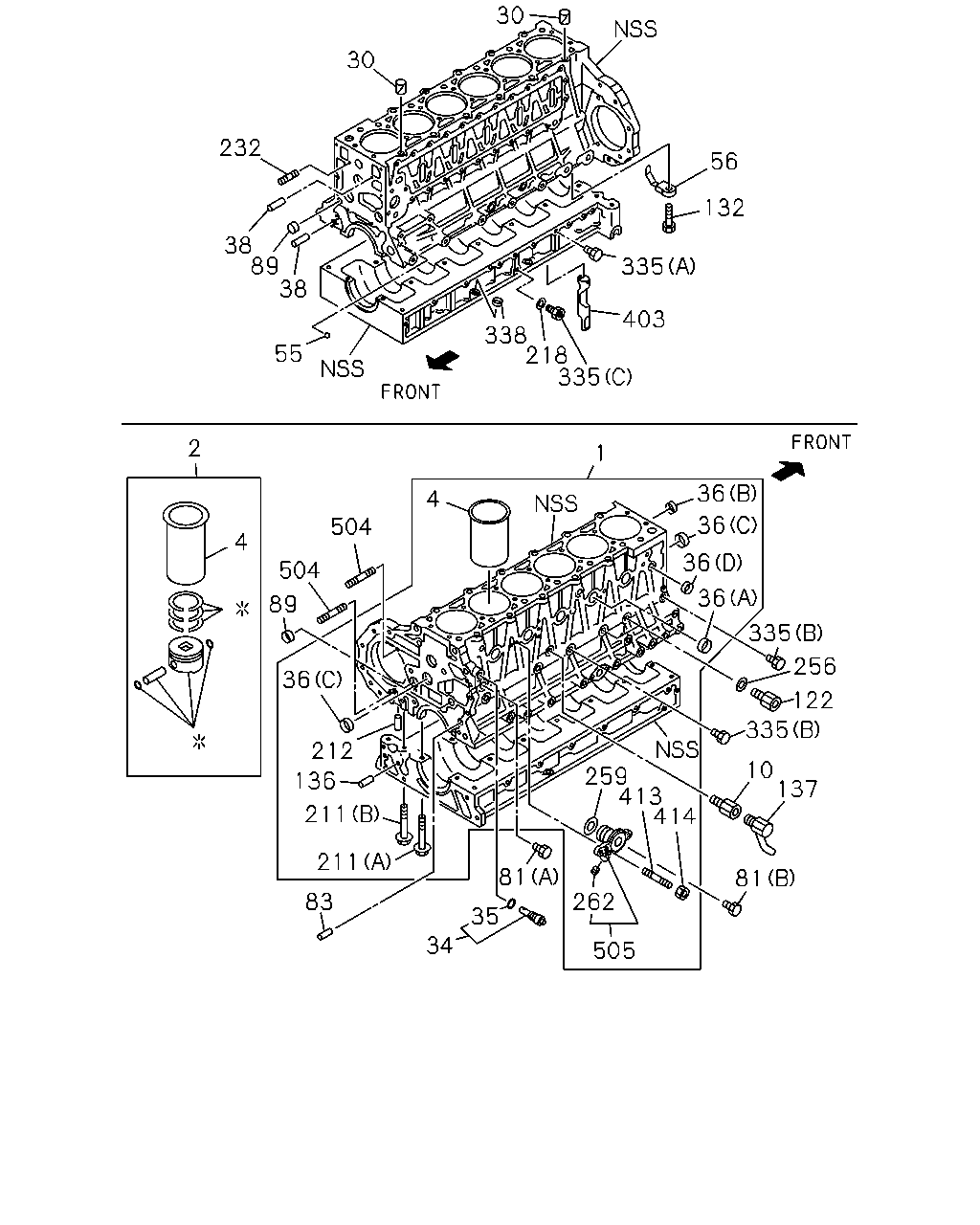

BLOCK ASM; CYL
|
8-98240-739-0 |
01 |
1 |
0907- |
| |
2 |
LINER SET; ENG CYL
GRADE=1X
|
1-87813-430-1 |
06 |
1 |
0907-1301 |
| |
2 |
LINER SET; ENG CYL
GRADE=1X
|
1-87814-027-0 |
06 |
1 |
1302- |
| |
2 |
LINER SET; ENG CYL
GRADE=3X
|
1-87813-431-1 |
06 |
1 |
0907-1301 |
| |
2 |
LINER SET; ENG CYL
GRADE=3X
|
1-87814-028-0 |
06 |
1 |
1302- |
| |
4 |
LINER; C/BL
ALSO INCLUDED IN LINER SET.
OD GRADE=1X,ID GRADE=NON
|
8-98014-046-1 |
06 |
1 |
0907-1312 |
| |
4 |
LINER; C/BL
ALSO INCLUDED IN LINER SET.
OD GRADE=1X,ID GRADE=NON
|
8-98014-046-1 |
12 |
1 |
1401- |
| |
4 |
LINER; C/BL
ALSO INCLUDED IN LINER SET.
OD GRADE=3X,ID GRADE=NON
|
8-98014-047-1 |
06 |
1 |
0907-1312 |
| |
4 |
LINER; C/BL
ALSO INCLUDED IN LINER SET.
OD GRADE=3X,ID GRADE=NON
|
8-98014-047-1 |
12 |
1 |
1401- |
| |
10 |
CONNECTOR; WATER DRAIN
|
8-94396-378-0 |
01 |
1 |
0907- |
| |
30 |
PIN; CYL HD GASKET SETTING
OD=18.15
|
8-94399-688-1 |
02 |
1 |
0907- |
| |
34 |
VALVE; OIL RELIEF
|
8-94393-077-1 |
01 |
1 |
0907- |
| |
35 |
GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=27.7
|
5-09623-035-0 |
01 |
1 |
0907- |
| |
36 |
CUP; SEALING,WATER JACKET
(A)
OD=45
|
1-09600-005-2 |
04 |
1 |
0907- |
| |
36 |
CUP; SEALING,WATER JACKET
(D)
OD=25
|
1-09600-016-0 |
01 |
1 |
0907- |
| |
36 |
CUP; SEALING,WATER JACKET
(B)
OD=25
|
8-94399-005-0 |
01 |
1 |
0907- |
| |
36 |
CUP; SEALING,WATER JACKET
(C)
OD=40
|
8-97096-824-0 |
04 |
1 |
0907- |
| |
38 |
PIN; TIMING GEAR CASE
L=22
|
8-94483-674-0 |
02 |
1 |
0907- |
| |
55 |
PLUG; OIL GALLERY
3/8" BALL
|
9-00097-011-0 |
01 |
1 |
0907- |
| |
56 |
JET; OIL,PISTON COOLING
|
8-98020-649-0 |
06 |
1 |
0907-1007 |
| |
56 |
JET; OIL,PISTON COOLING
|
8-98173-342-0 |
06 |
1 |
1008- |
| |
81 |
PLUG; WATER JACKET
(B)
PT3/8
|
8-94397-338-0 |
01 |
1 |
0907- |
| |
81 |
PLUG; WATER JACKET
(A)
M14
|
8-94399-225-0 |
01 |
1 |
0907- |
| |
83 |
PIN; FLYWHEEL HSG
L=22
|
8-94483-674-0 |
02 |
1 |
0907- |
| |
89 |
CUP; SEALING,OIL GALLERY
OD=20
|
9-11219-192-0 |
03 |
1 |
0907-0908 |
| |
89 |
CUP; SEALING,OIL GALLERY
OD=20
|
9-11129-128-0 |
03 |
1 |
0909- |
| |
122 |
ADAPTER; OIL PRESSURE SWITCH
|
8-97603-667-0 |
01 |
1 |
0907- |
| |
132 |
VALVE; CHECK,OIL
M12X18.5
|
8-94394-419-1 |
06 |
1 |
0907- |
| |
136 |
BUSHING; DRIVE SHAFT,OIL PUMP
|
8-98091-566-0 |
02 |
1 |
0907- |
| |
137 |
COCK; DRAIN,WATER
|
8-94393-716-1 |
01 |
1 |
0907- |
| |
211 |
BOLT; CRANKCASE
(A)
M14X115 W/FLANGE
|
8-97077-638-0 |
14 |
1 |
0907- |
| |
211 |
BOLT; CRANKCASE
(B)
M10X82
|
8-94399-553-2 |
25 |
1 |
0907- |
| |
212 |
PIN; CRANKCASE
OD=10 L=20
|
8-97135-423-0 |
02 |
1 |
0907- |
| |
218 |
GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=12.2
|
1-09630-084-0 |
01 |
1 |
0907-1312 |
| |
218 |
GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=12.2
|
8-98251-344-0 |
01 |
1 |
1401- |
| |
232 |
STUD; WATER PUMP
M8X55 L=67
|
0-41010-855-0 |
03 |
1 |
0907- |
| |
256 |
GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=14.2 OD=25
|
1-09630-141-0 |
01 |
1 |
0907- |
| |
259 |
GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=38.7
|
1-09623-184-0 |
01 |
1 |
0907-1012 |
| |
259 |
GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=38.7
|
1-09623-184-0 |
02 |
1 |
1101- |
| |
262 |
PLUG; ADAPTER
|
1-13163-002-0 |
01 |
1 |
1101-1312 |
| |
335 |
PLUG; C/BL,SIDE
(C)
M12X10
|
5-13265-001-0 |
01 |
1 |
0907- |
| |
335 |
PLUG; C/BL,SIDE
(B)
M14X16.5
|
8-97329-617-0 |
02 |
1 |
0907- |
| |
335 |
PLUG; C/BL,SIDE
(A)
M8X10
|
8-98003-416-0 |
01 |
1 |
0907- |
| |
338 |
CUP; SEALING,GUIDE TUBE HOLE
OD=15.6
|
5-11129-003-0 |
02 |
1 |
0907- |
| |
403 |
GUIDE; GALLERY
|
8-94395-351-1 |
01 |
1 |
0907- |
| |
413 |
STUD; ADAPTER
M8X30 L=41
|
0-41010-830-0 |
02 |
1 |
0907- |
| |
414 |
NUT; ADAPTER
M8 FLANGE
|
0-91180-208-0 |
02 |
1 |
0907- |
| |
504 |
STUD; INJ PUMP
M10X46.5 L=58.5
|
8-97363-237-0 |
02 |
1 |
0907- |
| |
505 |
ADAPTER; WATER FEED
|
8-97611-854-0 |
01 |
1 |
0907- |
