6-75 — MAT AND CARPET (#161628) — 18 parça

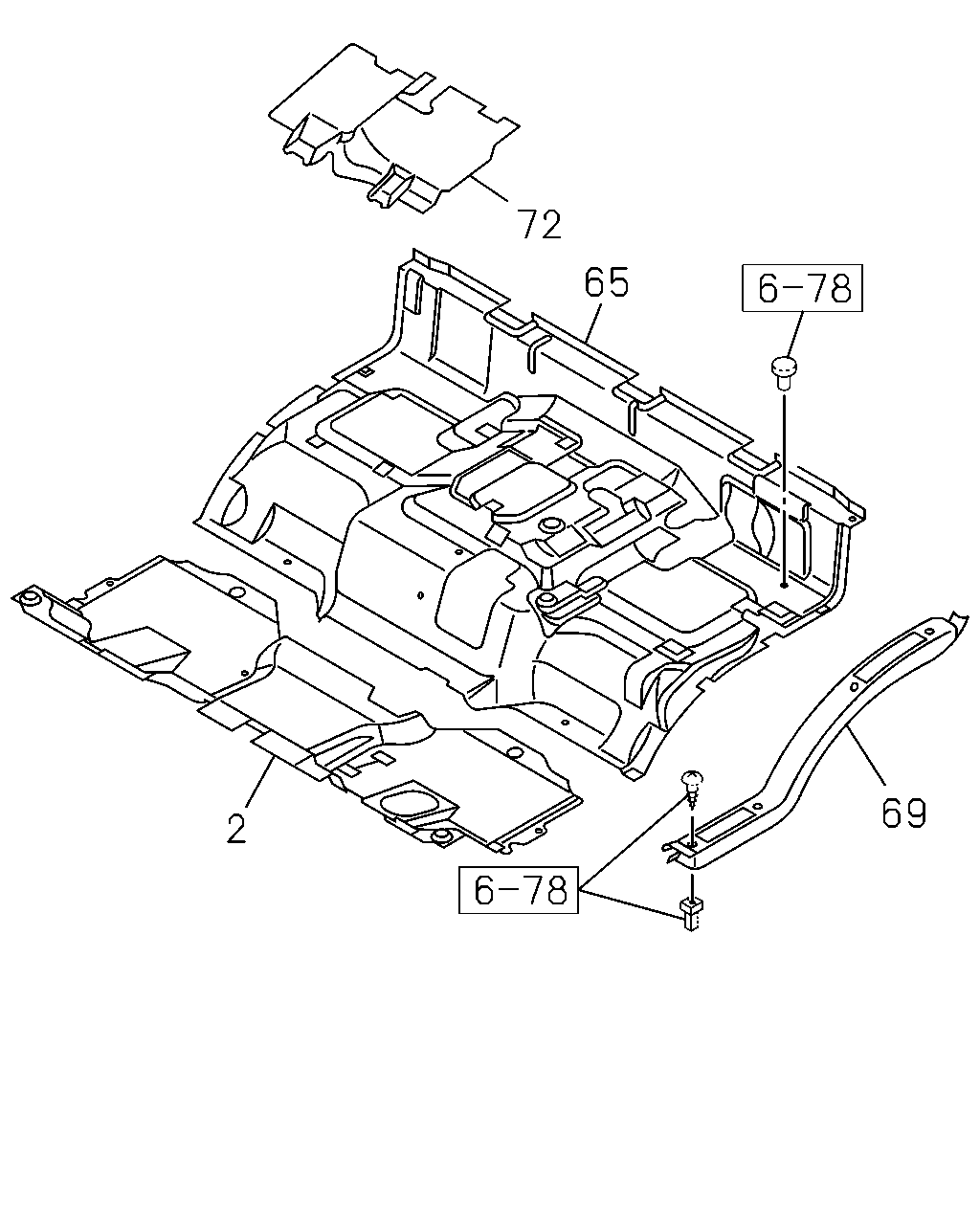

72 69 65 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	16.800 MAT; FLOOR GRAY	8-97411-668-3	01	1	1505-	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97423-536-2	01	1	1505-	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR GRAY	8-97423-537-2	01	1	1505-			●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	1505-	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	1505-	●	●	●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97417-598-1	01	1	1505-	●	●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97417-598-1	01	1	1505-			●

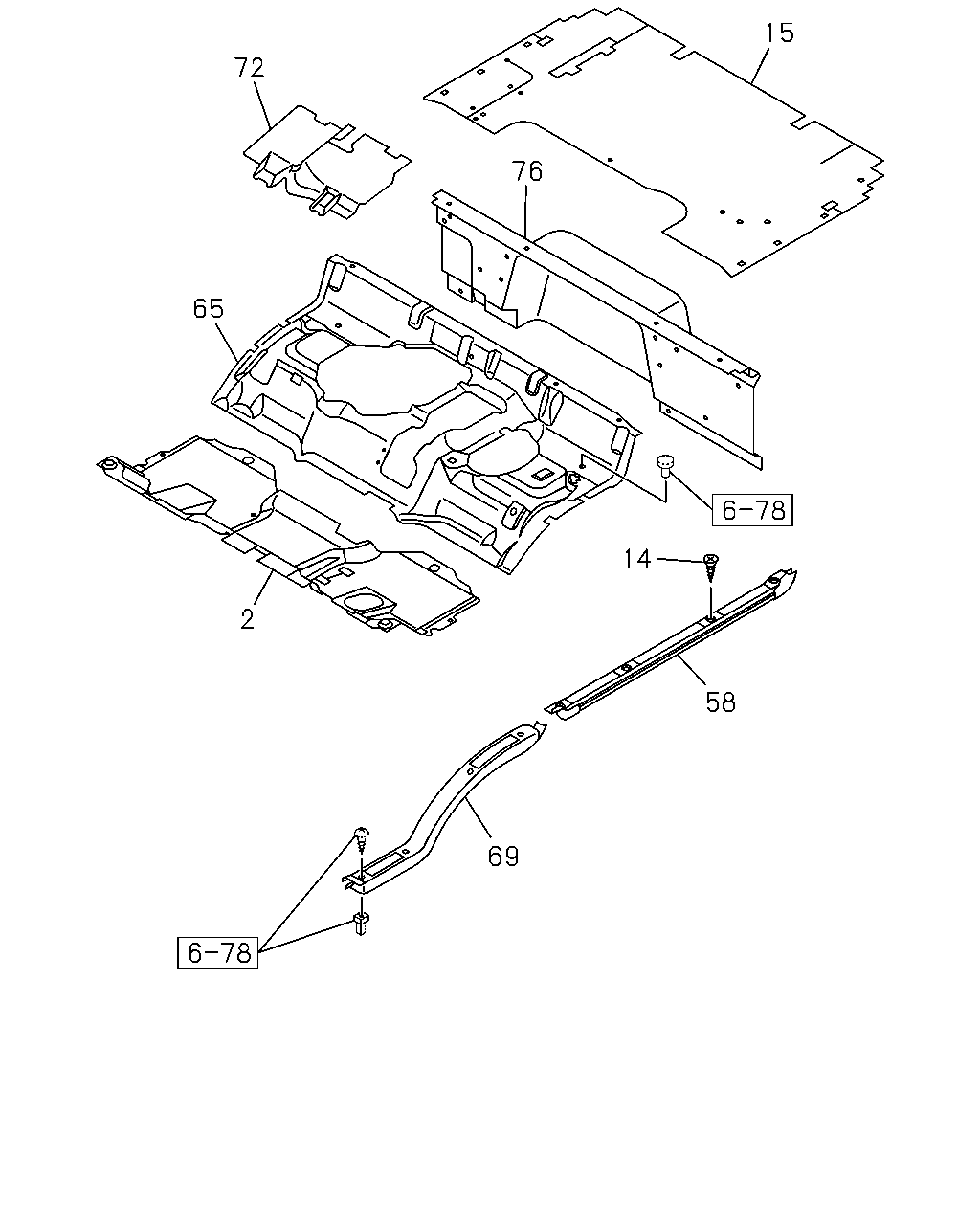

76 15 72 65 2 69 58 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	16.800 MAT; FLOOR GRAY	8-97411-668-3	01	1	1505-	●	●	●
14	16.870 SCREW; PLATE 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	08	1	1505-			●
15	16.800 MAT; FLOOR REAR GRAY	8-97423-532-0	01	1	1505-			●
58	08.153 PLATE; GUARD,RR FLOOR MAT GRAY	8-97405-981-1	02	1	1505-			●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97423-536-2	01	1	1505-	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR GRAY	8-97423-537-2	01	1	1505-			●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	1505-	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	1505-	●	●	●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97417-598-1	01	1	1505-	●	●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97417-598-1	01	1	1505-			●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG GRAY	8-97423-539-0	01	1	1505-			●
