6-70 — FLOOR PANEL (#161627) — 111 parça

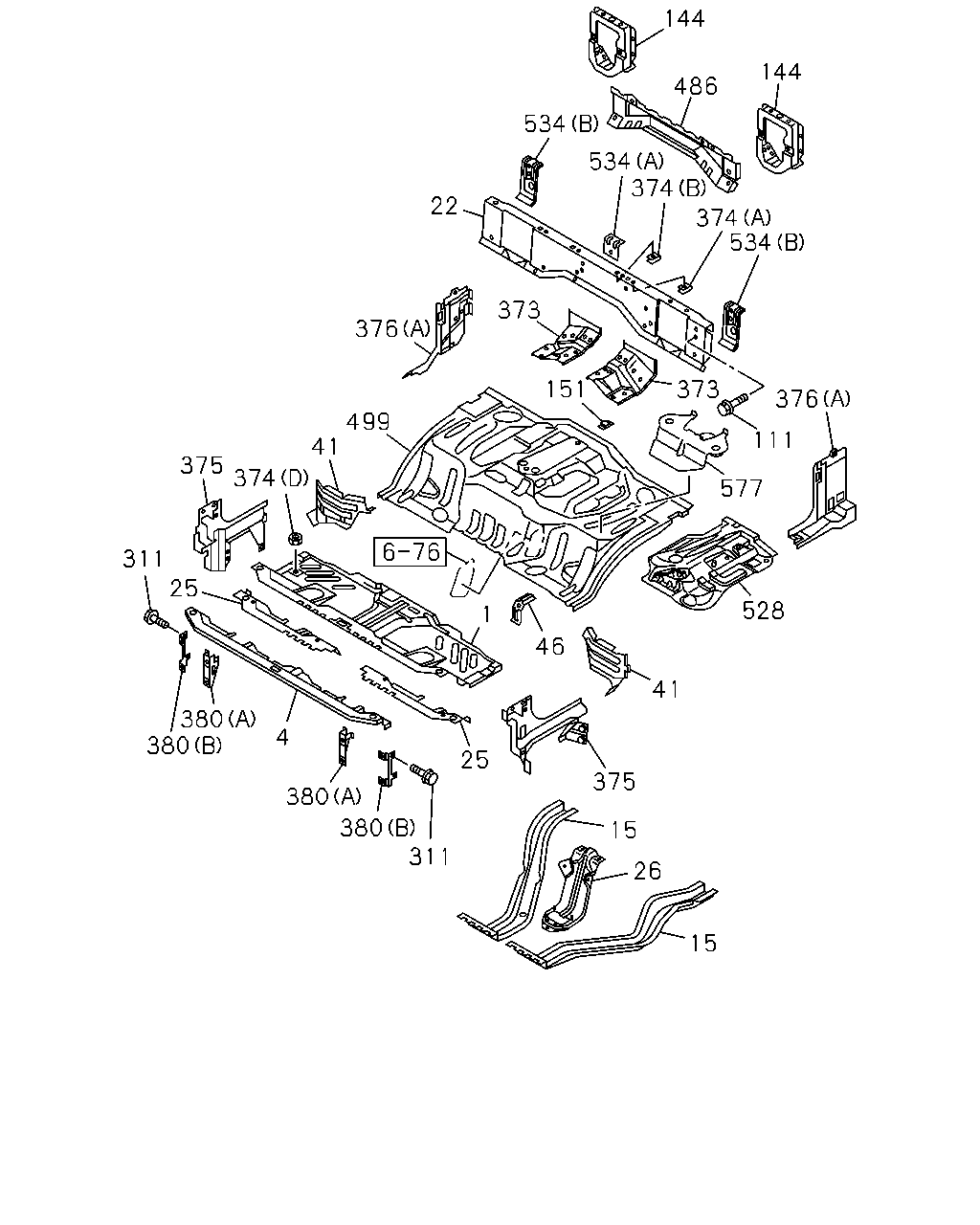

çizim 476250
15 41 375 15 26 25 4 380 380 380 380 311 46 1 577 528 111 376 373 151 376 499 41 374 375 311 25 373 22 534 534 374 486 144 144 374 534
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.545 PANEL; FLOOR 8-97589-434-1 01 1 1505- ● ● ●
4 16.545 FRAME; FLOOR,FRT 8-98080-108-0 01 1 1505- ● ● ●
15 16.545 FRAME; UNDER 8-98061-277-1 01 1 1505- ● ● ●
15 16.545 FRAME; UNDER 8-98061-278-1 01 1 1505- ● ● ●
22 16.545 FRAME; FLOOR REAR 8-97589-446-2 01 1 1505- ● ●
22 16.545 FRAME; FLOOR REAR 8-97589-457-2 01 1 1505- ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-97588-030-1 01 1 1505- ● ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-97588-031-1 01 1 1505- ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97589-517-1 01 1 1505- ● ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-935-2 01 1 1505- ● ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-936-2 01 1 1505- ● ● ●
46 16.545 BRACKET; FRT SEAT,RR OUTER 8-97583-834-0 01 1 1505- ● ● ●
111 16.549 BOLT; PANEL
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1505- ● ●
144 16.545 BRACKET; MTG,RR 8-97589-544-3 02 1 1505- ● ●
144 16.545 BRACKET; MTG,RR 8-98112-244-2 02 1 1505- ●
151 16.670 BRACKET; SEAT CUSHION STOPPER 8-97583-833-0 01 1 1505- ● ●
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1505- ● ● ●
373 16.545 REINFORCEMENT; SEAT BELT 8-97589-447-0 01 1 1505- ● ●
373 16.545 REINFORCEMENT; SEAT BELT 8-97589-448-0 01 1 1505- ● ●
373 16.545 REINFORCEMENT; SEAT BELT 8-98021-748-0 01 1 1505- ●
374 16.545 NUT; FLOOR
(A) M8 		1-09984-111-0 01 1 1505- ● ●
374 16.545 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 1505- ● ● ●
374 16.545 NUT; FLOOR
(A) M8 		1-09984-111-0 04 1 1505- ●
374 16.545 NUT; FLOOR
09.786 (C) M6 POP NUT 		8-98013-752-0 01 1 1505- ●
374 16.545 NUT; FLOOR
(D) M8 		9-09114-068-0 03 1 1505- ● ● ●
375 16.545 CLOSING; PILLAR 8-97583-882-3 01 1 1505- ● ●
375 16.545 CLOSING; PILLAR
EURO5B+ SPECIFICATION(NT5) 		8-97583-882-3 01 1 1505- ●
375 16.545 CLOSING; PILLAR 8-97583-883-2 01 1 1505- ● ●
375 16.545 CLOSING; PILLAR
EURO5B+ SPECIFICATION(NT5) 		8-97583-883-2 01 1 1505- ●
375 16.545 CLOSING; PILLAR
EURO6 SPECIFICATION(NT6) 		8-98080-727-2 01 1 1505- ●
375 16.545 CLOSING; PILLAR
EURO6 SPECIFICATION(NT6) 		8-98080-728-1 01 1 1505- ●
376 16.545 CLOSING; PILLAR,LWR
(A) 		8-97583-888-2 01 1 1505- ● ●
376 16.545 CLOSING; PILLAR,LWR
(A) 		8-97584-618-2 01 1 1505- ● ●
376 16.545 CLOSING; PILLAR,LWR
(B) 		8-98024-544-7 01 1 1505- ●
376 16.545 CLOSING; PILLAR,LWR
(B) 		8-98024-545-6 01 1 1505- ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-384-4 01 1 1505- ● ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-385-3 01 1 1505- ● ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 1505- ● ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 1505- ● ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR 8-98030-610-2 01 1 1505- ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR 8-98030-612-0 01 1 1505- ●
499 16.545 PANEL; FLOOR,RR 8-97589-436-0 01 1 1505- ● ●
499 16.545 PANEL; FLOOR,RR 8-97589-453-1 01 1 1505- ●
528 16.545 REINFORCEMENT; PARKING BRAKE 8-97589-437-2 01 1 1505- ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(B) 		8-98007-678-2 02 1 1505- ● ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(A) 		8-98019-181-2 01 1 1505- ● ● ●
577 16.545 BRACKET; SENSOR,YAW 8-98206-512-0 01 1 1505- ● ● ●

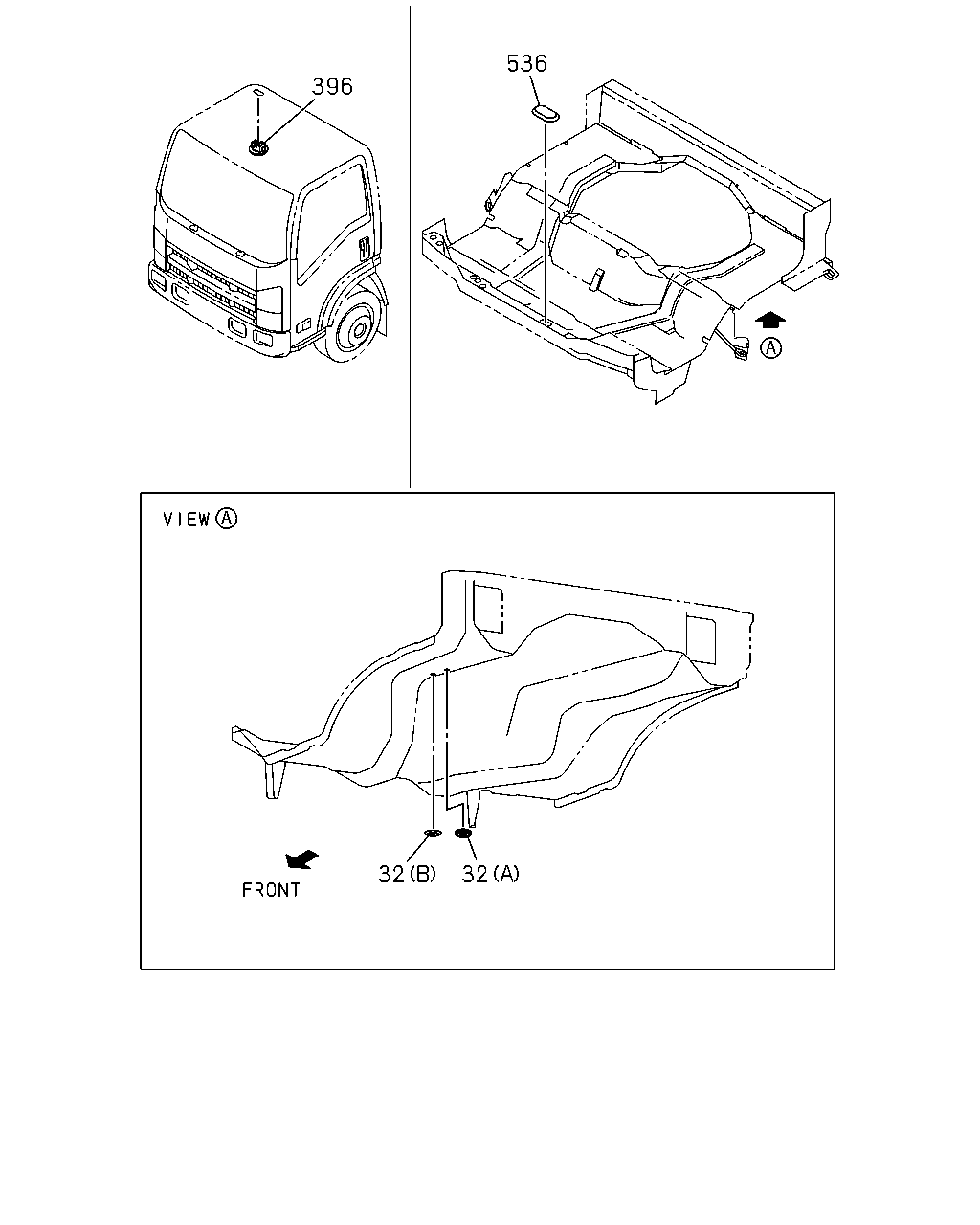

çizim 476458
396 32 32 536
BalonParca AdiParca NoAdetTipApplied Date A B C
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(A) OD=15.0 		8-94279-040-0 02 1 1505- ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(B) OD=12.1 		8-97898-423-0 02 1 1505- ● ● ●
396 16.547 GROMMET; LOCATION HOLE
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 		8-98054-990-0 02 1 1505- ● ●
536 16.549 PLUG; CABLE,PTO
04.008 		8-98029-219-1 01 1 1505- ● ● ●

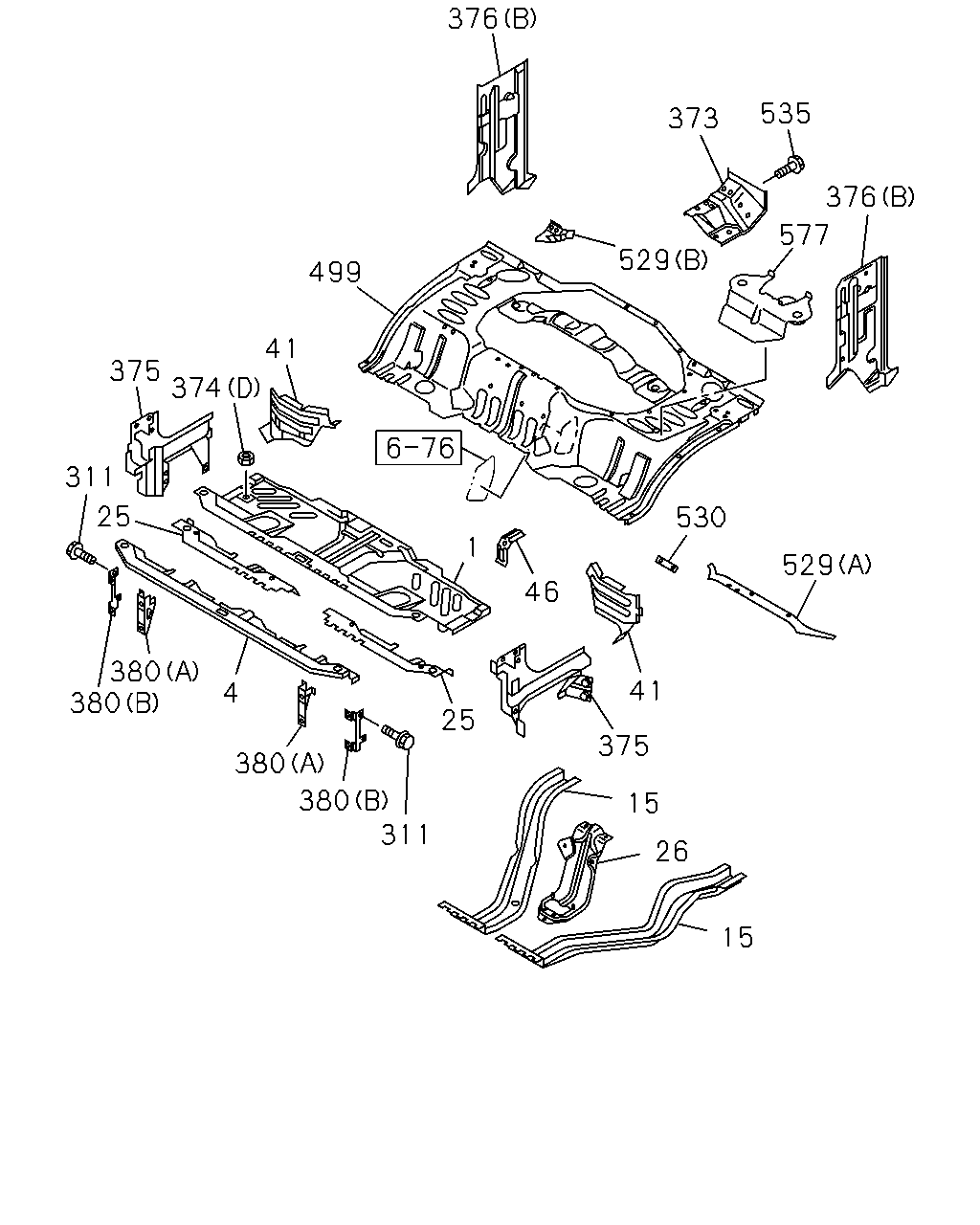

çizim 476774
529 530 46 1 380 380 380 4 380 311 26 15 375 25 41 15 41 374 375 311 25 499 376 373 535 376 577 529
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.545 PANEL; FLOOR 8-97589-434-1 01 1 1505- ● ● ●
4 16.545 FRAME; FLOOR,FRT 8-98080-108-0 01 1 1505- ● ● ●
15 16.545 FRAME; UNDER 8-98061-277-1 01 1 1505- ● ● ●
15 16.545 FRAME; UNDER 8-98061-278-1 01 1 1505- ● ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-97588-030-1 01 1 1505- ● ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-97588-031-1 01 1 1505- ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97589-517-1 01 1 1505- ● ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-935-2 01 1 1505- ● ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-936-2 01 1 1505- ● ● ●
46 16.545 BRACKET; FRT SEAT,RR OUTER 8-97583-834-0 01 1 1505- ● ● ●
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1505- ● ● ●
373 16.545 REINFORCEMENT; SEAT BELT 8-97589-447-0 01 1 1505- ● ●
373 16.545 REINFORCEMENT; SEAT BELT 8-97589-448-0 01 1 1505- ● ●
373 16.545 REINFORCEMENT; SEAT BELT 8-98021-748-0 01 1 1505- ●
374 16.545 NUT; FLOOR
(A) M8 		1-09984-111-0 01 1 1505- ● ●
374 16.545 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 1505- ● ● ●
374 16.545 NUT; FLOOR
(A) M8 		1-09984-111-0 04 1 1505- ●
374 16.545 NUT; FLOOR
09.786 (C) M6 POP NUT 		8-98013-752-0 01 1 1505- ●
374 16.545 NUT; FLOOR
(D) M8 		9-09114-068-0 03 1 1505- ● ● ●
375 16.545 CLOSING; PILLAR 8-97583-882-3 01 1 1505- ● ●
375 16.545 CLOSING; PILLAR
EURO5B+ SPECIFICATION(NT5) 		8-97583-882-3 01 1 1505- ●
375 16.545 CLOSING; PILLAR 8-97583-883-2 01 1 1505- ● ●
375 16.545 CLOSING; PILLAR
EURO5B+ SPECIFICATION(NT5) 		8-97583-883-2 01 1 1505- ●
375 16.545 CLOSING; PILLAR
EURO6 SPECIFICATION(NT6) 		8-98080-727-2 01 1 1505- ●
375 16.545 CLOSING; PILLAR
EURO6 SPECIFICATION(NT6) 		8-98080-728-1 01 1 1505- ●
376 16.545 CLOSING; PILLAR,LWR
(A) 		8-97583-888-2 01 1 1505- ● ●
376 16.545 CLOSING; PILLAR,LWR
(A) 		8-97584-618-2 01 1 1505- ● ●
376 16.545 CLOSING; PILLAR,LWR
(B) 		8-98024-544-7 01 1 1505- ●
376 16.545 CLOSING; PILLAR,LWR
(B) 		8-98024-545-6 01 1 1505- ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-384-4 01 1 1505- ● ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-385-3 01 1 1505- ● ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 1505- ● ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 1505- ● ● ●
499 16.545 PANEL; FLOOR,RR 8-97589-436-0 01 1 1505- ● ●
499 16.545 PANEL; FLOOR,RR 8-97589-453-1 01 1 1505- ●
529 16.545 RETAINER; FLOOR PANEL
(A) 		8-98021-207-0 01 1 1505- ●
529 16.545 RETAINER; FLOOR PANEL
(B) 		8-98031-663-0 01 1 1505- ●
530 16.565 BRACKET; COVER 8-97589-255-0 01 1 1505- ●
535 16.549 BOLT; REINFORCEMENT
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1505- ●
577 16.545 BRACKET; SENSOR,YAW 8-98206-512-0 01 1 1505- ● ● ●

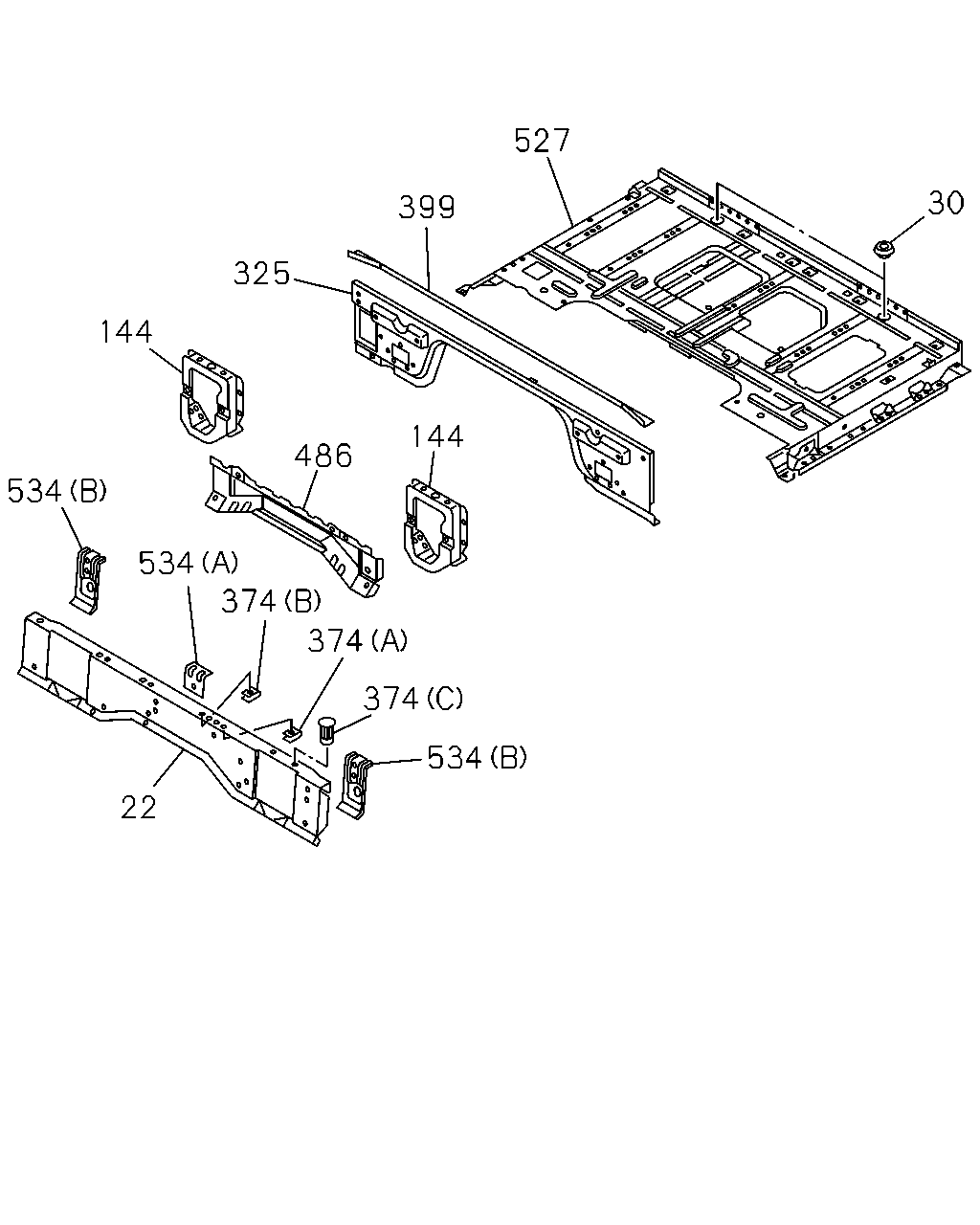

çizim 476820
325 144 534 534 374 374 374 534 22 144 486 399 527 30
BalonParca AdiParca NoAdetTipApplied Date A B C
22 16.545 FRAME; FLOOR REAR 8-97589-446-2 01 1 1505- ● ●
22 16.545 FRAME; FLOOR REAR 8-97589-457-2 01 1 1505- ●
30 16.547 GROMMET; CAB MTG RAIL
OD=74 		8-94279-731-0 02 1 1505- ●
144 16.545 BRACKET; MTG,RR 8-97589-544-3 02 1 1505- ● ●
144 16.545 BRACKET; MTG,RR 8-98112-244-2 02 1 1505- ●
325 16.545 REINFORCEMENT ASM; RR MTG 8-98206-042-0 01 1 1505- ●
374 16.545 NUT; FLOOR
(A) M8 		1-09984-111-0 01 1 1505- ● ●
374 16.545 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 1505- ● ● ●
374 16.545 NUT; FLOOR
(A) M8 		1-09984-111-0 04 1 1505- ●
374 16.545 NUT; FLOOR
09.786 (C) M6 POP NUT 		8-98013-752-0 01 1 1505- ●
374 16.545 NUT; FLOOR
(D) M8 		9-09114-068-0 03 1 1505- ● ● ●
399 16.545 PANEL; EXTENSION,RR MTG RAIL 8-97588-952-1 01 1 1505- ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR 8-98030-610-2 01 1 1505- ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR 8-98030-612-0 01 1 1505- ●
527 16.545 FLOOR; RR
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98206-038-1 01 1 1505- ●
527 16.545 FLOOR; RR
EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98271-406-0 01 1 1505- ●
527 16.545 FLOOR; RR
EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98284-335-0 01 1 1505- ●
527 16.545 FLOOR; RR
EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98284-336-0 01 1 1505- ●
534 16.545 REINFORCEMENT; SEAT BACK
(B) 		8-98007-678-2 02 1 1505- ● ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(A) 		8-98019-181-2 01 1 1505- ● ● ●
