◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51613 - NLR/NMR LHD EUROPE EURO5B+,6 ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#161608) — 20 parça

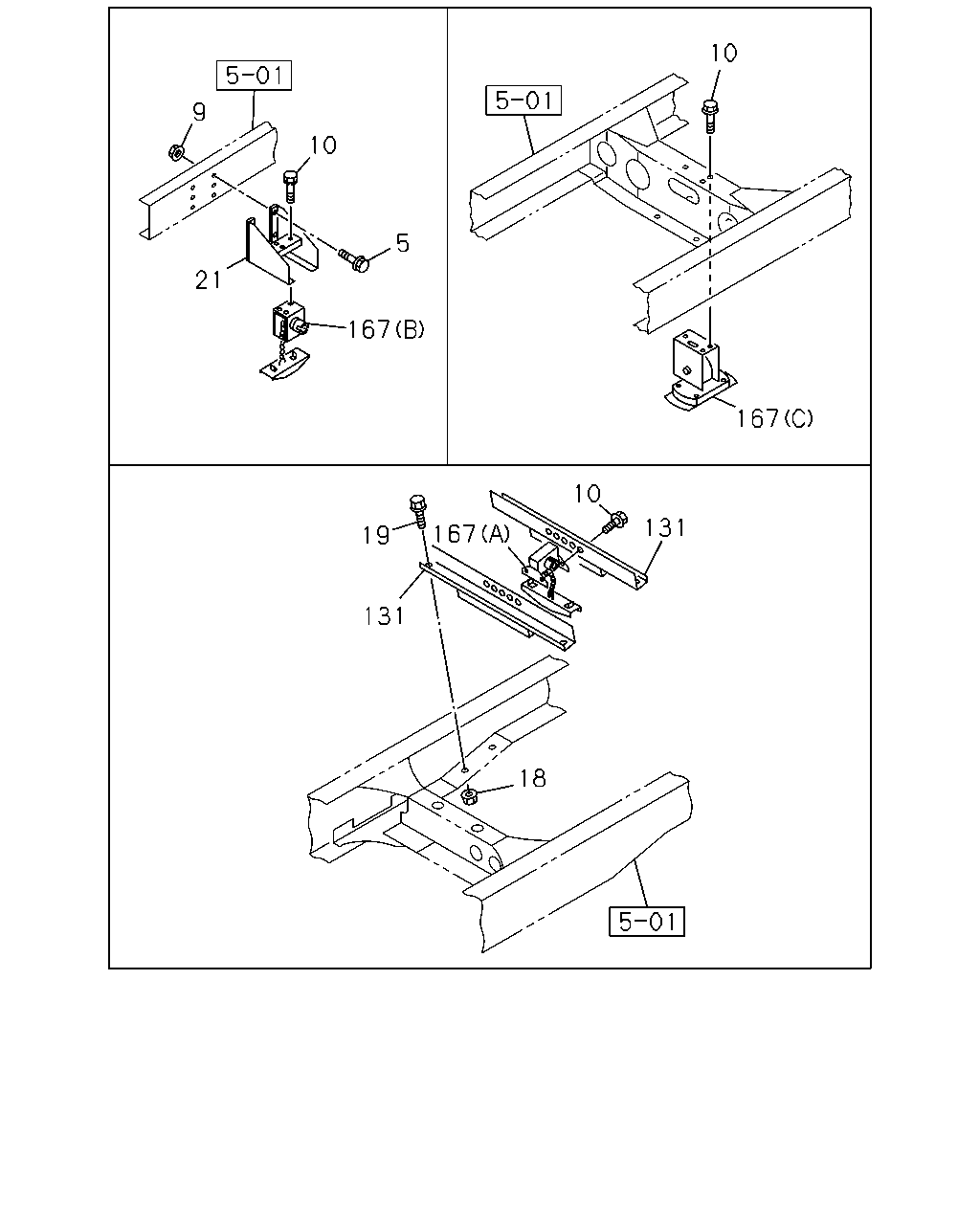

çizim 475667
9 21 10 5 167 19 131 18 167 10 131 167 10
BalonParca AdiParca NoAdetTipApplied Date A B C
5 07.632 BOLT; BRKT TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),F&R 205/75R16C L.R.R RIB16X5.5J-116.5 SILVER(CYS),F&R 205/75R16 C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) EURO5B+ SPECIFICATION(NT5) SPARE WHEEL CARRIER<P10> REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) 09.171 M10X25 FLANGE 		0-28051-025-0 04 1 1505- ●
5 07.632 BOLT; BRKT TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S ILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) EURO5B+ SPECIFICATION(NT5) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> 09.171 M10X25 FLANGE 		0-28051-025-0 04 1 1505- ●
5 07.632 BOLT; BRKT TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),F&R 205/75R16C L.R.R RIB16X5.5J-116.5 SILVER(CYS),F&R 205/75R16 C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) EURO5B+ SPECIFICATION(NT5) SPARE WHEEL CARRIER<P10> 09.171 M10X25 FLANGE 		0-28051-025-0 04 1 1505- ●
9 07.633 NUT; BRKT TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),F&R 205/75R16C L.R.R RIB16X5.5J-116.5 SILVER(CYS),F&R 205/75R16 C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) EURO5B+ SPECIFICATION(NT5) SPARE WHEEL CARRIER<P10> REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1505- ●
9 07.633 NUT; BRKT TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S ILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) EURO5B+ SPECIFICATION(NT5) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> 03.162 M10 FLANGE 		0-91180-110-0 03 1 1505- ●
9 07.633 NUT; BRKT TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),F&R 205/75R16C L.R.R RIB16X5.5J-116.5 SILVER(CYS),F&R 205/75R16 C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) EURO5B+ SPECIFICATION(NT5) SPARE WHEEL CARRIER<P10> 03.162 M10 FLANGE 		0-91180-110-0 03 1 1505- ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2400MM(24W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1505- ● ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2400MM(24W) 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1505- ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> EXC. SINGLE RR TIRE(6TD) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1505- ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1505- ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1505- ●
18 07.633 NUT; MEMBER
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505- ● ● ●
19 07.632 BOLT; C/MBR
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1505- ● ● ●
21 07.629 BRACKET; SPARE TIRE HANGER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),F&R 205/75R16C L.R.R RIB16X5.5J-116.5 SILVER(CYS),F&R 205/75R16 C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) EURO5B+ SPECIFICATION(NT5) SPARE WHEEL CARRIER<P10> REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) 		8-98223-839-0 01 1 1505- ●
21 07.629 BRACKET; SPARE TIRE HANGER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S ILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) EURO5B+ SPECIFICATION(NT5) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> 		8-98223-839-0 01 1 1505- ●
21 07.629 BRACKET; SPARE TIRE HANGER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),F&R 205/75R16C L.R.R RIB16X5.5J-116.5 SILVER(CYS),F&R 205/75R16 C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) EURO5B+ SPECIFICATION(NT5) SPARE WHEEL CARRIER<P10> 		8-98223-839-0 01 1 1505- ●
131 07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 		8-98035-825-3 02 1 1505- ● ● ●
167 07.629 HANGER; TIRE
WHEEL BASE 2400MM(24W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> SINGLE RR TIRE(6TD) (C) 		8-94380-175-1 01 1 1505- ●
167 07.629 HANGER; TIRE
WHEEL BASE 2400MM(24W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> EXC. SINGLE RR TIRE(6TD) (B) 		8-94382-875-1 01 1 1505- ● ● ●
167 07.629 HANGER; TIRE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> EXC. SINGLE RR TIRE(6TD) (A) 		8-98036-384-0 01 1 1505- ● ● ●
