4-80 — ROAD WHEEL (#161603) — 81 parça

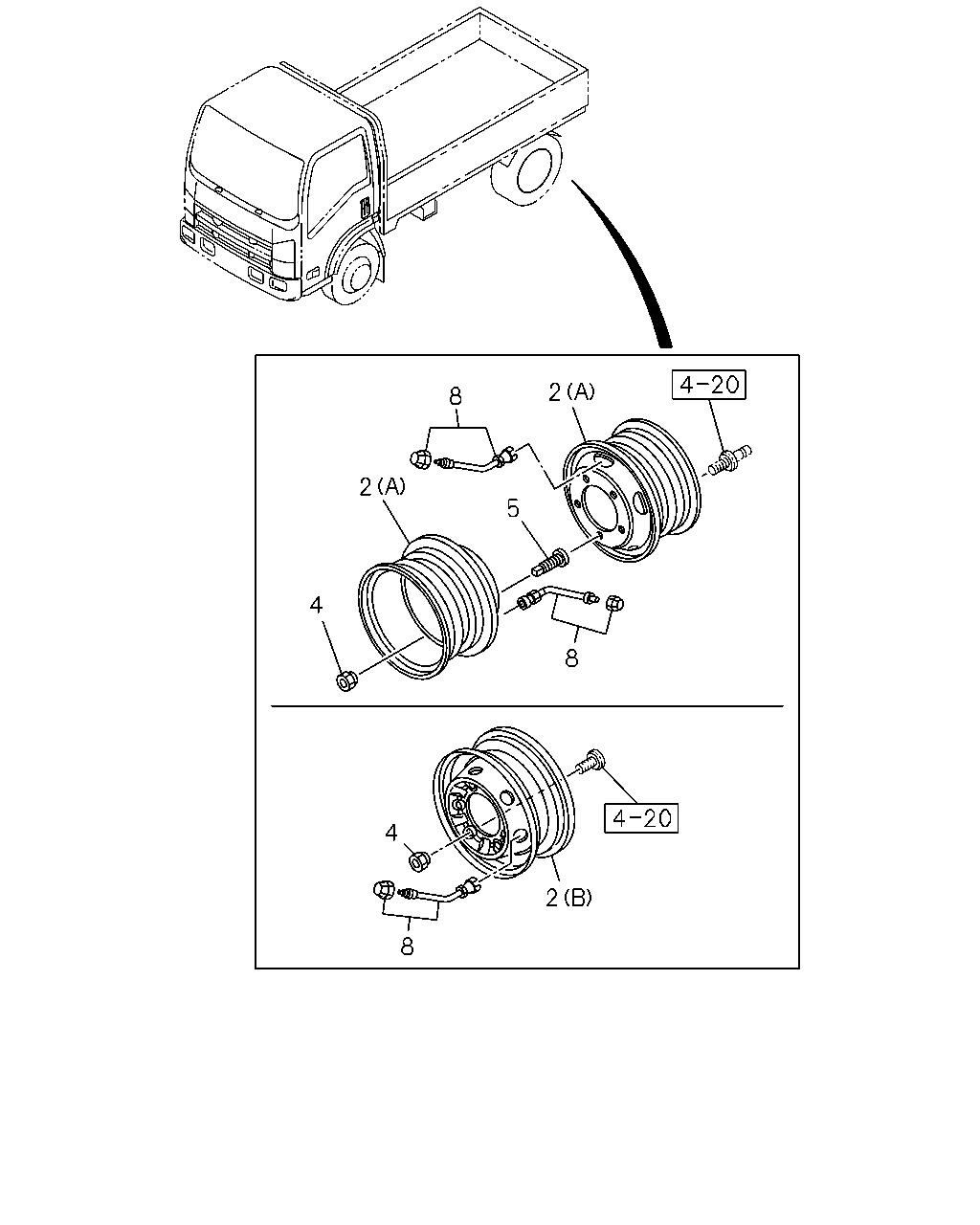

çizim 475812
4 2 8 5 2 8 4 8 2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1505- ● ●
2 05.803 WHEEL; DISC
F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S ILVER(CYS) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1505- ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1505- ● ●
2 05.803 WHEEL; DISC
F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S ILVER(CYS) (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1505- ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) (A) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1505- ● ●
2 05.803 WHEEL; DISC
F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 W HITE(CYT) (A) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1505- ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (A) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1505- ● ●
2 05.803 WHEEL; DISC
F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 W HITE(CYT) (A) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1505- ●
2 05.803 WHEEL; DISC
F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHIT E(CYQ) (B) FRONT,REAR 5.5JX16 OFFSET=85 6-HOLE 		8-97210-494-0 04 1 1505- ●
2 05.803 WHEEL; DISC
F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHIT E(CYQ) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (B) SPARE 5.5JX16 OFFSET=85 6-HOLE 		8-97210-494-0 01 1 1505- ●
2 05.803 WHEEL; DISC
F&R 205/75R16C L.R.R RIB 16X5.5J-85 SILV ER(CYR) (B) FRONT,REAR 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE 		8-97258-376-0 04 1 1505- ●
2 05.803 WHEEL; DISC
F&R 205/75R16C L.R.R RIB 16X5.5J-85 SILV ER(CYR) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (B) SPARE 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE 		8-97258-376-0 01 1 1505- ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),F&R 205/75R16C L.R.R RIB16X5.5J-116.5 SILVER(CYS),F&R 205/75R16 C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) M27 RH THREAD 		8-98007-824-0 05 1 1505- ● ●
4 05.813 NUT; WHEEL,RR AXLE
F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S ILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) M27 RH THREAD 		8-98007-824-0 05 1 1505- ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),F&R 205/75R16C L.R.R RIB16X5.5J-116.5 SILVER(CYS),F&R 205/75R16 C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) M27 LH THREAD 		8-98007-825-0 05 1 1505- ● ●
4 05.813 NUT; WHEEL,RR AXLE
F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S ILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) M27 LH THREAD 		8-98007-825-0 05 1 1505- ●
4 05.813 NUT; WHEEL,RR AXLE
F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHIT E(CYQ),F&R 205/75R16C L.R.R RIB 16X5.5J-85 SILVER(CYR) M14 RH THREAD 		8-98007-905-0 06 1 1505- ●
4 05.813 NUT; WHEEL,RR AXLE
F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHIT E(CYQ),F&R 205/75R16C L.R.R RIB 16X5.5J-85 SILVER(CYR) M14 LH THREAD 		8-98007-906-0 06 1 1505- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),F&R 205/75R16C L.R.R RIB16X5.5J-116.5 SILVER(CYS),F&R 205/75R16 C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 1505- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S ILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 1505- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),F&R 205/75R16C L.R.R RIB16X5.5J-116.5 SILVER(CYS),F&R 205/75R16 C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 1505- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S ILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 1505- ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),F&R 205/75R16C L.R.R RIB16X5.5J-85 WHITE(CYQ),F&R 205/75R16C L. R.R RIB 16X5.5J-85 SILVER(CYR),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5WHITE(CYT) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 		8-98221-106-0 01 1 1505- ●
8 05.875 VALVE; TIRE
F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S ILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) SPARE 		8-98221-106-0 01 1 1505- ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),F&R 205/75R16C L.R.R RIB16X5.5J-116.5 SILVER(CYS),F&R 205/75R16 C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 		8-98221-106-0 01 1 1505- ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),F&R 205/75R16C L.R.R RIB16X5.5J-116.5 SILVER(CYS),F&R 205/75R16 C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) FRONT,REAR 		8-98221-106-0 06 1 1505- ● ●
8 05.875 VALVE; TIRE
F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S ILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) FRONT,REAR 		8-98221-106-0 06 1 1505- ●
8 05.875 VALVE; TIRE
F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHIT E(CYQ),F&R 205/75R16C L.R.R RIB 16X5.5J-85 SILVER(CYR) FRONT,REAR 		8-98221-106-0 04 1 1505- ●
çizim 475826
2 8 2 8
BalonParca AdiParca NoAdetTipApplied Date A B C
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1505- ● ●
2 05.803 WHEEL; DISC
F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S ILVER(CYS) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1505- ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1505- ● ●
2 05.803 WHEEL; DISC
F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S ILVER(CYS) (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1505- ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) (A) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1505- ● ●
2 05.803 WHEEL; DISC
F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 W HITE(CYT) (A) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1505- ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (A) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1505- ● ●
2 05.803 WHEEL; DISC
F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 W HITE(CYT) (A) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1505- ●
2 05.803 WHEEL; DISC
F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHIT E(CYQ) (B) FRONT,REAR 5.5JX16 OFFSET=85 6-HOLE 		8-97210-494-0 04 1 1505- ●
2 05.803 WHEEL; DISC
F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHIT E(CYQ) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (B) SPARE 5.5JX16 OFFSET=85 6-HOLE 		8-97210-494-0 01 1 1505- ●
2 05.803 WHEEL; DISC
F&R 205/75R16C L.R.R RIB 16X5.5J-85 SILV ER(CYR) (B) FRONT,REAR 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE 		8-97258-376-0 04 1 1505- ●
2 05.803 WHEEL; DISC
F&R 205/75R16C L.R.R RIB 16X5.5J-85 SILV ER(CYR) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (B) SPARE 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE 		8-97258-376-0 01 1 1505- ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),F&R 205/75R16C L.R.R RIB16X5.5J-85 WHITE(CYQ),F&R 205/75R16C L. R.R RIB 16X5.5J-85 SILVER(CYR),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5WHITE(CYT) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 		8-98221-106-0 01 1 1505- ●
8 05.875 VALVE; TIRE
F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S ILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) SPARE 		8-98221-106-0 01 1 1505- ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),F&R 205/75R16C L.R.R RIB16X5.5J-116.5 SILVER(CYS),F&R 205/75R16 C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 		8-98221-106-0 01 1 1505- ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),F&R 205/75R16C L.R.R RIB16X5.5J-116.5 SILVER(CYS),F&R 205/75R16 C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) FRONT,REAR 		8-98221-106-0 06 1 1505- ● ●
8 05.875 VALVE; TIRE
F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S ILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) FRONT,REAR 		8-98221-106-0 06 1 1505- ●
8 05.875 VALVE; TIRE
F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHIT E(CYQ),F&R 205/75R16C L.R.R RIB 16X5.5J-85 SILVER(CYR) FRONT,REAR 		8-98221-106-0 04 1 1505- ●

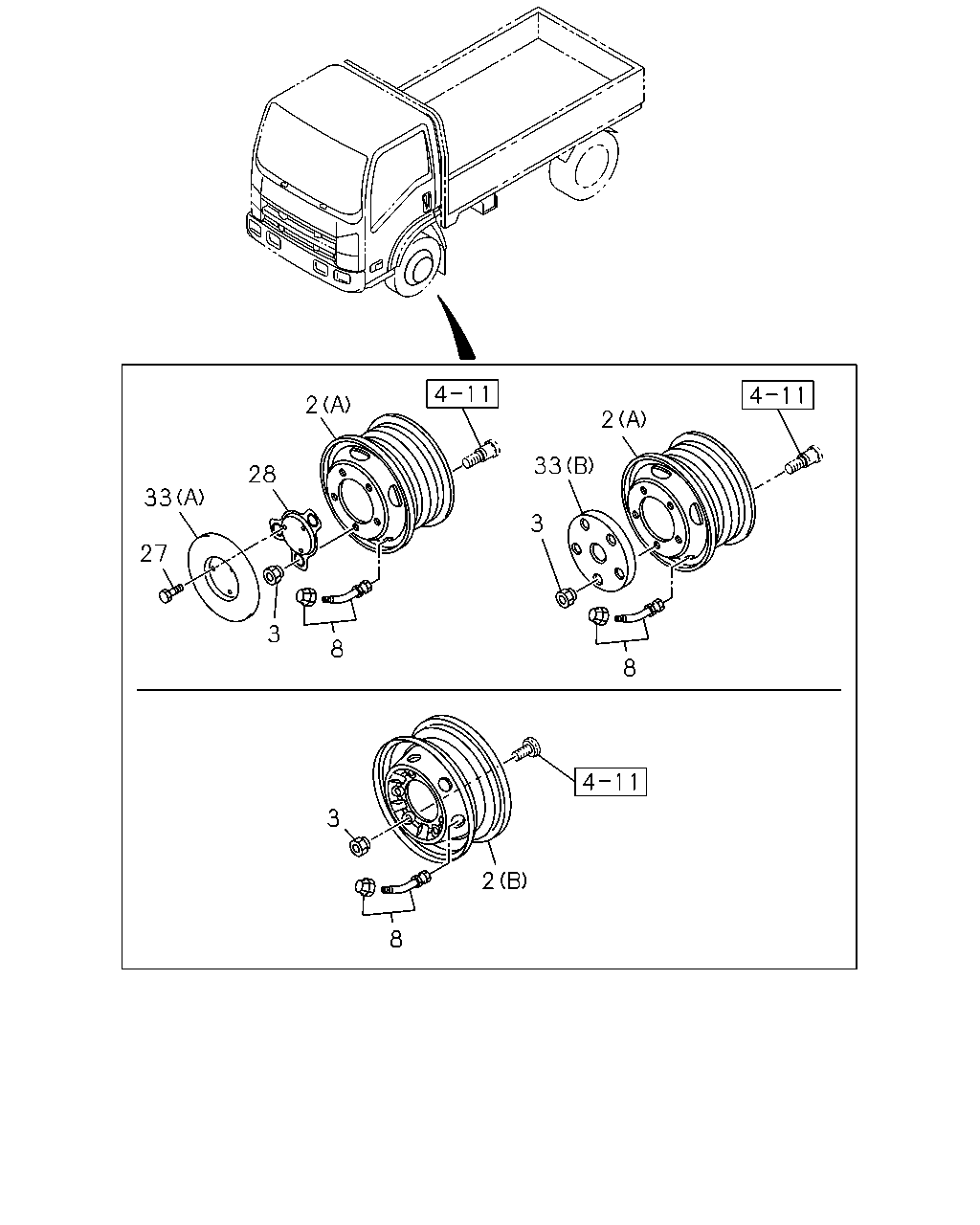

çizim 476041
2 28 33 27 3 8 33 2 3 8 2 8 3
BalonParca AdiParca NoAdetTipApplied Date A B C
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1505- ● ●
2 05.803 WHEEL; DISC
F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S ILVER(CYS) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1505- ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1505- ● ●
2 05.803 WHEEL; DISC
F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S ILVER(CYS) (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1505- ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) (A) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1505- ● ●
2 05.803 WHEEL; DISC
F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 W HITE(CYT) (A) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1505- ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (A) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1505- ● ●
2 05.803 WHEEL; DISC
F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 W HITE(CYT) (A) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1505- ●
2 05.803 WHEEL; DISC
F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHIT E(CYQ) (B) FRONT,REAR 5.5JX16 OFFSET=85 6-HOLE 		8-97210-494-0 04 1 1505- ●
2 05.803 WHEEL; DISC
F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHIT E(CYQ) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (B) SPARE 5.5JX16 OFFSET=85 6-HOLE 		8-97210-494-0 01 1 1505- ●
2 05.803 WHEEL; DISC
F&R 205/75R16C L.R.R RIB 16X5.5J-85 SILV ER(CYR) (B) FRONT,REAR 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE 		8-97258-376-0 04 1 1505- ●
2 05.803 WHEEL; DISC
F&R 205/75R16C L.R.R RIB 16X5.5J-85 SILV ER(CYR) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (B) SPARE 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE 		8-97258-376-0 01 1 1505- ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),F&R 205/75R16C L.R.R RIB16X5.5J-116.5 SILVER(CYS),F&R 205/75R16 C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) M18 RH THREAD 		8-98007-907-0 05 1 1505- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S ILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) M18 RH THREAD 		8-98007-907-0 05 1 1505- ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),F&R 205/75R16C L.R.R RIB16X5.5J-116.5 SILVER(CYS),F&R 205/75R16 C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) M18 LH THREAD 		8-98007-908-0 05 1 1505- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S ILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) M18 LH THREAD 		8-98007-908-0 05 1 1505- ●
3 05.813 NUT; WHEEL,FRT AXLE
F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHIT E(CYQ),F&R 205/75R16C L.R.R RIB 16X5.5J-85 SILVER(CYR) M14 RH THREAD 		8-98007-905-0 06 1 1505- ●
3 05.813 NUT; WHEEL,FRT AXLE
F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHIT E(CYQ),F&R 205/75R16C L.R.R RIB 16X5.5J-85 SILVER(CYR) M14 LH THREAD 		8-98007-906-0 06 1 1505- ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),F&R 205/75R16C L.R.R RIB16X5.5J-85 WHITE(CYQ),F&R 205/75R16C L. R.R RIB 16X5.5J-85 SILVER(CYR),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5WHITE(CYT) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 		8-98221-106-0 01 1 1505- ●
8 05.875 VALVE; TIRE
F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S ILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) SPARE 		8-98221-106-0 01 1 1505- ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),F&R 205/75R16C L.R.R RIB16X5.5J-116.5 SILVER(CYS),F&R 205/75R16 C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 		8-98221-106-0 01 1 1505- ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),F&R 205/75R16C L.R.R RIB16X5.5J-116.5 SILVER(CYS),F&R 205/75R16 C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) FRONT,REAR 		8-98221-106-0 06 1 1505- ● ●
8 05.875 VALVE; TIRE
F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S ILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) FRONT,REAR 		8-98221-106-0 06 1 1505- ●
8 05.875 VALVE; TIRE
F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHIT E(CYQ),F&R 205/75R16C L.R.R RIB 16X5.5J-85 SILVER(CYR) FRONT,REAR 		8-98221-106-0 04 1 1505- ●
27 05.871 BOLT; COVER
EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) 02.343 M10X20 FLANGE 		0-28651-020-0 06 1 1505- ●
27 05.871 BOLT; COVER
02.343 M10X20 FLANGE 		0-28651-020-0 06 1 1505- ●
27 05.871 BOLT; COVER
EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 M10X20 FLANGE 		0-28651-020-0 06 1 1505- ●
28 05.864 BRACKET; COVER
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),F&R 205/75R16C L.R.R RIB16X5.5J-116.5 SILVER(CYS),F&R 205/75R16 C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) 		8-97169-249-0 02 1 1505- ●
28 05.864 BRACKET; COVER
F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S ILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) 		8-97169-249-0 02 1 1505- ●
28 05.864 BRACKET; COVER
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),F&R 205/75R16C L.R.R RIB16X5.5J-116.5 SILVER(CYS),F&R 205/75R16 C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97169-249-0 02 1 1505- ●
33 05.858 COVER; WHEEL
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD) (B) 		8-98083-921-0 02 1 1505- ●
33 05.858 COVER; WHEEL
FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98083-921-0 02 1 1505- ●
33 05.858 COVER; WHEEL
EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (A) 		8-97167-658-0 02 1 1505- ●
33 05.858 COVER; WHEEL
(A) 		8-97167-658-0 02 1 1505- ●
33 05.858 COVER; WHEEL
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97167-658-0 02 1 1505- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
