◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51613 - NLR/NMR LHD EUROPE EURO5B+,6 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION (#161600) — 63 parça

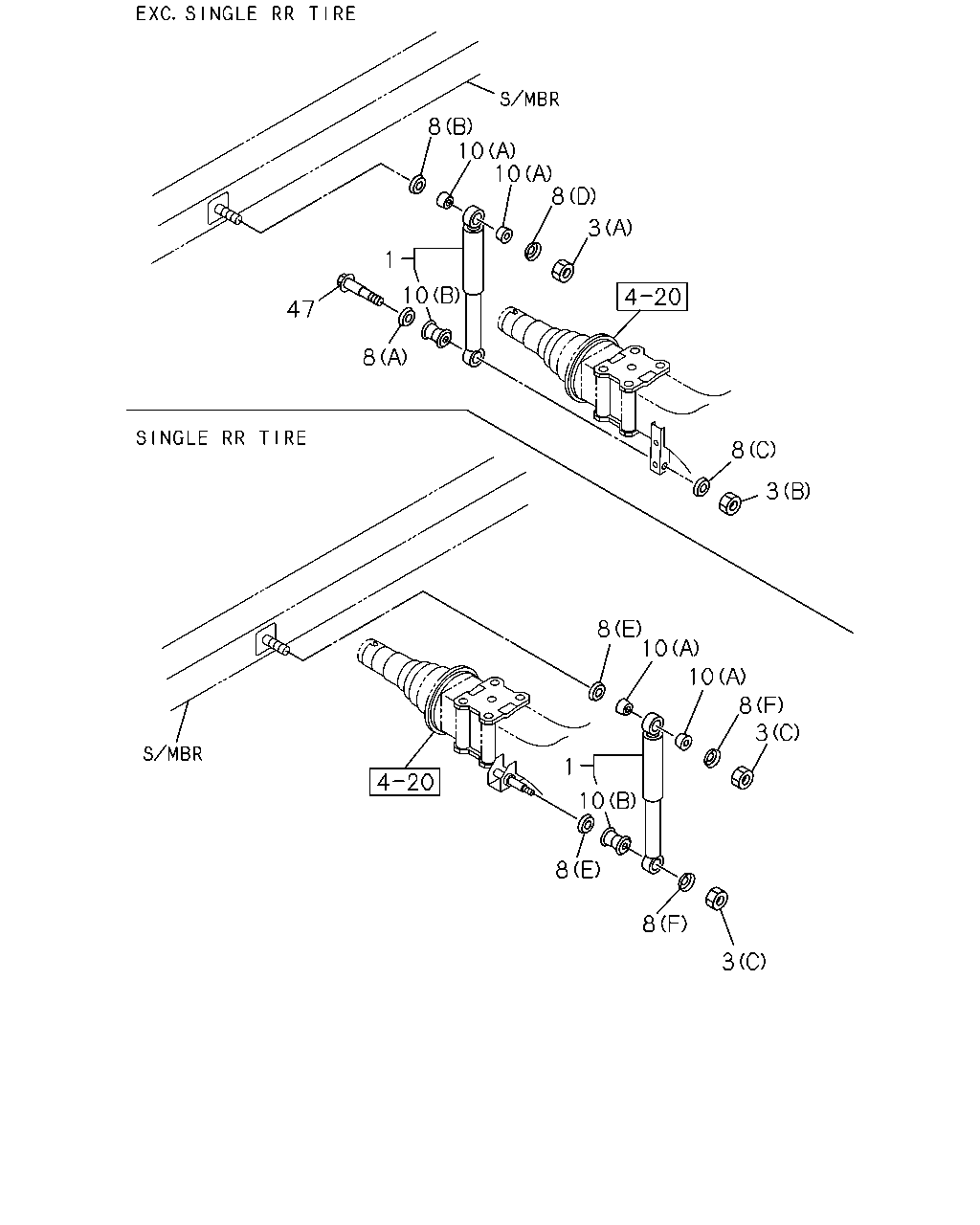

çizim 475994
47 1 8 10 8 10 10 8 3 8 3 8 10 10 8 3 8 10 1 8 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.395 ABSORBER ASM; SHOCK,RR
SINGLE RR TIRE(6TD) 		8-98018-780-1 02 1 1505-1506 ●
1 07.395 ABSORBER ASM; SHOCK,RR
SINGLE RR TIRE(6TD) 		8-98316-232-0 02 1 1507- ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) 		8-97253-654-2 02 1 1505- ●
1 07.395 ABSORBER ASM; SHOCK,RR 8-97253-654-2 02 1 1505- ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> 		8-97253-651-2 02 1 1505-1506 ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> BEST VALUE PARTS 		5-87610-132-0 02 1 1505-1506 ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> 		8-98316-233-0 02 1 1507- ●
3 07.347 NUT; S/ABS
SINGLE RR TIRE(6TD) 05.002 (C) M12 		0-91110-512-0 04 1 1505- ●
3 07.347 NUT; S/ABS
REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) 07.833 (A) M14 		0-91110-514-0 02 1 1505-1509 ●
3 07.347 NUT; S/ABS
REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> 07.833 (A) M14 		0-91110-514-0 02 1 1505-1509 ●
3 07.347 NUT; S/ABS
07.833 (A) M14 		0-91110-514-0 02 1 1505-1509 ●
3 07.347 NUT; S/ABS
EXC. SINGLE RR TIRE(6TD) 07.833 (A) M14 		0-91110-514-0 02 1 1510- ●
3 07.347 NUT; S/ABS
EXC. SINGLE RR TIRE(6TD),REAR SUSPENSION- OVER SLUNG + WIDE TREAD<8PZ> 07.833 (A) M14 		0-91110-514-0 02 1 1510- ●
3 07.347 NUT; S/ABS
07.833 (A) M14 		0-91110-514-0 02 1 1510- ● ●
3 07.347 NUT; S/ABS
EXC. REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> 07.833 (A) M14 		0-91110-514-0 02 1 1510- ●
3 07.347 NUT; S/ABS
REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) 00.785 (B) M16 		0-91111-516-0 02 1 1505-1509 ●
3 07.347 NUT; S/ABS
REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> 00.785 (B) M16 		0-91111-516-0 02 1 1505-1509 ●
3 07.347 NUT; S/ABS
00.785 (B) M16 		0-91111-516-0 02 1 1505-1509 ●
3 07.347 NUT; S/ABS
EXC. SINGLE RR TIRE(6TD) 00.785 (B) M16 		0-91111-516-0 02 1 1510- ●
3 07.347 NUT; S/ABS
00.785 (B) M16 		0-91111-516-0 02 1 1510- ● ●
8 07.347 WASHER; S/ABS
SINGLE RR TIRE(6TD) (E) ID=16.5 		9-51679-021-0 04 1 1505- ●
8 07.347 WASHER; S/ABS
SINGLE RR TIRE(6TD) (F) ID=12.5 		9-51679-022-0 04 1 1505- ●
8 07.347 WASHER; S/ABS
REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) (D) ID=15 		8-97360-056-0 02 1 1505-1509 ●
8 07.347 WASHER; S/ABS
REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> (D) ID=15 		8-97360-056-0 02 1 1505-1509 ●
8 07.347 WASHER; S/ABS
(D) ID=15 		8-97360-056-0 02 1 1505-1509 ●
8 07.347 WASHER; S/ABS
EXC. SINGLE RR TIRE(6TD) (D) ID=15 		8-97360-056-0 02 1 1510- ●
8 07.347 WASHER; S/ABS
EXC. SINGLE RR TIRE(6TD),REAR SUSPENSION- OVER SLUNG + WIDE TREAD<8PZ> (D) ID=15 		8-97360-056-0 02 1 1510- ●
8 07.347 WASHER; S/ABS
(D) ID=15 		8-97360-056-0 02 1 1510- ● ●
8 07.347 WASHER; S/ABS
EXC. REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> (D) ID=15 		8-97360-056-0 02 1 1510- ●
8 07.347 WASHER; S/ABS
REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) (B) ID=20.0 		8-97360-057-0 02 1 1505-1509 ●
8 07.347 WASHER; S/ABS
REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> (B) ID=20.0 		8-97360-057-0 02 1 1505-1509 ●
8 07.347 WASHER; S/ABS
(B) ID=20.0 		8-97360-057-0 02 1 1505-1509 ●
8 07.347 WASHER; S/ABS
EXC. SINGLE RR TIRE(6TD) (B) ID=20.0 		8-97360-057-0 02 1 1510- ●
8 07.347 WASHER; S/ABS
EXC. SINGLE RR TIRE(6TD),REAR SUSPENSION- OVER SLUNG + WIDE TREAD<8PZ> (B) ID=20.0 		8-97360-057-0 02 1 1510- ●
8 07.347 WASHER; S/ABS
(B) ID=20.0 		8-97360-057-0 02 1 1510- ● ●
8 07.347 WASHER; S/ABS
EXC. REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> (B) ID=20.0 		8-97360-057-0 02 1 1510- ●
8 07.347 WASHER; S/ABS
REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) 07.516 (A) ID=16.4 		8-97360-118-0 02 1 1505-1509 ●
8 07.347 WASHER; S/ABS
REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> 07.516 (A) ID=16.4 		8-97360-118-0 02 1 1505-1509 ●
8 07.347 WASHER; S/ABS
07.516 (A) ID=16.4 		8-97360-118-0 02 1 1505-1509 ●
8 07.347 WASHER; S/ABS
EXC. SINGLE RR TIRE(6TD) 07.516 (A) ID=16.4 		8-97360-118-0 02 1 1510- ●
8 07.347 WASHER; S/ABS
07.516 (A) ID=16.4 		8-97360-118-0 02 1 1510- ● ●
8 07.347 WASHER; S/ABS
REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) 07.427 (C) ID=16.5 		8-98011-489-0 02 1 1505-1509 ●
8 07.347 WASHER; S/ABS
REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> 07.427 (C) ID=16.5 		8-98011-489-0 02 1 1505-1509 ●
8 07.347 WASHER; S/ABS
07.427 (C) ID=16.5 		8-98011-489-0 02 1 1505-1509 ●
8 07.347 WASHER; S/ABS
EXC. SINGLE RR TIRE(6TD) 07.427 (C) ID=16.5 		8-98011-489-0 02 1 1510- ●
8 07.347 WASHER; S/ABS
07.427 (C) ID=16.5 		8-98011-489-0 02 1 1510- ● ●
10 07.388 BUSHING; RUBBER,S/ABS
SINGLE RR TIRE(6TD) 07.347 (A) KYB 		8-94132-727-1 04 1 1505-1509 ●
10 07.388 BUSHING; RUBBER,S/ABS
EXC. REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> 07.347 (A) KYB 		8-94132-727-1 04 1 1510- ● ●
10 07.388 BUSHING; RUBBER,S/ABS
REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> SINGLE RR TIRE(6TD) 07.347 (A) KYB 		8-94132-727-1 04 1 1510- ●
10 07.388 BUSHING; RUBBER,S/ABS
SINGLE RR TIRE(6TD) 07.347 (B) TOKICO 		8-94224-694-0 02 1 1505- ●
10 07.388 BUSHING; RUBBER,S/ABS
REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) (B) TOKICO 		8-94382-149-0 02 1 1505- ●
10 07.388 BUSHING; RUBBER,S/ABS
REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> (B) TOKICO 		8-94382-149-0 02 1 1505- ●
10 07.388 BUSHING; RUBBER,S/ABS
(B) TOKICO 		8-94382-149-0 02 1 1505- ●
10 07.388 BUSHING; RUBBER,S/ABS
REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) (A) TOKICO 		9-51631-014-0 04 1 1505-1509 ●
10 07.388 BUSHING; RUBBER,S/ABS
REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> (A) TOKICO 		9-51631-014-0 04 1 1505-1509 ●
10 07.388 BUSHING; RUBBER,S/ABS
(A) TOKICO 		9-51631-014-0 04 1 1505-1509 ●
10 07.388 BUSHING; RUBBER,S/ABS
EXC. SINGLE RR TIRE(6TD) (A) TOKICO 		9-51631-014-0 04 1 1510- ●
10 07.388 BUSHING; RUBBER,S/ABS
(A) TOKICO 		9-51631-014-0 04 1 1510- ● ●
47 07.347 PIN; S/ABS SETTING
REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) 		8-97316-972-0 02 1 1505-1509 ●
47 07.347 PIN; S/ABS SETTING
REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> 		8-97316-972-0 02 1 1505-1509 ●
47 07.347 PIN; S/ABS SETTING 8-97316-972-0 02 1 1505-1509 ●
47 07.347 PIN; S/ABS SETTING
EXC. SINGLE RR TIRE(6TD) 		8-97316-972-0 02 1 1510- ●
47 07.347 PIN; S/ABS SETTING 8-97316-972-0 02 1 1510- ● ●
