4-01 — PROPELLER SHAFT (#1616) — 96 parça

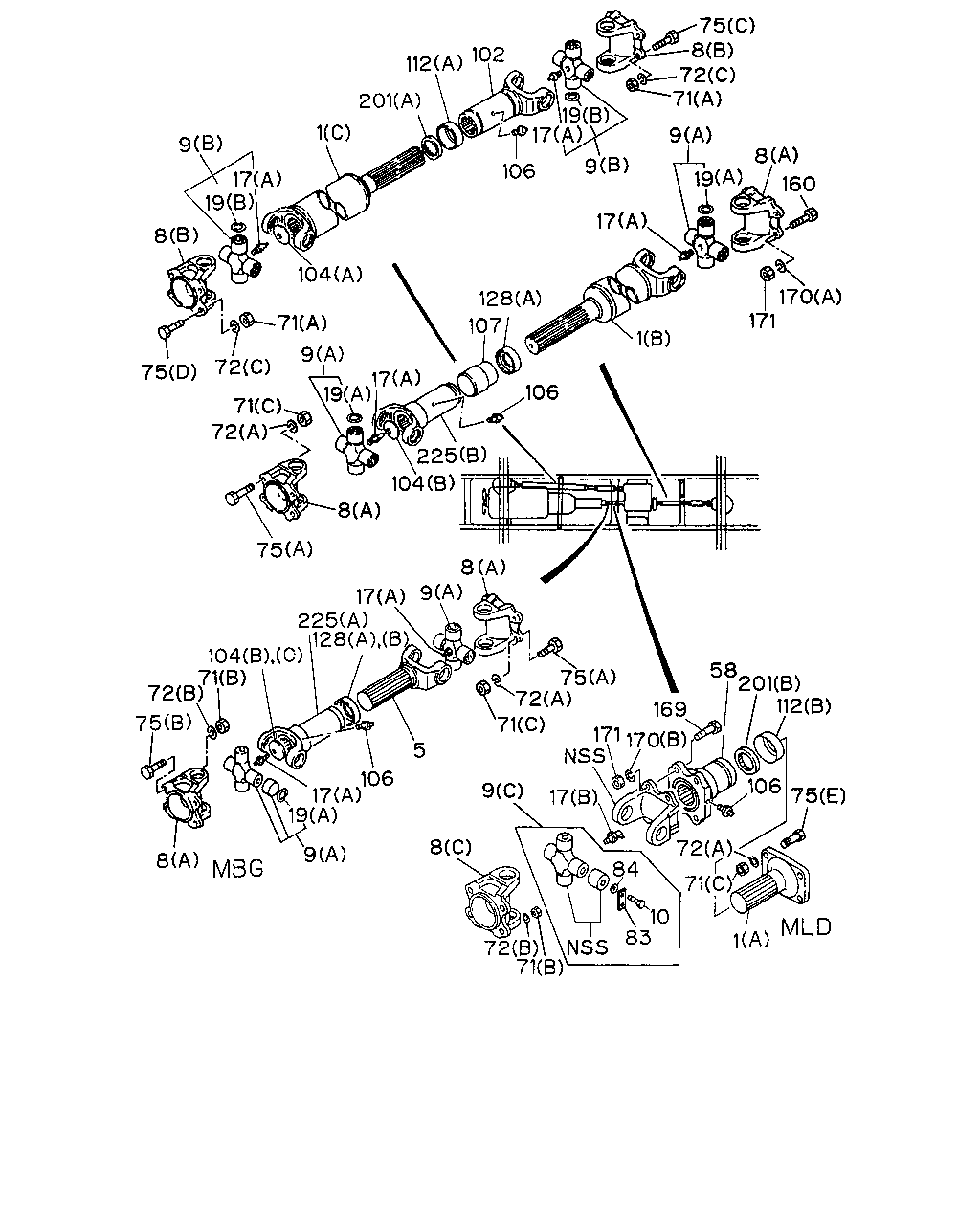

çizim 27942
1 71 72 10 84 83 71 72 8 9 17 171 170 106 75 112 201 58 169 75 72 71 5 106 17 19 9 8 75 72 71 104 128 225 17 9 8 8 75 104 225 106 1 171 170 160 8 19 9 17 128 107 17 19 9 72 71 72 75 71 104 8 19 17 9 1 201 112 102 106 9 17 19 71 72 8 75
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
(B) L=486 		1-37117-187-0 01 1 9207- ●
1 SHAFT; PROP
(C) L=1355 		1-37141-040-0 01 1 9207- ● ●
1 SHAFT; PROP
FSS MIDDLE CHASSIS & BED CAB(FSS5MF) (C) L=1355 		1-37141-040-0 01 1 9207- ●
1 SHAFT; PROP
FSS MIDDLE CHASSIS & BED CAB(FSS5MF) (B) L=756 		1-37123-512-0 01 1 9207- ●
1 SHAFT; PROP
FTS SHORT CHASSIS & BED CAB(FTS5MC) (C) L=1365 		1-37122-005-0 01 1 9207- ●
1 SHAFT; PROP
EXC. TRANSMISSION FRONT PTO<RC2> (C) L=1365 		1-37122-005-0 01 1 9207- ●
1 SHAFT; PROP
FTS SHORT CHASSIS & BED CAB(FTS5MC) (B) L=656 		1-37123-510-0 01 1 9207- ●
1 SHAFT; PROP
(B) L=911 		1-37123-509-0 01 1 9207- ●
1 SHAFT; PROP
MLD6D M/T(X5Q) (A) L=144 		9-37171-163-0 01 1 9207- ●
1 SHAFT; PROP
TRANSMISSION FRONT PTO<RC2> (B) L=1216 		1-37123-465-0 01 1 9207- ●
1 SHAFT; PROP
TRANSMISSION FRONT PTO<RC2> (C) L=1412 		1-37141-045-0 01 1 9207- ●
1 SHAFT; PROP
EXC. TRANSMISSION FRONT PTO<RC2> (B) L=1266 		1-37123-424-2 01 1 9207- ●
5 YOKE; STUB,PROP SHAFT
L=301 L=302 		1-37171-092-1 01 1 9207- ● ● ●
5 YOKE; STUB,PROP SHAFT
EXC. TRANSMISSION FRONT PTO<RC2> L=301 L=302 		1-37171-092-1 01 1 9207- ●
5 YOKE; STUB,PROP SHAFT
TRANSMISSION FRONT PTO<RC2> L=237 L=237 		1-37171-087-1 01 1 9207- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-015-1 02 1 9207- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 9207- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 9207- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MBG5B M/T(X4K) (A) 		1-37211-056-3 02 1 9207- ●
8 YOKE; FLANGE,PROP SHAFT
MLD6D M/T(X5Q) (C) 		1-37211-041-0 01 1 9207- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-058-0 AR 1 9207- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-069-0 AR 1 9207- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-069-0 AR 1 9207- ● ● ●
9 JOURNAL ASM; PROP SHAFT
MBG5B M/T(X4K) (A) 		1-37300-069-0 AR 1 9207- ●
9 JOURNAL ASM; PROP SHAFT
MLD6D M/T(X5Q) (C) 		1-37300-083-0 AR 1 9207- ●
10 BOLT; UJT
MLD6D M/T(X5Q) M8X20 		9-09802-702-0 08 1 9207- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 02 1 9207- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 02 1 9207- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 02 1 9207- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
EXC. TRANSMISSION FRONT PTO<RC2> (A) PT1/8 ELBOW 		9-09031-210-0 02 1 9207- ●
17 NIPPLE; GREASE,PROP SHAFT
EXC. TRANSMISSION FRONT PTO<RC2> (A) PT1/8 ELBOW 		9-09031-210-0 02 1 9207- ●
17 NIPPLE; GREASE,PROP SHAFT
MBG5B M/T(X4K) (A) PT1/8 ELBOW 		9-09031-210-0 02 1 9207- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6D M/T(X5Q) (B) PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 9207- ●
17 NIPPLE; GREASE,PROP SHAFT
TRANSMISSION FRONT PTO<RC2> (A) PT1/8 ELBOW 		9-09031-210-0 04 1 9207- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 9207- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 9207- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 9207- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) BLUE T=1.95 		1-09587-086-0 08 1 9207- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) BLUE T=1.95 		1-09587-086-0 08 1 9207- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MBG5B M/T(X4K) (A) BLUE T=1.95 		1-09587-086-0 08 1 9207- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) WHITE T=2.00 		1-09587-087-2 08 1 9207- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) WHITE T=2.00 		1-09587-087-2 08 1 9207- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MBG5B M/T(X4K) (A) WHITE T=2.00 		1-09587-087-2 08 1 9207- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) YELLOW T=2.05 		1-09587-088-1 08 1 9207- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) YELLOW T=2.05 		1-09587-088-1 08 1 9207- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MBG5B M/T(X4K) (A) YELLOW T=2.05 		1-09587-088-1 08 1 9207- ●
58 FLANGE; SPLINED
MLD6D M/T(X5Q) 		9-37245-243-0 01 1 9207- ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 04 1 9207- ● ● ●
71 NUT; YOKE
MBG5B M/T(X4K) (B) M14 		9-99110-514-0 04 1 9207- ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 08 1 9207- ● ● ● ●
71 NUT; YOKE
(C) M14 		9-99110-514-0 08 1 9207- ● ● ● ●
71 NUT; YOKE
MLD6D M/T(X5Q) (B) M16 		1-09449-065-0 04 1 9207- ●
72 WASHER; LK,YOKE
(B) ID=14 		9-09150-614-0 04 1 9207- ● ● ●
72 WASHER; LK,YOKE
MBG5B M/T(X4K) (B) ID=14 		9-09150-614-0 04 1 9207- ●
72 WASHER; LK,YOKE
(C) ID=12 		9-09150-612-0 08 1 9207- ● ● ● ●
72 WASHER; LK,YOKE
(A) ID=14 		9-09150-614-0 08 1 9207- ● ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(B) M14X40 		1-09000-187-0 04 1 9207- ● ● ●
75 BOLT; PROP SHAFT TO TRANS
MBG5B M/T(X4K) (B) M14X40 		1-09000-187-0 04 1 9207- ●
75 BOLT; PROP SHAFT TO TRANS
(C) M12X35 		1-09000-069-0 04 1 9207- ● ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M14X37 		1-09000-121-0 04 1 9207- ● ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M14X37 		1-09000-121-0 04 1 9207- ● ● ●
75 BOLT; PROP SHAFT TO TRANS
MBG5B M/T(X4K) (A) M14X37 		1-09000-121-0 04 1 9207- ●
75 BOLT; PROP SHAFT TO TRANS
(D) M12X40 		9-09801-095-0 04 1 9207- ● ● ● ●
75 BOLT; PROP SHAFT TO TRANS
MLD6D M/T(X5Q) (E) M14X45 		9-09801-107-0 04 1 9207- ●
83 PLATE; LK,UJT,PROP SHAFT
MLD6D M/T(X5Q) 		1-37356-004-0 04 1 9207- ●
84 COVER; UJT,PROP SHAFT
MLD6D M/T(X5Q) 		1-37355-002-1 04 1 9207- ●
102 YOKE; TRANSFER TO AXLE 1-37245-061-0 01 1 9207- ● ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-064-0 01 1 9207- ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-064-0 01 1 9207- ● ● ●
104 PLUG; SLEEVE YOKE
MBG5B M/T(X4K) TRANSMISSION FRONT PTO<RC2> (B) 		1-09600-064-0 01 1 9207- ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-014-0 01 1 9207- ● ● ● ●
104 PLUG; SLEEVE YOKE
TRANSMISSION FRONT PTO<RC2> (C) 		1-09600-033-0 01 1 9207- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9207- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9207- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9207- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
EXC. TRANSMISSION FRONT PTO<RC2> PT1/8 STRAIGHT 		9-09031-010-0 01 1 9207- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
EXC. TRANSMISSION FRONT PTO<RC2> PT1/8 STRAIGHT 		9-09031-010-0 01 1 9207- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
TRANSMISSION FRONT PTO<RC2> PT1/8 STRAIGHT 		9-09031-010-0 02 1 9207- ●
107 COVER; RET,SLEEVE 1-37249-060-0 01 1 9207- ● ● ● ●
112 RETAINER; FELT RING
(A) 		9-37248-007-0 01 1 9207- ● ● ● ●
112 RETAINER; FELT RING
MLD6D M/T(X5Q) (B) 		9-37248-012-0 01 1 9207- ●
128 SEAL; SLEEVE
(A) 		1-37247-015-0 01 1 9207- ● ● ●
128 SEAL; SLEEVE
MBG5B M/T(X4K) EXC. TRANSMISSION FRONT PTO<RC2> (A) 		1-37247-015-0 01 1 9207- ●
128 SEAL; SLEEVE
TRANSMISSION FRONT PTO<RC2> (B) 		1-37247-002-1 01 1 9207- ●
160 BOLT; PROP SHAFT TO RR AXLE
M14X37 		1-09000-121-0 04 1 9207- ● ● ● ●
169 BOLT; YOKE,SLEEVE
MLD6D M/T(X5Q) M14X45 		9-09801-107-0 04 1 9207- ●
170 WASHER; LK,YOKE,SLEEVE
(A) ID=14.2 		9-09150-614-0 04 1 9207- ● ● ● ●
170 WASHER; LK,YOKE,SLEEVE
MLD6D M/T(X5Q) (B) ID=14.2 		9-09150-514-0 04 1 9207- ●
171 NUT; YOKE,SLEEVE
M14 		9-99110-514-0 04 1 9207- ● ● ● ●
171 NUT; YOKE,SLEEVE
MLD6D M/T(X5Q) M14 		9-99110-514-0 04 1 9207- ●
201 RING; FELT,SLEEVE
(A) 		9-09922-100-0 01 1 9207- ● ● ● ●
201 RING; FELT,SLEEVE
MLD6D M/T(X5Q) (B) 		9-09922-120-0 01 1 9207- ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=229 		1-37241-086-2 01 1 9207- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
MBG5B M/T(X4K) EXC. TRANSMISSION FRONT PTO<RC2> (A) L=229 		1-37241-086-2 01 1 9207- ●
225 YOKE; SLEEVE,PROP SHAFT
(B) 		1-37241-079-1 01 1 9207- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
TRANSMISSION FRONT PTO<RC2> (A) L=154 		1-37241-081-2 01 1 9207- ●
