4-60 — REAR SUSPENSION (#161599) — 67 parça

230 225 227 4 502 1 155 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 2-LEAF	8-98022-370-1	02	1	1505-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) 2-LEAF	8-98022-371-1	02	1	1505-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) 2-LEAF	8-98022-371-1	02	1	1505-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2800MM(28W) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) 2-LEAF	8-98233-167-0	02	1	1505-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2800MM(28W) 2-LEAF	8-98233-167-0	02	1	1505-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) 2-LEAF	8-98233-168-0	02	1	1505-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W) 2-LEAF	8-98233-168-0	02	1	1505-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> 3-LEAF	8-98022-372-0	02	1	1505-			●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2800MM(28W) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) L=215	8-94127-918-3	04	1	1505-	●
4	07.516 U-BOLT; RR SPR AXLE REAR - LIGHT DUTY(8PB) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) L=215	8-94127-918-3	04	1	1505-	●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2800MM(28W) L=215	8-94127-918-3	04	1	1505-		●
4	07.516 U-BOLT; RR SPR AXLE REAR - LIGHT DUTY(8PB) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) L=215	8-94127-918-3	04	1	1505-		●
4	07.516 U-BOLT; RR SPR WHEEL BASE 3300MM(33W) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) L=235	8-94127-920-3	04	1	1505-	●
4	07.516 U-BOLT; RR SPR WHEEL BASE 3300MM(33W) L=235	8-94127-920-3	04	1	1505-		●
4	07.516 U-BOLT; RR SPR AXLE REAR - LIGHT DUTY(8PB) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) L=225	8-94127-919-3	04	1	1505-	●
4	07.516 U-BOLT; RR SPR REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> L=255	8-94127-922-3	04	1	1505-			●
5	07.529 NUT; U-BOLT,RR SPR 07.417 M16	8-97360-121-0	08	1	1505-	●	●	●
6	07.516 WASHER; PL,U-BOLT ID=16.4	8-97360-118-0	08	1	1505-	●	●	●
155	07.380 BRACKET; S/ABS SINGLE RR TIRE(6TD)	8-94128-360-4	01	1	1505-	●
155	07.380 BRACKET; S/ABS SINGLE RR TIRE(6TD)	8-94128-361-4	01	1	1505-	●
225	07.535 RUBBER; CUSHION,RR SPR WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD)	8-98002-085-1	02	1	1505-	●
225	07.535 RUBBER; CUSHION,RR SPR WHEEL BASE 2400MM(24W) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD)	8-98021-554-0	02	1	1505-	●
225	07.535 RUBBER; CUSHION,RR SPR REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ>	8-98021-554-0	02	1	1505-			●
225	07.535 RUBBER; CUSHION,RR SPR WHEEL BASE 2400MM(24W)	8-98021-554-0	02	1	1505-		●
225	07.535 RUBBER; CUSHION,RR SPR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD)	8-98025-096-1	02	1	1505-	●
225	07.535 RUBBER; CUSHION,RR SPR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W)	8-98025-096-1	02	1	1505-		●
227	07.535 NUT; CUSHION RUBBER 02.042 M12 FLANGE	0-91180-112-0	02	1	1505-	●	●	●
230	07.518 SPACER; CUSHION RUBBER WHEEL BASE 2400MM(24W) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD)	8-97136-852-0	02	1	1505-	●
230	07.518 SPACER; CUSHION RUBBER REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ>	8-97136-852-0	02	1	1505-			●
230	07.518 SPACER; CUSHION RUBBER WHEEL BASE 2400MM(24W)	8-97136-852-0	02	1	1505-		●
230	07.518 SPACER; CUSHION RUBBER WHEEL BASE 3300MM(33W) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD)	8-98240-436-0	02	1	1505-	●
230	07.518 SPACER; CUSHION RUBBER WHEEL BASE 3300MM(33W)	8-98240-436-0	02	1	1505-		●
502	07.506 CLAMP; RR LEAF SPR REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> 07.518 L=130 T=4.5	8-94119-069-2	02	1	1505-	●		●
502	07.506 CLAMP; RR LEAF SPR SINGLE RR TIRE(6TD) EXC. REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> 07.518 L=130 T=4.5	8-94119-069-2	02	1	1505-	●
502	07.506 CLAMP; RR LEAF SPR 07.518 L=130 T=4.5	8-94119-069-2	02	1	1505-		●

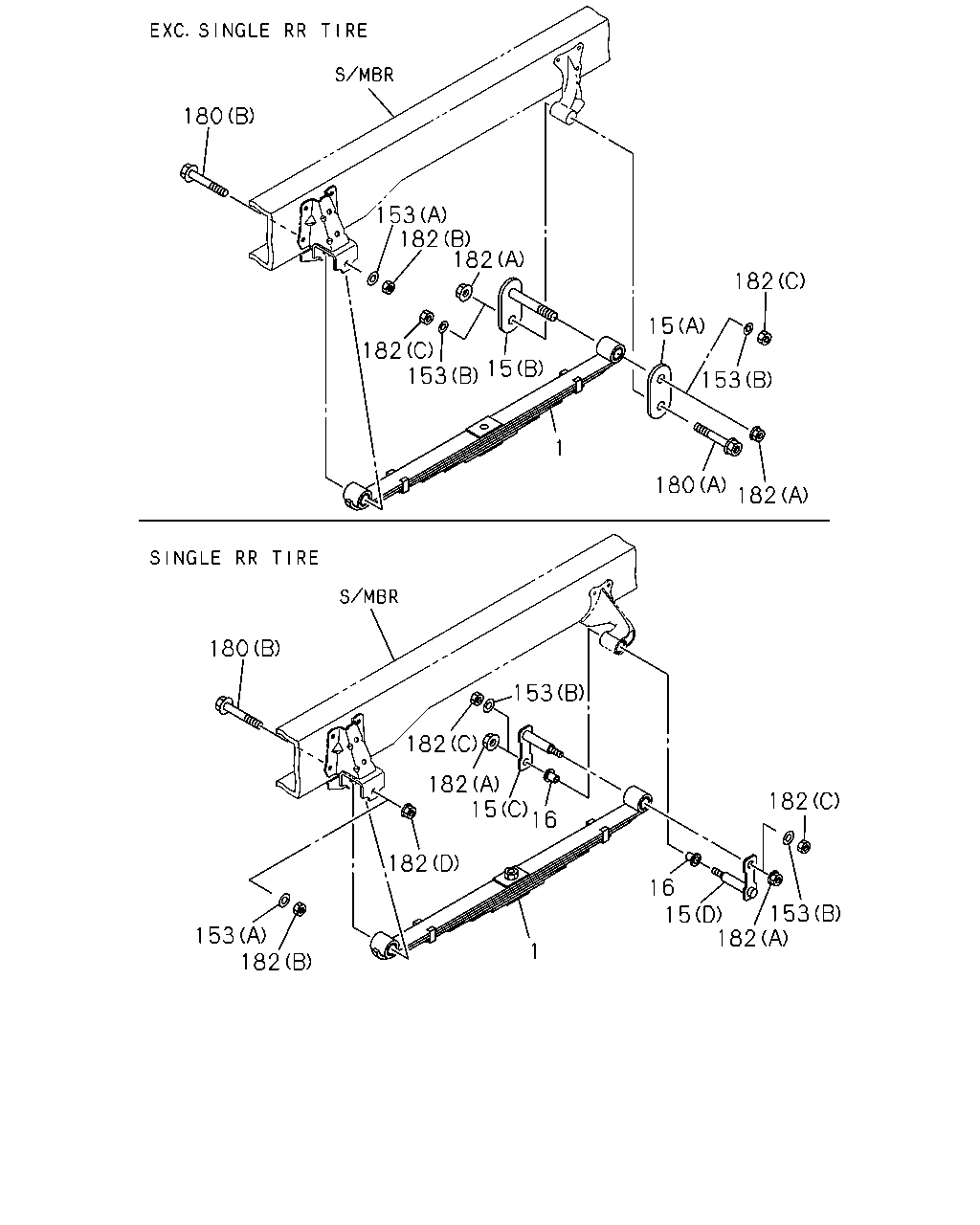

180 153 182 182 182 153 15 15 182 153 180 182 180 182 153 182 182 15 16 182 16 15 182 153 153 182 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 2-LEAF	8-98022-370-1	02	1	1505-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) 2-LEAF	8-98022-371-1	02	1	1505-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) 2-LEAF	8-98022-371-1	02	1	1505-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2800MM(28W) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) 2-LEAF	8-98233-167-0	02	1	1505-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2800MM(28W) 2-LEAF	8-98233-167-0	02	1	1505-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) 2-LEAF	8-98233-168-0	02	1	1505-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W) 2-LEAF	8-98233-168-0	02	1	1505-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> 3-LEAF	8-98022-372-0	02	1	1505-			●
15	07.523 SHACKLE; RR SPR SINGLE RR TIRE(6TD) (D)	8-94113-322-3	02	1	1505-	●
15	07.523 SHACKLE; RR SPR SINGLE RR TIRE(6TD) (C)	8-97033-966-1	02	1	1505-	●
15	07.523 SHACKLE; RR SPR EXC. SINGLE RR TIRE(6TD) (A)	8-94118-511-3	02	1	1505-	●
15	07.523 SHACKLE; RR SPR (A)	8-94118-511-3	02	1	1505-		●	●
15	07.523 SHACKLE; RR SPR EXC. SINGLE RR TIRE(6TD) (B)	8-97360-011-0	02	1	1505-	●
15	07.523 SHACKLE; RR SPR (B)	8-97360-011-0	02	1	1505-		●	●
16	07.524 BUSHING; SHACKLE,RR SPR SINGLE RR TIRE(6TD)	8-94113-323-2	04	1	1505-	●
16	07.524 BUSHING; SHACKLE,RR SPR SINGLE RR TIRE(6TD) BEST VALUE PARTS	5-87610-160-0	04	1	1505-	●
153	07.529 WASHER; PL,SPRING PIN KD PREPARATORY PACK<6HF> 07.427 (B) ID=16.5	8-98011-489-0	04	1	1505-	●	●	●
153	07.529 WASHER; PL,SPRING PIN KD PREPARATORY PACK<6HF> SINGLE RR TIRE(6TD) 07.427 (A) ID=16.5	8-98011-489-0	02	1	1505-	●
153	07.529 WASHER; PL,SPRING PIN EXC. SINGLE RR TIRE(6TD) (A) ID=19	8-97360-119-0	02	1	1505-	●
153	07.529 WASHER; PL,SPRING PIN (A) ID=19	8-97360-119-0	02	1	1505-		●	●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> 07.427 (A) M16X122	8-98011-487-0	02	1	1505-	●	●	●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> EXC. SINGLE RR TIRE(6TD) (B) M18X130	8-98011-488-0	02	1	1505-	●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> (B) M18X130	8-98011-488-0	02	1	1505-		●	●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE	8-97360-110-0	02	1	1505-	●	●	●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF>,SINGLE RR TIRE(6TD) (B) M18X130 FLANGE	8-97360-112-0	02	1	1505-	●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE	8-97360-112-0	02	1	1505-		●	●
182	07.529 NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> 06.509 (C) M16	0-91110-516-0	04	1	1505-	●	●	●
182	07.529 NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> SINGLE RR TIRE(6TD) 06.509 (B) M16	0-91110-516-0	02	1	1505-	●
182	07.529 NUT; PIN,RR SPR SINGLE RR TIRE(6TD) EXC. KD PREPARATORY PACK<6HF> 07.427 (D) M16 FLANGE	8-97360-125-0	02	1	1505-	●
182	07.529 NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE	8-97360-125-0	04	1	1505-	●	●	●
182	07.529 NUT; PIN,RR SPR EXC. SINGLE RR TIRE(6TD) (B) M18	0-91110-518-0	02	1	1505-	●
182	07.529 NUT; PIN,RR SPR (B) M18	0-91110-518-0	02	1	1505-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
