4-10 — FRONT AXLE (#161585) — 93 parça

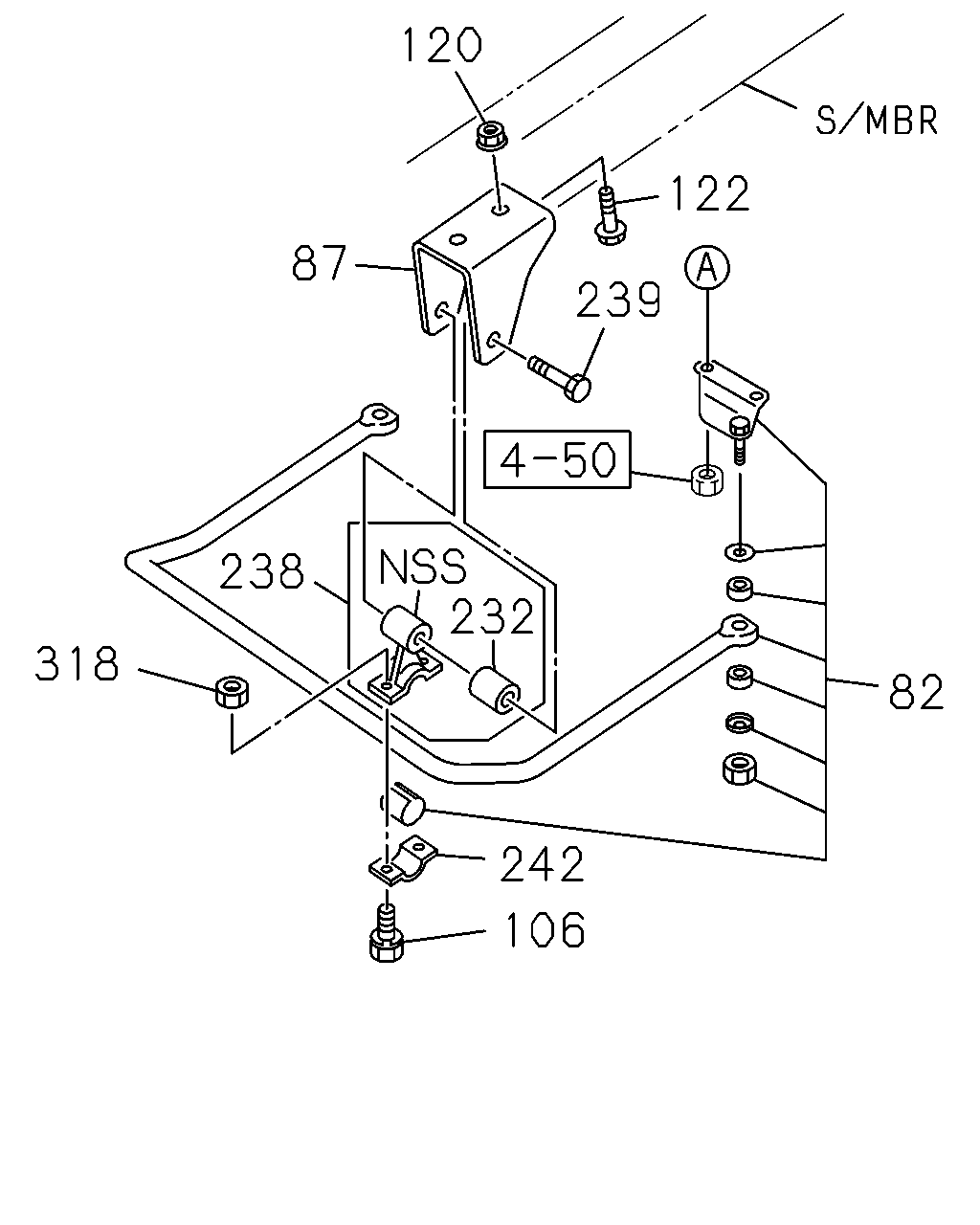

120 122 239 87 238 318 242 106 82 232

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
82	07.241 BAR; STAB,FRT SUSP	8-98002-084-2	01	1	1505-	●
87	07.242 BRACKET; STABILIZER	8-98051-506-0	01	1	1505-	●
87	07.242 BRACKET; STABILIZER	8-98051-507-0	01	1	1505-	●
106	06.216 BOLT; CAP FIX 00.029 M10X25 FLANGE	0-28651-025-0	04	1	1505-	●
120	06.308 NUT; STAB BAR BRKT 05.816 M12 FLANGE	0-91180-212-0	04	1	1505-	●
122	07.242 BOLT; BRKT 06.509 M12X30 FLANGE	0-28661-230-0	04	1	1505-	●
232	07.243 BUSHING; LINK ROD	8-97239-911-0	02	1	1505-	●
238	07.240 ROD LINK ASM; STABILIZER,FRT	8-97239-908-0	02	1	1505-	●
239	07.242 BOLT; LINK ROD M14X70 FLANGE	0-28851-470-0	02	1	1505-	●
242	07.242 CAP; LINK ROD	8-94178-430-2	02	1	1505-	●
318	07.242 NUT; CAP FIX 03.162 M10 FLANGE	0-91180-110-0	04	1	1505-	●

86 132 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98120-606-1	01	1	1505-		●	●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98120-607-1	01	1	1505-		●	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0)	8-98001-154-0	01	1	1505-		●	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0)	8-98001-155-0	01	1	1505-		●	●
2	06.020 KNUCKLE; FRT AXLE	8-97261-549-2	01	1	1505-	●
2	06.020 KNUCKLE; FRT AXLE	8-97261-550-2	01	1	1505-	●
86	07.428 BOLT; TORSION BAR,HEIGHT CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98088-329-0	02	1	1505-		●	●
132	07.436 COLLAR; TORSION BAR FRT INDEPENDENT SUSPENSION(FF0) 06.234 M24	0-91111-524-0	02	1	1505-		●	●

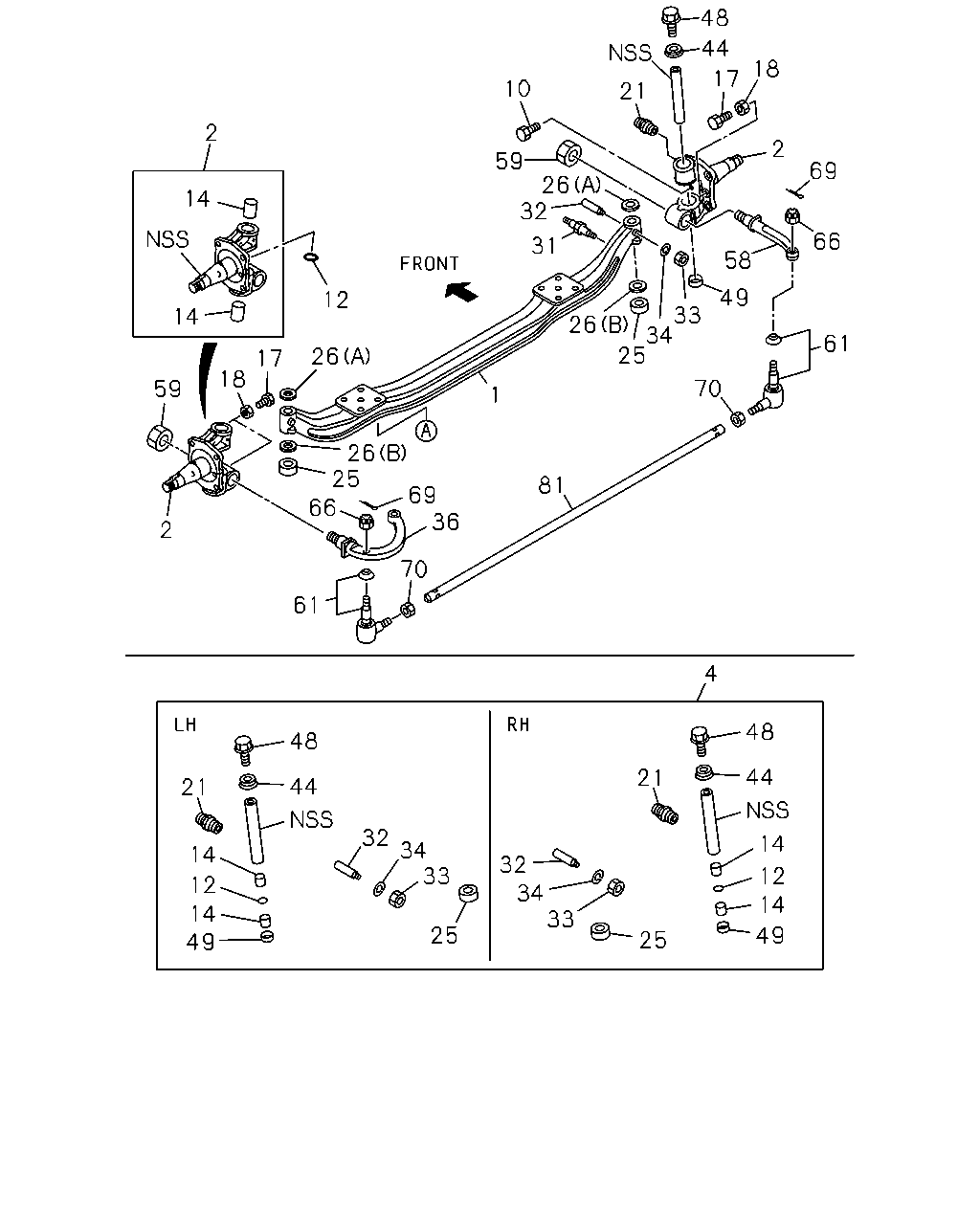

2 14 14 12 26 17 18 59 2 26 25 66 10 21 48 44 2 66 61 58 49 33 34 25 26 31 32 26 59 69 17 18 70 81 1 69 70 36 61 4 48 44 14 12 14 49 21 32 34 33 25 48 44 32 34 33 25 21 14 12 14 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	06.008 AXLE; FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97262-000-4	01	1	1505-		●	●
1	06.008 AXLE; FRT	8-97262-000-4	01	1	1505-	●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98120-606-1	01	1	1505-		●	●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98120-607-1	01	1	1505-		●	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0)	8-98001-154-0	01	1	1505-		●	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0)	8-98001-155-0	01	1	1505-		●	●
2	06.020 KNUCKLE; FRT AXLE	8-97261-549-2	01	1	1505-	●
2	06.020 KNUCKLE; FRT AXLE	8-97261-550-2	01	1	1505-	●
4	06.203 KING PIN KIT EXC. FRT INDEPENDENT SUSPENSION(FF0) W/NOTCH	5-87832-252-1	01	1	1505-		●	●
4	06.203 KING PIN KIT	5-87832-219-2	01	1	1505-	●
10	06.009 PLUG; PLATE,KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97360-117-0	01	1	1505-		●	●
10	06.009 PLUG; PLATE,KNUCKLE	8-97360-117-0	01	1	1505-	●
12	06.021 GASKET; KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98084-500-0	02	1	1505-		●	●
12	06.021 GASKET; KNUCKLE	8-98084-500-0	02	1	1505-	●
14	06.021 BUSHING; KING PIN EXC. FRT INDEPENDENT SUSPENSION(FF0) W/NOTCH	8-98113-104-0	04	1	1505-		●	●
14	06.021 BUSHING; KING PIN DAIDO WO/NOTCH	8-94107-672-3	04	1	1505-	●
17	06.009 BOLT; STOPPER KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(FF0) M12X24 EYE-BOLT	8-97360-059-0	03	1	1505-		●	●
17	06.009 BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	8-97360-059-0	03	1	1505-	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.439 M12	0-91111-512-0	03	1	1505-		●	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE 04.439 M12	0-91111-512-0	03	1	1505-	●
21	06.166 NIPPLE; GREASE,KING PIN EXC. FRT INDEPENDENT SUSPENSION(FF0) 05.601 M6 STRAIGHT	0-90301-406-0	04	1	1505-		●	●
21	06.166 NIPPLE; GREASE,KING PIN 05.601 M6 STRAIGHT	0-90301-406-0	04	1	1505-	●
25	06.210 BEARING; THRUST,KING PIN EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.021 OD=54 ID=30.2 T=13.8	8-94248-883-3	02	1	1505-		●	●
25	06.210 BEARING; THRUST,KING PIN 06.021 OD=54 ID=30.2 T=13.8	8-94248-883-3	02	1	1505-	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) T=0.50	8-94162-574-0	AR	1	1505-		●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.50	8-94162-574-0	AR	1	1505-	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) T=0.55	8-94162-575-0	AR	1	1505-		●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.55	8-94162-575-0	AR	1	1505-	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) T=0.60	8-94162-576-0	AR	1	1505-		●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.60	8-94162-576-0	AR	1	1505-	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) T=0.65	8-94162-577-0	AR	1	1505-		●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.65	8-94162-577-0	AR	1	1505-	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) 05.460 (B) T=1.95	8-94168-490-0	02	1	1505-		●	●
26	06.022 SHIM; KING PIN,BRG 05.460 (B) T=1.95	8-94168-490-0	02	1	1505-	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) T=0.70	8-94174-352-0	AR	1	1505-		●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.70	8-94174-352-0	AR	1	1505-	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) T=0.80	8-94174-354-0	AR	1	1505-		●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.80	8-94174-354-0	AR	1	1505-	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) T=0.90	8-94174-356-0	AR	1	1505-		●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.90	8-94174-356-0	AR	1	1505-	●
31	07.347 PIN; S/ABS,LWR EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97141-944-0	02	1	1505-		●	●
31	07.347 PIN; S/ABS,LWR	8-97141-944-0	02	1	1505-	●
32	06.216 BOLT; KEY,KING PIN EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97141-945-2	02	1	1505-		●	●
32	06.216 BOLT; KEY,KING PIN	8-97141-945-2	02	1	1505-	●
33	06.216 NUT; KEY BOLT EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.833 M10	0-91110-510-0	02	1	1505-		●	●
33	06.216 NUT; KEY BOLT 00.833 M10	0-91110-510-0	02	1	1505-	●
34	06.216 WASHER; LK,KEY BOLT EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.606 ID=10.2	0-91510-510-0	02	1	1505-		●	●
34	06.216 WASHER; LK,KEY BOLT 06.606 ID=10.2	0-91510-510-0	02	1	1505-	●
36	06.103 ARM; KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97168-291-5	01	1	1505-		●	●
36	06.103 ARM; KNUCKLE	8-97168-291-5	01	1	1505-	●
44	06.225 COVER; KING PIN EXC. FRT INDEPENDENT SUSPENSION(FF0) OD=36	8-97360-023-0	02	1	1505-		●	●
44	06.225 COVER; KING PIN OD=36	8-97360-023-0	02	1	1505-	●
48	06.225 BOLT; COVER EXC. FRT INDEPENDENT SUSPENSION(FF0) M10X12 FLANGE	0-28051-012-0	02	1	1505-		●	●
48	06.225 BOLT; COVER M10X12 FLANGE	0-28051-012-0	02	1	1505-	●
49	06.225 CAP; KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97360-024-0	02	1	1505-		●	●
49	06.225 CAP; KNUCKLE	8-97360-024-0	02	1	1505-	●
58	06.103 ARM; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97168-292-1	01	1	1505-		●	●
58	06.103 ARM; TIE ROD	8-97168-292-1	01	1	1505-	●
59	06.104 NUT; TIE ROD ARM EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97360-123-0	02	1	1505-		●	●
59	06.104 NUT; TIE ROD ARM	8-97360-123-0	02	1	1505-	●
61	06.233 ROD END; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97107-348-2	01	1	1505-		●	●
61	06.233 ROD END; TIE ROD	8-97107-348-2	01	1	1505-	●
61	06.233 ROD END; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97107-349-2	01	1	1505-		●	●
61	06.233 ROD END; TIE ROD	8-97107-349-2	01	1	1505-	●
66	06.234 NUT; TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 M16 SLOTTED	8-98049-689-0	02	1	1505-		●	●
66	06.234 NUT; TIE ROD END 06.216 M16 SLOTTED	8-98049-689-0	02	1	1505-	●
69	06.255 PIN; SPLIT,TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(FF0) OD=3.7 L=20	0-81124-020-0	02	1	1505-		●	●
69	06.255 PIN; SPLIT,TIE ROD END OD=3.7 L=20	0-81124-020-0	02	1	1505-	●
70	06.234 NUT; TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(FF0) M20 LH THREAD	8-94254-726-0	01	1	1505-		●	●
70	06.234 NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	1505-	●
70	06.234 NUT; TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(FF0) M20 RH THREAD	8-98043-530-0	01	1	1505-		●	●
70	06.234 NUT; TIE ROD END M20 RH THREAD	8-98043-530-0	01	1	1505-	●
81	06.230 ROD; TIE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97142-024-0	01	1	1505-		●	●
81	06.230 ROD; TIE	8-97142-024-0	01	1	1505-	●
