4-01 — PROPELLER SHAFT (#161584) — 77 parça

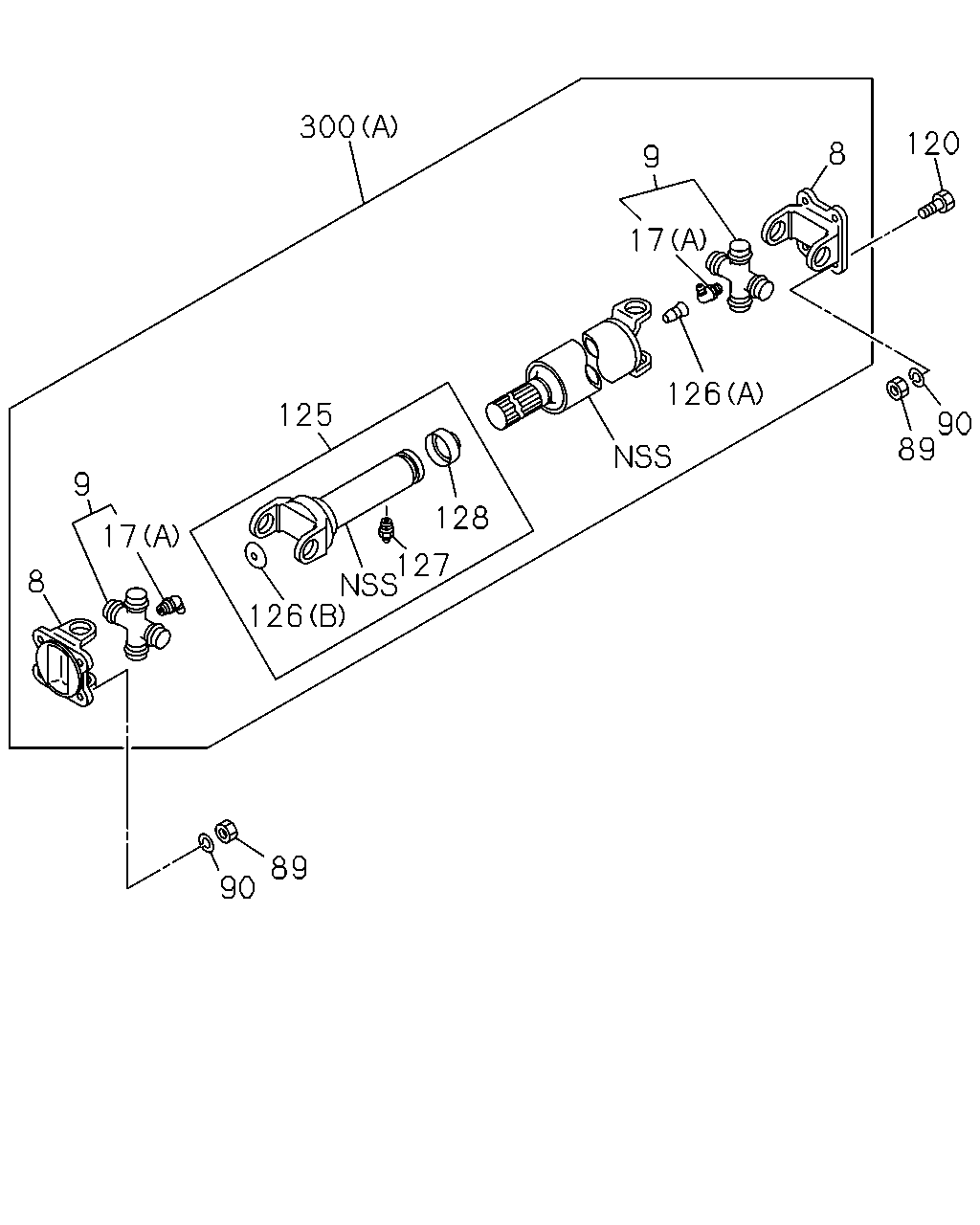

9 8 90 89 17 125 126 127 128 126 17 89 90 120 8 9 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W) D=80	8-97322-663-0	01	1	1505-	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W) D=80	8-97322-663-0	01	1	1505-	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) D=80	8-97322-663-0	02	1	1505-	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT WHEEL BASE 3300MM(33W)	8-98033-605-1	01	1	1505-	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98033-605-1	02	1	1505-	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W) (B) M6 STRAIGHT	0-90301-406-0	02	1	1505-	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	1505-	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	1505-	●	●	●
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-1	08	1	1505-	●	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	08	1	1505-	●	●	●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	04	1	1505-	●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) L=246	8-98034-338-1	01	1	1505-	●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 3300MM(33W) L=183	8-98033-647-2	01	1	1505-	●	●	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	1505-	●	●	●
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	1505-	●	●	●
126	05.556 PLUG; SPLINED YOKE WHEEL BASE 3300MM(33W) (A)	1-09600-023-0	02	1	1505-	●	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1505-	●	●	●
128	05.586 SEAL; SLEEVE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W)	8-97145-746-0	01	1	1505-	●	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=950	8-98232-140-0	01	1	1505-	●	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=1254	8-97387-791-3	01	1	1505-	●	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2800MM(28W) SMOOTHER-EX(TYPE2)(8NS) (A) L=1179	8-97387-790-3	01	1	1505-	●	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (C) L=956	8-98232-142-0	01	1	1505-	●	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=956	8-98232-142-0	01	1	1505-	●	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) (B) L=880	8-98232-141-0	01	1	1505-	●	●	●
300	05.544 SHAFT ASM; PROP,RR M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) (B) L=760	8-98039-643-1	01	1	1505-	●	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) AXLE REAR - LIGHT DUTY(8PB) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=964	8-97383-846-2	01	1	1505-	●		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) AXLE REAR - LIGHT DUTY(8PB) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) (A) L=894	8-98112-681-1	01	1	1505-	●		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) AXLE REAR - LIGHT DUTY(8PB) WHEEL BASE 2800MM(28W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=1244	8-98002-001-2	01	1	1505-	●		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) AXLE REAR - LIGHT DUTY(8PB) WHEEL BASE 2800MM(28W) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) (A) L=1169	8-98001-989-2	01	1	1505-	●		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=830	8-98039-644-1	01	1	1505-	●	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) AXLE REAR - LIGHT DUTY(8PB) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C) L=1071	8-98223-125-0	01	1	1505-	●		●
300	05.544 SHAFT ASM; PROP,RR M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=969	8-98001-994-2	01	1	1505-	●		●
300	05.544 SHAFT ASM; PROP,RR M/T MYY5T(RSM) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=969	8-98001-994-2	01	1	1505-		●
300	05.544 SHAFT ASM; PROP,RR M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) (A) L=899	8-97383-842-2	01	1	1505-	●		●
300	05.544 SHAFT ASM; PROP,RR M/T MYY5T(RSM) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) (A) L=899	8-97383-842-2	01	1	1505-		●
300	05.544 SHAFT ASM; PROP,RR M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C) L=1076	8-97383-854-4	01	1	1505-	●		●
300	05.544 SHAFT ASM; PROP,RR M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C) L=1076	8-97383-854-4	01	1	1505-		●

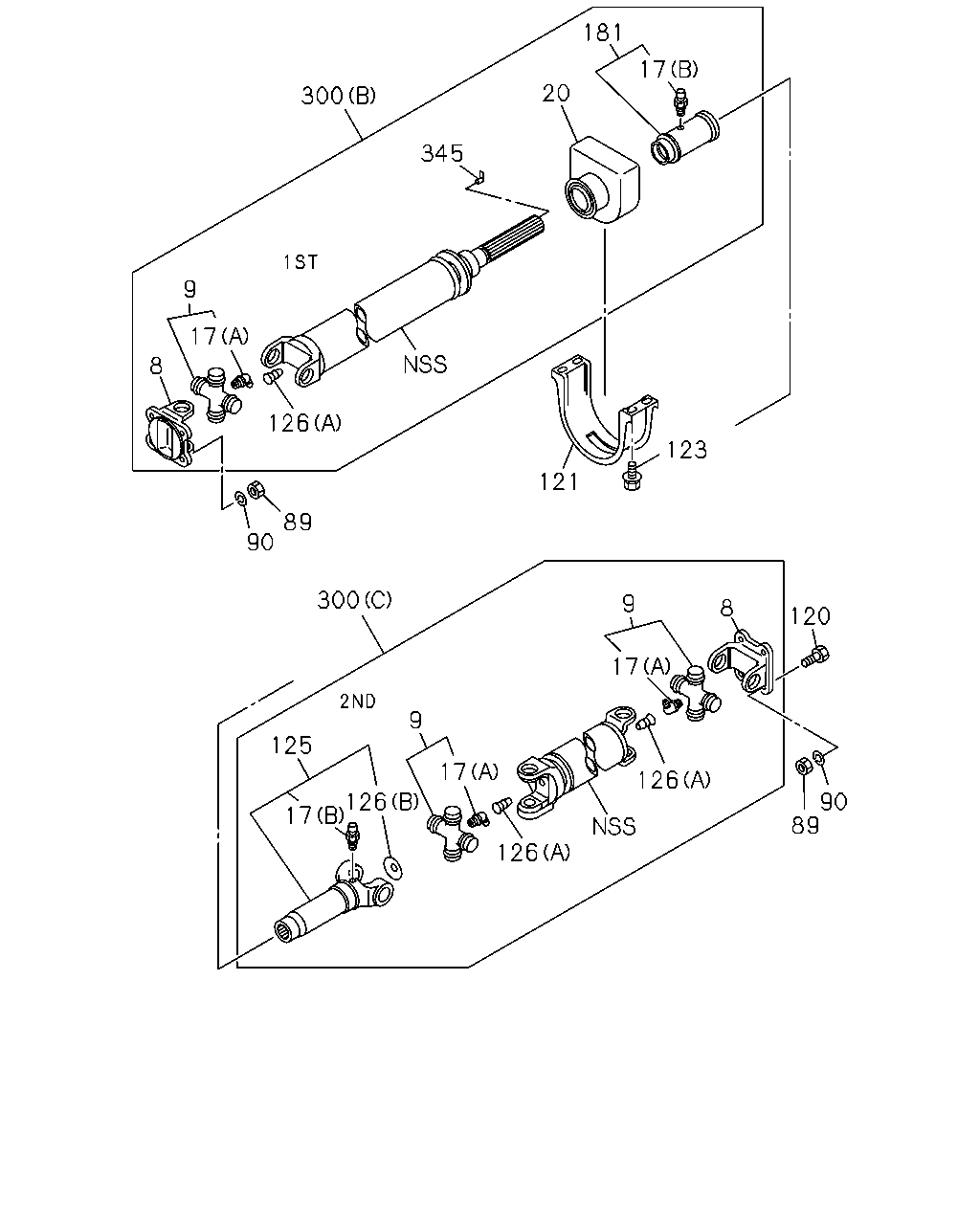

300 345 20 181 17 9 17 8 126 90 89 121 123 300 125 17 17 126 9 126 126 9 17 8 120 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W) D=80	8-97322-663-0	01	1	1505-	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W) D=80	8-97322-663-0	01	1	1505-	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) D=80	8-97322-663-0	02	1	1505-	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT WHEEL BASE 3300MM(33W)	8-98033-605-1	01	1	1505-	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98033-605-1	02	1	1505-	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W) (B) M6 STRAIGHT	0-90301-406-0	02	1	1505-	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	1505-	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	1505-	●	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT WHEEL BASE 3300MM(33W)	8-98033-936-0	01	1	1505-	●	●	●
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-1	08	1	1505-	●	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	08	1	1505-	●	●	●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	04	1	1505-	●	●	●
121	05.598 RETAINER; CUSHION RUBBER WHEEL BASE 3300MM(33W)	8-97035-623-1	01	1	1505-	●	●	●
123	05.601 BOLT; RET WHEEL BASE 3300MM(33W) M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1505-	●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) L=246	8-98034-338-1	01	1	1505-	●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 3300MM(33W) L=183	8-98033-647-2	01	1	1505-	●	●	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	1505-	●	●	●
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	1505-	●	●	●
126	05.556 PLUG; SPLINED YOKE WHEEL BASE 3300MM(33W) (A)	1-09600-023-0	02	1	1505-	●	●	●
181	05.586 COVER; BRG,PROP SHAFT WHEEL BASE 3300MM(33W)	8-98046-526-0	01	1	1505-	●	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=950	8-98232-140-0	01	1	1505-	●	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=1254	8-97387-791-3	01	1	1505-	●	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2800MM(28W) SMOOTHER-EX(TYPE2)(8NS) (A) L=1179	8-97387-790-3	01	1	1505-	●	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (C) L=956	8-98232-142-0	01	1	1505-	●	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=956	8-98232-142-0	01	1	1505-	●	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) (B) L=880	8-98232-141-0	01	1	1505-	●	●	●
300	05.544 SHAFT ASM; PROP,RR M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) (B) L=760	8-98039-643-1	01	1	1505-	●	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) AXLE REAR - LIGHT DUTY(8PB) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=964	8-97383-846-2	01	1	1505-	●		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) AXLE REAR - LIGHT DUTY(8PB) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) (A) L=894	8-98112-681-1	01	1	1505-	●		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) AXLE REAR - LIGHT DUTY(8PB) WHEEL BASE 2800MM(28W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=1244	8-98002-001-2	01	1	1505-	●		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) AXLE REAR - LIGHT DUTY(8PB) WHEEL BASE 2800MM(28W) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) (A) L=1169	8-98001-989-2	01	1	1505-	●		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=830	8-98039-644-1	01	1	1505-	●	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) AXLE REAR - LIGHT DUTY(8PB) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C) L=1071	8-98223-125-0	01	1	1505-	●		●
300	05.544 SHAFT ASM; PROP,RR M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=969	8-98001-994-2	01	1	1505-	●		●
300	05.544 SHAFT ASM; PROP,RR M/T MYY5T(RSM) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=969	8-98001-994-2	01	1	1505-		●
300	05.544 SHAFT ASM; PROP,RR M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) (A) L=899	8-97383-842-2	01	1	1505-	●		●
300	05.544 SHAFT ASM; PROP,RR M/T MYY5T(RSM) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) (A) L=899	8-97383-842-2	01	1	1505-		●
300	05.544 SHAFT ASM; PROP,RR M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C) L=1076	8-97383-854-4	01	1	1505-	●		●
300	05.544 SHAFT ASM; PROP,RR M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C) L=1076	8-97383-854-4	01	1	1505-		●
345	05.600 PLUG; PROP SHAFT WHEEL BASE 3300MM(33W)	8-98042-692-0	01	1	1505-	●	●	●
