Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#161583) — 462 parça

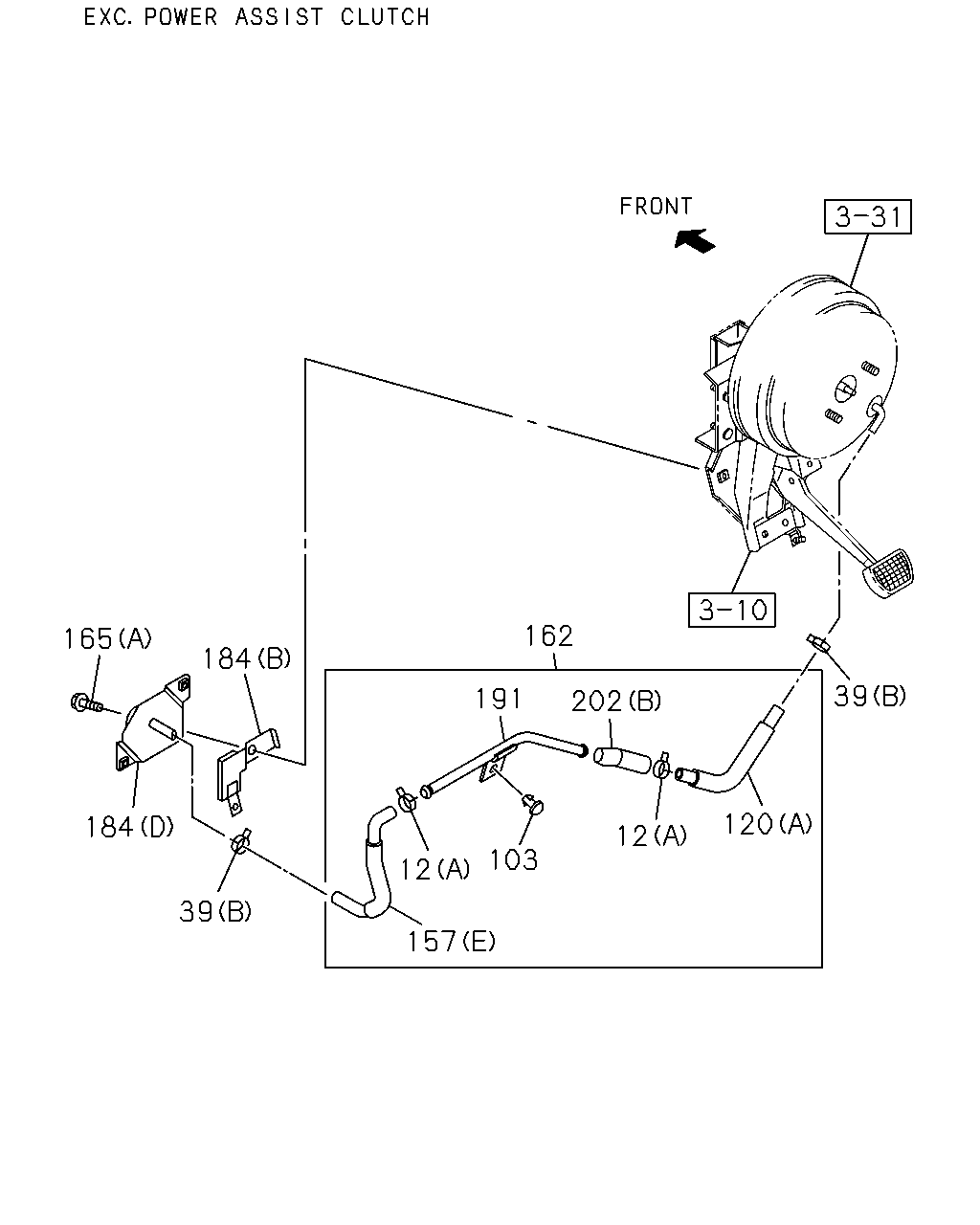

39 120 12 202 162 191 103 12 157 39 184 184 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1505-	●	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1505-	●	●	●
12	04.681 CLIP; HOSE EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1505-	●	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1505-1507	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) L=140	5-09707-031-1	01	1	1505-1507	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1505-1507			●
12	04.681 CLIP; HOSE EXC. EURO5B+ SPECIFICATION(NT5) 03.162 (B) L=140	5-09707-031-1	01	1	1508-	●	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) L=140	5-09707-031-1	01	1	1508-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	08	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1505-	●	●	●
103	04.930 CLIP; VAC PIPE	8-98194-958-0	01	1	1505-	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98194-488-0	01	1	1505-	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE (A)	8-98191-454-0	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98191-452-0	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98191-453-0	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98191-458-0	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98194-489-0	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98191-466-0	01	1	1505-	●	●	●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T)	8-98191-457-0	01	1	1505-	●	●	●
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98191-465-1	01	1	1505-	●	●	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1505-	●	●	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-468-1	01	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98255-536-0	01	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (B)	8-98156-526-0	01	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98183-469-1	01	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-537-0	01	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98255-541-0	01	1	1505-	●	●	●
191	04.685 PIPE; VAC	8-98192-099-0	01	1	1505-	●	●	●
202	04.686 SEAL (B)	1-72447-923-0	01	1	1505-	●	●	●
202	04.686 SEAL 08.845 (A)	8-97856-616-0	02	1	1505-	●	●	●

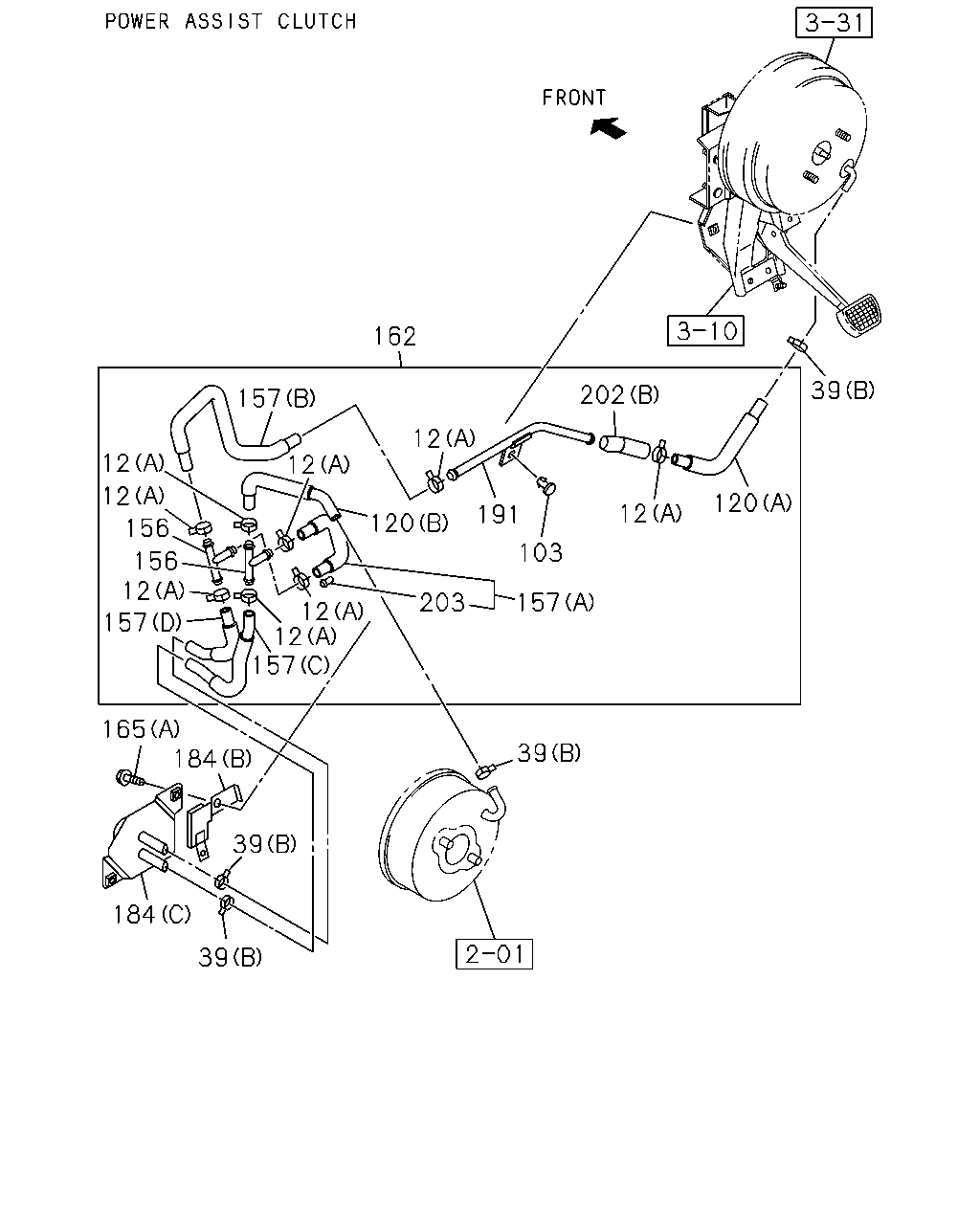

39 39 39 184 184 165 157 156 12 156 12 12 157 12 12 12 157 120 203 191 12 103 157 162 202 12 120 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1505-	●	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1505-	●	●	●
12	04.681 CLIP; HOSE EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1505-	●	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1505-1507	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) L=140	5-09707-031-1	01	1	1505-1507	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1505-1507			●
12	04.681 CLIP; HOSE EXC. EURO5B+ SPECIFICATION(NT5) 03.162 (B) L=140	5-09707-031-1	01	1	1508-	●	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) L=140	5-09707-031-1	01	1	1508-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	08	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1505-	●	●	●
103	04.930 CLIP; VAC PIPE	8-98194-958-0	01	1	1505-	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98194-488-0	01	1	1505-	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE (A)	8-98191-454-0	01	1	1505-	●	●	●
156	04.931 JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) 04.681	8-98035-106-0	02	1	1505-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98191-452-0	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98191-453-0	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98191-458-0	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98194-489-0	01	1	1505-	●	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98191-466-0	01	1	1505-	●	●	●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T)	8-98191-457-0	01	1	1505-	●	●	●
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98191-465-1	01	1	1505-	●	●	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1505-	●	●	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-468-1	01	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98255-536-0	01	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (B)	8-98156-526-0	01	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98183-469-1	01	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-537-0	01	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98255-541-0	01	1	1505-	●	●	●
191	04.685 PIPE; VAC	8-98192-099-0	01	1	1505-	●	●	●
202	04.686 SEAL (B)	1-72447-923-0	01	1	1505-	●	●	●
202	04.686 SEAL 08.845 (A)	8-97856-616-0	02	1	1505-	●	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T)	8-94386-540-0	01	1	1505-	●	●	●

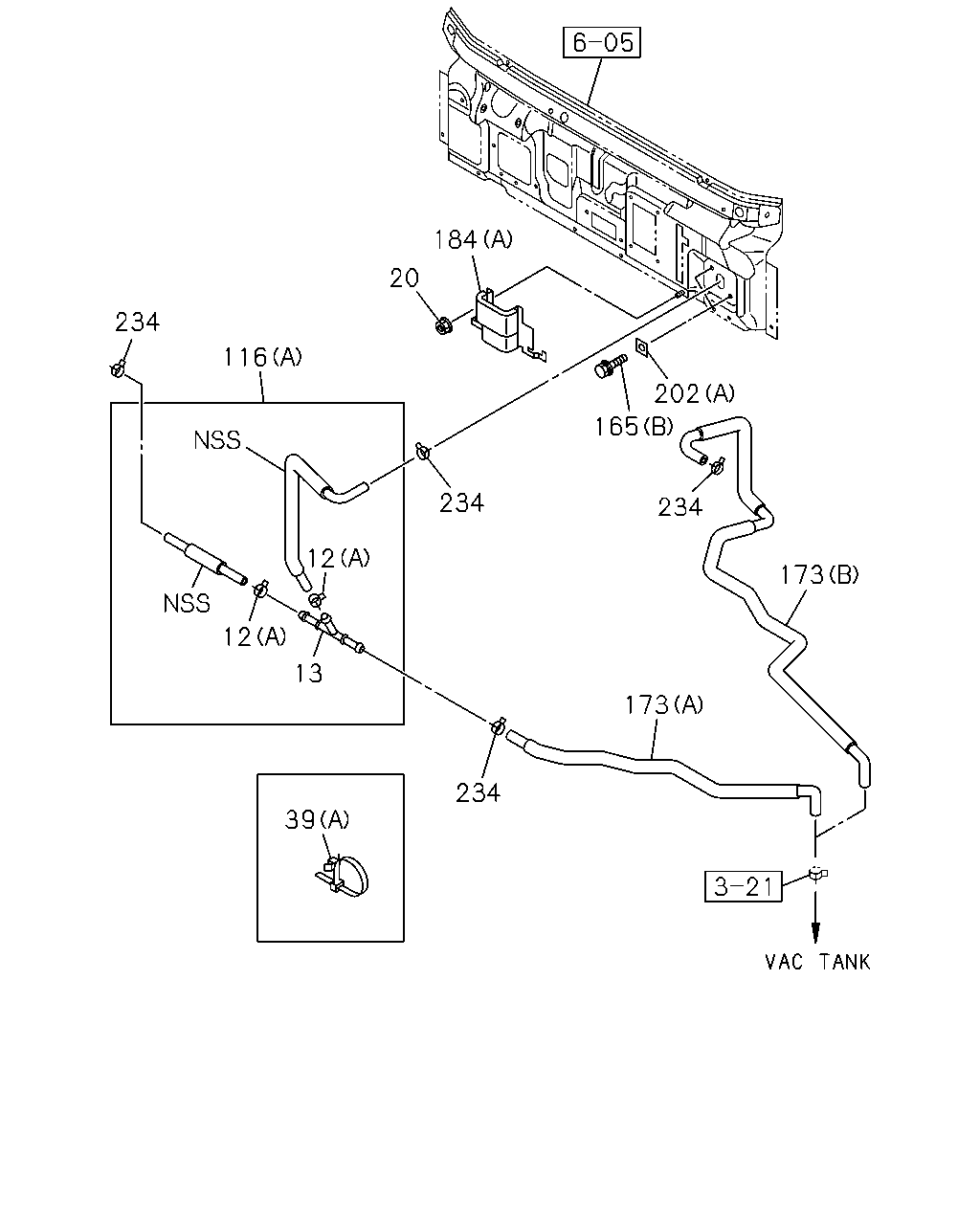

173 234 39 13 12 12 116 234 234 173 234 165 202 184 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1505-	●	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1505-	●	●	●
12	04.681 CLIP; HOSE EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1505-	●	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1505-1507	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) L=140	5-09707-031-1	01	1	1505-1507	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1505-1507			●
12	04.681 CLIP; HOSE EXC. EURO5B+ SPECIFICATION(NT5) 03.162 (B) L=140	5-09707-031-1	01	1	1508-	●	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) L=140	5-09707-031-1	01	1	1508-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	08	1	1505-	●	●	●
13	04.681 JOINT; HOSE,VAC	8-98035-106-0	02	1	1505-	●	●	●
20	04.686 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1505-	●	●	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1505-	●	●	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1505-	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98047-184-2	01	1	1505-	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98031-774-1	01	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-468-1	01	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98255-536-0	01	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (B)	8-98156-526-0	01	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98183-469-1	01	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-537-0	01	1	1505-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98255-541-0	01	1	1505-	●	●	●
202	04.686 SEAL (B)	1-72447-923-0	01	1	1505-	●	●	●
202	04.686 SEAL 08.845 (A)	8-97856-616-0	02	1	1505-	●	●	●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	1505-	●	●	●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	1505-	●	●	●

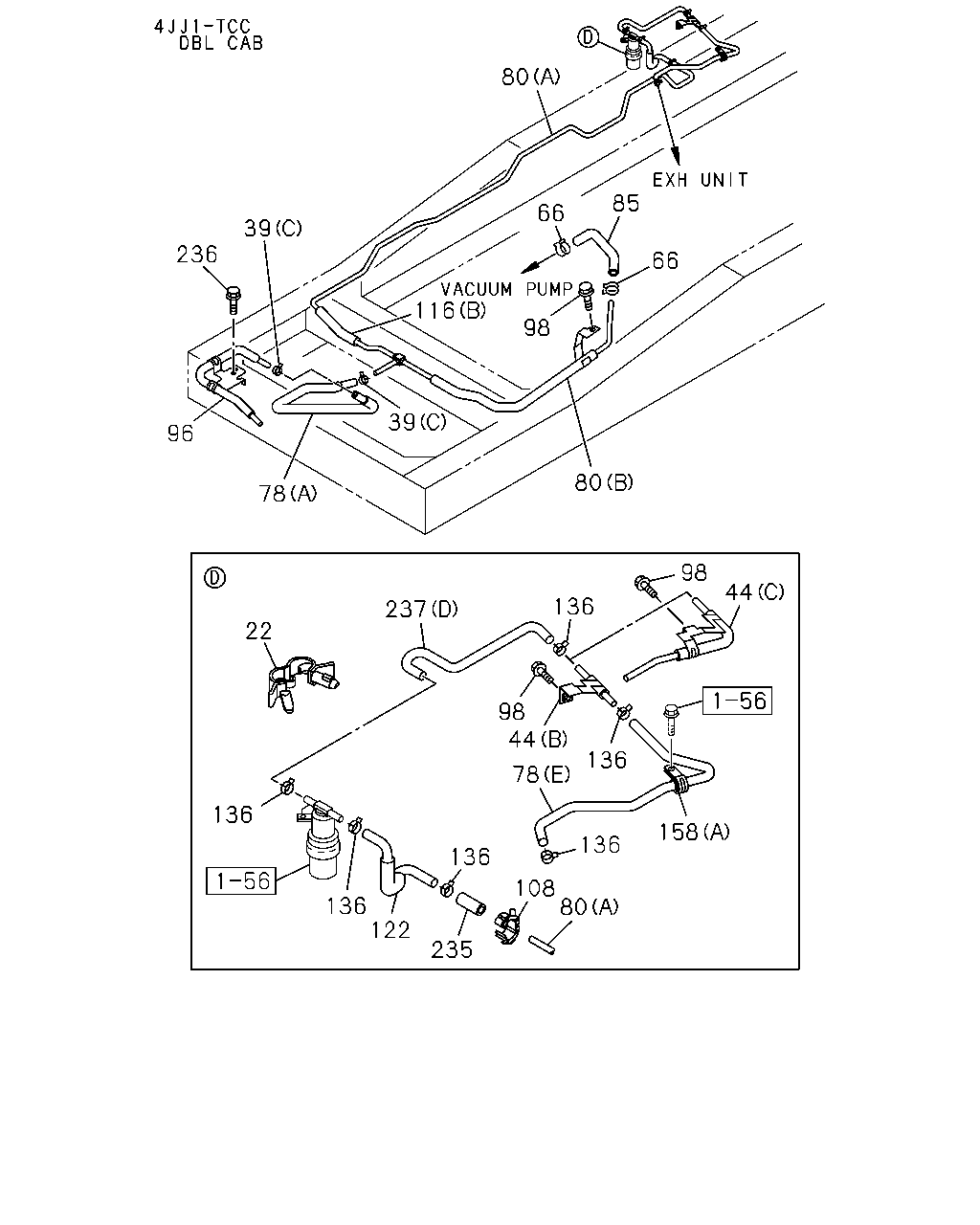

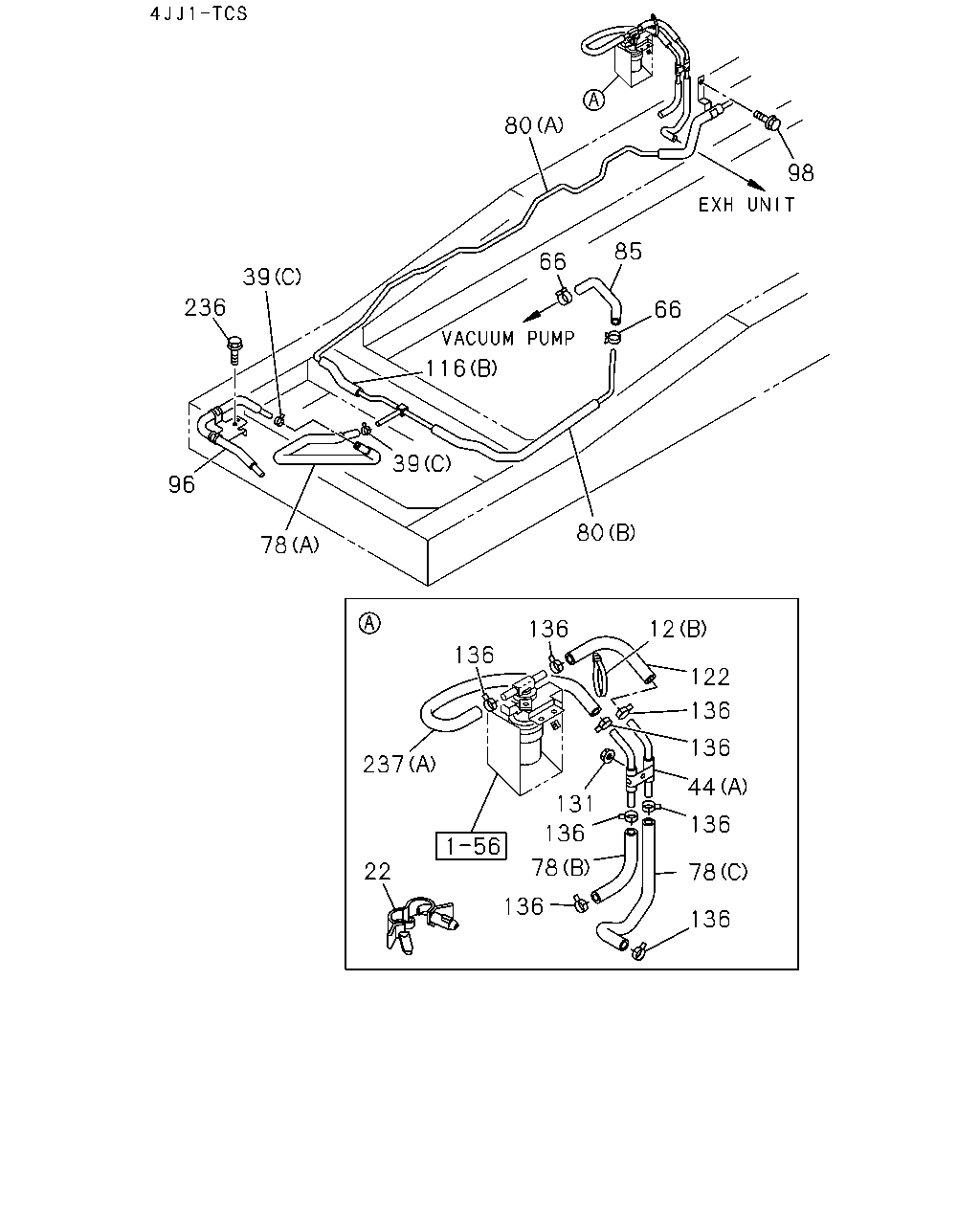

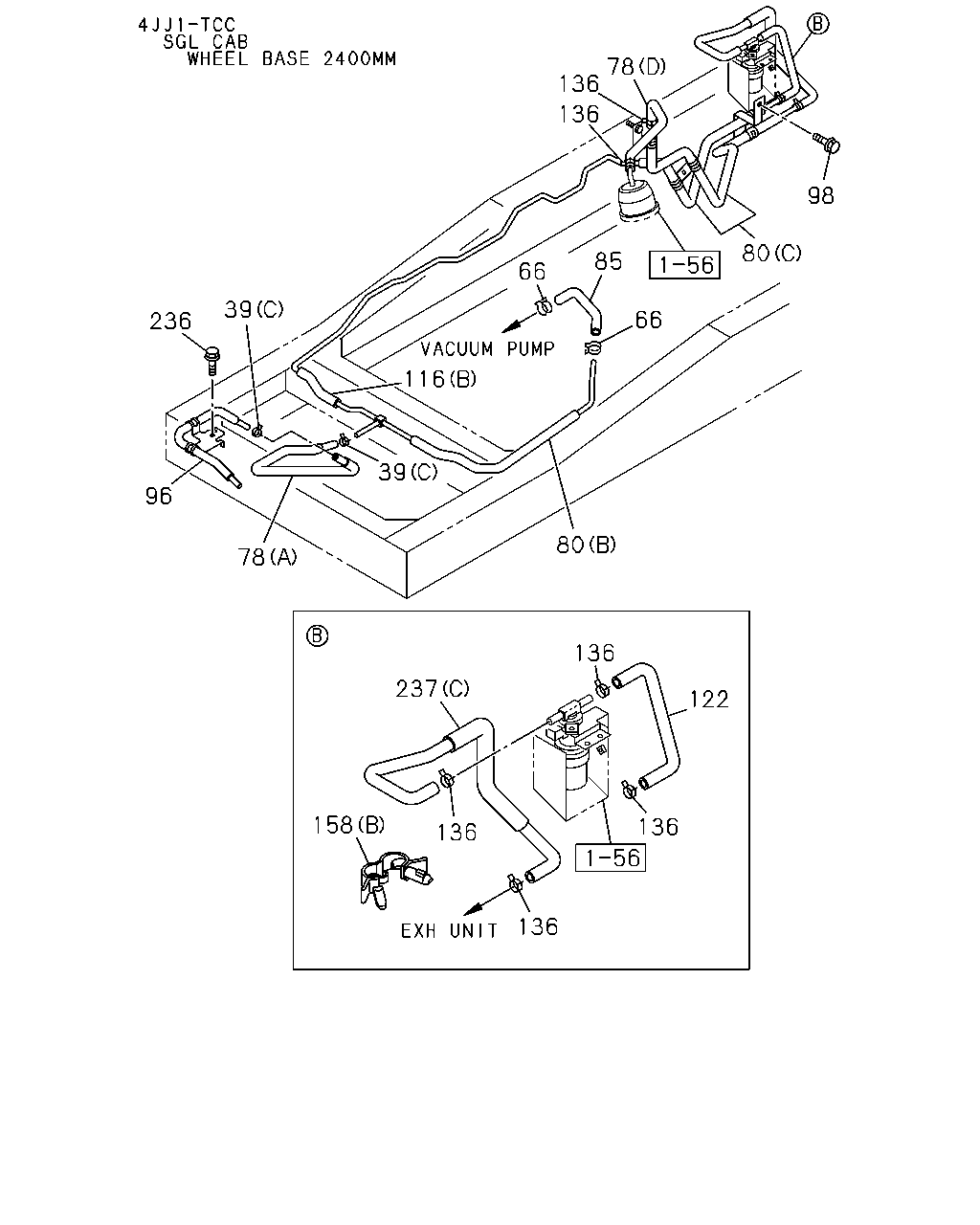

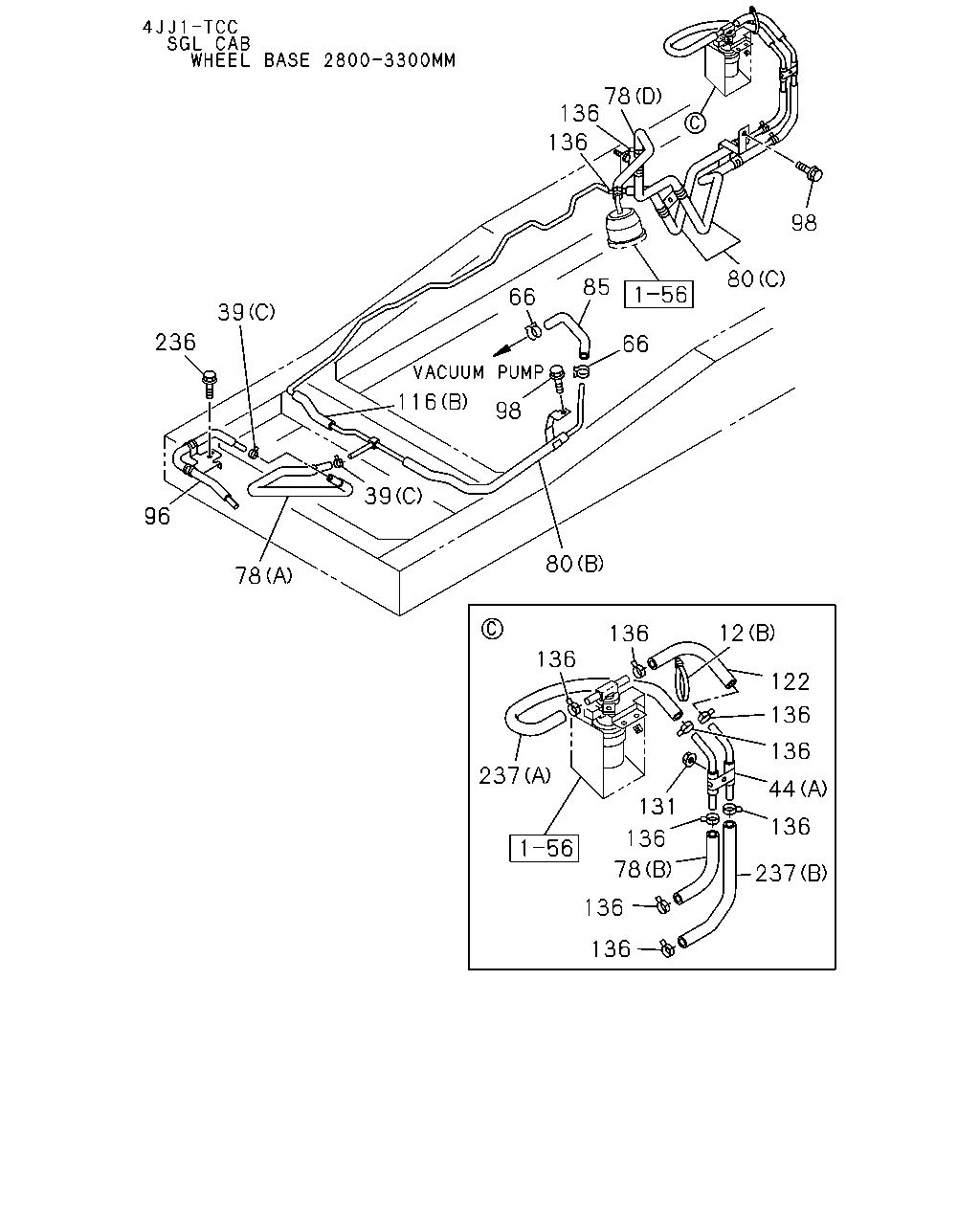

136 78 136 44 136 136 122 12 136 136 237 22 136 78 136 131 80 39 78 96 236 39 116 66 85 66 80 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1505-	●	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1505-	●	●	●
12	04.681 CLIP; HOSE EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1505-	●	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1505-1507	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) L=140	5-09707-031-1	01	1	1505-1507	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1505-1507			●
12	04.681 CLIP; HOSE EXC. EURO5B+ SPECIFICATION(NT5) 03.162 (B) L=140	5-09707-031-1	01	1	1508-	●	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) L=140	5-09707-031-1	01	1	1508-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	08	1	1505-	●	●	●
22	04.681 CLIP; HOSE,VAC TANK 4JJ1-TCC ENG(RDU) ID=18-24 L=14.5	1-09709-298-0	01	1	1505-	●	●
22	04.681 CLIP; HOSE,VAC TANK 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) ID=18-24 L=14.5	1-09709-298-0	01	1	1505-	●	●
22	04.681 CLIP; HOSE,VAC TANK 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) ID=18-24 L=14.5	1-09709-298-0	01	1	1505-			●
22	04.681 CLIP; HOSE,VAC TANK 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) ID=18-24 L=14.5	1-09709-298-0	01	1	1505-			●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1505-	●	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98042-654-0	01	1	1505-1507	●	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98042-654-0	01	1	1505-1507	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98042-654-0	01	1	1505-1507	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A)	8-98042-654-0	01	1	1508-	●	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98042-654-0	01	1	1508-	●	●
44	04.930 PIPE; VAC,MAG VLV EXC. EURO5B+ SPECIFICATION(NT5) (A)	8-98042-654-0	01	1	1508-			●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98227-597-0	01	1	1505-			●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98271-263-0	01	1	1505-1507			●
44	04.930 PIPE; VAC,MAG VLV EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) (C)	8-98271-263-0	01	1	1508-			●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1505-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C)	8-98260-455-2	01	1	1505-1507	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (C)	8-98260-455-2	01	1	1508-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (A)	8-98207-005-0	01	1	1505-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) (A)	8-98207-005-0	01	1	1505-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (A)	8-98207-005-0	01	1	1505-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1505-1507	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1505-1507	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1508-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1508-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. EURO5B+ SPECIFICATION(NT5) (B)	8-98189-226-0	01	1	1508-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C)	8-98231-606-0	01	1	1505-1507	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (C)	8-98231-606-0	01	1	1508-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98227-654-1	01	1	1505-1507	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98227-654-1	01	1	1508-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98281-196-0	01	1	1505-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A)	8-98281-196-0	01	1	1505-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98227-656-0	01	1	1505-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98271-264-0	01	1	1505-1507			●
78	04.931 HOSE; VAC,PIPE TO PIPE EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) (E)	8-98271-264-0	01	1	1508-			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) WHEEL BASE 2800MM(28W) (A)	8-98272-142-0	01	1	1505-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (A)	8-98056-002-2	01	1	1505-	●	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) (C)	8-98227-591-1	01	1	1505-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) (A)	8-98071-771-0	01	1	1505-			●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	1505-	●	●	●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	1505-	●	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=353	8-98138-795-0	01	1	1505-	●	●	●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1505-	●	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98076-068-1	01	1	1505-1507	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM)	8-98076-068-1	01	1	1505-1507	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98076-068-1	01	1	1508-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98260-453-0	01	1	1505-1507	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6)	8-98260-453-0	01	1	1508-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1505-1507	●	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98189-222-0	01	1	1505-1507	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM)	8-98189-222-0	01	1	1505-1507	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6)	8-98189-222-0	01	1	1508-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98189-222-0	01	1	1508-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. EURO5B+ SPECIFICATION(NT5)	8-98189-222-0	01	1	1508-			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM)	8-98064-717-1	01	1	1505-1507			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. EURO6 SPECIFICATION(NT6)	8-98064-717-1	01	1	1508-			●
131	04.930 NUT; VAC PIPE FIX 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 01.062 M6 FLANGE	0-91180-106-0	01	1	1505-1507	●	●	●
131	04.930 NUT; VAC PIPE FIX 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 01.062 M6 FLANGE	0-91180-106-0	01	1	1505-1507	●	●
131	04.930 NUT; VAC PIPE FIX 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 01.062 M6 FLANGE	0-91180-106-0	01	1	1508-	●	●
131	04.930 NUT; VAC PIPE FIX 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 01.062 M6 FLANGE	0-91180-106-0	01	1	1508-	●	●
131	04.930 NUT; VAC PIPE FIX EXC. EURO5B+ SPECIFICATION(NT5) 01.062 M6 FLANGE	0-91180-106-0	01	1	1508-			●
136	04.681 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	06	1	1505-1507	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 ID=16	8-98008-098-0	06	1	1505-1507	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	06	1	1505-1507	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 ID=16	8-98008-098-0	06	1	1505-1507			●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	06	1	1505-1507			●
136	04.681 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	06	1	1508-	●	●
136	04.681 CLIP; VAC HOSE EXC. EURO5B+ SPECIFICATION(NT5) 03.162 ID=16	8-98008-098-0	06	1	1508-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	06	1	1508-	●	●
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	06	1	1508-			●
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1505-	●	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98260-454-0	01	1	1505-1507	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A)	8-98260-454-0	01	1	1508-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (A)	8-98189-224-0	01	1	1505-1507	●	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98189-224-0	01	1	1505-1507	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A)	8-98189-224-0	01	1	1508-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98189-224-0	01	1	1508-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE EXC. EURO5B+ SPECIFICATION(NT5) (A)	8-98189-224-0	01	1	1508-			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98227-652-1	01	1	1505-1507	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98227-652-1	01	1	1508-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98227-653-1	01	1	1505-1507	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98227-653-1	01	1	1508-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98227-655-0	01	1	1505-1507			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE EXC. EURO6 SPECIFICATION(NT6) (D)	8-98227-655-0	01	1	1508-			●

136 136 122 136 237 136 158 78 96 236 39 39 80 116 66 66 85 80 98 78 136 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1505-	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1505-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C)	8-98260-455-2	01	1	1505-1507	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (C)	8-98260-455-2	01	1	1508-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (A)	8-98207-005-0	01	1	1505-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) (A)	8-98207-005-0	01	1	1505-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (A)	8-98207-005-0	01	1	1505-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1505-1507	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1505-1507	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1508-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1508-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. EURO5B+ SPECIFICATION(NT5) (B)	8-98189-226-0	01	1	1508-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C)	8-98231-606-0	01	1	1505-1507	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (C)	8-98231-606-0	01	1	1508-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98227-654-1	01	1	1505-1507	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98227-654-1	01	1	1508-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98281-196-0	01	1	1505-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A)	8-98281-196-0	01	1	1505-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98227-656-0	01	1	1505-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98271-264-0	01	1	1505-1507			●
78	04.931 HOSE; VAC,PIPE TO PIPE EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) (E)	8-98271-264-0	01	1	1508-			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) WHEEL BASE 2800MM(28W) (A)	8-98272-142-0	01	1	1505-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (A)	8-98056-002-2	01	1	1505-	●	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) (C)	8-98227-591-1	01	1	1505-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) (A)	8-98071-771-0	01	1	1505-			●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	1505-	●	●	●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	1505-	●	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=353	8-98138-795-0	01	1	1505-	●	●	●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1505-	●	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98076-068-1	01	1	1505-1507	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM)	8-98076-068-1	01	1	1505-1507	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98076-068-1	01	1	1508-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98260-453-0	01	1	1505-1507	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6)	8-98260-453-0	01	1	1508-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1505-1507	●	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98189-222-0	01	1	1505-1507	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM)	8-98189-222-0	01	1	1505-1507	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6)	8-98189-222-0	01	1	1508-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98189-222-0	01	1	1508-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. EURO5B+ SPECIFICATION(NT5)	8-98189-222-0	01	1	1508-			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM)	8-98064-717-1	01	1	1505-1507			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. EURO6 SPECIFICATION(NT6)	8-98064-717-1	01	1	1508-			●
136	04.681 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	06	1	1505-1507	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 ID=16	8-98008-098-0	06	1	1505-1507	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	06	1	1505-1507	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 ID=16	8-98008-098-0	06	1	1505-1507			●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	06	1	1505-1507			●
136	04.681 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	06	1	1508-	●	●
136	04.681 CLIP; VAC HOSE EXC. EURO5B+ SPECIFICATION(NT5) 03.162 ID=16	8-98008-098-0	06	1	1508-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	06	1	1508-	●	●
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	06	1	1508-			●
158	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) ID=18-24 L=14.5	1-09709-298-0	01	1	1505-1507	●	●
158	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) (B) ID=18-24 L=14.5	1-09709-298-0	01	1	1505-1507	●	●
158	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) ID=18-24 L=14.5	1-09709-298-0	01	1	1508-	●	●
158	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) 08.846 (A) ID=24 L=32	1-09700-766-1	01	1	1505-			●
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1505-	●	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98260-454-0	01	1	1505-1507	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A)	8-98260-454-0	01	1	1508-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (A)	8-98189-224-0	01	1	1505-1507	●	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98189-224-0	01	1	1505-1507	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A)	8-98189-224-0	01	1	1508-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98189-224-0	01	1	1508-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE EXC. EURO5B+ SPECIFICATION(NT5) (A)	8-98189-224-0	01	1	1508-			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98227-652-1	01	1	1505-1507	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98227-652-1	01	1	1508-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98227-653-1	01	1	1505-1507	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98227-653-1	01	1	1508-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98227-655-0	01	1	1505-1507			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE EXC. EURO6 SPECIFICATION(NT6) (D)	8-98227-655-0	01	1	1508-			●

237 136 44 136 136 122 12 136 136 237 131 136 78 136 136 80 66 80 98 85 66 98 116 39 78 96 236 39 136 136 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1505-	●	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1505-	●	●	●
12	04.681 CLIP; HOSE EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1505-	●	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1505-1507	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) L=140	5-09707-031-1	01	1	1505-1507	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1505-1507			●
12	04.681 CLIP; HOSE EXC. EURO5B+ SPECIFICATION(NT5) 03.162 (B) L=140	5-09707-031-1	01	1	1508-	●	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) L=140	5-09707-031-1	01	1	1508-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	08	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1505-	●	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98042-654-0	01	1	1505-1507	●	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98042-654-0	01	1	1505-1507	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98042-654-0	01	1	1505-1507	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A)	8-98042-654-0	01	1	1508-	●	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98042-654-0	01	1	1508-	●	●
44	04.930 PIPE; VAC,MAG VLV EXC. EURO5B+ SPECIFICATION(NT5) (A)	8-98042-654-0	01	1	1508-			●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98227-597-0	01	1	1505-			●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98271-263-0	01	1	1505-1507			●
44	04.930 PIPE; VAC,MAG VLV EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) (C)	8-98271-263-0	01	1	1508-			●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1505-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C)	8-98260-455-2	01	1	1505-1507	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (C)	8-98260-455-2	01	1	1508-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (A)	8-98207-005-0	01	1	1505-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) (A)	8-98207-005-0	01	1	1505-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (A)	8-98207-005-0	01	1	1505-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1505-1507	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1505-1507	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1508-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1508-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. EURO5B+ SPECIFICATION(NT5) (B)	8-98189-226-0	01	1	1508-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C)	8-98231-606-0	01	1	1505-1507	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (C)	8-98231-606-0	01	1	1508-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98227-654-1	01	1	1505-1507	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98227-654-1	01	1	1508-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98281-196-0	01	1	1505-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A)	8-98281-196-0	01	1	1505-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98227-656-0	01	1	1505-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98271-264-0	01	1	1505-1507			●
78	04.931 HOSE; VAC,PIPE TO PIPE EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) (E)	8-98271-264-0	01	1	1508-			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) WHEEL BASE 2800MM(28W) (A)	8-98272-142-0	01	1	1505-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (A)	8-98056-002-2	01	1	1505-	●	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) (C)	8-98227-591-1	01	1	1505-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) (A)	8-98071-771-0	01	1	1505-			●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	1505-	●	●	●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	1505-	●	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=353	8-98138-795-0	01	1	1505-	●	●	●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1505-	●	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98076-068-1	01	1	1505-1507	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM)	8-98076-068-1	01	1	1505-1507	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98076-068-1	01	1	1508-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98260-453-0	01	1	1505-1507	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6)	8-98260-453-0	01	1	1508-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1505-1507	●	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98189-222-0	01	1	1505-1507	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM)	8-98189-222-0	01	1	1505-1507	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6)	8-98189-222-0	01	1	1508-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98189-222-0	01	1	1508-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. EURO5B+ SPECIFICATION(NT5)	8-98189-222-0	01	1	1508-			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM)	8-98064-717-1	01	1	1505-1507			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. EURO6 SPECIFICATION(NT6)	8-98064-717-1	01	1	1508-			●
131	04.930 NUT; VAC PIPE FIX 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 01.062 M6 FLANGE	0-91180-106-0	01	1	1505-1507	●	●	●
131	04.930 NUT; VAC PIPE FIX 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 01.062 M6 FLANGE	0-91180-106-0	01	1	1505-1507	●	●
131	04.930 NUT; VAC PIPE FIX 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 01.062 M6 FLANGE	0-91180-106-0	01	1	1508-	●	●
131	04.930 NUT; VAC PIPE FIX 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 01.062 M6 FLANGE	0-91180-106-0	01	1	1508-	●	●
131	04.930 NUT; VAC PIPE FIX EXC. EURO5B+ SPECIFICATION(NT5) 01.062 M6 FLANGE	0-91180-106-0	01	1	1508-			●
136	04.681 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	06	1	1505-1507	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 ID=16	8-98008-098-0	06	1	1505-1507	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	06	1	1505-1507	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 ID=16	8-98008-098-0	06	1	1505-1507			●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	06	1	1505-1507			●
136	04.681 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	06	1	1508-	●	●
136	04.681 CLIP; VAC HOSE EXC. EURO5B+ SPECIFICATION(NT5) 03.162 ID=16	8-98008-098-0	06	1	1508-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	06	1	1508-	●	●
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	06	1	1508-			●
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1505-	●	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98260-454-0	01	1	1505-1507	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A)	8-98260-454-0	01	1	1508-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (A)	8-98189-224-0	01	1	1505-1507	●	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98189-224-0	01	1	1505-1507	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A)	8-98189-224-0	01	1	1508-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98189-224-0	01	1	1508-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE EXC. EURO5B+ SPECIFICATION(NT5) (A)	8-98189-224-0	01	1	1508-			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98227-652-1	01	1	1505-1507	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98227-652-1	01	1	1508-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98227-653-1	01	1	1505-1507	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98227-653-1	01	1	1508-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98227-655-0	01	1	1505-1507			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE EXC. EURO6 SPECIFICATION(NT6) (D)	8-98227-655-0	01	1	1508-			●

235 122 136 136 22 237 136 98 44 78 136 158 136 108 136 80 44 98 80 39 78 96 236 39 116 98 66 85 66 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	04.681 CLIP; HOSE,VAC TANK 4JJ1-TCC ENG(RDU) ID=18-24 L=14.5	1-09709-298-0	01	1	1505-	●	●
22	04.681 CLIP; HOSE,VAC TANK 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) ID=18-24 L=14.5	1-09709-298-0	01	1	1505-	●	●
22	04.681 CLIP; HOSE,VAC TANK 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) ID=18-24 L=14.5	1-09709-298-0	01	1	1505-			●
22	04.681 CLIP; HOSE,VAC TANK 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) ID=18-24 L=14.5	1-09709-298-0	01	1	1505-			●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1505-	●	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1505-	●	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98042-654-0	01	1	1505-1507	●	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98042-654-0	01	1	1505-1507	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98042-654-0	01	1	1505-1507	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A)	8-98042-654-0	01	1	1508-	●	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98042-654-0	01	1	1508-	●	●
44	04.930 PIPE; VAC,MAG VLV EXC. EURO5B+ SPECIFICATION(NT5) (A)	8-98042-654-0	01	1	1508-			●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98227-597-0	01	1	1505-			●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98271-263-0	01	1	1505-1507			●
44	04.930 PIPE; VAC,MAG VLV EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) (C)	8-98271-263-0	01	1	1508-			●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1505-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C)	8-98260-455-2	01	1	1505-1507	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (C)	8-98260-455-2	01	1	1508-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (A)	8-98207-005-0	01	1	1505-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) (A)	8-98207-005-0	01	1	1505-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (A)	8-98207-005-0	01	1	1505-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1505-1507	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1505-1507	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1508-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1508-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. EURO5B+ SPECIFICATION(NT5) (B)	8-98189-226-0	01	1	1508-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C)	8-98231-606-0	01	1	1505-1507	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (C)	8-98231-606-0	01	1	1508-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98227-654-1	01	1	1505-1507	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98227-654-1	01	1	1508-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98281-196-0	01	1	1505-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A)	8-98281-196-0	01	1	1505-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98227-656-0	01	1	1505-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98271-264-0	01	1	1505-1507			●
78	04.931 HOSE; VAC,PIPE TO PIPE EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) (E)	8-98271-264-0	01	1	1508-			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) WHEEL BASE 2800MM(28W) (A)	8-98272-142-0	01	1	1505-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (A)	8-98056-002-2	01	1	1505-	●	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) (C)	8-98227-591-1	01	1	1505-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) (A)	8-98071-771-0	01	1	1505-			●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	1505-	●	●	●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	1505-	●	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=353	8-98138-795-0	01	1	1505-	●	●	●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1505-	●	●	●
108	04.931 GROMMET; PIPE 4JJ1-TCC ENG(RDU) 02.343 ID=17	8-94128-319-2	01	1	1505-			●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1505-	●	●	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1505-	●	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98076-068-1	01	1	1505-1507	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM)	8-98076-068-1	01	1	1505-1507	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98076-068-1	01	1	1508-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98260-453-0	01	1	1505-1507	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6)	8-98260-453-0	01	1	1508-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1505-1507	●	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98189-222-0	01	1	1505-1507	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM)	8-98189-222-0	01	1	1505-1507	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6)	8-98189-222-0	01	1	1508-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98189-222-0	01	1	1508-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. EURO5B+ SPECIFICATION(NT5)	8-98189-222-0	01	1	1508-			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM)	8-98064-717-1	01	1	1505-1507			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. EURO6 SPECIFICATION(NT6)	8-98064-717-1	01	1	1508-			●
136	04.681 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	06	1	1505-1507	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 ID=16	8-98008-098-0	06	1	1505-1507	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	06	1	1505-1507	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 ID=16	8-98008-098-0	06	1	1505-1507			●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	06	1	1505-1507			●
136	04.681 CLIP; VAC HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	06	1	1508-	●	●
136	04.681 CLIP; VAC HOSE EXC. EURO5B+ SPECIFICATION(NT5) 03.162 ID=16	8-98008-098-0	06	1	1508-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	06	1	1508-	●	●
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	06	1	1508-			●
158	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) ID=18-24 L=14.5	1-09709-298-0	01	1	1505-1507	●	●
158	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) (B) ID=18-24 L=14.5	1-09709-298-0	01	1	1505-1507	●	●
158	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) ID=18-24 L=14.5	1-09709-298-0	01	1	1508-	●	●
158	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) 08.846 (A) ID=24 L=32	1-09700-766-1	01	1	1505-			●
235	04.931 RUBBER; SUPPORT,PIPE 4JJ1-TCC ENG(RDU) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1505-			●
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1505-	●	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98260-454-0	01	1	1505-1507	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A)	8-98260-454-0	01	1	1508-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (A)	8-98189-224-0	01	1	1505-1507	●	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98189-224-0	01	1	1505-1507	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A)	8-98189-224-0	01	1	1508-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98189-224-0	01	1	1508-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE EXC. EURO5B+ SPECIFICATION(NT5) (A)	8-98189-224-0	01	1	1508-			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98227-652-1	01	1	1505-1507	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98227-652-1	01	1	1508-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98227-653-1	01	1	1505-1507	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98227-653-1	01	1	1508-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98227-655-0	01	1	1505-1507			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE EXC. EURO6 SPECIFICATION(NT6) (D)	8-98227-655-0	01	1	1508-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
