◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51613 - NLR/NMR LHD EUROPE EURO5B+,6 ▶ 3 - Brakes, Brake System ▶ 3-58 - FIXING PARTS; OIL PIPING ▶
3-58 — FIXING PARTS; OIL PIPING (#161582) — 56 parça

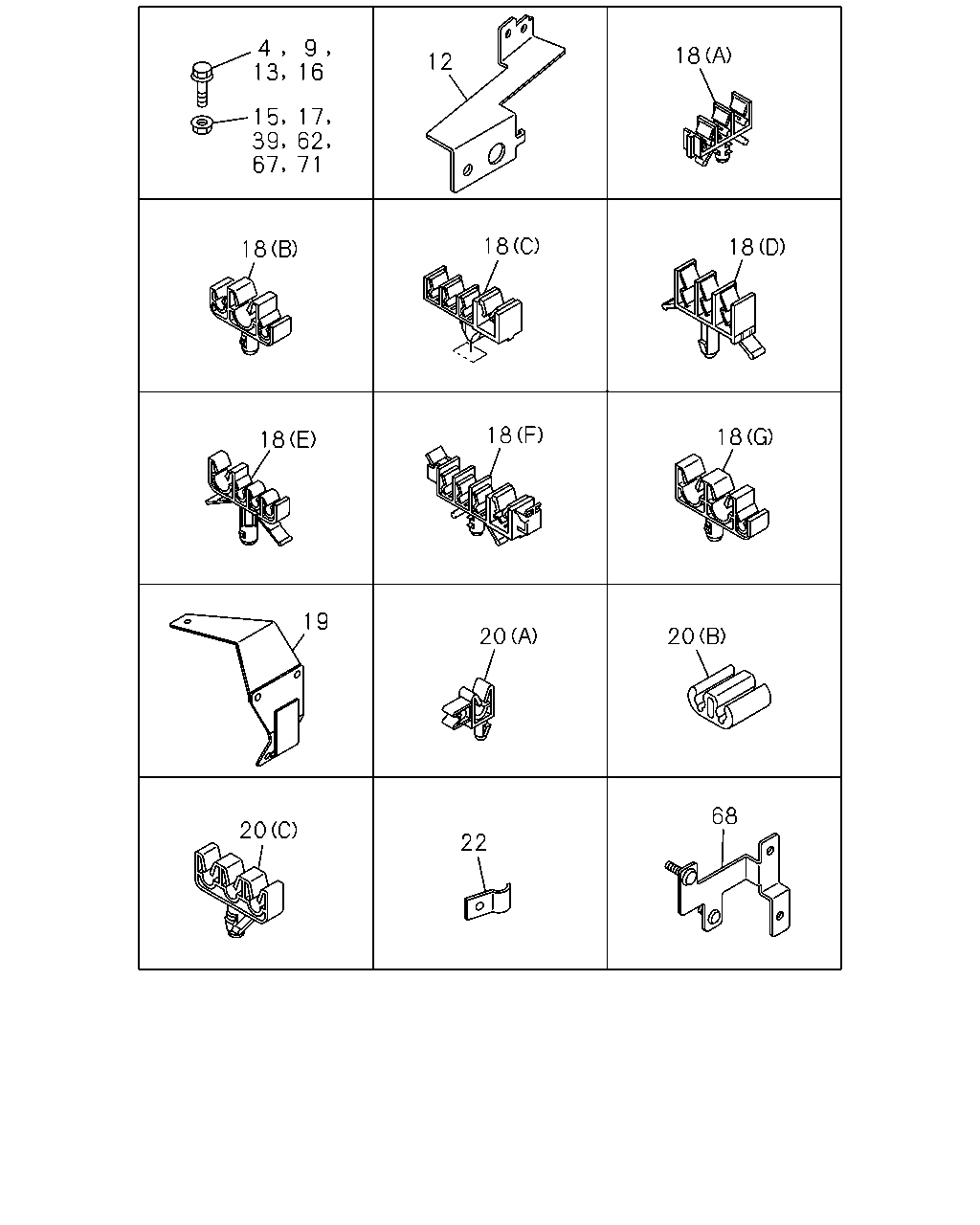

çizim 475939
68 22 20 19 20 20 18 18 18 18 18 18 18 12 9 4 15 16 13 17 39 62 67 71
BalonParca AdiParca NoAdetTipApplied Date A B C
4 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1505- ● ● ●
9 04.686 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) 00.029 M10X25 FLANGE 		0-28651-025-0 02 1 1505- ● ●
9 04.686 BOLT; BRKT
EURO5B+ SPECIFICATION(NT5) EXC. SINGLE RR TIRE(6TD) 00.029 M10X25 FLANGE 		0-28651-025-0 02 1 1505- ● ●
9 04.686 BOLT; BRKT
00.029 M10X25 FLANGE 		0-28651-025-0 02 1 1505- ●
9 04.686 BOLT; BRKT
WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1505- ●
9 04.686 BOLT; BRKT
AXLE REAR - LIGHT DUTY(8PB) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1505- ●
9 04.686 BOLT; BRKT
AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9> REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1505- ●
9 04.686 BOLT; BRKT
AXLE REAR - LIGHT DUTY(8PB) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1505- ●
12 04.686 BRACKET; OIL PIPE
4JJ1-TCC ENG(RDU) 03.634 		8-98209-974-1 01 1 1505- ● ●
13 04.686 BOLT; BRKT,OIL PIPE
4JJ1-TCC ENG(RDU) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1505- ● ●
15 04.686 NUT; CLIP,OIL PIPE
EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1505- ● ●
15 04.686 NUT; CLIP,OIL PIPE
01.062 M6 FLANGE 		0-91180-106-0 02 1 1505- ●
16 04.686 BOLT; BRKT TO FRAME
FRT INDEPENDENT SUSPENSION(FF0) 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1505- ● ●
17 04.686 NUT; BRKT TO FRAME
EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1505- ● ●
17 04.686 NUT; BRKT TO FRAME
01.062 M8 FLANGE 		0-91180-108-0 02 1 1505- ●
18 04.686 CLIP; BRK PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=12 & 6.35 & 4.76 		8-97305-169-1 01 1 1505- ● ● ●
18 04.686 CLIP; BRK PIPE
(D) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 1505- ● ● ●
18 04.686 CLIP; BRK PIPE
03.162 (A) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 1505- ● ● ●
18 04.686 CLIP; BRK PIPE
(C) ID=10 & 4.76X3 		8-97168-819-0 06 1 1505- ● ● ●
18 04.686 CLIP; BRK PIPE
(F) ID=10 & 4.76X3 		8-97326-158-1 03 1 1505-1507 ● ● ●
18 04.686 CLIP; BRK PIPE
(F) ID=10 & 4.76X3 		8-97326-158-1 02 1 1508- ● ● ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 04.128 (G) ID=10 OR 12X2 & 4.76 		8-98058-323-0 01 1 1505- ● ● ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) 04.128 (G) ID=10 OR 12X2 & 4.76 		8-98058-323-0 01 1 1505- ● ● ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 2800MM(28W) (F) ID=10 & 4.76X3 		8-97326-158-1 02 1 1505-1507 ● ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) (F) ID=10 & 4.76X3 		8-97326-158-1 01 1 1508- ● ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (C) ID=10 & 4.76X3 		8-97168-819-0 02 1 1505- ● ●
18 04.686 CLIP; BRK PIPE
EURO5B+ SPECIFICATION(NT5) EXC. SINGLE RR TIRE(6TD) (C) ID=10 & 4.76X3 		8-97168-819-0 02 1 1505- ● ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) SINGLE RR TIRE(6TD) (C) ID=10 & 4.76X3 		8-97168-819-0 02 1 1505- ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3300MM(33W) (C) ID=10 & 4.76X3 		8-97168-819-0 02 1 1505- ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (E) ID=10 & 4.76X3 		8-97168-820-0 03 1 1505- ● ●
18 04.686 CLIP; BRK PIPE
EURO5B+ SPECIFICATION(NT5) EXC. SINGLE RR TIRE(6TD) (E) ID=10 & 4.76X3 		8-97168-820-0 03 1 1505- ● ●
18 04.686 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97168-820-0 03 1 1505- ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3300MM(33W) (F) ID=10 & 4.76X3 		8-97326-158-1 04 1 1505- ● ● ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) (E) ID=10 & 4.76X3 		8-97168-820-0 02 1 1505- ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (F) ID=10 & 4.76X3 		8-97326-158-1 01 1 1505-1507 ● ●
18 04.686 CLIP; BRK PIPE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (F) ID=10 & 4.76X3 		8-97326-158-1 03 1 1508- ● ● ●
18 04.686 CLIP; BRK PIPE
FRT INDEPENDENT SUSPENSION(FF0) (F) ID=10 & 4.76X3 		8-97326-158-1 03 1 1508- ● ●
18 04.686 CLIP; BRK PIPE
FRT INDEPENDENT SUSPENSION(FF0) (F) ID=10 & 4.76X3 		8-97326-158-1 03 1 1508- ● ●
19 04.686 BRACKET; OIL PIPE 8-98207-832-0 01 1 1505- ● ● ●
20 04.686 CLIP; BRK PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (A) ID=12 & 6.35 		8-97215-437-0 01 1 1505- ● ● ●
20 04.686 CLIP; BRK PIPE
03.162 (B) ID=6.35 & 6.35 		8-94474-113-0 02 1 1505- ● ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76X3 		8-98196-265-0 01 1 1505- ● ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.785 B=14 L=16 		9-09916-996-0 02 1 1505- ● ●
22 04.686 CLIP; PIPE TO FRAME
00.785 B=14 L=16 		9-09916-996-0 02 1 1505- ●
39 04.686 NUT; BRKT FIX
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505- ● ●
39 04.686 NUT; BRKT FIX
EURO5B+ SPECIFICATION(NT5) EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505- ● ●
39 04.686 NUT; BRKT FIX
03.162 M10 FLANGE 		0-91180-110-0 02 1 1505- ●
39 04.686 NUT; BRKT FIX
WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1505- ●
62 04.686 NUT
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) WHEEL BASE 2800MM(28W) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1505- ● ●
62 04.686 NUT
4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1505- ● ●
62 04.686 NUT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1505- ● ● ●
67 04.686 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1508- ● ● ●
67 04.686 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ● ● ●
67 04.686 NUT; BRKT
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1508- ●
68 04.686 BRACKET; CLIP 8-98039-558-2 01 1 1505- ● ● ●
71 04.686 NUT; BRKT
4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505- ● ●
