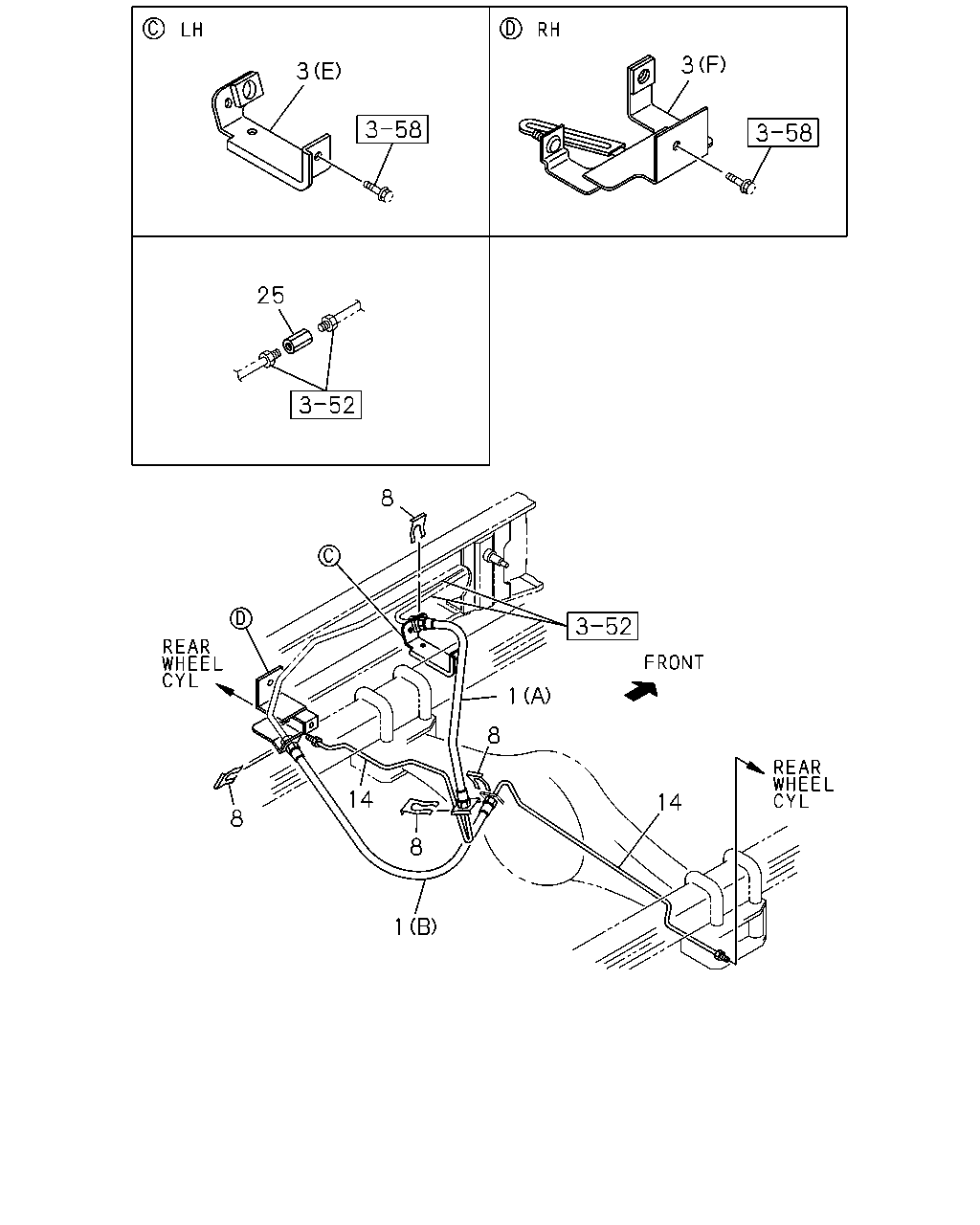

3-55 — BRAKE PIPING; OIL,REAR (#161581) — 97 parça

14 1 8 8 14 1 8 8 25 3 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.680 HOSE; FLEX,RR BRK REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) (B) L=345	8-97230-284-1	01	1	1505-	●
1	04.680 HOSE; FLEX,RR BRK (A) L=370	8-97035-574-0	01	1	1505-	●	●	●
1	04.680 HOSE; FLEX,RR BRK 4 WHEEL DISC BRAKE<JF9> EXC. SINGLE RR TIRE(6TD) (B) L=430	8-97077-458-0	01	1	1505-1507	●
1	04.680 HOSE; FLEX,RR BRK REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD) (B) L=430	8-97077-458-0	01	1	1505-1507	●
1	04.680 HOSE; FLEX,RR BRK AXLE REAR - LIGHT DUTY(8PB) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) (B) L=430	8-97077-458-0	01	1	1505-1507	●
1	04.680 HOSE; FLEX,RR BRK (B) L=430	8-97077-458-0	01	1	1505-1507		●	●
1	04.680 HOSE; FLEX,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9>,SINGLE RR TIRE(6TD) (B) L=430	8-97077-458-0	01	1	1508-	●
1	04.680 HOSE; FLEX,RR BRK 4 WHEEL DISC BRAKE<JF9> (B) L=430	8-97077-458-0	01	1	1508-	●
1	04.680 HOSE; FLEX,RR BRK AXLE REAR - LIGHT DUTY(8PB) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) (B) L=430	8-97077-458-0	01	1	1508-	●
1	04.680 HOSE; FLEX,RR BRK (B) L=430	8-97077-458-0	01	1	1508-		●	●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL DISC BRAKE<JF9> (C)	8-98037-625-3	01	1	1505-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK (C)	8-98037-625-3	01	1	1505-		●	●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL DISC BRAKE<JF9> (D)	8-98037-626-3	01	1	1505-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK (D)	8-98037-626-3	01	1	1505-		●	●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (A)	8-97205-198-0	01	1	1505-	●	●
3	04.681 BRACKET; FLEX HOSE,RR BRK EURO5B+ SPECIFICATION(NT5) EXC. SINGLE RR TIRE(6TD) (A)	8-97205-198-0	01	1	1505-	●	●
3	04.681 BRACKET; FLEX HOSE,RR BRK (A)	8-97205-198-0	01	1	1505-			●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (B)	8-98153-296-0	01	1	1505-	●	●
3	04.681 BRACKET; FLEX HOSE,RR BRK EURO5B+ SPECIFICATION(NT5) EXC. SINGLE RR TIRE(6TD) (B)	8-98153-296-0	01	1	1505-	●	●
3	04.681 BRACKET; FLEX HOSE,RR BRK (B)	8-98153-296-0	01	1	1505-			●
3	04.681 BRACKET; FLEX HOSE,RR BRK WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-97251-436-0	01	1	1505-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) (F)	8-98117-513-0	01	1	1505-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK AXLE REAR - LIGHT DUTY(8PB) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> (G)	8-98135-875-0	01	1	1505-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9> REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) (G)	8-98135-875-0	01	1	1505-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK AXLE REAR - LIGHT DUTY(8PB) (G)	8-98135-875-0	01	1	1505-			●
8	04.686 CLIP; RR BRK	8-97360-054-0	04	1	1505-	●	●	●
8	04.686 CLIP; RR BRK 4 WHEEL DISC BRAKE<JF9>	8-97360-054-0	02	1	1505-	●
8	04.686 CLIP; RR BRK	8-97360-054-0	02	1	1505-		●	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE HEAVY DUTY 292MM(G73) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ>	8-98021-862-0	01	1	1505-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE HEAVY DUTY 292MM(G73) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ>	8-98021-877-0	01	1	1505-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9> REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD)	8-98021-876-0	01	1	1505-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ>	8-98021-876-0	01	1	1505-		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE HEAVY DUTY 292MM(G73)	8-98021-876-0	01	1	1505-			●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9> REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD)	8-98021-880-0	01	1	1505-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ>	8-98021-880-0	01	1	1505-		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE HEAVY DUTY 292MM(G73)	8-98021-880-0	01	1	1505-			●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL AXLE REAR - LIGHT DUTY(8PB) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ>	8-98175-406-0	01	1	1505-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL AXLE REAR - LIGHT DUTY(8PB) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ>	8-98175-407-1	01	1	1505-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9> REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD)	8-98232-597-0	01	1	1505-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL AXLE REAR - LIGHT DUTY(8PB)	8-98232-597-0	01	1	1505-			●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9> REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD)	8-98232-598-0	01	1	1505-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL AXLE REAR - LIGHT DUTY(8PB)	8-98232-598-0	01	1	1505-			●
25	04.686 CONNECTOR EXC. FRT INDEPENDENT SUSPENSION(FF0) M10 STRAIGHT	0-92107-005-0	02	1	1505-	●		●
25	04.686 CONNECTOR M10 STRAIGHT	0-92107-005-0	02	1	1505-		●
25	04.686 CONNECTOR FRT INDEPENDENT SUSPENSION(FF0) M10 STRAIGHT	0-92107-005-0	04	1	1505-	●		●
25	04.686 CONNECTOR WHEEL BASE 3300MM(33W) M10 STRAIGHT	0-92107-005-0	01	1	1505-	●	●	●

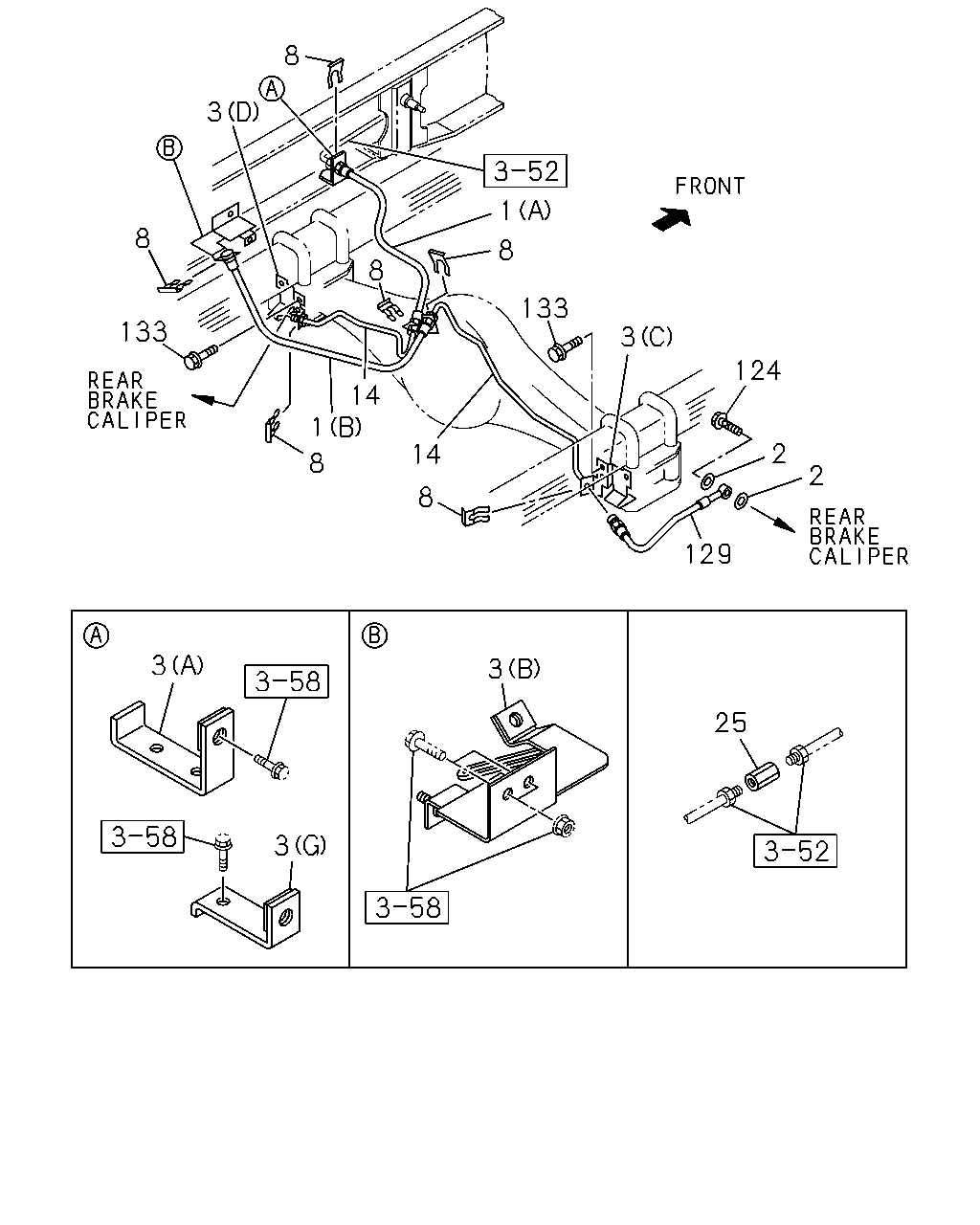

8 1 133 124 3 8 3 8 133 14 1 8 14 8 129 2 2 25 3 3 3 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.680 HOSE; FLEX,RR BRK REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) (B) L=345	8-97230-284-1	01	1	1505-	●
1	04.680 HOSE; FLEX,RR BRK (A) L=370	8-97035-574-0	01	1	1505-	●	●	●
1	04.680 HOSE; FLEX,RR BRK 4 WHEEL DISC BRAKE<JF9> EXC. SINGLE RR TIRE(6TD) (B) L=430	8-97077-458-0	01	1	1505-1507	●
1	04.680 HOSE; FLEX,RR BRK REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD) (B) L=430	8-97077-458-0	01	1	1505-1507	●
1	04.680 HOSE; FLEX,RR BRK AXLE REAR - LIGHT DUTY(8PB) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) (B) L=430	8-97077-458-0	01	1	1505-1507	●
1	04.680 HOSE; FLEX,RR BRK (B) L=430	8-97077-458-0	01	1	1505-1507		●	●
1	04.680 HOSE; FLEX,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9>,SINGLE RR TIRE(6TD) (B) L=430	8-97077-458-0	01	1	1508-	●
1	04.680 HOSE; FLEX,RR BRK 4 WHEEL DISC BRAKE<JF9> (B) L=430	8-97077-458-0	01	1	1508-	●
1	04.680 HOSE; FLEX,RR BRK AXLE REAR - LIGHT DUTY(8PB) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) (B) L=430	8-97077-458-0	01	1	1508-	●
1	04.680 HOSE; FLEX,RR BRK (B) L=430	8-97077-458-0	01	1	1508-		●	●
2	04.686 GASKET; FLEX HOSE,RR BRK REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	1505-	●	●	●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL DISC BRAKE<JF9> (C)	8-98037-625-3	01	1	1505-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK (C)	8-98037-625-3	01	1	1505-		●	●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL DISC BRAKE<JF9> (D)	8-98037-626-3	01	1	1505-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK (D)	8-98037-626-3	01	1	1505-		●	●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (A)	8-97205-198-0	01	1	1505-	●	●
3	04.681 BRACKET; FLEX HOSE,RR BRK EURO5B+ SPECIFICATION(NT5) EXC. SINGLE RR TIRE(6TD) (A)	8-97205-198-0	01	1	1505-	●	●
3	04.681 BRACKET; FLEX HOSE,RR BRK (A)	8-97205-198-0	01	1	1505-			●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (B)	8-98153-296-0	01	1	1505-	●	●
3	04.681 BRACKET; FLEX HOSE,RR BRK EURO5B+ SPECIFICATION(NT5) EXC. SINGLE RR TIRE(6TD) (B)	8-98153-296-0	01	1	1505-	●	●
3	04.681 BRACKET; FLEX HOSE,RR BRK (B)	8-98153-296-0	01	1	1505-			●
3	04.681 BRACKET; FLEX HOSE,RR BRK WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-97251-436-0	01	1	1505-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) (F)	8-98117-513-0	01	1	1505-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK AXLE REAR - LIGHT DUTY(8PB) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> (G)	8-98135-875-0	01	1	1505-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9> REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD) (G)	8-98135-875-0	01	1	1505-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK AXLE REAR - LIGHT DUTY(8PB) (G)	8-98135-875-0	01	1	1505-			●
8	04.686 CLIP; RR BRK	8-97360-054-0	04	1	1505-	●	●	●
8	04.686 CLIP; RR BRK 4 WHEEL DISC BRAKE<JF9>	8-97360-054-0	02	1	1505-	●
8	04.686 CLIP; RR BRK	8-97360-054-0	02	1	1505-		●	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE HEAVY DUTY 292MM(G73) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ>	8-98021-862-0	01	1	1505-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE HEAVY DUTY 292MM(G73) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ>	8-98021-877-0	01	1	1505-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9> REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD)	8-98021-876-0	01	1	1505-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ>	8-98021-876-0	01	1	1505-		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE HEAVY DUTY 292MM(G73)	8-98021-876-0	01	1	1505-			●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9> REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD)	8-98021-880-0	01	1	1505-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ>	8-98021-880-0	01	1	1505-		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE HEAVY DUTY 292MM(G73)	8-98021-880-0	01	1	1505-			●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL AXLE REAR - LIGHT DUTY(8PB) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ>	8-98175-406-0	01	1	1505-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL AXLE REAR - LIGHT DUTY(8PB) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ>	8-98175-407-1	01	1	1505-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9> REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD)	8-98232-597-0	01	1	1505-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL AXLE REAR - LIGHT DUTY(8PB)	8-98232-597-0	01	1	1505-			●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9> REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> EXC. SINGLE RR TIRE(6TD)	8-98232-598-0	01	1	1505-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL AXLE REAR - LIGHT DUTY(8PB)	8-98232-598-0	01	1	1505-			●
25	04.686 CONNECTOR EXC. FRT INDEPENDENT SUSPENSION(FF0) M10 STRAIGHT	0-92107-005-0	02	1	1505-	●		●
25	04.686 CONNECTOR M10 STRAIGHT	0-92107-005-0	02	1	1505-		●
25	04.686 CONNECTOR FRT INDEPENDENT SUSPENSION(FF0) M10 STRAIGHT	0-92107-005-0	04	1	1505-	●		●
25	04.686 CONNECTOR WHEEL BASE 3300MM(33W) M10 STRAIGHT	0-92107-005-0	01	1	1505-	●	●	●
124	04.685 BOLT; EYE,FLEX HOSE,RR BRK REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> 04.681 M10X22	8-98014-005-0	02	1	1505-	●	●	●
129	04.680 HOSE; FLEX,RR DISC REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ>	8-98037-757-2	02	1	1505-	●	●	●
133	04.685 BOLT; CLIP 4 WHEEL DISC BRAKE<JF9> 03.407 M8X10 FLANGE	0-28050-810-0	04	1	1505-	●
133	04.685 BOLT; CLIP 03.407 M8X10 FLANGE	0-28050-810-0	04	1	1505-		●	●
