◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51613 - NLR/NMR LHD EUROPE EURO5B+,6 ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#161580) — 44 parça

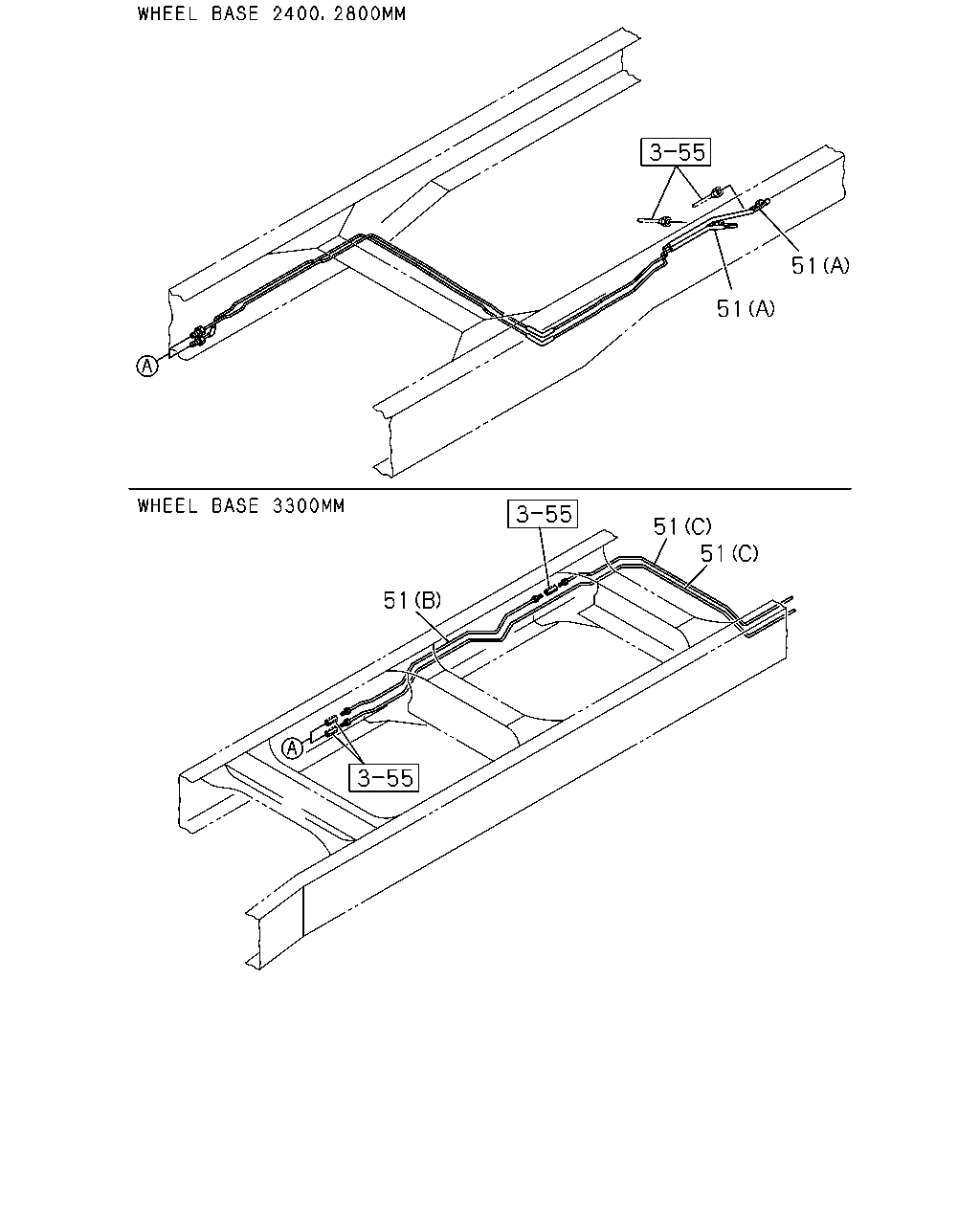

çizim 475591
51 51 51 51 51
BalonParca AdiParca NoAdetTipApplied Date A B C
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) WHEEL BASE 2800MM(28W) (A) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98209-961-1 01 1 1505- ● ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) WHEEL BASE 2800MM(28W) (A) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98209-962-0 01 1 1505- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (C) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98061-505-0 01 1 1505- ● ● ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) WHEEL BASE 3300MM(33W) (B) 2WAY TO 2WAY 		8-98217-108-0 01 1 1505- ● ● ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) WHEEL BASE 3300MM(33W) (C) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98217-109-0 01 1 1505- ● ● ●
51 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) (A) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98010-306-1 01 1 1505- ●
51 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) (A) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98010-307-1 01 1 1505- ●
51 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) EXC. SINGLE RR TIRE(6TD) (A) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98012-844-1 01 1 1505- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) EXC. SINGLE RR TIRE(6TD) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98012-845-1 01 1 1505- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 2800MM(28W) EURO5B+ SPECIFICATION(NT5) (A) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-516-1 01 1 1505- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 2800MM(28W) EURO5B+ SPECIFICATION(NT5) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-529-1 01 1 1505- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) (C) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98061-506-0 01 1 1505- ● ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) (B) 2WAY TO 2WAY 		8-98061-507-0 01 1 1505- ● ● ●

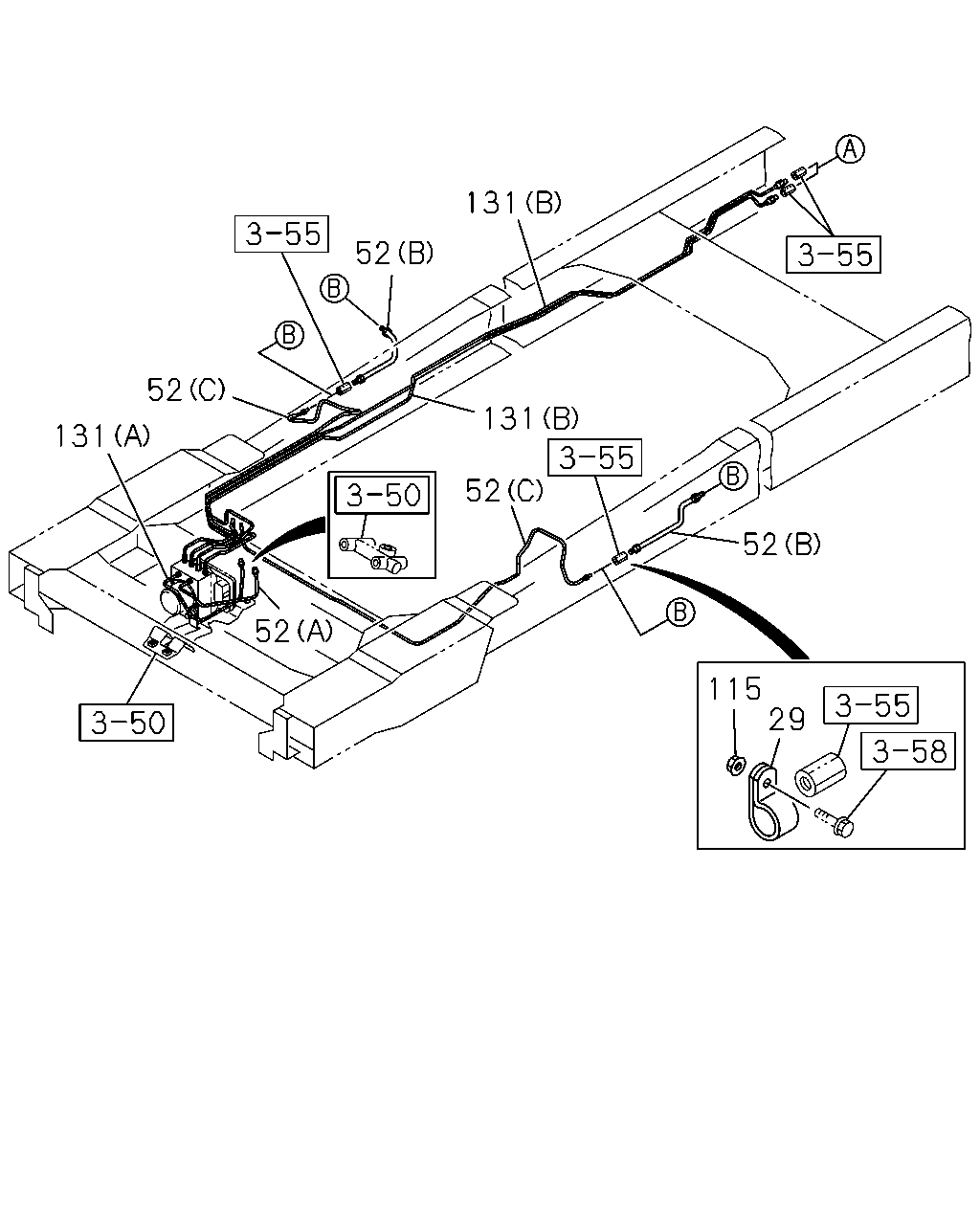

çizim 475637
131 52 52 131 131 52 52 115 29 52
BalonParca AdiParca NoAdetTipApplied Date A B C
29 04.686 CLIP; UNION
FRT INDEPENDENT SUSPENSION(FF0) ID=16 L=20 		0-95235-532-0 02 1 1505- ● ●
52 04.685 PIPE; BRK
(A) 4WAY TO HU,FRONT 		8-98206-900-3 01 1 1505- ● ● ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,FRT LH 2WAY TO FRONT BRAKE 		8-98026-082-1 01 1 1505- ● ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,FRT RH 2WAY TO FRONT BRAKE 		8-98026-083-0 01 1 1505- ● ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98206-254-0 01 1 1505- ● ●
52 04.685 PIPE; BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98206-255-0 01 1 1505- ● ●
52 04.685 PIPE; BRK
(C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98206-255-0 01 1 1505- ●
52 04.685 PIPE; BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98206-256-0 01 1 1505- ● ●
52 04.685 PIPE; BRK
(C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98206-256-0 01 1 1505- ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98206-253-0 01 1 1505- ● ●
115 04.680 NUT; CLIP
FRT INDEPENDENT SUSPENSION(FF0) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1505- ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(A) 4WAY TO HU,REAR 		8-98206-901-2 01 1 1505- ● ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
EURO5B+ SPECIFICATION(NT5) (B) BRAKE SYSTEM,RR LH 		8-98206-257-0 01 1 1505- ● ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
EURO5B+ SPECIFICATION(NT5) (B) BRAKE SYSTEM,RR RH 		8-98206-258-0 01 1 1505- ● ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98206-259-0 01 1 1505- ● ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98206-261-0 01 1 1505- ● ● ●

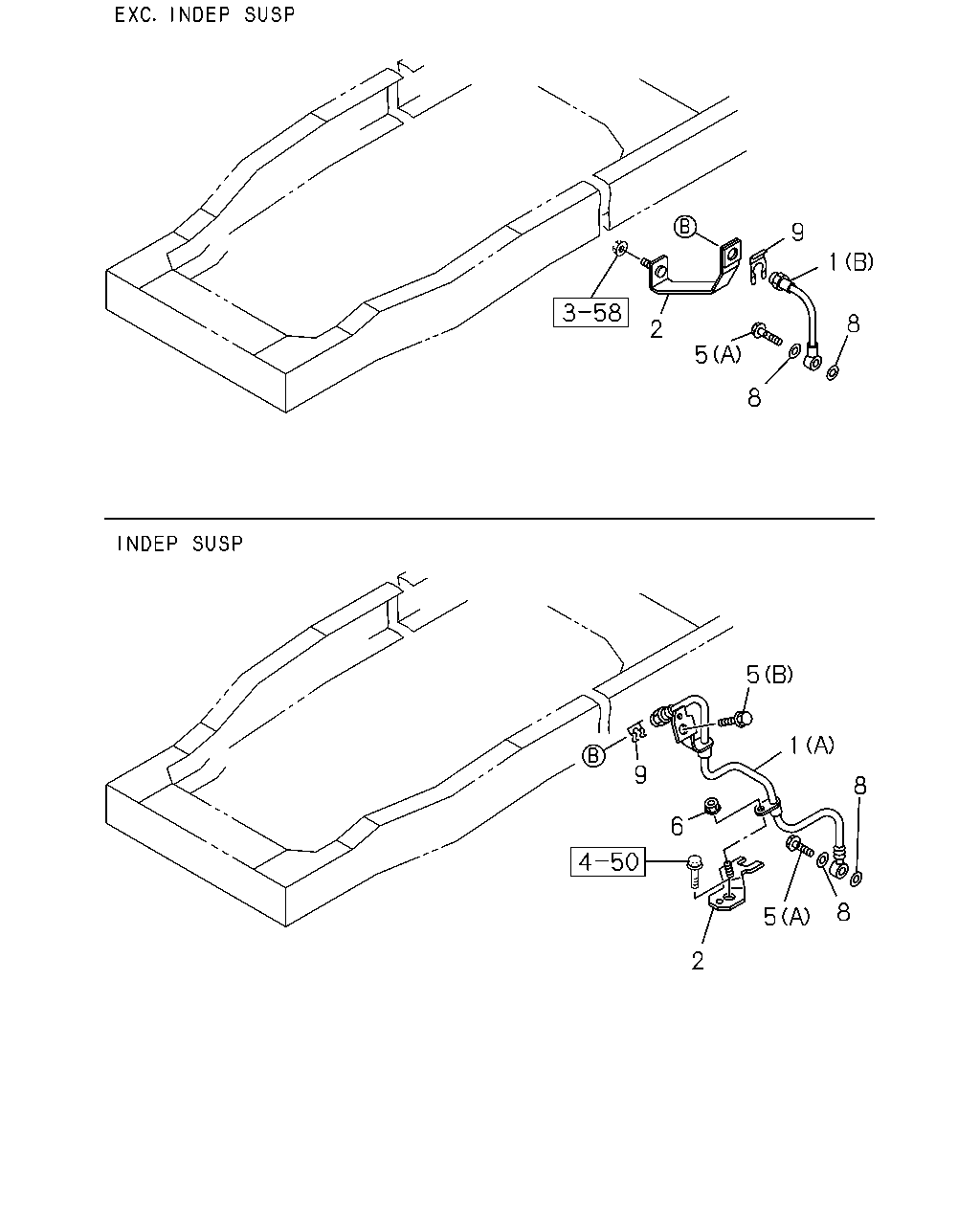

çizim 475869
2 5 8 8 1 9 1 5 8 8 5 2 6 9
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-97366-925-1 02 1 1505- ● ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97366-925-1 02 1 1505- ●
1 04.680 HOSE; FLEX,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97358-770-3 01 1 1505- ● ●
1 04.680 HOSE; FLEX,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97358-771-3 01 1 1505- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) 04.686 		8-97369-635-1 01 1 1505- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) 04.686 		8-97369-636-1 01 1 1505- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97389-691-1 01 1 1505- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK 8-97389-691-1 01 1 1505- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97389-692-1 01 1 1505- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK 8-97389-692-1 01 1 1505- ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
(A) M10X22 		8-98014-005-0 02 1 1505- ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 02 1 1505- ● ●
6 04.686 NUT; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1505- ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1505- ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1505- ● ● ●
