3-11 — PARKING BRAKE CONTROL (#161574) — 125 parça

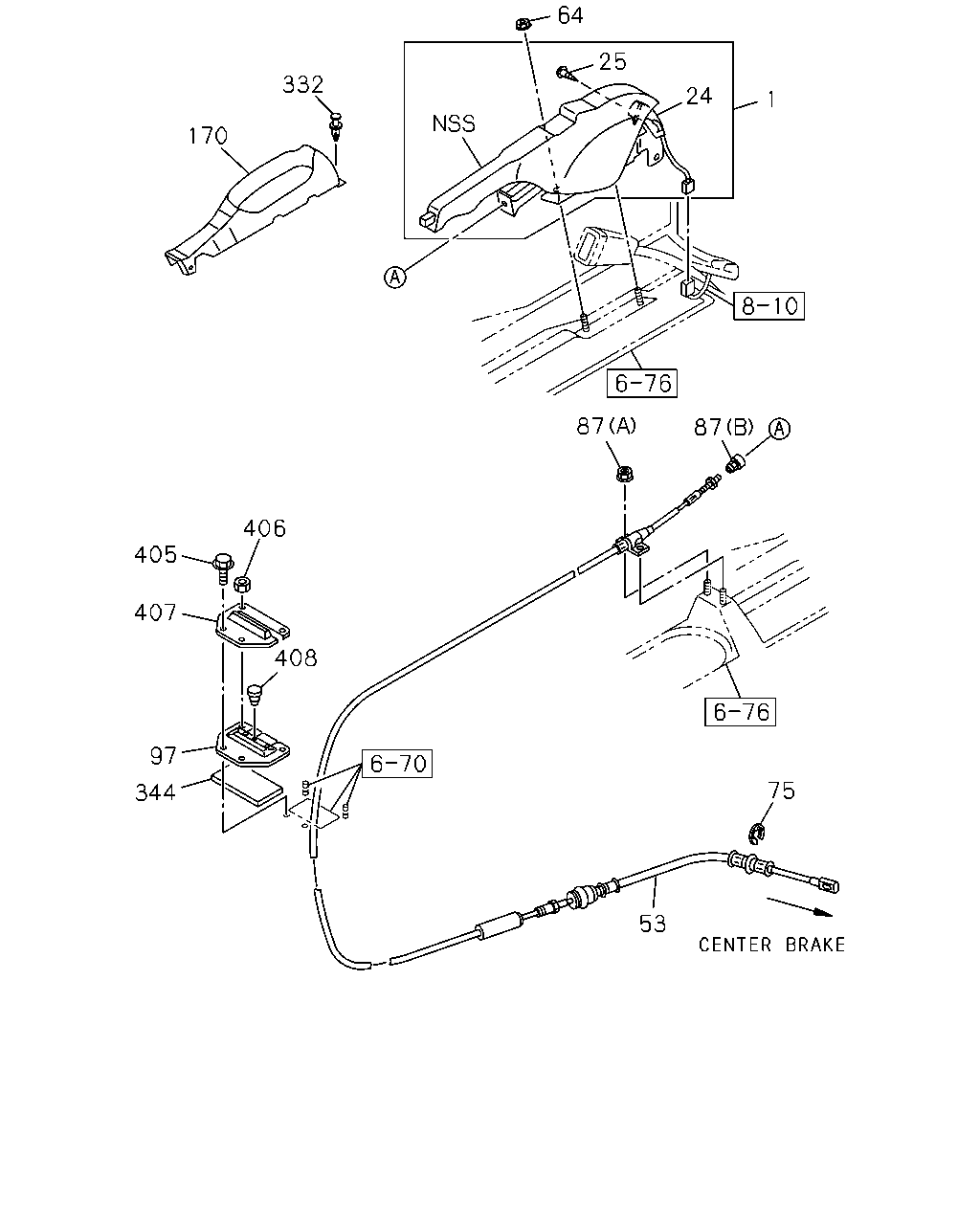

çizim 475786
332 170 64 1 25 24 87 87 406 405 407 408 97 344 53 75
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97426-514-0 01 1 1505- ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1505- ● ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 1505- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98209-950-2 01 1 1505-1507 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) 		8-98209-950-2 01 1 1505-1507 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-98209-950-2 01 1 1508- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) 		8-98209-950-2 01 1 1508- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98292-265-0 01 1 1505-1507 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) 		8-98292-265-0 01 1 1505-1507 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 		8-98292-265-0 01 1 1508- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) 		8-98292-265-0 01 1 1508- ● ● ●
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 1505- ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 1505- ● ● ●
87 04.785 NUT
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1505- ● ● ●
87 04.785 NUT
(B) M6 		8-98034-313-1 01 1 1505- ● ● ●
87 04.785 NUT
SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ● ● ●
87 04.785 NUT
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1508- ● ● ●
97 04.785 GROMMET; PARKING BRK CABLE
04.010 		8-97091-890-0 01 1 1505- ● ● ●
170 04.595 COVER; PARKING BRK LEVER
GRAY 		8-97411-674-1 01 1 1505- ● ● ●
332 04.785 CLIP; COVER
GRAY 		8-97406-171-0 01 1 1505- ● ● ●
344 04.595 GASKET; DASH LWR
MANUAL TILT CAB<RWZ> 04.047 		8-97096-753-0 01 1 1505- ● ●
405 04.785 BOLT; GROMMET
00.785 M6X20 FLANGE 		0-28450-620-0 02 1 1505- ● ● ●
406 04.785 NUT; GROMMET
01.062 M6 FLANGE 		0-91180-106-0 02 1 1505- ● ● ●
407 04.785 RETAINER; GROMMET
04.047 		1-33657-674-0 01 1 1505- ● ● ●
408 04.785 CAP; GROMMET
SMOOTHER-EX(TYPE2)(8NS) 04.010 		8-97371-108-0 02 1 1505-1507 ● ● ●
408 04.785 CAP; GROMMET
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 04.010 		8-97371-108-0 02 1 1508- ● ● ●

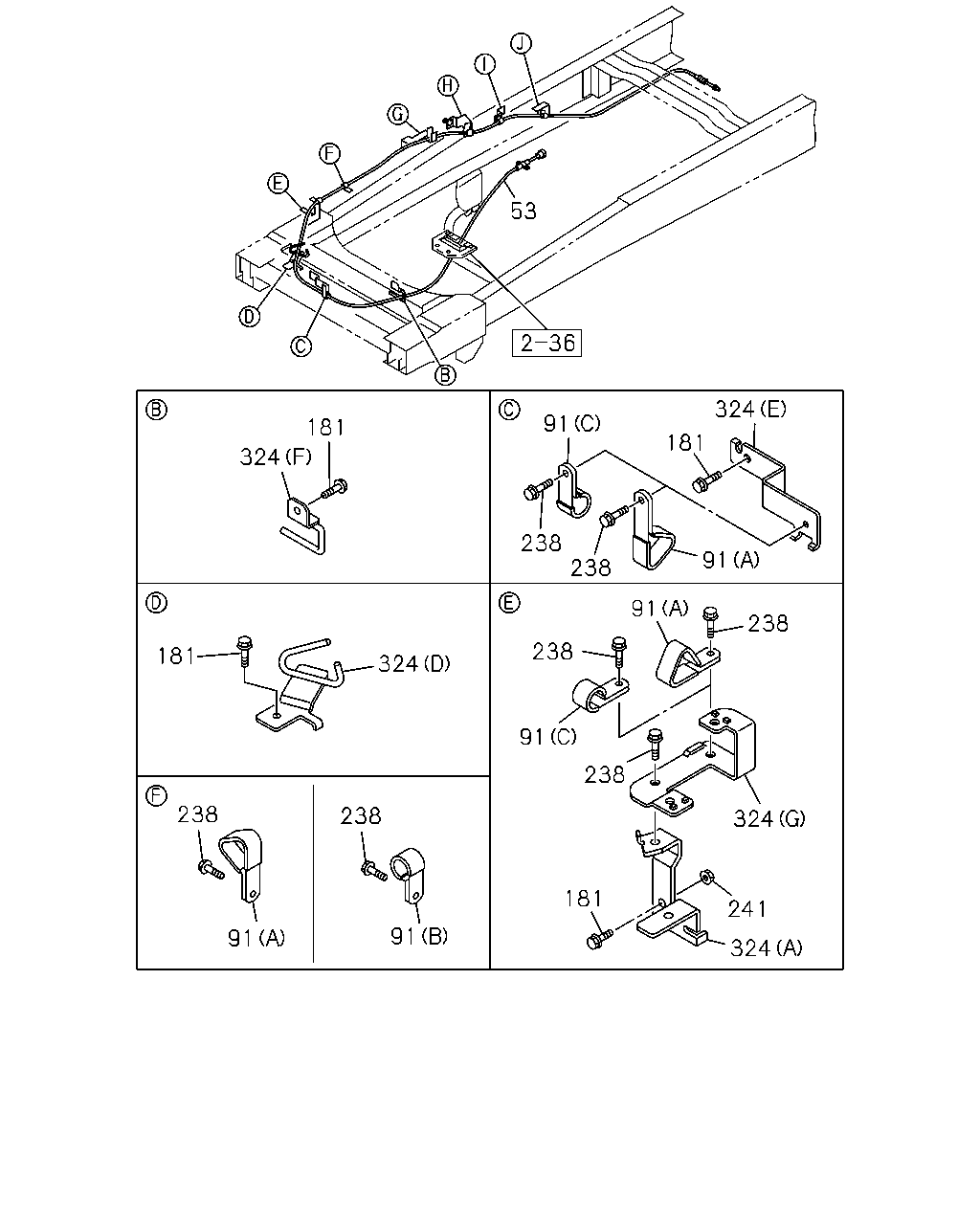

çizim 475836
53 91 181 324 91 238 238 238 238 181 324 181 324 238 91 238 91 181 241 324 324 238 91 91
BalonParca AdiParca NoAdetTipApplied Date A B C
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98209-950-2 01 1 1505-1507 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) 		8-98209-950-2 01 1 1505-1507 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-98209-950-2 01 1 1508- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) 		8-98209-950-2 01 1 1508- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98292-265-0 01 1 1505-1507 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) 		8-98292-265-0 01 1 1505-1507 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 		8-98292-265-0 01 1 1508- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) 		8-98292-265-0 01 1 1508- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.047 (A) 		8-97036-333-1 01 1 1505-1507 ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. SMOOTHER-EX(TYPE2)(8NS) 04.047 (A) 		8-97036-333-1 01 1 1508- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.047 (A) 		8-97036-333-1 02 1 1505-1507 ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. SMOOTHER-EX(TYPE2)(8NS) 04.047 (A) 		8-97036-333-1 02 1 1508- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
SMOOTHER-EX(TYPE2)(8NS) 01.540 (C) ID=13 L=28 		0-95235-255-0 02 1 1505-1507 ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 01.540 (C) ID=13 L=28 		0-95235-255-0 02 1 1508- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
SMOOTHER-EX(TYPE2)(8NS) 06.672 (B) ID=16 L=28 		0-95235-556-0 01 1 1505-1507 ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 06.672 (B) ID=16 L=28 		0-95235-556-0 01 1 1508- ● ● ●
181 04.785 BOLT; BRKT
4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1505- ● ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1505- ● ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1505- ● ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1505- ● ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1505- ● ● ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ● ● ●
241 04.785 NUT; BRKT
SMOOTHER-EX(TYPE2)(8NS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ● ● ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1508- ● ● ●
241 04.785 NUT; BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1508- ● ● ●
324 04.785 BRACKET
EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98026-099-2 01 1 1505-1507 ● ● ●
324 04.785 BRACKET
EURO6 SPECIFICATION(NT6) EXC. SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98026-099-2 01 1 1508- ● ● ●
324 04.785 BRACKET
(A) 		8-98003-642-1 01 1 1505- ● ● ●
324 04.785 BRACKET
(F) 		8-98116-060-0 01 1 1505- ● ● ●
324 04.785 BRACKET
EURO5B+ SPECIFICATION(NT5) (D) 		8-98047-573-0 01 1 1505-1507 ● ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (D) 		8-98047-573-0 01 1 1505-1507 ● ●
324 04.785 BRACKET
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (D) 		8-98047-573-0 01 1 1508- ● ●
324 04.785 BRACKET
EURO5B+ SPECIFICATION(NT5) (D) 		8-98047-573-0 01 1 1508- ●
324 04.785 BRACKET
EURO5B+ SPECIFICATION(NT5) (E) 		8-98047-575-1 01 1 1505-1507 ● ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (E) 		8-98047-575-1 01 1 1505-1507 ● ●
324 04.785 BRACKET
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (E) 		8-98047-575-1 01 1 1508- ● ●
324 04.785 BRACKET
EURO5B+ SPECIFICATION(NT5) (E) 		8-98047-575-1 01 1 1508- ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (B) 		8-98207-273-1 01 1 1505-1507 ● ● ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) (B) 		8-98207-273-1 01 1 1505-1507 ● ●
324 04.785 BRACKET
(B) 		8-98207-273-1 01 1 1508- ● ●
324 04.785 BRACKET
EXC. EURO5B+ SPECIFICATION(NT5) (B) 		8-98207-273-1 01 1 1508- ●
324 04.785 BRACKET
(G) 		8-98209-952-2 01 1 1505- ● ● ●
324 04.785 BRACKET
SMOOTHER-EX(TYPE2)(8NS) (H) 		8-98038-563-0 01 1 1505-1507 ● ● ●
324 04.785 BRACKET
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) (H) 		8-98038-563-0 01 1 1508- ● ● ●
324 04.785 BRACKET
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) 		8-98240-296-0 01 1 1505- ● ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 04.010 (E) 		8-98122-759-0 01 1 1505-1507 ●
324 04.785 BRACKET
EURO6 SPECIFICATION(NT6) 04.010 (E) 		8-98122-759-0 01 1 1508- ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (D) 		8-98200-166-0 01 1 1505-1507 ●
324 04.785 BRACKET
EURO6 SPECIFICATION(NT6) (D) 		8-98200-166-0 01 1 1508- ●

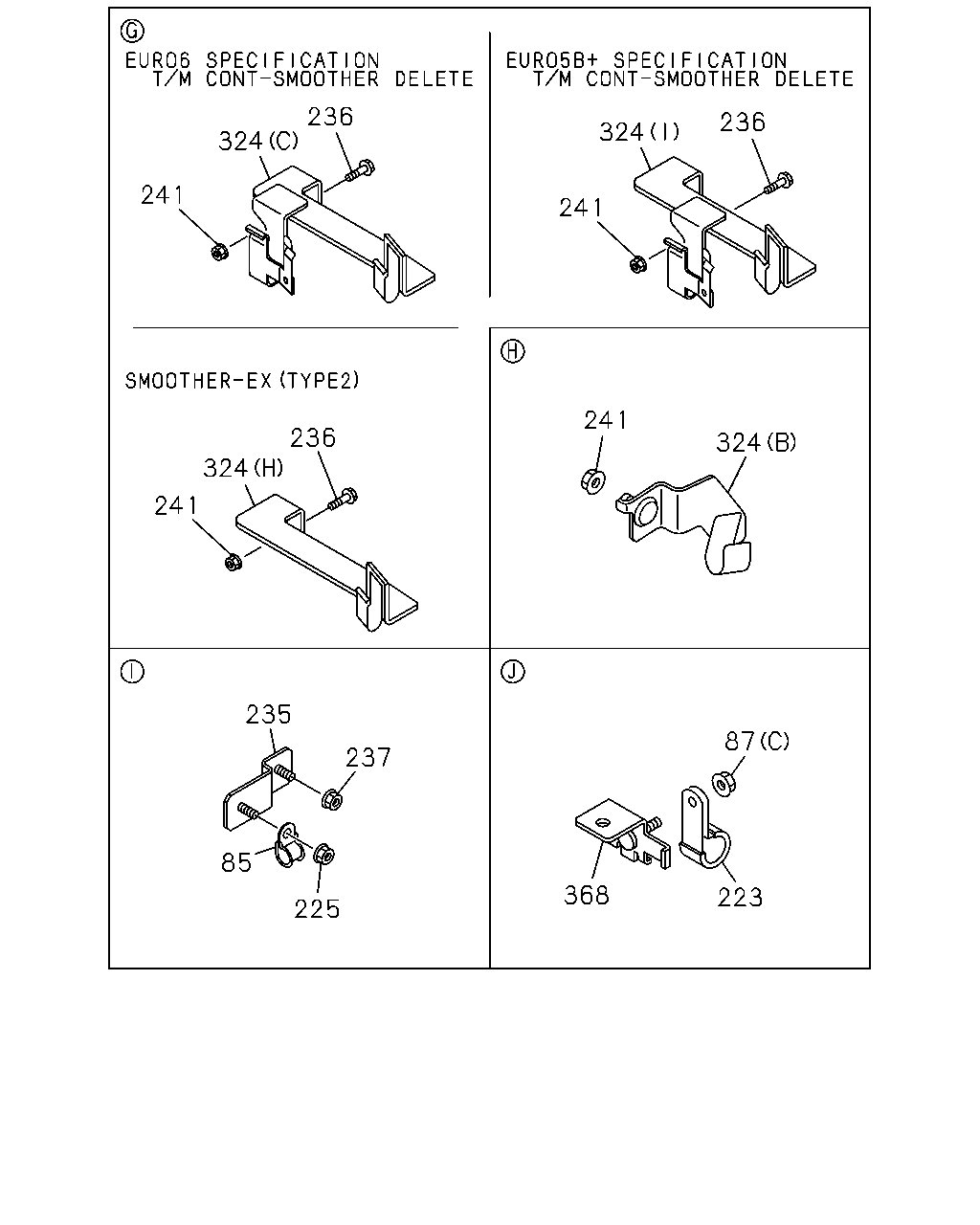

çizim 475853
236 324 241 236 324 241 235 237 225 85 368 223 87 324 241 241 324 236
BalonParca AdiParca NoAdetTipApplied Date A B C
85 04.785 CLIP; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=14.5 L=20 		1-09701-012-0 01 1 1505-1507 ● ● ●
85 04.785 CLIP; BRKT
EXC. SMOOTHER-EX(TYPE2)(8NS) ID=14.5 L=20 		1-09701-012-0 01 1 1508- ● ● ●
87 04.785 NUT
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1505- ● ● ●
87 04.785 NUT
(B) M6 		8-98034-313-1 01 1 1505- ● ● ●
87 04.785 NUT
SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ● ● ●
87 04.785 NUT
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1508- ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
SMOOTHER-EX(TYPE2)(8NS) 00.799 ID=13 L=20 		1-09701-138-1 01 1 1505-1507 ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 00.799 ID=13 L=20 		1-09701-138-1 01 1 1508- ● ● ●
225 04.785 NUT; CABLE CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. SMOOTHER-EX(TYPE2)(8NS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1508- ● ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98034-352-0 01 1 1505-1507 ● ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-98034-352-0 01 1 1508- ● ● ●
236 04.785 BOLT; BRKT TO FRAME
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1505- ● ● ●
236 04.785 BOLT; BRKT TO FRAME
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1505- ● ● ●
237 04.785 NUT; BRKT TO FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ● ● ●
237 04.785 NUT; BRKT TO FRAME
01.062 M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ● ●
237 04.785 NUT; BRKT TO FRAME
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ●
237 04.785 NUT; BRKT TO FRAME
EXC. SMOOTHER-EX(TYPE2)(8NS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1508- ● ● ●
237 04.785 NUT; BRKT TO FRAME
01.062 M8 FLANGE 		0-91180-108-0 01 1 1508- ● ●
237 04.785 NUT; BRKT TO FRAME
4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1508- ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ● ● ●
241 04.785 NUT; BRKT
SMOOTHER-EX(TYPE2)(8NS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1505-1507 ● ● ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1508- ● ● ●
241 04.785 NUT; BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1508- ● ● ●
324 04.785 BRACKET
EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98026-099-2 01 1 1505-1507 ● ● ●
324 04.785 BRACKET
EURO6 SPECIFICATION(NT6) EXC. SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98026-099-2 01 1 1508- ● ● ●
324 04.785 BRACKET
(A) 		8-98003-642-1 01 1 1505- ● ● ●
324 04.785 BRACKET
(F) 		8-98116-060-0 01 1 1505- ● ● ●
324 04.785 BRACKET
EURO5B+ SPECIFICATION(NT5) (D) 		8-98047-573-0 01 1 1505-1507 ● ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (D) 		8-98047-573-0 01 1 1505-1507 ● ●
324 04.785 BRACKET
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (D) 		8-98047-573-0 01 1 1508- ● ●
324 04.785 BRACKET
EURO5B+ SPECIFICATION(NT5) (D) 		8-98047-573-0 01 1 1508- ●
324 04.785 BRACKET
EURO5B+ SPECIFICATION(NT5) (E) 		8-98047-575-1 01 1 1505-1507 ● ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (E) 		8-98047-575-1 01 1 1505-1507 ● ●
324 04.785 BRACKET
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (E) 		8-98047-575-1 01 1 1508- ● ●
324 04.785 BRACKET
EURO5B+ SPECIFICATION(NT5) (E) 		8-98047-575-1 01 1 1508- ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (B) 		8-98207-273-1 01 1 1505-1507 ● ● ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) (B) 		8-98207-273-1 01 1 1505-1507 ● ●
324 04.785 BRACKET
(B) 		8-98207-273-1 01 1 1508- ● ●
324 04.785 BRACKET
EXC. EURO5B+ SPECIFICATION(NT5) (B) 		8-98207-273-1 01 1 1508- ●
324 04.785 BRACKET
(G) 		8-98209-952-2 01 1 1505- ● ● ●
324 04.785 BRACKET
SMOOTHER-EX(TYPE2)(8NS) (H) 		8-98038-563-0 01 1 1505-1507 ● ● ●
324 04.785 BRACKET
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) (H) 		8-98038-563-0 01 1 1508- ● ● ●
324 04.785 BRACKET
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) 		8-98240-296-0 01 1 1505- ● ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 04.010 (E) 		8-98122-759-0 01 1 1505-1507 ●
324 04.785 BRACKET
EURO6 SPECIFICATION(NT6) 04.010 (E) 		8-98122-759-0 01 1 1508- ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (D) 		8-98200-166-0 01 1 1505-1507 ●
324 04.785 BRACKET
EURO6 SPECIFICATION(NT6) (D) 		8-98200-166-0 01 1 1508- ●
368 04.785 BRACKET; T/M SIDE
SMOOTHER-EX(TYPE2)(8NS) 		8-97372-863-1 01 1 1505-1507 ● ● ●
368 04.785 BRACKET; T/M SIDE
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 		8-97372-863-1 01 1 1508- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
