3-02 — FRONT DISC BRAKE CALIPER (#161569) — 43 parça

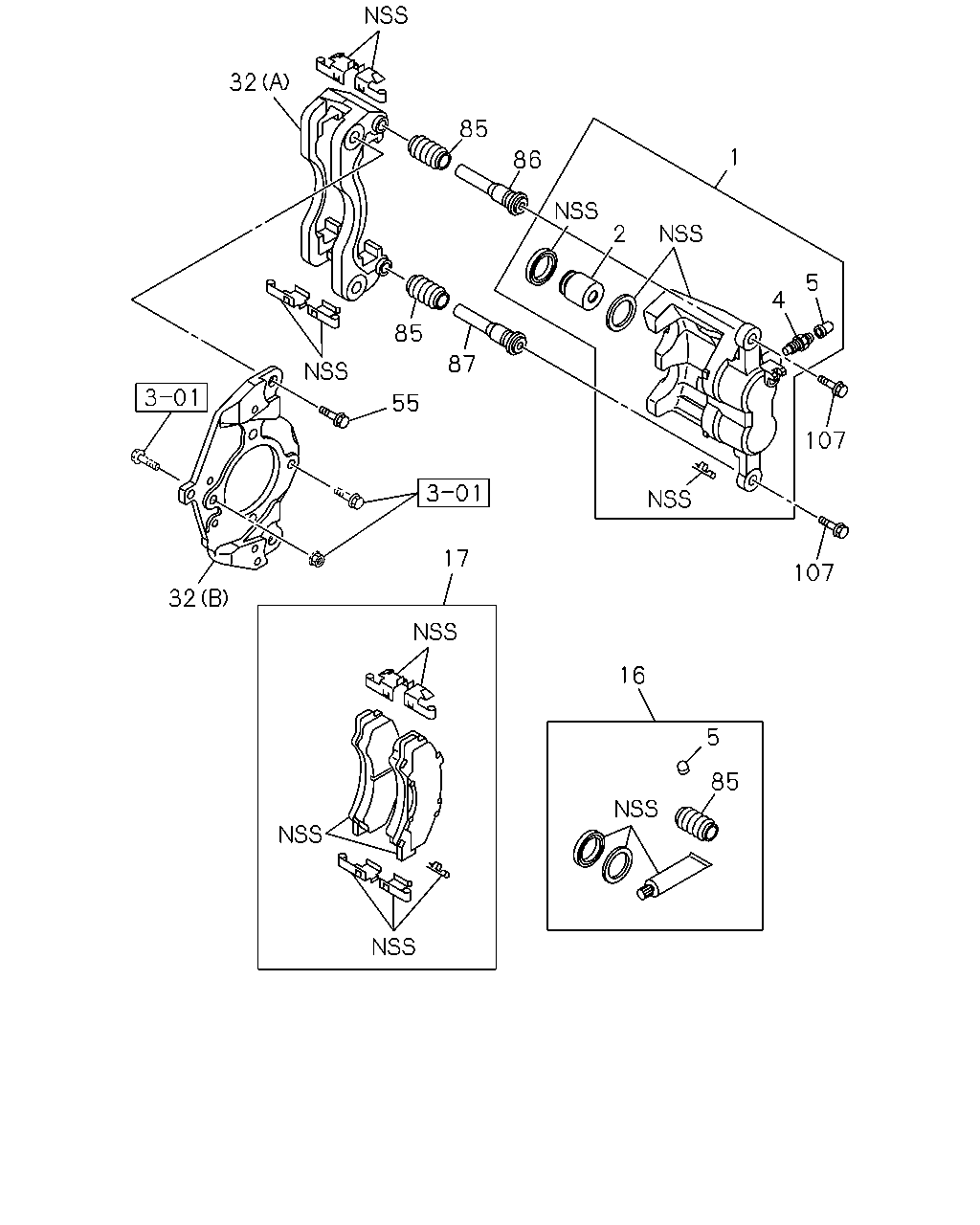

çizim 475588
1 2 86 85 32 85 55 87 17 16 107 107 4 5 32 85 5
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD) 		8-98303-461-0 01 1 1505- ●
1 04.665 CALIPER; FRT DISC BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98303-461-0 01 1 1505- ●
1 04.665 CALIPER; FRT DISC BRK 8-98303-461-0 01 1 1505- ● ●
1 04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD) 		8-98303-462-0 01 1 1505- ●
1 04.665 CALIPER; FRT DISC BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98303-462-0 01 1 1505- ●
1 04.665 CALIPER; FRT DISC BRK 8-98303-462-0 01 1 1505- ● ●
1 04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) 		8-98303-459-0 01 1 1505- ●
1 04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) 		8-98303-460-0 01 1 1505- ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD) 		8-97365-269-0 04 1 1505- ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97365-269-0 04 1 1505- ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-97365-269-0 04 1 1505- ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) 		8-97365-256-0 04 1 1505- ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 8-98050-476-0 02 1 1505- ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 8-98050-479-0 02 1 1505- ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD) W/GREASE 		8-98302-531-0 01 1 1505- ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0) W/GREASE 		8-98302-531-0 01 1 1505- ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
W/GREASE 		8-98302-531-0 01 1 1505- ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) 		8-98302-529-0 01 1 1505- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD) 		8-98216-922-0 01 1 1505- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98216-922-0 01 1 1505- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-98216-922-0 01 1 1505- ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) 		8-98216-921-0 01 1 1505- ●
32 04.665 SUPPORT; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD) (A) 		8-97365-271-0 02 1 1505- ●
32 04.665 SUPPORT; FRT DISC BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97365-271-0 02 1 1505- ●
32 04.665 SUPPORT; FRT DISC BRK
(A) 		8-97365-271-0 02 1 1505- ● ●
32 04.665 SUPPORT; FRT DISC BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98009-726-0 01 1 1505- ● ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-98009-726-0 01 1 1505- ●
32 04.665 SUPPORT; FRT DISC BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98009-727-0 01 1 1505- ● ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-98009-727-0 01 1 1505- ●
32 04.665 SUPPORT; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) (A) 		8-97365-258-0 02 1 1505- ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) M16X31 FLANGE 		8-97359-816-0 04 1 1505- ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
M16X31 FLANGE 		8-97359-816-0 04 1 1505- ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) M16X48 FLANGE 		8-98033-656-0 04 1 1505- ● ●
85 04.665 BOOT; PIN 8-98120-354-0 04 1 1505- ● ● ●
86 04.665 PIN; GUIDE
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD) 		8-98047-529-0 02 1 1505- ●
86 04.665 PIN; GUIDE
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98047-529-0 02 1 1505- ●
86 04.665 PIN; GUIDE 8-98047-529-0 02 1 1505- ● ●
86 04.665 PIN; GUIDE
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) 		8-98047-530-0 02 1 1505- ●
87 04.665 PIN; LOCK
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD) 		8-98248-005-0 02 1 1505- ●
87 04.665 PIN; LOCK
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98248-005-0 02 1 1505- ●
87 04.665 PIN; LOCK 8-98248-005-0 02 1 1505- ● ●
87 04.665 PIN; LOCK
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) 		8-98047-532-0 02 1 1505- ●
107 04.665 BOLT; PIN 8-97365-264-0 04 1 1505- ● ● ●
