Sayfa 2-85 - Isuzu EPC

2-85 — POWER TAKE OFF CONTROL (#161567) — 138 parça

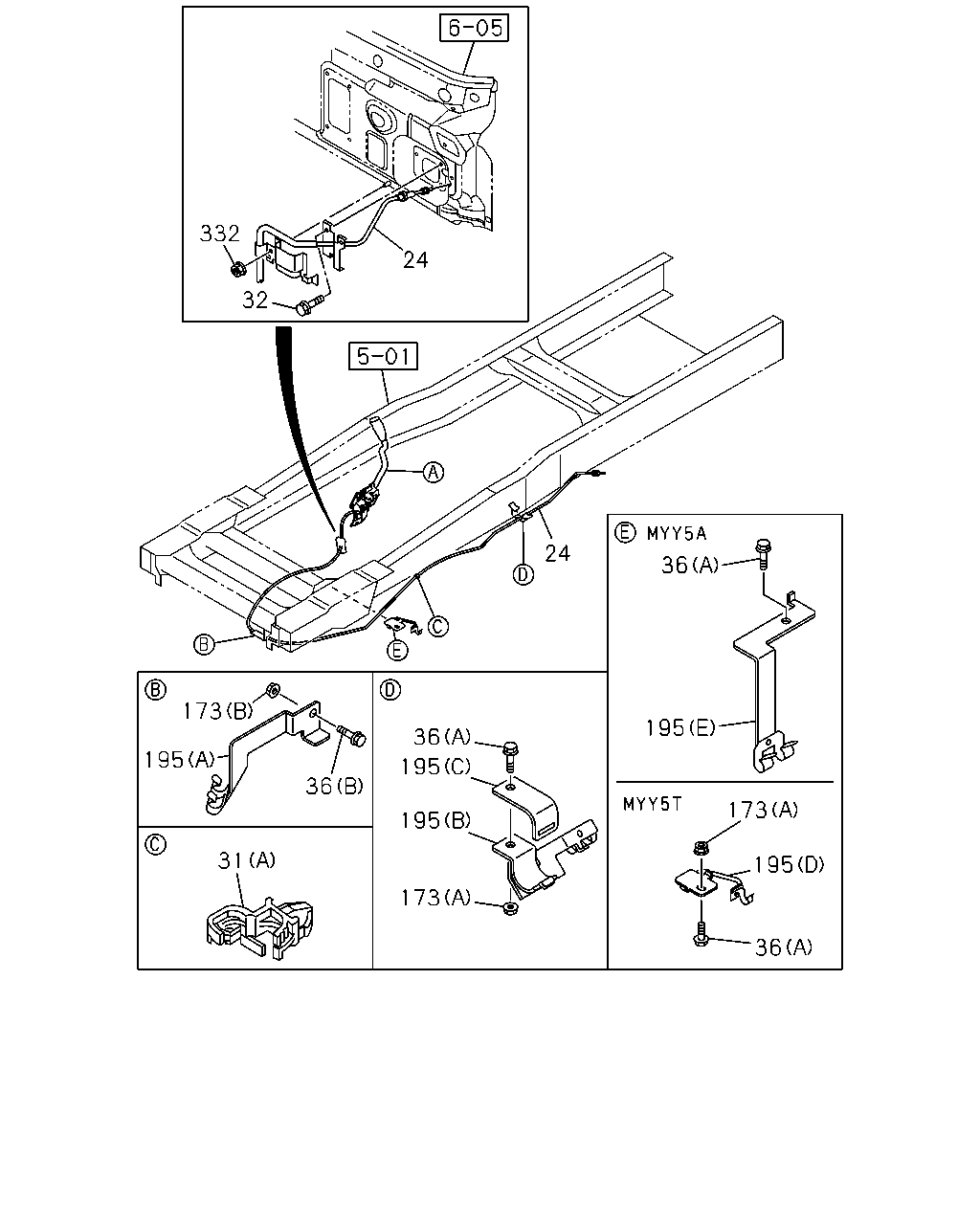

24 332 32 24 173 195 31 36 36 195 195 173 36 195 173 195 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	04.439 CABLE; PTO CONT SGL CAB(NM*S) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3028	8-98223-336-0	01	1	1505-	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3028	8-98223-336-0	01	1	1505-		●
24	04.439 CABLE; PTO CONT SGL CAB(NM*S) PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3106	8-98223-337-0	01	1	1505-	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3106	8-98223-337-0	01	1	1505-		●
24	04.439 CABLE; PTO CONT DBL CAB(NM*W) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3073	8-98212-222-1	01	1	1505-	●
24	04.439 CABLE; PTO CONT DBL CAB(NM*W) PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3151	8-98292-391-0	01	1	1505-	●
31	04.439 CLIP; BAND,CABLE DBL CAB(NM*W) FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) 02.559 (B) L=250	5-09707-030-1	01	1	1508-	●	●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.559 (A) ID=16	8-97040-812-0	01	1	1505-1507	●	●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 (A) ID=16	8-97040-812-0	01	1	1508-	●	●
32	04.439 BOLT; CLIP,CABLE PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.361 M6X12 FLANGE	8-97329-610-0	02	1	1505-1507	●	●
32	04.439 BOLT; CLIP,CABLE PTO MANUAL CONTROL(6WC) 02.361 M6X12 FLANGE	8-97329-610-0	02	1	1508-	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1505-1507	●	●
36	04.439 BOLT; PTO BRKT NLR(NM***E) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO6 SPECIFICATION(NT6) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-	●	●
36	04.439 BOLT; PTO BRKT NMR(NM***N) PTO MANUAL CONTROL(6WC) EXC. EURO6 SPECIFICATION(NT6) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-	●	●
36	04.439 BOLT; PTO BRKT DBL CAB(NM*W) FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.874 (B) M14X30 FLANGE	0-28651-430-0	01	1	1505-1507	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) 07.874 (B) M14X30 FLANGE	0-28651-430-0	01	1	1508-	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1505-1507	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-	●	●
173	04.439 NUT; BRKT DBL CAB(NM*W) FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.529 (B) M14 FLANGE	0-91180-114-0	01	1	1505-1507	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 07.529 (B) M14 FLANGE	0-91180-114-0	01	1	1508-	●	●
195	04.439 BRACKET; CONT CABLE DBL CAB(NM*W) FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) (F)	8-98052-321-1	01	1	1508-	●	●
195	04.439 BRACKET; CONT CABLE DBL CAB(NM*W) FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) (G)	8-98146-462-0	01	1	1508-	●	●
195	04.439 BRACKET; CONT CABLE DBL CAB(NM*W) FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) (H)	8-98233-770-0	01	1	1508-	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98086-263-0	01	1	1505-1507	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (A)	8-98086-263-0	01	1	1508-	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98117-131-0	01	1	1505-1507	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (B)	8-98117-131-0	01	1	1508-	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98117-132-0	01	1	1505-1507	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (C)	8-98117-132-0	01	1	1508-	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98086-265-0	01	1	1505-1507	●
195	04.439 BRACKET; CONT CABLE NLR SGL CAB(NM**SE) EURO5B+ SPECIFICATION(NT5) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0), CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98086-265-0	01	1	1508-	●	●
195	04.439 BRACKET; CONT CABLE NMR(NM***N) EURO5B+ SPECIFICATION(NT5) PTO MANUAL CONTROL(6WC) EXC. CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98086-265-0	01	1	1508-	●	●
195	04.439 BRACKET; CONT CABLE NLR SGL CAB(NM**SE) 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) PTO MANUAL CONTROL(6WC) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98086-265-0	01	1	1508-	●	●
195	04.439 BRACKET; CONT CABLE NMR(NM***N) 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) PTO MANUAL CONTROL(6WC) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98086-265-0	01	1	1508-	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98251-638-0	01	1	1505-		●
332	04.439 NUT; PTO CONT CABLE PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	1505-	●	●

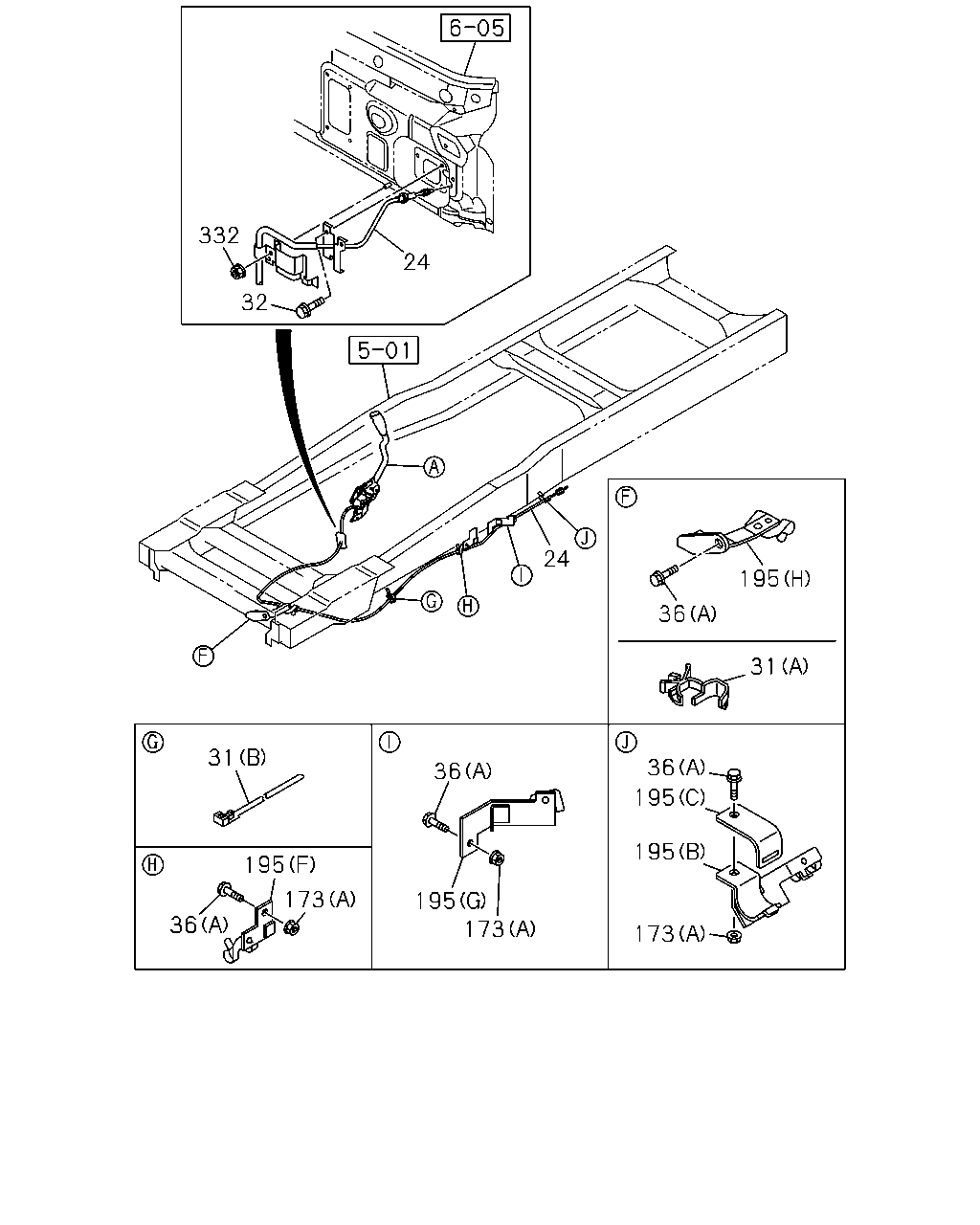

332 32 24 24 31 195 173 36 195 173 36 173 195 195 36 31 36 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	04.439 CABLE; PTO CONT SGL CAB(NM*S) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3028	8-98223-336-0	01	1	1505-	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3028	8-98223-336-0	01	1	1505-		●
24	04.439 CABLE; PTO CONT SGL CAB(NM*S) PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3106	8-98223-337-0	01	1	1505-	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3106	8-98223-337-0	01	1	1505-		●
24	04.439 CABLE; PTO CONT DBL CAB(NM*W) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3073	8-98212-222-1	01	1	1505-	●
24	04.439 CABLE; PTO CONT DBL CAB(NM*W) PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3151	8-98292-391-0	01	1	1505-	●
31	04.439 CLIP; BAND,CABLE DBL CAB(NM*W) FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) 02.559 (B) L=250	5-09707-030-1	01	1	1508-	●	●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.559 (A) ID=16	8-97040-812-0	01	1	1505-1507	●	●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 (A) ID=16	8-97040-812-0	01	1	1508-	●	●
32	04.439 BOLT; CLIP,CABLE PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.361 M6X12 FLANGE	8-97329-610-0	02	1	1505-1507	●	●
32	04.439 BOLT; CLIP,CABLE PTO MANUAL CONTROL(6WC) 02.361 M6X12 FLANGE	8-97329-610-0	02	1	1508-	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1505-1507	●	●
36	04.439 BOLT; PTO BRKT NLR(NM***E) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO6 SPECIFICATION(NT6) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-	●	●
36	04.439 BOLT; PTO BRKT NMR(NM***N) PTO MANUAL CONTROL(6WC) EXC. EURO6 SPECIFICATION(NT6) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-	●	●
36	04.439 BOLT; PTO BRKT DBL CAB(NM*W) FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.874 (B) M14X30 FLANGE	0-28651-430-0	01	1	1505-1507	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) 07.874 (B) M14X30 FLANGE	0-28651-430-0	01	1	1508-	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1505-1507	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-	●	●
173	04.439 NUT; BRKT DBL CAB(NM*W) FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.529 (B) M14 FLANGE	0-91180-114-0	01	1	1505-1507	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 07.529 (B) M14 FLANGE	0-91180-114-0	01	1	1508-	●	●
195	04.439 BRACKET; CONT CABLE DBL CAB(NM*W) FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) (F)	8-98052-321-1	01	1	1508-	●	●
195	04.439 BRACKET; CONT CABLE DBL CAB(NM*W) FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) (G)	8-98146-462-0	01	1	1508-	●	●
195	04.439 BRACKET; CONT CABLE DBL CAB(NM*W) FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) (H)	8-98233-770-0	01	1	1508-	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98086-263-0	01	1	1505-1507	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (A)	8-98086-263-0	01	1	1508-	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98117-131-0	01	1	1505-1507	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (B)	8-98117-131-0	01	1	1508-	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98117-132-0	01	1	1505-1507	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (C)	8-98117-132-0	01	1	1508-	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98086-265-0	01	1	1505-1507	●
195	04.439 BRACKET; CONT CABLE NLR SGL CAB(NM**SE) EURO5B+ SPECIFICATION(NT5) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0), CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98086-265-0	01	1	1508-	●	●
195	04.439 BRACKET; CONT CABLE NMR(NM***N) EURO5B+ SPECIFICATION(NT5) PTO MANUAL CONTROL(6WC) EXC. CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98086-265-0	01	1	1508-	●	●
195	04.439 BRACKET; CONT CABLE NLR SGL CAB(NM**SE) 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) PTO MANUAL CONTROL(6WC) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98086-265-0	01	1	1508-	●	●
195	04.439 BRACKET; CONT CABLE NMR(NM***N) 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) PTO MANUAL CONTROL(6WC) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98086-265-0	01	1	1508-	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98251-638-0	01	1	1505-		●
332	04.439 NUT; PTO CONT CABLE PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	1505-	●	●

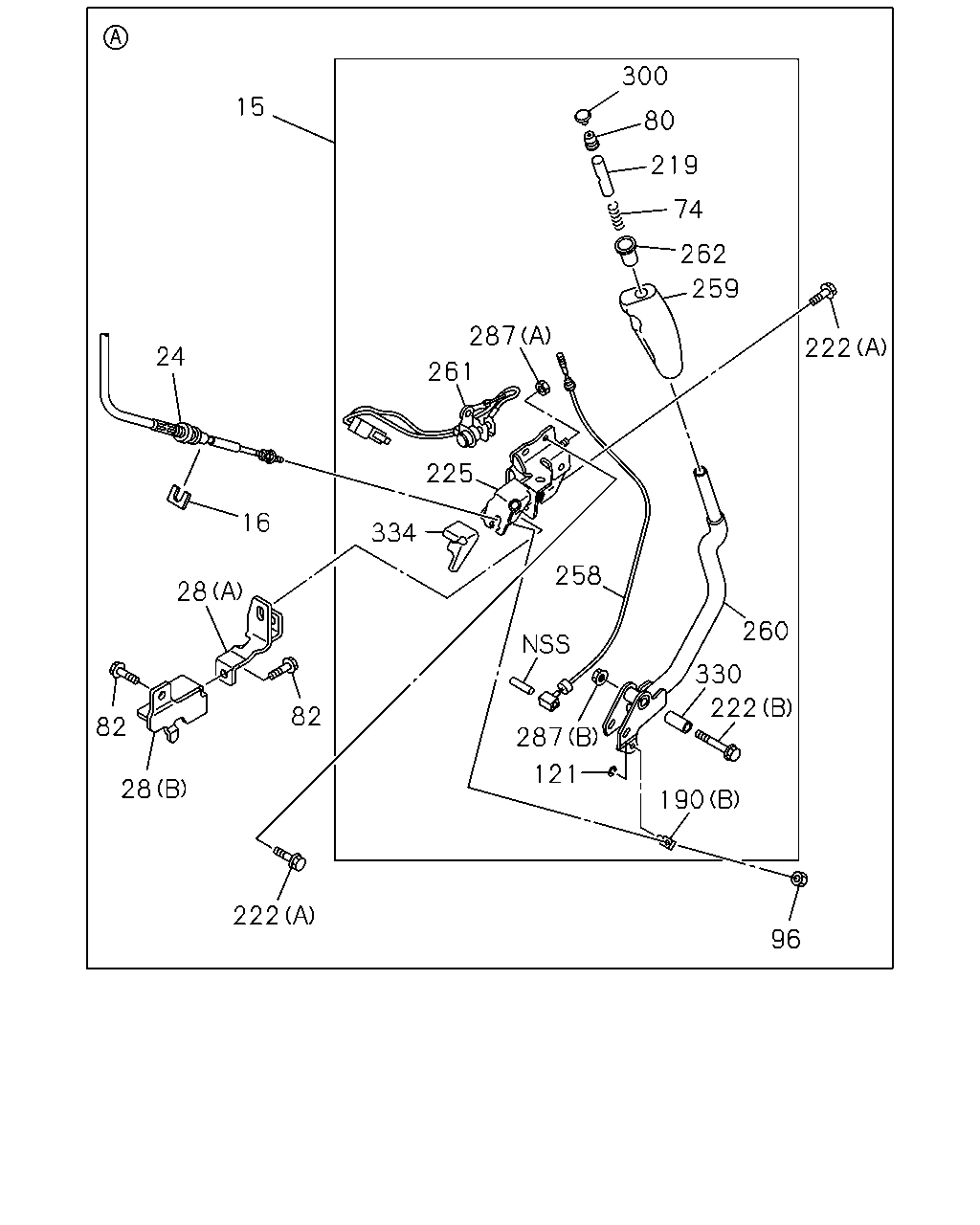

15 24 16 28 82 28 82 222 96 190 121 287 222 330 260 258 334 225 261 287 222 259 262 74 219 80 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	04.439 LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC)	8-98070-129-3	01	1	1505-	●	●
16	04.439 CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC)	8-98050-126-0	01	1	1505-	●	●
24	04.439 CABLE; PTO CONT SGL CAB(NM*S) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3028	8-98223-336-0	01	1	1505-	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3028	8-98223-336-0	01	1	1505-		●
24	04.439 CABLE; PTO CONT SGL CAB(NM*S) PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3106	8-98223-337-0	01	1	1505-	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3106	8-98223-337-0	01	1	1505-		●
24	04.439 CABLE; PTO CONT DBL CAB(NM*W) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3073	8-98212-222-1	01	1	1505-	●
24	04.439 CABLE; PTO CONT DBL CAB(NM*W) PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3151	8-98292-391-0	01	1	1505-	●
28	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) (A)	8-98096-005-2	01	1	1505-	●	●
28	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) (B)	8-98096-006-0	01	1	1505-	●	●
74	04.439 SPRING; RETURN,CONT LEVER PTO MANUAL CONTROL(6WC)	8-98029-874-0	01	1	1505-	●	●
80	04.439 COVER; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97122-741-0	01	1	1505-	●	●
82	04.128 BOLT; CONT LEVER PTO MANUAL CONTROL(6WC) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1505-	●	●
96	04.439 NUT PTO MANUAL CONTROL(6WC) 03.330 M6	0-91110-506-0	01	1	1505-	●	●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) 03.485 ID=4	0-91805-504-0	01	1	1505-	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.307 (A)	8-94366-842-2	01	1	1505-	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	1505-	●	●
219	04.439 KNOB; LEVER PTO MANUAL CONTROL(6WC)	8-97122-736-0	01	1	1505-	●	●
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) (B) M8X60	0-10855-860-0	01	1	1505-	●	●
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	1505-	●	●
225	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC)	8-98077-250-2	01	1	1505-	●	●
258	04.439 CABLE; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98077-160-1	01	1	1505-	●	●
259	04.439 GRIP; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97141-653-0	01	1	1505-	●	●
260	04.439 LEVER; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98077-136-1	01	1	1505-	●	●
261	04.439 SWITCH; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98081-899-2	01	1	1505-	●	●
262	04.439 RETAINER; SPRING PTO MANUAL CONTROL(6WC)	8-97129-397-0	01	1	1505-	●	●
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) 03.330 (A) M6	0-91110-506-0	01	1	1505-	●	●
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) 01.540 (B) M8 FLANGE	0-91180-208-0	01	1	1505-	●	●
300	04.439 CAP; KNOB PTO MANUAL CONTROL(6WC)	8-97122-740-0	01	1	1505-	●	●
330	04.439 COLOR; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98049-802-0	01	1	1505-	●	●
334	04.439 SHEET; PTO PTO MANUAL CONTROL(6WC)	8-98109-990-1	01	1	1505-	●	●

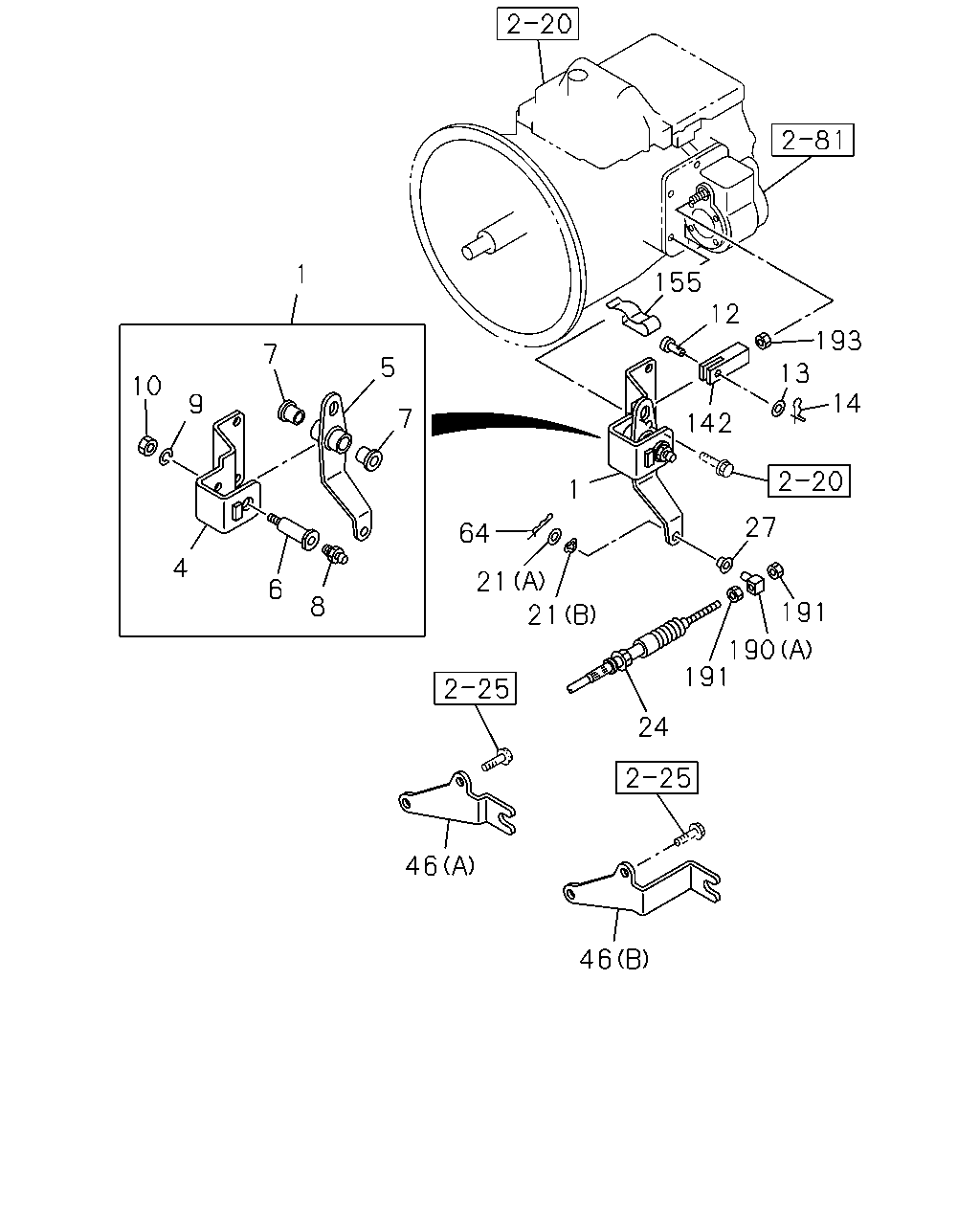

1 10 9 4 6 8 7 5 1 64 21 21 46 46 24 191 190 191 27 142 14 13 193 12 155 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-089-1	01	1	1505-	●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-099-1	01	1	1505-	●	●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98032-718-0	01	1	1505-	●	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-101-0	01	1	1505-	●	●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	5-33659-053-0	02	1	1505-	●	●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1505-	●	●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=8.2	0-91510-508-0	01	1	1505-	●	●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 02.334 M8	0-91110-508-0	01	1	1505-	●	●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-692-0	01	1	1505-	●	●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=12.5 OD=22	0-91610-512-0	01	1	1505-	●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97581-216-0	01	1	1505-	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	1505-	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 04.037 (B) ID=8.5 T=0.3	5-09509-001-0	01	1	1505-	●	●
24	04.439 CABLE; PTO CONT SGL CAB(NM*S) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3028	8-98223-336-0	01	1	1505-	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3028	8-98223-336-0	01	1	1505-		●
24	04.439 CABLE; PTO CONT SGL CAB(NM*S) PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3106	8-98223-337-0	01	1	1505-	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3106	8-98223-337-0	01	1	1505-		●
24	04.439 CABLE; PTO CONT DBL CAB(NM*W) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3073	8-98212-222-1	01	1	1505-	●
24	04.439 CABLE; PTO CONT DBL CAB(NM*W) PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3151	8-98292-391-0	01	1	1505-	●
27	04.439 BUSHING; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.042	8-94367-367-0	01	1	1505-	●	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98032-829-2	01	1	1505-	●	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98081-815-0	01	1	1505-	●	●
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO MANUAL CONTROL(6WC) 00.833 L=27.7	8-94111-137-0	01	1	1505-	●	●
142	04.439 CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-691-0	01	1	1505-	●	●
155	04.439 CLIP; CABLE PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) 01.240 T=5.5	5-09709-047-0	01	1	1505-	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.307 (A)	8-94366-842-2	01	1	1505-	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	1505-	●	●
191	04.439 NUT; BOSS PTO MANUAL CONTROL(6WC) 03.330 M6	0-91110-506-0	02	1	1505-	●	●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M12	0-91111-512-0	01	1	1505-	●	●
