1 |

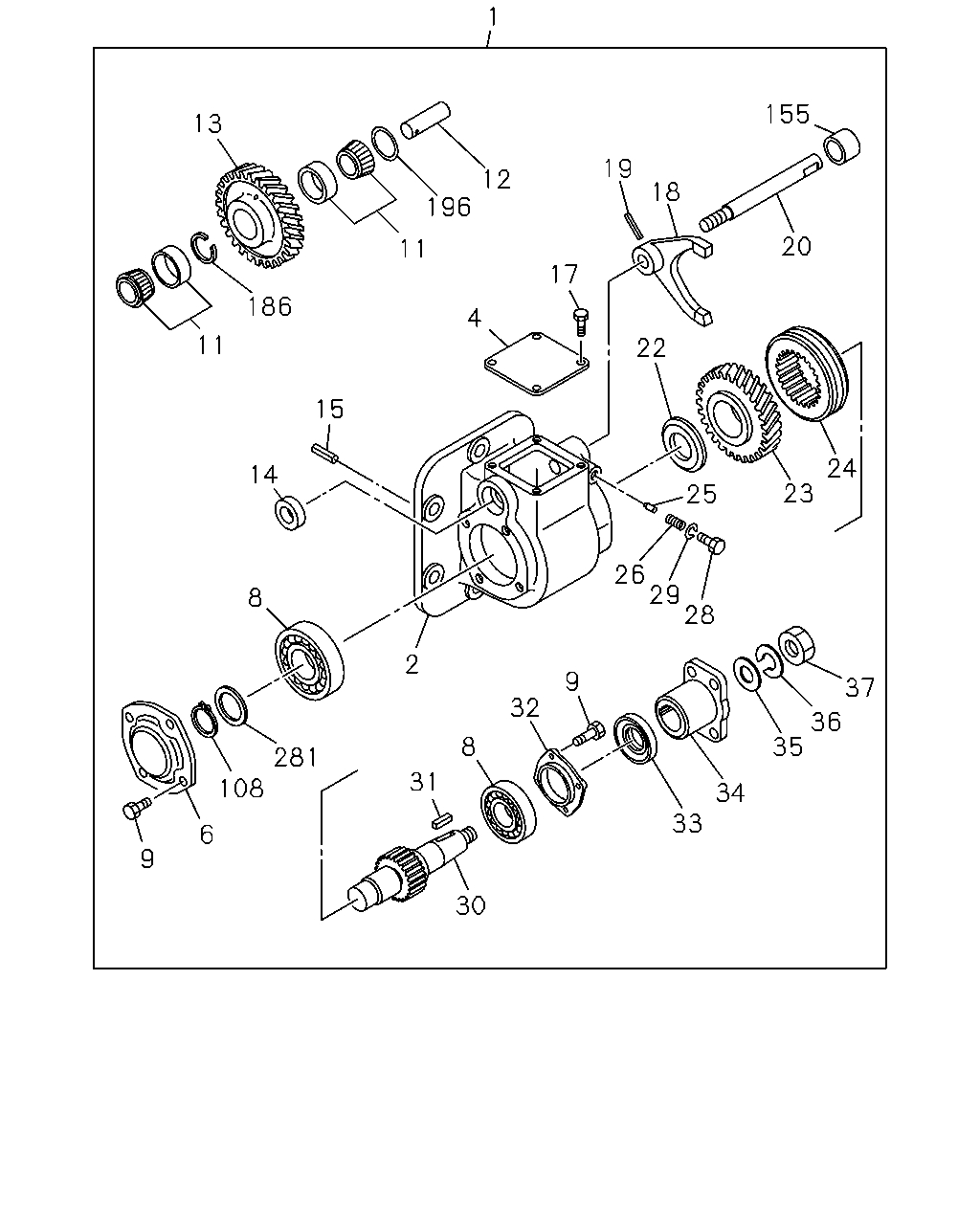

04.439 POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE(V66)
IDENTIFICATION=YC
|
8-98233-784-1 |
01 |
1 |
1505- |
● |
|
| |
1 |
04.439 POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE(V66)
IDENTIFICATION=YG
|
8-98233-783-1 |
01 |
1 |
1505- |
|
● |
| |
2 |
04.439 CASE; GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
8-98282-382-0 |
01 |
1 |
1505- |
● |
|
| |
2 |
04.439 CASE; GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
8-98282-381-0 |
01 |
1 |
1505- |
|
● |
| |
4 |
04.439 COVER; UPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
8-98046-613-0 |
01 |
1 |
1505- |
● |
● |
| |
6 |
04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI
PTO TRANSMISSION SIDE(V66)
|
8-98233-778-0 |
01 |
1 |
1505- |
● |
● |
| |
8 |
04.439 BEARING; OUTPUT SHAFT,TRANS SIDE
PTO TRANSMISSION SIDE(V66)
ID=25 OD=62
|
8-94343-031-1 |
02 |
1 |
1505- |
● |
● |
| |
9 |
04.439 BOLT; OUTPUT SHAFT COVER,TRANS S
PTO TRANSMISSION SIDE(V66)
04.338
M8X20 FLANGE
|
0-28050-820-0 |
08 |
1 |
1505- |
● |
● |
| |
11 |
04.439 BEARING; IDLE GEAR,TRANS SIDE PT
PTO TRANSMISSION SIDE(V66)
NSK
|
8-97106-734-0 |
02 |
1 |
1505- |
● |
● |
| |
12 |
04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
9-38211-606-0 |
01 |
1 |
1505- |
● |
● |
| |
13 |
04.439 GEAR; IDLE,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
Z=28
|
8-97308-698-0 |
01 |
1 |
1505- |
● |
|
| |
13 |
04.439 GEAR; IDLE,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
Z=31
|
8-97308-700-0 |
01 |
1 |
1505- |
|
● |
| |
14 |
04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P
PTO TRANSMISSION SIDE(V66)
|
8-98028-789-0 |
01 |
1 |
1505- |
● |
● |
| |
15 |
04.439 PIN; SPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
L=16
|
9-09878-613-0 |
01 |
1 |
1505- |
● |
● |
| |
17 |
04.439 BOLT; UPR COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
04.338
M8X20 FLANGE
|
0-28050-820-0 |
04 |
1 |
1505- |
● |
● |
| |
18 |
04.439 ARM; GEAR SHIFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
8-97224-702-0 |
01 |
1 |
1505- |
● |
● |
| |
19 |
04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT
PTO TRANSMISSION SIDE(V66)
04.303
L=25 OD=5
|
8-94135-771-0 |
01 |
1 |
1505- |
● |
● |
| |
20 |
04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
8-98046-623-0 |
01 |
1 |
1505- |
● |
● |
| |
22 |
04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS
PTO TRANSMISSION SIDE(V66)
|
9-38245-603-1 |
01 |
1 |
1505- |
● |
● |
| |
23 |
04.439 GEAR; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
Z=27
|
8-98120-610-0 |
01 |
1 |
1505- |
● |
|
| |
23 |
04.439 GEAR; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
Z=27
|
8-98120-609-0 |
01 |
1 |
1505- |
|
● |
| |
24 |
04.439 SLEEVE; DOG CLU,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
8-97231-316-1 |
01 |
1 |
1505- |
● |
● |
| |
25 |
04.439 PIN; LK,SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
8-94169-071-0 |
01 |
1 |
1505- |
● |
● |
| |
26 |
04.439 SPRING; SHIFTER ROD,TRANS SIDE P
PTO TRANSMISSION SIDE(V66)
|
9-09940-380-0 |
01 |
1 |
1505- |
● |
● |
| |
28 |
04.439 BOLT; SPRING,SIDE PTO
PTO TRANSMISSION SIDE(V66)
M8
|
8-98038-424-0 |
01 |
1 |
1505- |
● |
● |
| |
29 |
04.439 WASHER; LK,SPRING,SIDE PTO
PTO TRANSMISSION SIDE(V66)
02.559
ID=8.2
|
0-91510-808-0 |
01 |
1 |
1505- |
● |
● |
| |
30 |
04.439 SHAFT; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
8-98233-777-0 |
01 |
1 |
1505- |
● |
● |
| |
31 |
04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
L=25
|
8-98068-088-0 |
01 |
1 |
1505- |
● |
● |
| |
32 |
04.439 COVER; RR,OUTPUT SHAFT,TRANS SID
PTO TRANSMISSION SIDE(V66)
|
8-97305-794-0 |
01 |
1 |
1505- |
● |
● |
| |
33 |
04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID
PTO TRANSMISSION SIDE(V66)
|
1-38159-007-0 |
01 |
1 |
1505- |
● |
● |
| |
34 |
04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE
PTO TRANSMISSION SIDE(V66)
|
8-98223-519-0 |
01 |
1 |
1505- |
● |
● |
| |
35 |
04.439 WASHER; PL,FLANGE FIX,TRANS SIDE
PTO TRANSMISSION SIDE(V66)
04.634
ID=15
|
0-91610-514-0 |
01 |
1 |
1505- |
● |
● |
| |
36 |
04.439 WASHER; LK,FLANGE FIX,TRANS SIDE
PTO TRANSMISSION SIDE(V66)
06.174
ID=14.2
|
0-91510-814-0 |
01 |
1 |
1505- |
● |
● |
| |
37 |
04.439 NUT; FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
06.515
M14
|
0-91111-514-0 |
01 |
1 |
1505- |
● |
● |
| |
108 |
04.439 RING; SNAP,OUTPUT SHAFT,TRANS SI
PTO TRANSMISSION SIDE(V66)
08.934
ID=23.2
|
9-09180-025-0 |
01 |
1 |
1505- |
● |
● |
| |
155 |
04.439 PLUG; SHIFTER ROD
PTO TRANSMISSION SIDE(V66)
|
8-98037-770-0 |
01 |
1 |
1505- |
● |
● |
| |
186 |
04.439 RING; SNAP,IDLE GEAR,TRANS SIDE
PTO TRANSMISSION SIDE(V66)
|
8-97106-730-0 |
01 |
1 |
1505- |
● |
● |
| |
196 |
04.439 PIECE; THRUST
PTO TRANSMISSION SIDE(V66)
T=1.50
|
8-97106-724-0 |
02 |
1 |
1505- |
● |
● |
| |
196 |
04.439 PIECE; THRUST
PTO TRANSMISSION SIDE(V66)
T=1.60
|
8-97106-725-0 |
02 |
1 |
1505- |
● |
● |
| |
196 |
04.439 PIECE; THRUST
PTO TRANSMISSION SIDE(V66)
T=1.65
|
8-97106-726-0 |
02 |
1 |
1505- |
● |
● |
| |
196 |
04.439 PIECE; THRUST
PTO TRANSMISSION SIDE(V66)
T=1.70
|
8-97106-727-0 |
02 |
1 |
1505- |
● |
● |
| |
196 |
04.439 PIECE; THRUST
PTO TRANSMISSION SIDE(V66)
T=1.80
|
8-97106-728-0 |
02 |
1 |
1505- |
● |
● |
| |
196 |
04.439 PIECE; THRUST
PTO TRANSMISSION SIDE(V66)
T=1.85
|
8-97106-729-0 |
02 |
1 |
1505- |
● |
● |
| |
281 |
04.439 SHIM; OUTPUT SHAFT
PTO TRANSMISSION SIDE(V66)
T=1.85
|
8-97106-729-0 |
01 |
1 |
1505- |
● |
● |
