◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51613 - NLR/NMR LHD EUROPE EURO5B+,6 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-42 - AUTO TRANS OIL PAN AND OIL CONTROL ▶
2-42 — AUTO TRANS OIL PAN AND OIL CONTROL (#161564) — 6 parça

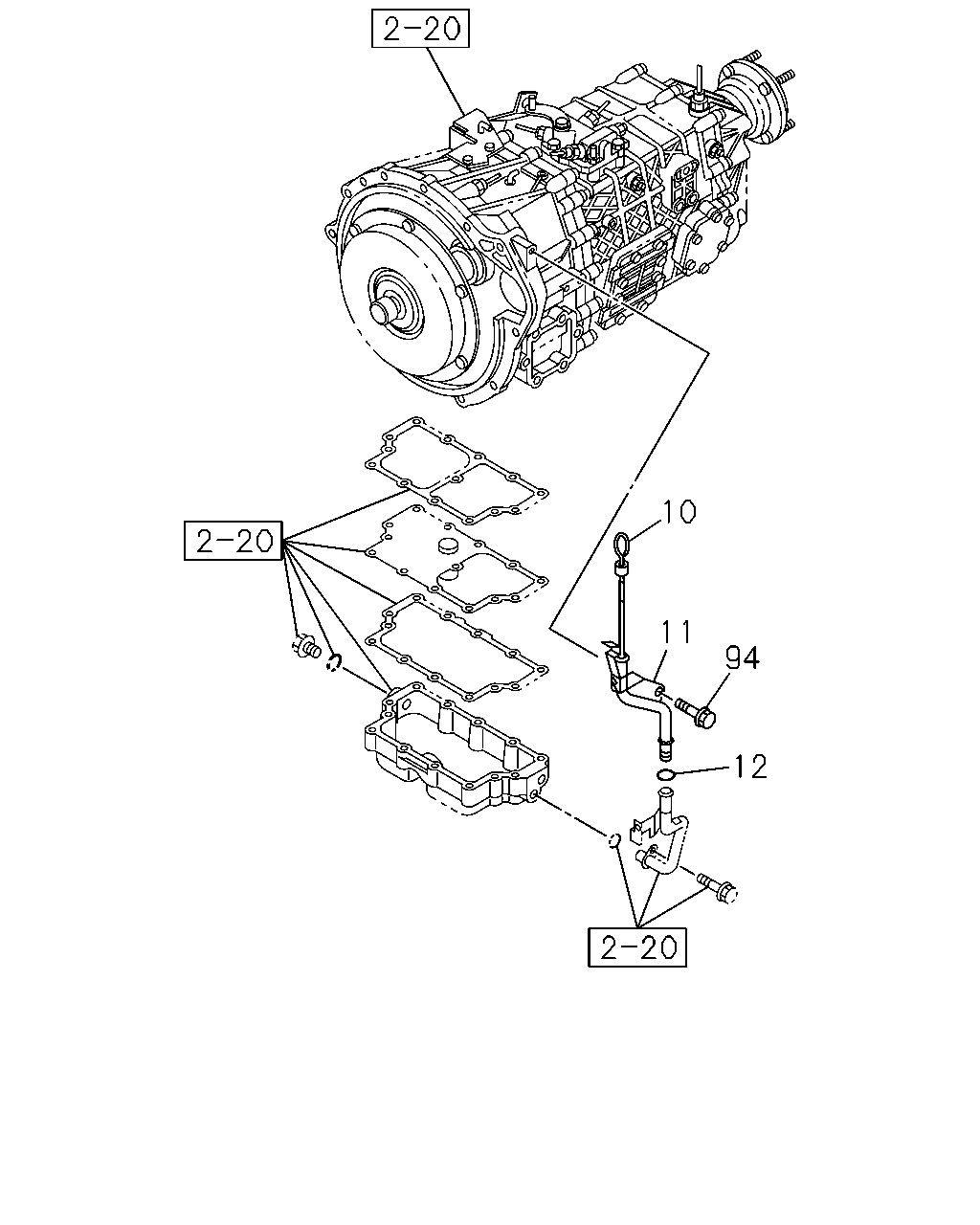

çizim 476095
10 11 94 12
BalonParca AdiParca NoAdetTipApplied Date A B
10 04.197 GAUGE; OIL LEVEL
SGL CAB(NM**S*) SMOOTHER-EX(TYPE2)(8NS) 		8-97325-010-1 01 1 1505- ● ●
10 04.197 GAUGE; OIL LEVEL
DBL CAB(NM**W*) SMOOTHER-EX(TYPE2)(8NS) 		8-97325-011-1 01 1 1505- ● ●
11 04.197 TUBE; OIL FILLER
SGL CAB(NM**S*) SMOOTHER-EX(TYPE2)(8NS) 		8-98147-074-0 01 1 1505- ● ●
11 04.197 TUBE; OIL FILLER
DBL CAB(NM**W*) SMOOTHER-EX(TYPE2)(8NS) 		8-98088-125-0 01 1 1505- ● ●
12 04.197 GASKET; OIL FILLER TUBE TO A/T
SMOOTHER-EX(TYPE2)(8NS) ID=12.3 		8-97313-558-0 01 1 1505- ● ●
94 04.197 BOLT; OIL FILLER TUBE
SMOOTHER-EX(TYPE2)(8NS) 02.343 M10X12 FLANGE 		0-28151-012-0 01 1 1505- ● ●
