2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#161561) — 50 parça

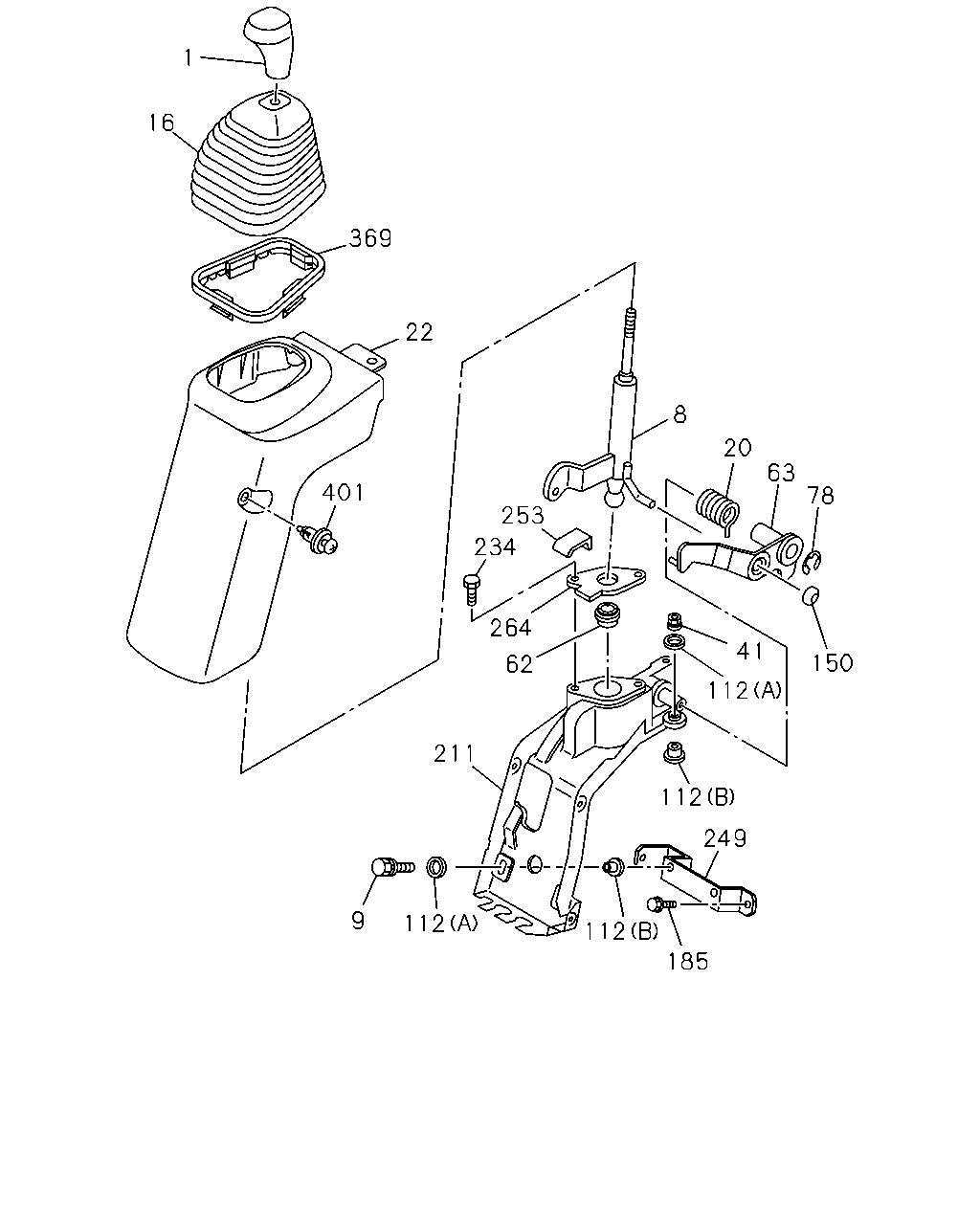

çizim 475448
1 16 369 22 401 253 234 8 63 20 78 150 41 112 112 249 112 185 112 9 211 62 264
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.006 KNOB; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BLACK 		8-97306-545-1 01 1 1505- ● ●
8 04.006 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97204-506-0 01 1 1505-1507 ● ●
8 04.006 LEVER; CHANGE
EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-97204-506-0 01 1 1508- ● ●
8 04.006 LEVER; CHANGE
SMOOTHER-EX(TYPE2)(8NS) DARK GRAY 		8-97465-739-1 01 1 1505- ● ●
9 04.012 BOLT; CHANGE LEVER
07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 1505- ● ●
16 04.015 BOOT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98035-063-0 01 1 1505- ● ●
20 04.012 SPRING; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97204-514-1 01 1 1505-1507 ● ●
20 04.012 SPRING; CHANGE LEVER
EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-97204-514-1 01 1 1508- ● ●
22 04.015 COVER; DUST,CHANGE LEVER
GRAY 		8-97411-675-0 01 1 1505- ● ●
41 04.012 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1505-1507 ● ●
41 04.012 NUT; CHANGE LEVER
EXC. SMOOTHER-EX(TYPE2)(8NS) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1508- ● ●
41 04.012 NUT; CHANGE LEVER
SMOOTHER-EX(TYPE2)(8NS) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1505-1507 ● ●
41 04.012 NUT; CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1508- ● ●
62 04.012 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97011-895-1 01 1 1505-1507 ● ●
62 04.012 SEAT; BALL,CHANGE LEVER
EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-97011-895-1 01 1 1508- ● ●
63 04.006 LEVER; RELAY,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97143-199-0 01 1 1505-1507 ● ●
63 04.006 LEVER; RELAY,SELECT
EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-97143-199-0 01 1 1508- ● ●
78 04.008 RING; SNAP,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10 		0-91805-510-0 01 1 1505-1507 ● ●
78 04.008 RING; SNAP,CHANGE LEVER
EXC. SMOOTHER-EX(TYPE2)(8NS) ID=10 		0-91805-510-0 01 1 1508- ● ●
112 04.012 RUBBER; CUSHION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97091-426-0 04 1 1505-1507 ● ●
112 04.012 RUBBER; CUSHION
EXC. SMOOTHER-EX(TYPE2)(8NS) (A) 		8-97091-426-0 04 1 1508- ● ●
112 04.012 RUBBER; CUSHION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97091-427-0 04 1 1505-1507 ● ●
112 04.012 RUBBER; CUSHION
EXC. SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97091-427-0 04 1 1508- ● ●
150 04.008 BALL; DETENT,CONT LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97049-147-0 01 1 1505-1507 ● ●
150 04.008 BALL; DETENT,CONT LEVER
EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-97049-147-0 01 1 1508- ● ●
185 04.012 BOLT; BRKT,COVER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1505- ● ●
211 04.010 BRACKET; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97204-505-1 01 1 1505-1507 ● ●
211 04.010 BRACKET; CHANGE LEVER
EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-97204-505-1 01 1 1508- ● ●
234 04.010 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X12 FLANGE 		1-33739-842-0 02 1 1505-1507 ● ●
234 04.010 BOLT; BRKT
EXC. SMOOTHER-EX(TYPE2)(8NS) M6X12 FLANGE 		1-33739-842-0 02 1 1508- ● ●
249 04.012 BRACKET; COVER 8-97387-767-0 01 1 1505- ● ●
253 04.012 STOPPER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97204-510-0 01 1 1505-1507 ● ●
253 04.012 STOPPER; CHANGE LEVER
EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-97204-510-0 01 1 1508- ● ●
264 04.015 PLATE; COVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97204-511-0 01 1 1505-1507 ● ●
264 04.015 PLATE; COVER
EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-97204-511-0 01 1 1508- ● ●
369 04.012 RETAINER; REINF
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98032-213-1 01 1 1505- ● ●
401 04.012 CLIP; COVER
GRAY 		8-97406-179-0 04 1 1505- ● ●
çizim 475556
8 525 41 249 185 401 22 9
BalonParca AdiParca NoAdetTipApplied Date A B
8 04.006 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97204-506-0 01 1 1505-1507 ● ●
8 04.006 LEVER; CHANGE
EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-97204-506-0 01 1 1508- ● ●
8 04.006 LEVER; CHANGE
SMOOTHER-EX(TYPE2)(8NS) DARK GRAY 		8-97465-739-1 01 1 1505- ● ●
9 04.012 BOLT; CHANGE LEVER
07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 1505- ● ●
22 04.015 COVER; DUST,CHANGE LEVER
GRAY 		8-97411-675-0 01 1 1505- ● ●
41 04.012 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1505-1507 ● ●
41 04.012 NUT; CHANGE LEVER
EXC. SMOOTHER-EX(TYPE2)(8NS) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1508- ● ●
41 04.012 NUT; CHANGE LEVER
SMOOTHER-EX(TYPE2)(8NS) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1505-1507 ● ●
41 04.012 NUT; CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1508- ● ●
185 04.012 BOLT; BRKT,COVER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1505- ● ●
249 04.012 BRACKET; COVER 8-97387-767-0 01 1 1505- ● ●
401 04.012 CLIP; COVER
GRAY 		8-97406-179-0 04 1 1505- ● ●
525 04.040 LABEL; SHIFT POSITION
SMOOTHER-EX(TYPE2)(8NS) 		8-98048-480-1 01 1 1505- ● ●
