◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51613 - NLR/NMR LHD EUROPE EURO5B+,6 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#161560) — 146 parça

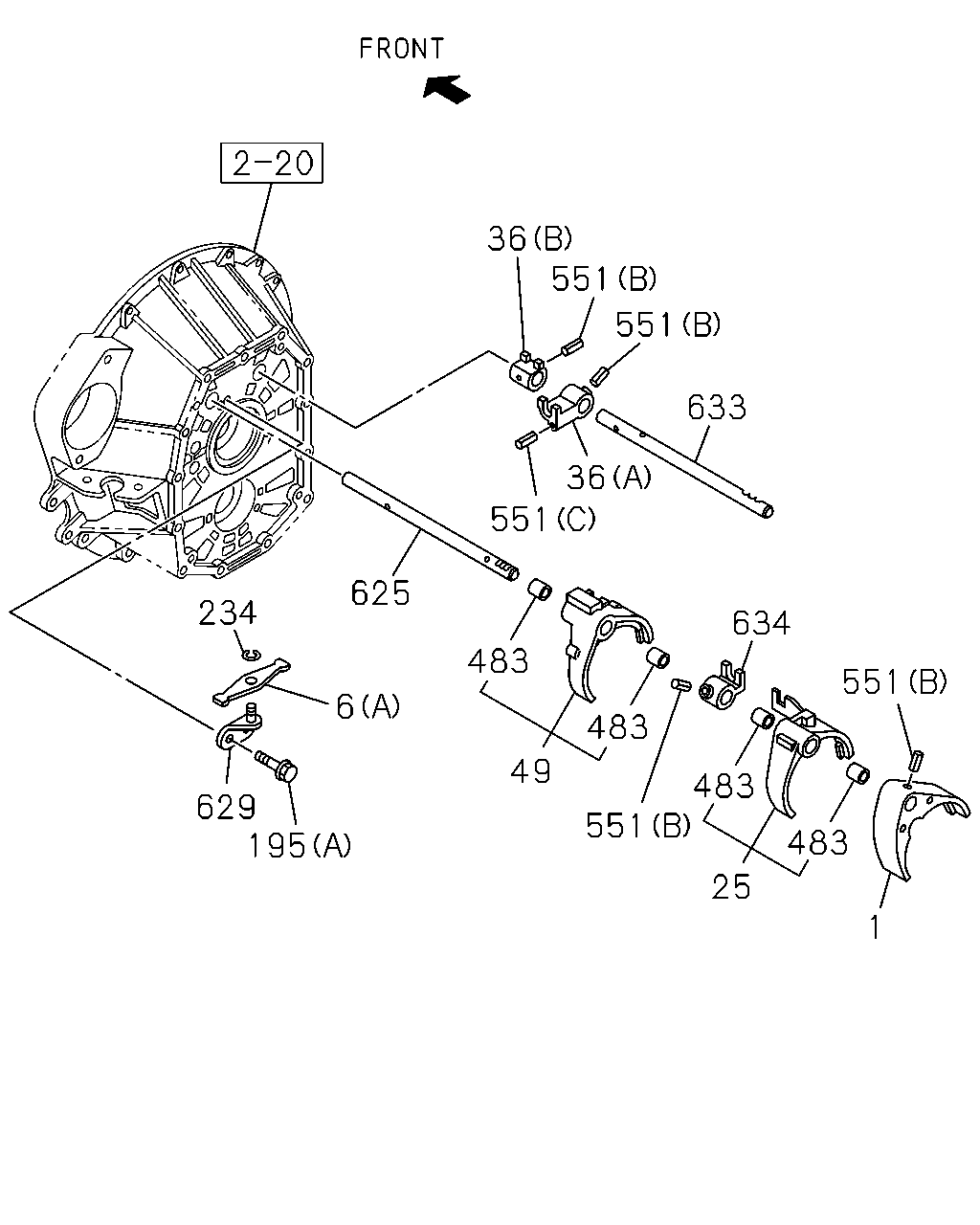

çizim 475546
25 483 551 49 483 483 634 551 633 551 551 36 551 36 625 6 234 629 195 483 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.302 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 1505- ● ●
6 04.302 LEVER; RELAY
(A) 		8-97241-344-0 01 1 1505- ● ●
6 04.302 LEVER; RELAY
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-995-0 01 1 1505- ● ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-98255-926-1 01 1 1505- ● ●
36 04.303 BLOCK; SHIFT,4TH & 5TH
(A) 		8-97241-329-1 01 1 1505- ● ●
36 04.303 BLOCK; SHIFT,4TH & 5TH
(B) 		8-97241-330-0 01 1 1505- ● ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 1505- ● ●
195 04.105 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1505- ● ●
195 04.105 BOLT
SMOOTHER-EX(TYPE2)(8NS) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1505- ● ●
234 04.311 RING; SNAP
04.307 ID=12 		8-94460-357-0 01 1 1505- ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 04 1 1505- ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1505- ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 1505- ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1505- ● ●
551 04.303 PIN; SPRING
SMOOTHER-EX(TYPE2)(8NS) 04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 1505- ● ●
551 04.303 PIN; SPRING
SMOOTHER-EX(TYPE2)(8NS) 04.302 (F) OD=5 		8-97184-905-0 03 1 1505- ● ●
551 04.303 PIN; SPRING
SMOOTHER-EX(TYPE2)(8NS) (E) 		8-97379-991-0 01 1 1505- ● ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-741-0 01 1 1505- ● ●
629 04.555 BRIDGE; LEVER 8-97237-107-1 01 1 1505- ● ●
633 04.309 ROD; GEAR SHIFT,4TH,5TH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97362-743-0 01 1 1505- ● ●
633 04.309 ROD; GEAR SHIFT,4TH,5TH
SMOOTHER-EX(TYPE2)(8NS) 		8-98206-518-0 01 1 1505- ● ●
634 04.303 BLOCK; SHIFT,LOW,REV 8-97241-327-1 01 1 1505- ● ●

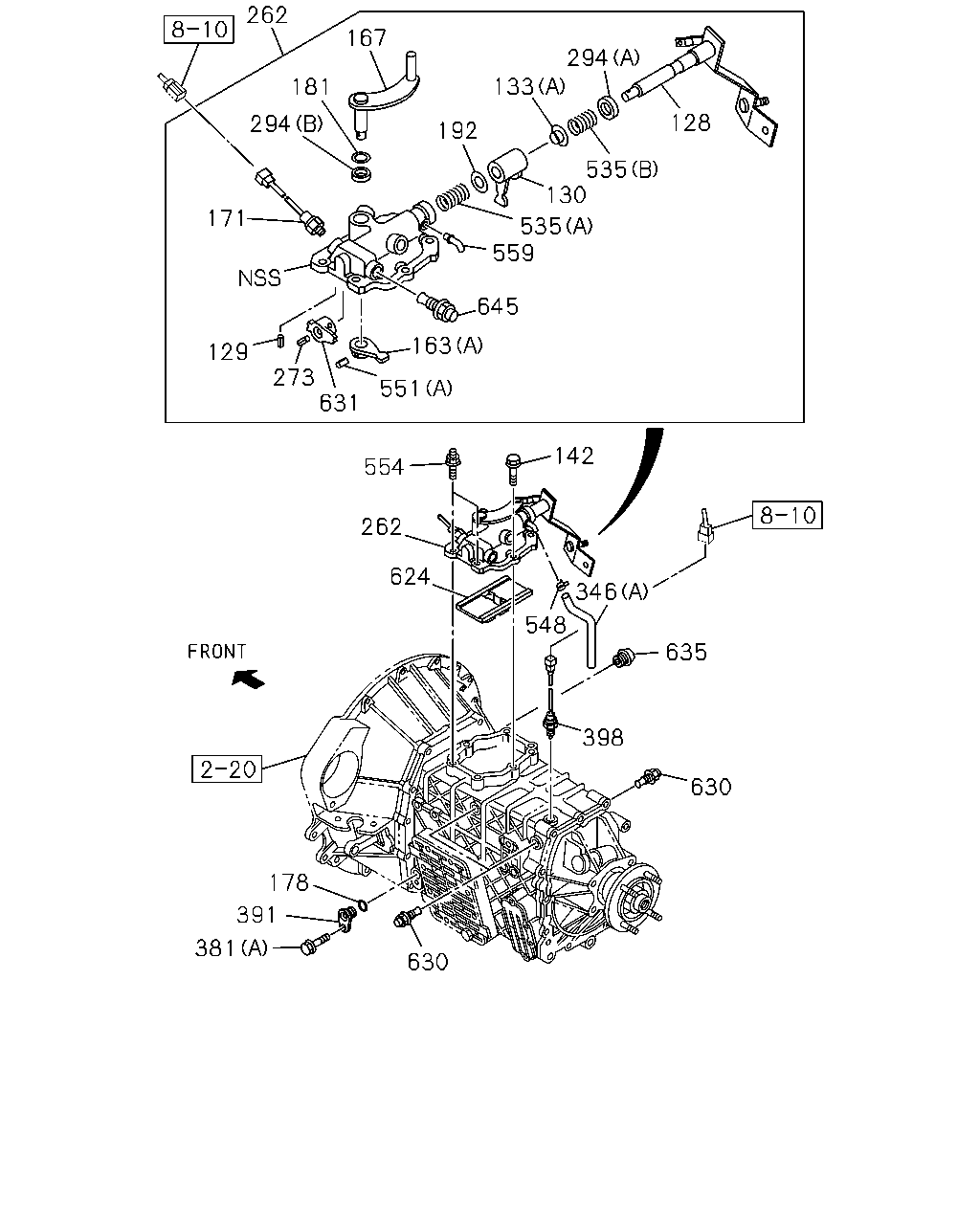

çizim 475551
294 128 535 130 535 559 645 163 551 631 273 129 171 294 181 167 262 133 142 635 346 548 624 262 554 398 630 178 391 630 381 192
BalonParca AdiParca NoAdetTipApplied Date A B
128 04.030 LEVER; SHIFT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-725-0 01 1 1505- ● ●
129 04.027 PIN; SPR,SHIFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=30 OD=4 		1-09748-031-0 01 1 1505- ● ●
130 04.302 LEVER; SHIFT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97306-647-0 01 1 1505- ● ●
133 04.027 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97305-667-0 01 1 1505- ● ●
133 04.027 SEAT; SPR
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-988-0 01 1 1505- ● ●
133 04.027 SEAT; SPR
SMOOTHER-EX(TYPE2)(8NS) (C) 		8-97379-989-0 01 1 1505- ● ●
142 04.012 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1505- ● ●
142 04.012 BOLT; QUAD BOX
SMOOTHER-EX(TYPE2)(8NS) M8X35 FLANGE 		8-98020-384-0 03 1 1505- ● ●
142 04.012 BOLT; QUAD BOX
SMOOTHER-EX(TYPE2)(8NS) M8X75 FLANGE 		8-98020-385-0 03 1 1505- ● ●
163 04.302 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97305-663-0 01 1 1505- ● ●
163 04.302 LEVER; SELECT,INTERNAL
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-979-0 01 1 1505- ● ●
163 04.302 LEVER; SELECT,INTERNAL
SMOOTHER-EX(TYPE2)(8NS) (C) 		8-97379-990-0 01 1 1505- ● ●
167 04.302 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98039-436-0 01 1 1505- ● ●
167 04.302 LEVER; SELECT,EXTERNAL
SMOOTHER-EX(TYPE2)(8NS) 		8-97379-994-0 01 1 1505- ● ●
171 04.054 SWITCH; NEUTRAL 8-98242-172-1 01 1 1505-1509 ● ●
171 04.054 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510- ● ●
178 04.307 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		9-09567-113-0 01 1 1505- ● ●
181 04.302 WASHER; PL,SELECT LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97367-327-0 01 1 1505- ● ●
192 04.309 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-661-0 01 1 1505- ● ●
192 04.309 WASHER; PL
SMOOTHER-EX(TYPE2)(8NS) 04.302 		1-09503-280-0 01 1 1505- ● ●
262 04.105 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98241-002-2 01 1 1505- ● ●
262 04.105 BOX ASM; SHIFT CONT
SMOOTHER-EX(TYPE2)(8NS) 		8-98296-529-0 01 1 1505-1509 ● ●
262 04.105 BOX ASM; SHIFT CONT
SMOOTHER-EX(TYPE2)(8NS) 		8-98331-685-0 01 1 1510- ● ●
273 04.309 PIN; SPR,STOPPER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.307 D=4.2 L=25 		8-97103-142-0 01 1 1505- ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97305-662-0 01 1 1505- ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97363-225-0 01 1 1505- ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-EX(TYPE2)(8NS) (C) 		1-09625-600-0 01 1 1505- ● ●
346 04.545 HOSE; AIR
(A) 		8-97309-855-0 01 1 1505- ● ●
346 04.545 HOSE; AIR
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97373-381-0 01 1 1505- ● ●
381 04.105 BOLT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1505- ● ●
381 04.105 BOLT
SMOOTHER-EX(TYPE2)(8NS) 04.010 (B) M6X12 FLANGE 		1-33739-842-0 04 1 1505- ● ●
391 04.104 PLUG; SW HOLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97300-273-1 01 1 1505- ● ●
398 02.698 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98256-418-0 01 1 1505- ● ●
398 02.698 SWITCH; REV LAMP
SMOOTHER-EX(TYPE2)(8NS) 		8-98242-173-1 01 1 1505- ● ●
535 04.302 SPRING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97323-771-0 01 1 1505- ● ●
535 04.302 SPRING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97323-772-0 01 1 1505- ● ●
548 04.457 CLIP; HOSE
03.278 		8-97031-674-0 01 1 1505- ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1505- ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 1505- ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1505- ● ●
551 04.303 PIN; SPRING
SMOOTHER-EX(TYPE2)(8NS) 04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 1505- ● ●
551 04.303 PIN; SPRING
SMOOTHER-EX(TYPE2)(8NS) 04.302 (F) OD=5 		8-97184-905-0 03 1 1505- ● ●
551 04.303 PIN; SPRING
SMOOTHER-EX(TYPE2)(8NS) (E) 		8-97379-991-0 01 1 1505- ● ●
554 04.302 STUD; CONT BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X15,M8X25 L=49 		8-97365-378-0 02 1 1505- ● ●
559 04.302 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.510 		8-97358-318-0 01 1 1505- ● ●
559 04.302 PIPE; BREATHER
SMOOTHER-EX(TYPE2)(8NS) 		8-98020-710-0 01 1 1505- ● ●
624 04.105 PLATE; INTER LOCK 8-97241-317-3 01 1 1505- ● ●
630 04.307 DETENT ASM 8-98019-536-0 03 1 1505- ● ●
631 04.105 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-666-0 01 1 1505- ● ●
631 04.105 STOPPER; SPRING
SMOOTHER-EX(TYPE2)(8NS) 		8-97379-984-0 01 1 1505- ● ●
635 04.309 PLUG; DETENT
00.206 		8-97380-892-0 01 1 1505- ● ●
645 04.311 DETENT ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.307 		8-98019-536-0 01 1 1505- ● ●

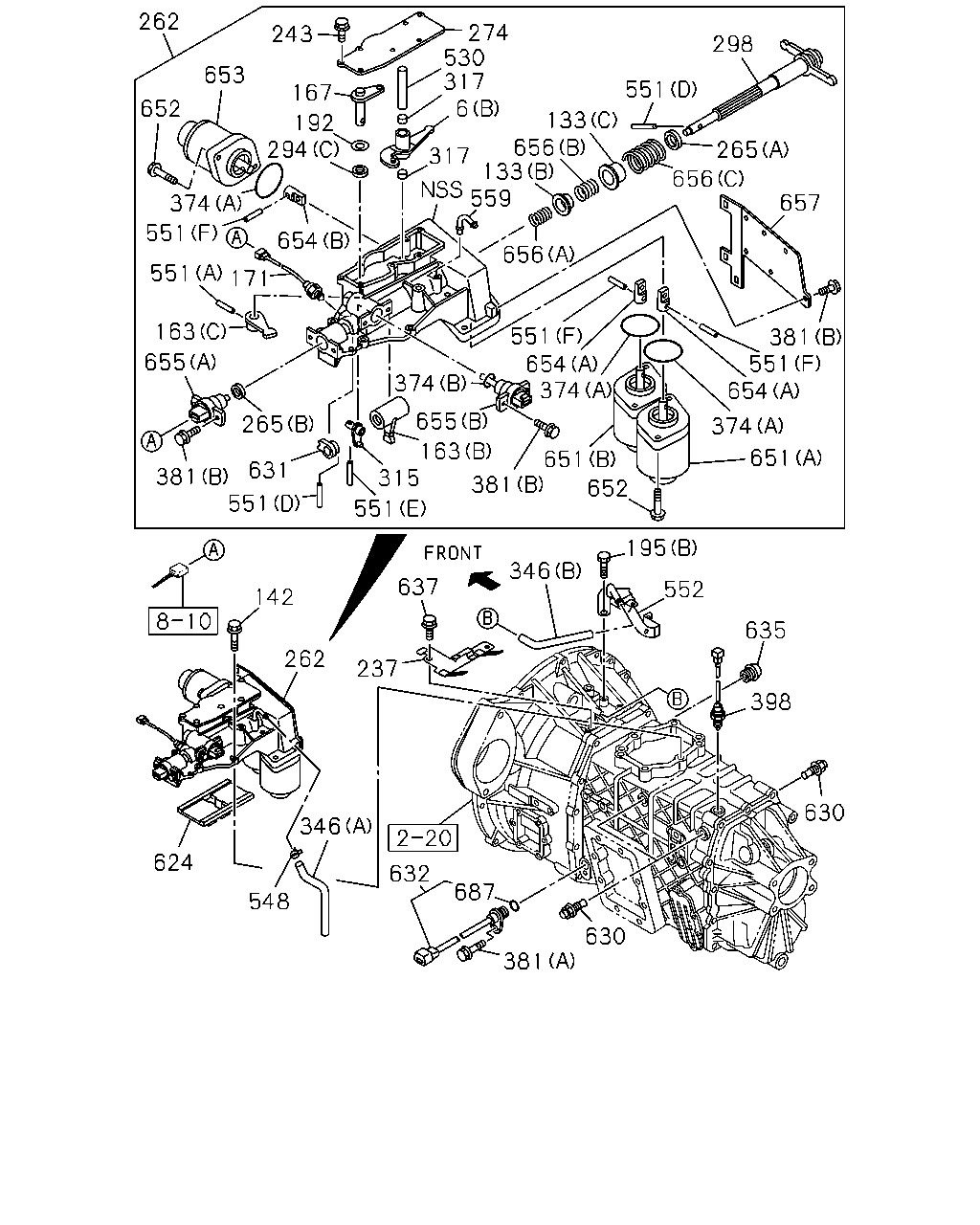

çizim 476235
298 265 657 656 133 656 133 559 656 551 374 551 381 654 651 374 654 651 381 163 655 374 315 652 317 6 317 530 274 243 167 294 192 653 262 652 374 654 171 551 551 163 265 631 381 551 195 552 635 398 630 346 637 237 262 142 346 632 687 630 548 624 381 551 551 655
BalonParca AdiParca NoAdetTipApplied Date A B
6 04.302 LEVER; RELAY
(A) 		8-97241-344-0 01 1 1505- ● ●
6 04.302 LEVER; RELAY
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-995-0 01 1 1505- ● ●
133 04.027 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97305-667-0 01 1 1505- ● ●
133 04.027 SEAT; SPR
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-988-0 01 1 1505- ● ●
133 04.027 SEAT; SPR
SMOOTHER-EX(TYPE2)(8NS) (C) 		8-97379-989-0 01 1 1505- ● ●
142 04.012 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1505- ● ●
142 04.012 BOLT; QUAD BOX
SMOOTHER-EX(TYPE2)(8NS) M8X35 FLANGE 		8-98020-384-0 03 1 1505- ● ●
142 04.012 BOLT; QUAD BOX
SMOOTHER-EX(TYPE2)(8NS) M8X75 FLANGE 		8-98020-385-0 03 1 1505- ● ●
163 04.302 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97305-663-0 01 1 1505- ● ●
163 04.302 LEVER; SELECT,INTERNAL
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-979-0 01 1 1505- ● ●
163 04.302 LEVER; SELECT,INTERNAL
SMOOTHER-EX(TYPE2)(8NS) (C) 		8-97379-990-0 01 1 1505- ● ●
167 04.302 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98039-436-0 01 1 1505- ● ●
167 04.302 LEVER; SELECT,EXTERNAL
SMOOTHER-EX(TYPE2)(8NS) 		8-97379-994-0 01 1 1505- ● ●
171 04.054 SWITCH; NEUTRAL 8-98242-172-1 01 1 1505-1509 ● ●
171 04.054 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510- ● ●
192 04.309 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-661-0 01 1 1505- ● ●
192 04.309 WASHER; PL
SMOOTHER-EX(TYPE2)(8NS) 04.302 		1-09503-280-0 01 1 1505- ● ●
195 04.105 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1505- ● ●
195 04.105 BOLT
SMOOTHER-EX(TYPE2)(8NS) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1505- ● ●
237 04.057 BRACKET; CABLE,TRANS
SMOOTHER-EX(TYPE2)(8NS) 		8-98018-905-1 01 1 1505- ● ●
243 04.105 BOLT; COVER
SMOOTHER-EX(TYPE2)(8NS) 04.010 M6X12 FLANGE 		1-33739-842-0 11 1 1505- ● ●
262 04.105 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98241-002-2 01 1 1505- ● ●
262 04.105 BOX ASM; SHIFT CONT
SMOOTHER-EX(TYPE2)(8NS) 		8-98296-529-0 01 1 1505-1509 ● ●
262 04.105 BOX ASM; SHIFT CONT
SMOOTHER-EX(TYPE2)(8NS) 		8-98331-685-0 01 1 1510- ● ●
265 04.107 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-EX(TYPE2)(8NS) (A) 		8-97363-225-0 01 1 1505- ● ●
265 04.107 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-981-0 01 1 1505- ● ●
274 04.105 COVER; SHAFT,QUAD BOX
SMOOTHER-EX(TYPE2)(8NS) 		8-98020-711-0 01 1 1505- ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97305-662-0 01 1 1505- ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97363-225-0 01 1 1505- ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-EX(TYPE2)(8NS) (C) 		1-09625-600-0 01 1 1505- ● ●
298 04.309 SHAFT; SHIFT LEVER
SMOOTHER-EX(TYPE2)(8NS) 		8-97379-978-0 01 1 1505- ● ●
315 04.302 LEVER; SELECT
SMOOTHER-EX(TYPE2)(8NS) 		8-98296-526-0 01 1 1505- ● ●
317 04.302 BUSHING; LEVER
SMOOTHER-EX(TYPE2)(8NS) 		8-97379-997-0 02 1 1505- ● ●
346 04.545 HOSE; AIR
(A) 		8-97309-855-0 01 1 1505- ● ●
346 04.545 HOSE; AIR
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97373-381-0 01 1 1505- ● ●
374 04.107 GASKET
ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-EX(TYPE2)(8NS) (A) 		8-97349-571-0 03 1 1505- ● ●
374 04.107 GASKET
ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97349-573-0 01 1 1505- ● ●
381 04.105 BOLT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1505- ● ●
381 04.105 BOLT
SMOOTHER-EX(TYPE2)(8NS) 04.010 (B) M6X12 FLANGE 		1-33739-842-0 04 1 1505- ● ●
398 02.698 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98256-418-0 01 1 1505- ● ●
398 02.698 SWITCH; REV LAMP
SMOOTHER-EX(TYPE2)(8NS) 		8-98242-173-1 01 1 1505- ● ●
530 04.302 SHAFT; SELECT
SMOOTHER-EX(TYPE2)(8NS) 		8-97379-996-0 01 1 1505- ● ●
548 04.457 CLIP; HOSE
03.278 		8-97031-674-0 01 1 1505- ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1505- ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 1505- ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1505- ● ●
551 04.303 PIN; SPRING
SMOOTHER-EX(TYPE2)(8NS) 04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 1505- ● ●
551 04.303 PIN; SPRING
SMOOTHER-EX(TYPE2)(8NS) 04.302 (F) OD=5 		8-97184-905-0 03 1 1505- ● ●
551 04.303 PIN; SPRING
SMOOTHER-EX(TYPE2)(8NS) (E) 		8-97379-991-0 01 1 1505- ● ●
552 04.105 BRACKET
SMOOTHER-EX(TYPE2)(8NS) 		8-97349-914-1 01 1 1505- ● ●
559 04.302 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.510 		8-97358-318-0 01 1 1505- ● ●
559 04.302 PIPE; BREATHER
SMOOTHER-EX(TYPE2)(8NS) 		8-98020-710-0 01 1 1505- ● ●
624 04.105 PLATE; INTER LOCK 8-97241-317-3 01 1 1505- ● ●
630 04.307 DETENT ASM 8-98019-536-0 03 1 1505- ● ●
631 04.105 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-666-0 01 1 1505- ● ●
631 04.105 STOPPER; SPRING
SMOOTHER-EX(TYPE2)(8NS) 		8-97379-984-0 01 1 1505- ● ●
632 04.054 SENSOR; TRANS,REV
SMOOTHER-EX(TYPE2)(8NS) 		8-97315-604-1 01 1 1505- ● ●
635 04.309 PLUG; DETENT
00.206 		8-97380-892-0 01 1 1505- ● ●
637 04.105 BOLT; BRACKET
SMOOTHER-EX(TYPE2)(8NS) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1505- ● ●
651 04.309 SOLENOID ASM; SHIFT
SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98002-759-0 01 1 1505- ● ●
651 04.309 SOLENOID ASM; SHIFT
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98002-760-0 01 1 1505- ● ●
652 04.309 BOLT; SORENOID
SMOOTHER-EX(TYPE2)(8NS) 02.042 M10X25 FLANGE 		0-28151-025-0 06 1 1505- ● ●
653 04.309 SOLENOID ASM; SELECT
SMOOTHER-EX(TYPE2)(8NS) 		8-98002-761-0 01 1 1505- ● ●
654 04.309 JOINT; SOLENOID,CASE
SMOOTHER-EX(TYPE2)(8NS) (A) 		8-97349-473-0 02 1 1505- ● ●
654 04.309 JOINT; SOLENOID,CASE
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97380-419-0 01 1 1505- ● ●
655 04.309 SENSOR; STROKE
SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98107-823-0 01 1 1505- ● ●
655 04.309 SENSOR; STROKE
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98107-824-0 01 1 1505- ● ●
656 04.307 SPRING; SHAFT
SMOOTHER-EX(TYPE2)(8NS) (A) 		8-97379-985-0 01 1 1505- ● ●
656 04.307 SPRING; SHAFT
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-986-0 01 1 1505- ● ●
656 04.307 SPRING; SHAFT
SMOOTHER-EX(TYPE2)(8NS) (C) 		8-97379-987-0 01 1 1505- ● ●
657 04.105 PLATE; SIDE
SMOOTHER-EX(TYPE2)(8NS) 		8-98020-712-0 01 1 1505- ● ●
687 04.075 GASKET; SENSOR
SMOOTHER-EX(TYPE2)(8NS) 04.307 		9-09567-113-0 01 1 1505- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
