Sayfa 1-56 - Isuzu EPC

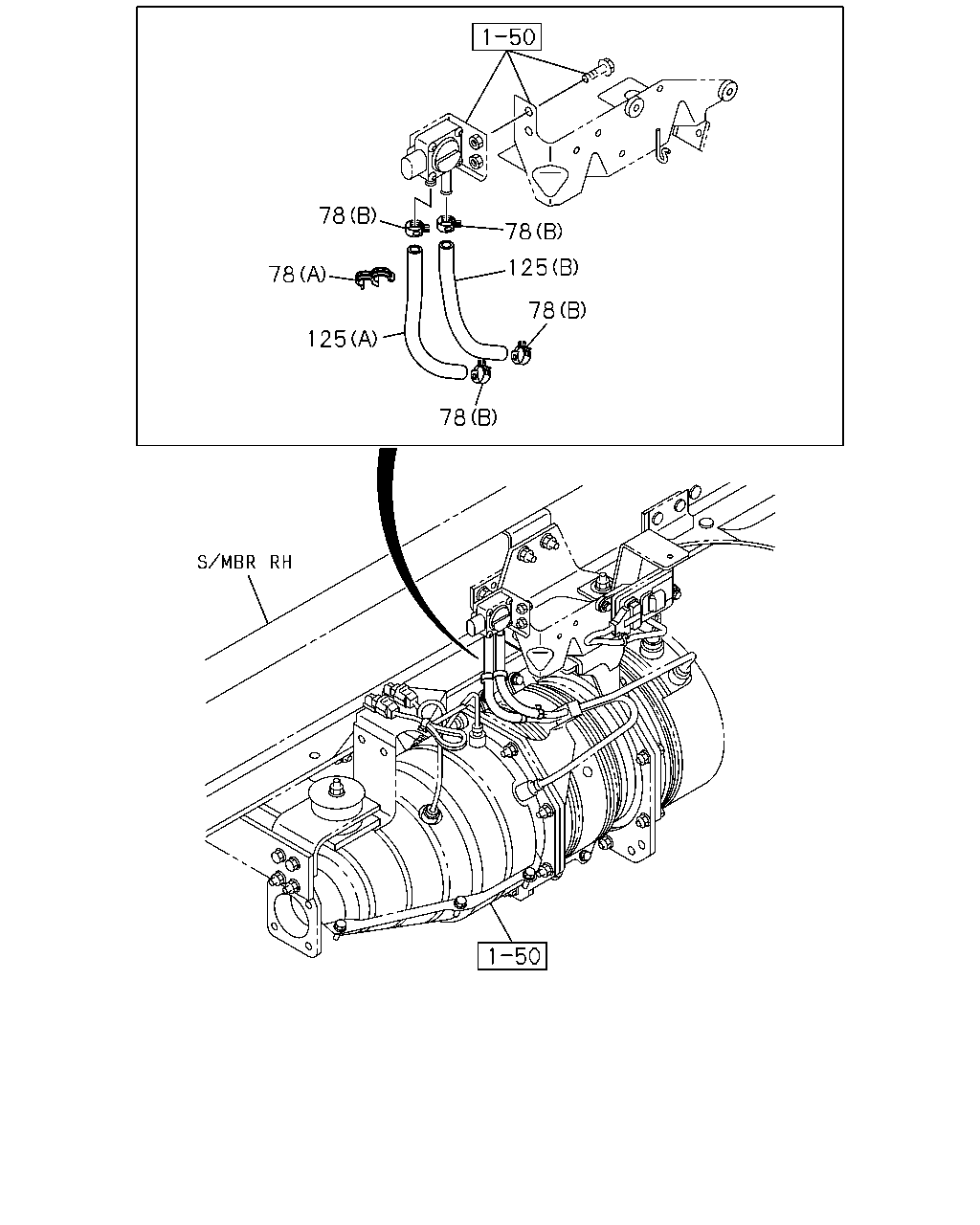

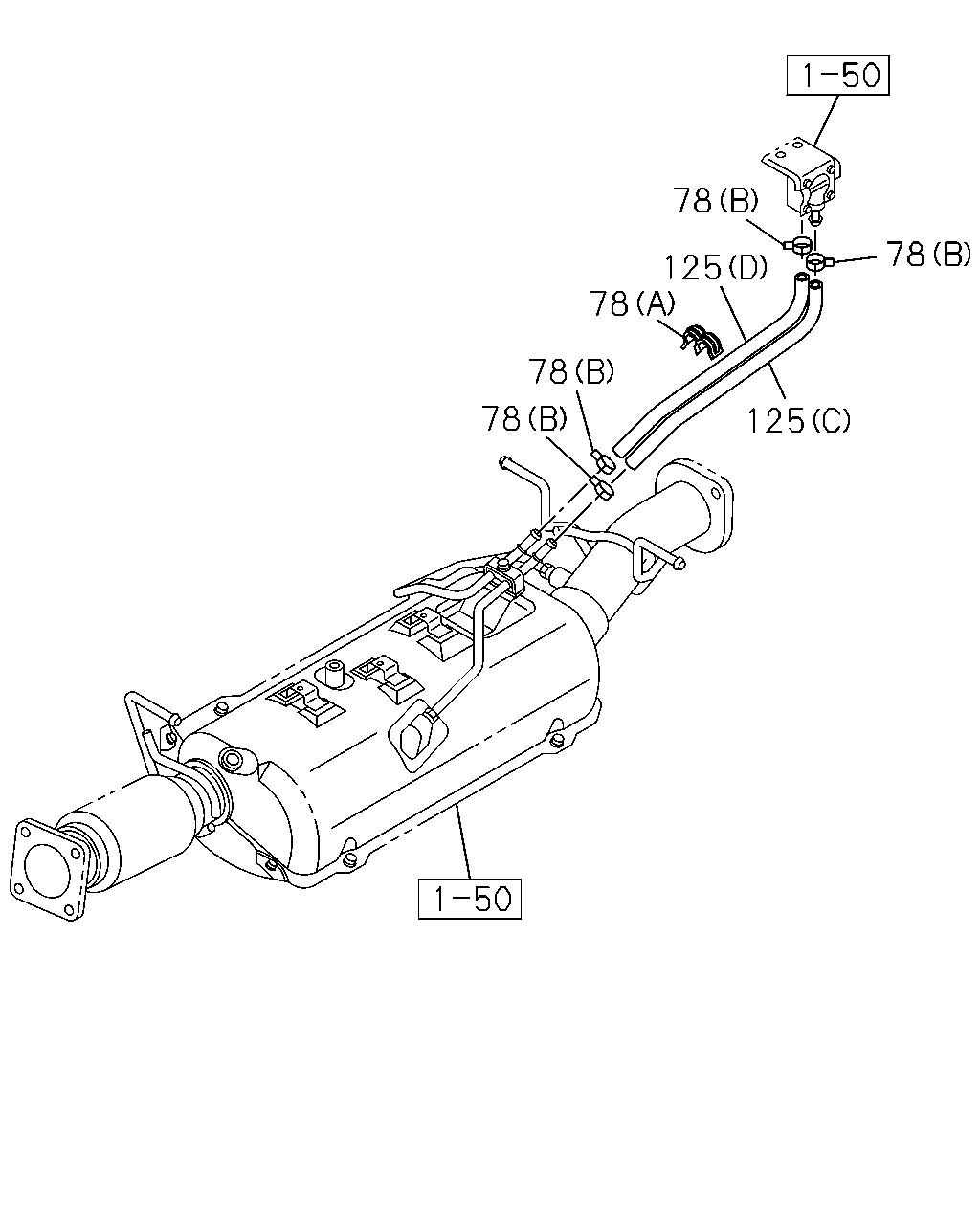

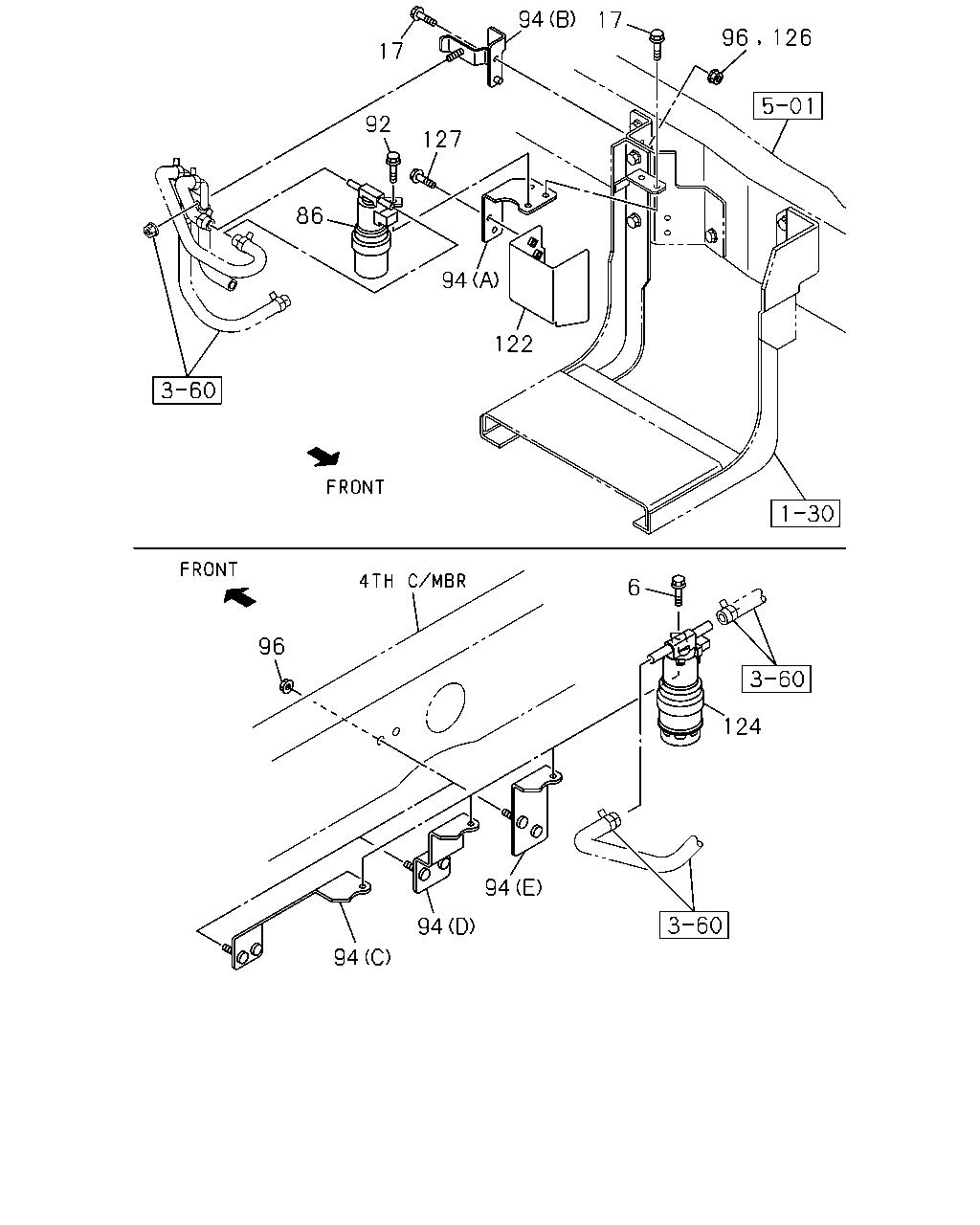

1-56 — EXHAUST BRAKE SYSTEM (#161549) — 114 parça

1 8 5 1 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB)	8-98227-173-0	01	1	1505-1510	●	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB)	8-98321-773-0	01	1	1511-	●	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCC ENG(RDU)	8-98228-983-0	01	1	1505-	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCC ENG(RDU)	8-98228-984-1	01	1	1505-	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCS ENG(LFB) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1505-	●	●	●
10	03.634 NUT; BRKT,EXH BRAKE 4JJ1-TCC ENG(RDU) 03.613 M10 FLANGE	8-97096-192-1	04	1	1505-	●	●	●

17 127 92 86 94 122 96 126 17 94 96 94 94 124 6 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	03.632 BOLT; EXH BRAKE UNIT FIX EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-	●	●	●
17	03.634 BOLT; BRKT 4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1505-1507	●	●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1505-1507	●	●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1505-1507	●	●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1505-1507			●
17	03.634 BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1508-	●	●
17	03.634 BOLT; BRKT WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1508-	●	●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1508-	●	●
17	03.634 BOLT; BRKT EXC. EURO5B+ SPECIFICATION(NT5) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1508-			●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1505-	●	●
86	03.636 VALVE; MAG,EXH BRK CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6)	8-98043-344-0	01	1	1505-	●	●	●
92	08.900 BOLT; MAG VLV CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-	●	●	●
92	08.900 BOLT; MAG VLV EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1505-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (A)	8-98211-757-1	01	1	1505-1507	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A)	8-98211-757-1	01	1	1505-1507	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) (A)	8-98211-757-1	01	1	1505-1507	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (A)	8-98211-757-1	01	1	1505-1507			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EXC. EURO5B+ SPECIFICATION(NT5) (A)	8-98211-757-1	01	1	1508-	●	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98211-757-1	01	1	1508-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> (D)	8-98039-762-1	01	1	1505-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> (C)	8-98039-761-2	01	1	1505-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) (B)	8-98042-694-2	01	1	1505-1507	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (B)	8-98042-694-2	01	1	1505-1507	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98042-694-2	01	1	1505-1507	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B)	8-98042-694-2	01	1	1505-1507			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (B)	8-98042-694-2	01	1	1508-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98042-694-2	01	1	1508-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EXC. EURO5B+ SPECIFICATION(NT5) (B)	8-98042-694-2	01	1	1508-			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> (E)	8-98039-764-1	01	1	1505-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (F)	8-98227-649-0	01	1	1505-			●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1505-1507	●	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-	●	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-1507	●	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-1507	●	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-1507			●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE EXC. EURO5B+ SPECIFICATION(NT5) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-			●
122	03.640 PROTECTOR; MAG VLV WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98098-564-0	01	1	1505-	●	●
122	03.640 PROTECTOR; MAG VLV WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6)	8-98098-564-0	01	1	1505-	●	●
122	03.640 PROTECTOR; MAG VLV WHEEL BASE 2800MM(28W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98269-467-0	01	1	1505-	●	●
122	03.640 PROTECTOR; MAG VLV WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6)	8-98269-467-0	01	1	1505-	●	●
124	03.636 VALVE; MAG,DPD EXH THROTTLE EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98043-344-0	01	1	1505-	●	●	●
126	03.634 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-	●	●
127	04.902 BOLT; PROTECTOR CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1505-	●	●

78 78 125 78 78 78 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
78	03.636 CLIP; HOSE 03.162 (A)	8-97173-119-0	01	1	1505-	●	●	●
78	03.636 CLIP; HOSE 03.162 (B) ID=13	8-97329-627-0	04	1	1505-	●	●	●
125	03.630 HOSE; DPD EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.163 (E) L=150 SERVICED BY L=3000	0-01558-300-0	01	1	1505-1506	●	●
125	03.630 HOSE; DPD EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) (F)	8-98292-371-0	01	1	1507-	●	●
125	03.630 HOSE; DPD EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) (F)	8-98257-394-1	01	1	1505-1506	●	●
125	03.630 HOSE; DPD EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98323-830-0	01	1	1507-	●	●
125	03.630 HOSE; DPD EXC. EURO5B+ SPECIFICATION(NT5) (A)	8-98123-965-0	01	1	1505-	●	●	●
125	03.630 HOSE; DPD EXC. EURO5B+ SPECIFICATION(NT5) (B)	8-98242-584-0	01	1	1505-	●	●	●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98236-427-1	01	1	1505-	●	●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98236-427-1	01	1	1505-			●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98236-428-1	01	1	1505-	●	●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98236-428-1	01	1	1505-			●

78 78 78 78 125 78 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
78	03.636 CLIP; HOSE 03.162 (A)	8-97173-119-0	01	1	1505-	●	●	●
78	03.636 CLIP; HOSE 03.162 (B) ID=13	8-97329-627-0	04	1	1505-	●	●	●
125	03.630 HOSE; DPD EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.163 (E) L=150 SERVICED BY L=3000	0-01558-300-0	01	1	1505-1506	●	●
125	03.630 HOSE; DPD EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) (F)	8-98292-371-0	01	1	1507-	●	●
125	03.630 HOSE; DPD EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) (F)	8-98257-394-1	01	1	1505-1506	●	●
125	03.630 HOSE; DPD EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98323-830-0	01	1	1507-	●	●
125	03.630 HOSE; DPD EXC. EURO5B+ SPECIFICATION(NT5) (A)	8-98123-965-0	01	1	1505-	●	●	●
125	03.630 HOSE; DPD EXC. EURO5B+ SPECIFICATION(NT5) (B)	8-98242-584-0	01	1	1505-	●	●	●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98236-427-1	01	1	1505-	●	●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98236-427-1	01	1	1505-			●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98236-428-1	01	1	1505-	●	●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98236-428-1	01	1	1505-			●

92 86 94 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
86	03.636 VALVE; MAG,EXH BRK CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6)	8-98043-344-0	01	1	1505-	●	●	●
92	08.900 BOLT; MAG VLV CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-	●	●	●
92	08.900 BOLT; MAG VLV EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1505-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (A)	8-98211-757-1	01	1	1505-1507	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A)	8-98211-757-1	01	1	1505-1507	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) (A)	8-98211-757-1	01	1	1505-1507	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (A)	8-98211-757-1	01	1	1505-1507			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EXC. EURO5B+ SPECIFICATION(NT5) (A)	8-98211-757-1	01	1	1508-	●	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98211-757-1	01	1	1508-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> (D)	8-98039-762-1	01	1	1505-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> (C)	8-98039-761-2	01	1	1505-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) (B)	8-98042-694-2	01	1	1505-1507	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (B)	8-98042-694-2	01	1	1505-1507	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98042-694-2	01	1	1505-1507	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B)	8-98042-694-2	01	1	1505-1507			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (B)	8-98042-694-2	01	1	1508-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98042-694-2	01	1	1508-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EXC. EURO5B+ SPECIFICATION(NT5) (B)	8-98042-694-2	01	1	1508-			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) REAR SUSPENSION - OVER SLUNG + WIDE TREA D<8PZ> (E)	8-98039-764-1	01	1	1505-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (F)	8-98227-649-0	01	1	1505-			●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-1507	●	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-1507	●	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-1507			●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1508-	●	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1508-	●	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE EXC. EURO5B+ SPECIFICATION(NT5) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1508-			●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1505-			●

78 125 78 78 125 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
78	03.636 CLIP; HOSE 03.162 (A)	8-97173-119-0	01	1	1505-	●	●	●
78	03.636 CLIP; HOSE 03.162 (B) ID=13	8-97329-627-0	04	1	1505-	●	●	●
125	03.630 HOSE; DPD EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.163 (E) L=150 SERVICED BY L=3000	0-01558-300-0	01	1	1505-1506	●	●
125	03.630 HOSE; DPD EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) (F)	8-98292-371-0	01	1	1507-	●	●
125	03.630 HOSE; DPD EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) (F)	8-98257-394-1	01	1	1505-1506	●	●
125	03.630 HOSE; DPD EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98323-830-0	01	1	1507-	●	●
125	03.630 HOSE; DPD EXC. EURO5B+ SPECIFICATION(NT5) (A)	8-98123-965-0	01	1	1505-	●	●	●
125	03.630 HOSE; DPD EXC. EURO5B+ SPECIFICATION(NT5) (B)	8-98242-584-0	01	1	1505-	●	●	●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98236-427-1	01	1	1505-	●	●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98236-427-1	01	1	1505-			●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98236-428-1	01	1	1505-	●	●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98236-428-1	01	1	1505-			●
