◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51613 - NLR/NMR LHD EUROPE EURO5B+,6 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#161547) — 543 parça

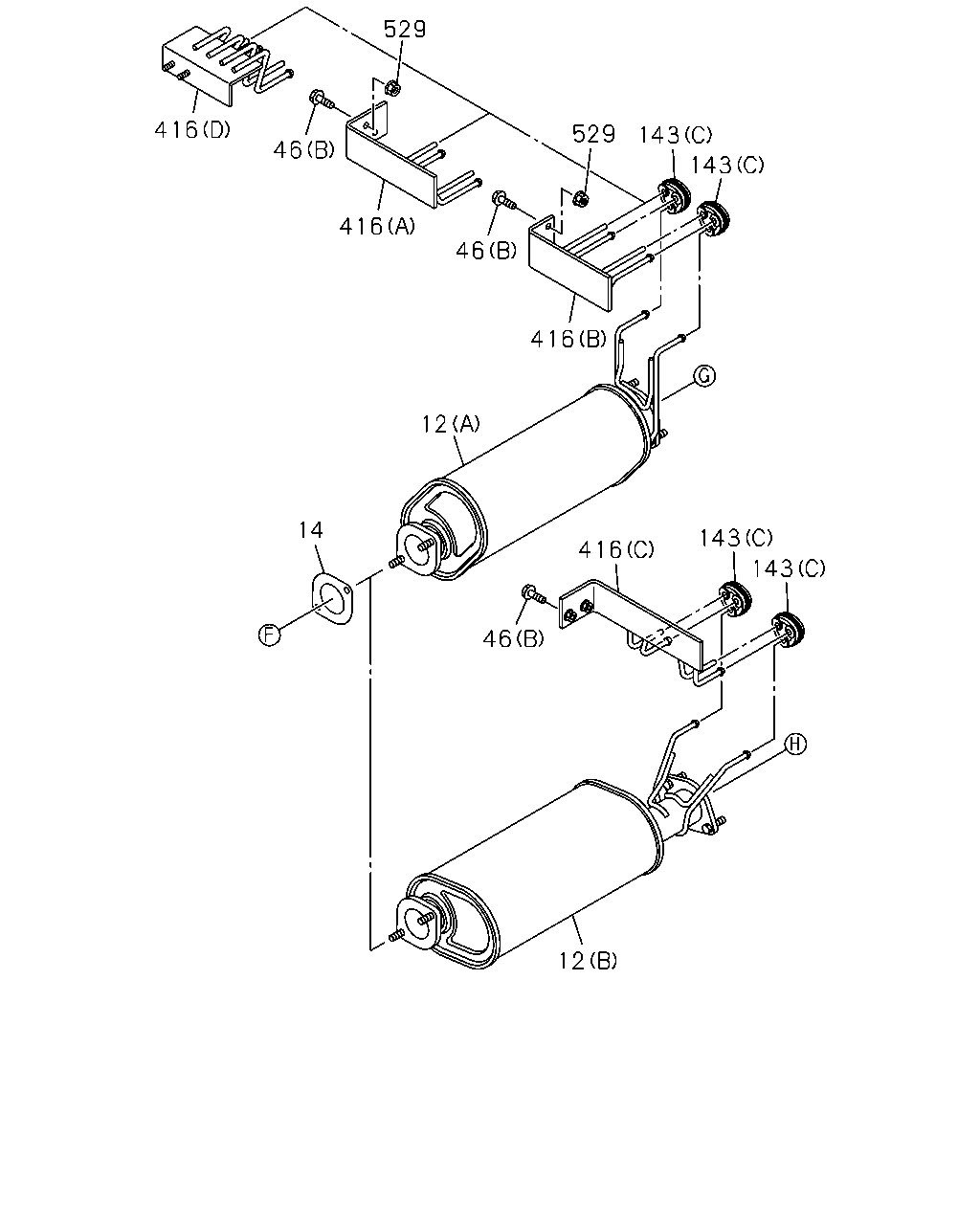

çizim 475365
143 529 529 143 416 46 416 46 416 12 14 416 46 143 143 12
BalonParca AdiParca NoAdetTipApplied Date A B C
12 03.701 SILENCER ASM; EXH
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (A) 		8-98228-994-1 01 1 1505- ● ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) (B) 		8-98273-275-0 01 1 1505- ● ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B) 		8-98228-995-1 01 1 1505- ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> EXC. SINGLE RR TIRE(6TD) 03.611 ID=81 		8-98043-481-0 01 1 1505- ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. SINGLE RR TIRE(6TD) 03.611 ID=81 		8-98043-481-0 01 1 1505- ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> 03.611 ID=65 		8-97148-757-1 01 1 1505- ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) 03.611 ID=65 		8-97148-757-1 01 1 1505- ● ● ●
46 03.704 BOLT; BRKT,EXH PIPE
02.042 (A) M10X25 FLANGE 		0-28151-025-0 02 1 1505- ● ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) 03.706 (A) 		8-97625-670-0 02 1 1505- ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) 03.706 (B) 		8-98149-202-0 02 1 1505- ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) (C) 		8-97080-694-0 02 1 1505- ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) (C) 		8-97080-694-0 03 1 1505- ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) EXC. SINGLE RR TIRE(6TD) (D) 		8-98034-767-0 01 1 1505- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (D) 		8-98034-767-0 01 1 1505- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) (D) 		8-98034-767-0 01 1 1505- ● ●
416 03.706 BRACKET; RR EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (B) 		8-98229-003-2 01 1 1505- ●
416 03.706 BRACKET; RR EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXC. SINGLE RR TIRE(6TD) (A) 		8-98229-004-2 01 1 1505- ●
416 03.706 BRACKET; RR EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (A) 		8-98229-004-2 01 1 1505- ● ●
416 03.706 BRACKET; RR EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) EXC. SINGLE RR TIRE(6TD) (D) 		8-98273-276-0 01 1 1505- ●
416 03.706 BRACKET; RR EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) (D) 		8-98273-276-0 01 1 1505- ● ●
416 03.706 BRACKET; RR EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) (C) 		8-98229-005-2 01 1 1505- ●
416 03.706 BRACKET; RR EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (C) 		8-98229-005-2 01 1 1505- ● ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505- ● ● ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505- ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505- ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505- ● ●

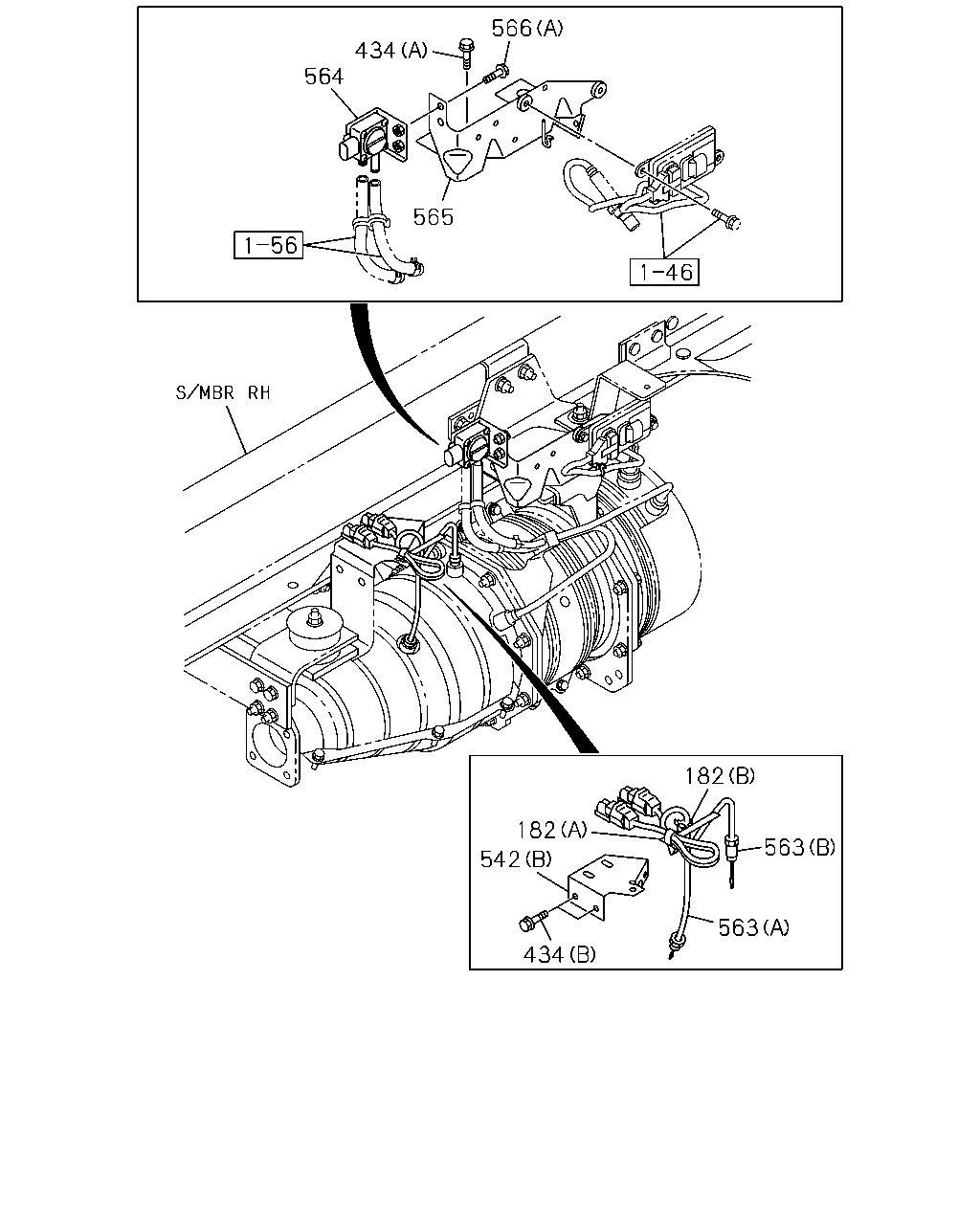

çizim 475375
563 563 434 182 182 542 565 566 434 564
BalonParca AdiParca NoAdetTipApplied Date A B C
182 03.682 CLIP; HARNESS
(B) ID=7 L=7.5 		8-97369-561-0 01 1 1505- ● ● ●
182 03.682 CLIP; HARNESS
EXC. EURO5B+ SPECIFICATION(NT5) 02.587 (A) L=112 		8-94232-618-0 01 1 1505- ● ● ●
182 03.682 CLIP; HARNESS
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C) ID=7 		8-98002-767-0 03 1 1505- ● ●
182 03.682 CLIP; HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C) ID=7 		8-98002-767-0 03 1 1505- ●
434 03.613 BOLT; BRKT
EXC. EURO5B+ SPECIFICATION(NT5) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1505- ● ● ●
434 03.613 BOLT; BRKT
EXC. EURO5B+ SPECIFICATION(NT5) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1505- ● ● ●
434 03.613 BOLT; BRKT
EURO5B+ SPECIFICATION(NT5) EXC. FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ● ●
434 03.613 BOLT; BRKT
EURO5B+ SPECIFICATION(NT5) FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ● ●
434 03.613 BOLT; BRKT
EURO5B+ SPECIFICATION(NT5) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ● ●
434 03.613 BOLT; BRKT
EXC. EURO6 SPECIFICATION(NT6) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ●
434 03.613 BOLT; BRKT
EXC. EURO6 SPECIFICATION(NT6) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (D) 		8-98150-368-2 01 1 1505- ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (A) 		8-98165-442-2 01 1 1505- ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (C) 		8-98302-358-0 01 1 1505-1505 ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (C) 		8-98205-049-1 01 1 1506- ● ● ●
542 03.704 BRACKET
EXC. EURO5B+ SPECIFICATION(NT5) (B) 		8-98242-537-0 01 1 1505- ● ● ●
542 03.704 BRACKET
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98236-437-2 01 1 1505- ● ●
542 03.704 BRACKET
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98236-437-2 01 1 1505- ●
563 01.150 SENSOR; TEMPERATURE,DPD
EXC. EURO5B+ SPECIFICATION(NT5) (A) 		8-98299-541-0 01 1 1505- ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
EXC. EURO5B+ SPECIFICATION(NT5) (B) 		8-98299-542-0 01 1 1505- ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) 03.337 (C) 		8-98031-605-1 01 1 1505- ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) 03.337 (C) 		8-98031-605-1 01 1 1505- ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98186-762-1 01 1 1505- ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98186-762-1 01 1 1505- ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98002-572-4 01 1 1505- ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98002-572-4 01 1 1505- ●
564 01.150 SENSOR; PRESSURE,DPD
EXC. EURO5B+ SPECIFICATION(NT5) 		8-97360-368-2 01 1 1505- ● ● ●
564 01.150 SENSOR; PRESSURE,DPD
EXC. EURO6 SPECIFICATION(NT6) 		8-97359-985-2 01 1 1505- ● ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
EXC. EURO5B+ SPECIFICATION(NT5) 		8-98209-756-1 01 1 1505- ● ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98029-347-0 01 1 1505- ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98029-347-0 01 1 1505- ●
566 03.706 BOLT; SENSOR
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1505- ● ● ●
566 03.706 BOLT; SENSOR
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 03 1 1505- ● ●
566 03.706 BOLT; SENSOR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 03 1 1505- ●

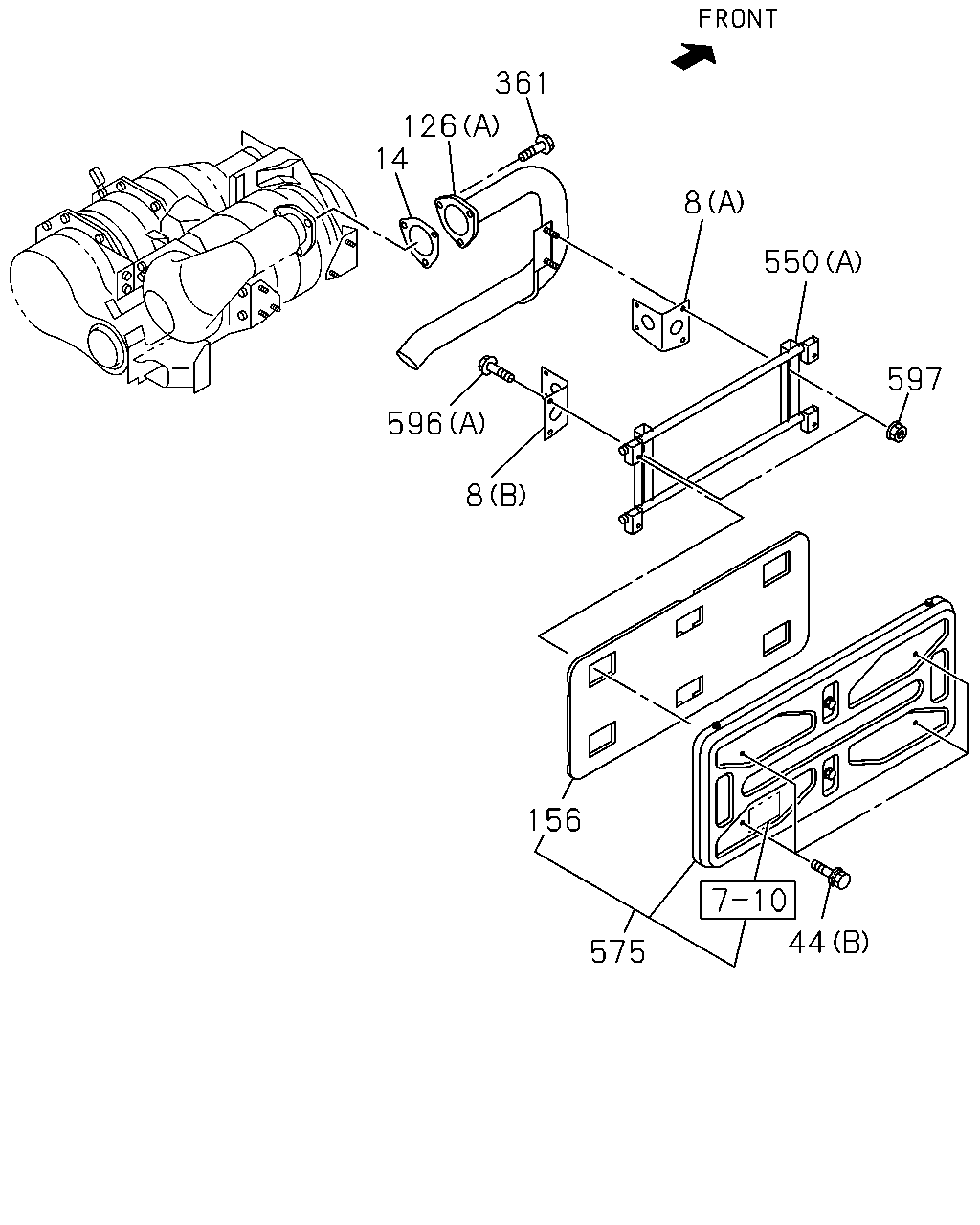

çizim 475382
361 126 14 8 550 597 596 8 156 575 44
BalonParca AdiParca NoAdetTipApplied Date A B C
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (C) 		8-98162-855-0 02 1 1505- ● ● ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (A) 		8-98225-555-0 01 1 1505- ● ● ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98225-556-0 01 1 1505- ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> EXC. SINGLE RR TIRE(6TD) 03.611 ID=81 		8-98043-481-0 01 1 1505- ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. SINGLE RR TIRE(6TD) 03.611 ID=81 		8-98043-481-0 01 1 1505- ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> 03.611 ID=65 		8-97148-757-1 01 1 1505- ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) 03.611 ID=65 		8-97148-757-1 01 1 1505- ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505- ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1505- ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ● ● ●
44 03.613 BOLT; BRKT
EXC. EURO5B+ SPECIFICATION(NT5) 09.005 (B) M8X25 W/LK&PL WASHER 		1-09980-548-0 04 1 1505- ● ●
44 03.613 BOLT; BRKT
EXC. EURO5B+ SPECIFICATION(NT5) (B) M8X25 W/LK&PL WASHER 		8-98288-750-0 04 1 1505- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> EXC. SINGLE RR TIRE(6TD) (A) 		8-98207-611-0 01 1 1505- ● ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. SINGLE RR TIRE(6TD) (A) 		8-98207-611-0 01 1 1505- ● ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> SINGLE RR TIRE(6TD) (C) 		8-98228-989-1 01 1 1505- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> EXC. SINGLE RR TIRE(6TD) (D) 		8-98228-990-1 01 1 1505- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> (D) 		8-98228-990-1 01 1 1505- ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) EXC. SINGLE RR TIRE(6TD) (B) 		8-98273-274-0 01 1 1505- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) (B) 		8-98273-274-0 01 1 1505- ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) (B) 		8-98228-991-1 01 1 1505- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B) 		8-98228-991-1 01 1 1505- ● ●
156 03.706 INSULATOR; HEAT PROTECTOR
4JJ1-TCS ENG(LFB) 		8-98148-541-1 01 1 1505- ● ● ●
361 03.704 BOLT; EXH PIPE TO PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> EXC. SINGLE RR TIRE(6TD) 09.003 M12X40 FLANGE 		0-28651-240-0 03 1 1505- ● ● ●
361 03.704 BOLT; EXH PIPE TO PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. SINGLE RR TIRE(6TD) 09.003 M12X40 FLANGE 		0-28651-240-0 03 1 1505- ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) (A) 		8-98113-038-0 01 1 1505- ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (D) 		8-98144-192-1 02 1 1505- ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (E) 		8-98144-205-0 01 1 1505- ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (C) 		8-98144-207-0 01 1 1505- ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B) 		8-98292-852-0 02 1 1505- ● ● ●
575 03.706 COVER; SIDE,DPD
4JJ1-TCS ENG(LFB) 		8-98109-502-1 01 1 1505- ● ●
575 03.706 COVER; SIDE,DPD
4JJ1-TCS ENG(LFB) CAUTION SPANISH<YN1> 		8-98317-077-0 01 1 1505- ●
575 03.706 COVER; SIDE,DPD
4JJ1-TCS ENG(LFB) EXC. CAUTION SPANISH<YN1> 		8-98317-076-0 01 1 1505- ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505- ● ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 12 1 1505- ● ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505- ● ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505- ● ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 10 1 1505- ● ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505- ● ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCC ENG(RDU) FUEL TANK 63L<6EF> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505- ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) FUEL TANK 75L<7GX> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505- ● ●

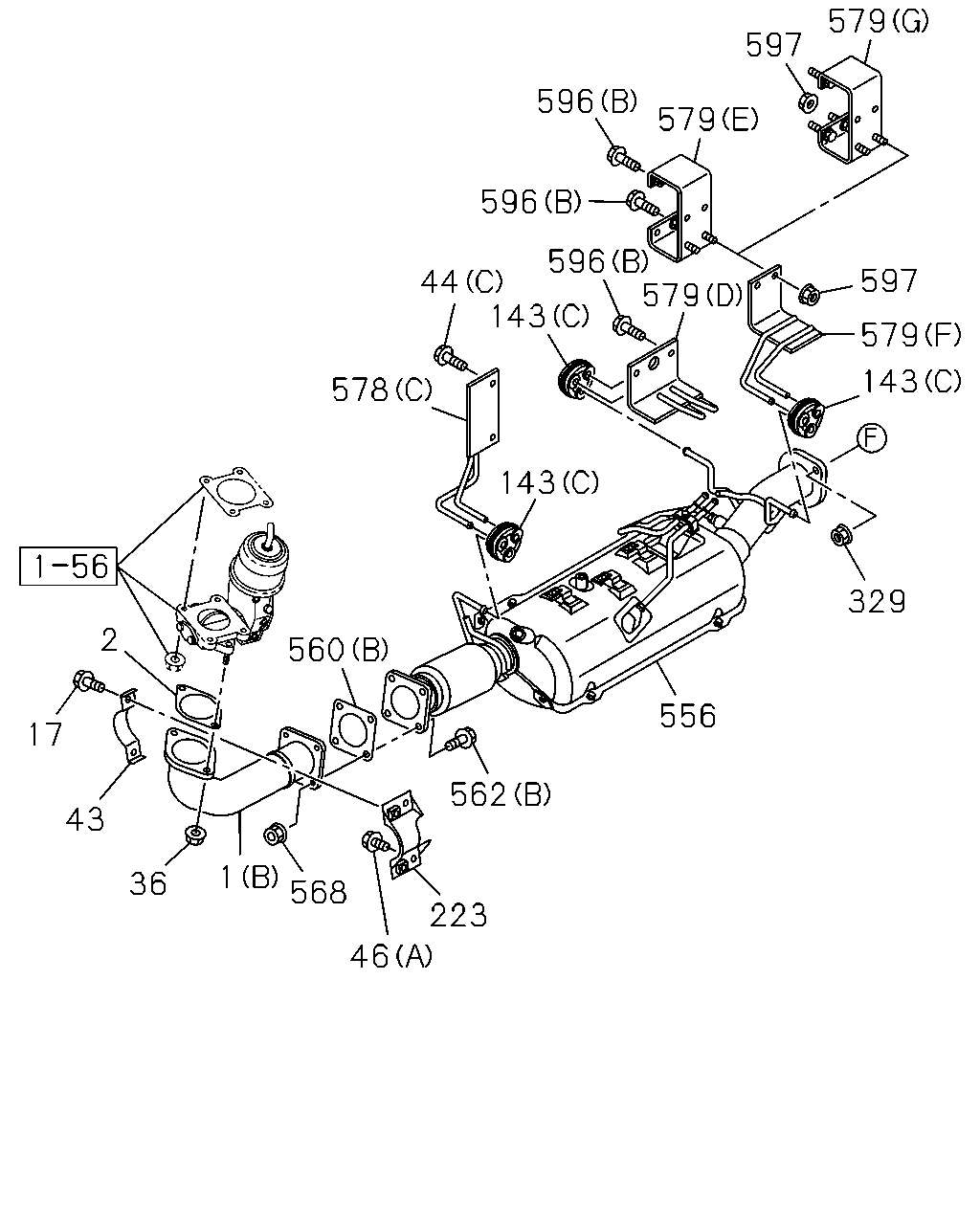

çizim 475390
579 597 579 596 596 44 578 143 596 597 579 143 329 556 143 560 562 223 46 568 1 36 43 17 2 579
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.609 PIPE; EXH
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98292-703-0 01 1 1505- ● ●
1 03.609 PIPE; EXH
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98292-704-0 01 1 1505- ● ●
1 03.609 PIPE; EXH
4JJ1-TCS ENG(LFB) (A) 		8-98231-922-0 01 1 1505- ● ● ●
1 03.609 PIPE; EXH
4JJ1-TCC ENG(RDU) (B) 		8-98228-986-1 01 1 1505- ● ● ●
2 03.611 GASKET; PIPE TO MANIF
4JJ1-TCS ENG(LFB) 		8-97384-590-0 01 1 1505- ● ● ●
2 03.611 GASKET; PIPE TO MANIF
4JJ1-TCC ENG(RDU) 		8-98228-985-0 01 1 1505- ● ● ●
17 03.613 BOLT; EXH PIPE
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1505- ● ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB) M10 FLANGE 		8-97096-192-1 03 1 1505- ● ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCC ENG(RDU) M10 FLANGE 		8-97096-192-1 02 1 1505- ● ● ●
43 03.611 CLAMP; EXH PIPE 8-97351-200-1 01 1 1505- ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505- ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1505- ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ● ● ●
44 03.613 BOLT; BRKT
EXC. EURO5B+ SPECIFICATION(NT5) 09.005 (B) M8X25 W/LK&PL WASHER 		1-09980-548-0 04 1 1505- ● ●
44 03.613 BOLT; BRKT
EXC. EURO5B+ SPECIFICATION(NT5) (B) M8X25 W/LK&PL WASHER 		8-98288-750-0 04 1 1505- ●
46 03.704 BOLT; BRKT,EXH PIPE
02.042 (A) M10X25 FLANGE 		0-28151-025-0 02 1 1505- ● ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) 03.706 (A) 		8-97625-670-0 02 1 1505- ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) 03.706 (B) 		8-98149-202-0 02 1 1505- ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) (C) 		8-97080-694-0 02 1 1505- ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) (C) 		8-97080-694-0 03 1 1505- ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) EXC. SINGLE RR TIRE(6TD) (D) 		8-98034-767-0 01 1 1505- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (D) 		8-98034-767-0 01 1 1505- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) (D) 		8-98034-767-0 01 1 1505- ● ●
223 03.706 BRACKET; EXH PIPE
03.613 		8-98026-063-0 01 1 1505- ● ● ●
329 03.613 NUT; EXH PIPE TO PIPE
4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505- ● ● ●
556 03.701 DPD ASM
4JJ1-TCC ENG(RDU) 		8-98227-899-3 01 1 1505- ● ● ●
560 03.611 GASKET; DPD
(B) ID=64 		8-97373-108-0 01 1 1505- ● ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (A) 		8-97331-947-0 01 1 1505- ● ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (B) M8X35 FLANGE 		0-28050-835-0 04 1 1505- ● ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCC ENG(RDU) 03.162 (B) M8X35 FLANGE 		0-28050-835-0 04 1 1505- ● ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97373-966-0 02 1 1505- ● ● ●
568 03.704 NUT; DPD
01.062 M8 FLANGE 		0-91180-108-0 04 1 1505- ● ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B) 		8-98113-032-1 01 1 1505- ● ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A) 		8-98207-614-0 01 1 1505- ● ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (C) 		8-98228-997-1 01 1 1505- ● ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) (A) 		8-98144-195-2 01 1 1505- ● ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) (B) 		8-98144-196-0 01 1 1505- ● ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) (C) 		8-98144-198-0 01 1 1505- ● ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) FUEL TANK 63L<6EF> (G) 		8-98232-080-2 01 1 1505- ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) FUEL TANK 75L<7GX> (G) 		8-98232-080-2 01 1 1505- ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) (F) 		8-98228-999-1 01 1 1505- ● ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) (D) 		8-98229-000-1 01 1 1505- ● ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> (E) 		8-98232-084-1 01 1 1505- ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (E) 		8-98232-084-1 01 1 1505- ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505- ● ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 12 1 1505- ● ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505- ● ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505- ● ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 10 1 1505- ● ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505- ● ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCC ENG(RDU) FUEL TANK 63L<6EF> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505- ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) FUEL TANK 75L<7GX> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505- ● ●

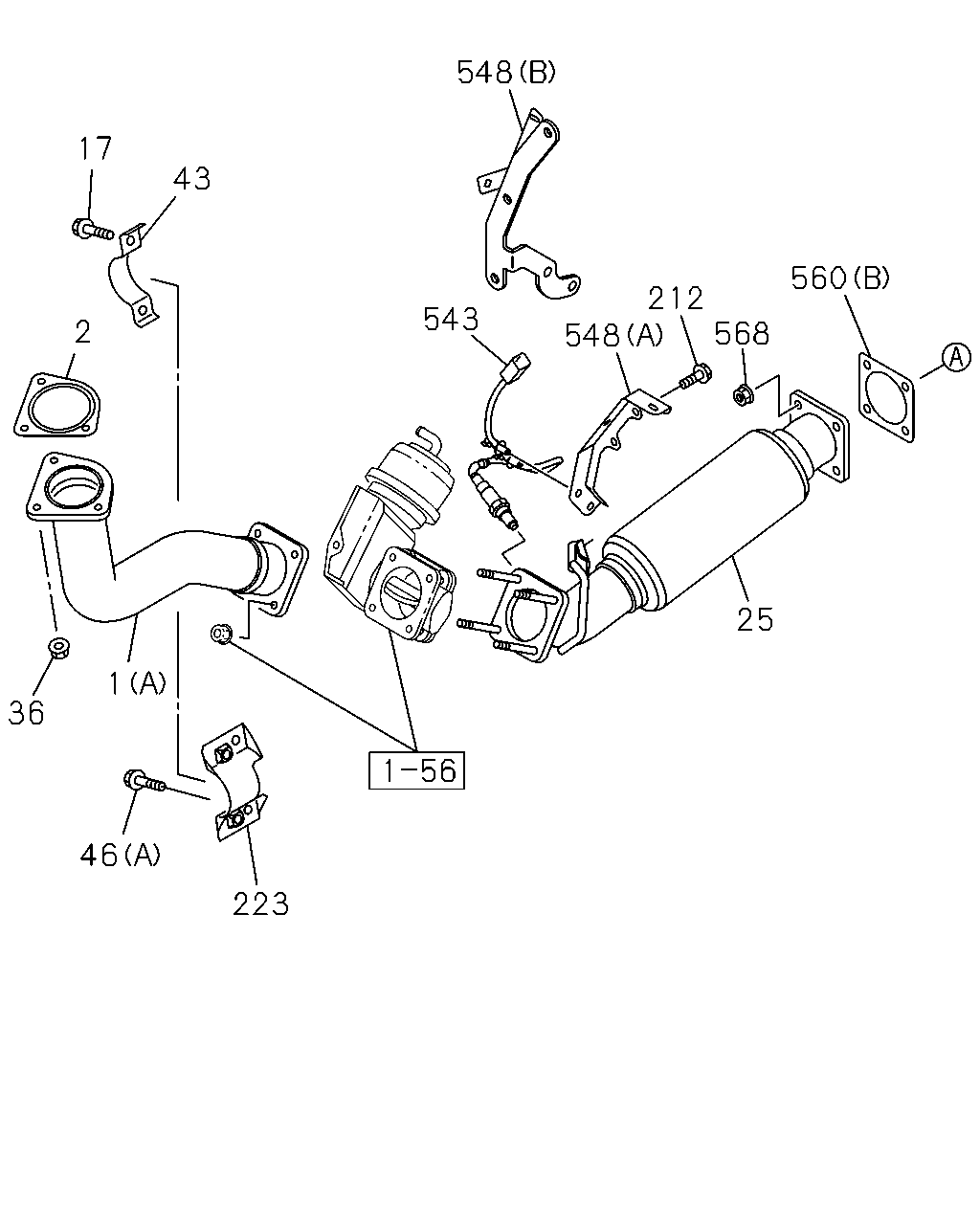

çizim 475401
560 212 25 568 548 543 548 1 223 46 36 2 17 43
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.609 PIPE; EXH
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98292-703-0 01 1 1505- ● ●
1 03.609 PIPE; EXH
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98292-704-0 01 1 1505- ● ●
1 03.609 PIPE; EXH
4JJ1-TCS ENG(LFB) (A) 		8-98231-922-0 01 1 1505- ● ● ●
1 03.609 PIPE; EXH
4JJ1-TCC ENG(RDU) (B) 		8-98228-986-1 01 1 1505- ● ● ●
2 03.611 GASKET; PIPE TO MANIF
4JJ1-TCS ENG(LFB) 		8-97384-590-0 01 1 1505- ● ● ●
2 03.611 GASKET; PIPE TO MANIF
4JJ1-TCC ENG(RDU) 		8-98228-985-0 01 1 1505- ● ● ●
17 03.613 BOLT; EXH PIPE
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1505- ● ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4JJ1-TCS ENG(LFB) 		8-98231-923-0 01 1 1505- ● ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB) M10 FLANGE 		8-97096-192-1 03 1 1505- ● ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCC ENG(RDU) M10 FLANGE 		8-97096-192-1 02 1 1505- ● ● ●
43 03.611 CLAMP; EXH PIPE 8-97351-200-1 01 1 1505- ● ● ●
46 03.704 BOLT; BRKT,EXH PIPE
02.042 (A) M10X25 FLANGE 		0-28151-025-0 02 1 1505- ● ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ● ●
212 03.704 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1505- ● ●
212 03.704 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1505- ●
212 03.704 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.206 M8X70 FLANGE 		0-28050-870-0 01 1 1505- ● ●
212 03.704 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.206 M8X70 FLANGE 		0-28050-870-0 01 1 1505- ●
223 03.706 BRACKET; EXH PIPE
03.613 		8-98026-063-0 01 1 1505- ● ● ●
543 01.150 SENSOR; O2
EXC. EURO5B+ SPECIFICATION(NT5) 		8-98088-472-1 01 1 1505- ● ● ●
548 03.706 BRACKET; O2 SENSOR
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98224-055-1 01 1 1505- ● ●
548 03.706 BRACKET; O2 SENSOR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98224-055-1 01 1 1505- ●
548 03.706 BRACKET; O2 SENSOR
CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) (B) 		8-98224-056-1 01 1 1505- ● ● ●
560 03.611 GASKET; DPD
(B) ID=64 		8-97373-108-0 01 1 1505- ● ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (A) 		8-97331-947-0 01 1 1505- ● ● ●
568 03.704 NUT; DPD
01.062 M8 FLANGE 		0-91180-108-0 04 1 1505- ● ● ●
çizim 475404
556 589 159 534 547 547 561 558 561 589
BalonParca AdiParca NoAdetTipApplied Date A B C
159 03.690 BOLT; HEAT PROTECTOR
4JJ1-TCS ENG(LFB) 03.685 M6X16 		8-98019-179-0 10 1 1505- ● ● ●
159 03.690 BOLT; HEAT PROTECTOR
4JJ1-TCC ENG(RDU) 		8-98242-133-0 06 1 1505- ● ● ●
534 03.704 BOLT; CLIP
4JJ1-TCS ENG(LFB) 01.531 M6X30 FLANGE 		0-28050-630-0 01 1 1505- ● ● ●
534 03.704 BOLT; CLIP
4JJ1-TCC ENG(RDU) 		8-98242-134-0 01 1 1505- ● ● ●
547 03.682 CLIP; PIPE
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-97381-635-0 02 1 1505- ● ●
547 03.682 CLIP; PIPE
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-97381-636-0 02 1 1505- ● ●
547 03.682 CLIP; PIPE
4JJ1-TCS ENG(LFB) (A) 		8-97381-635-0 01 1 1505- ● ● ●
547 03.682 CLIP; PIPE
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-97381-635-0 01 1 1505- ● ● ●
547 03.682 CLIP; PIPE
4JJ1-TCS ENG(LFB) (B) 		8-97381-636-0 01 1 1505- ● ● ●
547 03.682 CLIP; PIPE
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-97381-636-0 01 1 1505- ● ● ●
556 03.701 DPD ASM
4JJ1-TCC ENG(RDU) 		8-98227-899-3 01 1 1505- ● ● ●
558 03.634 FILTER ASM
4JJ1-TCS ENG(LFB) 		8-98205-061-0 01 1 1505- ● ● ●
558 03.634 FILTER ASM
4JJ1-TCC ENG(RDU) 		8-98233-618-1 01 1 1505- ● ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (A) 		8-98127-334-0 01 1 1505- ● ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (B) 		8-98127-335-0 01 1 1505- ● ● ●
561 03.609 PIPE; DPD
4JJ1-TCC ENG(RDU) (C) 		8-98233-520-1 01 1 1505- ● ● ●
561 03.609 PIPE; DPD
4JJ1-TCC ENG(RDU) (D) 		8-98233-521-1 01 1 1505- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (A) 		8-97383-660-0 01 1 1505- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (B) 		8-98032-921-0 01 1 1505- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (C) 		8-98032-923-0 01 1 1505- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (D) 		8-98032-924-0 01 1 1505- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCC ENG(RDU) (E) 		8-98233-517-1 01 1 1505- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCC ENG(RDU) (F) 		8-98233-518-0 01 1 1505- ● ● ●
çizim 475411
104 95 137 167 126 38 97 125 94 143 137 144 81 70 38 126 97 125 95 137 104 95 167 144 137 70 81 84 143 94
BalonParca AdiParca NoAdetTipApplied Date A B C
38 00.002 NUT; SILENCER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505- ● ● ●
38 00.002 NUT; SILENCER
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505- ● ● ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) EXC. SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1505- ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1505- ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1505- ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1508 ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1508 ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1508 ● ●
81 03.704 NUT; BRKT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCC ENG(RDU) ID=65 		8-97148-757-1 01 1 1505- ● ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) ID=65 		8-97148-757-1 01 1 1505- ● ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) EXC. SINGLE RR TIRE(6TD) 03.023 M10X50 FLANGE 		8-97301-165-0 01 1 1505- ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 03.023 M10X50 FLANGE 		8-97301-165-0 01 1 1505- ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) 03.023 M10X50 FLANGE 		8-97301-165-0 01 1 1505- ● ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) EXC. SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1505- ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1505- ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1505- ● ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) EXC. SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1505- ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1505- ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1505- ● ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505- ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505- ● ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505- ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) EXC. SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 01 1 1505- ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 01 1 1505- ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) 00.833 M10 		0-91110-510-0 01 1 1505- ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> EXC. SINGLE RR TIRE(6TD) (A) 		8-98207-611-0 01 1 1505- ● ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. SINGLE RR TIRE(6TD) (A) 		8-98207-611-0 01 1 1505- ● ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> SINGLE RR TIRE(6TD) (C) 		8-98228-989-1 01 1 1505- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> EXC. SINGLE RR TIRE(6TD) (D) 		8-98228-990-1 01 1 1505- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> (D) 		8-98228-990-1 01 1 1505- ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) EXC. SINGLE RR TIRE(6TD) (B) 		8-98273-274-0 01 1 1505- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) (B) 		8-98273-274-0 01 1 1505- ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) (B) 		8-98228-991-1 01 1 1505- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B) 		8-98228-991-1 01 1 1505- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (C) 		8-98001-893-1 01 1 1505- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (D) 		8-98229-008-1 01 1 1505- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXC. SINGLE RR TIRE(6TD) (E) 		8-98001-895-1 01 1 1505- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (E) 		8-98001-895-1 01 1 1505- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXC. SINGLE RR TIRE(6TD) (F) 		8-98229-009-1 01 1 1505- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (F) 		8-98229-009-1 01 1 1505- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) (A) 		8-98001-897-1 01 1 1505- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A) 		8-98001-897-1 01 1 1505- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) (B) 		8-98229-010-1 01 1 1505- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B) 		8-98229-010-1 01 1 1505- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) 03.706 (A) 		8-97625-670-0 02 1 1505- ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) 03.706 (B) 		8-98149-202-0 02 1 1505- ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) (C) 		8-97080-694-0 02 1 1505- ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) (C) 		8-97080-694-0 03 1 1505- ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) EXC. SINGLE RR TIRE(6TD) (D) 		8-98034-767-0 01 1 1505- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (D) 		8-98034-767-0 01 1 1505- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) (D) 		8-98034-767-0 01 1 1505- ● ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) EXC. SINGLE RR TIRE(6TD) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1505- ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1505- ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1505- ● ●
167 03.706 HANGER; EXH PIPE
4JJ1-TCC ENG(RDU) EXC. SINGLE RR TIRE(6TD) 03.704 		8-97080-694-0 01 1 1505- ●
167 03.706 HANGER; EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 03.704 		8-97080-694-0 01 1 1505- ●
167 03.706 HANGER; EXH PIPE
4JJ1-TCC ENG(RDU) 03.704 		8-97080-694-0 01 1 1505- ● ●
çizim 475417
125 126 97 81 144 137 38 84 363 84 554 70 143 94 95 104 137 167
BalonParca AdiParca NoAdetTipApplied Date A B C
38 00.002 NUT; SILENCER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505- ● ● ●
38 00.002 NUT; SILENCER
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505- ● ● ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) EXC. SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1505- ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1505- ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1505- ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1508 ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1508 ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1508 ● ●
81 03.704 NUT; BRKT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCC ENG(RDU) ID=65 		8-97148-757-1 01 1 1505- ● ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) ID=65 		8-97148-757-1 01 1 1505- ● ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) EXC. SINGLE RR TIRE(6TD) 03.023 M10X50 FLANGE 		8-97301-165-0 01 1 1505- ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 03.023 M10X50 FLANGE 		8-97301-165-0 01 1 1505- ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) 03.023 M10X50 FLANGE 		8-97301-165-0 01 1 1505- ● ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) EXC. SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1505- ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1505- ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1505- ● ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) EXC. SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1505- ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1505- ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1505- ● ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505- ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505- ● ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505- ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) EXC. SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 01 1 1505- ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 01 1 1505- ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) 00.833 M10 		0-91110-510-0 01 1 1505- ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> EXC. SINGLE RR TIRE(6TD) (A) 		8-98207-611-0 01 1 1505- ● ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. SINGLE RR TIRE(6TD) (A) 		8-98207-611-0 01 1 1505- ● ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> SINGLE RR TIRE(6TD) (C) 		8-98228-989-1 01 1 1505- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> EXC. SINGLE RR TIRE(6TD) (D) 		8-98228-990-1 01 1 1505- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> (D) 		8-98228-990-1 01 1 1505- ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) EXC. SINGLE RR TIRE(6TD) (B) 		8-98273-274-0 01 1 1505- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) (B) 		8-98273-274-0 01 1 1505- ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) (B) 		8-98228-991-1 01 1 1505- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B) 		8-98228-991-1 01 1 1505- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (C) 		8-98001-893-1 01 1 1505- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (D) 		8-98229-008-1 01 1 1505- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXC. SINGLE RR TIRE(6TD) (E) 		8-98001-895-1 01 1 1505- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (E) 		8-98001-895-1 01 1 1505- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXC. SINGLE RR TIRE(6TD) (F) 		8-98229-009-1 01 1 1505- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (F) 		8-98229-009-1 01 1 1505- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) (A) 		8-98001-897-1 01 1 1505- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A) 		8-98001-897-1 01 1 1505- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) (B) 		8-98229-010-1 01 1 1505- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B) 		8-98229-010-1 01 1 1505- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) 03.706 (A) 		8-97625-670-0 02 1 1505- ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) 03.706 (B) 		8-98149-202-0 02 1 1505- ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) (C) 		8-97080-694-0 02 1 1505- ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) (C) 		8-97080-694-0 03 1 1505- ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) EXC. SINGLE RR TIRE(6TD) (D) 		8-98034-767-0 01 1 1505- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (D) 		8-98034-767-0 01 1 1505- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) (D) 		8-98034-767-0 01 1 1505- ● ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) EXC. SINGLE RR TIRE(6TD) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1505- ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1505- ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1505- ● ●
167 03.706 HANGER; EXH PIPE
4JJ1-TCC ENG(RDU) EXC. SINGLE RR TIRE(6TD) 03.704 		8-97080-694-0 01 1 1505- ●
167 03.706 HANGER; EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 03.704 		8-97080-694-0 01 1 1505- ●
167 03.706 HANGER; EXH PIPE
4JJ1-TCC ENG(RDU) 03.704 		8-97080-694-0 01 1 1505- ● ●
363 03.704 NUT; EXH PIPE TO PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505- ● ● ●
554 03.705 PIPE; EXH,SILENCER
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 		8-98228-987-1 01 1 1505- ● ● ●

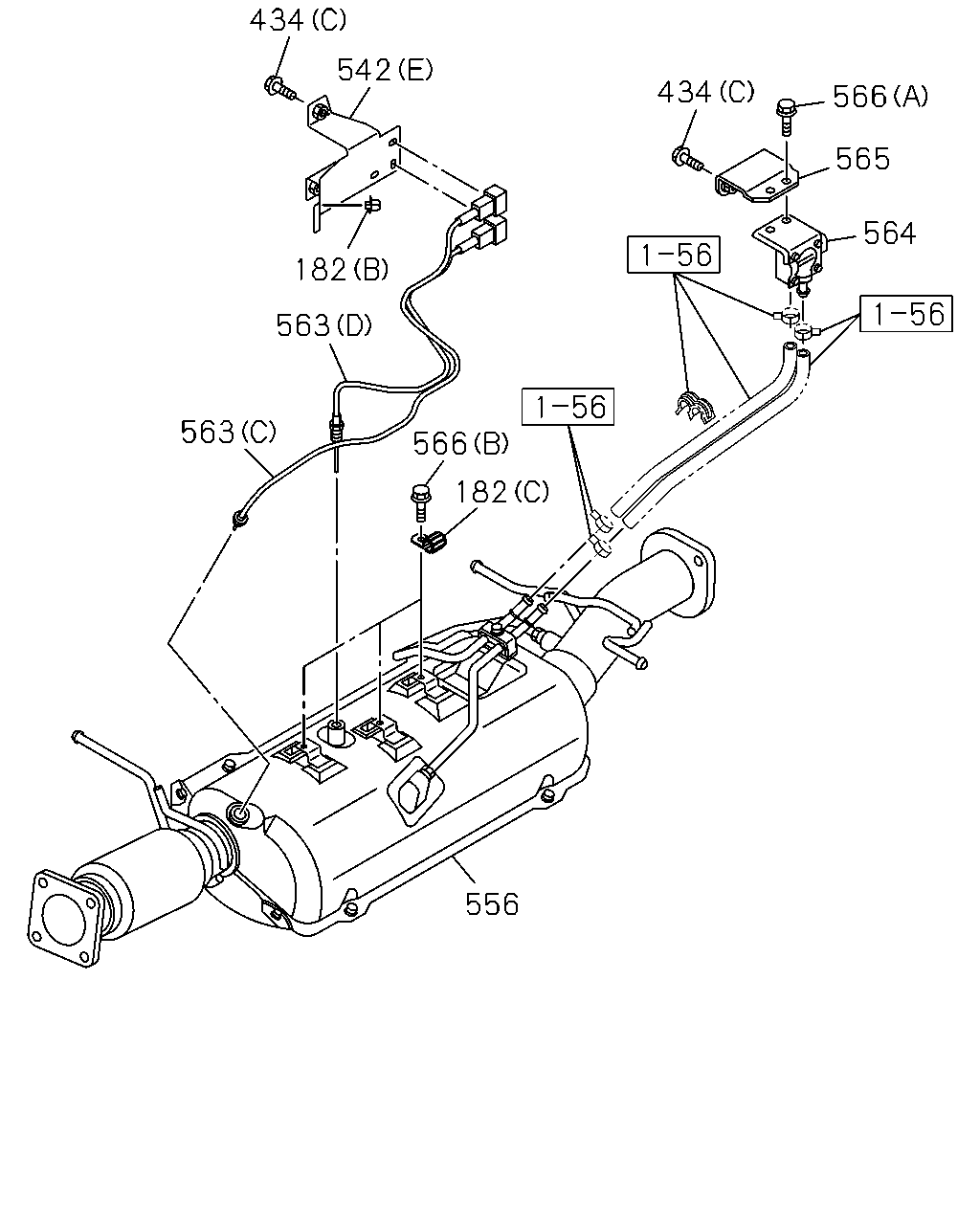

çizim 475454
566 565 434 564 434 182 542 563 563 566 182 556
BalonParca AdiParca NoAdetTipApplied Date A B C
182 03.682 CLIP; HARNESS
(B) ID=7 L=7.5 		8-97369-561-0 01 1 1505- ● ● ●
182 03.682 CLIP; HARNESS
EXC. EURO5B+ SPECIFICATION(NT5) 02.587 (A) L=112 		8-94232-618-0 01 1 1505- ● ● ●
182 03.682 CLIP; HARNESS
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C) ID=7 		8-98002-767-0 03 1 1505- ● ●
182 03.682 CLIP; HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C) ID=7 		8-98002-767-0 03 1 1505- ●
434 03.613 BOLT; BRKT
EXC. EURO5B+ SPECIFICATION(NT5) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1505- ● ● ●
434 03.613 BOLT; BRKT
EXC. EURO5B+ SPECIFICATION(NT5) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1505- ● ● ●
434 03.613 BOLT; BRKT
EURO5B+ SPECIFICATION(NT5) EXC. FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ● ●
434 03.613 BOLT; BRKT
EURO5B+ SPECIFICATION(NT5) FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> CATALYSIS CONTROL WITH DPD(8JM) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ● ●
434 03.613 BOLT; BRKT
EURO5B+ SPECIFICATION(NT5) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ● ●
434 03.613 BOLT; BRKT
EXC. EURO6 SPECIFICATION(NT6) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ●
434 03.613 BOLT; BRKT
EXC. EURO6 SPECIFICATION(NT6) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (D) 		8-98150-368-2 01 1 1505- ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (A) 		8-98165-442-2 01 1 1505- ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (C) 		8-98302-358-0 01 1 1505-1505 ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (C) 		8-98205-049-1 01 1 1506- ● ● ●
542 03.704 BRACKET
EXC. EURO5B+ SPECIFICATION(NT5) (B) 		8-98242-537-0 01 1 1505- ● ● ●
542 03.704 BRACKET
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98236-437-2 01 1 1505- ● ●
542 03.704 BRACKET
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98236-437-2 01 1 1505- ●
556 03.701 DPD ASM
4JJ1-TCC ENG(RDU) 		8-98227-899-3 01 1 1505- ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
EXC. EURO5B+ SPECIFICATION(NT5) (A) 		8-98299-541-0 01 1 1505- ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
EXC. EURO5B+ SPECIFICATION(NT5) (B) 		8-98299-542-0 01 1 1505- ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) 03.337 (C) 		8-98031-605-1 01 1 1505- ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) 03.337 (C) 		8-98031-605-1 01 1 1505- ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98186-762-1 01 1 1505- ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98186-762-1 01 1 1505- ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98002-572-4 01 1 1505- ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98002-572-4 01 1 1505- ●
564 01.150 SENSOR; PRESSURE,DPD
EXC. EURO5B+ SPECIFICATION(NT5) 		8-97360-368-2 01 1 1505- ● ● ●
564 01.150 SENSOR; PRESSURE,DPD
EXC. EURO6 SPECIFICATION(NT6) 		8-97359-985-2 01 1 1505- ● ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
EXC. EURO5B+ SPECIFICATION(NT5) 		8-98209-756-1 01 1 1505- ● ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98029-347-0 01 1 1505- ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98029-347-0 01 1 1505- ●
566 03.706 BOLT; SENSOR
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1505- ● ● ●
566 03.706 BOLT; SENSOR
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 03 1 1505- ● ●
566 03.706 BOLT; SENSOR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 03 1 1505- ●

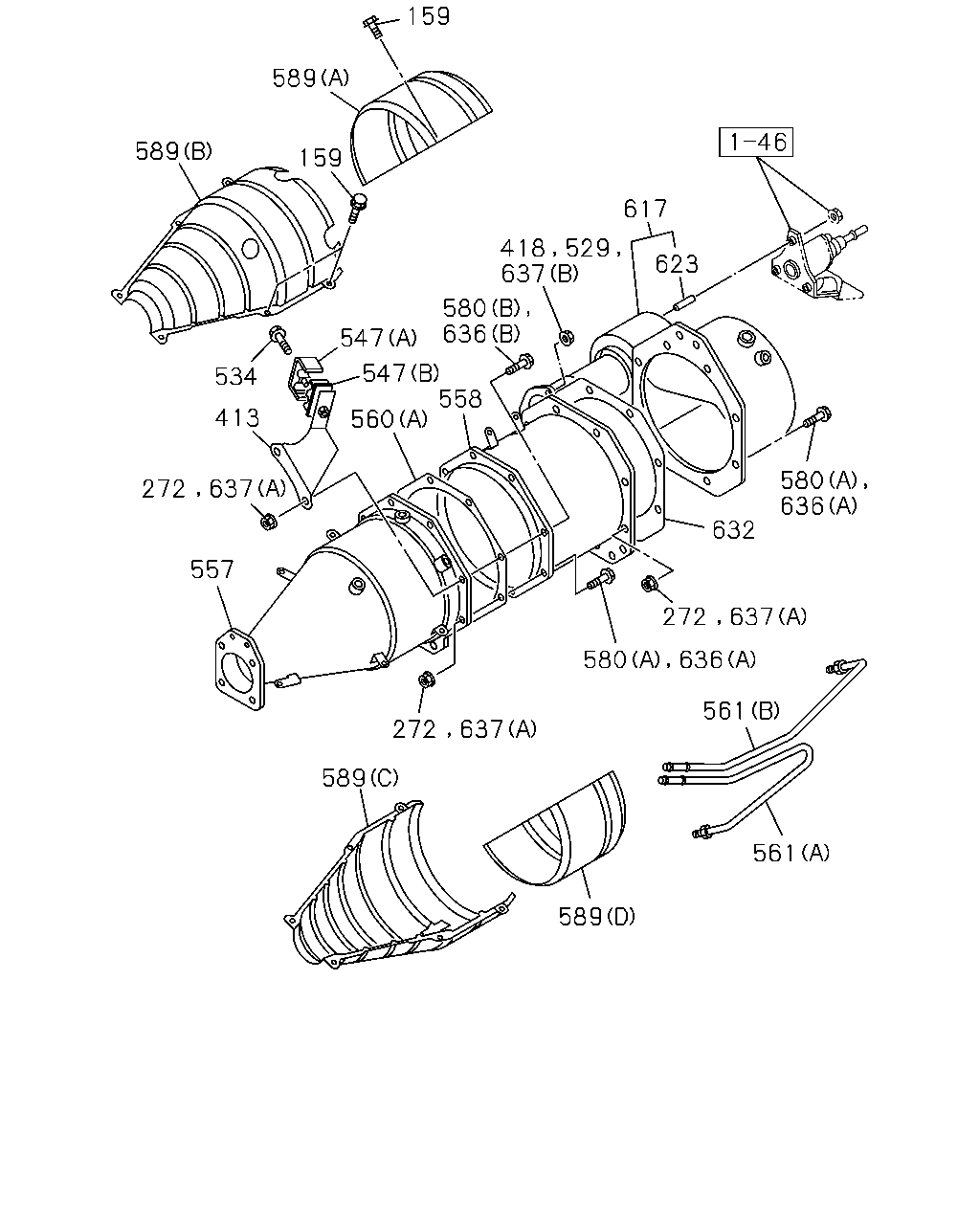

çizim 476082
561 589 637 272 589 580 561 636 272 632 637 636 580 623 617 529 637 418 580 547 636 547 560 413 534 637 272 557 159 589 589 159 558
BalonParca AdiParca NoAdetTipApplied Date A B C
159 03.690 BOLT; HEAT PROTECTOR
4JJ1-TCS ENG(LFB) 03.685 M6X16 		8-98019-179-0 10 1 1505- ● ● ●
159 03.690 BOLT; HEAT PROTECTOR
4JJ1-TCC ENG(RDU) 		8-98242-133-0 06 1 1505- ● ● ●
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE 		0-91180-108-0 16 1 1505- ● ● ●
413 03.613 BRACKET; EXH PIPE,CONN
4JJ1-TCS ENG(LFB) 		8-98127-336-0 01 1 1505- ● ● ●
418 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 10 1 1505- ● ● ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505- ● ● ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505- ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505- ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505- ● ●
534 03.704 BOLT; CLIP
4JJ1-TCS ENG(LFB) 01.531 M6X30 FLANGE 		0-28050-630-0 01 1 1505- ● ● ●
534 03.704 BOLT; CLIP
4JJ1-TCC ENG(RDU) 		8-98242-134-0 01 1 1505- ● ● ●
547 03.682 CLIP; PIPE
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-97381-635-0 02 1 1505- ● ●
547 03.682 CLIP; PIPE
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-97381-636-0 02 1 1505- ● ●
547 03.682 CLIP; PIPE
4JJ1-TCS ENG(LFB) (A) 		8-97381-635-0 01 1 1505- ● ● ●
547 03.682 CLIP; PIPE
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-97381-635-0 01 1 1505- ● ● ●
547 03.682 CLIP; PIPE
4JJ1-TCS ENG(LFB) (B) 		8-97381-636-0 01 1 1505- ● ● ●
547 03.682 CLIP; PIPE
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-97381-636-0 01 1 1505- ● ● ●
557 03.701 CATALYST ASM
4JJ1-TCS ENG(LFB) 		8-98205-059-1 01 1 1505- ● ● ●
558 03.634 FILTER ASM
4JJ1-TCS ENG(LFB) 		8-98205-061-0 01 1 1505- ● ● ●
558 03.634 FILTER ASM
4JJ1-TCC ENG(RDU) 		8-98233-618-1 01 1 1505- ● ● ●
560 03.611 GASKET; DPD
(B) ID=64 		8-97373-108-0 01 1 1505- ● ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (A) 		8-97331-947-0 01 1 1505- ● ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (A) 		8-98127-334-0 01 1 1505- ● ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (B) 		8-98127-335-0 01 1 1505- ● ● ●
561 03.609 PIPE; DPD
4JJ1-TCC ENG(RDU) (C) 		8-98233-520-1 01 1 1505- ● ● ●
561 03.609 PIPE; DPD
4JJ1-TCC ENG(RDU) (D) 		8-98233-521-1 01 1 1505- ● ● ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 10 1 1505- ● ● ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1505- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (A) 		8-97383-660-0 01 1 1505- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (B) 		8-98032-921-0 01 1 1505- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (C) 		8-98032-923-0 01 1 1505- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (D) 		8-98032-924-0 01 1 1505- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCC ENG(RDU) (E) 		8-98233-517-1 01 1 1505- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCC ENG(RDU) (F) 		8-98233-518-0 01 1 1505- ● ● ●
617 03.440 CHAMBER SUB ASM; MIXER
4JJ1-TCS ENG(LFB) 		8-98204-729-0 01 1 1505- ● ● ●
623 03.704 STUD; FLANGE
4JJ1-TCS ENG(LFB) M6 		8-98141-351-0 03 1 1505- ● ● ●
632 03.611 GASKET; FILTER,DEF
4JJ1-TCS ENG(LFB) 		8-97628-257-0 03 1 1505- ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1505- ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1505- ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 00.685 (C) M10X40 FLANGE 		0-28051-040-0 03 1 1505- ● ● ●
637 00.010 NUT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1505- ● ● ●
637 00.010 NUT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE 		0-91180-110-0 03 1 1505- ● ● ●

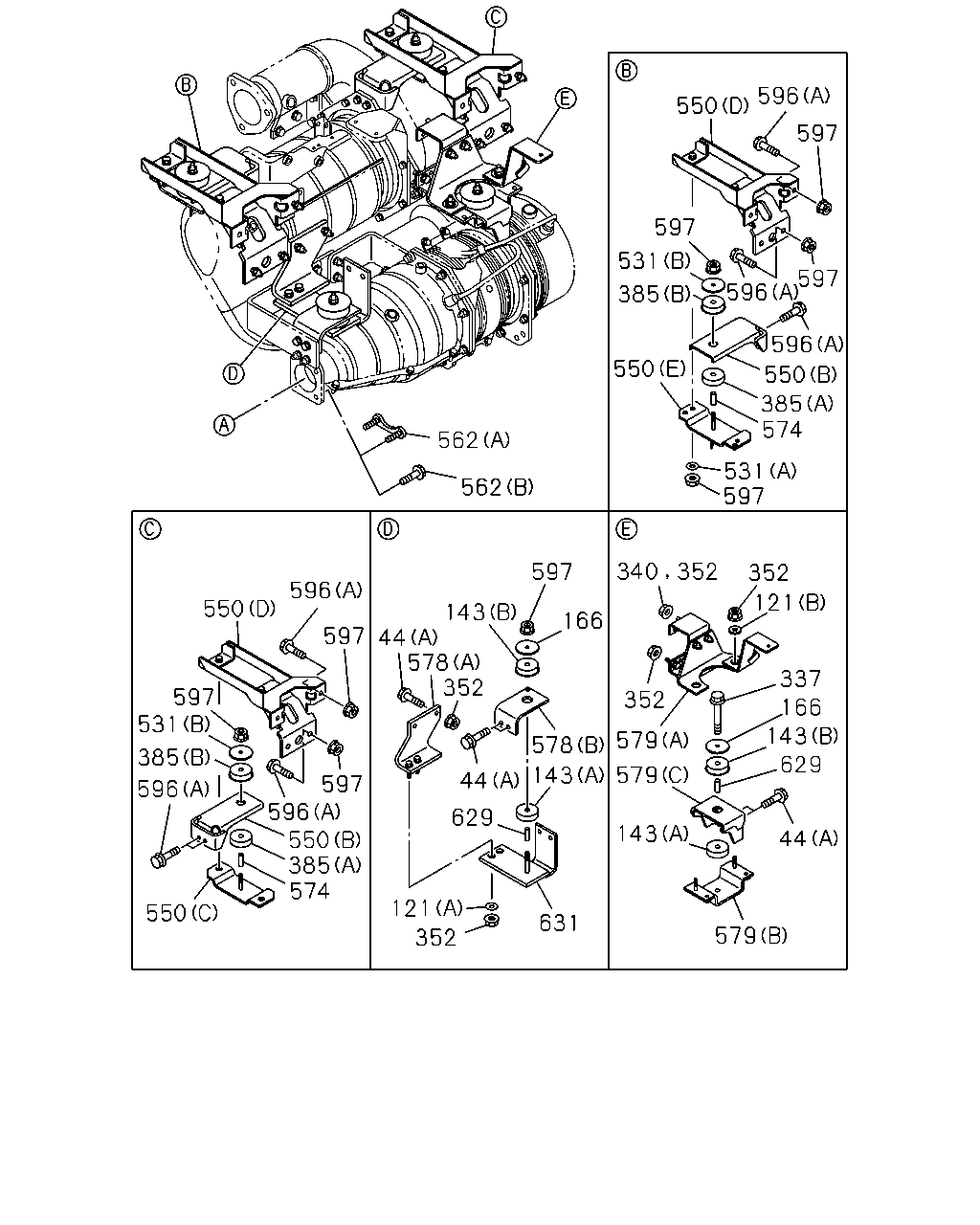

çizim 476537
579 44 629 337 166 143 121 352 352 340 352 579 579 143 143 578 166 597 143 578 44 44 352 629 121 631 352 574 550 385 596 550 597 597 596 550 597 531 385 596 597 574 385 550 596 597 596 385 550 531 597 550 596 597 562 562 531
BalonParca AdiParca NoAdetTipApplied Date A B C
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505- ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1505- ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ● ● ●
44 03.613 BOLT; BRKT
EXC. EURO5B+ SPECIFICATION(NT5) 09.005 (B) M8X25 W/LK&PL WASHER 		1-09980-548-0 04 1 1505- ● ●
44 03.613 BOLT; BRKT
EXC. EURO5B+ SPECIFICATION(NT5) (B) M8X25 W/LK&PL WASHER 		8-98288-750-0 04 1 1505- ●
121 03.704 WASHER; PL,BRKT
4JJ1-TCS ENG(LFB) (B) ID=10.5 		8-98073-091-0 02 1 1505- ● ● ●
121 03.704 WASHER; PL,BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 09.008 (A) ID=12.5 		1-09503-171-0 02 1 1505- ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) 03.706 (A) 		8-97625-670-0 02 1 1505- ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) 03.706 (B) 		8-98149-202-0 02 1 1505- ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) (C) 		8-97080-694-0 02 1 1505- ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) (C) 		8-97080-694-0 03 1 1505- ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) EXC. SINGLE RR TIRE(6TD) (D) 		8-98034-767-0 01 1 1505- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (D) 		8-98034-767-0 01 1 1505- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) (D) 		8-98034-767-0 01 1 1505- ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4JJ1-TCS ENG(LFB) ID=10.5 OD=70 		8-97625-671-0 02 1 1505- ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
4JJ1-TCS ENG(LFB) M10X70 FLANGE 		0-28051-070-0 01 1 1505- ● ● ●
340 03.706 NUT; RUBBER,SUPPORT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505- ● ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1508 ● ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1508 ● ● ●
352 03.613 NUT; BRKT
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1508 ● ● ●
352 03.613 NUT; BRKT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1508 ● ● ●
352 03.613 NUT; BRKT
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1508 ● ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ● ●
352 03.613 NUT; BRKT
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ● ●
352 03.613 NUT; BRKT
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505-1508 ● ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1509- ● ● ●
352 03.613 NUT; BRKT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1509- ● ● ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.706 (A) 		8-97625-670-0 02 1 1505- ● ● ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.706 (B) 		8-98149-202-0 02 1 1505- ● ● ●
531 03.704 WASHER; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 09.008 (A) ID=12.5 		1-09503-171-0 02 1 1505- ● ● ●
531 03.704 WASHER; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.706 (B) ID=10.5 OD=70 		8-97625-671-0 02 1 1505- ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) (A) 		8-98113-038-0 01 1 1505- ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (D) 		8-98144-192-1 02 1 1505- ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (E) 		8-98144-205-0 01 1 1505- ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (C) 		8-98144-207-0 01 1 1505- ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B) 		8-98292-852-0 02 1 1505- ● ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (B) M8X35 FLANGE 		0-28050-835-0 04 1 1505- ● ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCC ENG(RDU) 03.162 (B) M8X35 FLANGE 		0-28050-835-0 04 1 1505- ● ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97373-966-0 02 1 1505- ● ● ●
574 03.706 SPACER; DPD
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) L=39 		8-98060-852-0 02 1 1505- ● ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B) 		8-98113-032-1 01 1 1505- ● ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A) 		8-98207-614-0 01 1 1505- ● ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (C) 		8-98228-997-1 01 1 1505- ● ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) (A) 		8-98144-195-2 01 1 1505- ● ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) (B) 		8-98144-196-0 01 1 1505- ● ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) (C) 		8-98144-198-0 01 1 1505- ● ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) FUEL TANK 63L<6EF> (G) 		8-98232-080-2 01 1 1505- ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) FUEL TANK 75L<7GX> (G) 		8-98232-080-2 01 1 1505- ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) (F) 		8-98228-999-1 01 1 1505- ● ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) (D) 		8-98229-000-1 01 1 1505- ● ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> (E) 		8-98232-084-1 01 1 1505- ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (E) 		8-98232-084-1 01 1 1505- ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505- ● ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 12 1 1505- ● ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505- ● ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505- ● ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 10 1 1505- ● ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505- ● ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCC ENG(RDU) FUEL TANK 63L<6EF> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505- ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) FUEL TANK 75L<7GX> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505- ● ●
629 03.706 SPACER; HANGER
4JJ1-TCS ENG(LFB) L=39 		8-98060-852-0 02 1 1505- ● ● ●
631 03.706 BRACKET; DPD CENTER
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 		8-98144-193-0 01 1 1505- ● ● ●
çizim 477127
639 636 467 580 639 637 272 272 414 637 529 418 380 414 380 65 605 605 380 272 636 633 580 636 637 636 529 418 580 149 637 529 418 272 8 638 632 634 580 636 640 542 632 637 418 529 636 580 605 542 380 380 272 272 637 272 414 414 65 529 418 149 8 580 636 8 620 580 272 542 636 8
BalonParca AdiParca NoAdetTipApplied Date A B C
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (C) 		8-98162-855-0 02 1 1505- ● ● ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (A) 		8-98225-555-0 01 1 1505- ● ● ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98225-556-0 01 1 1505- ● ● ●
65 03.613 WASHER; PL
4JJ1-TCS ENG(LFB) 00.002 ID=10.5 OD=22 		0-91614-610-0 04 1 1505- ● ● ●
149 03.613 WASHER; LK,PIPE BRKT
4JJ1-TCS ENG(LFB) 04.085 ID=10.5 OD=26 		0-91614-710-0 04 1 1505- ● ● ●
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE 		0-91180-108-0 16 1 1505- ● ● ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB) (A) 		8-98118-879-0 01 1 1505- ● ● ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB) (B) 		8-98118-880-0 02 1 1505- ● ● ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB) (C) 		8-98127-331-1 01 1 1505- ● ● ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB) (D) 		8-98127-332-0 01 1 1505- ● ● ●
414 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 04.510 M10X35 FLANGE 		0-28051-035-0 08 1 1505- ● ● ●
418 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 10 1 1505- ● ● ●
467 03.685 BOLT; PROTECTOR
4JJ1-TCS ENG(LFB) M6X16 		8-98019-179-0 06 1 1505- ● ● ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505- ● ● ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505- ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505- ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505- ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (D) 		8-98150-368-2 01 1 1505- ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (A) 		8-98165-442-2 01 1 1505- ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (C) 		8-98302-358-0 01 1 1505-1505 ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (C) 		8-98205-049-1 01 1 1506- ● ● ●
542 03.704 BRACKET
EXC. EURO5B+ SPECIFICATION(NT5) (B) 		8-98242-537-0 01 1 1505- ● ● ●
542 03.704 BRACKET
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98236-437-2 01 1 1505- ● ●
542 03.704 BRACKET
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98236-437-2 01 1 1505- ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 10 1 1505- ● ● ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1505- ● ● ●
605 03.690 PLATE; NUT
4JJ1-TCS ENG(LFB) 		8-98148-511-0 02 1 1505- ● ● ●
620 03.440 CHAMBER ASM; RR
4JJ1-TCS ENG(LFB) 		8-98118-876-1 01 1 1505- ● ● ●
632 03.611 GASKET; FILTER,DEF
4JJ1-TCS ENG(LFB) 		8-97628-257-0 03 1 1505- ● ● ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
4JJ1-TCS ENG(LFB) 		8-98127-327-1 01 1 1505- ● ● ●
634 03.611 GASKET; MIXER
4JJ1-TCS ENG(LFB) 		8-98118-422-1 01 1 1505- ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1505- ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1505- ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 00.685 (C) M10X40 FLANGE 		0-28051-040-0 03 1 1505- ● ● ●
637 00.010 NUT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1505- ● ● ●
637 00.010 NUT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE 		0-91180-110-0 03 1 1505- ● ● ●
638 03.701 CATALYST ASM; DEF
4JJ1-TCS ENG(LFB) 		8-98205-063-0 01 1 1505- ● ● ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4JJ1-TCS ENG(LFB) (A) 		8-98147-069-0 01 1 1505- ● ● ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4JJ1-TCS ENG(LFB) (B) 		8-98147-070-0 01 1 1505- ● ● ●
640 03.609 BRACKET; DEF DCM SPLY COVER
4JJ1-TCS ENG(LFB) 		8-98159-189-2 01 1 1505- ● ● ●
çizim 488151
118 117 115 59 113 115 564 547 1 547 172 1 547 172 547 115 113 345 115 117 118 376
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.609 PIPE; EXH
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98292-703-0 01 1 1505- ● ●
1 03.609 PIPE; EXH
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98292-704-0 01 1 1505- ● ●
1 03.609 PIPE; EXH
4JJ1-TCS ENG(LFB) (A) 		8-98231-922-0 01 1 1505- ● ● ●
1 03.609 PIPE; EXH
4JJ1-TCC ENG(RDU) (B) 		8-98228-986-1 01 1 1505- ● ● ●
59 03.704 BRACKET; EXH SILENCER,FRT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 		8-98082-156-0 01 1 1509- ● ● ●
113 03.704 COLLAR; DIST,MTG BRKT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.706 L=37.5 		9-22151-217-0 02 1 1505- ● ● ●
115 03.704 RUBBER; MTG,SILENCER
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-94457-277-1 02 1 1505- ● ● ●
115 03.704 RUBBER; MTG,SILENCER
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-94457-278-1 02 1 1505- ● ● ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) OD=55 		9-09852-169-0 02 1 1505- ● ● ●
118 03.704 NUT; SILENCER MTG BRKT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 07.874 M10 FLANGE 		5-09440-006-0 02 1 1505- ● ● ●
172 03.708 BOLT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 M6X35 FLANGE 		0-28650-635-0 02 1 1505- ● ●
345 03.704 BRACKET; EXH SILENCER,RR
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 		8-98027-822-0 01 1 1505- ● ● ●
376 03.708 BOLT; BRKT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1505-1508 ● ● ●
547 03.682 CLIP; PIPE
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-97381-635-0 02 1 1505- ● ●
547 03.682 CLIP; PIPE
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-97381-636-0 02 1 1505- ● ●
547 03.682 CLIP; PIPE
4JJ1-TCS ENG(LFB) (A) 		8-97381-635-0 01 1 1505- ● ● ●
547 03.682 CLIP; PIPE
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-97381-635-0 01 1 1505- ● ● ●
547 03.682 CLIP; PIPE
4JJ1-TCS ENG(LFB) (B) 		8-97381-636-0 01 1 1505- ● ● ●
547 03.682 CLIP; PIPE
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-97381-636-0 01 1 1505- ● ● ●
564 01.150 SENSOR; PRESSURE,DPD
EXC. EURO5B+ SPECIFICATION(NT5) 		8-97360-368-2 01 1 1505- ● ● ●
564 01.150 SENSOR; PRESSURE,DPD
EXC. EURO6 SPECIFICATION(NT6) 		8-97359-985-2 01 1 1505- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
