Sayfa 1-46 - Isuzu EPC

1-46 — DEF TANK AND PIPING (#161546) — 427 parça

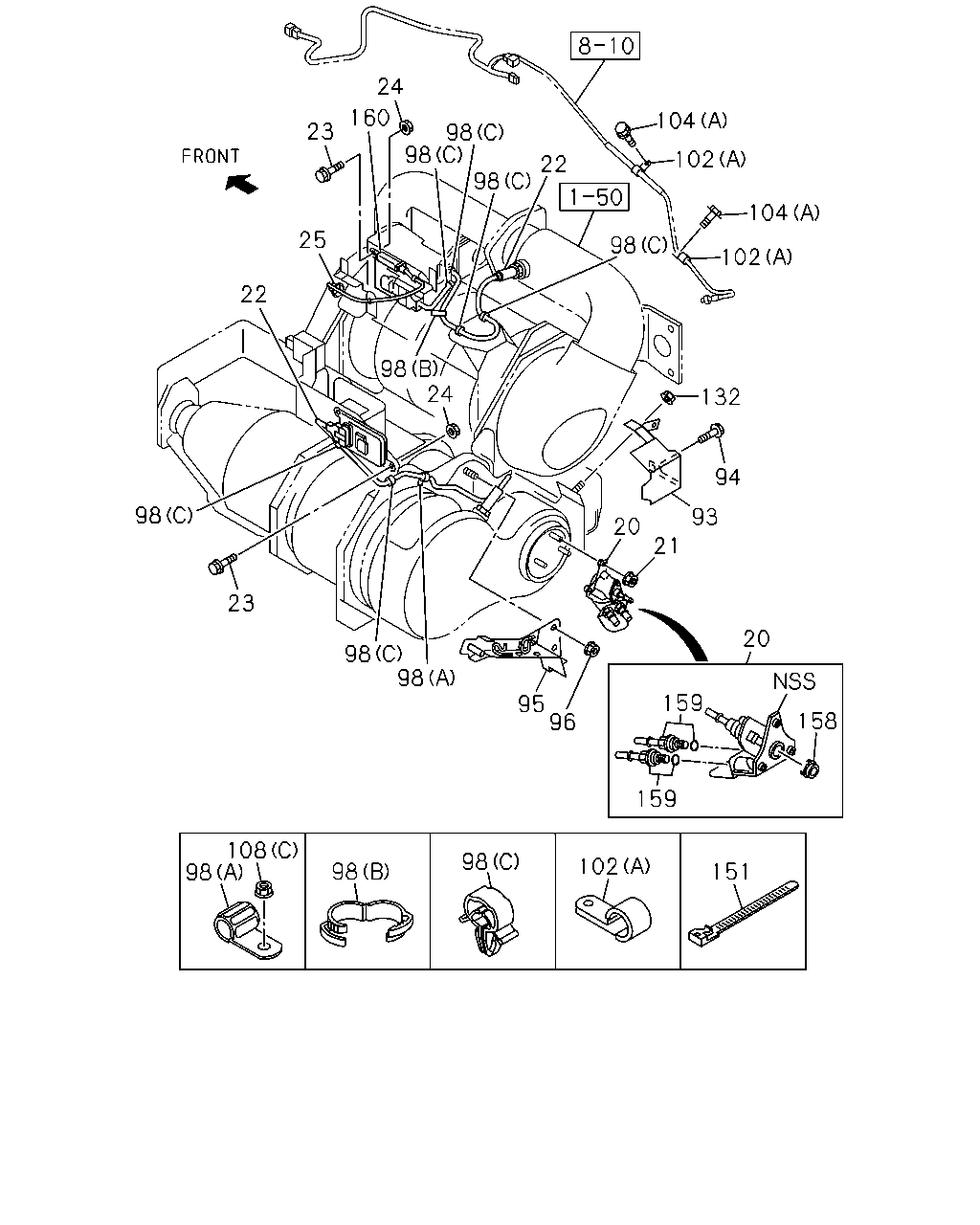

24 160 23 98 98 98 22 104 102 104 102 98 25 22 98 23 98 24 132 94 93 20 21 20 158 159 159 96 95 98 98 108 98 98 98 102 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
20	03.680 INJECTOR ASM; DEF DCM 4JJ1-TCS ENG(LFB)	8-98231-898-2	01	1	1505-	●	●	●
21	00.010 NUT; INJECTOR ASM,DEF DCM 4JJ1-TCS ENG(LFB) 01.062 M6 FLANGE	0-91180-106-0	03	1	1505-	●	●	●
22	01.150 SENSOR; DEF DCM EXH NOX 4JJ1-TCS ENG(LFB)	8-98302-394-0	02	1	1505-	●	●	●
23	03.613 BOLT; SENSOR,DEF DCM EXH NOX 4JJ1-TCS ENG(LFB)	8-98155-181-0	04	1	1505-	●	●	●
24	00.010 NUT; SENSOR,DEF DCM EXH NOX 4JJ1-TCS ENG(LFB) 01.062 M6 FLANGE	0-91180-106-0	04	1	1505-	●	●	●
25	01.150 SENSOR; DEF DCM EXH TEMP 4JJ1-TCS ENG(LFB)	8-98086-329-0	01	1	1505-	●	●	●
93	03.609 PROTECTOR; DEF DCM 4JJ1-TCS ENG(LFB)	8-98255-578-0	01	1	1505-	●	●	●
94	00.010 BOLT; PROTECTOR,DEF DCM 4JJ1-TCS ENG(LFB) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1505-	●	●	●
95	03.634 BRACKET; HARN,DEF DCM EXH NOX SE 4JJ1-TCS ENG(LFB)	8-98204-433-1	01	1	1505-	●	●	●
96	00.010 NUT; BRACKET,DEF DCM EXH NOX SEN 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	1505-	●	●	●
98	00.010 CLIP; DEF DCM EXH NOX SEN HARN 4JJ1-TCS ENG(LFB) 02.559 (B) ID=20	8-94241-972-0	01	1	1505-	●	●	●
98	00.010 CLIP; DEF DCM EXH NOX SEN HARN 4JJ1-TCS ENG(LFB) 02.559 (C) ID=10	8-94450-392-0	06	1	1505-	●	●	●
98	00.010 CLIP; DEF DCM EXH NOX SEN HARN 4JJ1-TCS ENG(LFB) 03.682 (A) ID=7	8-98002-767-0	01	1	1505-	●	●	●
102	03.634 CLIP; DEF DCM EXH TEMP SEN HARN 4JJ1-TCS ENG(LFB) 03.890 (A) ID=4.8	1-09701-218-0	03	1	1505-	●	●	●
102	03.634 CLIP; DEF DCM EXH TEMP SEN HARN EURO6 SPECIFICATION(NT6) (B) ID=10 L=20	0-95221-035-0	01	1	1505-	●	●	●
102	03.634 CLIP; DEF DCM EXH TEMP SEN HARN EURO6 SPECIFICATION(NT6) (B) ID=14 L=28	8-98135-163-0	01	1	1505-	●	●	●
104	00.010 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.029 (B) M10X30 FLANGE	0-28651-030-0	07	1	1505-1507	●	●
104	00.010 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 00.029 (B) M10X30 FLANGE	0-28651-030-0	07	1	1505-1507	●	●
104	00.010 BOLT; BRKT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.029 (B) M10X30 FLANGE	0-28651-030-0	07	1	1505-1507			●
104	00.010 BOLT; BRKT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 00.029 (B) M10X30 FLANGE	0-28651-030-0	07	1	1505-1507			●
104	00.010 BOLT; BRKT EXC. EURO5B+ SPECIFICATION(NT5) 00.029 (B) M10X30 FLANGE	0-28651-030-0	07	1	1508-	●	●
104	00.010 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 00.029 (B) M10X30 FLANGE	0-28651-030-0	07	1	1508-			●
104	00.010 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 00.029 (B) M10X30 FLANGE	0-28651-030-0	07	1	1508-			●
104	00.010 BOLT; BRKT EURO6 SPECIFICATION(NT6) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1505-	●	●	●
108	00.010 NUT; CLIP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1505-1507	●	●
108	00.010 NUT; CLIP FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1505-1507	●	●
108	00.010 NUT; CLIP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1505-1507			●
108	00.010 NUT; CLIP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1505-1507			●
108	00.010 NUT; CLIP EXC. EURO5B+ SPECIFICATION(NT5) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-	●	●
108	00.010 NUT; CLIP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-			●
108	00.010 NUT; CLIP FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-			●
108	00.010 NUT; CLIP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1505-1507	●	●
108	00.010 NUT; CLIP FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1505-1507	●	●
108	00.010 NUT; CLIP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1505-1507			●
108	00.010 NUT; CLIP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1505-1507			●
108	00.010 NUT; CLIP EXC. EURO5B+ SPECIFICATION(NT5) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1508-	●	●
108	00.010 NUT; CLIP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1508-			●
108	00.010 NUT; CLIP FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1508-			●
108	00.010 NUT; CLIP 4JJ1-TCS ENG(LFB) 01.062 (C) M6 FLANGE	0-91180-106-0	01	1	1505-	●	●	●
132	00.010 NUT; PROTECTOR 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-	●	●	●
151	03.162 CLIP; COVER EURO6 SPECIFICATION(NT6) L=140	5-09707-031-1	01	1	1505-	●	●	●
158	03.890 GASKET; INJECTOR ASM,DEF DCM 4JJ1-TCS ENG(LFB)	8-98086-333-0	01	1	1505-	●	●	●
159	03.890 CONNECTOR KIT; COOLANT,INJECTOR 4JJ1-TCS ENG(LFB)	8-98169-416-1	02	1	1505-	●	●	●
160	03.890 CLIP; HARNESS,SENSOR DEF DCM EXH 4JJ1-TCS ENG(LFB)	8-98170-331-0	01	1	1505-	●	●	●

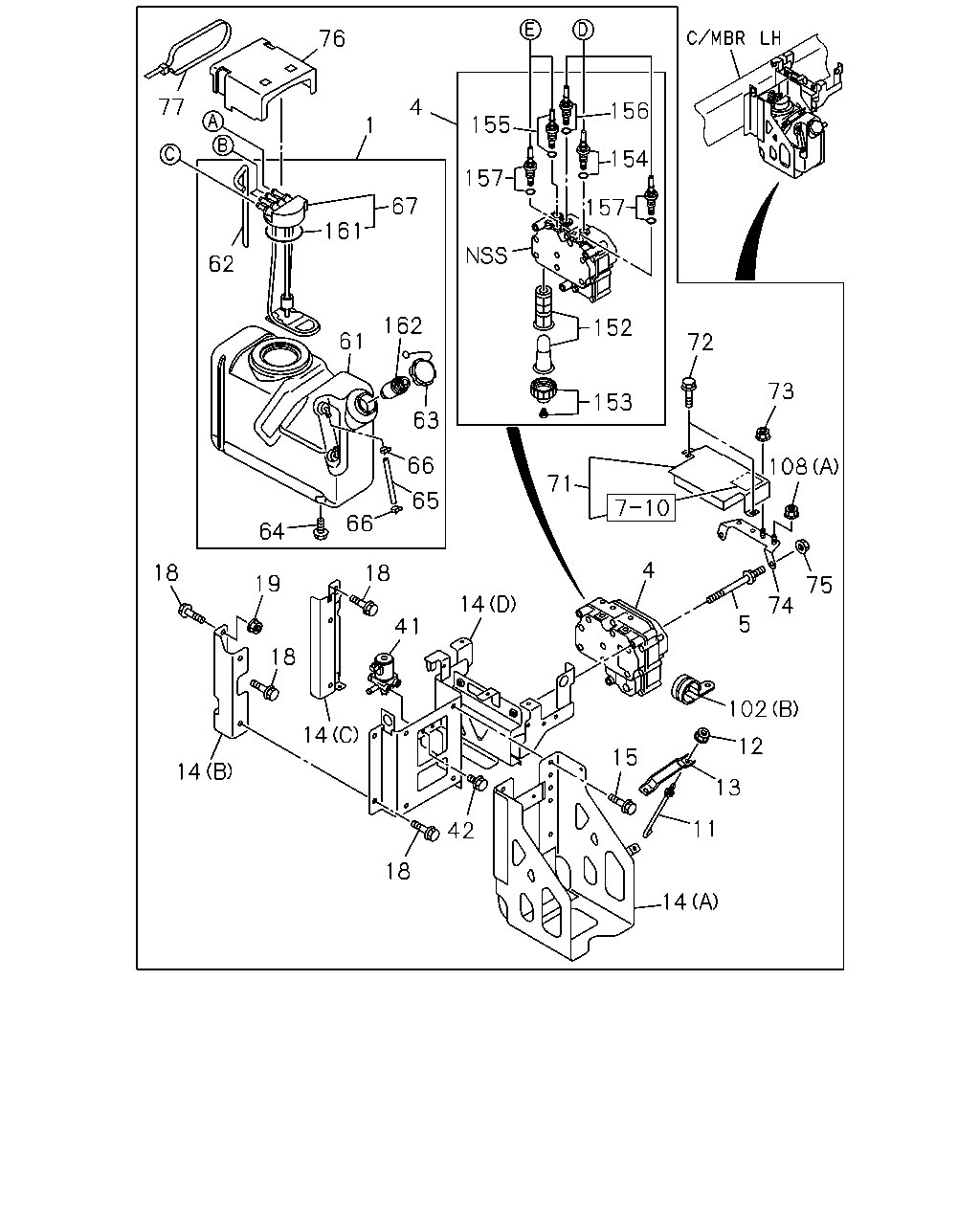

76 77 1 4 155 157 156 154 157 152 153 72 73 108 75 74 5 4 71 102 12 13 11 14 18 42 14 18 19 18 41 14 18 14 67 161 62 61 162 63 66 65 66 64 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.708 TANK ASM; DEF 4JJ1-TCS ENG(LFB)	8-98210-142-4	01	1	1505-	●	●	●
4	03.650 PUMP ASM; DEF,DCM SPLY 4JJ1-TCS ENG(LFB)	8-98268-812-0	01	1	1505-	●	●	●
5	00.010 BOLT; PUMP ASM,DEF DCM SPLY 4JJ1-TCS ENG(LFB) 03.670 M8X20,M8X90 L=118	8-98140-158-0	03	1	1505-	●	●	●
11	03.613 BOLT; DEF TANK 4JJ1-TCS ENG(LFB)	8-98157-936-0	02	1	1505-	●	●
11	03.613 BOLT; DEF TANK 4JJ1-TCS ENG(LFB)	8-98243-779-0	02	1	1505-			●
12	00.010 NUT; DEF TANK 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	1505-	●	●	●
13	03.632 RETAINER; DEF TANK 4JJ1-TCS ENG(LFB)	8-98156-747-0	01	1	1505-	●	●	●
14	03.616 BRACKET ASM; DEF TANK 4JJ1-TCS ENG(LFB) (A)	8-98236-403-0	01	1	1505-	●	●
14	03.616 BRACKET ASM; DEF TANK 4JJ1-TCS ENG(LFB) (D)	8-98236-406-2	01	1	1505-	●	●
14	03.616 BRACKET ASM; DEF TANK 4JJ1-TCS ENG(LFB) (B)	8-98236-404-1	01	1	1505-	●	●	●
14	03.616 BRACKET ASM; DEF TANK 4JJ1-TCS ENG(LFB) (C)	8-98236-405-2	01	1	1505-	●	●	●
14	03.616 BRACKET ASM; DEF TANK 4JJ1-TCS ENG(LFB) (D)	8-98279-890-0	01	1	1505-			●
14	03.616 BRACKET ASM; DEF TANK 4JJ1-TCS ENG(LFB) (A)	8-98287-956-0	01	1	1505-			●
15	00.010 BOLT; BRKT,DEF TANK 4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1505-	●	●	●
18	00.010 BOLT; BRKT,DEF TANK 4JJ1-TCS ENG(LFB) 02.277 M10X35 FLANGE	0-28651-035-0	08	1	1505-	●	●	●
19	00.010 NUT; BRKT,DEF TANK 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	01	1	1505-	●	●
19	00.010 NUT; BRKT,DEF TANK 4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE	0-91180-110-0	01	1	1505-			●
19	00.010 NUT; BRKT,DEF TANK 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	02	1	1505-			●
41	03.708 VALVE ASM; DEF TANK HTR DLVY CATALYSIS CONTROL WITH DPD & SCR(JCQ)	8-98232-679-0	01	1	1505-	●	●	●
42	00.010 BOLT; DEF RSVR HTR DLVY VLV CATALYSIS CONTROL WITH DPD & SCR(JCQ) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1505-	●	●	●
61	03.630 BODY ASM; DEF TANK 4JJ1-TCS ENG(LFB)	8-98220-878-1	01	1	1505-	●	●	●
62	03.630 HOSE; VENT,DEF TANK 4JJ1-TCS ENG(LFB)	8-98120-261-0	01	1	1505-	●	●	●
63	03.708 CAP ASM; FILLER,DEF TANK 4JJ1-TCS ENG(LFB)	8-98147-581-1	01	1	1505-	●	●	●
64	03.708 PLUG; DRAIN,DEF TANK 4JJ1-TCS ENG(LFB)	8-98120-263-0	01	1	1505-	●	●	●
65	03.630 HOSE; WATER LEVEL 4JJ1-TCS ENG(LFB)	8-98120-264-1	01	1	1505-	●	●	●
66	03.708 CLAMP; WATER LEVEL HOSE 4JJ1-TCS ENG(LFB)	8-98120-265-1	02	1	1505-	●	●	●
67	03.708 SENSOR ASM; DEF TANK 4JJ1-TCS ENG(LFB)	8-98213-926-1	01	1	1505-	●	●	●
71	03.634 COVER; DEF DCM SPLY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98234-553-0	01	1	1505-1507	●	●
71	03.634 COVER; DEF DCM SPLY FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6)	8-98234-553-0	01	1	1505-1507	●	●
71	03.634 COVER; DEF DCM SPLY WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98234-553-0	01	1	1505-1507			●
71	03.634 COVER; DEF DCM SPLY WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6)	8-98234-553-0	01	1	1505-1507			●
71	03.634 COVER; DEF DCM SPLY EXC. EURO5B+ SPECIFICATION(NT5)	8-98234-553-0	01	1	1508-	●	●
71	03.634 COVER; DEF DCM SPLY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5)	8-98234-553-0	01	1	1508-			●
71	03.634 COVER; DEF DCM SPLY FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5)	8-98234-553-0	01	1	1508-			●
72	00.010 BOLT; COVER,DEF DCM SPLY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1505-1507	●	●
72	00.010 BOLT; COVER,DEF DCM SPLY FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1505-1507	●	●
72	00.010 BOLT; COVER,DEF DCM SPLY WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1505-1507			●
72	00.010 BOLT; COVER,DEF DCM SPLY WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1505-1507			●
72	00.010 BOLT; COVER,DEF DCM SPLY EXC. EURO5B+ SPECIFICATION(NT5) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1508-	●	●
72	00.010 BOLT; COVER,DEF DCM SPLY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1508-			●
72	00.010 BOLT; COVER,DEF DCM SPLY FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1508-			●
73	00.010 NUT; COVER,DEF DCM SPLY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-1507	●	●
73	00.010 NUT; COVER,DEF DCM SPLY FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-1507	●	●
73	00.010 NUT; COVER,DEF DCM SPLY WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-1507			●
73	00.010 NUT; COVER,DEF DCM SPLY WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-1507			●
73	00.010 NUT; COVER,DEF DCM SPLY EXC. EURO5B+ SPECIFICATION(NT5) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●	●
73	00.010 NUT; COVER,DEF DCM SPLY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-			●
73	00.010 NUT; COVER,DEF DCM SPLY FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-			●
74	03.634 BRACKET; DEF DCM SPLY COVER AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97642-595-0	01	1	1505-1507	●	●
74	03.634 BRACKET; DEF DCM SPLY COVER FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6)	8-97642-595-0	01	1	1505-1507	●	●
74	03.634 BRACKET; DEF DCM SPLY COVER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97642-595-0	01	1	1505-1507			●
74	03.634 BRACKET; DEF DCM SPLY COVER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6)	8-97642-595-0	01	1	1505-1507			●
74	03.634 BRACKET; DEF DCM SPLY COVER EXC. EURO5B+ SPECIFICATION(NT5)	8-97642-595-0	01	1	1508-	●	●
74	03.634 BRACKET; DEF DCM SPLY COVER AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5)	8-97642-595-0	01	1	1508-			●
74	03.634 BRACKET; DEF DCM SPLY COVER FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5)	8-97642-595-0	01	1	1508-			●
75	00.010 NUT; BRKT,DEF DCM SPLY COVER AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	02	1	1505-1507	●	●
75	00.010 NUT; BRKT,DEF DCM SPLY COVER FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 01.062 M8 FLANGE	0-91180-108-0	02	1	1505-1507	●	●
75	00.010 NUT; BRKT,DEF DCM SPLY COVER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	02	1	1505-1507			●
75	00.010 NUT; BRKT,DEF DCM SPLY COVER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 01.062 M8 FLANGE	0-91180-108-0	02	1	1505-1507			●
75	00.010 NUT; BRKT,DEF DCM SPLY COVER EXC. EURO5B+ SPECIFICATION(NT5) 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-	●	●
75	00.010 NUT; BRKT,DEF DCM SPLY COVER AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-			●
75	00.010 NUT; BRKT,DEF DCM SPLY COVER FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-			●
76	03.634 COVER; DEF TANK CAP 4JJ1-TCS ENG(LFB)	8-98156-298-1	01	1	1505-	●	●	●
77	03.682 CLIP; DEF TANK CAP CVR 4JJ1-TCS ENG(LFB) L=350	1-09707-183-0	01	1	1505-	●	●	●
102	03.634 CLIP; DEF DCM EXH TEMP SEN HARN 4JJ1-TCS ENG(LFB) 03.890 (A) ID=4.8	1-09701-218-0	03	1	1505-	●	●	●
102	03.634 CLIP; DEF DCM EXH TEMP SEN HARN EURO6 SPECIFICATION(NT6) (B) ID=10 L=20	0-95221-035-0	01	1	1505-	●	●	●
102	03.634 CLIP; DEF DCM EXH TEMP SEN HARN EURO6 SPECIFICATION(NT6) (B) ID=14 L=28	8-98135-163-0	01	1	1505-	●	●	●
108	00.010 NUT; CLIP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1505-1507	●	●
108	00.010 NUT; CLIP FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1505-1507	●	●
108	00.010 NUT; CLIP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1505-1507			●
108	00.010 NUT; CLIP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1505-1507			●
108	00.010 NUT; CLIP EXC. EURO5B+ SPECIFICATION(NT5) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-	●	●
108	00.010 NUT; CLIP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-			●
108	00.010 NUT; CLIP FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-			●
108	00.010 NUT; CLIP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1505-1507	●	●
108	00.010 NUT; CLIP FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1505-1507	●	●
108	00.010 NUT; CLIP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1505-1507			●
108	00.010 NUT; CLIP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1505-1507			●
108	00.010 NUT; CLIP EXC. EURO5B+ SPECIFICATION(NT5) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1508-	●	●
108	00.010 NUT; CLIP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1508-			●
108	00.010 NUT; CLIP FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1508-			●
108	00.010 NUT; CLIP 4JJ1-TCS ENG(LFB) 01.062 (C) M6 FLANGE	0-91180-106-0	01	1	1505-	●	●	●
152	03.890 FILTER KIT; PUMP ASM,DEF DCM SPL 4JJ1-TCS ENG(LFB)	8-98169-403-0	01	1	1505-	●	●	●
153	03.890 COVER KIT; PUMP ASM,DEF DCM SPLY 4JJ1-TCS ENG(LFB)	8-98169-408-0	01	1	1505-	●	●	●
154	03.890 CONNECTOR KIT; INLET PUMP,DEF 4JJ1-TCS ENG(LFB)	8-98169-409-0	01	1	1505-	●	●	●
155	03.890 CONNECTOR KIT; OUTLET PUMP,DEF 4JJ1-TCS ENG(LFB)	8-98169-411-0	01	1	1505-	●	●	●
156	03.890 CONNECTOR KIT; RETURN PUMP,DEF 4JJ1-TCS ENG(LFB)	8-98268-813-0	01	1	1505-	●	●	●
157	03.890 CONNECTOR KIT; COOLANT PUMP,DEF 4JJ1-TCS ENG(LFB)	8-98169-414-1	02	1	1505-	●	●	●
161	03.890 GASKET; SENSOR ASM,DEF TANK 4JJ1-TCS ENG(LFB)	8-98170-383-0	01	1	1505-	●	●	●
162	03.890 ADAPTER; DEF TANK 4JJ1-TCS ENG(LFB)	8-98131-158-0	01	1	1505-	●	●	●

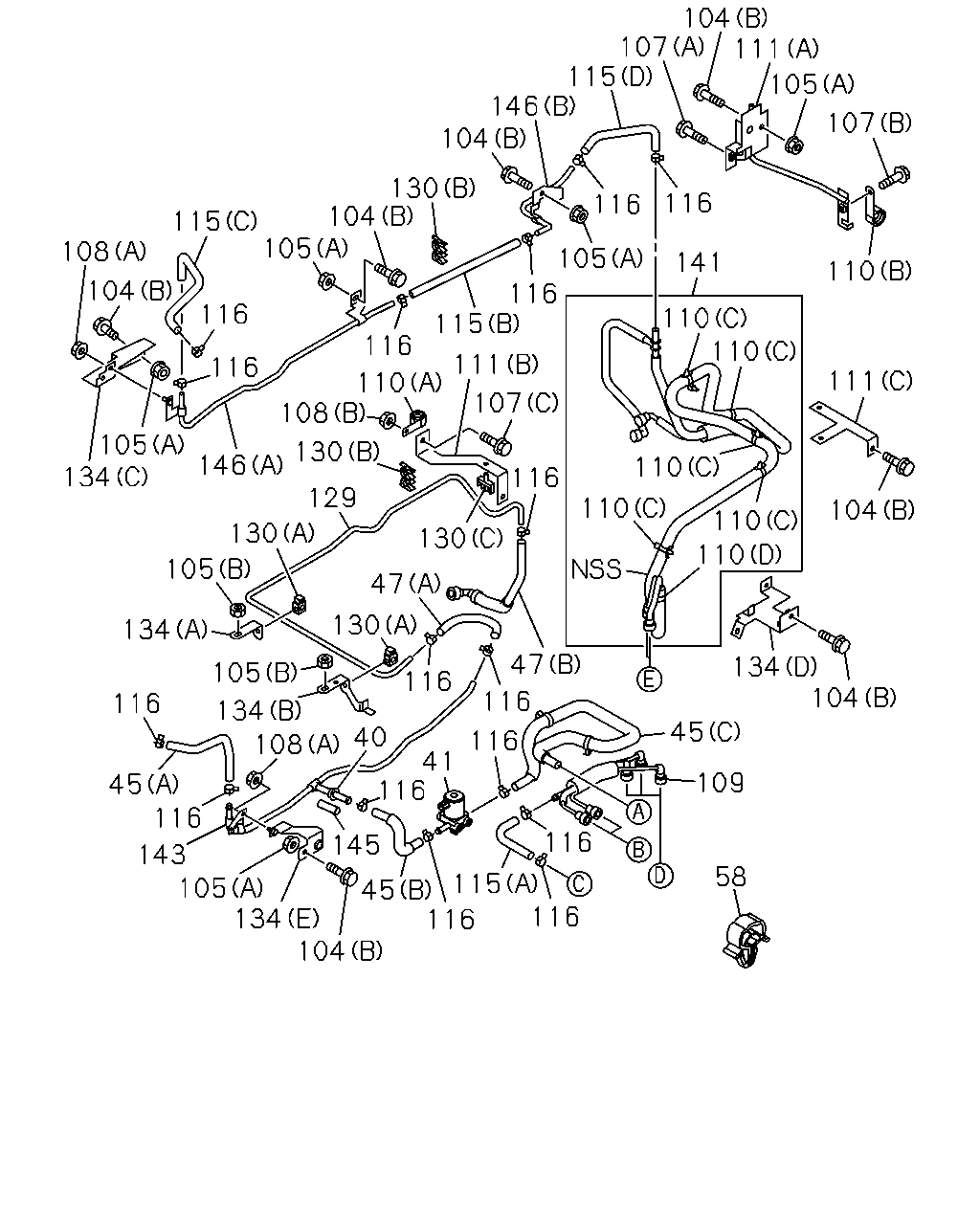

104 111 105 107 110 111 104 107 115 146 104 130 104 115 105 108 104 116 116 105 134 146 108 116 115 116 116 105 116 141 110 110 110 110 110 110 111 107 116 110 130 129 130 47 130 105 134 105 134 108 130 116 47 116 116 45 109 58 116 116 115 45 116 41 116 145 40 116 45 116 143 105 134 104 134 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
40	00.010 GROMMET AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 ID=17	8-94128-319-2	01	1	1505-1507	●	●
40	00.010 GROMMET FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 02.343 ID=17	8-94128-319-2	01	1	1505-1507	●	●
40	00.010 GROMMET WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 ID=17	8-94128-319-2	01	1	1505-1507			●
40	00.010 GROMMET WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 02.343 ID=17	8-94128-319-2	01	1	1505-1507			●
40	00.010 GROMMET EXC. EURO5B+ SPECIFICATION(NT5) 02.343 ID=17	8-94128-319-2	01	1	1508-	●	●
40	00.010 GROMMET AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 02.343 ID=17	8-94128-319-2	01	1	1508-			●
40	00.010 GROMMET FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 02.343 ID=17	8-94128-319-2	01	1	1508-			●
41	03.708 VALVE ASM; DEF TANK HTR DLVY CATALYSIS CONTROL WITH DPD & SCR(JCQ)	8-98232-679-0	01	1	1505-	●	●	●
45	03.630 HOSE ASM; DEF TANK HTR DLVY EURO6 SPECIFICATION(NT6) (B)	8-98210-111-1	01	1	1505-1507	●	●
45	03.630 HOSE ASM; DEF TANK HTR DLVY EXC. EURO5B+ SPECIFICATION(NT5) (B)	8-98210-111-1	01	1	1508-	●	●
45	03.630 HOSE ASM; DEF TANK HTR DLVY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98210-110-1	01	1	1505-1507	●	●
45	03.630 HOSE ASM; DEF TANK HTR DLVY FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (A)	8-98210-110-1	01	1	1505-1507	●	●
45	03.630 HOSE ASM; DEF TANK HTR DLVY WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98210-110-1	01	1	1505-1507			●
45	03.630 HOSE ASM; DEF TANK HTR DLVY WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (A)	8-98210-110-1	01	1	1505-1507			●
45	03.630 HOSE ASM; DEF TANK HTR DLVY EXC. EURO5B+ SPECIFICATION(NT5) (A)	8-98210-110-1	01	1	1508-	●	●
45	03.630 HOSE ASM; DEF TANK HTR DLVY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) (A)	8-98210-110-1	01	1	1508-			●
45	03.630 HOSE ASM; DEF TANK HTR DLVY FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) (A)	8-98210-110-1	01	1	1508-			●
45	03.630 HOSE ASM; DEF TANK HTR DLVY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98233-936-1	01	1	1505-1507	●	●
45	03.630 HOSE ASM; DEF TANK HTR DLVY FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (C)	8-98233-936-1	01	1	1505-1507	●	●
45	03.630 HOSE ASM; DEF TANK HTR DLVY WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98233-936-1	01	1	1505-1507			●
45	03.630 HOSE ASM; DEF TANK HTR DLVY WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (C)	8-98233-936-1	01	1	1505-1507			●
45	03.630 HOSE ASM; DEF TANK HTR DLVY EXC. EURO5B+ SPECIFICATION(NT5) (C)	8-98233-936-1	01	1	1508-	●	●
45	03.630 HOSE ASM; DEF TANK HTR DLVY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) (C)	8-98233-936-1	01	1	1508-			●
45	03.630 HOSE ASM; DEF TANK HTR DLVY FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) (C)	8-98233-936-1	01	1	1508-			●
45	03.630 HOSE ASM; DEF TANK HTR DLVY EURO6 SPECIFICATION(NT6) (B)	8-98281-101-0	01	1	1505-1507			●
45	03.630 HOSE ASM; DEF TANK HTR DLVY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) (B)	8-98281-101-0	01	1	1508-			●
45	03.630 HOSE ASM; DEF TANK HTR DLVY FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) (B)	8-98281-101-0	01	1	1508-			●
47	03.630 HOSE; DEF DCM COOL DLVY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.855 (A) L=220 SERVICED BY L=3000	0-03561-300-0	01	1	1505-	●	●
47	03.630 HOSE; DEF DCM COOL DLVY FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.855 (A) L=220 SERVICED BY L=3000	0-03561-300-0	01	1	1505-	●	●
47	03.630 HOSE; DEF DCM COOL DLVY WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.855 (A) L=220 SERVICED BY L=3000	0-03561-300-0	01	1	1505-			●
47	03.630 HOSE; DEF DCM COOL DLVY WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.855 (A) L=220 SERVICED BY L=3000	0-03561-300-0	01	1	1505-			●
47	03.630 HOSE; DEF DCM COOL DLVY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98209-322-0	01	1	1505-1507	●	●
47	03.630 HOSE; DEF DCM COOL DLVY FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (B)	8-98209-322-0	01	1	1505-1507	●	●
47	03.630 HOSE; DEF DCM COOL DLVY WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98209-322-0	01	1	1505-1507			●
47	03.630 HOSE; DEF DCM COOL DLVY WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (B)	8-98209-322-0	01	1	1505-1507			●
47	03.630 HOSE; DEF DCM COOL DLVY EXC. EURO5B+ SPECIFICATION(NT5) (B)	8-98209-322-0	01	1	1508-	●	●
47	03.630 HOSE; DEF DCM COOL DLVY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) (B)	8-98209-322-0	01	1	1508-			●
47	03.630 HOSE; DEF DCM COOL DLVY FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) (B)	8-98209-322-0	01	1	1508-			●
47	03.630 HOSE; DEF DCM COOL DLVY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.855 (A) L=150 SERVICED BY L=3000	0-03561-300-0	01	1	1505-1507	●	●
47	03.630 HOSE; DEF DCM COOL DLVY FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 01.855 (A) L=150 SERVICED BY L=3000	0-03561-300-0	01	1	1505-1507	●	●
47	03.630 HOSE; DEF DCM COOL DLVY WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.855 (A) L=150 SERVICED BY L=3000	0-03561-300-0	01	1	1505-1507			●
47	03.630 HOSE; DEF DCM COOL DLVY WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 01.855 (A) L=150 SERVICED BY L=3000	0-03561-300-0	01	1	1505-1507			●
47	03.630 HOSE; DEF DCM COOL DLVY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.855 (A) L=150 SERVICED BY L=3000	0-03561-300-0	01	1	1508-	●		●
47	03.630 HOSE; DEF DCM COOL DLVY FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 01.855 (A) L=150 SERVICED BY L=3000	0-03561-300-0	01	1	1508-	●		●
47	03.630 HOSE; DEF DCM COOL DLVY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 01.855 (A) L=150 SERVICED BY L=3000	0-03561-300-0	01	1	1508-		●
58	00.010 CLIP; DEF RSVR HTR DLVY HOSE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.681 ID=18-24 L=14.5	1-09709-298-0	02	1	1505-1507	●	●
58	00.010 CLIP; DEF RSVR HTR DLVY HOSE FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 04.681 ID=18-24 L=14.5	1-09709-298-0	02	1	1505-1507	●	●
58	00.010 CLIP; DEF RSVR HTR DLVY HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.681 ID=18-24 L=14.5	1-09709-298-0	02	1	1505-1507			●
58	00.010 CLIP; DEF RSVR HTR DLVY HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 04.681 ID=18-24 L=14.5	1-09709-298-0	02	1	1505-1507			●
58	00.010 CLIP; DEF RSVR HTR DLVY HOSE EXC. EURO5B+ SPECIFICATION(NT5) 04.681 ID=18-24 L=14.5	1-09709-298-0	02	1	1508-	●	●
58	00.010 CLIP; DEF RSVR HTR DLVY HOSE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 04.681 ID=18-24 L=14.5	1-09709-298-0	02	1	1508-			●
58	00.010 CLIP; DEF RSVR HTR DLVY HOSE FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 04.681 ID=18-24 L=14.5	1-09709-298-0	02	1	1508-			●
104	00.010 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.029 (B) M10X30 FLANGE	0-28651-030-0	07	1	1505-1507	●	●
104	00.010 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 00.029 (B) M10X30 FLANGE	0-28651-030-0	07	1	1505-1507	●	●
104	00.010 BOLT; BRKT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.029 (B) M10X30 FLANGE	0-28651-030-0	07	1	1505-1507			●
104	00.010 BOLT; BRKT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 00.029 (B) M10X30 FLANGE	0-28651-030-0	07	1	1505-1507			●
104	00.010 BOLT; BRKT EXC. EURO5B+ SPECIFICATION(NT5) 00.029 (B) M10X30 FLANGE	0-28651-030-0	07	1	1508-	●	●
104	00.010 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 00.029 (B) M10X30 FLANGE	0-28651-030-0	07	1	1508-			●
104	00.010 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 00.029 (B) M10X30 FLANGE	0-28651-030-0	07	1	1508-			●
104	00.010 BOLT; BRKT EURO6 SPECIFICATION(NT6) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1505-	●	●	●
105	00.010 NUT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 (A) M10 FLANGE	0-91180-110-0	05	1	1505-1507	●	●
105	00.010 NUT; BRKT FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 03.162 (A) M10 FLANGE	0-91180-110-0	05	1	1505-1507	●	●
105	00.010 NUT; BRKT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 (A) M10 FLANGE	0-91180-110-0	05	1	1505-1507			●
105	00.010 NUT; BRKT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 03.162 (A) M10 FLANGE	0-91180-110-0	05	1	1505-1507			●
105	00.010 NUT; BRKT EXC. EURO5B+ SPECIFICATION(NT5) 03.162 (A) M10 FLANGE	0-91180-110-0	05	1	1508-	●	●
105	00.010 NUT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 03.162 (A) M10 FLANGE	0-91180-110-0	05	1	1508-			●
105	00.010 NUT; BRKT FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 03.162 (A) M10 FLANGE	0-91180-110-0	05	1	1508-			●
105	00.010 NUT; BRKT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) 00.787 (B) M10	0-91111-510-0	02	1	1505-1507	●	●	●
105	00.010 NUT; BRKT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.787 (B) M10	0-91111-510-0	02	1	1508-	●		●
105	00.010 NUT; BRKT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 00.787 (B) M10	0-91111-510-0	02	1	1508-	●		●
105	00.010 NUT; BRKT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) 00.787 (B) M10	0-91111-510-0	02	1	1508-		●
107	00.010 BOLT; CLIP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1505-1507	●	●
107	00.010 BOLT; CLIP FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1505-1507	●	●
107	00.010 BOLT; CLIP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1505-1507			●
107	00.010 BOLT; CLIP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1505-1507			●
107	00.010 BOLT; CLIP EXC. EURO5B+ SPECIFICATION(NT5) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-	●	●
107	00.010 BOLT; CLIP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-			●
107	00.010 BOLT; CLIP FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-			●
107	00.010 BOLT; CLIP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1505-1507	●	●
107	00.010 BOLT; CLIP FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1505-1507	●	●
107	00.010 BOLT; CLIP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1505-1507			●
107	00.010 BOLT; CLIP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1505-1507			●
107	00.010 BOLT; CLIP EXC. EURO5B+ SPECIFICATION(NT5) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1508-	●	●
107	00.010 BOLT; CLIP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1508-			●
107	00.010 BOLT; CLIP FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1508-			●
107	00.010 BOLT; CLIP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1505-1507	●	●
107	00.010 BOLT; CLIP FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1505-1507	●	●
107	00.010 BOLT; CLIP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1505-1507			●
107	00.010 BOLT; CLIP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1505-1507			●
107	00.010 BOLT; CLIP EXC. EURO5B+ SPECIFICATION(NT5) 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1508-	●	●
107	00.010 BOLT; CLIP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1508-			●
107	00.010 BOLT; CLIP FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1508-			●
108	00.010 NUT; CLIP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1505-1507	●	●
108	00.010 NUT; CLIP FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1505-1507	●	●
108	00.010 NUT; CLIP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1505-1507			●
108	00.010 NUT; CLIP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1505-1507			●
108	00.010 NUT; CLIP EXC. EURO5B+ SPECIFICATION(NT5) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-	●	●
108	00.010 NUT; CLIP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-			●
108	00.010 NUT; CLIP FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-			●
108	00.010 NUT; CLIP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1505-1507	●	●
108	00.010 NUT; CLIP FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1505-1507	●	●
108	00.010 NUT; CLIP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1505-1507			●
108	00.010 NUT; CLIP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1505-1507			●
108	00.010 NUT; CLIP EXC. EURO5B+ SPECIFICATION(NT5) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1508-	●	●
108	00.010 NUT; CLIP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1508-			●
108	00.010 NUT; CLIP FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1508-			●
108	00.010 NUT; CLIP 4JJ1-TCS ENG(LFB) 01.062 (C) M6 FLANGE	0-91180-106-0	01	1	1505-	●	●	●
109	03.682 TUBE ASM; DEF & WATER AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98233-512-1	01	1	1505-1507	●	●
109	03.682 TUBE ASM; DEF & WATER FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6)	8-98233-512-1	01	1	1505-1507	●	●
109	03.682 TUBE ASM; DEF & WATER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98233-512-1	01	1	1505-1507			●
109	03.682 TUBE ASM; DEF & WATER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6)	8-98233-512-1	01	1	1505-1507			●
109	03.682 TUBE ASM; DEF & WATER EXC. EURO5B+ SPECIFICATION(NT5)	8-98233-512-1	01	1	1508-	●	●
109	03.682 TUBE ASM; DEF & WATER AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5)	8-98233-512-1	01	1	1508-			●
109	03.682 TUBE ASM; DEF & WATER FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5)	8-98233-512-1	01	1	1508-			●
110	03.682 CLIP; TUBE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.672 (A) ID=16 L=40	0-95235-576-0	01	1	1505-1507	●	●
110	03.682 CLIP; TUBE ASM FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 06.672 (A) ID=16 L=40	0-95235-576-0	01	1	1505-1507	●	●
110	03.682 CLIP; TUBE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.672 (A) ID=16 L=40	0-95235-576-0	01	1	1505-1507			●
110	03.682 CLIP; TUBE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 06.672 (A) ID=16 L=40	0-95235-576-0	01	1	1505-1507			●
110	03.682 CLIP; TUBE ASM EXC. EURO5B+ SPECIFICATION(NT5) 06.672 (A) ID=16 L=40	0-95235-576-0	01	1	1508-	●	●
110	03.682 CLIP; TUBE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 06.672 (A) ID=16 L=40	0-95235-576-0	01	1	1508-			●
110	03.682 CLIP; TUBE ASM FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 06.672 (A) ID=16 L=40	0-95235-576-0	01	1	1508-			●
110	03.682 CLIP; TUBE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.559 (B) ID=35 L=75	1-09700-608-2	01	1	1505-1507	●	●
110	03.682 CLIP; TUBE ASM FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 02.559 (B) ID=35 L=75	1-09700-608-2	01	1	1505-1507	●	●
110	03.682 CLIP; TUBE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.559 (B) ID=35 L=75	1-09700-608-2	01	1	1505-1507			●
110	03.682 CLIP; TUBE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 02.559 (B) ID=35 L=75	1-09700-608-2	01	1	1505-1507			●
110	03.682 CLIP; TUBE ASM EXC. EURO5B+ SPECIFICATION(NT5) 02.559 (B) ID=35 L=75	1-09700-608-2	01	1	1508-	●	●
110	03.682 CLIP; TUBE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 02.559 (B) ID=35 L=75	1-09700-608-2	01	1	1508-			●
110	03.682 CLIP; TUBE ASM FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 02.559 (B) ID=35 L=75	1-09700-608-2	01	1	1508-			●
110	03.682 CLIP; TUBE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.559 (C) L=170.3	1-09987-182-0	06	1	1505-1507	●	●
110	03.682 CLIP; TUBE ASM FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 02.559 (C) L=170.3	1-09987-182-0	06	1	1505-1507	●	●
110	03.682 CLIP; TUBE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.559 (C) L=170.3	1-09987-182-0	06	1	1505-1507			●
110	03.682 CLIP; TUBE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 02.559 (C) L=170.3	1-09987-182-0	06	1	1505-1507			●
110	03.682 CLIP; TUBE ASM EXC. EURO5B+ SPECIFICATION(NT5) 02.559 (C) L=170.3	1-09987-182-0	06	1	1508-	●	●
110	03.682 CLIP; TUBE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 02.559 (C) L=170.3	1-09987-182-0	06	1	1508-			●
110	03.682 CLIP; TUBE ASM FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 02.559 (C) L=170.3	1-09987-182-0	06	1	1508-			●
110	03.682 CLIP; TUBE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.128 (D) L=213.5	8-98000-506-1	01	1	1505-1507	●	●
110	03.682 CLIP; TUBE ASM FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 04.128 (D) L=213.5	8-98000-506-1	01	1	1505-1507	●	●
110	03.682 CLIP; TUBE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.128 (D) L=213.5	8-98000-506-1	01	1	1505-1507			●
110	03.682 CLIP; TUBE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 04.128 (D) L=213.5	8-98000-506-1	01	1	1505-1507			●
110	03.682 CLIP; TUBE ASM EXC. EURO5B+ SPECIFICATION(NT5) 04.128 (D) L=213.5	8-98000-506-1	01	1	1508-	●	●
110	03.682 CLIP; TUBE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 04.128 (D) L=213.5	8-98000-506-1	01	1	1508-			●
110	03.682 CLIP; TUBE ASM FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 04.128 (D) L=213.5	8-98000-506-1	01	1	1508-			●
111	03.634 BRACKET; CLIP,TUBE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98209-977-0	01	1	1505-1507	●	●
111	03.634 BRACKET; CLIP,TUBE ASM FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (B)	8-98209-977-0	01	1	1505-1507	●	●
111	03.634 BRACKET; CLIP,TUBE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98209-977-0	01	1	1505-1507			●
111	03.634 BRACKET; CLIP,TUBE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (B)	8-98209-977-0	01	1	1505-1507			●
111	03.634 BRACKET; CLIP,TUBE ASM EXC. EURO5B+ SPECIFICATION(NT5) (B)	8-98209-977-0	01	1	1508-	●	●
111	03.634 BRACKET; CLIP,TUBE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) (B)	8-98209-977-0	01	1	1508-			●
111	03.634 BRACKET; CLIP,TUBE ASM FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) (B)	8-98209-977-0	01	1	1508-			●
111	03.634 BRACKET; CLIP,TUBE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98217-162-1	01	1	1505-1507	●	●
111	03.634 BRACKET; CLIP,TUBE ASM FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (C)	8-98217-162-1	01	1	1505-1507	●	●
111	03.634 BRACKET; CLIP,TUBE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98217-162-1	01	1	1505-1507			●
111	03.634 BRACKET; CLIP,TUBE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (C)	8-98217-162-1	01	1	1505-1507			●
111	03.634 BRACKET; CLIP,TUBE ASM EXC. EURO5B+ SPECIFICATION(NT5) (C)	8-98217-162-1	01	1	1508-	●	●
111	03.634 BRACKET; CLIP,TUBE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) (C)	8-98217-162-1	01	1	1508-			●
111	03.634 BRACKET; CLIP,TUBE ASM FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) (C)	8-98217-162-1	01	1	1508-			●
111	03.634 BRACKET; CLIP,TUBE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98284-539-0	01	1	1505-1507	●	●
111	03.634 BRACKET; CLIP,TUBE ASM FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (A)	8-98284-539-0	01	1	1505-1507	●	●
111	03.634 BRACKET; CLIP,TUBE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98284-539-0	01	1	1505-1507			●
111	03.634 BRACKET; CLIP,TUBE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (A)	8-98284-539-0	01	1	1505-1507			●
111	03.634 BRACKET; CLIP,TUBE ASM EXC. EURO5B+ SPECIFICATION(NT5) (A)	8-98284-539-0	01	1	1508-	●	●
111	03.634 BRACKET; CLIP,TUBE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) (A)	8-98284-539-0	01	1	1508-			●
111	03.634 BRACKET; CLIP,TUBE ASM FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) (A)	8-98284-539-0	01	1	1508-			●
115	03.630 HOSE; DEF TANK HTR RTN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.855 (B) L=330 SERVICED BY L=3000	0-03561-300-0	01	1	1505-1507	●	●
115	03.630 HOSE; DEF TANK HTR RTN FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 01.855 (B) L=330 SERVICED BY L=3000	0-03561-300-0	01	1	1505-1507	●	●
115	03.630 HOSE; DEF TANK HTR RTN WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.855 (B) L=330 SERVICED BY L=3000	0-03561-300-0	01	1	1505-1507			●
115	03.630 HOSE; DEF TANK HTR RTN WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 01.855 (B) L=330 SERVICED BY L=3000	0-03561-300-0	01	1	1505-1507			●
115	03.630 HOSE; DEF TANK HTR RTN EXC. EURO5B+ SPECIFICATION(NT5) 01.855 (B) L=330 SERVICED BY L=3000	0-03561-300-0	01	1	1508-	●	●
115	03.630 HOSE; DEF TANK HTR RTN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 01.855 (B) L=330 SERVICED BY L=3000	0-03561-300-0	01	1	1508-			●
115	03.630 HOSE; DEF TANK HTR RTN FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 01.855 (B) L=330 SERVICED BY L=3000	0-03561-300-0	01	1	1508-			●
115	03.630 HOSE; DEF TANK HTR RTN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98122-725-1	01	1	1505-1507	●	●
115	03.630 HOSE; DEF TANK HTR RTN FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (A)	8-98122-725-1	01	1	1505-1507	●	●
115	03.630 HOSE; DEF TANK HTR RTN WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98122-725-1	01	1	1505-1507			●
115	03.630 HOSE; DEF TANK HTR RTN WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (A)	8-98122-725-1	01	1	1505-1507			●
115	03.630 HOSE; DEF TANK HTR RTN EXC. EURO5B+ SPECIFICATION(NT5) (A)	8-98122-725-1	01	1	1508-	●	●
115	03.630 HOSE; DEF TANK HTR RTN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) (A)	8-98122-725-1	01	1	1508-			●
115	03.630 HOSE; DEF TANK HTR RTN FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) (A)	8-98122-725-1	01	1	1508-			●
115	03.630 HOSE; DEF TANK HTR RTN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98209-315-0	01	1	1505-1507	●	●
115	03.630 HOSE; DEF TANK HTR RTN FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (C)	8-98209-315-0	01	1	1505-1507	●	●
115	03.630 HOSE; DEF TANK HTR RTN WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98209-315-0	01	1	1505-1507			●
115	03.630 HOSE; DEF TANK HTR RTN WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (C)	8-98209-315-0	01	1	1505-1507			●
115	03.630 HOSE; DEF TANK HTR RTN EXC. EURO5B+ SPECIFICATION(NT5) (C)	8-98209-315-0	01	1	1508-	●	●
115	03.630 HOSE; DEF TANK HTR RTN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) (C)	8-98209-315-0	01	1	1508-			●
115	03.630 HOSE; DEF TANK HTR RTN FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) (C)	8-98209-315-0	01	1	1508-			●
115	03.630 HOSE; DEF TANK HTR RTN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98209-316-1	01	1	1505-1507	●	●
115	03.630 HOSE; DEF TANK HTR RTN FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (D)	8-98209-316-1	01	1	1505-1507	●	●
115	03.630 HOSE; DEF TANK HTR RTN WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98209-316-1	01	1	1505-1507			●
115	03.630 HOSE; DEF TANK HTR RTN WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (D)	8-98209-316-1	01	1	1505-1507			●
115	03.630 HOSE; DEF TANK HTR RTN EXC. EURO5B+ SPECIFICATION(NT5) (D)	8-98209-316-1	01	1	1508-	●	●
115	03.630 HOSE; DEF TANK HTR RTN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) (D)	8-98209-316-1	01	1	1508-			●
115	03.630 HOSE; DEF TANK HTR RTN FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) (D)	8-98209-316-1	01	1	1508-			●
116	00.010 CLAMP; HOSE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.097 ID=16	8-97329-628-0	17	1	1505-1507	●	●
116	00.010 CLAMP; HOSE FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 01.097 ID=16	8-97329-628-0	17	1	1505-1507	●	●
116	00.010 CLAMP; HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.097 ID=16	8-97329-628-0	17	1	1505-1507			●
116	00.010 CLAMP; HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 01.097 ID=16	8-97329-628-0	17	1	1505-1507			●
116	00.010 CLAMP; HOSE EXC. EURO5B+ SPECIFICATION(NT5) 01.097 ID=16	8-97329-628-0	17	1	1508-	●	●
116	00.010 CLAMP; HOSE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 01.097 ID=16	8-97329-628-0	17	1	1508-			●
116	00.010 CLAMP; HOSE FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 01.097 ID=16	8-97329-628-0	17	1	1508-			●
129	03.609 PIPE ASM; DEF DCM COOL DLVY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98209-288-1	01	1	1505-	●	●
129	03.609 PIPE ASM; DEF DCM COOL DLVY FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98209-288-1	01	1	1505-	●	●
129	03.609 PIPE ASM; DEF DCM COOL DLVY WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98209-288-1	01	1	1505-			●
129	03.609 PIPE ASM; DEF DCM COOL DLVY WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98209-288-1	01	1	1505-			●
129	03.609 PIPE ASM; DEF DCM COOL DLVY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98209-975-0	01	1	1505-1507	●	●
129	03.609 PIPE ASM; DEF DCM COOL DLVY FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS)	8-98209-975-0	01	1	1505-1507	●	●
129	03.609 PIPE ASM; DEF DCM COOL DLVY WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98209-975-0	01	1	1505-1507			●
129	03.609 PIPE ASM; DEF DCM COOL DLVY WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS)	8-98209-975-0	01	1	1505-1507			●
129	03.609 PIPE ASM; DEF DCM COOL DLVY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98209-975-0	01	1	1508-	●		●
129	03.609 PIPE ASM; DEF DCM COOL DLVY FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ)	8-98209-975-0	01	1	1508-	●		●
129	03.609 PIPE ASM; DEF DCM COOL DLVY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ)	8-98209-975-0	01	1	1508-		●
130	03.682 CLIP; PIPE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 (A) ID=12 & 6.35	8-97215-437-0	02	1	1505-1507	●	●
130	03.682 CLIP; PIPE ASM FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 03.162 (A) ID=12 & 6.35	8-97215-437-0	02	1	1505-1507	●	●
130	03.682 CLIP; PIPE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 (A) ID=12 & 6.35	8-97215-437-0	02	1	1505-1507			●
130	03.682 CLIP; PIPE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 03.162 (A) ID=12 & 6.35	8-97215-437-0	02	1	1505-1507			●
130	03.682 CLIP; PIPE ASM EXC. EURO5B+ SPECIFICATION(NT5) 03.162 (A) ID=12 & 6.35	8-97215-437-0	02	1	1508-	●	●
130	03.682 CLIP; PIPE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 03.162 (A) ID=12 & 6.35	8-97215-437-0	02	1	1508-			●
130	03.682 CLIP; PIPE ASM FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 03.162 (A) ID=12 & 6.35	8-97215-437-0	02	1	1508-			●
130	03.682 CLIP; PIPE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.930 (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	02	1	1505-1507	●	●
130	03.682 CLIP; PIPE ASM FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 04.930 (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	02	1	1505-1507	●	●
130	03.682 CLIP; PIPE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.930 (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	02	1	1505-1507			●
130	03.682 CLIP; PIPE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 04.930 (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	02	1	1505-1507			●
130	03.682 CLIP; PIPE ASM EXC. EURO5B+ SPECIFICATION(NT5) 04.930 (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	02	1	1508-	●	●
130	03.682 CLIP; PIPE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 04.930 (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	02	1	1508-			●
130	03.682 CLIP; PIPE ASM FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 04.930 (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	02	1	1508-			●
130	03.682 CLIP; PIPE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.128 (C) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1505-1507	●	●
130	03.682 CLIP; PIPE ASM FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 04.128 (C) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1505-1507	●	●
130	03.682 CLIP; PIPE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.128 (C) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1505-1507			●
130	03.682 CLIP; PIPE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 04.128 (C) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1505-1507			●
130	03.682 CLIP; PIPE ASM EXC. EURO5B+ SPECIFICATION(NT5) 04.128 (C) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1508-	●	●
130	03.682 CLIP; PIPE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 04.128 (C) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1508-			●
130	03.682 CLIP; PIPE ASM FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 04.128 (C) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1508-			●
134	03.634 BRACKET; PIPE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98210-089-1	01	1	1505-1507	●	●
134	03.634 BRACKET; PIPE ASM FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (D)	8-98210-089-1	01	1	1505-1507	●	●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98210-089-1	01	1	1505-1507			●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (D)	8-98210-089-1	01	1	1505-1507			●
134	03.634 BRACKET; PIPE ASM EXC. EURO5B+ SPECIFICATION(NT5) (D)	8-98210-089-1	01	1	1508-	●	●
134	03.634 BRACKET; PIPE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) (D)	8-98210-089-1	01	1	1508-			●
134	03.634 BRACKET; PIPE ASM FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) (D)	8-98210-089-1	01	1	1508-			●
134	03.634 BRACKET; PIPE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98234-523-0	01	1	1505-1507	●	●
134	03.634 BRACKET; PIPE ASM FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (E)	8-98234-523-0	01	1	1505-1507	●	●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98234-523-0	01	1	1505-1507			●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (E)	8-98234-523-0	01	1	1505-1507			●
134	03.634 BRACKET; PIPE ASM EXC. EURO5B+ SPECIFICATION(NT5) (E)	8-98234-523-0	01	1	1508-	●	●
134	03.634 BRACKET; PIPE ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) (E)	8-98234-523-0	01	1	1508-			●
134	03.634 BRACKET; PIPE ASM FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) (E)	8-98234-523-0	01	1	1508-			●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) 03.162 (A)	8-98006-480-1	01	1	1505-1507	●	●	●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 (A)	8-98006-480-1	01	1	1508-	●		●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 03.162 (A)	8-98006-480-1	01	1	1508-	●		●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) 03.162 (A)	8-98006-480-1	01	1	1508-		●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) 03.162 (B)	8-98039-929-1	01	1	1505-1507	●	●	●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 (B)	8-98039-929-1	01	1	1508-	●		●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 03.162 (B)	8-98039-929-1	01	1	1508-	●		●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) 03.162 (B)	8-98039-929-1	01	1	1508-		●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (C)	8-98209-974-1	01	1	1505-1507	●	●	●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98209-974-1	01	1	1508-	●		●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (C)	8-98209-974-1	01	1	1508-	●		●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) (C)	8-98209-974-1	01	1	1508-		●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) (C)	8-98272-089-0	01	1	1505-1507	●	●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98272-089-0	01	1	1508-	●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (C)	8-98272-089-0	01	1	1508-	●
134	03.634 BRACKET; PIPE ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) (C)	8-98272-089-0	01	1	1508-		●
141	03.682 TUBE ASM; DEF DCM EURO6 SPECIFICATION(NT6)	8-98284-537-0	01	1	1505-1507	●	●
141	03.682 TUBE ASM; DEF DCM EXC. EURO5B+ SPECIFICATION(NT5)	8-98284-537-0	01	1	1508-	●	●
141	03.682 TUBE ASM; DEF DCM EURO6 SPECIFICATION(NT6)	8-98285-551-0	01	1	1505-1507			●
141	03.682 TUBE ASM; DEF DCM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5)	8-98285-551-0	01	1	1508-			●
141	03.682 TUBE ASM; DEF DCM FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5)	8-98285-551-0	01	1	1508-			●
143	03.609 PIPE ASM; DEF TANK HTR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98209-976-2	01	1	1505-1507	●	●
143	03.609 PIPE ASM; DEF TANK HTR FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6)	8-98209-976-2	01	1	1505-1507	●	●
143	03.609 PIPE ASM; DEF TANK HTR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98209-976-2	01	1	1505-1507			●
143	03.609 PIPE ASM; DEF TANK HTR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6)	8-98209-976-2	01	1	1505-1507			●
143	03.609 PIPE ASM; DEF TANK HTR EXC. EURO5B+ SPECIFICATION(NT5)	8-98209-976-2	01	1	1508-	●	●
143	03.609 PIPE ASM; DEF TANK HTR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5)	8-98209-976-2	01	1	1508-			●
143	03.609 PIPE ASM; DEF TANK HTR FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5)	8-98209-976-2	01	1	1508-			●
145	03.265 RUBBER AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1505-1507	●	●
145	03.265 RUBBER FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1505-1507	●	●
145	03.265 RUBBER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1505-1507			●
145	03.265 RUBBER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1505-1507			●
145	03.265 RUBBER EXC. EURO5B+ SPECIFICATION(NT5) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1508-	●	●
145	03.265 RUBBER AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1508-			●
145	03.265 RUBBER FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1508-			●
146	03.609 PIPE ASM; DEF TANK HTR RTN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98209-284-1	01	1	1505-1507	●	●
146	03.609 PIPE ASM; DEF TANK HTR RTN FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (A)	8-98209-284-1	01	1	1505-1507	●	●
146	03.609 PIPE ASM; DEF TANK HTR RTN WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98209-284-1	01	1	1505-1507			●
146	03.609 PIPE ASM; DEF TANK HTR RTN WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (A)	8-98209-284-1	01	1	1505-1507			●
146	03.609 PIPE ASM; DEF TANK HTR RTN EXC. EURO5B+ SPECIFICATION(NT5) (A)	8-98209-284-1	01	1	1508-	●	●
146	03.609 PIPE ASM; DEF TANK HTR RTN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) (A)	8-98209-284-1	01	1	1508-			●
146	03.609 PIPE ASM; DEF TANK HTR RTN FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) (A)	8-98209-284-1	01	1	1508-			●
146	03.609 PIPE ASM; DEF TANK HTR RTN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98209-287-1	01	1	1505-1507	●	●
146	03.609 PIPE ASM; DEF TANK HTR RTN FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (B)	8-98209-287-1	01	1	1505-1507	●	●
146	03.609 PIPE ASM; DEF TANK HTR RTN WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98209-287-1	01	1	1505-1507			●
146	03.609 PIPE ASM; DEF TANK HTR RTN WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (B)	8-98209-287-1	01	1	1505-1507			●
146	03.609 PIPE ASM; DEF TANK HTR RTN EXC. EURO5B+ SPECIFICATION(NT5) (B)	8-98209-287-1	01	1	1508-	●	●
146	03.609 PIPE ASM; DEF TANK HTR RTN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), EURO5B+ SPECIFICATION(NT5) (B)	8-98209-287-1	01	1	1508-			●
146	03.609 PIPE ASM; DEF TANK HTR RTN FRT INDEPENDENT SUSPENSION(FF0) EXC. EURO5B+ SPECIFICATION(NT5) (B)	8-98209-287-1	01	1	1508-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
