Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#161542) — 378 parça

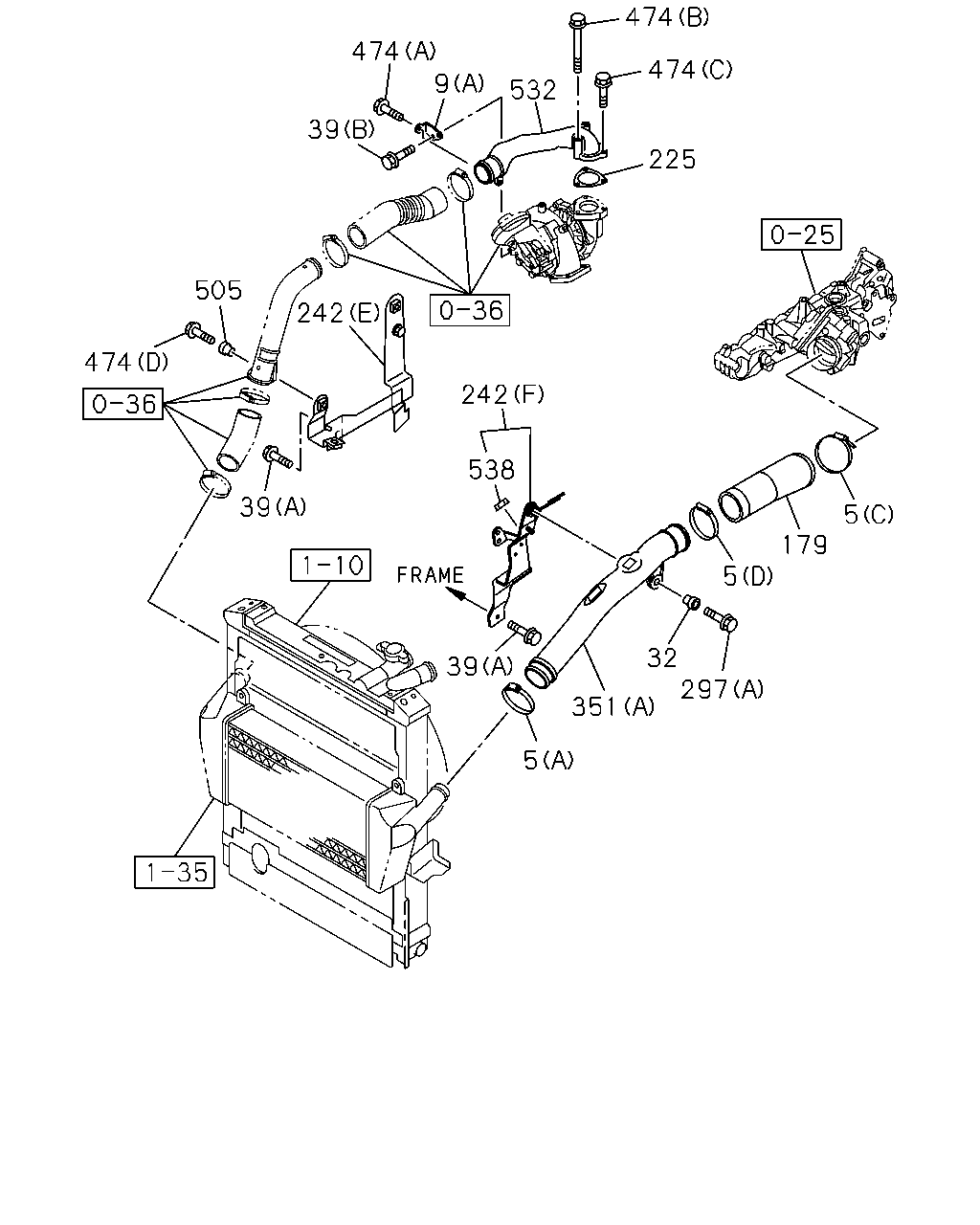

474 39 505 474 242 532 9 474 474 225 242 538 39 39 351 5 32 297 5 5 179

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) (D) ID=55-75	8-98133-349-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) (C) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (F) ID=117	9-09915-075-1	01	1	1505-			●
5	03.407 CLIP; AIR DUCT (E) D=101.6	9-09915-502-1	01	1	1505-			●
9	03.417 BRACKET; INT PIPE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (A)	8-98009-086-0	01	1	1505-	●	●	●
9	03.417 BRACKET; INT PIPE 4JJ1-TCS ENG(LFB) (B)	8-98206-338-1	01	1	1505-			●
32	03.417 RUBBER; AIR DUCT MTG 03.265 OD=23	8-97105-689-6	01	1	1505-	●	●	●
39	03.417 BOLT; BRKT 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	1505-	●	●	●
39	03.417 BOLT; BRKT 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	1505-	●	●	●
179	03.417 HOSE; AIR INT	8-98111-374-1	01	1	1505-	●	●	●
225	03.417 GASKET; AIR PIPE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 03.270 ID=47	8-97202-328-1	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT (F)	8-98205-756-0	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (E)	8-98079-905-2	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98067-767-4	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (G)	8-98194-755-2	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98242-327-0	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (L)	8-98206-337-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (H)	8-98066-918-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (I)	8-98055-243-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (J)	8-98055-246-2	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (K)	8-98055-247-1	01	1	1505-			●
297	03.417 BOLT; DUCT 01.060 (A) M8X35 FLANGE	0-28650-835-0	01	1	1505-	●	●	●
297	03.417 BOLT; DUCT 4JJ1-TCS ENG(LFB) 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	1505-			●
297	03.417 BOLT; DUCT 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1505-			●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (A)	8-98205-463-0	01	1	1505-	●	●	●
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	1505-	●	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) 03.417 (C)	8-98067-267-0	01	1	1505-	●	●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (F)	8-98278-809-1	01	1	1505-			●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (D)	8-98023-342-2	01	1	1505-			●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (E)	8-98206-265-0	01	1	1505-			●
474	03.417 BOLT; PIPE 01.060 (D) M8X35 FLANGE	0-28650-835-0	01	1	1505-	●	●	●
474	03.417 BOLT; PIPE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (B) M6X70 FLANGE	0-28050-670-0	02	1	1505-	●	●	●
474	03.417 BOLT; PIPE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1505-	●	●	●
474	03.417 BOLT; PIPE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 03.680 (C) M6X30 FLANGE	0-28650-630-0	01	1	1505-	●	●	●
505	03.406 RUBBER; MTG 03.265 OD=23	8-97105-689-6	01	1	1505-	●	●	●
532	03.417 PIPE; INTAKE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6)	8-98237-771-1	01	1	1505-	●	●	●
538	03.417 NUT; PLATE,AIR DUCT 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-	●	●	●

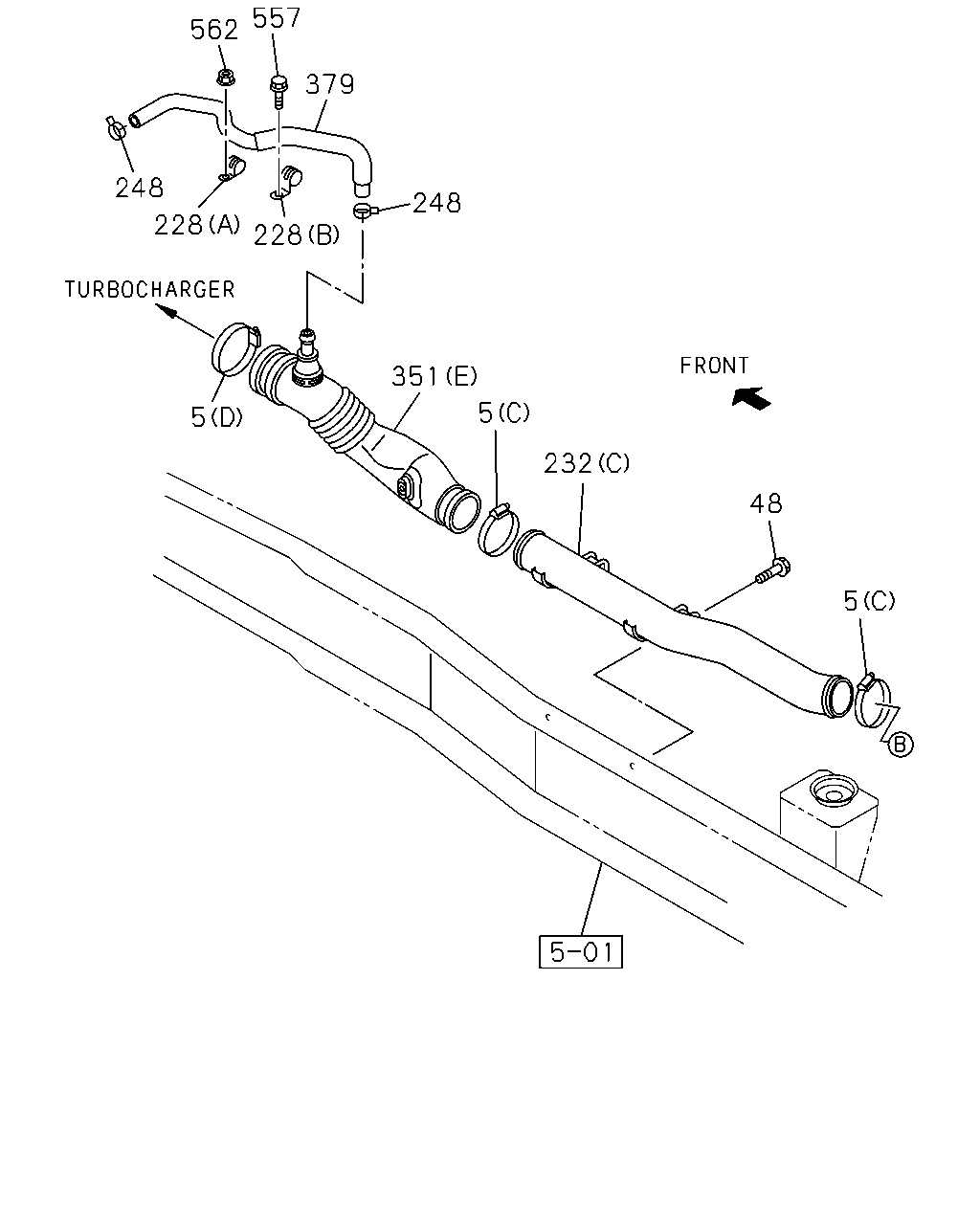

557 562 248 228 228 379 248 351 5 232 5 48 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) (D) ID=55-75	8-98133-349-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) (C) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (F) ID=117	9-09915-075-1	01	1	1505-			●
5	03.407 CLIP; AIR DUCT (E) D=101.6	9-09915-502-1	01	1	1505-			●
48	03.417 BOLT; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1505-			●
228	03.278 CLIP; PCV HOSE CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO5B+ SPECIFICATION(NT5) (B) ID=24.5 H=29 L=25	8-98120-913-0	01	1	1506-	●	●	●
228	03.278 CLIP; PCV HOSE (A) ID=22 L=22	8-98120-916-0	01	1	1505-1505	●	●	●
228	03.278 CLIP; PCV HOSE EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) ID=22 L=22	8-98120-916-0	01	1	1506-	●	●	●
228	03.278 CLIP; PCV HOSE EURO6 SPECIFICATION(NT6) (A) ID=22 L=22	8-98120-916-0	01	1	1506-	●	●	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) (A)	8-98241-972-0	01	1	1505-	●	●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (A)	8-98241-971-0	01	1	1505-	●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (C)	8-98108-234-0	01	1	1505-			●
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1505-			●
248	03.417 CLIP; RUBBER HOSE 08.846 ID=21.7	8-97203-074-0	02	1	1505-	●	●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (A)	8-98205-463-0	01	1	1505-	●	●	●
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	1505-	●	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) 03.417 (C)	8-98067-267-0	01	1	1505-	●	●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (F)	8-98278-809-1	01	1	1505-			●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (D)	8-98023-342-2	01	1	1505-			●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (E)	8-98206-265-0	01	1	1505-			●
379	03.675 HOSE; RUBBER CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6)	8-98249-521-0	01	1	1505-	●	●	●
379	03.675 HOSE; RUBBER EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98205-932-2	01	1	1505-	●	●	●
557	03.403 BOLT; HOSE CLIP CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO5B+ SPECIFICATION(NT5) 03.671 M6X10 FLANGE	0-28050-610-0	01	1	1506-	●	●	●
562	03.403 NUT; HOSE CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1505-1505	●	●	●
562	03.403 NUT; HOSE CLIP EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M6 FLANGE	0-91180-106-0	01	1	1506-	●	●	●
562	03.403 NUT; HOSE CLIP EURO6 SPECIFICATION(NT6) 01.062 M6 FLANGE	0-91180-106-0	01	1	1506-	●	●	●

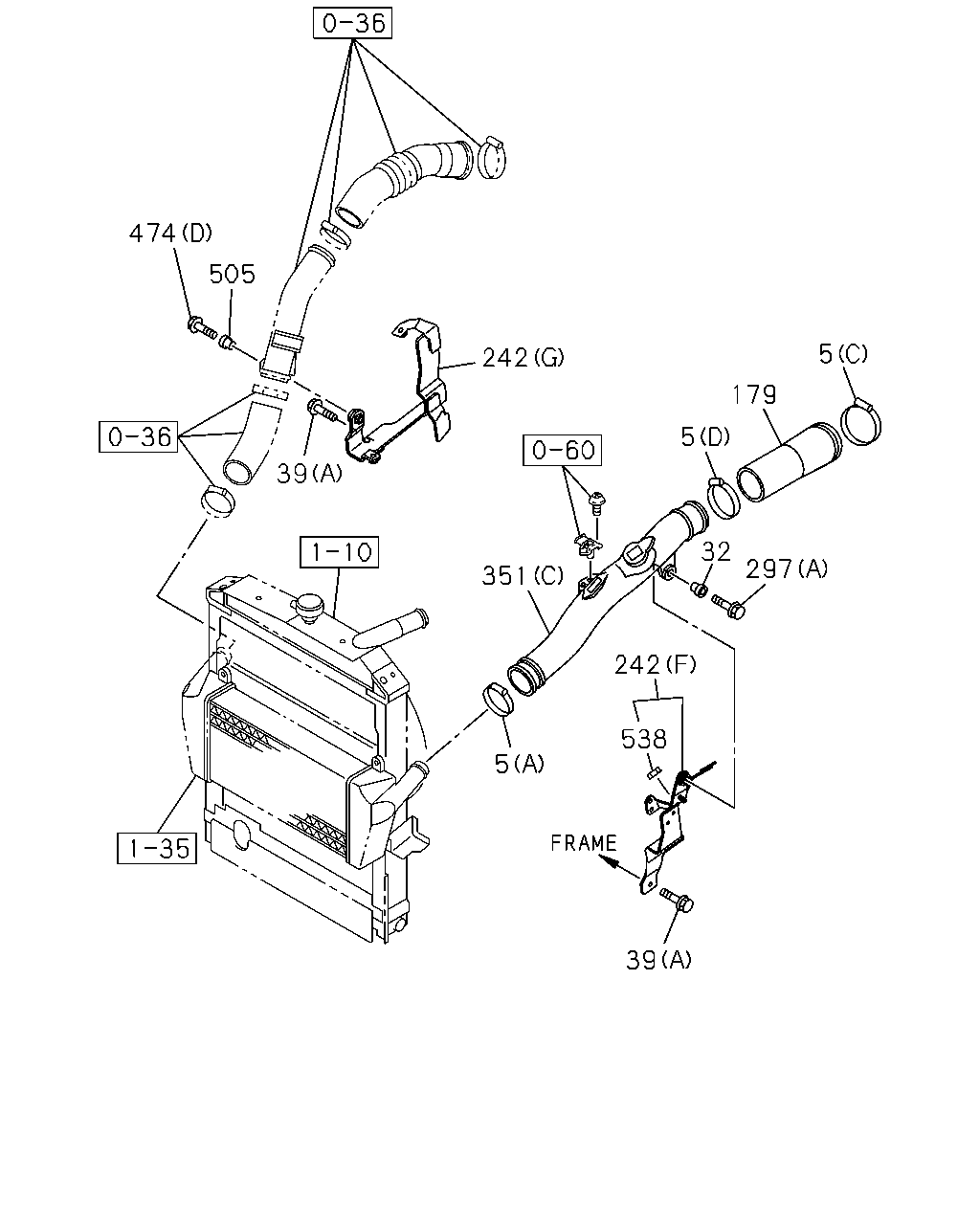

474 39 505 242 179 5 5 351 5 242 538 32 297 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) (D) ID=55-75	8-98133-349-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) (C) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (F) ID=117	9-09915-075-1	01	1	1505-			●
5	03.407 CLIP; AIR DUCT (E) D=101.6	9-09915-502-1	01	1	1505-			●
32	03.417 RUBBER; AIR DUCT MTG 03.265 OD=23	8-97105-689-6	01	1	1505-	●	●	●
39	03.417 BOLT; BRKT 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	1505-	●	●	●
39	03.417 BOLT; BRKT 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	1505-	●	●	●
179	03.417 HOSE; AIR INT	8-98111-374-1	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT (F)	8-98205-756-0	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (E)	8-98079-905-2	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98067-767-4	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (G)	8-98194-755-2	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98242-327-0	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (L)	8-98206-337-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (H)	8-98066-918-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (I)	8-98055-243-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (J)	8-98055-246-2	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (K)	8-98055-247-1	01	1	1505-			●
297	03.417 BOLT; DUCT 01.060 (A) M8X35 FLANGE	0-28650-835-0	01	1	1505-	●	●	●
297	03.417 BOLT; DUCT 4JJ1-TCS ENG(LFB) 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	1505-			●
297	03.417 BOLT; DUCT 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1505-			●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (A)	8-98205-463-0	01	1	1505-	●	●	●
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	1505-	●	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) 03.417 (C)	8-98067-267-0	01	1	1505-	●	●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (F)	8-98278-809-1	01	1	1505-			●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (D)	8-98023-342-2	01	1	1505-			●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (E)	8-98206-265-0	01	1	1505-			●
474	03.417 BOLT; PIPE 01.060 (D) M8X35 FLANGE	0-28650-835-0	01	1	1505-	●	●	●
474	03.417 BOLT; PIPE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (B) M6X70 FLANGE	0-28050-670-0	02	1	1505-	●	●	●
474	03.417 BOLT; PIPE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1505-	●	●	●
474	03.417 BOLT; PIPE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 03.680 (C) M6X30 FLANGE	0-28650-630-0	01	1	1505-	●	●	●
505	03.406 RUBBER; MTG 03.265 OD=23	8-97105-689-6	01	1	1505-	●	●	●
538	03.417 NUT; PLATE,AIR DUCT 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-	●	●	●

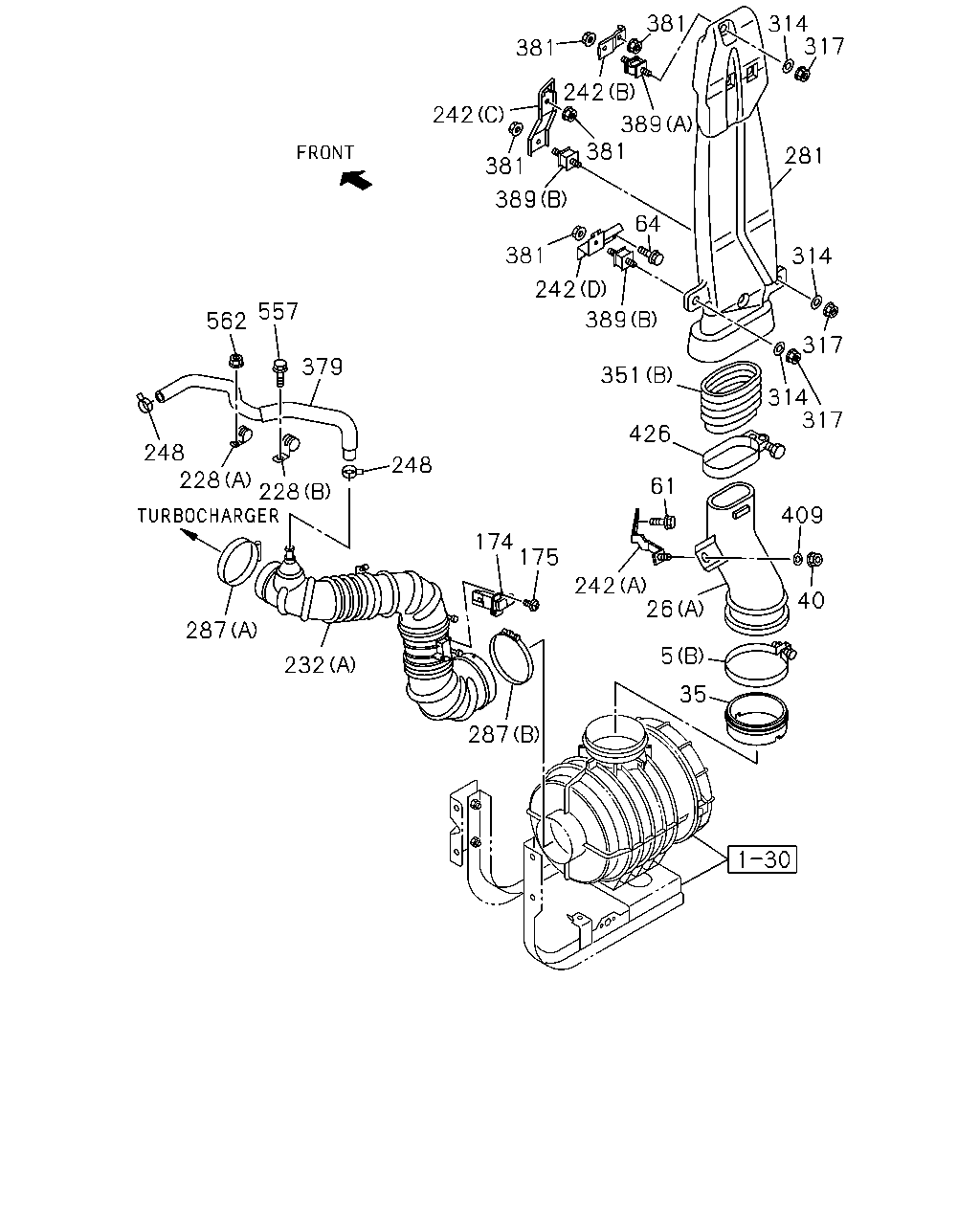

381 381 314 317 281 314 317 317 314 409 40 5 26 242 35 175 174 287 232 287 228 248 248 228 379 557 562 242 381 389 381 242 61 426 351 389 64 381 242 389

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) (D) ID=55-75	8-98133-349-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) (C) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (F) ID=117	9-09915-075-1	01	1	1505-			●
5	03.407 CLIP; AIR DUCT (E) D=101.6	9-09915-502-1	01	1	1505-			●
26	03.417 DUCT; AIR INT (A)	8-98023-339-0	01	1	1505-	●	●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB) (C)	8-98206-339-0	01	1	1505-			●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB) (D)	8-98278-810-0	01	1	1505-			●
26	03.417 DUCT; AIR INT 4JJ1-TCC ENG(RDU) (B)	8-98023-340-0	01	1	1505-			●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1505-	●	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1505-	●	●	●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-	●	●
61	03.417 BOLT; BRKT,AIR DUCT 4JJ1-TCC ENG(RDU) 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1505-			●
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1505-	●	●
174	03.682 SENSOR; AIR FLOW CONT	8-98113-202-1	01	1	1505-	●	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1505-	●	●	●
228	03.278 CLIP; PCV HOSE CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO5B+ SPECIFICATION(NT5) (B) ID=24.5 H=29 L=25	8-98120-913-0	01	1	1506-	●	●	●
228	03.278 CLIP; PCV HOSE (A) ID=22 L=22	8-98120-916-0	01	1	1505-1505	●	●	●
228	03.278 CLIP; PCV HOSE EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) ID=22 L=22	8-98120-916-0	01	1	1506-	●	●	●
228	03.278 CLIP; PCV HOSE EURO6 SPECIFICATION(NT6) (A) ID=22 L=22	8-98120-916-0	01	1	1506-	●	●	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) (A)	8-98241-972-0	01	1	1505-	●	●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (A)	8-98241-971-0	01	1	1505-	●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (C)	8-98108-234-0	01	1	1505-			●
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (F)	8-98205-756-0	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (E)	8-98079-905-2	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98067-767-4	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (G)	8-98194-755-2	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98242-327-0	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (L)	8-98206-337-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (H)	8-98066-918-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (I)	8-98055-243-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (J)	8-98055-246-2	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (K)	8-98055-247-1	01	1	1505-			●
248	03.417 CLIP; RUBBER HOSE 08.846 ID=21.7	8-97203-074-0	02	1	1505-	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT	8-97369-706-0	01	1	1505-	●	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98061-757-2	01	1	1505-			●
287	03.417 CLIP; AIR DUCT 03.407 (B) ID=117	9-09915-075-1	01	1	1505-	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) 03.407 (B) ID=117	9-09915-075-1	01	1	1505-			●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=55-75	8-98133-349-0	01	1	1505-	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=58-79	1-09707-136-0	01	1	1505-	●	●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1505-	●	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1505-	●	●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (A)	8-98205-463-0	01	1	1505-	●	●	●
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	1505-	●	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) 03.417 (C)	8-98067-267-0	01	1	1505-	●	●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (F)	8-98278-809-1	01	1	1505-			●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (D)	8-98023-342-2	01	1	1505-			●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (E)	8-98206-265-0	01	1	1505-			●
379	03.675 HOSE; RUBBER CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6)	8-98249-521-0	01	1	1505-	●	●	●
379	03.675 HOSE; RUBBER EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98205-932-2	01	1	1505-	●	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	1505-	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1505-	●	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1505-			●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1505-	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1505-	●	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1505-	●	●	●
426	03.417 CLIP; DUCT 03.407 D=101.6	9-09915-502-1	01	1	1505-	●	●
426	03.417 CLIP; DUCT 4JJ1-TCS ENG(LFB) 03.407 ID=127	1-14239-263-0	02	1	1505-			●
557	03.403 BOLT; HOSE CLIP CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO5B+ SPECIFICATION(NT5) 03.671 M6X10 FLANGE	0-28050-610-0	01	1	1506-	●	●	●
562	03.403 NUT; HOSE CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1505-1505	●	●	●
562	03.403 NUT; HOSE CLIP EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M6 FLANGE	0-91180-106-0	01	1	1506-	●	●	●
562	03.403 NUT; HOSE CLIP EURO6 SPECIFICATION(NT6) 01.062 M6 FLANGE	0-91180-106-0	01	1	1506-	●	●	●

381 314 317 281 5 232 314 5 35 387 232 287 248 248 381 389 242 242 381 381 389 317 314 317 381 242 389 381 297 553 426 26 409 40 242 384 297 557 562 379 228 228 10 9 426 351 175 174 26

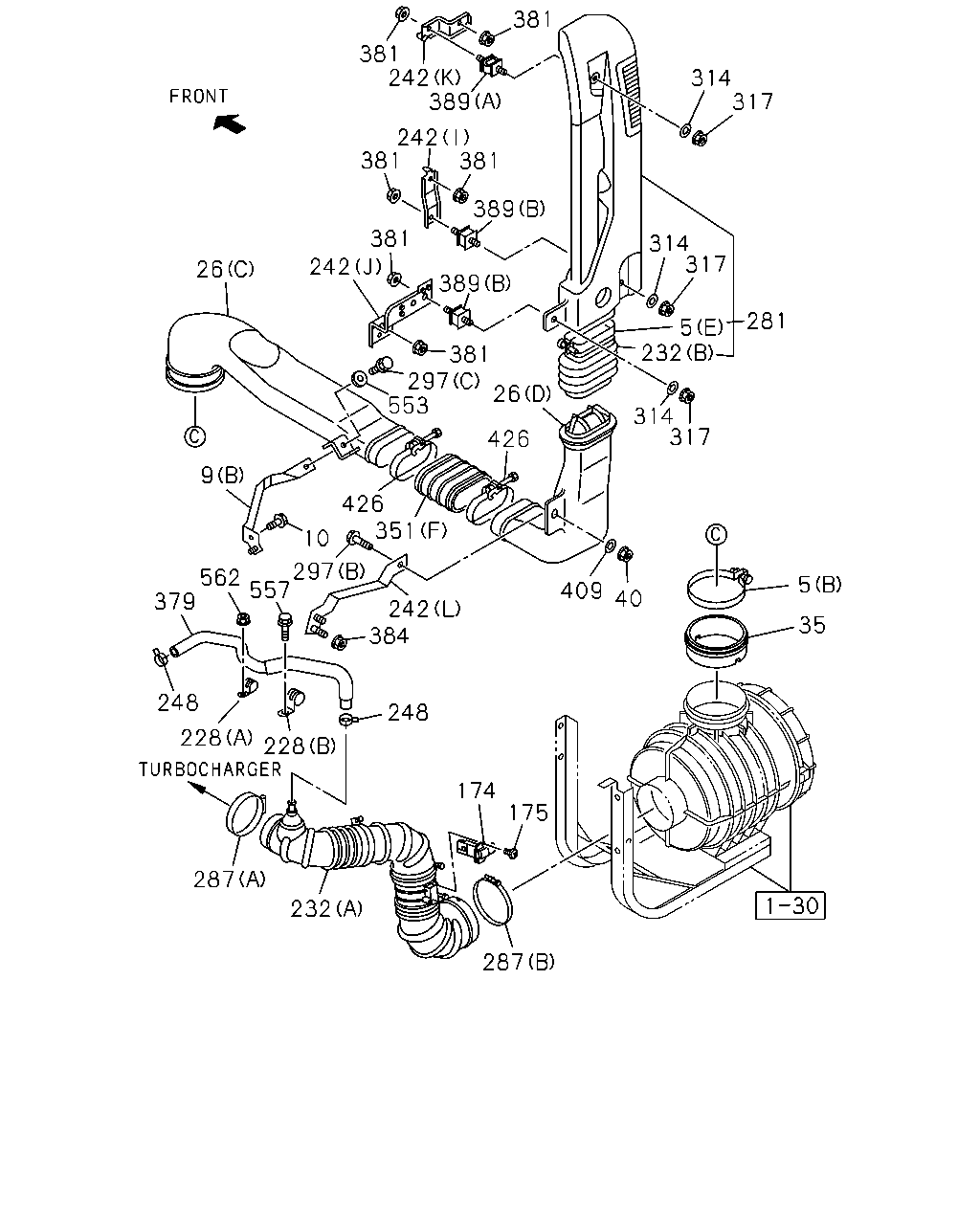

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) (D) ID=55-75	8-98133-349-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) (C) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (F) ID=117	9-09915-075-1	01	1	1505-			●
5	03.407 CLIP; AIR DUCT (E) D=101.6	9-09915-502-1	01	1	1505-			●
9	03.417 BRACKET; INT PIPE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (A)	8-98009-086-0	01	1	1505-	●	●	●
9	03.417 BRACKET; INT PIPE 4JJ1-TCS ENG(LFB) (B)	8-98206-338-1	01	1	1505-			●
10	03.417 BOLT; BRKT FIX 4JJ1-TCS ENG(LFB) 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1505-			●
26	03.417 DUCT; AIR INT (A)	8-98023-339-0	01	1	1505-	●	●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB) (C)	8-98206-339-0	01	1	1505-			●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB) (D)	8-98278-810-0	01	1	1505-			●
26	03.417 DUCT; AIR INT 4JJ1-TCC ENG(RDU) (B)	8-98023-340-0	01	1	1505-			●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1505-	●	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1505-	●	●	●
174	03.682 SENSOR; AIR FLOW CONT	8-98113-202-1	01	1	1505-	●	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1505-	●	●	●
228	03.278 CLIP; PCV HOSE CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO5B+ SPECIFICATION(NT5) (B) ID=24.5 H=29 L=25	8-98120-913-0	01	1	1506-	●	●	●
228	03.278 CLIP; PCV HOSE (A) ID=22 L=22	8-98120-916-0	01	1	1505-1505	●	●	●
228	03.278 CLIP; PCV HOSE EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) ID=22 L=22	8-98120-916-0	01	1	1506-	●	●	●
228	03.278 CLIP; PCV HOSE EURO6 SPECIFICATION(NT6) (A) ID=22 L=22	8-98120-916-0	01	1	1506-	●	●	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) (A)	8-98241-972-0	01	1	1505-	●	●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (A)	8-98241-971-0	01	1	1505-	●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (C)	8-98108-234-0	01	1	1505-			●
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (F)	8-98205-756-0	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (E)	8-98079-905-2	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98067-767-4	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (G)	8-98194-755-2	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98242-327-0	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (L)	8-98206-337-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (H)	8-98066-918-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (I)	8-98055-243-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (J)	8-98055-246-2	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (K)	8-98055-247-1	01	1	1505-			●
248	03.417 CLIP; RUBBER HOSE 08.846 ID=21.7	8-97203-074-0	02	1	1505-	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT	8-97369-706-0	01	1	1505-	●	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98061-757-2	01	1	1505-			●
287	03.417 CLIP; AIR DUCT 03.407 (B) ID=117	9-09915-075-1	01	1	1505-	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) 03.407 (B) ID=117	9-09915-075-1	01	1	1505-			●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=55-75	8-98133-349-0	01	1	1505-	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=58-79	1-09707-136-0	01	1	1505-	●	●
297	03.417 BOLT; DUCT 01.060 (A) M8X35 FLANGE	0-28650-835-0	01	1	1505-	●	●	●
297	03.417 BOLT; DUCT 4JJ1-TCS ENG(LFB) 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	1505-			●
297	03.417 BOLT; DUCT 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1505-			●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1505-	●	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1505-	●	●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (A)	8-98205-463-0	01	1	1505-	●	●	●
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	1505-	●	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) 03.417 (C)	8-98067-267-0	01	1	1505-	●	●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (F)	8-98278-809-1	01	1	1505-			●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (D)	8-98023-342-2	01	1	1505-			●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (E)	8-98206-265-0	01	1	1505-			●
379	03.675 HOSE; RUBBER CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6)	8-98249-521-0	01	1	1505-	●	●	●
379	03.675 HOSE; RUBBER EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98205-932-2	01	1	1505-	●	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	1505-	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1505-	●	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1505-			●
384	03.417 NUT; AIR INT DUCT BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	01	1	1505-			●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1505-	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1505-	●	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1505-	●	●	●
426	03.417 CLIP; DUCT 03.407 D=101.6	9-09915-502-1	01	1	1505-	●	●
426	03.417 CLIP; DUCT 4JJ1-TCS ENG(LFB) 03.407 ID=127	1-14239-263-0	02	1	1505-			●
553	03.417 WASHER; AIR DUCT 4JJ1-TCS ENG(LFB) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1505-			●
557	03.403 BOLT; HOSE CLIP CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO5B+ SPECIFICATION(NT5) 03.671 M6X10 FLANGE	0-28050-610-0	01	1	1506-	●	●	●
562	03.403 NUT; HOSE CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1505-1505	●	●	●
562	03.403 NUT; HOSE CLIP EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M6 FLANGE	0-91180-106-0	01	1	1506-	●	●	●
562	03.403 NUT; HOSE CLIP EURO6 SPECIFICATION(NT6) 01.062 M6 FLANGE	0-91180-106-0	01	1	1506-	●	●	●

317 314 381 242 381 389 381 242 381 389 389 381 381 242 5 351 242 175 174 297 61 35 5 40 409 26 314 232 5 317 314 281 317

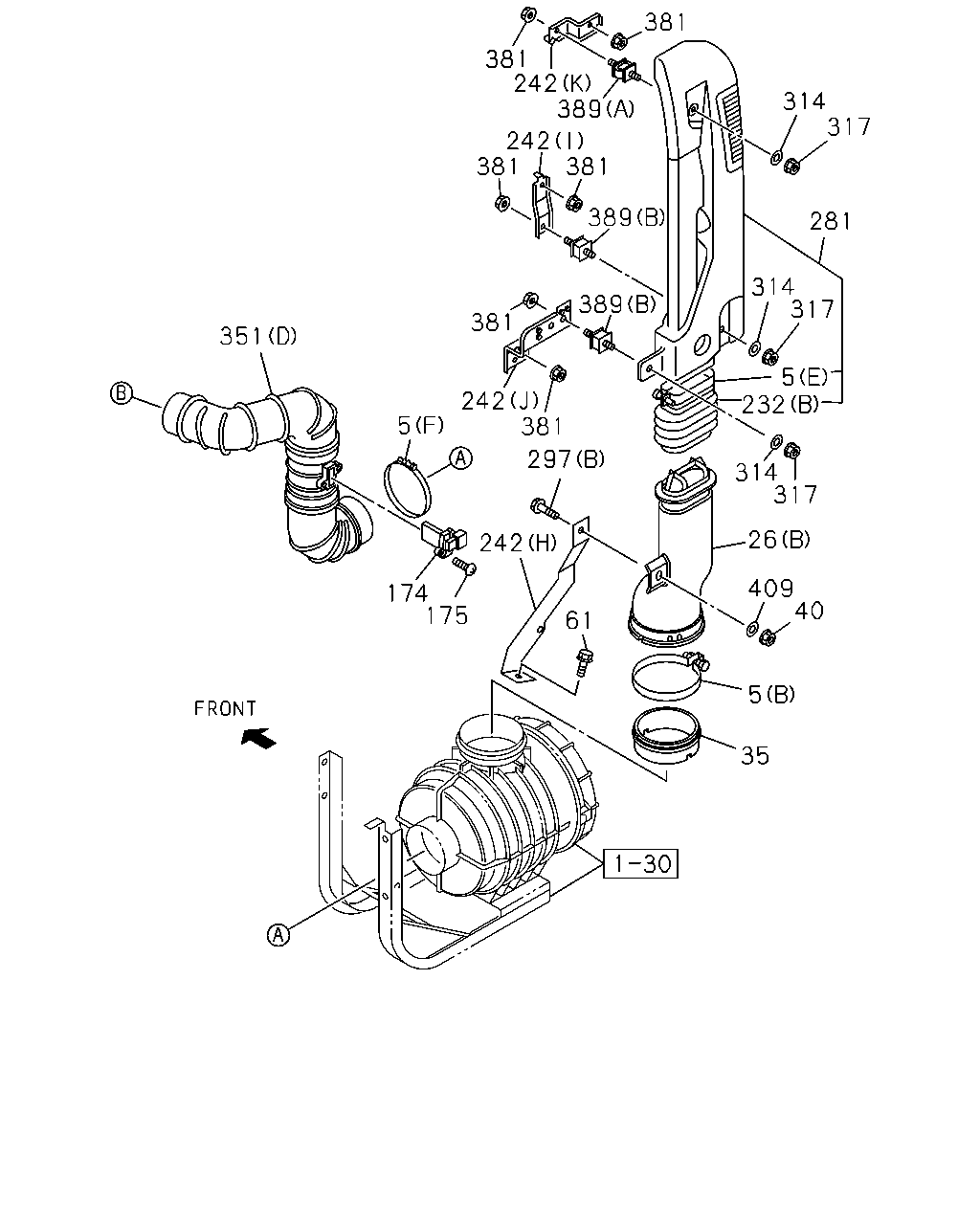

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) (D) ID=55-75	8-98133-349-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) (C) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1505-			●
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (F) ID=117	9-09915-075-1	01	1	1505-			●
5	03.407 CLIP; AIR DUCT (E) D=101.6	9-09915-502-1	01	1	1505-			●
26	03.417 DUCT; AIR INT (A)	8-98023-339-0	01	1	1505-	●	●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB) (C)	8-98206-339-0	01	1	1505-			●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB) (D)	8-98278-810-0	01	1	1505-			●
26	03.417 DUCT; AIR INT 4JJ1-TCC ENG(RDU) (B)	8-98023-340-0	01	1	1505-			●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1505-	●	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1505-	●	●	●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-	●	●
61	03.417 BOLT; BRKT,AIR DUCT 4JJ1-TCC ENG(RDU) 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1505-			●
174	03.682 SENSOR; AIR FLOW CONT	8-98113-202-1	01	1	1505-	●	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1505-	●	●	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) (A)	8-98241-972-0	01	1	1505-	●	●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (A)	8-98241-971-0	01	1	1505-	●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (C)	8-98108-234-0	01	1	1505-			●
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (F)	8-98205-756-0	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (E)	8-98079-905-2	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98067-767-4	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (G)	8-98194-755-2	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98242-327-0	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (L)	8-98206-337-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (H)	8-98066-918-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (I)	8-98055-243-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (J)	8-98055-246-2	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (K)	8-98055-247-1	01	1	1505-			●
281	03.417 DUCT; AIR,VERTICAL INT	8-97369-706-0	01	1	1505-	●	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98061-757-2	01	1	1505-			●
297	03.417 BOLT; DUCT 01.060 (A) M8X35 FLANGE	0-28650-835-0	01	1	1505-	●	●	●
297	03.417 BOLT; DUCT 4JJ1-TCS ENG(LFB) 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	1505-			●
297	03.417 BOLT; DUCT 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1505-			●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1505-	●	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1505-	●	●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (A)	8-98205-463-0	01	1	1505-	●	●	●
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	1505-	●	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) 03.417 (C)	8-98067-267-0	01	1	1505-	●	●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (F)	8-98278-809-1	01	1	1505-			●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (D)	8-98023-342-2	01	1	1505-			●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (E)	8-98206-265-0	01	1	1505-			●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	1505-	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1505-	●	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1505-			●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1505-	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1505-	●	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1505-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
