Isuzu WW
▶
BUSES
▶
LV
▶
11209 - LV434(RHD) EURO3/5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-21 - METER ASM
▶
8-21 — METER ASM
(#16154) — 48 parça
◀
[821A] NO.2 (12 parça)

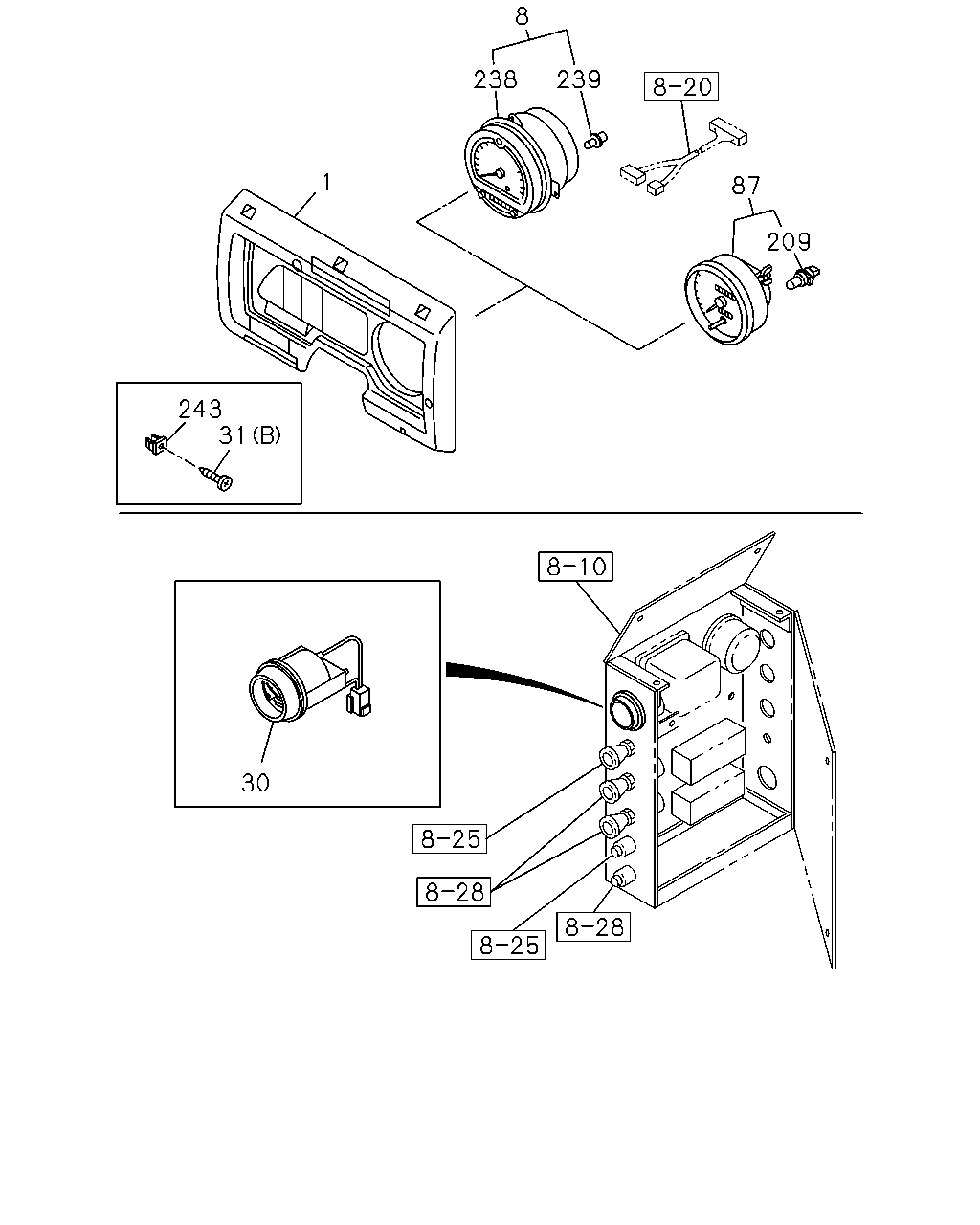

[821A] NO.1 (36 parça)
▶
8
238
239
1
87
209
243
31
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
METER COMPL; CLUSTER
8-98052-850-1
01
1
0907-1105
1
METER COMPL; CLUSTER
8-98195-489-0
01
1
1106-
8
TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H 1DAY(SCX)
8-98083-549-0
01
1
0907-
8
TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H 7DAY(WC7)
8-98039-288-0
01
1
0907-
30
GAUGE; OIL PRESSURE
1-83150-232-0
01
1
0907-
31
SCREW; METER,INST PANEL
(A) M6X20 W/LK&PL WASHER
0-36230-620-0
08
1
0907-
31
SCREW; METER,INST PANEL
(B) M4X16 TAPPING
0-71040-416-0
01
1
0907-
87
SPEEDOMETER
EXC. TACHOGRAPH 140KM/H 1DAY(SCX),TACHOGRAPH 140KM/H 7DAY(WC7)
8-98039-480-0
01
1
0907-
209
BULB; SPEEDOMETER
EXC. TACHOGRAPH 140KM/H 1DAY(SCX),TACHOGRAPH 140KM/H 7DAY(WC7) 24V 3W GREEN SOCKET
1-82194-061-0
01
1
0907-
238
PANEL; TACHOGRAPH
TACHOGRAPH 140KM/H 1DAY(SCX),TACHOGRAPH 140KM/H 7DAY(WC7)
1-83129-311-0
01
1
0907-
239
BULB; TACHOGRAPH
TACHOGRAPH 140KM/H 1DAY(SCX),TACHOGRAPH 140KM/H 7DAY(WC7) 24V 1.4W
1-82194-101-0
03
1
0907-
243
GROMMET; SCREW
D=7.5X7.5 L=7
8-94430-147-0
01
1
0907-
1
1
31
199
115
194
191
82
2
134
105
157
86
417
2
143
199
415
145
110
121
118
129
269
121
379
121
129
269
129
118
129
420
419
418
115
121
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
METER COMPL; CLUSTER
8-98052-850-1
01
1
0907-1105
1
METER COMPL; CLUSTER
8-98195-489-0
01
1
1106-
2
PANEL; CLUSTER
(B)
1-83119-652-0
01
1
0907-
2
PANEL; CLUSTER
(A)
8-98045-366-0
01
1
0907-
31
SCREW; METER,INST PANEL
(A) M6X20 W/LK&PL WASHER
0-36230-620-0
08
1
0907-
31
SCREW; METER,INST PANEL
(B) M4X16 TAPPING
0-71040-416-0
01
1
0907-
82
CASE ASM; CLUSTER METER
8-98045-367-0
01
1
0907-
86
TACHOMETER; CLUSTER METER
1-83120-911-0
01
1
0907-
105
GAUGE; THERMO & FUEL,CLUSTER METER
8-98054-833-0
01
1
0907-
110
GLASS; CLUSTER METER
1-83119-646-0
01
1
0907-
115
CIRCUIT; PRINTED,CLUSTER METER
8-98045-371-0
01
1
0907-1105
115
CIRCUIT; PRINTED,CLUSTER METER
8-98195-040-0
01
1
1106-
118
BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET
1-82194-061-0
04
1
0907-
118
BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET
1-82194-062-0
26
1
0907-
121
SCREW; PANEL FIX,CLUSTER METER
(A) M3 TAPPING
1-83119-084-0
01
1
0907-
121
SCREW; PANEL FIX,CLUSTER METER
(B) M4 TAPPING
1-83119-515-0
05
1
0907-
121
SCREW; PANEL FIX,CLUSTER METER
(C) M3 TAPPING
1-83119-676-0
02
1
0907-
129
SCREW; PRINTED CIRCUIT,CLUSTER METER
(A) M3 TAPPING
1-83119-657-0
09
1
0907-
129
SCREW; PRINTED CIRCUIT,CLUSTER METER
(B) M3 TAPPING
1-83119-675-0
06
1
0907-
134
GAUGE; OIL PRESSURE & VOLTAGE
1-83180-284-0
01
1
0907-
143
COVER; CLUSTER METER
1-83119-516-0
05
1
0907-
145
GROMMET; GLASS,KNOB HOLE,CLUSTER METER
1-83119-680-0
01
1
0907-
157
METER; AIR PRESSURE,CLUSTER METER
1-83150-261-0
01
1
0907-
191
KNOB; BULB CHECK
1-83119-672-0
01
1
0907-
194
SPRING; BULB CHECK KNOB
1-83119-673-0
01
1
0907-
199
LENS; WARNING LAMP
(A)
8-98045-368-0
01
1
0907-
199
LENS; WARNING LAMP
(B)
8-98045-369-1
01
1
0907-
269
SCREW; METER CLUSTER
(A) M3
1-83119-273-0
02
1
0907-
269
SCREW; METER CLUSTER
(B) M3 TAPPING
1-83119-677-0
05
1
0907-
379
CIRCUIT; DROP
1-83189-369-0
01
1
0907-
415
KNOB; TRIP,METER
1-83119-674-0
01
1
0907-
417
DISPLAY; ODO & TRIP,METER
1-83119-671-0
01
1
0907-1105
417
DISPLAY; ODO & TRIP,METER
8-98195-041-0
01
1
1106-
418
CIRCUIT; CONTROL,METER
8-98055-104-0
01
1
0907-
419
SPACER; CIRCUIT,METER
1-83119-678-0
02
1
0907-
420
HEAT SINK; METER
1-83119-679-0
01
1
0907-
