◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51613 - NLR/NMR LHD EUROPE EURO5B+,6 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#161534) — 93 parça

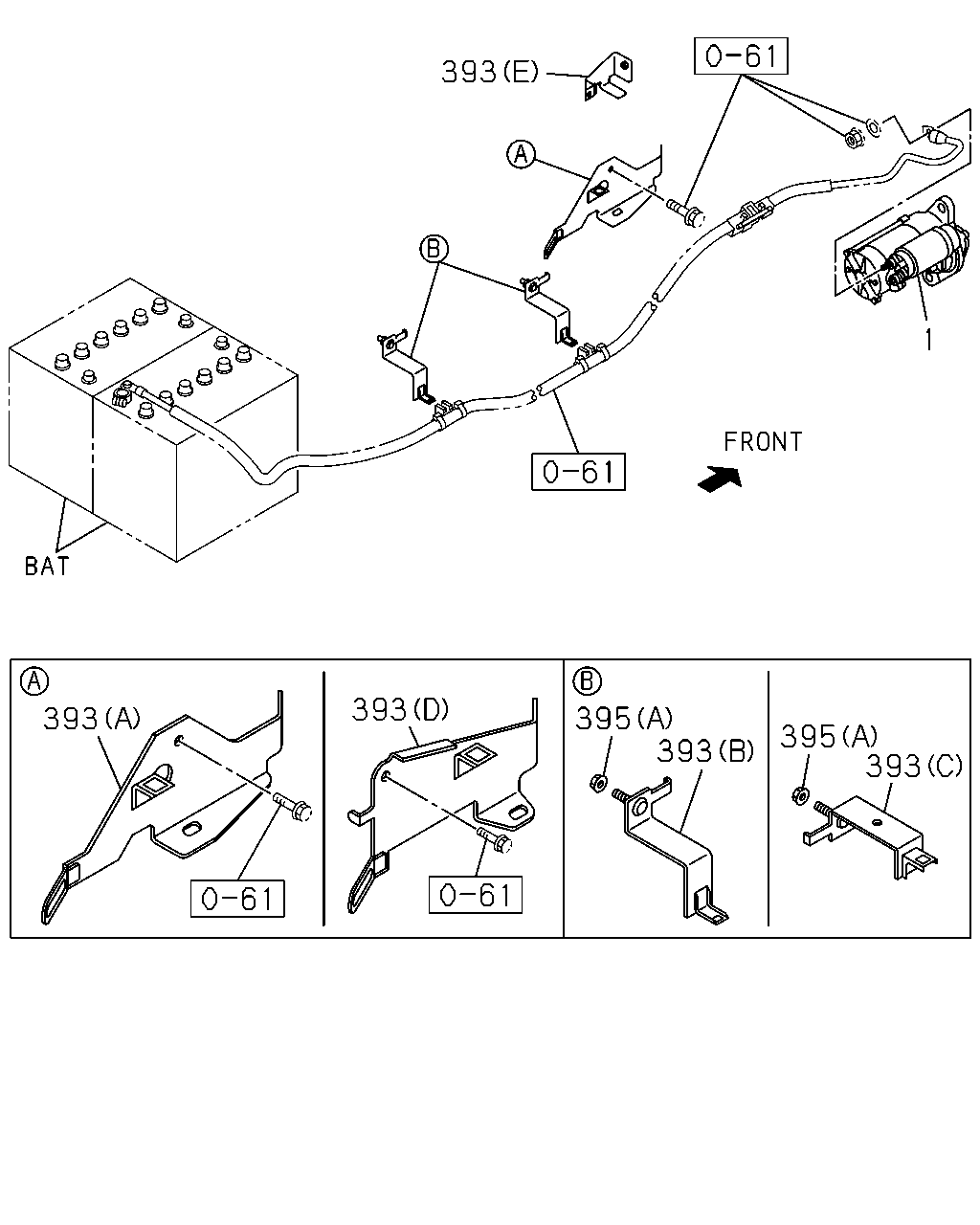

çizim 475259
393 393 393 395 393 395 393 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1505- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W) (F) 		8-98260-938-0 01 1 1505- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W) (G) 		8-98260-939-0 01 1 1505- ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98028-601-3 01 1 1505-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98028-601-3 01 1 1505-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98028-601-3 01 1 1505-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98028-601-3 01 1 1508- ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98028-600-3 01 1 1505-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98028-600-3 01 1 1505-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98028-600-3 01 1 1505-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98028-600-3 01 1 1508- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) (B) 		8-98245-494-0 02 1 1505-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (B) 		8-98245-494-0 02 1 1508- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (E) 		8-98123-872-0 01 1 1505-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) (E) 		8-98123-872-0 01 1 1505-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (E) 		8-98123-872-0 01 1 1508- ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) (E) 		8-98123-872-0 01 1 1508- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.483 (C) 		8-98018-251-1 01 1 1505- ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) (B) 		8-98245-494-0 03 1 1505-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) (B) 		8-98245-494-0 03 1 1508- ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W) 00.787 (B) M10 		0-91111-510-0 02 1 1505- ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1505-1507 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1508- ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1505- ●
395 02.343 NUT; BRKT FIX
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) 01.062 (A) M8 FLANGE 		0-91180-108-0 03 1 1505-1507 ●
395 02.343 NUT; BRKT FIX
DBL CAB(NM**W*) 01.062 (A) M8 FLANGE 		0-91180-108-0 03 1 1508- ●

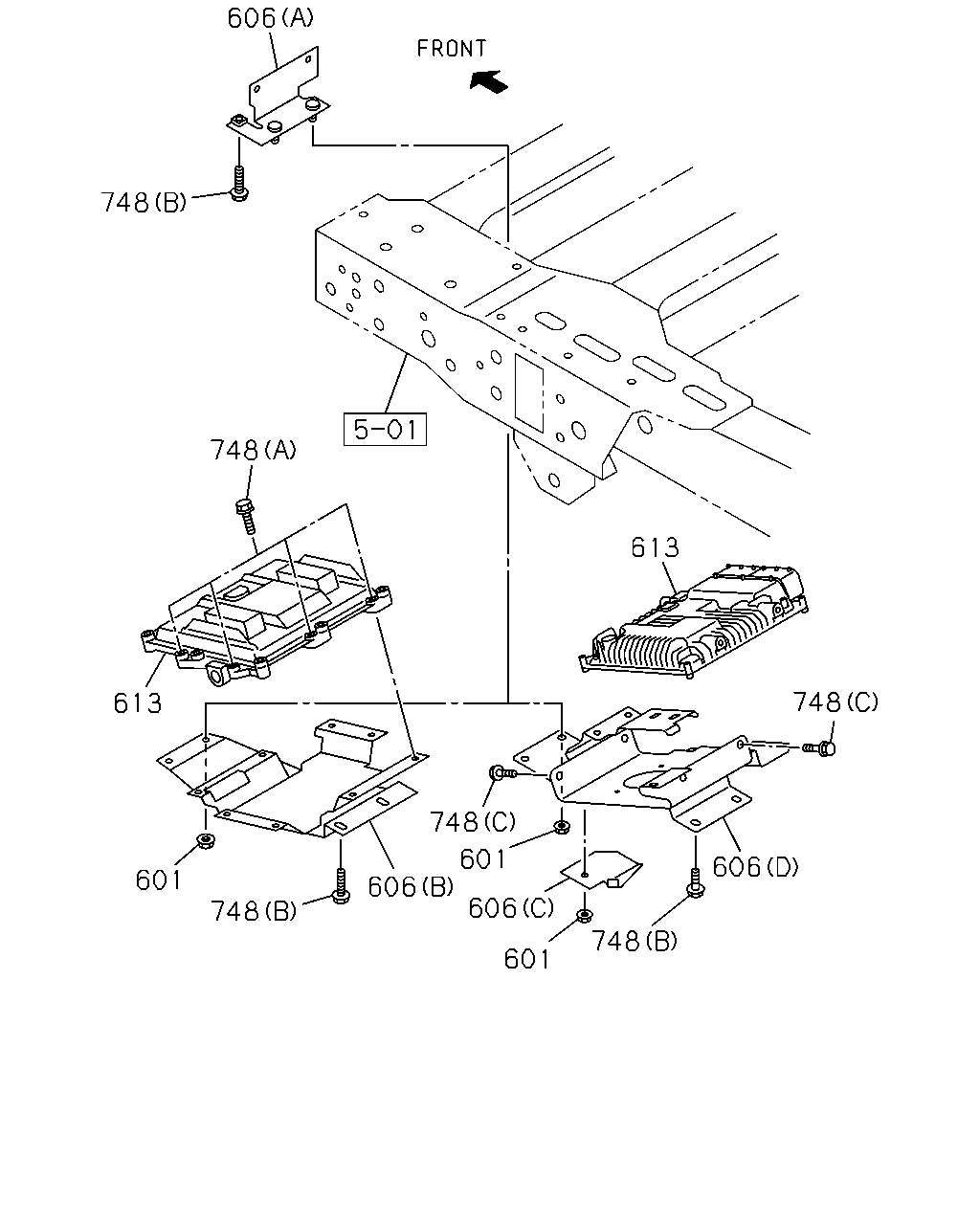

çizim 475262
606 748 748 613 601 748 748 606 606 601 601 748 606 748 613
BalonParca AdiParca NoAdetTipApplied Date A B
601 03.670 NUT; UNIT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1505- ●
601 03.670 NUT; UNIT
01.062 M8 FLANGE 		0-91180-108-0 03 1 1505- ●
606 03.680 BRACKET; CONT UNIT
(A) 		8-98119-085-0 01 1 1505- ● ●
606 03.680 BRACKET; CONT UNIT
(B) 		8-98207-080-2 01 1 1505- ●
606 03.680 BRACKET; CONT UNIT
(C) 		8-98146-323-1 01 1 1505- ●
606 03.680 BRACKET; CONT UNIT
(D) 		8-98207-079-1 01 1 1505- ●
613 03.670 CONTROL UNIT; ENG
NLR(NM***E) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-849-0 01 1 1505- ●
613 03.670 CONTROL UNIT; ENG
NLR(NM***E) SMOOTHER-EX(TYPE2)(8NS) 		8-98303-850-0 01 1 1505- ●
613 03.670 CONTROL UNIT; ENG
NLR SGL CAB(NM**SE) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98288-405-1 01 1 1505- ●
613 03.670 CONTROL UNIT; ENG
NLR SGL CAB(NM**SE) SMOOTHER-EX(TYPE2)(8NS) 		8-98286-718-0 01 1 1505- ●
613 03.670 CONTROL UNIT; ENG
FINAL GEAR RATIO 41/9(HC6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-852-0 01 1 1505- ●
613 03.670 CONTROL UNIT; ENG
FINAL GEAR RATIO 41/9(HC6) SMOOTHER-EX(TYPE2)(8NS) 		8-98303-854-0 01 1 1505- ●
613 03.670 CONTROL UNIT; ENG
FINAL GEAR RATIO 43/10(S7C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-851-0 01 1 1505- ●
613 03.670 CONTROL UNIT; ENG
FINAL GEAR RATIO 43/10(S7C) SMOOTHER-EX(TYPE2)(8NS) 		8-98303-853-0 01 1 1505- ●
613 03.670 CONTROL UNIT; ENG
FINAL GEAR RATIO 41/10(GT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98286-717-1 01 1 1505- ●
613 03.670 CONTROL UNIT; ENG
FINAL GEAR RATIO 41/10(GT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98286-719-0 01 1 1505- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NM**W*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98288-420-1 01 1 1505- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NM**W*) SMOOTHER-EX(TYPE2)(8NS) 		8-98286-720-0 01 1 1505- ●
748 02.500 BOLT; CONT UNIT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 03 1 1505- ● ●
748 02.500 BOLT; CONT UNIT
03.680 (A) M6X30 FLANGE 		0-28650-630-0 08 1 1505- ●
748 02.500 BOLT; CONT UNIT
02.343 (C) M8X16 FLANGE 		0-28050-816-0 04 1 1505- ●

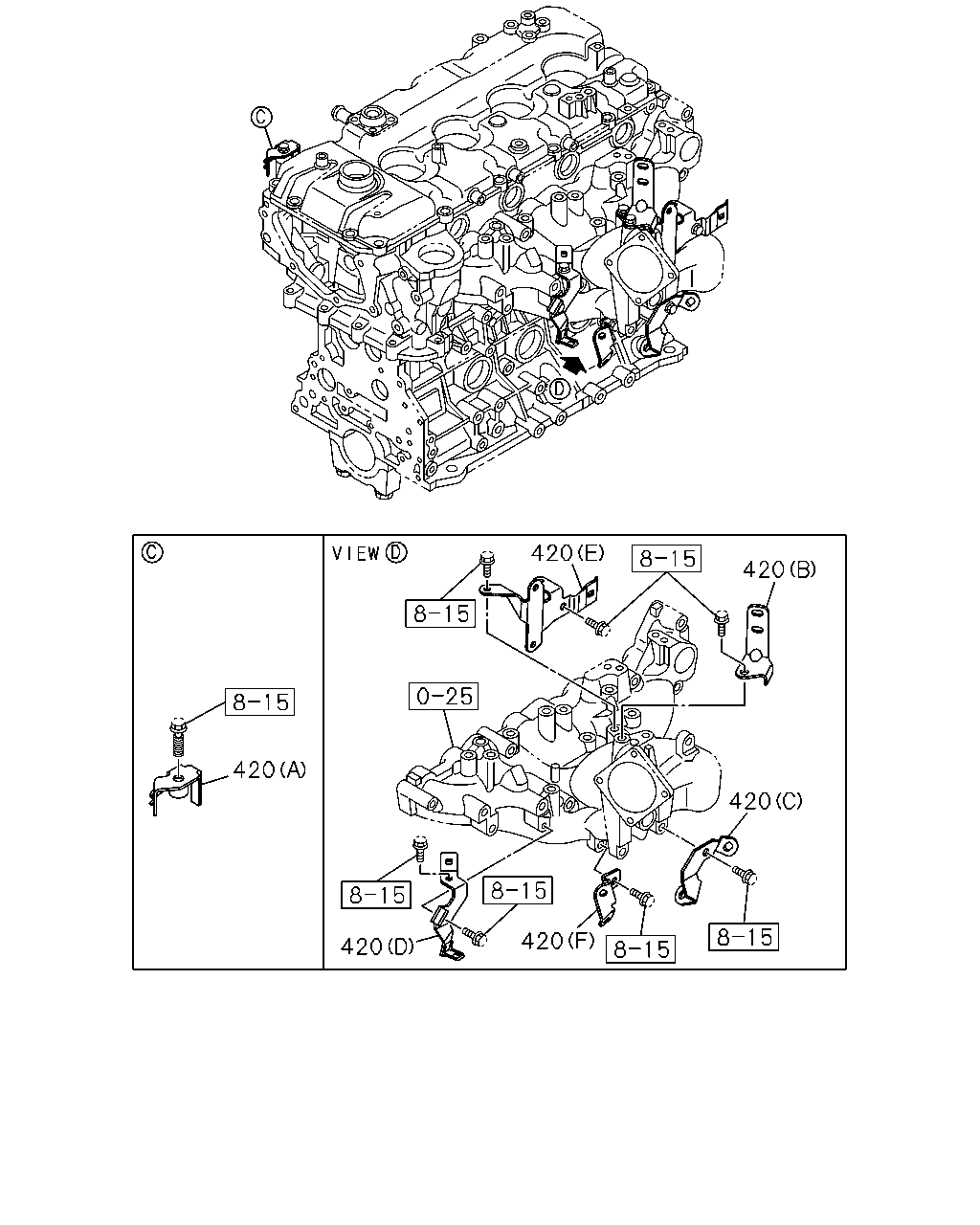

çizim 475268
420 420 420 420 420 420
BalonParca AdiParca NoAdetTipApplied Date A B
420 02.183 BRACKET; HARNESS
(A) 		8-98140-298-3 01 1 1505- ● ●
420 02.183 BRACKET; HARNESS
(B) 		8-98209-804-1 01 1 1505- ● ●
420 02.183 BRACKET; HARNESS
(C) 		8-98209-803-1 01 1 1505- ●
420 02.183 BRACKET; HARNESS
(D) 		8-98115-415-1 01 1 1505- ●
420 02.183 BRACKET; HARNESS
02.483 (E) 		8-98195-122-0 01 1 1505- ●
420 02.183 BRACKET; HARNESS
(F) 		8-98203-403-0 01 1 1505- ●

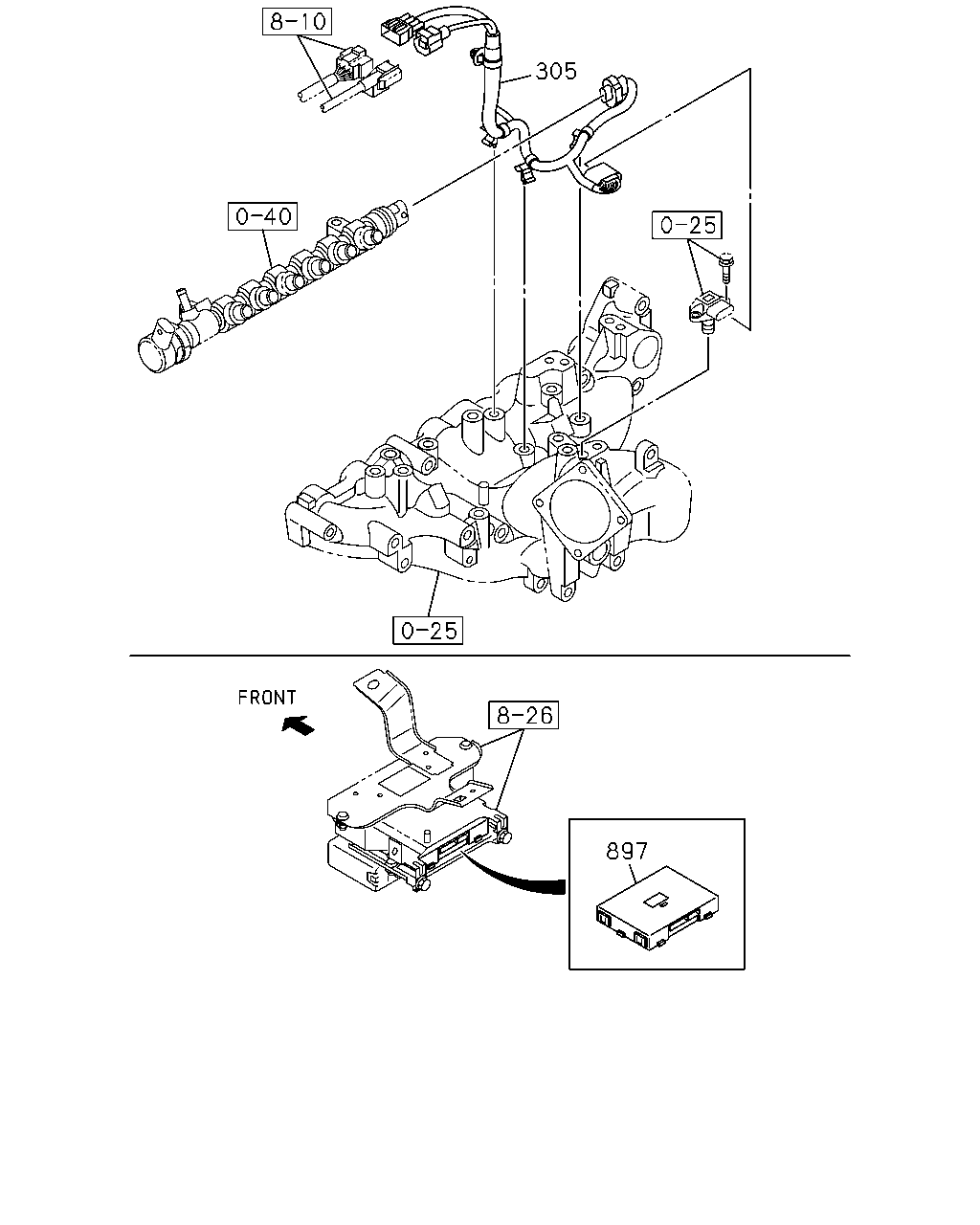

çizim 475270
305 897
BalonParca AdiParca NoAdetTipApplied Date A B
305 02.480 HARNESS; EXT,GLOW PLUG 8-98209-543-1 01 1 1505- ●
897 02.510 DRM 8-98290-407-0 01 1 1505- ● ●
çizim 476473
10 46
BalonParca AdiParca NoAdetTipApplied Date A B
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 1505- ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 1505- ● ●

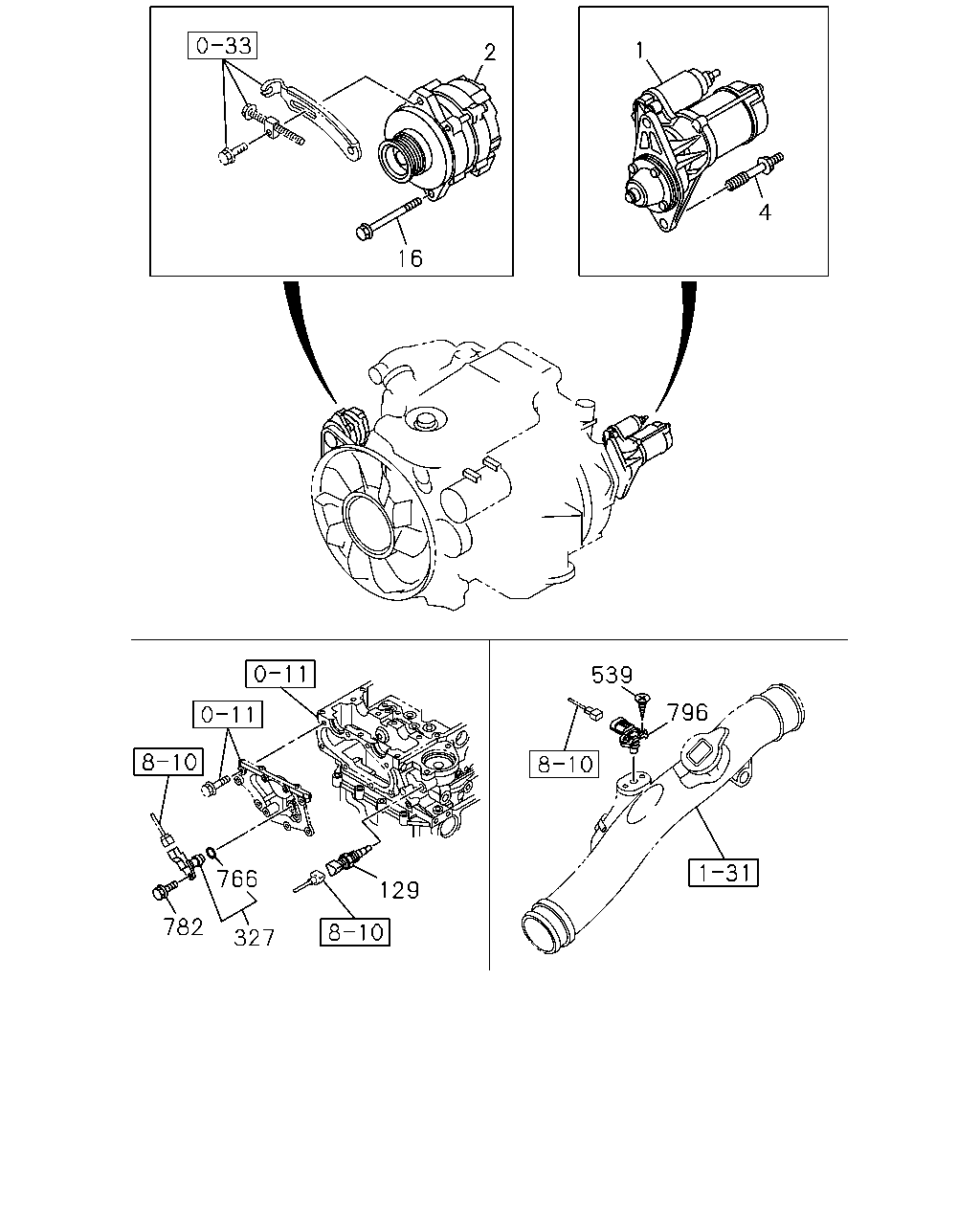

çizim 476519
2 16 1 4 539 796 129 766 782 327
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1505- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) 24V 90A 		8-98251-635-1 01 1 1505- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) 24V 50A 		8-98268-791-0 01 1 1505- ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 1505- ● ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 1505- ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1505- ● ●
327 02.361 SENSOR; CAMSHAFT POSITION
00.724 		8-98019-024-0 01 1 1505- ● ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1505- ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1505- ● ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1505- ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 1505- ●

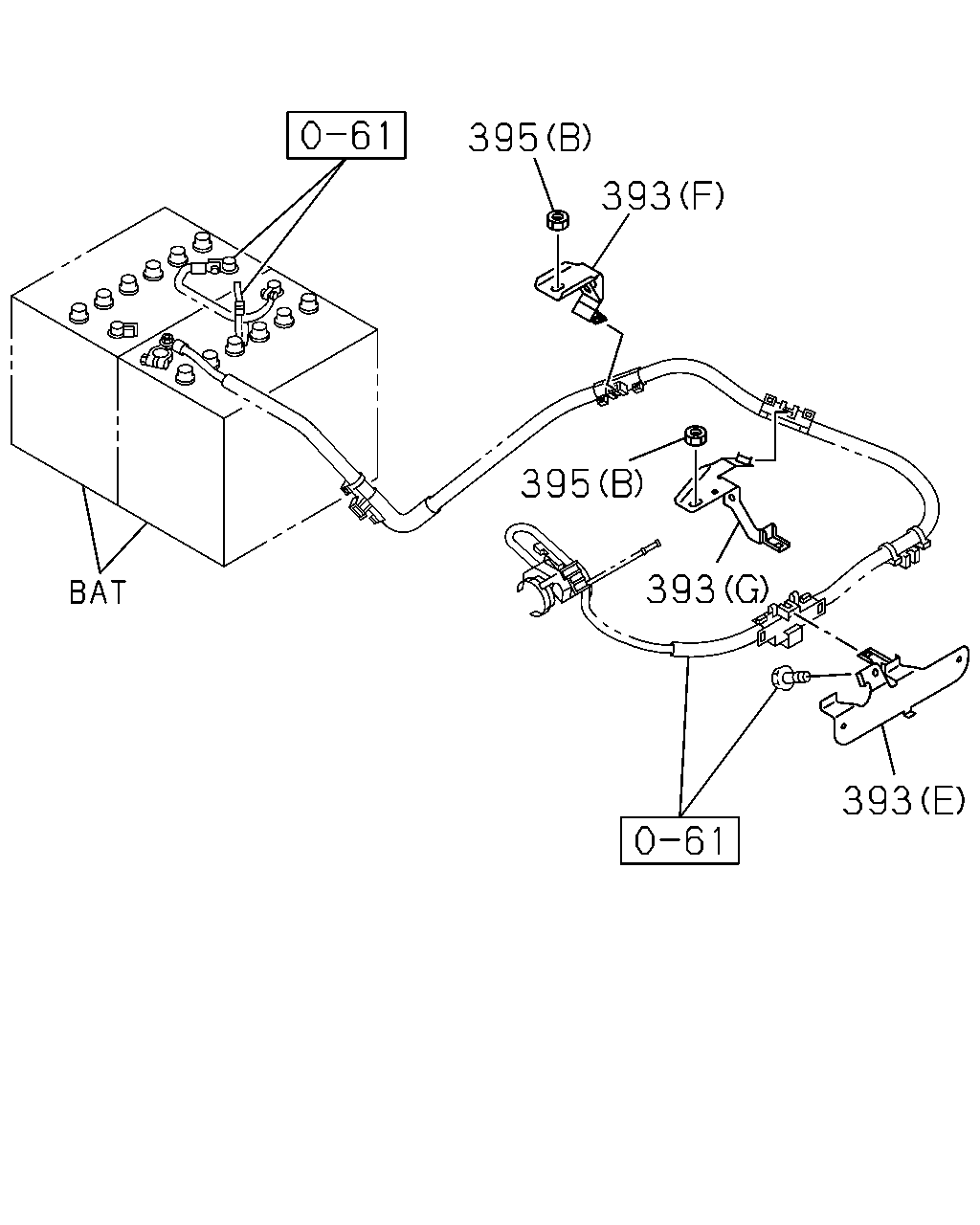

çizim 476682
395 393 395 393 393
BalonParca AdiParca NoAdetTipApplied Date A B
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W) (F) 		8-98260-938-0 01 1 1505- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W) (G) 		8-98260-939-0 01 1 1505- ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98028-601-3 01 1 1505-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98028-601-3 01 1 1505-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98028-601-3 01 1 1505-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98028-601-3 01 1 1508- ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98028-600-3 01 1 1505-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98028-600-3 01 1 1505-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98028-600-3 01 1 1505-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98028-600-3 01 1 1508- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) (B) 		8-98245-494-0 02 1 1505-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (B) 		8-98245-494-0 02 1 1508- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (E) 		8-98123-872-0 01 1 1505-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) (E) 		8-98123-872-0 01 1 1505-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (E) 		8-98123-872-0 01 1 1508- ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) (E) 		8-98123-872-0 01 1 1508- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.483 (C) 		8-98018-251-1 01 1 1505- ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) (B) 		8-98245-494-0 03 1 1505-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) (B) 		8-98245-494-0 03 1 1508- ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W) 00.787 (B) M10 		0-91111-510-0 02 1 1505- ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1505-1507 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1508- ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1505- ●
395 02.343 NUT; BRKT FIX
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) 01.062 (A) M8 FLANGE 		0-91180-108-0 03 1 1505-1507 ●
395 02.343 NUT; BRKT FIX
DBL CAB(NM**W*) 01.062 (A) M8 FLANGE 		0-91180-108-0 03 1 1508- ●
