Isuzu WW
▶
BUSES
▶
LV
▶
11209 - LV434(RHD) EURO3/5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

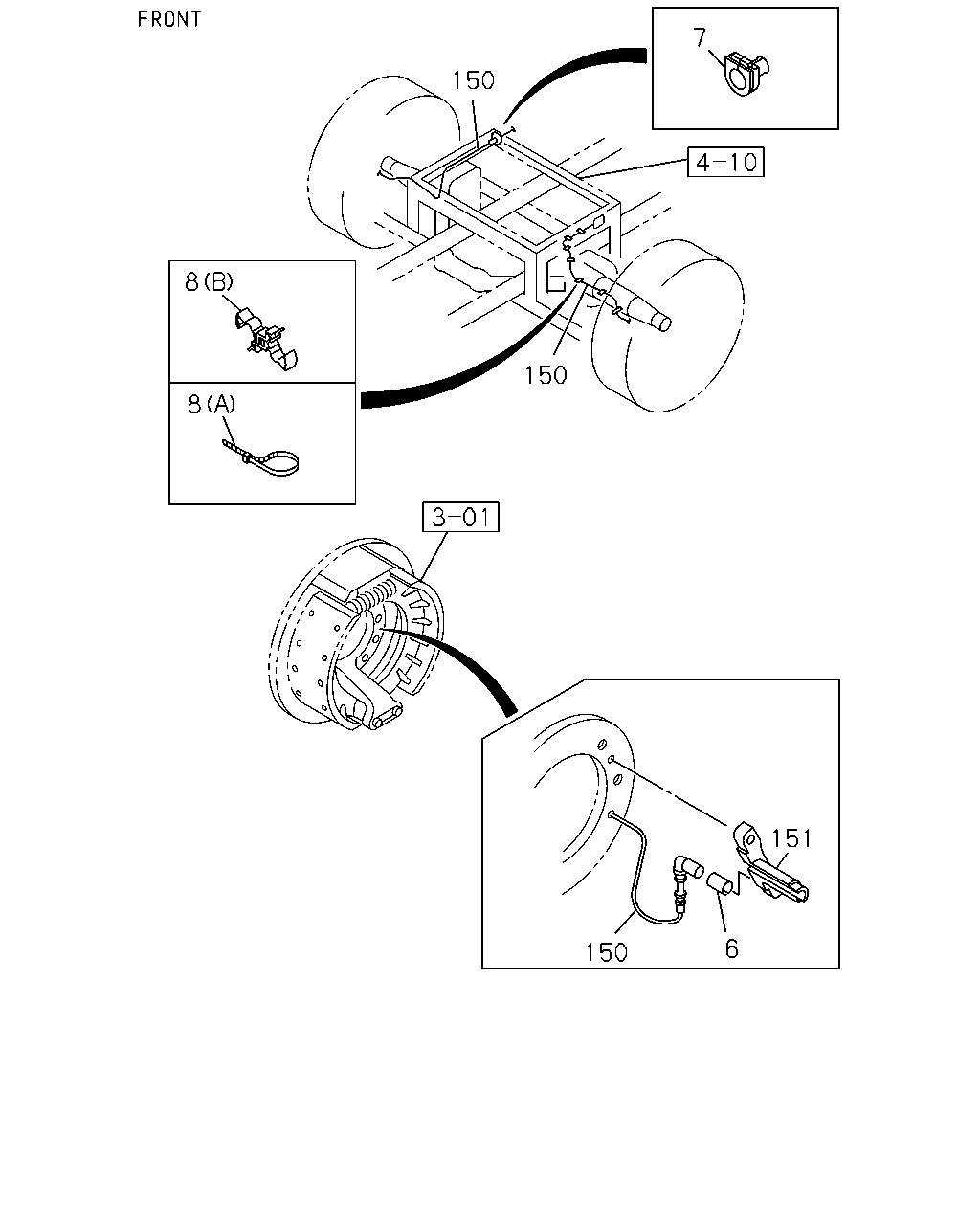

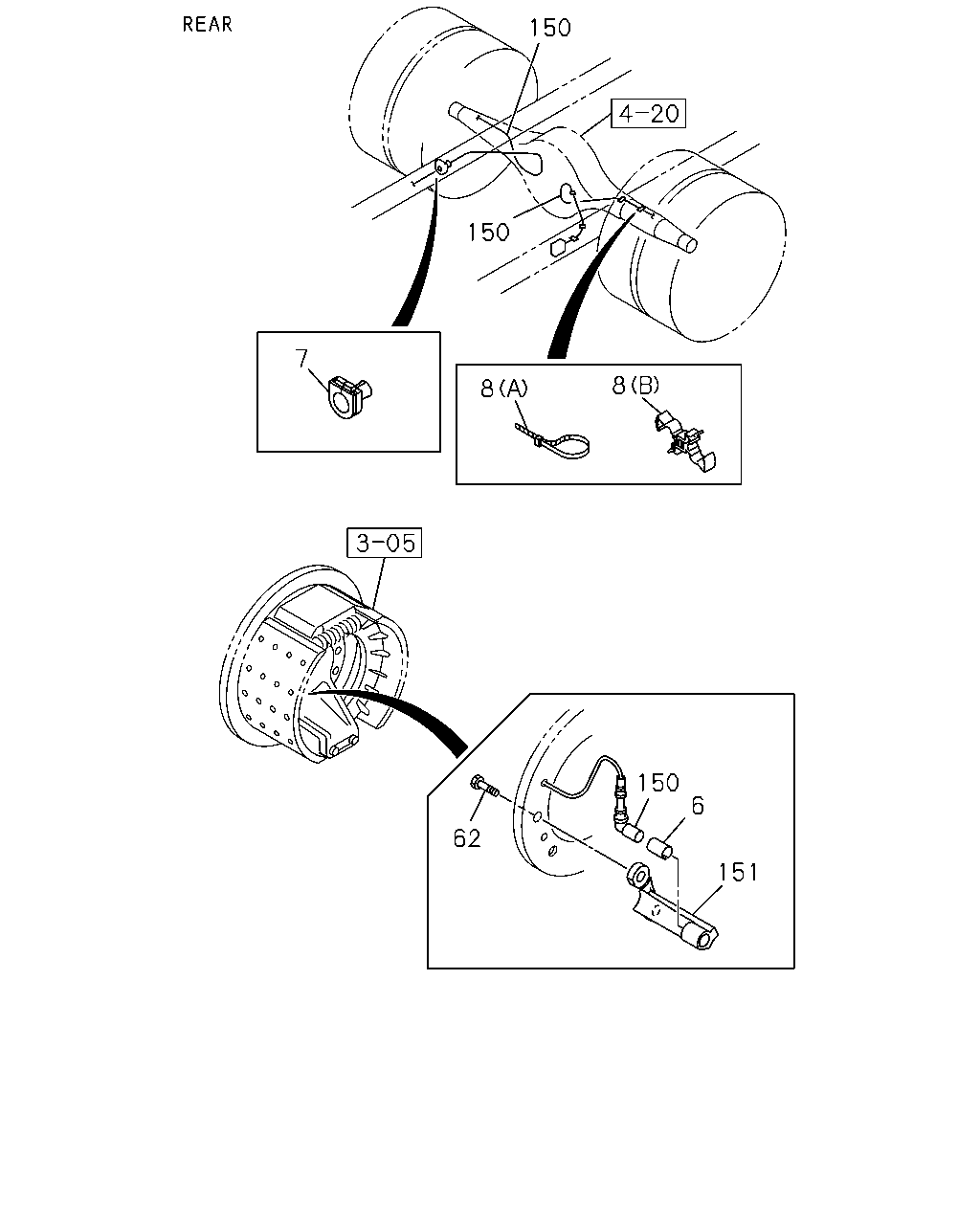

8-20 - METER CABLE
▶
8-20 — METER CABLE
(#16153) — 44 parça
◀
[820A] NO.3 (2 parça)
[820A] NO.2 (22 parça)
[820A] NO.1 (20 parça)
▶
228
132
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
132
SENSOR; SPD,SPEEDOMETER
25 PULSE ALUMINUM
8-97328-058-1
01
1
0907-
228
PROTECTOR; SENSOR
8-98119-901-0
01
1
0907-
150
150
7
8
8
150
6
62
151
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HOLDER; SPD SENSOR
1-83129-260-1
02
1
0907-
6
HOLDER; SPD SENSOR
1-83129-260-1
02
1
0907-
7
GROMMET; SPD SENSOR
ID=8
1-82699-740-1
01
1
0907-
7
GROMMET; SPD SENSOR
ID=8
1-82699-740-1
01
1
0907-
8
CLIP; HARNESS
(B) ID=6-10 & 6-10
1-09709-192-1
01
1
0907-
8
CLIP; HARNESS
(B) ID=6-10 & 6-10
1-09709-192-1
01
1
0907-
8
CLIP; HARNESS
(A) L=140
5-09707-031-1
01
1
0907-
8
CLIP; HARNESS
(A) L=140
5-09707-031-1
01
1
0907-
62
BOLT; SENSOR
M8X16
9-05820-816-0
02
1
0907-1506
62
BOLT; SENSOR
M8X16 HEX SOCKET
0-58330-816-0
02
1
1507-
150
SENSOR; SPEED,ABS
REAR
1-83127-771-1
01
1
0907-
150
SENSOR; SPEED,ABS
REAR
1-83127-772-1
01
1
0907-
150
SENSOR; SPEED,ABS
FRONT
1-83227-016-1
01
1
0907-1003
150
SENSOR; SPEED,ABS
FRONT
8-98129-460-0
01
1
1004-
150
SENSOR; SPEED,ABS
FRONT
1-83227-017-1
01
1
0907-1003
150
SENSOR; SPEED,ABS
FRONT
8-98129-462-0
01
1
1004-
151
BRACKET; SPD SENSOR
REAR
1-83129-405-0
01
1
0907-1504
151
BRACKET; SPD SENSOR
REAR
8-98299-398-0
01
1
1505-
151
BRACKET; SPD SENSOR
REAR
1-83129-406-0
01
1
0907-1504
151
BRACKET; SPD SENSOR
REAR
8-98299-399-0
01
1
1505-
151
BRACKET; SPD SENSOR
FRONT
1-83129-421-0
01
1
0907-
151
BRACKET; SPD SENSOR
FRONT
1-83129-422-0
01
1
0907-
7
150
8
150
8
151
6
150
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HOLDER; SPD SENSOR
1-83129-260-1
02
1
0907-
6
HOLDER; SPD SENSOR
1-83129-260-1
02
1
0907-
7
GROMMET; SPD SENSOR
ID=8
1-82699-740-1
01
1
0907-
7
GROMMET; SPD SENSOR
ID=8
1-82699-740-1
01
1
0907-
8
CLIP; HARNESS
(B) ID=6-10 & 6-10
1-09709-192-1
01
1
0907-
8
CLIP; HARNESS
(B) ID=6-10 & 6-10
1-09709-192-1
01
1
0907-
8
CLIP; HARNESS
(A) L=140
5-09707-031-1
01
1
0907-
8
CLIP; HARNESS
(A) L=140
5-09707-031-1
01
1
0907-
150
SENSOR; SPEED,ABS
REAR
1-83127-771-1
01
1
0907-
150
SENSOR; SPEED,ABS
REAR
1-83127-772-1
01
1
0907-
150
SENSOR; SPEED,ABS
FRONT
1-83227-016-1
01
1
0907-1003
150
SENSOR; SPEED,ABS
FRONT
8-98129-460-0
01
1
1004-
150
SENSOR; SPEED,ABS
FRONT
1-83227-017-1
01
1
0907-1003
150
SENSOR; SPEED,ABS
FRONT
8-98129-462-0
01
1
1004-
151
BRACKET; SPD SENSOR
REAR
1-83129-405-0
01
1
0907-1504
151
BRACKET; SPD SENSOR
REAR
8-98299-398-0
01
1
1505-
151
BRACKET; SPD SENSOR
REAR
1-83129-406-0
01
1
0907-1504
151
BRACKET; SPD SENSOR
REAR
8-98299-399-0
01
1
1505-
151
BRACKET; SPD SENSOR
FRONT
1-83129-421-0
01
1
0907-
151
BRACKET; SPD SENSOR
FRONT
1-83129-422-0
01
1
0907-
