◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51613 - NLR/NMR LHD EUROPE EURO5B+,6 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-32 - WATER PIPING; ENGINE ▶
0-32 — WATER PIPING; ENGINE (#161524) — 37 parça

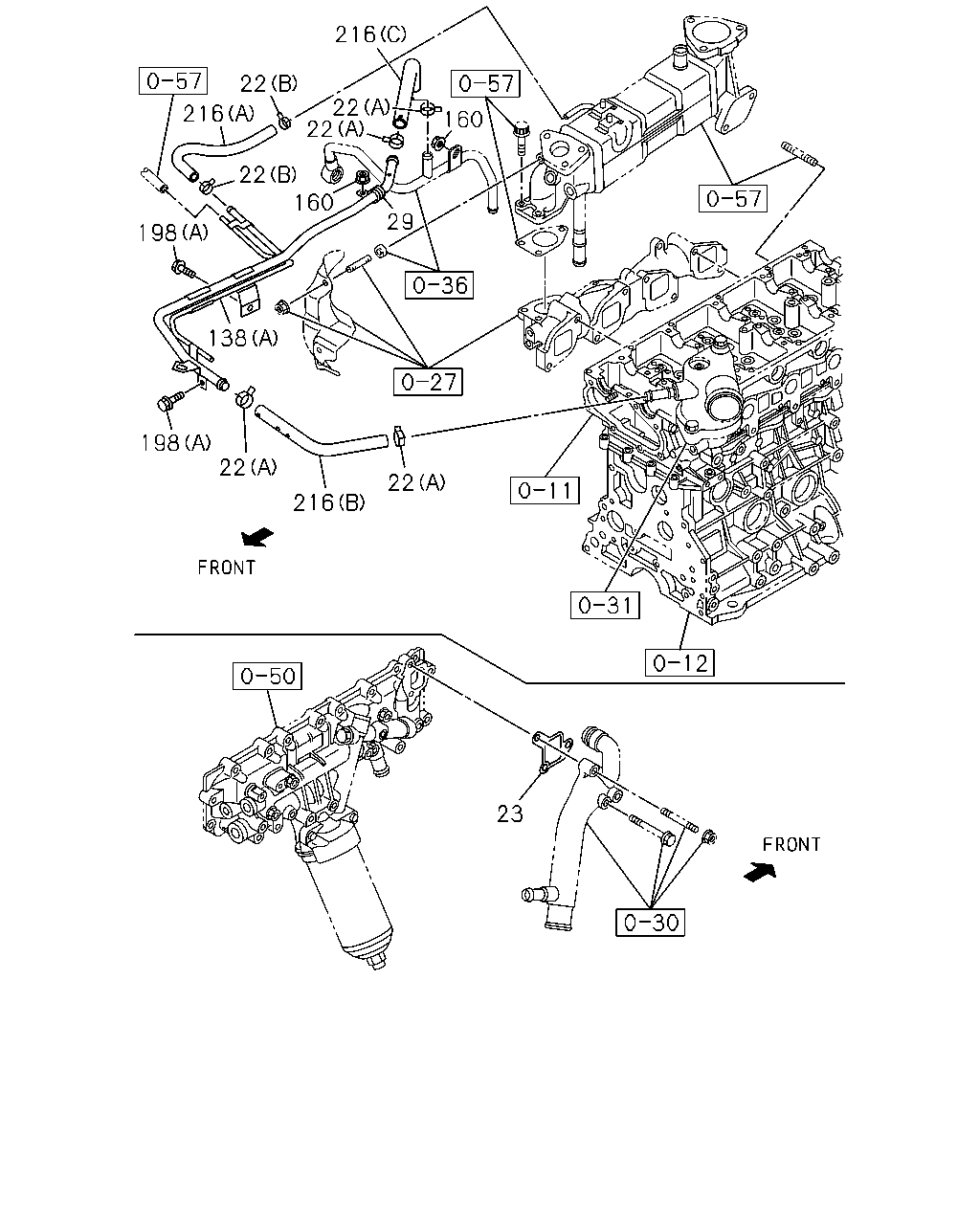

çizim 475109
23 216 22 198 138 160 22 22 216 160 22 216 198 29 22 22
BalonParca AdiParca NoAdetTipApplied Date A B
22 01.153 CLIP; WATER HOSE
(A) ID=12.8 		8-94367-943-0 04 1 1505- ● ●
22 01.153 CLIP; WATER HOSE
(B) ID=11 		8-97375-639-0 02 1 1505- ● ●
22 01.153 CLIP; WATER HOSE
(C) ID=11.5 		8-97375-638-0 02 1 1505- ●
23 01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98075-127-0 01 1 1505- ● ●
29 01.166 CLIP; PIPE
01.251 		8-98120-917-0 01 1 1505- ● ●
138 01.251 PIPE; WATER
(A) 		8-98201-792-0 01 1 1505-1506 ● ●
138 01.251 PIPE; WATER
(A) 		8-98317-078-0 01 1 1507- ● ●
138 01.251 PIPE; WATER
(B) 		8-98239-417-2 01 1 1505- ●
160 01.153 NUT; WATER PIPE
01.540 M6 FLANGE 		0-91180-206-0 01 1 1505- ● ●
160 01.153 NUT; WATER PIPE
01.540 M6 FLANGE 		0-91180-206-0 01 1 1505- ●
198 01.242 BOLT; PIPE
03.162 (A) M6X12 FLANGE 		0-28050-612-0 02 1 1505- ● ●
198 01.242 BOLT; PIPE
02.343 (B) M8X16 FLANGE 		0-28050-816-0 02 1 1505- ●
216 01.240 HOSE; WATER
(A) 		8-98074-982-0 01 1 1505- ● ●
216 01.240 HOSE; WATER
03.342 (B) 		8-98113-336-0 01 1 1505- ● ●
216 01.240 HOSE; WATER
(C) 		8-98117-662-1 01 1 1505- ●
216 01.240 HOSE; WATER
03.342 (D) 		8-98075-182-1 01 1 1505- ●

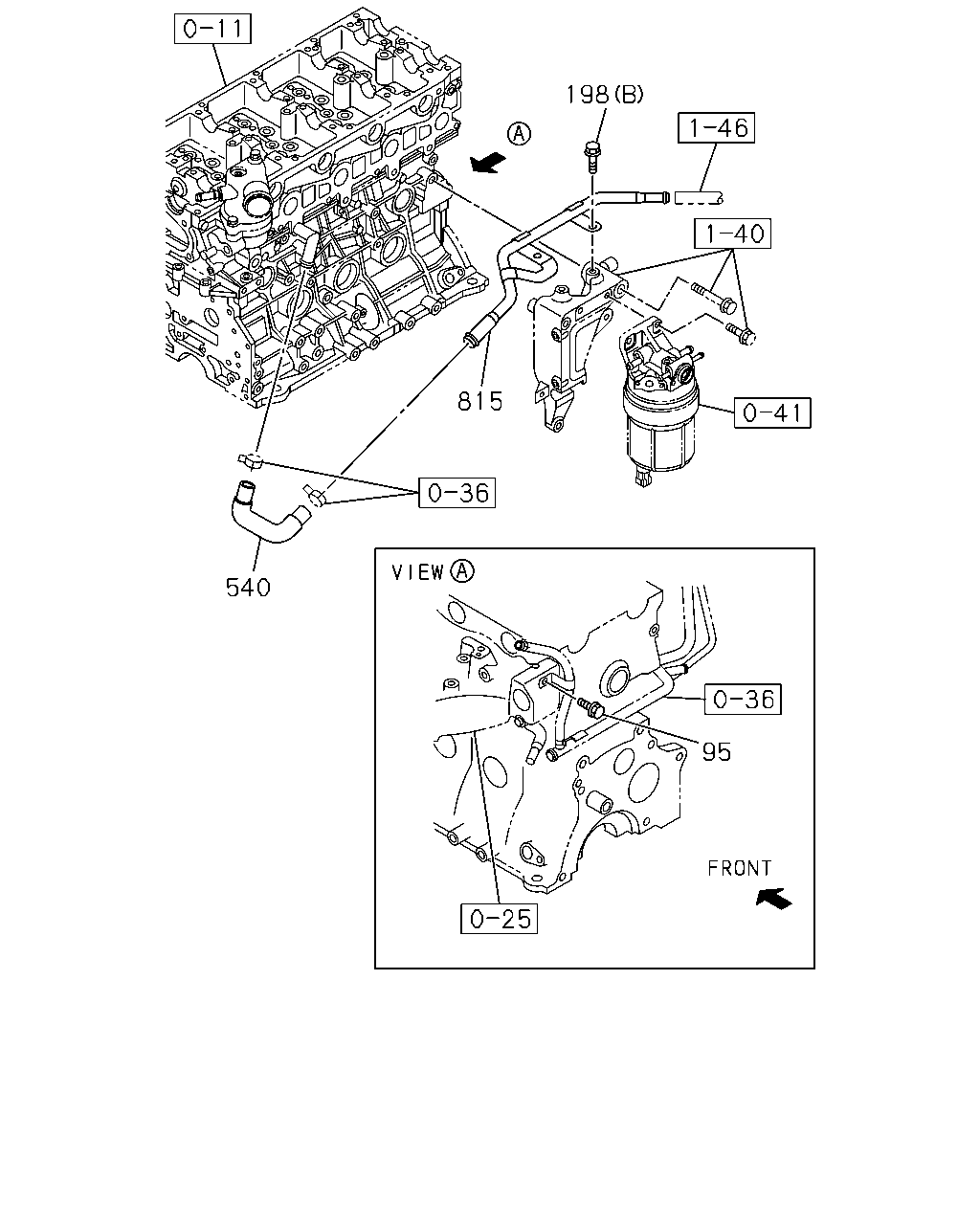

çizim 475116
95 815 198 540
BalonParca AdiParca NoAdetTipApplied Date A B
95 01.240 BOLT; CLIP
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1505- ●
198 01.242 BOLT; PIPE
03.162 (A) M6X12 FLANGE 		0-28050-612-0 02 1 1505- ● ●
198 01.242 BOLT; PIPE
02.343 (B) M8X16 FLANGE 		0-28050-816-0 02 1 1505- ●
540 01.240 HOSE; WATER,DEF TANK FEED 8-98209-645-2 01 1 1505- ●
815 01.097 PIPE; WATER,DEF TANK FEED 8-98209-646-0 01 1 1505- ●

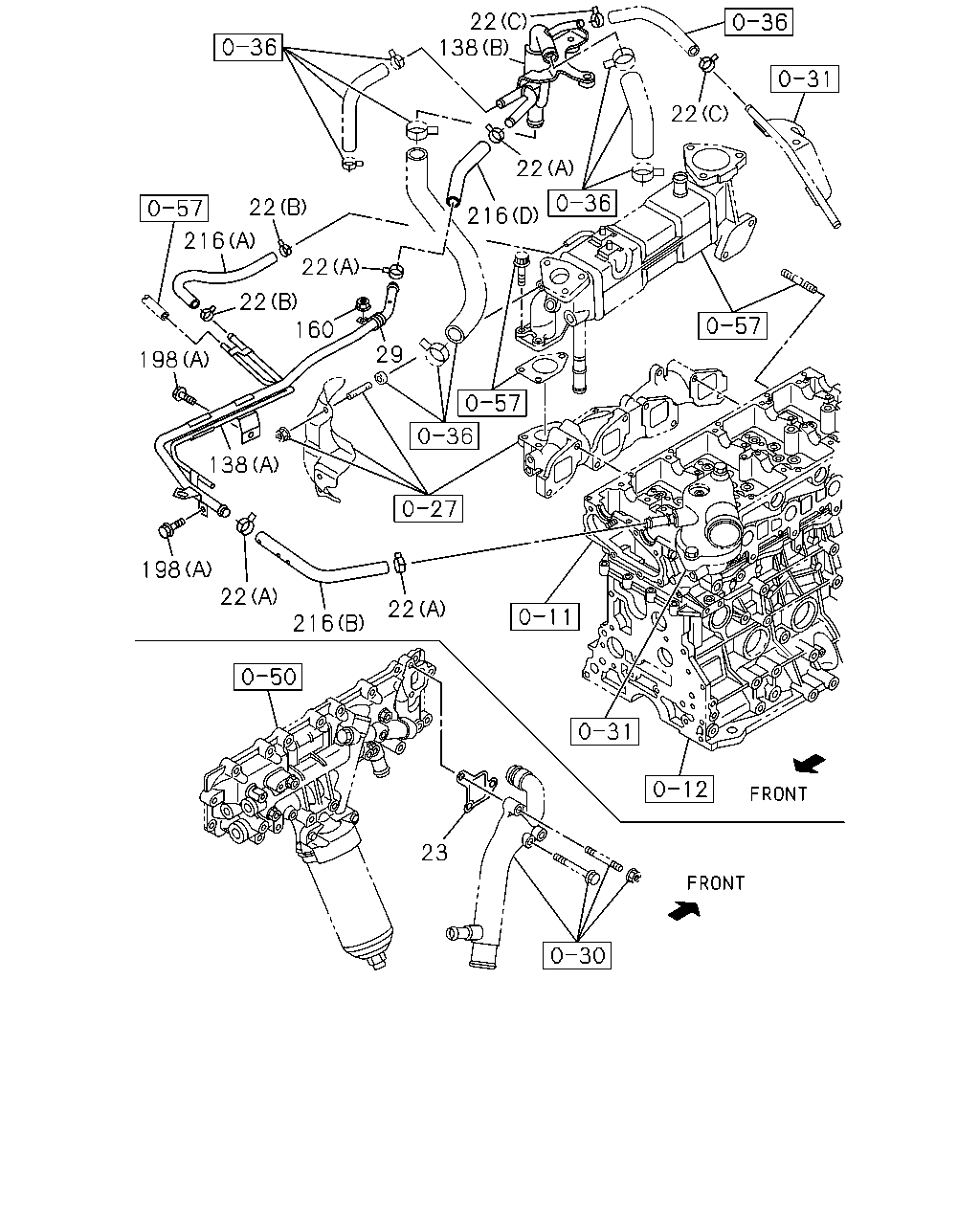

çizim 475118
22 23 216 22 198 138 160 22 22 216 198 22 138 22 22 216 29 22
BalonParca AdiParca NoAdetTipApplied Date A B
22 01.153 CLIP; WATER HOSE
(A) ID=12.8 		8-94367-943-0 04 1 1505- ● ●
22 01.153 CLIP; WATER HOSE
(B) ID=11 		8-97375-639-0 02 1 1505- ● ●
22 01.153 CLIP; WATER HOSE
(C) ID=11.5 		8-97375-638-0 02 1 1505- ●
23 01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98075-127-0 01 1 1505- ● ●
29 01.166 CLIP; PIPE
01.251 		8-98120-917-0 01 1 1505- ● ●
138 01.251 PIPE; WATER
(A) 		8-98201-792-0 01 1 1505-1506 ● ●
138 01.251 PIPE; WATER
(A) 		8-98317-078-0 01 1 1507- ● ●
138 01.251 PIPE; WATER
(B) 		8-98239-417-2 01 1 1505- ●
160 01.153 NUT; WATER PIPE
01.540 M6 FLANGE 		0-91180-206-0 01 1 1505- ● ●
160 01.153 NUT; WATER PIPE
01.540 M6 FLANGE 		0-91180-206-0 01 1 1505- ●
198 01.242 BOLT; PIPE
03.162 (A) M6X12 FLANGE 		0-28050-612-0 02 1 1505- ● ●
198 01.242 BOLT; PIPE
02.343 (B) M8X16 FLANGE 		0-28050-816-0 02 1 1505- ●
216 01.240 HOSE; WATER
(A) 		8-98074-982-0 01 1 1505- ● ●
216 01.240 HOSE; WATER
03.342 (B) 		8-98113-336-0 01 1 1505- ● ●
216 01.240 HOSE; WATER
(C) 		8-98117-662-1 01 1 1505- ●
216 01.240 HOSE; WATER
03.342 (D) 		8-98075-182-1 01 1 1505- ●
