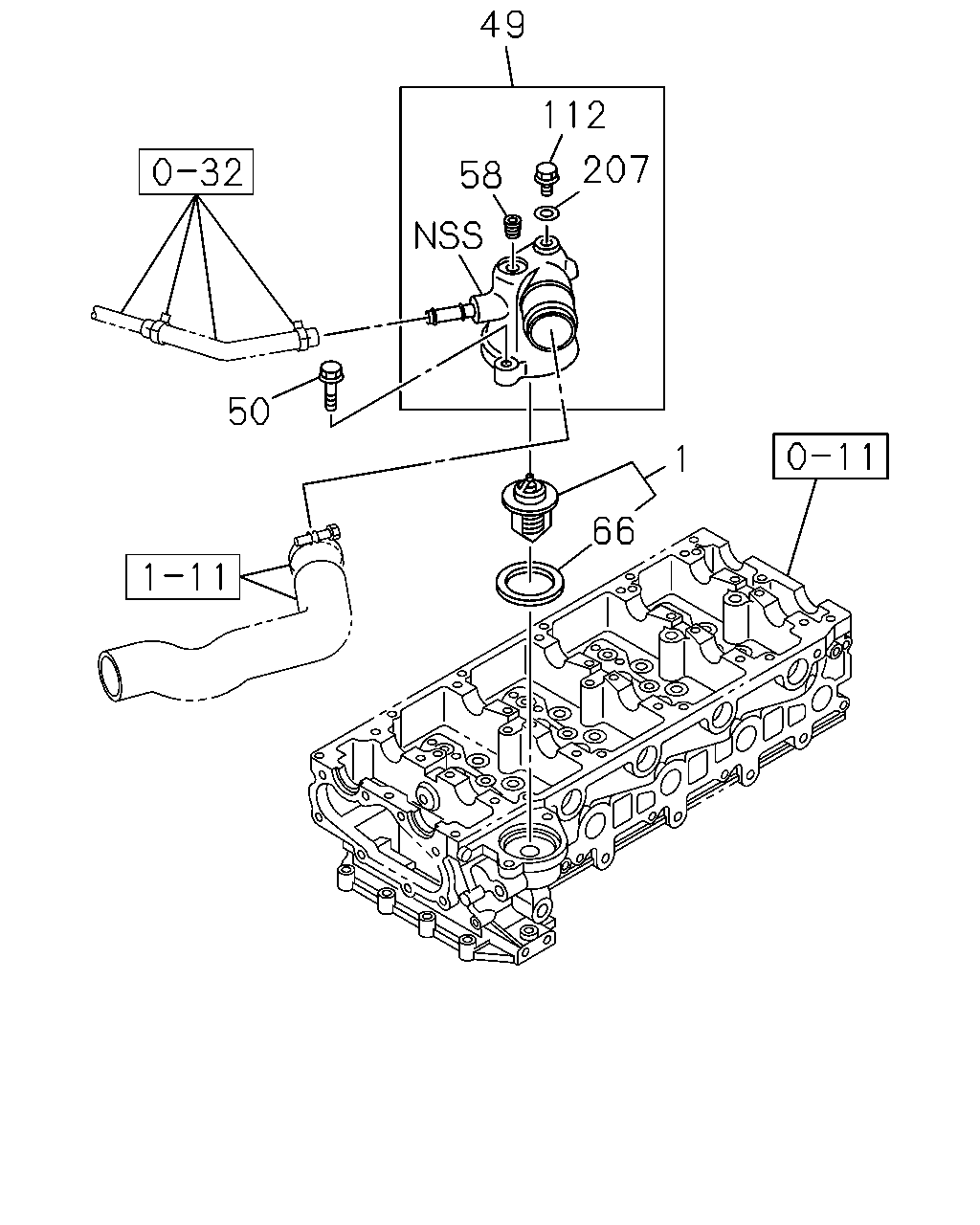

0-31 — THERMOSTAT AND HOUSING (#161523) — 9 parça

49 112 58 50 1 66 207

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.246 THERMOSTAT 85 CELSIUS	8-98017-027-2	01	1	1505-	●	●
49	01.153 PIPE; WATER OUTLET	8-98159-913-0	01	1	1505-	●	●
50	01.252 BOLT; OUTLET PIPE 03.403 M8X30 FLANGE	0-28650-830-0	02	1	1505-	●	●
58	00.073 PLUG; WATER OUTLET PIPE 01.837 PT1/8	8-97369-552-1	02	1	1505-	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98114-587-0	01	1	1505-	●	●
112	01.251 PLUG 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1505-	●	●
207	08.845 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	1505-	●	●

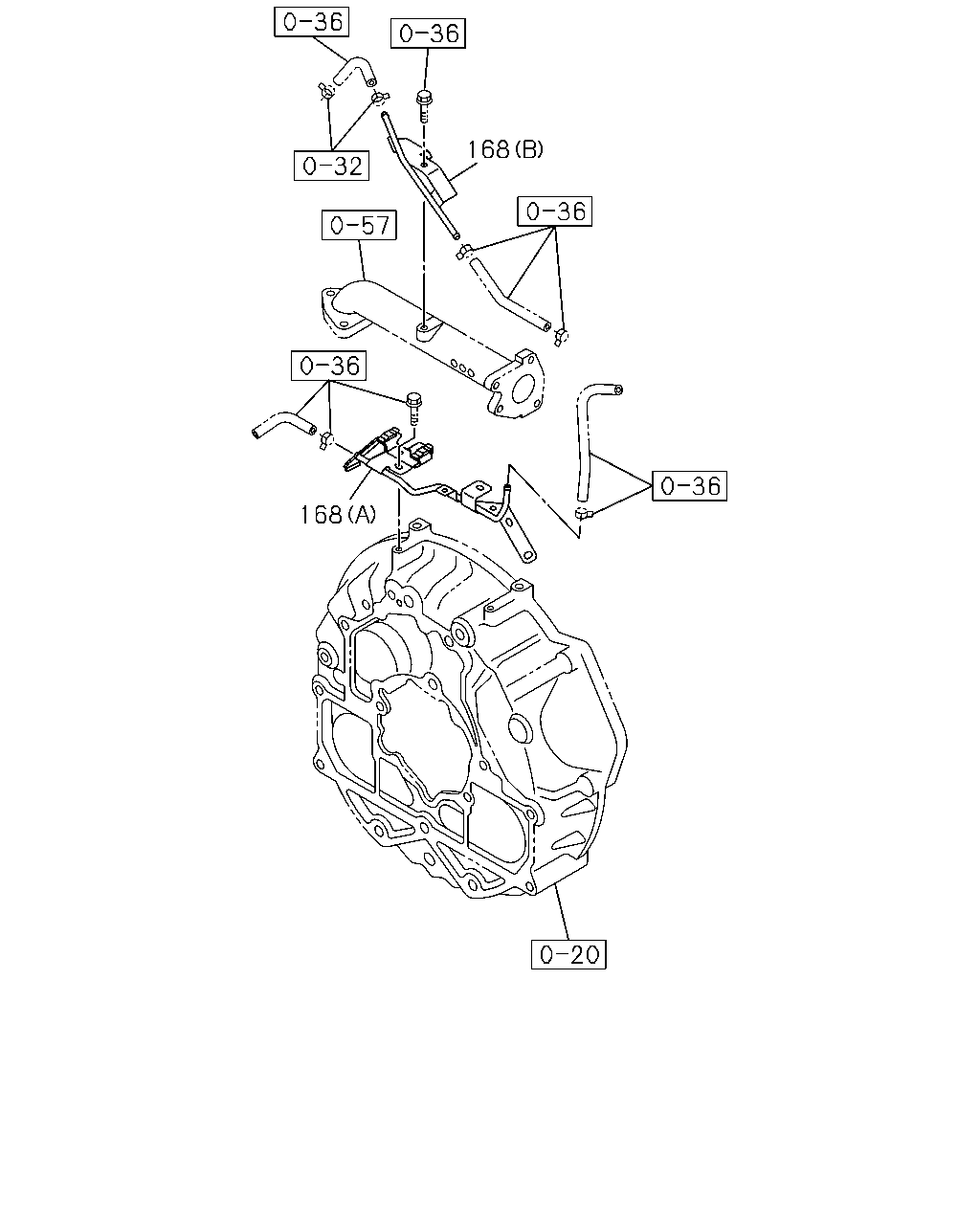

168 168

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	168	01.252 PIPE; WATER,COOLER (A)	8-98175-010-1	01	1	1505-		●
	168	01.252 PIPE; WATER,COOLER (B)	8-98239-595-0	01	1	1505-		●
