◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 11209 - LV434(RHD) EURO3/5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#16152) — 415 parça
çizim 62691
69 53 211 308 308 211 308 334 308 375 375
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
EURO3 SPECIFICATION(NT3) (G) L=145 		1-47475-655-0 01 1 0910-
53 BRACKET; HARNESS
GENERATOR MITSUBISHI 24V-120A 3.4KW(NFJ) (G) L=145 		1-47475-655-0 01 1 0910-
53 BRACKET; HARNESS
(G) L=145 		1-47475-655-0 05 1 0907-
53 BRACKET; HARNESS
(I) L=150 H=30 		1-47477-629-2 01 1 0907-
53 BRACKET; HARNESS
(A) L=82 B=20 		1-47478-420-0 01 1 0907-1404
53 BRACKET; HARNESS
(A) L=82 B=20 		8-98259-390-0 01 1 1405-
53 BRACKET; HARNESS
(A) L=82 B=20 		1-47478-420-0 02 1 0907-0909
53 BRACKET; HARNESS
EURO5 SPECIFICATION(NT5) (A) L=82 B=20 		1-47478-420-0 02 1 0910-1404
53 BRACKET; HARNESS
EURO5 SPECIFICATION(NT5) (A) L=82 B=20 		8-98259-390-0 02 1 1405-
53 BRACKET; HARNESS
(B) 		1-47478-422-0 01 1 0907-
53 BRACKET; HARNESS
(C) 		1-47478-919-0 01 1 0907-
53 BRACKET; HARNESS
(D) L=229 		1-47478-993-0 02 1 0907-
53 BRACKET; HARNESS
(E) L=95 		1-82699-085-0 03 1 0907-
53 BRACKET; HARNESS
(H) 		1-82699-199-0 01 1 0907-
53 BRACKET; HARNESS
(F) L=120 		1-82699-963-0 02 1 0907-
69 BRACKET; CLIP 8-98048-575-0 01 1 0907-
211 BRACKET; AXLE HARNESS
(A) L=105 		1-47477-409-0 01 1 0907-
211 BRACKET; AXLE HARNESS
(B) 		1-47479-841-0 01 1 0907-
211 BRACKET; AXLE HARNESS
(C) 		1-47479-845-0 02 1 0907-
211 BRACKET; AXLE HARNESS
(E) 		1-52171-251-1 02 1 0907-
211 BRACKET; AXLE HARNESS
(D) 		1-52171-252-0 01 1 0907-
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 01 1 0907-
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-97610-321-2 01 1 0907-
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97612-280-1 01 1 0907-
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 0907-
334 BRACKET 1-82698-495-2 04 1 0907-
375 BRACKET; AC GEN HARNESS CLIP
(C) L=145 		1-47475-655-0 01 1 0907-
375 BRACKET; AC GEN HARNESS CLIP
(A) 		1-47475-702-0 01 1 0907-
375 BRACKET; AC GEN HARNESS CLIP
(B) 		8-98056-647-0 01 1 0907-

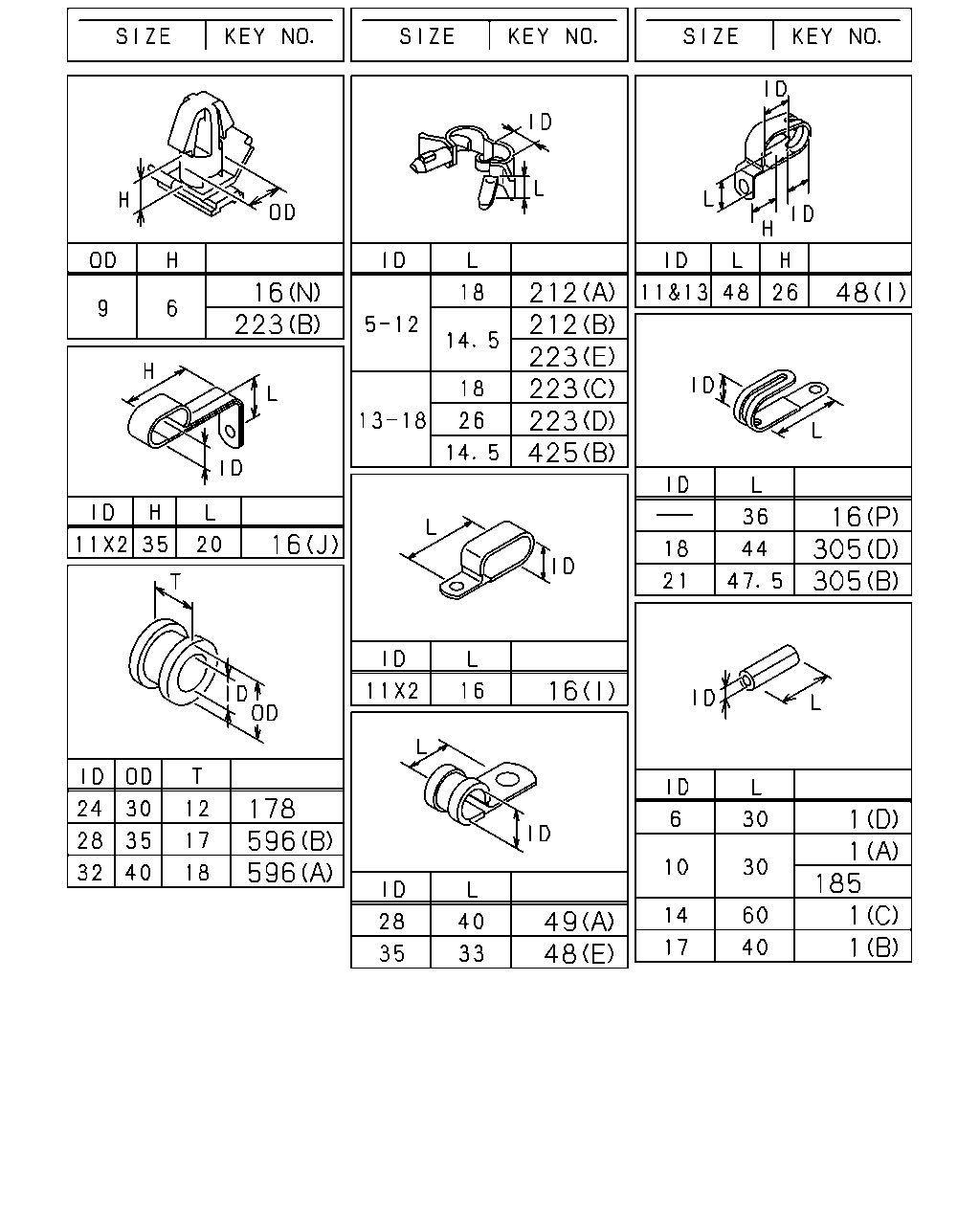

çizim 62712
16 223 212 212 223 223 223 425 48 16 305 305 16 16 178 596 596 1 1 185 1 1 49 48
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=17 OD=21 L=40 		1-09337-012-0 03 1 0907-
1 SLEEVE; RUBBER
(C) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0907-
1 SLEEVE; RUBBER
(D) ID=6 L=30 		5-09360-352-0 01 1 0907-
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 02 1 0907-
16 CLIP; HARNESS
EURO3 SPECIFICATION(NT3) (C) ID=11 L=41 		1-09700-403-0 06 1 0910-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (A) L=140 		5-09707-031-1 01 1 0907-
16 CLIP; HARNESS
(D) ID=11 L=16 		0-95235-025-0 01 1 0907-
16 CLIP; HARNESS
(D) ID=11 L=16 		0-95235-025-0 06 1 0907-
16 CLIP; HARNESS
(H) ID=16 L=20 		0-95235-535-0 01 1 0907-
16 CLIP; HARNESS
(I) ID=11X2 L=16 		0-95325-025-0 01 1 0907-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 0907-0909
16 CLIP; HARNESS
EURO5 SPECIFICATION(NT5) (C) ID=11 L=41 		1-09700-403-0 01 1 0910-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 05 1 0907-
16 CLIP; HARNESS
(E) ID=11 L=30 		1-09700-511-0 01 1 0907-
16 CLIP; HARNESS
(J) ID=11X2 H=35 L=20 		1-09700-847-0 01 1 0907-
16 CLIP; HARNESS
(F) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0907-
16 CLIP; HARNESS
(G) ID=11X2 L=20 		1-09700-871-0 02 1 0907-
16 CLIP; HARNESS
(K) ID=18 L=25 H=50 		1-09701-096-0 01 1 0907-
16 CLIP; HARNESS
(L) ID=18 L=38 H=23 		1-09701-147-0 01 1 0907-
16 CLIP; HARNESS
(M) L=180 		1-09707-162-1 02 1 0907-
16 CLIP; HARNESS
(N) OD=9 H=6 		1-09709-178-0 02 1 0907-
16 CLIP; HARNESS
(O) L=250 		5-09707-030-1 01 1 0907-0909
16 CLIP; HARNESS
GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) (O) L=250 		5-09707-030-1 01 1 0910-
16 CLIP; HARNESS
(O) L=250 		5-09707-030-1 04 1 0907-
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0907-
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0907-
16 CLIP; HARNESS
(P) L=36 		8-94224-891-1 01 1 0907-
16 CLIP; HARNESS
(B) ID=20 L=50 		9-09917-430-0 07 1 0907-
48 CLIP; FRAME HARNESS
GENERATOR MITSUBISHI 24V-120A 3.4KW(NFJ) (P) ID=11 H=20 L=25 		1-09700-848-0 01 1 0910-
48 CLIP; FRAME HARNESS
EXC. GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) (Q) ID=20 H=23 L=27 		1-09700-861-0 02 1 0910-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0907-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0907-
48 CLIP; FRAME HARNESS
(C) ID=33 L=63 		1-09700-807-0 01 1 0907-
48 CLIP; FRAME HARNESS
(J) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 0907-
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 07 1 0907-
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 13 1 0907-
48 CLIP; FRAME HARNESS
(E) ID=35 L=33 		1-09700-945-0 04 1 0907-
48 CLIP; FRAME HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 10 1 0907-
48 CLIP; FRAME HARNESS
(K) ID=32 L=35 		1-09701-244-0 01 1 0907-
48 CLIP; FRAME HARNESS
(G) ID=39 H=28 L=32 		1-09701-263-0 01 1 0907-
48 CLIP; FRAME HARNESS
(H) ID=39 H=40 L=32 		1-09701-267-0 02 1 0907-
48 CLIP; FRAME HARNESS
(I) ID=11 & 13 H=26 L=48 		1-09701-270-0 06 1 0907-
48 CLIP; FRAME HARNESS
(L) L=350 		1-09707-183-0 02 1 0907-
48 CLIP; FRAME HARNESS
(N) L=140 		5-09707-031-1 01 1 0907-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0907-0909
48 CLIP; FRAME HARNESS
GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) (A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0910-
48 CLIP; FRAME HARNESS
(O) ID=20 L=50 		9-09917-430-0 01 1 0907-0909
48 CLIP; FRAME HARNESS
(O) ID=20 L=50 		9-09917-430-0 01 1 0907-0909
48 CLIP; FRAME HARNESS
(O) ID=20 L=50 		9-09917-430-0 01 1 0910-
48 CLIP; FRAME HARNESS
(O) ID=20 L=50 		9-09917-430-0 01 1 0910-
48 CLIP; FRAME HARNESS
EXC. GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) (O) ID=20 L=50 		9-09917-430-0 01 1 0910-
48 CLIP; FRAME HARNESS
(M) ID=22 L=52 		9-09917-431-0 01 1 0907-0909
48 CLIP; FRAME HARNESS
(M) ID=22 L=52 		9-09917-431-0 01 1 0907-0909
48 CLIP; FRAME HARNESS
(M) ID=22 L=52 		9-09917-431-0 01 1 0910-
48 CLIP; FRAME HARNESS
GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) (M) ID=22 L=52 		9-09917-431-0 01 1 0910-
49 CLIP; GEN HARNESS
(B) ID=24.5 H=35 L=25 		1-09700-990-0 01 1 0907-
49 CLIP; GEN HARNESS
(C) ID=26 L=26 		1-09701-236-0 02 1 0907-
49 CLIP; GEN HARNESS
(A) ID=28 L=40 		1-09701-261-0 01 1 0907-
178 GROMMET; HARNESS
ID=24 OD=30 T=12 		9-09956-093-1 01 1 0907-
185 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 04 1 0907-
212 CLIP; HORN HARNESS
(A) ID=5-12 L=18 		1-09709-287-0 01 1 0907-
212 CLIP; HORN HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0907-
212 CLIP; HORN HARNESS
EXC. AIR HORN(WB8) (C) ID=11 L=41 		1-09700-403-0 03 1 0907-
212 CLIP; HORN HARNESS
EXC. AIR HORN(WB8) (D) L=140 		5-09707-031-1 01 1 0907-
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0907-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0907-
223 CLIP; AIR TANK HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 03 1 0907-
223 CLIP; AIR TANK HARNESS
(D) ID=13-18 L=26 		1-09709-293-0 01 1 0907-
223 CLIP; AIR TANK HARNESS
(E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0907-
305 CLIP; ENG HARNESS
(A) ID=11 L=20 		0-95235-036-0 01 1 0907-
305 CLIP; ENG HARNESS
(E) ID=16 L=28 		0-95235-556-0 02 1 0907-
305 CLIP; ENG HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 01 1 0907-
305 CLIP; ENG HARNESS
(F) L=140 		8-97122-360-0 01 1 0907-0909
305 CLIP; ENG HARNESS
EURO5 SPECIFICATION(NT5) (F) L=140 		8-97122-360-0 01 1 0910-
305 CLIP; ENG HARNESS
(C) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0907-
305 CLIP; ENG HARNESS
(D) ID=18 L=44 		8-97367-985-1 05 1 0907-
425 CLIP; MODULATOR
(A) ID=11 L=16 		0-95235-025-0 02 1 0907-
425 CLIP; MODULATOR
(B) ID=13-18 L=14.5 		1-09709-290-0 01 1 0907-
596 GROMMET
(A) ID=32 OD=40 T=18 		1-09891-003-0 01 1 0907-0909
596 GROMMET
EURO5 SPECIFICATION(NT5) (A) ID=32 OD=40 T=18 		1-09891-003-0 01 1 0910-
596 GROMMET
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0907-0909
596 GROMMET
EURO5 SPECIFICATION(NT5) (B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0910-

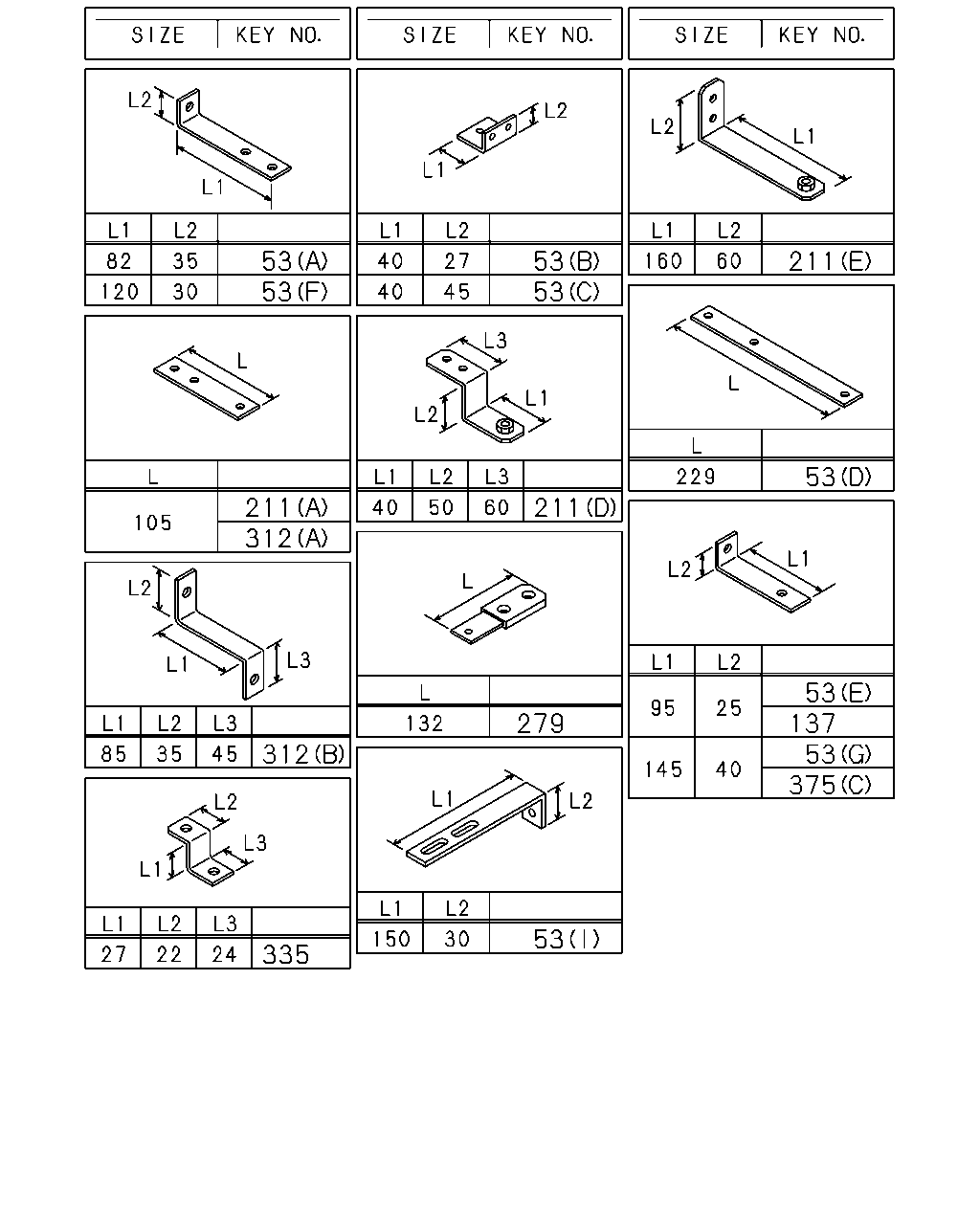

çizim 62973
53 53 53 53 211 53 211 312 211 53 137 53 375 279 312 53 335
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
EURO3 SPECIFICATION(NT3) (G) L=145 		1-47475-655-0 01 1 0910-
53 BRACKET; HARNESS
GENERATOR MITSUBISHI 24V-120A 3.4KW(NFJ) (G) L=145 		1-47475-655-0 01 1 0910-
53 BRACKET; HARNESS
(G) L=145 		1-47475-655-0 05 1 0907-
53 BRACKET; HARNESS
(I) L=150 H=30 		1-47477-629-2 01 1 0907-
53 BRACKET; HARNESS
(A) L=82 B=20 		1-47478-420-0 01 1 0907-1404
53 BRACKET; HARNESS
(A) L=82 B=20 		8-98259-390-0 01 1 1405-
53 BRACKET; HARNESS
(A) L=82 B=20 		1-47478-420-0 02 1 0907-0909
53 BRACKET; HARNESS
EURO5 SPECIFICATION(NT5) (A) L=82 B=20 		1-47478-420-0 02 1 0910-1404
53 BRACKET; HARNESS
EURO5 SPECIFICATION(NT5) (A) L=82 B=20 		8-98259-390-0 02 1 1405-
53 BRACKET; HARNESS
(B) 		1-47478-422-0 01 1 0907-
53 BRACKET; HARNESS
(C) 		1-47478-919-0 01 1 0907-
53 BRACKET; HARNESS
(D) L=229 		1-47478-993-0 02 1 0907-
53 BRACKET; HARNESS
(E) L=95 		1-82699-085-0 03 1 0907-
53 BRACKET; HARNESS
(H) 		1-82699-199-0 01 1 0907-
53 BRACKET; HARNESS
(F) L=120 		1-82699-963-0 02 1 0907-
137 BRACKET; HARNESS CLAMP
L=95 		1-82699-085-0 01 1 0907-
211 BRACKET; AXLE HARNESS
(A) L=105 		1-47477-409-0 01 1 0907-
211 BRACKET; AXLE HARNESS
(B) 		1-47479-841-0 01 1 0907-
211 BRACKET; AXLE HARNESS
(C) 		1-47479-845-0 02 1 0907-
211 BRACKET; AXLE HARNESS
(E) 		1-52171-251-1 02 1 0907-
211 BRACKET; AXLE HARNESS
(D) 		1-52171-252-0 01 1 0907-
279 STAY; HARNESS 1-82699-873-0 02 1 0907-
312 BRACKET; CLIP HARNESS
(A) L=105 		1-47477-409-0 01 1 0907-
312 BRACKET; CLIP HARNESS
(B) 		1-47477-954-0 01 1 0907-
335 BRACKET; CONNECTOR 1-82699-425-0 01 1 0907-
375 BRACKET; AC GEN HARNESS CLIP
(C) L=145 		1-47475-655-0 01 1 0907-
375 BRACKET; AC GEN HARNESS CLIP
(A) 		1-47475-702-0 01 1 0907-
375 BRACKET; AC GEN HARNESS CLIP
(B) 		8-98056-647-0 01 1 0907-
çizim 63002
16 48 165 166 212 251 14 16 110 171 194 206 208 218 264 14 162 48 102 170 163 14 16 194 264 489 305
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 17 1 0907-1205
14 CLIP; BAND,HARNESS
(C) L=250 		8-98216-430-0 17 1 1206-
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 01 1 0907-
14 CLIP; BAND,HARNESS
(B) L=180 		1-09707-162-1 01 1 0907-1207
14 CLIP; BAND,HARNESS
(B) L=180 		8-98216-427-0 01 1 1208-
16 CLIP; HARNESS
EURO3 SPECIFICATION(NT3) (C) ID=11 L=41 		1-09700-403-0 06 1 0910-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (A) L=140 		5-09707-031-1 01 1 0907-
16 CLIP; HARNESS
(D) ID=11 L=16 		0-95235-025-0 01 1 0907-
16 CLIP; HARNESS
(D) ID=11 L=16 		0-95235-025-0 06 1 0907-
16 CLIP; HARNESS
(H) ID=16 L=20 		0-95235-535-0 01 1 0907-
16 CLIP; HARNESS
(I) ID=11X2 L=16 		0-95325-025-0 01 1 0907-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 0907-0909
16 CLIP; HARNESS
EURO5 SPECIFICATION(NT5) (C) ID=11 L=41 		1-09700-403-0 01 1 0910-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 05 1 0907-
16 CLIP; HARNESS
(E) ID=11 L=30 		1-09700-511-0 01 1 0907-
16 CLIP; HARNESS
(J) ID=11X2 H=35 L=20 		1-09700-847-0 01 1 0907-
16 CLIP; HARNESS
(F) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0907-
16 CLIP; HARNESS
(G) ID=11X2 L=20 		1-09700-871-0 02 1 0907-
16 CLIP; HARNESS
(K) ID=18 L=25 H=50 		1-09701-096-0 01 1 0907-
16 CLIP; HARNESS
(L) ID=18 L=38 H=23 		1-09701-147-0 01 1 0907-
16 CLIP; HARNESS
(M) L=180 		1-09707-162-1 02 1 0907-
16 CLIP; HARNESS
(N) OD=9 H=6 		1-09709-178-0 02 1 0907-
16 CLIP; HARNESS
(O) L=250 		5-09707-030-1 01 1 0907-0909
16 CLIP; HARNESS
GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) (O) L=250 		5-09707-030-1 01 1 0910-
16 CLIP; HARNESS
(O) L=250 		5-09707-030-1 04 1 0907-
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0907-
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0907-
16 CLIP; HARNESS
(P) L=36 		8-94224-891-1 01 1 0907-
16 CLIP; HARNESS
(B) ID=20 L=50 		9-09917-430-0 07 1 0907-
48 CLIP; FRAME HARNESS
GENERATOR MITSUBISHI 24V-120A 3.4KW(NFJ) (P) ID=11 H=20 L=25 		1-09700-848-0 01 1 0910-
48 CLIP; FRAME HARNESS
EXC. GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) (Q) ID=20 H=23 L=27 		1-09700-861-0 02 1 0910-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0907-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0907-
48 CLIP; FRAME HARNESS
(C) ID=33 L=63 		1-09700-807-0 01 1 0907-
48 CLIP; FRAME HARNESS
(J) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 0907-
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 07 1 0907-
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 13 1 0907-
48 CLIP; FRAME HARNESS
(E) ID=35 L=33 		1-09700-945-0 04 1 0907-
48 CLIP; FRAME HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 10 1 0907-
48 CLIP; FRAME HARNESS
(K) ID=32 L=35 		1-09701-244-0 01 1 0907-
48 CLIP; FRAME HARNESS
(G) ID=39 H=28 L=32 		1-09701-263-0 01 1 0907-
48 CLIP; FRAME HARNESS
(H) ID=39 H=40 L=32 		1-09701-267-0 02 1 0907-
48 CLIP; FRAME HARNESS
(I) ID=11 & 13 H=26 L=48 		1-09701-270-0 06 1 0907-
48 CLIP; FRAME HARNESS
(L) L=350 		1-09707-183-0 02 1 0907-
48 CLIP; FRAME HARNESS
(N) L=140 		5-09707-031-1 01 1 0907-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0907-0909
48 CLIP; FRAME HARNESS
GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) (A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0910-
48 CLIP; FRAME HARNESS
(O) ID=20 L=50 		9-09917-430-0 01 1 0907-0909
48 CLIP; FRAME HARNESS
(O) ID=20 L=50 		9-09917-430-0 01 1 0907-0909
48 CLIP; FRAME HARNESS
(O) ID=20 L=50 		9-09917-430-0 01 1 0910-
48 CLIP; FRAME HARNESS
(O) ID=20 L=50 		9-09917-430-0 01 1 0910-
48 CLIP; FRAME HARNESS
EXC. GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) (O) ID=20 L=50 		9-09917-430-0 01 1 0910-
48 CLIP; FRAME HARNESS
(M) ID=22 L=52 		9-09917-431-0 01 1 0907-0909
48 CLIP; FRAME HARNESS
(M) ID=22 L=52 		9-09917-431-0 01 1 0907-0909
48 CLIP; FRAME HARNESS
(M) ID=22 L=52 		9-09917-431-0 01 1 0910-
48 CLIP; FRAME HARNESS
GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) (M) ID=22 L=52 		9-09917-431-0 01 1 0910-
102 CLIP; BAND
L=350 		1-09707-183-0 05 1 0907-
110 CLIP; BAND,DASH HARNESS
L=250 		5-09707-030-1 01 1 0907-
162 CLIP; SW HARNESS
(A) ID=32 L=35 		1-09701-244-0 01 1 0907-
162 CLIP; SW HARNESS
(B) L=300 		1-09707-001-1 02 1 0907-
162 CLIP; SW HARNESS
(C) ID=20 L=50 		9-09917-430-0 03 1 0907-
162 CLIP; SW HARNESS
(D) ID=22 L=52 		9-09917-431-0 01 1 0907-
163 CLIP; METER HARNESS
(A) L=500 		1-09707-082-1 02 1 0907-
163 CLIP; METER HARNESS
(B) ID=14 L=44 		9-09917-427-0 01 1 0907-
163 CLIP; METER HARNESS
(C) ID=20 L=50 		9-09917-430-0 01 1 0907-
165 CLIP; BAND COMB SW
L=140 		5-09707-031-1 01 1 0907-
166 CLIP; HARNESS CLU SW
(A) ID=11 L=41 		1-09700-403-0 04 1 0907-
166 CLIP; HARNESS CLU SW
(B) L=140 		5-09707-031-1 01 1 0907-
170 CLIP; ELEC HARNESS
(A) L=350 		1-09707-183-0 03 1 0907-
170 CLIP; ELEC HARNESS
(B) ID=11 L=41 		1-09700-403-0 02 1 0907-
170 CLIP; ELEC HARNESS
(C) ID=28 L=40 		1-09700-995-1 01 1 0907-
170 CLIP; ELEC HARNESS
(D) ID=14 L=44 		9-09917-427-0 04 1 0907-
170 CLIP; ELEC HARNESS
(E) ID=20 L=50 		9-09917-430-0 02 1 0907-
171 CLIP; STARTER HARNESS
L=250 		5-09707-030-1 04 1 0907-
194 CLIP; BAND
(A) L=180 		1-09707-162-1 05 1 0907-
194 CLIP; BAND
(B) L=250 		5-09707-030-1 08 1 0907-
206 CLIP; FUEL TANK HARNESS
(B) L=250 		5-09707-030-1 02 1 0907-
206 CLIP; FUEL TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0907-
206 CLIP; FUEL TANK HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 0907-
208 CLIP; HARNESS,MAG VLV
EURO3 SPECIFICATION(NT3) (B) L=250 		5-09707-030-1 01 1 0910-
208 CLIP; HARNESS,MAG VLV
(A) ID=11 L=41 		1-09700-403-0 01 1 0907-
208 CLIP; HARNESS,MAG VLV
BRAKE SYSTEM RETARDER<RE2> (A) ID=11 L=41 		1-09700-403-0 01 1 0907-
208 CLIP; HARNESS,MAG VLV
(B) L=250 		5-09707-030-1 02 1 0907-0909
208 CLIP; HARNESS,MAG VLV
EURO5 SPECIFICATION(NT5) (B) L=250 		5-09707-030-1 02 1 0910-
212 CLIP; HORN HARNESS
(A) ID=5-12 L=18 		1-09709-287-0 01 1 0907-
212 CLIP; HORN HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0907-
212 CLIP; HORN HARNESS
EXC. AIR HORN(WB8) (C) ID=11 L=41 		1-09700-403-0 03 1 0907-
212 CLIP; HORN HARNESS
EXC. AIR HORN(WB8) (D) L=140 		5-09707-031-1 01 1 0907-
218 CLIP; BAND,RR COMB
L=250 		5-09707-030-1 02 1 0907-
251 CLIP; WATER LEVEL HARNESS
(A) ID=11 L=50 		0-95235-085-0 02 1 0907-
251 CLIP; WATER LEVEL HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 0907-
251 CLIP; WATER LEVEL HARNESS
(C) L=140 		5-09707-031-1 01 1 0907-
264 CLIP; HARNESS,HEADLAMP
(A) L=180 		1-09707-162-1 02 1 0907-
264 CLIP; HARNESS,HEADLAMP
(B) L=250 		5-09707-030-1 02 1 0907-
305 CLIP; ENG HARNESS
(A) ID=11 L=20 		0-95235-036-0 01 1 0907-
305 CLIP; ENG HARNESS
(E) ID=16 L=28 		0-95235-556-0 02 1 0907-
305 CLIP; ENG HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 01 1 0907-
305 CLIP; ENG HARNESS
(F) L=140 		8-97122-360-0 01 1 0907-0909
305 CLIP; ENG HARNESS
EURO5 SPECIFICATION(NT5) (F) L=140 		8-97122-360-0 01 1 0910-
305 CLIP; ENG HARNESS
(C) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0907-
305 CLIP; ENG HARNESS
(D) ID=18 L=44 		8-97367-985-1 05 1 0907-
489 CLIP; HARNESS,OIL PRESS SW
(B) ID=11 L=41 		1-09700-403-0 01 1 0907-
489 CLIP; HARNESS,OIL PRESS SW
(A) L=180 		1-09707-162-1 01 1 0907-
çizim 102325
219 47 219 294 297 340 515 525 552 219 294 38 304 38 242 304 38 38 139 169 371 38 139 150 242 313 371 38 139 38 38 139 313 38 173 55 423 38 173 242
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
GENERATOR MITSUBISHI 24V-120A 3.4KW(NFJ) (D) M8X25 FLANGE 		0-28650-825-0 01 1 0910-
38 BOLT; CLIP,HARNESS
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0907-
38 BOLT; CLIP,HARNESS
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0907-
38 BOLT; CLIP,HARNESS
(A) M6X20 FLANGE 		0-28650-620-0 02 1 0907-
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 04 1 0907-
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 07 1 0907-
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 02 1 0907-
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 20 1 0907-
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 26 1 0907-
38 BOLT; CLIP,HARNESS
(E) M8X30 FLANGE 		0-28650-830-0 01 1 0907-
38 BOLT; CLIP,HARNESS
(E) M8X30 FLANGE 		0-28650-830-0 04 1 0907-
38 BOLT; CLIP,HARNESS
(F) M8X35 FLANGE 		0-28650-835-0 06 1 0907-
38 BOLT; CLIP,HARNESS
(G) M8X40 FLANGE 		0-28650-840-0 02 1 0907-
38 BOLT; CLIP,HARNESS
(H) M10X20 FLANGE 		0-28751-020-0 01 1 0907-
38 BOLT; CLIP,HARNESS
(I) M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0907-1201
38 BOLT; CLIP,HARNESS
(J) M8X14 W/PL WASHER 		8-98164-837-0 02 1 1202-
47 NUT; GEN TERMINAL
M8 FLANGE 		0-91180-108-0 03 1 0907-
55 WASHER; PL,CLIP
ID=6.4 		0-91610-606-0 04 1 0907-
139 BOLT; BRKT
GENERATOR MITSUBISHI 24V-120A 3.4KW(NFJ) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0910-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 09 1 0907-
139 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 04 1 0907-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 07 1 0907-
139 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 02 1 0907-
139 BOLT; BRKT
(D) M8X40 FLANGE 		0-28650-840-0 01 1 0907-
150 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 04 1 0907-0909
150 BOLT; CLIP
EURO5 SPECIFICATION(NT5) M8X25 FLANGE 		0-28650-825-0 04 1 0910-
169 BOLT; ELEC HARNESS
M8X20 FLANGE 		0-28650-820-0 01 1 0907-
173 BOLT; STARTER EARTH
(A) M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0907-1201
173 BOLT; STARTER EARTH
(B) M10X20 W/PL WASHER 		8-98164-838-0 01 1 1202-
219 NUT
GENERATOR MITSUBISHI 24V-120A 3.4KW(NFJ) (B) M8 FLANGE 		0-91180-108-0 01 1 0910-
219 NUT
(B) M8 FLANGE 		0-91180-108-0 20 1 0907-
219 NUT
(A) M6 FLANGE 		0-91180-106-0 02 1 0907-
219 NUT
(B) M8 FLANGE 		0-91180-108-0 03 1 0907-
219 NUT
(B) M8 FLANGE 		0-91180-108-0 36 1 0907-
219 NUT
(C) M10 FLANGE 		0-91180-210-0 01 1 0907-
242 BOLT; BRKT,HARNESS
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0907-
242 BOLT; BRKT,HARNESS
(B) M12X20 FLANGE 		0-28151-220-0 01 1 0907-
242 BOLT; BRKT,HARNESS
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0907-0909
242 BOLT; BRKT,HARNESS
EURO5 SPECIFICATION(NT5) (C) M8X25 FLANGE 		0-28650-825-0 02 1 0910-
242 BOLT; BRKT,HARNESS
(C) M8X25 FLANGE 		0-28650-825-0 03 1 0907-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 09 1 0907-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0907-0909
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0910-
294 NUT
EURO3 SPECIFICATION(NT3) (A) M8 FLANGE 		0-91180-108-0 01 1 0910-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 05 1 0907-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 0907-
297 NUT; HARNESS ELEC PANEL
M8 FLANGE 		0-91180-108-0 01 1 0907-
304 BOLT; ENG HARNESS CLIP
(A) M8X12 		0-20850-812-0 02 1 0907-
304 BOLT; ENG HARNESS CLIP
(A) M8X12 FLANGE 		0-28050-812-0 02 1 0907-
304 BOLT; ENG HARNESS CLIP
(B) M8X16 FLANGE 		0-28050-816-0 05 1 0907-
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0907-0909
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0910-
313 BOLT; BRKT
EURO3 SPECIFICATION(NT3) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0910-
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 08 1 0907-
313 BOLT; BRKT
(B) M8X40 FLANGE 		0-28650-840-0 01 1 0907-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 0907-
371 BOLT; GEN HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0907-
371 BOLT; GEN HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0907-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 0907-
515 NUT; BRKT
GENERATOR MITSUBISHI 24V-120A 3.4KW(NFJ) M8 FLANGE 		0-91180-108-0 01 1 0910-
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 11 1 0907-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0907-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 0907-0909
525 NUT; CLIP
EURO5 SPECIFICATION(NT5) M8 FLANGE 		0-91180-108-0 04 1 0910-
552 NUT; BRKT,HARNESS
M8 FLANGE 		0-91180-108-0 01 1 0907-
552 NUT; BRKT,HARNESS
M8 FLANGE 		0-91180-108-0 02 1 0907-0909
552 NUT; BRKT,HARNESS
EURO5 SPECIFICATION(NT5) M8 FLANGE 		0-91180-108-0 02 1 0910-

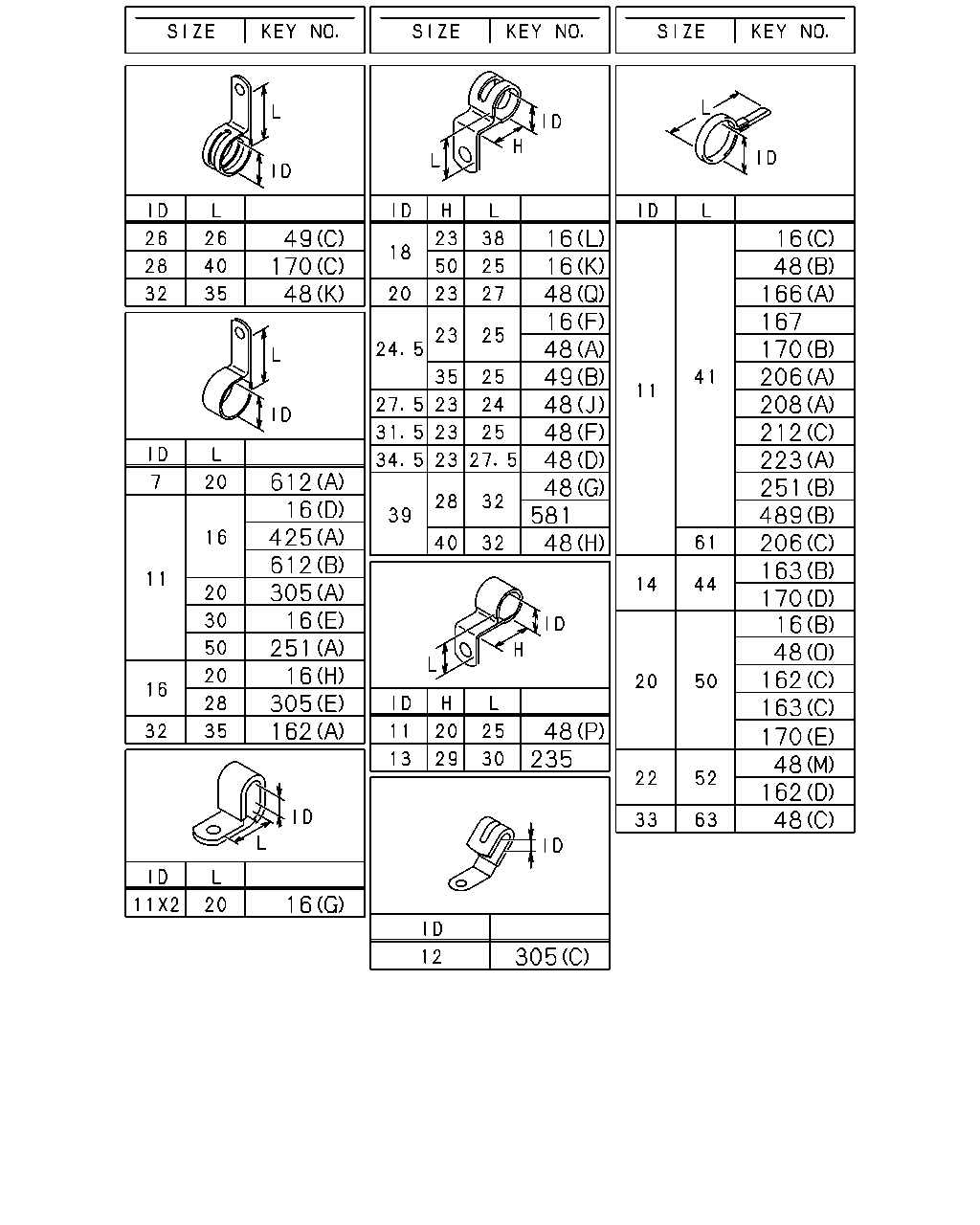

çizim 102326
49 170 48 16 16 48 16 48 49 48 48 48 48 581 48 16 48 166 167 170 206 208 212 223 251 489 206 163 170 16 48 162 163 170 48 162 48 612 16 425 612 305 16 251 16 305 162 48 235 16 305
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
EURO3 SPECIFICATION(NT3) (C) ID=11 L=41 		1-09700-403-0 06 1 0910-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (A) L=140 		5-09707-031-1 01 1 0907-
16 CLIP; HARNESS
(D) ID=11 L=16 		0-95235-025-0 01 1 0907-
16 CLIP; HARNESS
(D) ID=11 L=16 		0-95235-025-0 06 1 0907-
16 CLIP; HARNESS
(H) ID=16 L=20 		0-95235-535-0 01 1 0907-
16 CLIP; HARNESS
(I) ID=11X2 L=16 		0-95325-025-0 01 1 0907-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 0907-0909
16 CLIP; HARNESS
EURO5 SPECIFICATION(NT5) (C) ID=11 L=41 		1-09700-403-0 01 1 0910-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 05 1 0907-
16 CLIP; HARNESS
(E) ID=11 L=30 		1-09700-511-0 01 1 0907-
16 CLIP; HARNESS
(J) ID=11X2 H=35 L=20 		1-09700-847-0 01 1 0907-
16 CLIP; HARNESS
(F) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0907-
16 CLIP; HARNESS
(G) ID=11X2 L=20 		1-09700-871-0 02 1 0907-
16 CLIP; HARNESS
(K) ID=18 L=25 H=50 		1-09701-096-0 01 1 0907-
16 CLIP; HARNESS
(L) ID=18 L=38 H=23 		1-09701-147-0 01 1 0907-
16 CLIP; HARNESS
(M) L=180 		1-09707-162-1 02 1 0907-
16 CLIP; HARNESS
(N) OD=9 H=6 		1-09709-178-0 02 1 0907-
16 CLIP; HARNESS
(O) L=250 		5-09707-030-1 01 1 0907-0909
16 CLIP; HARNESS
GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) (O) L=250 		5-09707-030-1 01 1 0910-
16 CLIP; HARNESS
(O) L=250 		5-09707-030-1 04 1 0907-
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0907-
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0907-
16 CLIP; HARNESS
(P) L=36 		8-94224-891-1 01 1 0907-
16 CLIP; HARNESS
(B) ID=20 L=50 		9-09917-430-0 07 1 0907-
48 CLIP; FRAME HARNESS
GENERATOR MITSUBISHI 24V-120A 3.4KW(NFJ) (P) ID=11 H=20 L=25 		1-09700-848-0 01 1 0910-
48 CLIP; FRAME HARNESS
EXC. GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) (Q) ID=20 H=23 L=27 		1-09700-861-0 02 1 0910-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0907-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0907-
48 CLIP; FRAME HARNESS
(C) ID=33 L=63 		1-09700-807-0 01 1 0907-
48 CLIP; FRAME HARNESS
(J) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 0907-
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 07 1 0907-
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 13 1 0907-
48 CLIP; FRAME HARNESS
(E) ID=35 L=33 		1-09700-945-0 04 1 0907-
48 CLIP; FRAME HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 10 1 0907-
48 CLIP; FRAME HARNESS
(K) ID=32 L=35 		1-09701-244-0 01 1 0907-
48 CLIP; FRAME HARNESS
(G) ID=39 H=28 L=32 		1-09701-263-0 01 1 0907-
48 CLIP; FRAME HARNESS
(H) ID=39 H=40 L=32 		1-09701-267-0 02 1 0907-
48 CLIP; FRAME HARNESS
(I) ID=11 & 13 H=26 L=48 		1-09701-270-0 06 1 0907-
48 CLIP; FRAME HARNESS
(L) L=350 		1-09707-183-0 02 1 0907-
48 CLIP; FRAME HARNESS
(N) L=140 		5-09707-031-1 01 1 0907-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0907-0909
48 CLIP; FRAME HARNESS
GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) (A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0910-
48 CLIP; FRAME HARNESS
(O) ID=20 L=50 		9-09917-430-0 01 1 0907-0909
48 CLIP; FRAME HARNESS
(O) ID=20 L=50 		9-09917-430-0 01 1 0907-0909
48 CLIP; FRAME HARNESS
(O) ID=20 L=50 		9-09917-430-0 01 1 0910-
48 CLIP; FRAME HARNESS
(O) ID=20 L=50 		9-09917-430-0 01 1 0910-
48 CLIP; FRAME HARNESS
EXC. GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) (O) ID=20 L=50 		9-09917-430-0 01 1 0910-
48 CLIP; FRAME HARNESS
(M) ID=22 L=52 		9-09917-431-0 01 1 0907-0909
48 CLIP; FRAME HARNESS
(M) ID=22 L=52 		9-09917-431-0 01 1 0907-0909
48 CLIP; FRAME HARNESS
(M) ID=22 L=52 		9-09917-431-0 01 1 0910-
48 CLIP; FRAME HARNESS
GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) (M) ID=22 L=52 		9-09917-431-0 01 1 0910-
49 CLIP; GEN HARNESS
(B) ID=24.5 H=35 L=25 		1-09700-990-0 01 1 0907-
49 CLIP; GEN HARNESS
(C) ID=26 L=26 		1-09701-236-0 02 1 0907-
49 CLIP; GEN HARNESS
(A) ID=28 L=40 		1-09701-261-0 01 1 0907-
162 CLIP; SW HARNESS
(A) ID=32 L=35 		1-09701-244-0 01 1 0907-
162 CLIP; SW HARNESS
(B) L=300 		1-09707-001-1 02 1 0907-
162 CLIP; SW HARNESS
(C) ID=20 L=50 		9-09917-430-0 03 1 0907-
162 CLIP; SW HARNESS
(D) ID=22 L=52 		9-09917-431-0 01 1 0907-
163 CLIP; METER HARNESS
(A) L=500 		1-09707-082-1 02 1 0907-
163 CLIP; METER HARNESS
(B) ID=14 L=44 		9-09917-427-0 01 1 0907-
163 CLIP; METER HARNESS
(C) ID=20 L=50 		9-09917-430-0 01 1 0907-
166 CLIP; HARNESS CLU SW
(A) ID=11 L=41 		1-09700-403-0 04 1 0907-
166 CLIP; HARNESS CLU SW
(B) L=140 		5-09707-031-1 01 1 0907-
167 CLIP; HARNESS ACCEL & STOP
ID=11 L=41 		1-09700-403-0 02 1 0907-
170 CLIP; ELEC HARNESS
(A) L=350 		1-09707-183-0 03 1 0907-
170 CLIP; ELEC HARNESS
(B) ID=11 L=41 		1-09700-403-0 02 1 0907-
170 CLIP; ELEC HARNESS
(C) ID=28 L=40 		1-09700-995-1 01 1 0907-
170 CLIP; ELEC HARNESS
(D) ID=14 L=44 		9-09917-427-0 04 1 0907-
170 CLIP; ELEC HARNESS
(E) ID=20 L=50 		9-09917-430-0 02 1 0907-
206 CLIP; FUEL TANK HARNESS
(B) L=250 		5-09707-030-1 02 1 0907-
206 CLIP; FUEL TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0907-
206 CLIP; FUEL TANK HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 0907-
208 CLIP; HARNESS,MAG VLV
EURO3 SPECIFICATION(NT3) (B) L=250 		5-09707-030-1 01 1 0910-
208 CLIP; HARNESS,MAG VLV
(A) ID=11 L=41 		1-09700-403-0 01 1 0907-
208 CLIP; HARNESS,MAG VLV
BRAKE SYSTEM RETARDER<RE2> (A) ID=11 L=41 		1-09700-403-0 01 1 0907-
208 CLIP; HARNESS,MAG VLV
(B) L=250 		5-09707-030-1 02 1 0907-0909
208 CLIP; HARNESS,MAG VLV
EURO5 SPECIFICATION(NT5) (B) L=250 		5-09707-030-1 02 1 0910-
212 CLIP; HORN HARNESS
(A) ID=5-12 L=18 		1-09709-287-0 01 1 0907-
212 CLIP; HORN HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0907-
212 CLIP; HORN HARNESS
EXC. AIR HORN(WB8) (C) ID=11 L=41 		1-09700-403-0 03 1 0907-
212 CLIP; HORN HARNESS
EXC. AIR HORN(WB8) (D) L=140 		5-09707-031-1 01 1 0907-
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0907-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0907-
223 CLIP; AIR TANK HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 03 1 0907-
223 CLIP; AIR TANK HARNESS
(D) ID=13-18 L=26 		1-09709-293-0 01 1 0907-
223 CLIP; AIR TANK HARNESS
(E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0907-
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=13 H=29 L=30 		1-09700-001-0 01 1 0907-
251 CLIP; WATER LEVEL HARNESS
(A) ID=11 L=50 		0-95235-085-0 02 1 0907-
251 CLIP; WATER LEVEL HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 0907-
251 CLIP; WATER LEVEL HARNESS
(C) L=140 		5-09707-031-1 01 1 0907-
305 CLIP; ENG HARNESS
(A) ID=11 L=20 		0-95235-036-0 01 1 0907-
305 CLIP; ENG HARNESS
(E) ID=16 L=28 		0-95235-556-0 02 1 0907-
305 CLIP; ENG HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 01 1 0907-
305 CLIP; ENG HARNESS
(F) L=140 		8-97122-360-0 01 1 0907-0909
305 CLIP; ENG HARNESS
EURO5 SPECIFICATION(NT5) (F) L=140 		8-97122-360-0 01 1 0910-
305 CLIP; ENG HARNESS
(C) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0907-
305 CLIP; ENG HARNESS
(D) ID=18 L=44 		8-97367-985-1 05 1 0907-
425 CLIP; MODULATOR
(A) ID=11 L=16 		0-95235-025-0 02 1 0907-
425 CLIP; MODULATOR
(B) ID=13-18 L=14.5 		1-09709-290-0 01 1 0907-
489 CLIP; HARNESS,OIL PRESS SW
(B) ID=11 L=41 		1-09700-403-0 01 1 0907-
489 CLIP; HARNESS,OIL PRESS SW
(A) L=180 		1-09707-162-1 01 1 0907-
581 CLIP; HARNESS,REAR SUSP
ID=39 H=28 L=32 		1-09701-263-0 02 1 0907-
612 CLIP; HARNESS DPD
(A) ID=7 L=20 		0-95234-635-0 02 1 0907-0909
612 CLIP; HARNESS DPD
EURO5 SPECIFICATION(NT5) (A) ID=7 L=20 		0-95234-635-0 02 1 0910-
612 CLIP; HARNESS DPD
(B) ID=11 L=16 		0-95235-025-0 02 1 0907-0909
612 CLIP; HARNESS DPD
EURO5 SPECIFICATION(NT5) (B) ID=11 L=16 		0-95235-025-0 02 1 0910-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
