◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51613 - NLR/NMR LHD EUROPE EURO5B+,6 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING ▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#161518) — 55 parça

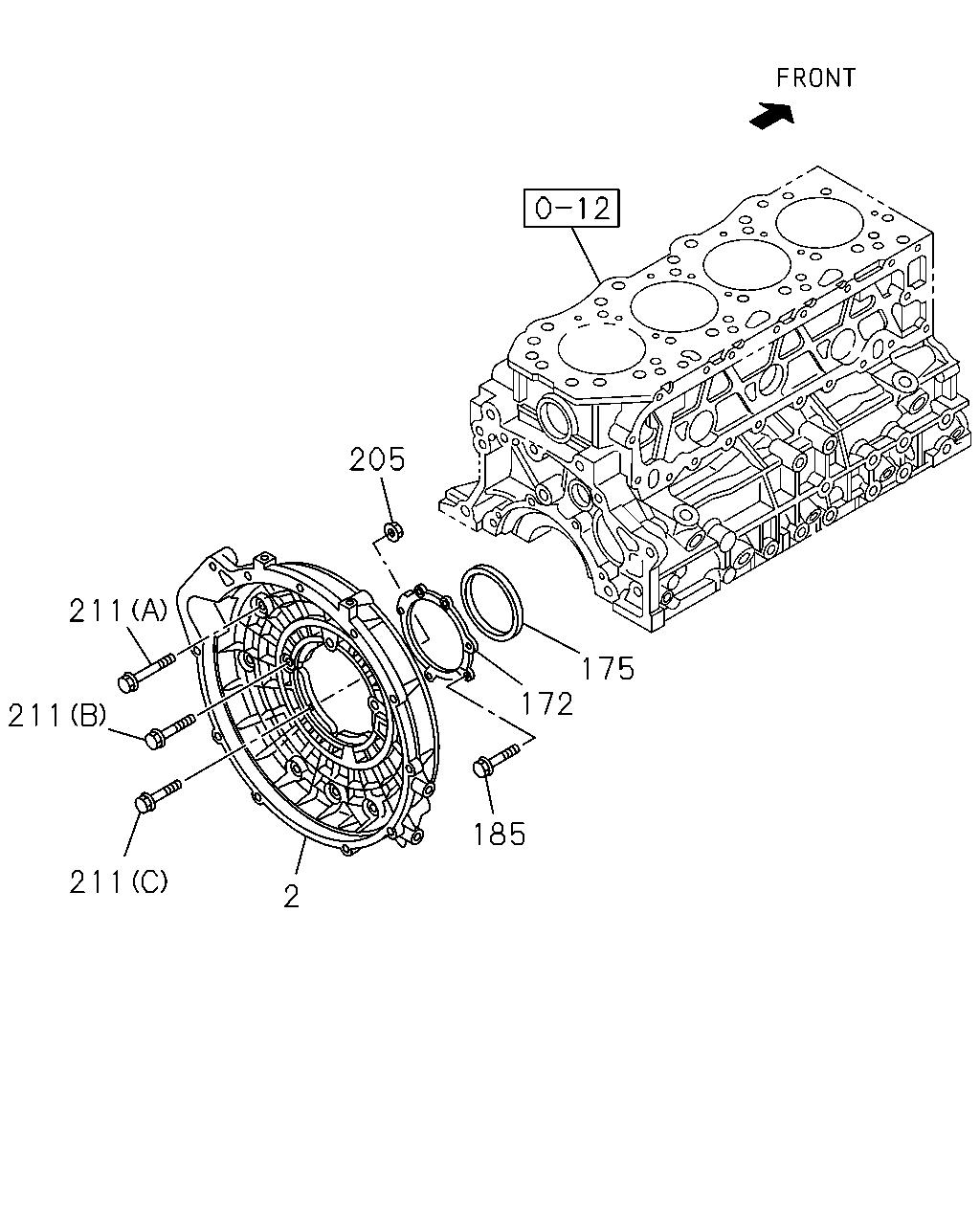

çizim 476287
205 211 211 211 2 185 172 175
BalonParca AdiParca NoAdetTipApplied Date A B
2 00.683 HOUSING; FLYWHEEL 8-98240-829-0 01 1 1505- ● ●
172 00.137 RETAINER; CR/SHF 8-97379-826-0 01 1 1505- ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118 		8-97071-561-1 01 1 1505- ● ●
185 00.727 BOLT; RET TO C/BL
06.216 M8X25 FLANGE 		0-28650-825-0 05 1 1505- ● ●
205 00.669 NUT; HSG
04.085 M10 FLANGE 		0-91180-210-0 01 1 1505- ● ●
211 00.669 BOLT; HSG
09.003 (A) M12X35 FLANGE 		0-28651-235-0 05 1 1505- ● ●
211 00.669 BOLT; HSG
00.683 (B) M12X25 		5-09000-227-0 03 1 1505- ● ●
211 00.669 BOLT; HSG
00.862 (C) M10X43 		9-09606-535-0 01 1 1505- ● ●

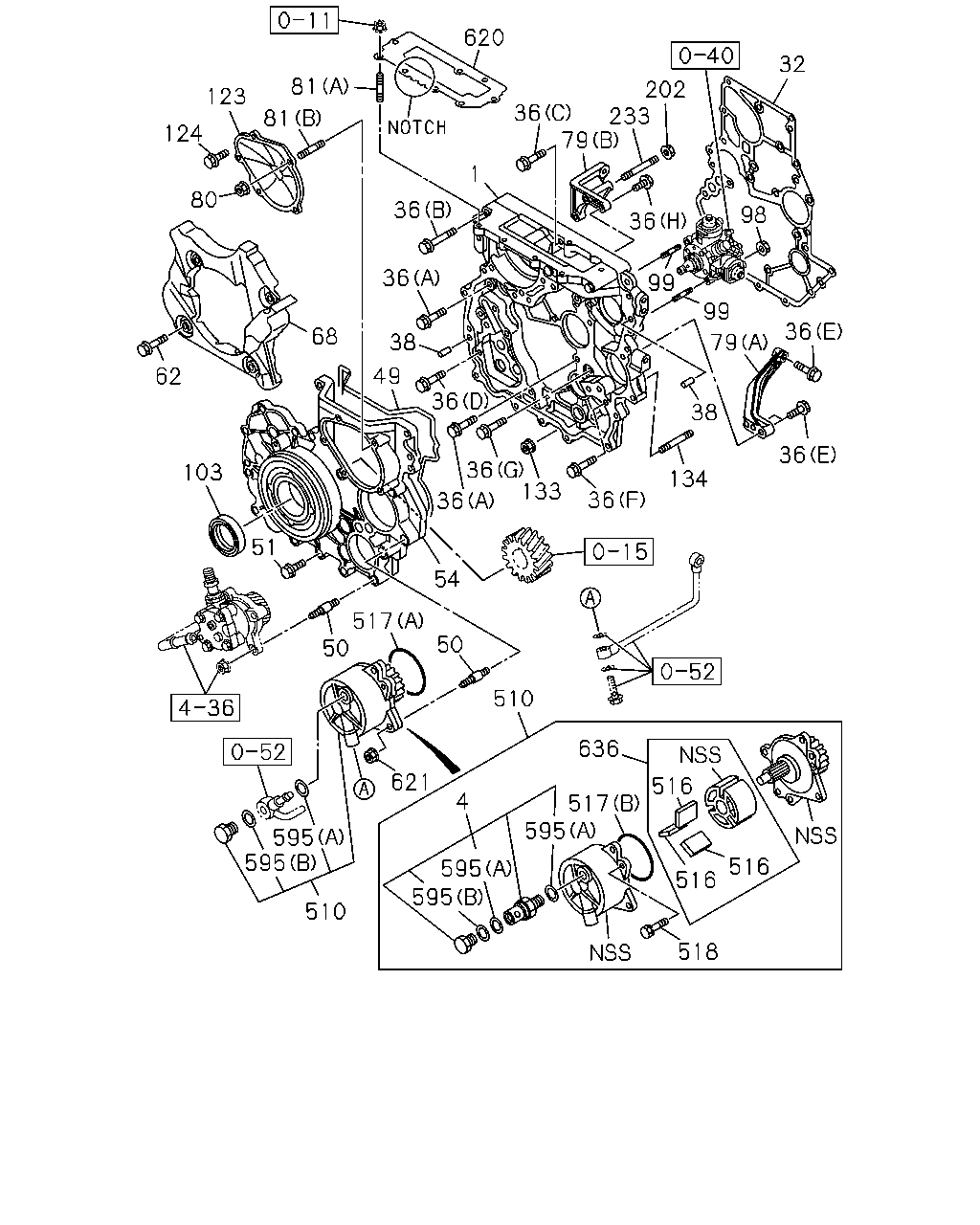

çizim 476641
620 81 81 123 124 80 62 103 51 50 595 595 510 621 4 510 595 595 517 595 518 516 516 516 517 636 54 50 36 36 36 49 38 68 133 36 36 1 36 202 233 79 36 32 99 36 134 38 79 99 36 36 98
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.206 CASE; TIMING GEAR 8-98211-898-0 01 1 1505- ●
1 00.206 CASE; TIMING GEAR 8-98217-735-0 01 1 1505- ●
4 00.213 VALVE ASM; CHECK 8-98049-521-0 01 1 1505- ● ●
32 00.207 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98181-198-1 01 1 1505- ● ●
36 00.206 BOLT; GEAR CASE
02.343 (G) M8X16 FLANGE 		0-28050-816-0 01 1 1505- ● ●
36 00.206 BOLT; GEAR CASE
04.338 (A) M8X20 FLANGE 		0-28050-820-0 12 1 1505- ● ●
36 00.206 BOLT; GEAR CASE
03.162 (C) M8X35 FLANGE 		0-28050-835-0 01 1 1505- ● ●
36 00.206 BOLT; GEAR CASE
09.173 (F) M8X45 FLANGE 		0-28050-845-0 02 1 1505- ● ●
36 00.206 BOLT; GEAR CASE
04.686 (B) M8X60 FLANGE 		0-28050-860-0 01 1 1505- ● ●
36 00.206 BOLT; GEAR CASE
06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 1505- ● ●
36 00.206 BOLT; GEAR CASE
01.060 (E) M8X35 FLANGE 		0-28650-835-0 03 1 1505- ●
36 00.206 BOLT; GEAR CASE
03.403 (H) M8X30 FLANGE 		0-28650-830-0 03 1 1505- ●
38 00.685 PIN; GEAR CASE COVER
04.510 OD=10 L=20 		8-97135-423-0 02 1 1505- ● ●
49 00.206 GASKET; GEAR CASE TO COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97945-298-0 01 1 1505- ● ●
50 00.206 STUD
M8X27,M8X14 L=64.5 		8-97354-808-2 06 1 1505- ● ●
51 00.206 BOLT; GEAR CASE COVER 8-97354-697-1 14 1 1505- ● ●
54 00.206 COVER; GEAR CASE 8-98253-700-1 01 1 1505- ● ●
62 00.206 BOLT; COVER
03.162 M6X20 FLANGE 		0-28650-620-0 04 1 1505- ● ●
68 00.206 COVER ASM; GEAR CASE COVER 8-98245-226-0 01 1 1505- ● ●
79 00.219 BRACKET; GEAR CASE COVER
(A) 		8-98088-943-1 01 1 1505- ●
79 00.219 BRACKET; GEAR CASE COVER
(B) 		8-98107-106-0 01 1 1505- ●
80 00.206 NUT; COVER
01.540 M6 FLANGE 		0-91180-206-0 02 1 1505- ● ●
81 00.206 STUD; GEAR CASE COVER FIX
(B) M6X16 L=25 		0-41010-616-0 02 1 1505- ● ●
81 00.206 STUD; GEAR CASE COVER FIX
00.413 (A) M8X30 L=48 		0-49140-830-0 02 1 1505- ● ●
98 00.206 NUT; STUD,INJ PUMP
01.540 M8 FLANGE 		0-91180-208-0 03 1 1505- ●
98 00.206 NUT; STUD,INJ PUMP
01.540 M8 FLANGE 		0-91180-208-0 02 1 1505- ●
99 00.206 STUD; INJ PUMP
M8X30 L=41 		8-97369-449-0 03 1 1505- ●
99 00.206 STUD; INJ PUMP
M8X30 L=41 		8-97369-449-0 02 1 1505- ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98158-110-0 01 1 1505- ● ●
123 00.206 COVER; TIMING,LWR 8-98158-145-0 01 1 1505- ● ●
124 00.206 BOLT; TIMING COVER
09.242 M6X16 FLANGE 		0-28050-616-0 03 1 1505- ● ●
133 00.206 NUT; TIMING GEAR CASE
01.540 M8 FLANGE 		0-91180-208-0 02 1 1505- ● ●
134 00.669 STUD; TIMING GEAR CASE
02.510 M8X20 L=32 		0-41010-820-0 02 1 1505- ● ●
202 00.206 NUT; BRKT
01.540 M8 FLANGE 		0-91180-208-0 01 1 1505- ●
233 00.669 STUD; BRKT
03.275 M8X71 L=83 		8-98017-063-0 01 1 1505- ●
510 04.895 PUMP ASM; VACUUM 8-98251-764-0 01 1 1505- ● ●
516 04.895 VANE; VAC PUMP 8-98051-275-0 03 1 1505- ● ●
517 04.895 GASKET; VAC PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-98251-769-0 01 1 1505- ● ●
517 04.895 GASKET; VAC PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) 		9-09566-271-0 01 1 1505- ● ●
518 04.895 BOLT; VAC PUMP 8-98049-523-0 03 1 1505- ● ●
595 00.213 GASKET; VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12 		8-98018-518-0 01 1 1505- ● ●
595 00.213 GASKET; VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18 		8-98018-519-0 02 1 1505- ● ●
620 00.207 GASKET; GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.40 1-NOTCH 		8-97328-828-2 01 1 1505- ● ●
620 00.207 GASKET; GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.45 2-NOTCH 		8-97331-631-2 01 1 1505- ● ●
620 00.207 GASKET; GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.50 3-NOTCH 		8-97331-632-2 01 1 1505- ● ●
621 00.207 NUT; VAC PUMP
01.540 M8 FLANGE 		0-91180-208-0 03 1 1505- ● ●
636 00.206 ROTOR & VANE ASM; VAC PUMP 8-98049-520-0 01 1 1505- ● ●
