◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51613 - NLR/NMR LHD EUROPE EURO5B+,6 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-10 - CYLINDER HEAD COVER ▶
0-10 — CYLINDER HEAD COVER (#161512) — 15 parça

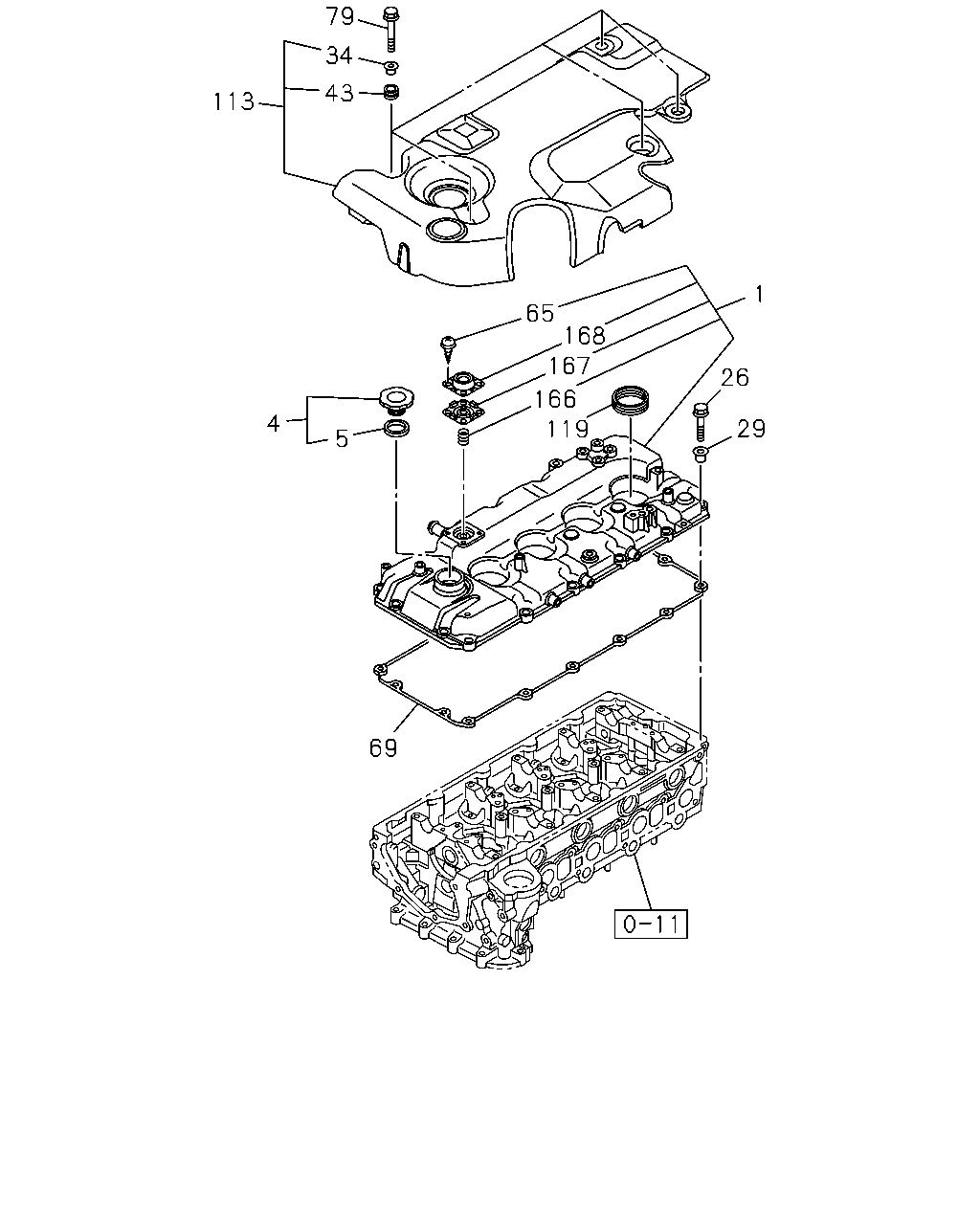

çizim 475009
79 34 43 113 4 5 65 168 167 166 119 26 29 1 69
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.386 COVER; CYL HD 8-98220-002-3 01 1 1505- ● ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 1505- ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 1505- ● ●
26 08.900 BOLT; CYL HD COVER
03.680 M6X30 FLANGE 		0-28650-630-0 15 1 1505- ● ●
29 00.413 RUBBER; MTG,HD COVER
00.206 		8-97168-200-1 15 1 1505- ● ●
34 00.413 BUSHING; MTG RUBBER,CYL HD COVER 8-98036-120-0 05 1 1505- ● ●
43 00.413 RUBBER; MTG,HD COVER,OUTER 8-98036-119-0 05 1 1505- ● ●
65 00.413 SCREW; ADAPTER
02.361 M5X10 W/LK WASHER 		0-36220-510-0 04 1 1505- ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98181-200-0 01 1 1505- ● ●
79 00.293 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 05 1 1505- ● ●
113 00.386 COVER; CYL HEAD COVER 8-98225-306-0 01 1 1505- ● ●
119 00.386 COVER; SEAL,NOZZLE 8-98037-543-0 04 1 1505- ● ●
166 00.283 SPRING; VENTILATOR
00.423 		8-97365-998-0 01 1 1505- ● ●
167 00.283 DIAPHRAGM; VENTILATOR 8-98003-164-0 01 1 1505- ● ●
168 00.283 COVER; VENTILATOR
00.269 		8-97365-992-0 01 1 1505- ● ●
