8-10 — WIRING HARNESS AND FUSE (#16151) — 103 parça

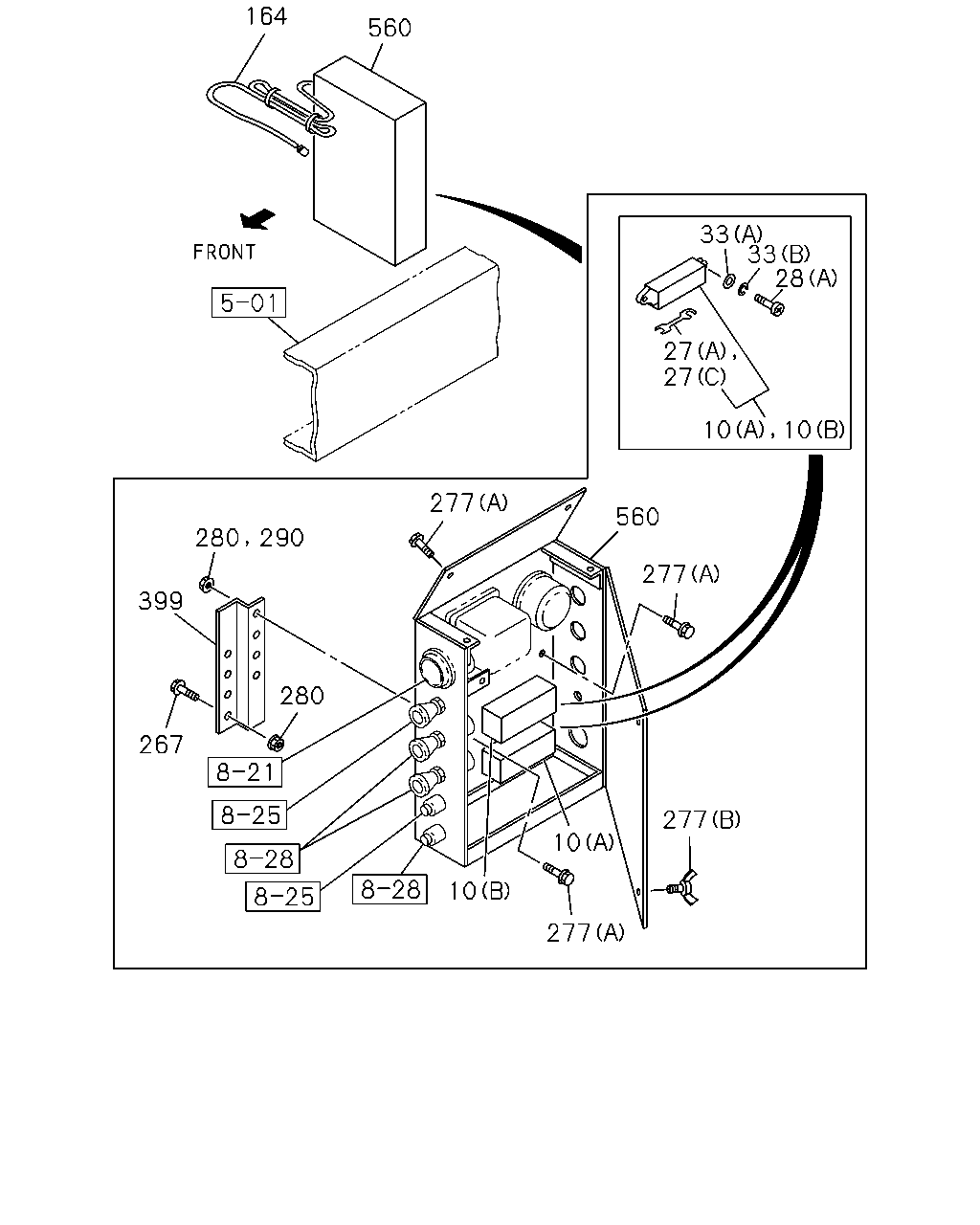

çizim 62690
164 560 33 33 28 27 27 10 10 277 560 277 399 280 267 277 10 10 277 280 290
BalonParca AdiParca NoAdetTipApplied Date
10 BOX; FUSE,HARNESS
(D) 10AX1 25AX1 		1-82510-579-0 01 1 0907-
10 BOX; FUSE,HARNESS
(C) 		1-82510-665-0 01 1 0907-
10 BOX; FUSE,HARNESS
(A) 100A 		1-82510-235-2 01 1 0907-0909
10 BOX; FUSE,HARNESS
GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) (A) 100A 		1-82510-235-2 01 1 0910-
10 BOX; FUSE,HARNESS
(B) 170A 		1-82510-656-0 01 1 0907-0909
10 BOX; FUSE,HARNESS
GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) (B) 170A 		1-82510-656-0 01 1 0910-
27 FUSE UNIT
(B) 10A RED 		5-82516-002-0 15 1 0907-
27 FUSE UNIT
(B) 15A BLUE 		5-82516-003-0 05 1 0907-
27 FUSE UNIT
(B) 25A CLEAR 		5-82516-005-0 04 1 0907-
27 FUSE UNIT
(B) 30A GREEN 		8-94159-008-0 01 1 0907-
27 FUSE UNIT
(A) 170A 		1-82516-030-0 01 1 0907-0909
27 FUSE UNIT
GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) (A) 170A 		1-82516-030-0 01 1 0910-
27 FUSE UNIT
(C) 100A 		9-82941-126-0 02 1 0907-0909
27 FUSE UNIT
GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) (C) 100A 		9-82941-126-0 02 1 0910-
28 SCREW; FUSE BOX
(A) M6X25 W/LK WASHER 		0-36220-625-0 04 1 0907-0909
28 SCREW; FUSE BOX
GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) (A) M6X25 W/LK WASHER 		0-36220-625-0 04 1 0910-
28 SCREW; FUSE BOX
(B) M6X42 		8-97811-324-0 02 1 0907-
28 SCREW; FUSE BOX
(C) M5X12 		9-93490-512-0 02 1 0907-
33 WASHER; LK,FUSE BOX FIX
(A) ID=6 		1-09985-179-0 02 1 0907-1202
33 WASHER; LK,FUSE BOX FIX
(A) ID=6.1 		0-91510-606-0 02 1 1203-
33 WASHER; LK,FUSE BOX FIX
(A) ID=6 		1-09985-179-0 04 1 0907-0909
33 WASHER; LK,FUSE BOX FIX
GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) (A) ID=6 		1-09985-179-0 04 1 0910-1202
33 WASHER; LK,FUSE BOX FIX
GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) (A) ID=6.1 		0-91510-606-0 04 1 1203-
33 WASHER; LK,FUSE BOX FIX
(B) ID=6.4 		9-09160-506-0 02 1 0907-
33 WASHER; LK,FUSE BOX FIX
(B) ID=6.4 		9-09160-506-0 04 1 0907-0909
33 WASHER; LK,FUSE BOX FIX
GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) (B) ID=6.4 		9-09160-506-0 04 1 0910-
164 HARNESS; ELEC 1-82678-307-0 01 1 0907-
267 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0907-
277 BOLT; BOX ASM FIX
GENERATOR MITSUBISHI 24V-120A 3.4KW(NFJ) (A) M8X20 FLANGE 		0-28650-820-0 04 1 0910-
277 BOLT; BOX ASM FIX
(A) M8X20 FLANGE 		0-28650-820-0 06 1 0907-0909
277 BOLT; BOX ASM FIX
GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) (A) M8X20 FLANGE 		0-28650-820-0 06 1 0910-
277 BOLT; BOX ASM FIX
(B) M8X12 WING 		1-09064-006-0 02 1 0907-
280 NUT; BOX ASM FIX
M8 FLANGE 		0-91180-108-0 04 1 0907-
290 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0907-
399 BRACKET; BOX 1-48495-200-2 02 1 0907-
560 BOX; ELECTRIC
EXC. GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) 		1-82698-163-1 01 1 0910-
560 BOX; ELECTRIC 1-82698-164-3 01 1 0907-0909
560 BOX; ELECTRIC
GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) 		1-82698-164-3 01 1 0910-

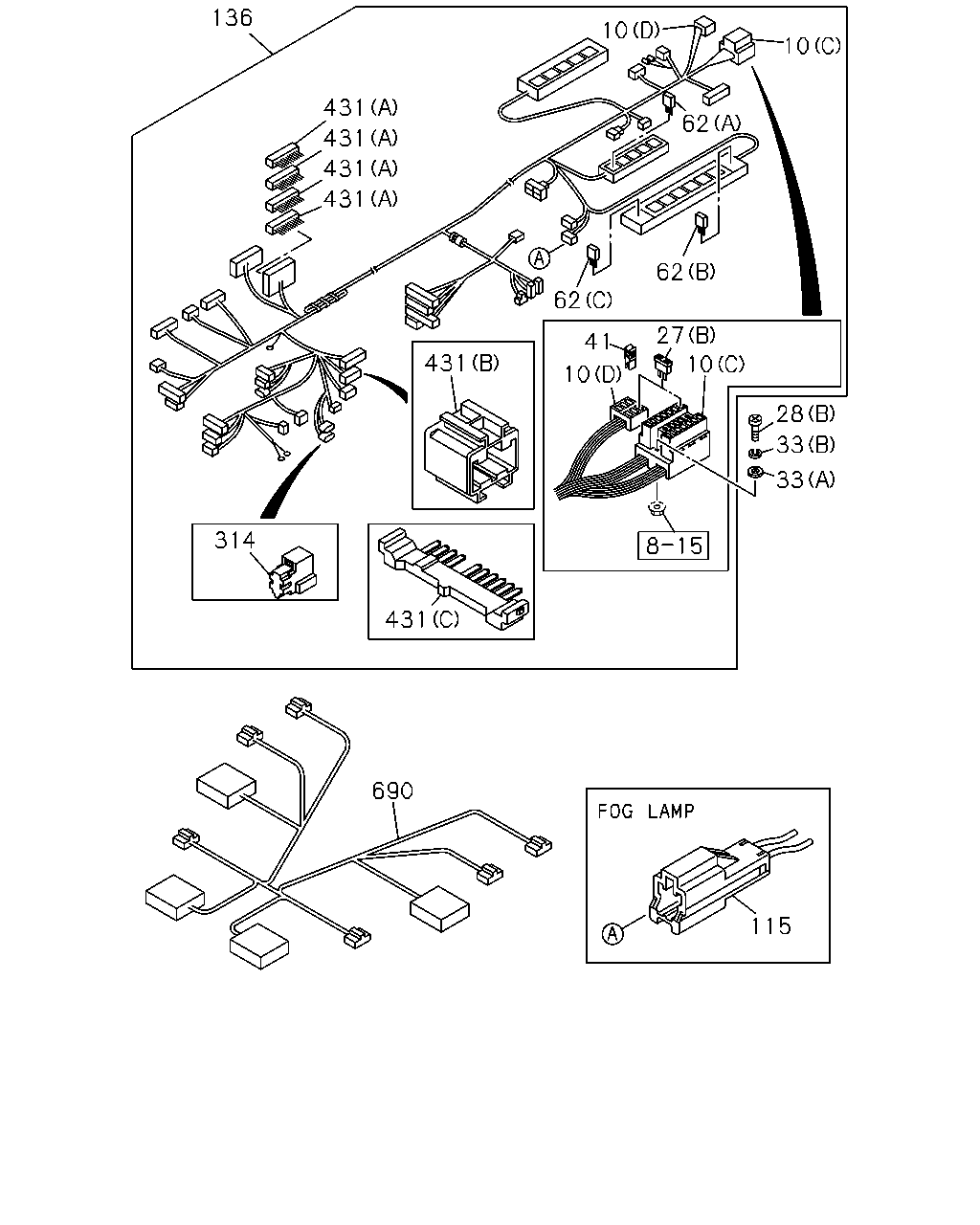

çizim 62943
136 10 10 431 62 431 431 431 62 62 27 41 431 10 10 28 33 33 314 431 690 115
BalonParca AdiParca NoAdetTipApplied Date
10 BOX; FUSE,HARNESS
(D) 10AX1 25AX1 		1-82510-579-0 01 1 0907-
10 BOX; FUSE,HARNESS
(C) 		1-82510-665-0 01 1 0907-
10 BOX; FUSE,HARNESS
(A) 100A 		1-82510-235-2 01 1 0907-0909
10 BOX; FUSE,HARNESS
GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) (A) 100A 		1-82510-235-2 01 1 0910-
10 BOX; FUSE,HARNESS
(B) 170A 		1-82510-656-0 01 1 0907-0909
10 BOX; FUSE,HARNESS
GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) (B) 170A 		1-82510-656-0 01 1 0910-
27 FUSE UNIT
(B) 10A RED 		5-82516-002-0 15 1 0907-
27 FUSE UNIT
(B) 15A BLUE 		5-82516-003-0 05 1 0907-
27 FUSE UNIT
(B) 25A CLEAR 		5-82516-005-0 04 1 0907-
27 FUSE UNIT
(B) 30A GREEN 		8-94159-008-0 01 1 0907-
27 FUSE UNIT
(A) 170A 		1-82516-030-0 01 1 0907-0909
27 FUSE UNIT
GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) (A) 170A 		1-82516-030-0 01 1 0910-
27 FUSE UNIT
(C) 100A 		9-82941-126-0 02 1 0907-0909
27 FUSE UNIT
GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) (C) 100A 		9-82941-126-0 02 1 0910-
28 SCREW; FUSE BOX
(A) M6X25 W/LK WASHER 		0-36220-625-0 04 1 0907-0909
28 SCREW; FUSE BOX
GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) (A) M6X25 W/LK WASHER 		0-36220-625-0 04 1 0910-
28 SCREW; FUSE BOX
(B) M6X42 		8-97811-324-0 02 1 0907-
28 SCREW; FUSE BOX
(C) M5X12 		9-93490-512-0 02 1 0907-
33 WASHER; LK,FUSE BOX FIX
(A) ID=6 		1-09985-179-0 02 1 0907-1202
33 WASHER; LK,FUSE BOX FIX
(A) ID=6.1 		0-91510-606-0 02 1 1203-
33 WASHER; LK,FUSE BOX FIX
(A) ID=6 		1-09985-179-0 04 1 0907-0909
33 WASHER; LK,FUSE BOX FIX
GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) (A) ID=6 		1-09985-179-0 04 1 0910-1202
33 WASHER; LK,FUSE BOX FIX
GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) (A) ID=6.1 		0-91510-606-0 04 1 1203-
33 WASHER; LK,FUSE BOX FIX
(B) ID=6.4 		9-09160-506-0 02 1 0907-
33 WASHER; LK,FUSE BOX FIX
(B) ID=6.4 		9-09160-506-0 04 1 0907-0909
33 WASHER; LK,FUSE BOX FIX
GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) (B) ID=6.4 		9-09160-506-0 04 1 0910-
41 PULLER; FUSE
L=31.0 B=10.0 		8-94369-144-0 01 1 0907-
62 DIODE; HARNESS
(B) BLACK 3P-1.5A 		8-94416-438-1 02 1 0907-
62 DIODE; HARNESS
(C) BLACK 2P-1.5A 		8-94422-639-1 04 1 0907-
62 DIODE; HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 03 1 0907-
115 HARNESS; FOG LAMP
LIGHTING SYSTEM ECE<SLC> FOG LAMP<T96> 		1-82625-451-0 01 1 0907-
136 HARNESS; DASH 8-98107-892-0 01 1 0907-
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 02 1 0907-
431 CONNECTOR; JOINT
(B) 3P & 3P 		1-82698-170-0 02 1 0907-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 03 1 0907-
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 05 1 0907-
690 HARNESS; EXT,FRAME 8-98107-899-0 01 1 0907-

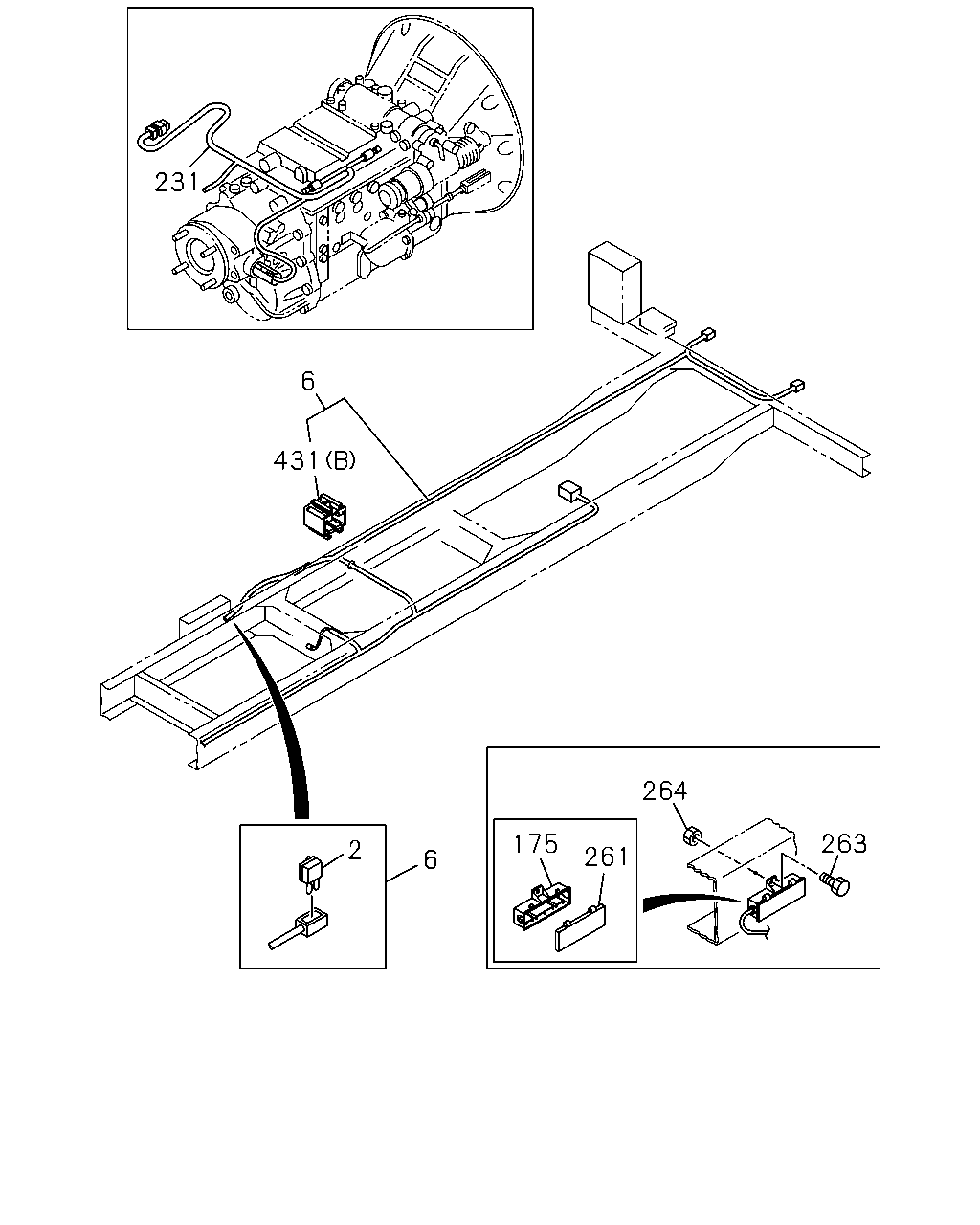

çizim 62980
231 6 431 264 263 175 2 261 6
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
BLACK 2P-1.5A 		8-94422-639-1 01 1 0907-
6 HARNESS; FRAME
GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) EURO3 SPECIFICATION(NT3) 		8-98135-861-1 01 1 0910-
6 HARNESS; FRAME
EURO3 SPECIFICATION(NT3) EXC. GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) 		8-98137-011-1 01 1 0910-
6 HARNESS; FRAME 8-98107-896-1 01 1 0907-0909
6 HARNESS; FRAME
GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) EURO5 SPECIFICATION(NT5) 		8-98107-896-1 01 1 0910-
175 BOX; CONNECTOR 1-82699-467-0 02 1 0907-
231 HARNESS; TRANS
BRAKE SYSTEM RETARDER<RE2> 		1-82673-573-0 01 1 0907-
231 HARNESS; TRANS
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-82673-572-0 01 1 0907-
261 COVER; CONNECTOR BOX 1-82699-320-0 02 1 0907-
263 BOLT; CONNECTOR BOX
M8X30 W/LK&PL WASHER 		8-94279-144-0 02 1 0907-
264 NUT; CONNECTOR BOX
M8 FLANGE 		0-91180-108-0 01 1 0907-
431 CONNECTOR; JOINT
(B) 3P & 3P 		1-82698-170-0 02 1 0907-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 03 1 0907-
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 05 1 0907-

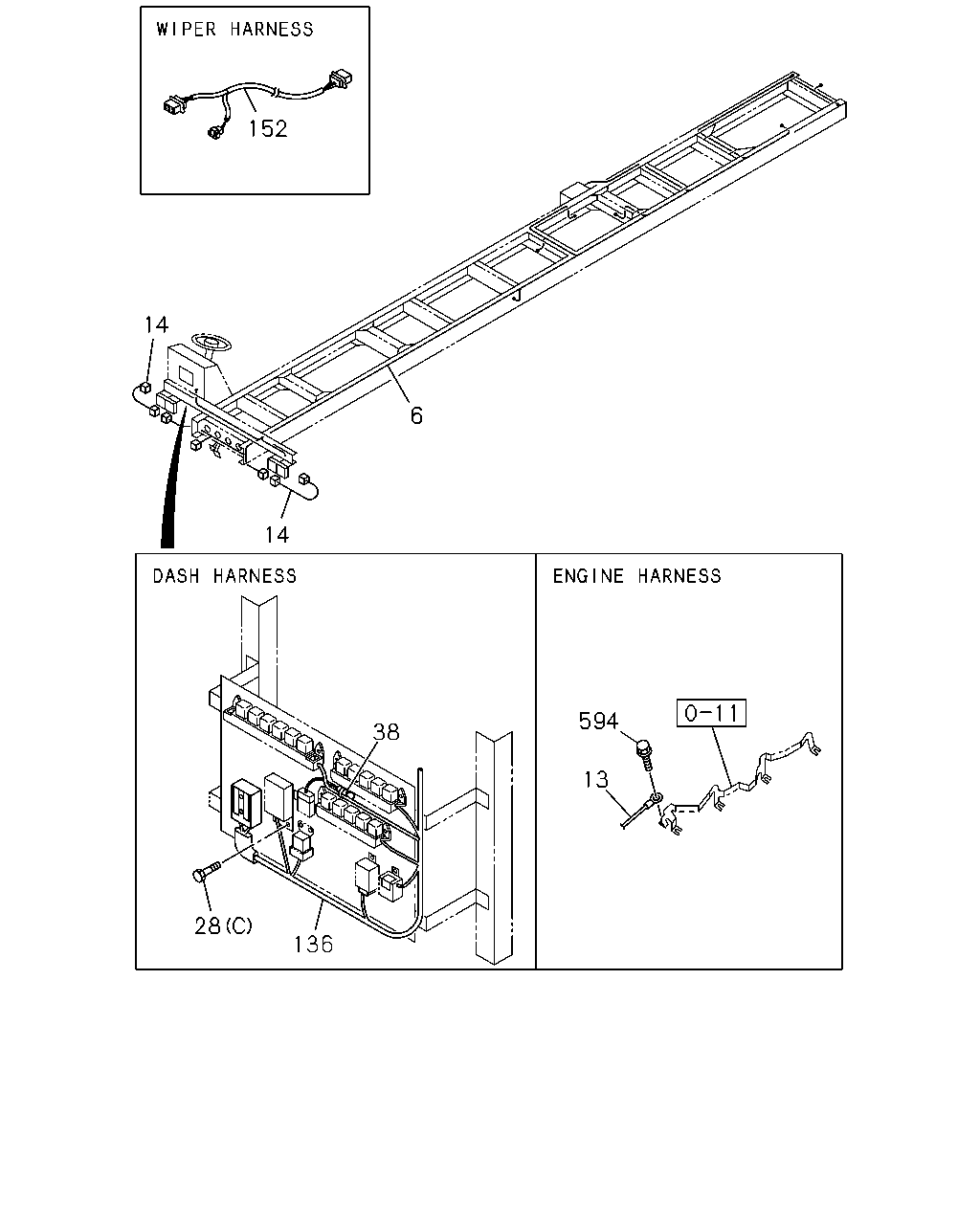

çizim 102323
152 14 6 14 594 38 13 28 136
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) EURO3 SPECIFICATION(NT3) 		8-98135-861-1 01 1 0910-
6 HARNESS; FRAME
EURO3 SPECIFICATION(NT3) EXC. GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) 		8-98137-011-1 01 1 0910-
6 HARNESS; FRAME 8-98107-896-1 01 1 0907-0909
6 HARNESS; FRAME
GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) EURO5 SPECIFICATION(NT5) 		8-98107-896-1 01 1 0910-
13 HARNESS; ENG 8-97610-213-4 01 1 0907-
14 HARNESS; HEADLAMP 1-82678-048-0 02 1 0907-
28 SCREW; FUSE BOX
(A) M6X25 W/LK WASHER 		0-36220-625-0 04 1 0907-0909
28 SCREW; FUSE BOX
GENERATOR MITSUBISHI 24V-150A 4.2KW(NGF) (A) M6X25 W/LK WASHER 		0-36220-625-0 04 1 0910-
28 SCREW; FUSE BOX
(B) M6X42 		8-97811-324-0 02 1 0907-
28 SCREW; FUSE BOX
(C) M5X12 		9-93490-512-0 02 1 0907-
38 HARNESS; CHAS
ENGINE OVERRUN BUZZER<SK4> 		1-82625-451-0 01 1 0907-
136 HARNESS; DASH 8-98107-892-0 01 1 0907-
152 HARNESS; WIPER
WIPER MOTOR KIT<ST7> 		1-82625-630-0 01 1 0907-
594 BOLT; GLOW PLUG HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0907-
