Sayfa 9-01 - Isuzu EPC

9-01 — TOOLS (#161509) — 102 parça

450 450

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A

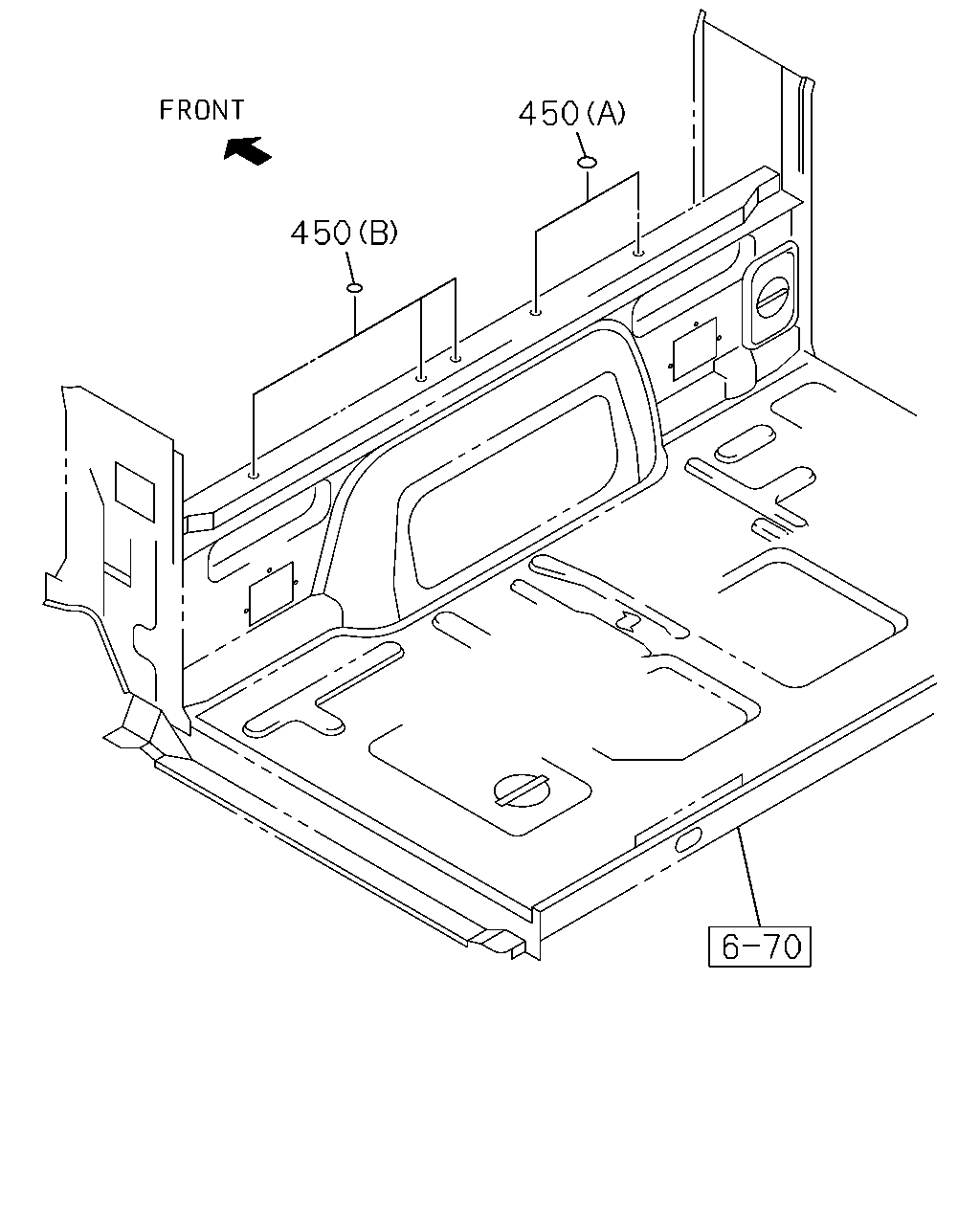

450	16.064 SEAL; HOLE 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	03	1	1505-	●
450	16.064 SEAL; HOLE 02.580 (A) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	1505-	●
450	16.064 SEAL; HOLE 02.580 (A) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	1505-	●

8 29 1 1 237 195 193 206 199 206 302 208 141 241 238 239 208 319 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

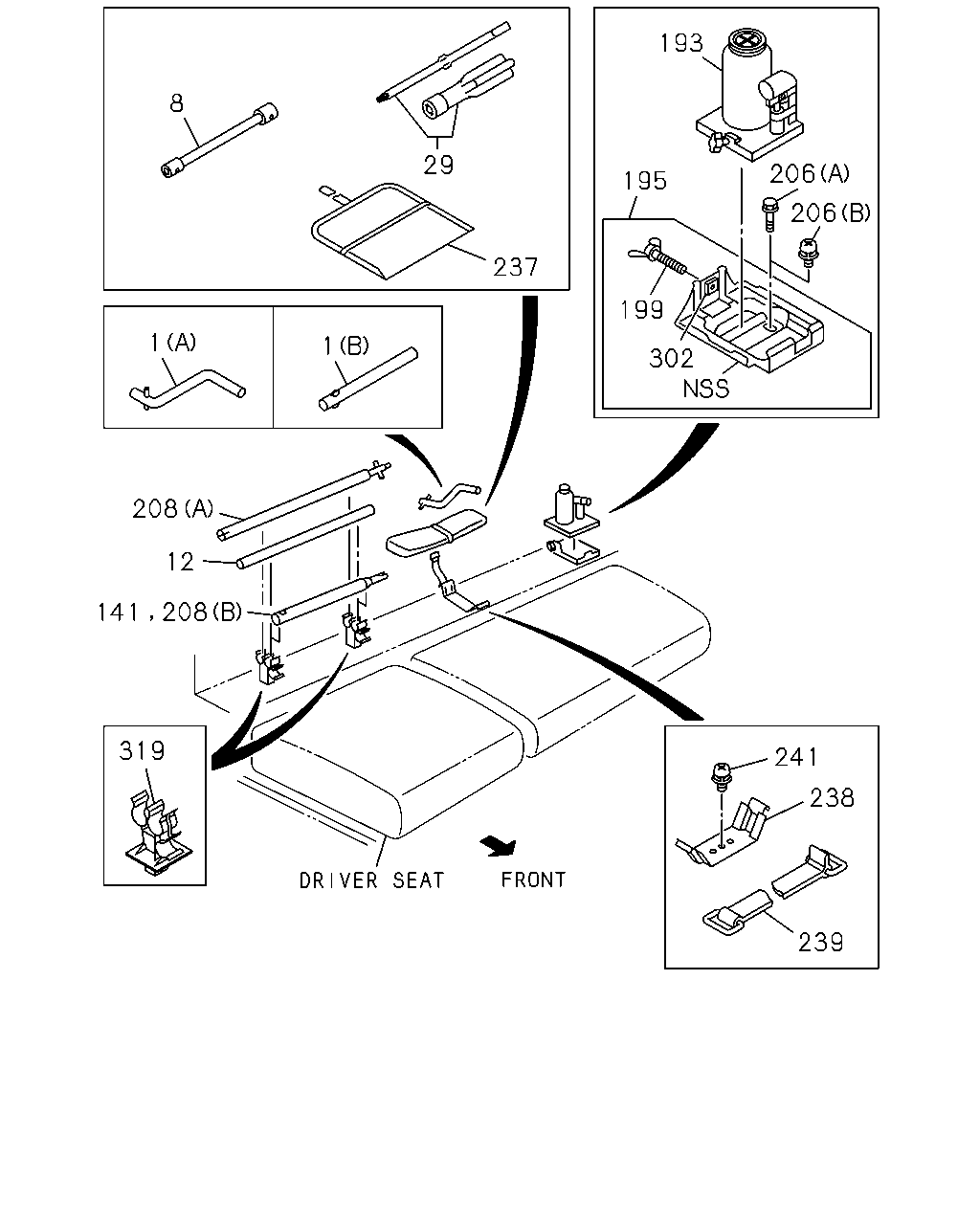

1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2700MM(27W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> EURO5B+ SPECIFICATION(NT5) SPARE WHEEL CARRIER<P10> CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97218-985-0	01	1	1505-		●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 4400MM(44W) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97218-985-0	01	1	1505-			●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 4400MM(44W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (A)	8-97218-985-0	01	1	1505-			●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (A)	8-97218-985-0	01	1	1505-	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) SPARE WHEEL CARRIER<P10> (B) L=280	8-98181-251-0	01	1	1505-		●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) SPARE TIRE & DISC WHEEL LESS<7NC> EXC. SPARE WHEEL CARRIER<P10> (B) L=280	8-98181-251-0	01	1	1505-		●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) SPARE TIRE & DISC WHEEL LESS<7NC> CATALYSIS CONTROL WITH DPD(8JM) EXC. SPARE WHEEL CARRIER<P10> (B) L=280	8-98181-251-0	01	1	1505-		●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2700MM(27W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. SPARE WHEEL CARRIER<P10> (B) L=280	8-98181-251-0	01	1	1505-		●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> EURO5B+ SPECIFICATION(NT5) SPARE WHEEL CARRIER<P10> CATALYSIS CONTROL WITH DPD(8JM) (B) L=280	8-98181-251-0	01	1	1505-		●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (B) L=280	8-98181-251-0	01	1	1505-			●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) FRAME STRAIGHT TYPE<7KJ> (B) L=280	8-98181-251-0	01	1	1505-			●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=280	8-98181-251-0	01	1	1505-			●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) L=280	8-98181-251-0	01	1	1505-	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=280	8-98181-251-0	01	1	1505-	●
8	08.821 WRENCH; WHEEL FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),F&R 205/75R16C L.R.R RIB16X5.5J-116.5 SILVER(CYS),F&R 205/75R16 C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) B=41X19 L=330	8-94386-490-1	01	1	1505-		●
8	08.821 WRENCH; WHEEL F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S ILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) B=41X19 L=330	8-94386-490-1	01	1	1505-			●
8	08.821 WRENCH; WHEEL FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) B=41X21 L=440	1-85113-015-1	01	1	1505-	●		●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 2700MM(27W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> EURO5B+ SPECIFICATION(NT5) SPARE WHEEL CARRIER<P10> CATALYSIS CONTROL WITH DPD(8JM) OD=25 L=480	8-98257-407-0	01	1	1505-		●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 4400MM(44W) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) OD=25 L=480	8-98257-407-0	01	1	1505-			●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 4400MM(44W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> OD=25 L=480	8-98257-407-0	01	1	1505-			●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> OD=25 L=480	8-98257-407-0	01	1	1505-	●
29	08.821 DRIVER; SCREW FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),F&R 205/75R16C L.R.R RIB16X5.5J-116.5 SILVER(CYS),F&R 205/75R16 C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) <+>,<-> L=160	8-94242-798-1	01	1	1505-		●
29	08.821 DRIVER; SCREW FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW),F&R 205/75R16C L.R.R RIB16X5.5J-116.5 SILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) <+>,<-> L=160	8-94242-798-1	01	1	1505-			●
29	08.821 DRIVER; SCREW FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) <+>,<-> L=160	8-94242-798-1	01	1	1505-	●
141	08.821 HANDLE; WRENCH WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 08.820 L=580	8-98181-249-0	01	1	1505-	●
141	08.821 HANDLE; WRENCH WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 08.820 L=580	8-98181-249-0	01	1	1505-	●
193	08.820 JACK ASM 4TON	8-98012-285-0	01	1	1505-	●	●	●
195	08.820 BRACKET; JACK	8-98033-737-2	01	1	1505-		●	●
195	08.820 BRACKET; JACK	8-94262-068-3	01	1	1505-	●
199	08.820 BOLT; JACK M8X50 WING	8-98005-537-0	01	1	1505-		●	●
199	08.820 BOLT; JACK M8X50 WING	8-94279-136-0	01	1	1505-	●
206	08.820 SCREW; OIL JACK BRKT 06.216 (A) BOLT M8X25 FLANGE	0-28650-825-0	01	1	1505-1507		●	●
206	08.820 SCREW; OIL JACK BRKT 06.216 (A) BOLT M8X25 FLANGE	0-28650-825-0	01	1	1508-		●	●
206	08.820 SCREW; OIL JACK BRKT 16.570 (B) M6X16	0-38050-616-0	01	1	1505-	●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> EURO5B+ SPECIFICATION(NT5) SPARE WHEEL CARRIER<P10> CATALYSIS CONTROL WITH DPD(8JM) (A) L=642	8-98181-477-0	01	1	1505-		●
208	08.820 HANDLE; JACK WHEEL BASE 4400MM(44W) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (A) L=642	8-98181-477-0	01	1	1505-			●
208	08.820 HANDLE; JACK WHEEL BASE 4400MM(44W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (A) L=642	8-98181-477-0	01	1	1505-			●
208	08.820 HANDLE; JACK WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (A) L=642	8-98181-477-0	01	1	1505-	●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) SPARE WHEEL CARRIER<P10> (B) L=580	8-98181-249-0	01	1	1505-		●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) SPARE TIRE & DISC WHEEL LESS<7NC> EXC. SPARE WHEEL CARRIER<P10> (B) L=580	8-98181-249-0	01	1	1505-		●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) SPARE TIRE & DISC WHEEL LESS<7NC> CATALYSIS CONTROL WITH DPD(8JM) EXC. SPARE WHEEL CARRIER<P10> (B) L=580	8-98181-249-0	01	1	1505-		●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. SPARE WHEEL CARRIER<P10> (B) L=580	8-98181-249-0	01	1	1505-		●
208	08.820 HANDLE; JACK WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> EURO5B+ SPECIFICATION(NT5) SPARE WHEEL CARRIER<P10> CATALYSIS CONTROL WITH DPD(8JM) (B) L=580	8-98181-249-0	01	1	1505-		●
208	08.820 HANDLE; JACK WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (B) L=580	8-98181-249-0	01	1	1505-			●
208	08.820 HANDLE; JACK WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) FRAME STRAIGHT TYPE<7KJ> (B) L=580	8-98181-249-0	01	1	1505-			●
208	08.820 HANDLE; JACK WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=580	8-98181-249-0	01	1	1505-			●
237	08.821 BAG; TOOL FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),F&R 205/75R16C L.R.R RIB16X5.5J-116.5 SILVER(CYS),F&R 205/75R16 C L.R.R RIB 16X5.5J-116.5 WHITE(CYT)	8-97130-903-1	01	1	1505-		●
237	08.821 BAG; TOOL FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW),F&R 205/75R16C L.R.R RIB16X5.5J-116.5 SILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT)	8-97130-903-1	01	1	1505-			●
237	08.821 BAG; TOOL FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW)	8-97130-903-1	01	1	1505-	●
238	08.820 SUPPORT; TOOL BAG	8-97994-977-0	01	1	1505-		●	●
239	08.820 BAND; TOOL BAG L=100	5-73997-026-1	01	1	1505-	●	●	●
241	08.820 SCREW; TOOL BAG SUPPORT 16.570 M6X16	0-38050-616-0	01	1	1505-		●	●
302	08.820 NUT; JACK BRKT	8-98021-556-0	01	1	1505-		●	●
302	08.820 NUT; JACK BRKT	8-94279-522-0	01	1	1505-	●
319	08.821 CLIP; TOOL BAR	8-97853-077-2	02	1	1505-	●	●	●

285 284 285 284 281 280 280 284 281 284 284 285 281 284 280 284 281

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

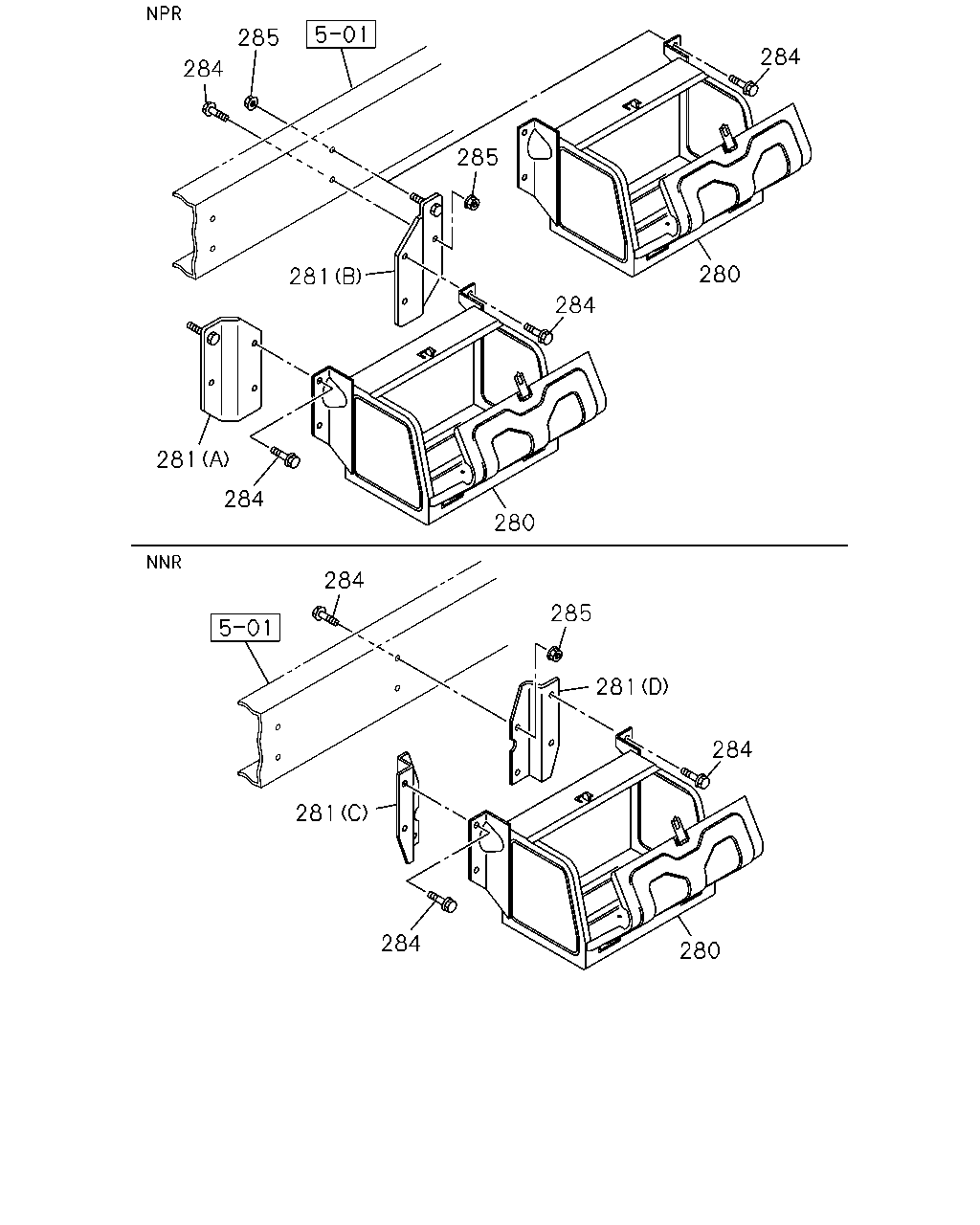

280	08.821 BOX; TOOL WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TOOL & STORAGE BOX<VK2>	8-97384-079-0	01	1	1505-1507		●
280	08.821 BOX; TOOL WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97384-079-0	01	1	1505-1507			●
280	08.821 BOX; TOOL WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EURO6 SPECIFICATION(NT6) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ>	8-97384-079-0	01	1	1505-1507			●
280	08.821 BOX; TOOL WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ>	8-97384-079-0	01	1	1505-1507	●
280	08.821 BOX; TOOL EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) TOOL & STORAGE BOX<VK2>	8-97384-079-0	01	1	1508-		●
280	08.821 BOX; TOOL EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97384-079-0	01	1	1508-			●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. EURO6 SPECIFICATION(NT6)	8-97384-079-0	01	1	1508-			●
280	08.821 BOX; TOOL WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EURO6 SPECIFICATION(NT6) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ>	8-97384-079-0	01	1	1508-			●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97384-079-0	01	1	1508-	●
280	08.821 BOX; TOOL WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ>	8-97384-079-0	01	1	1508-	●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TOOL & STORAGE BOX<VK2> (D)	8-98045-642-1	01	1	1505-		●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98045-642-1	01	1	1505-			●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TOOL & STORAGE BOX<VK2> (C)	8-98130-709-0	01	1	1505-		●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98130-709-0	01	1	1505-			●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO6 SPECIFICATION(NT6) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (A)	8-98207-076-0	01	1	1505-			●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (A)	8-98207-076-0	01	1	1505-	●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO6 SPECIFICATION(NT6) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (B)	8-98207-077-0	01	1	1505-			●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (B)	8-98207-077-0	01	1	1505-	●
284	08.821 BOLT; TOOL BOX WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1505-1507		●
284	08.821 BOLT; TOOL BOX WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1505-1507		●
284	08.821 BOLT; TOOL BOX WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1505-1507			●
284	08.821 BOLT; TOOL BOX WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1505-1507			●
284	08.821 BOLT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EURO6 SPECIFICATION(NT6) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1505-1507			●
284	08.821 BOLT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1505-1507	●
284	08.821 BOLT; TOOL BOX EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1508-		●
284	08.821 BOLT; TOOL BOX EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1508-		●
284	08.821 BOLT; TOOL BOX EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1508-			●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. EURO6 SPECIFICATION(NT6) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1508-			●
284	08.821 BOLT; TOOL BOX EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1508-			●
284	08.821 BOLT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EURO6 SPECIFICATION(NT6) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1508-			●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1508-	●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1508-	●
284	08.821 BOLT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1508-	●
284	08.821 BOLT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO6 SPECIFICATION(NT6) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1505-			●
284	08.821 BOLT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1505-	●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE	0-91180-110-0	04	1	1505-1507		●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	1505-1507			●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EURO6 SPECIFICATION(NT6) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	1505-1507			●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	1505-1507	●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE	0-91180-110-0	04	1	1508-		●
285	08.821 NUT; TOOL BOX TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE	0-91180-110-0	04	1	1508-			●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	1508-			●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EURO6 SPECIFICATION(NT6) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	1508-			●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	1508-	●
