Isuzu WW
▶
TRUCKS
▶
NNR
▶
51616 - NNR/NPR RHD EUROPE EURO5B+,6
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-90 - RADIO AND TV
▶
8-90 — RADIO AND TV
(#161508) — 15 parça
Tümü
A - NPR5SE
B - NPR5SN
C - NPR5WN
◀

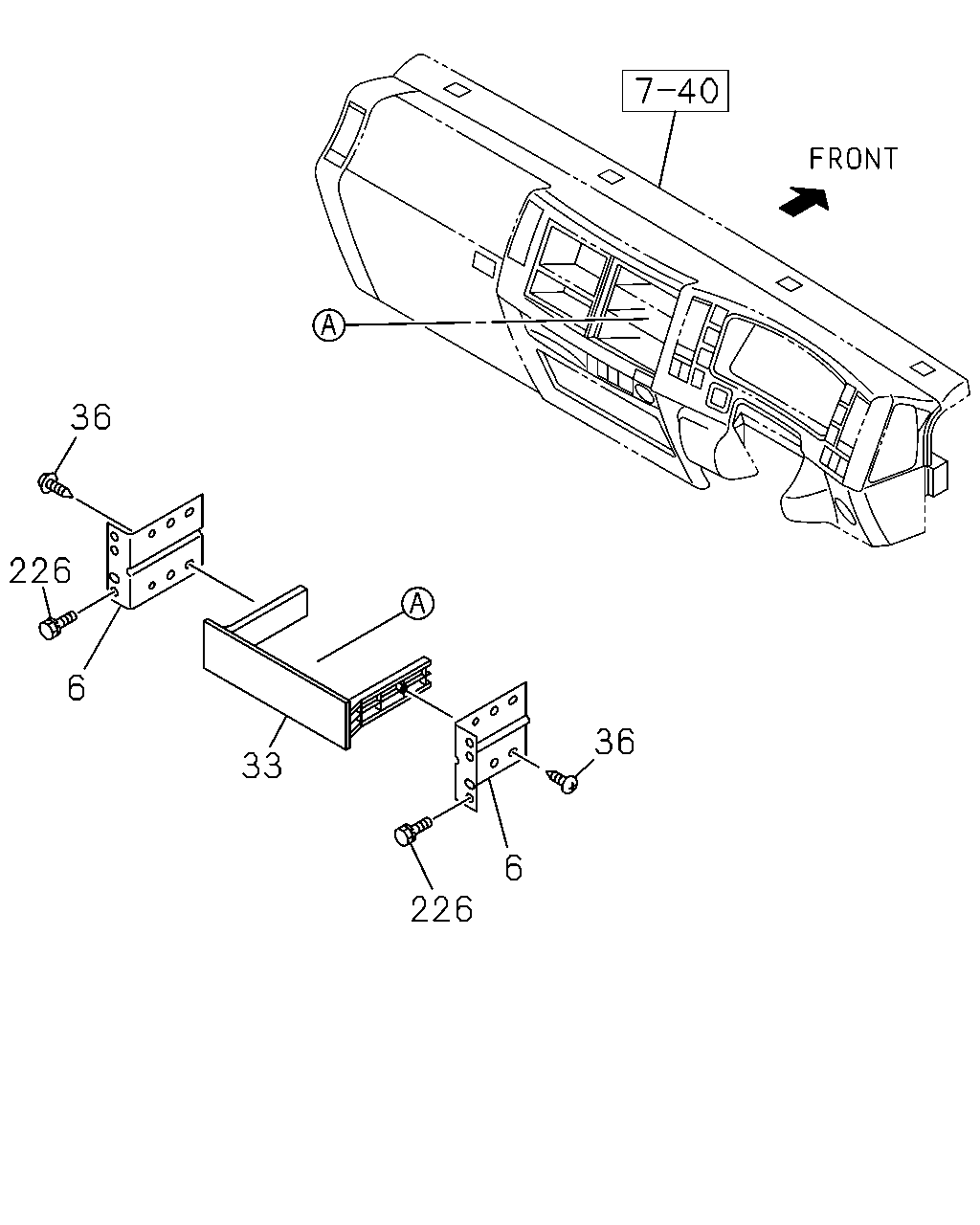

[890A] AUDIOLESS COVER (4 parça)

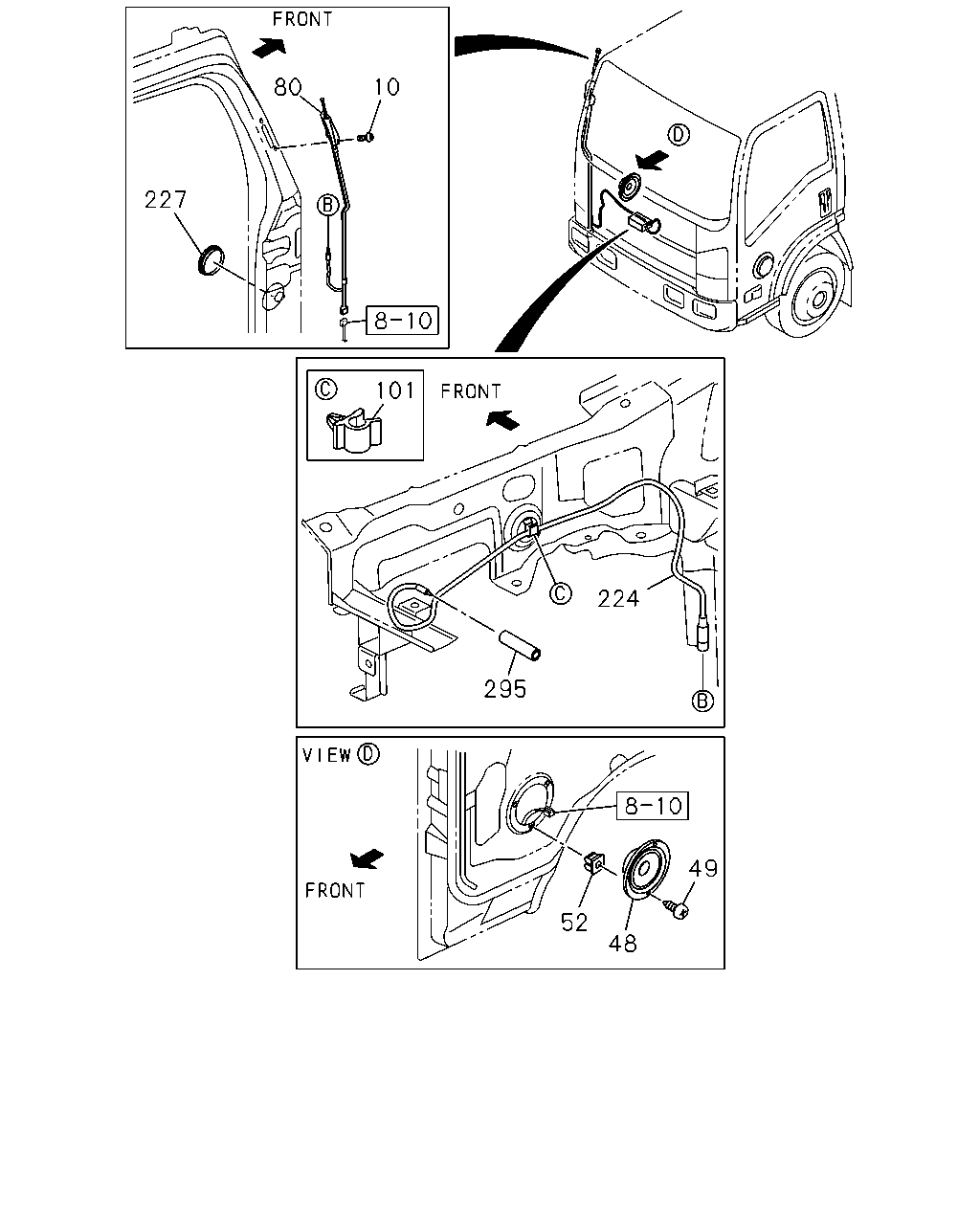

[890A] RADIO ANTENNA AND SPEAKER (11 parça)
▶
36
226
6
33
226
36
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
6
09.645 BRACKET; RADIO TO PANEL
8-97585-617-0
02
1
1505-
●
●
●
33
09.650 COVER; RADIO
BLACK
8-97407-896-2
01
1
1505-
●
●
●
36
09.779 SCREW; COVER
16.100 T25 L=10 HEXALOBULAR
8-98058-632-0
02
1
1505-
●
●
●
226
09.647 BOLT; BRKT
M5X20 TAPPING HEXALOBULAR
0-72180-520-0
02
1
1505-
●
●
●
101
224
295
52
48
49
80
10
227
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
10
09.647 SCREW; ANTENNA CABLE
M5X11 TAPPING W/TORQUES
8-98061-742-0
02
1
1505-
●
●
●
48
09.650 SPEAKER; AUDIO
8-97317-001-1
02
1
1505-
●
48
09.650 SPEAKER; AUDIO
8-98208-827-1
02
1
1505-
●
●
49
09.655 SCREW; SPEAKER
M5X14 TAPPING W/TORQUES
8-98061-856-0
06
1
1505-
●
●
●
52
09.655 GROMMET; SCREW,SPEAKER
01.269 D=8.6X7.7 L=7.5
8-94279-078-0
06
1
1505-
●
●
●
80
09.645 ANTENNA
8-97387-265-3
01
1
1505-
●
●
●
101
09.649 CLIP; FEEDER TO BRKT
09.647 ID=4.8
8-94128-483-0
01
1
1505-
●
●
●
224
09.647 CABLE; EXT,FEEDER
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)
8-98029-970-1
01
1
1505-
●
224
09.647 CABLE; EXT,FEEDER
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMO OTHER-EX(TYPE2)(8NS)
8-98029-970-1
01
1
1505-
●
●
227
09.647 PROTECTOR; EDGE
8-98053-117-0
01
1
1505-
●
●
●
295
09.665 INSULATOR; ANTENNA
8-98095-617-1
01
1
1505-
●
●
●
